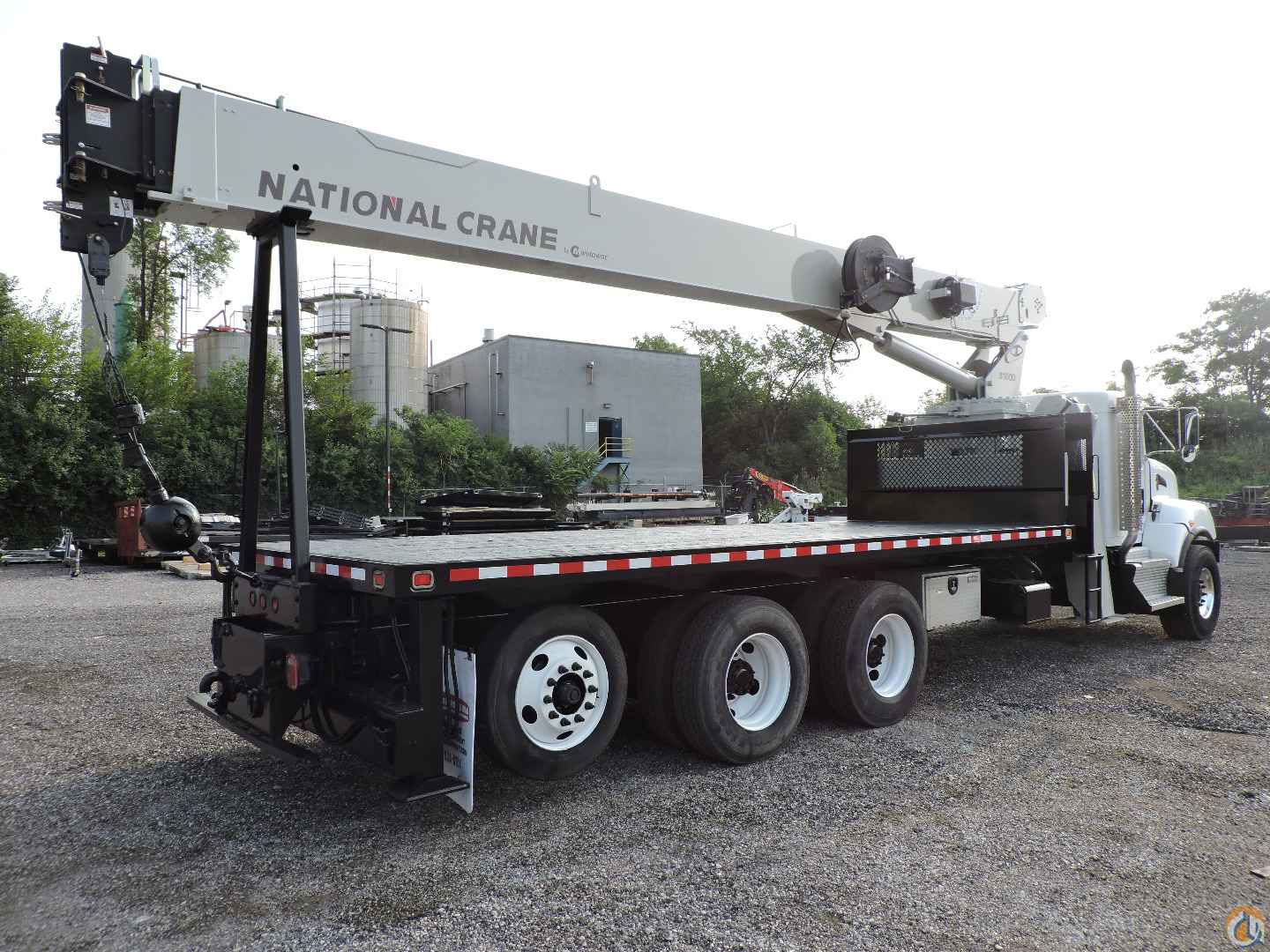

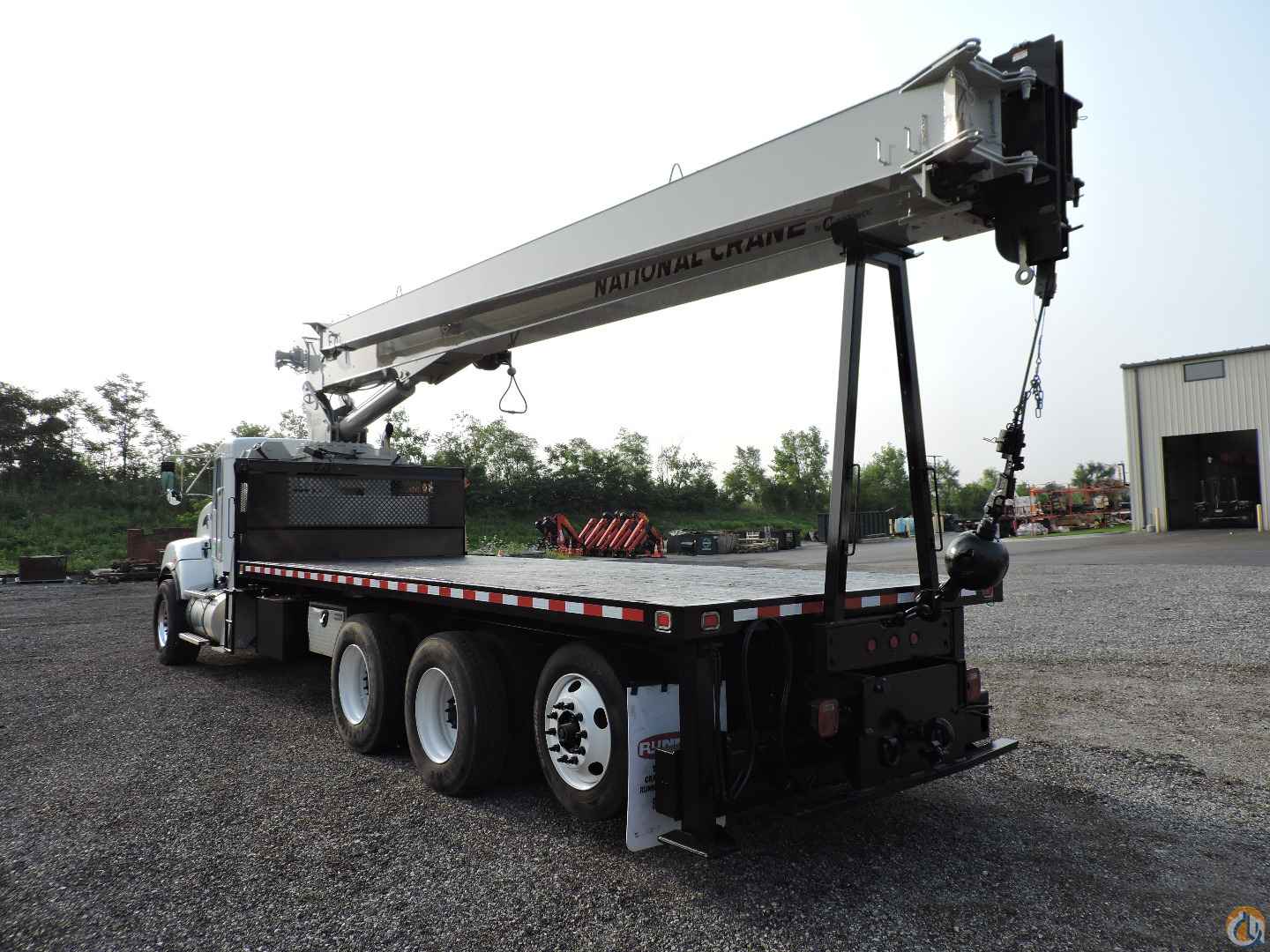

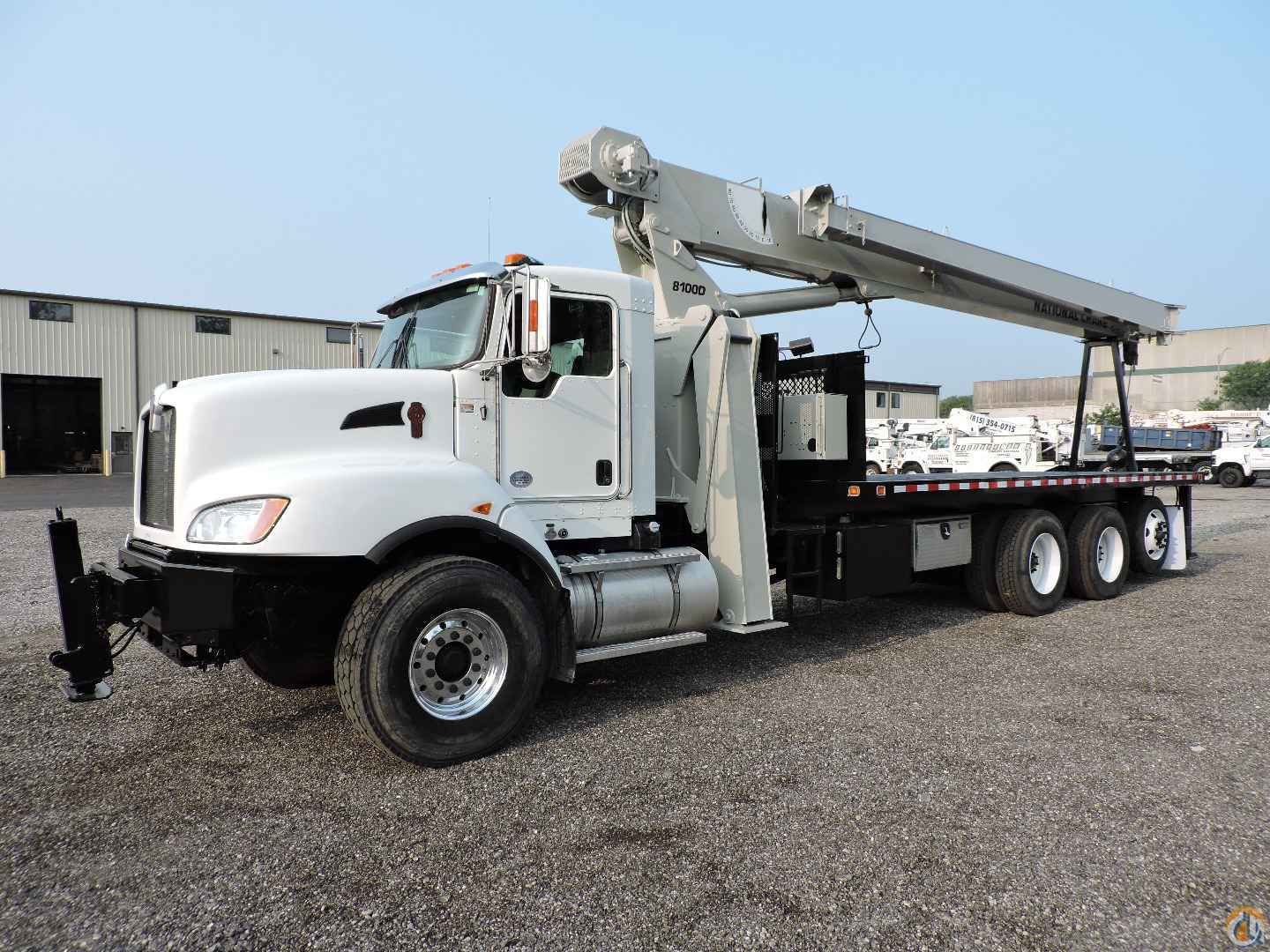

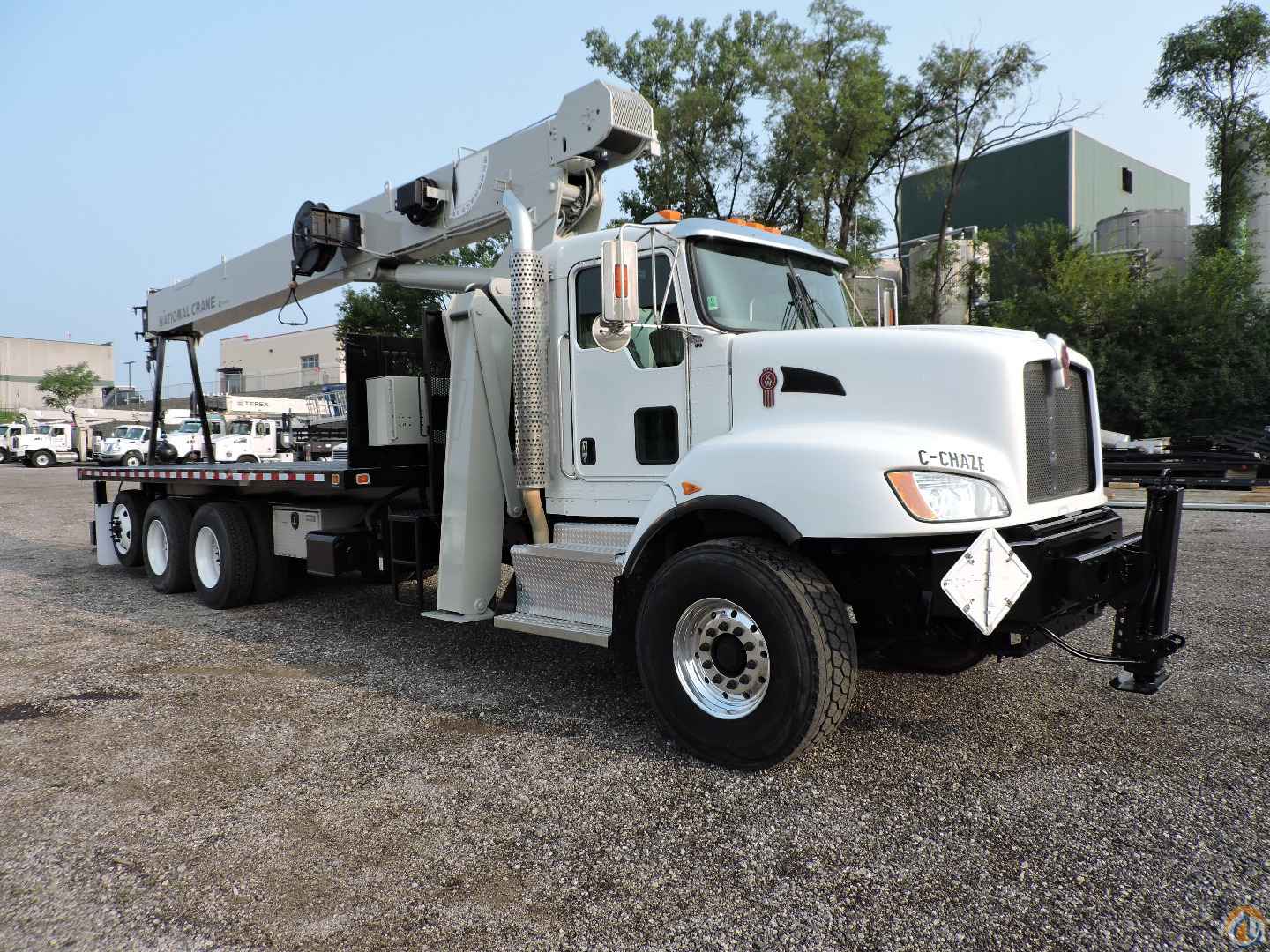

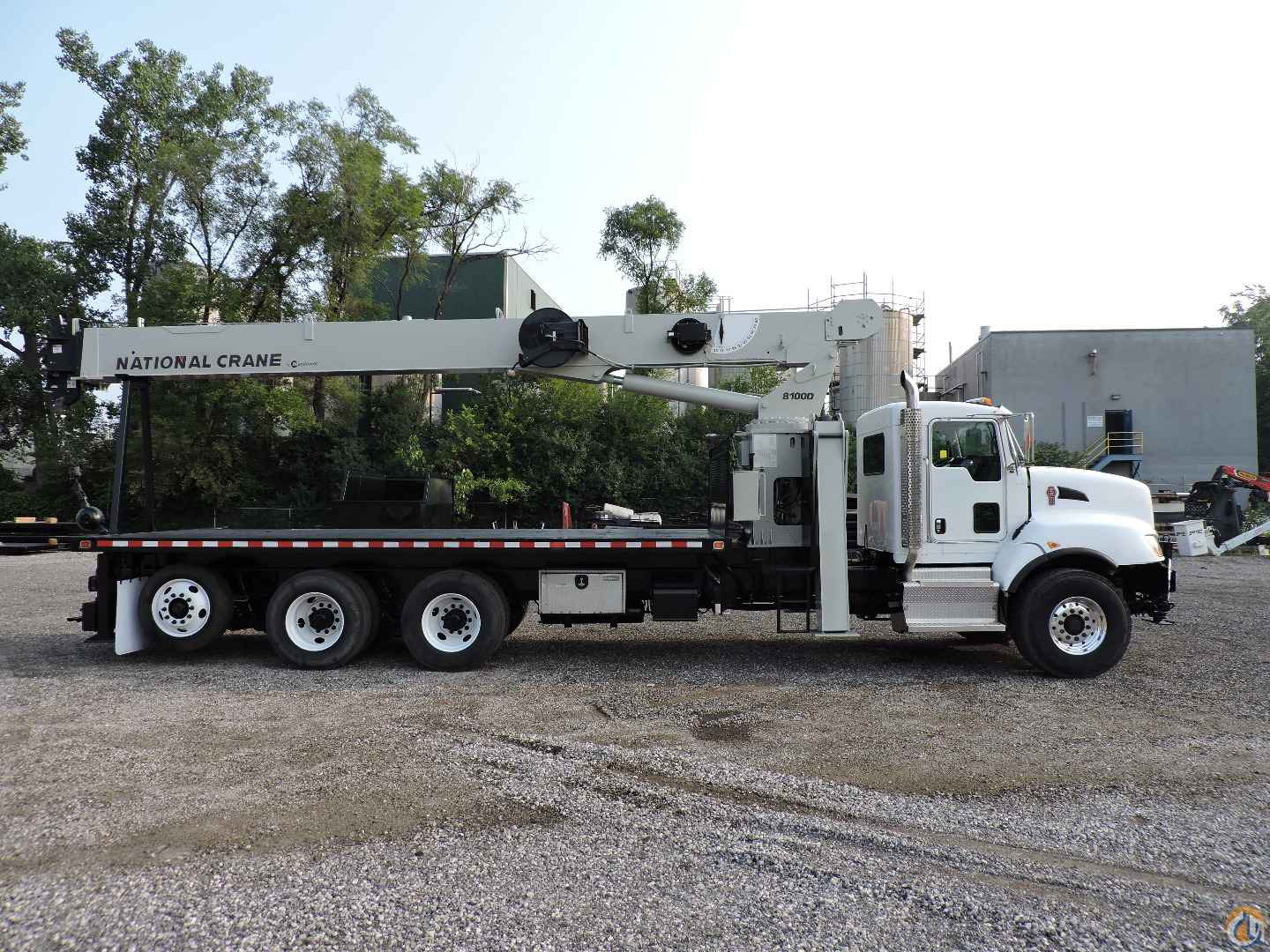

National Crane 8100D equipped as follows:

- 23 ton capacity

- 29’-6” to 100’ four (4) section boom – 110’ sheave height

- Two stage 25’-44’ jib. 154’ max tip height

- “A” type box slide outriggers in front 21’ span

- Out and down rear hydraulic stabilizers with 16’ span

- Single front outrigger for 360 degree stability

- Outrigger motion alarm

- Anti-two block safety device; shuts off telescope out and winch up controls and does not allow hook to be pulled into sheave case.

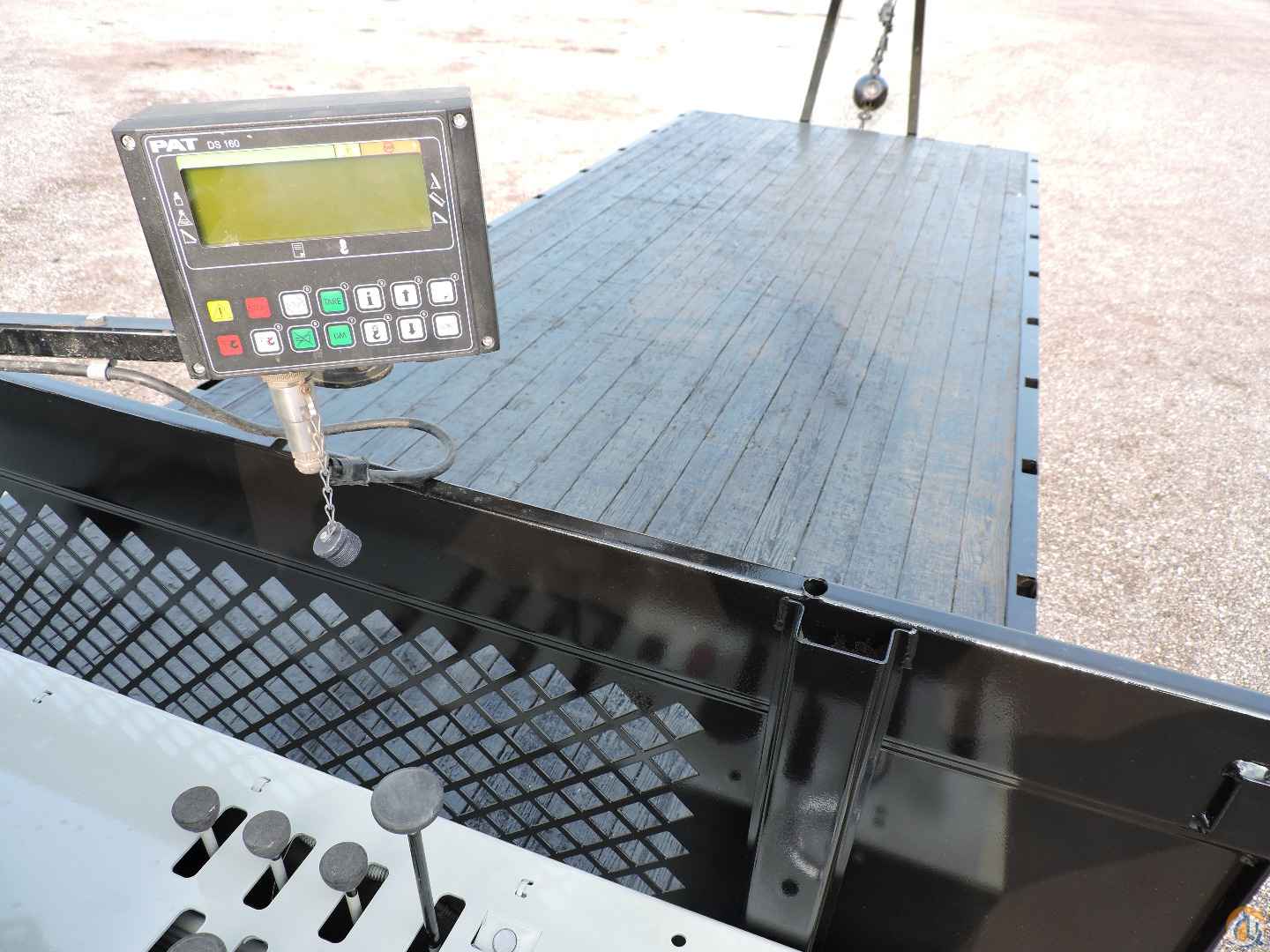

- Load moment indicator (LMI) computer capacity alert system – LMI has display console showing boom length, boom angle, maximum allowable load and load on hook, also allows for maximum or minimum boom angle presets

- Hi-performance planetary winch with 9/16” spin resistant wire rope

- 7 ton round downhaul style weight with top swivel and hook

- Burst-O-Speed winch with 147 FPM and 206 FPM line speed

- Dual side controls with operator platforms, foot throttles, horn and kill switches

- Operator platform 40” above ground for maximum visibility

- 375 degree planetary rotation non-continuous

- Adjustable swing speed

- 66 gallon hydraulic tank with return oil diffuser, sight gauge and shut off gate valve

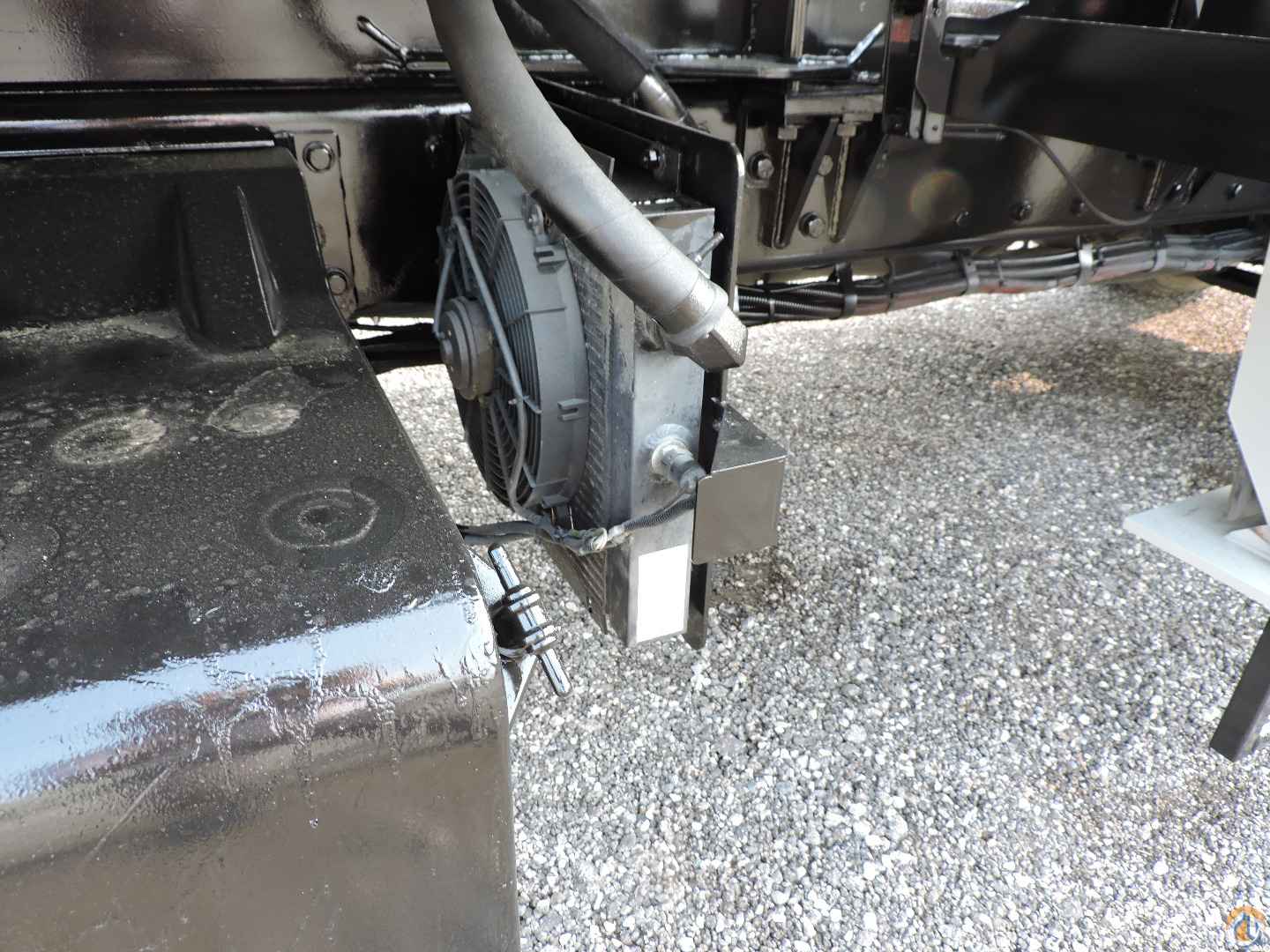

- Single fan oil cooler

- Hydraulic hose reel

- Painted National Platinum

- One removable boom rest

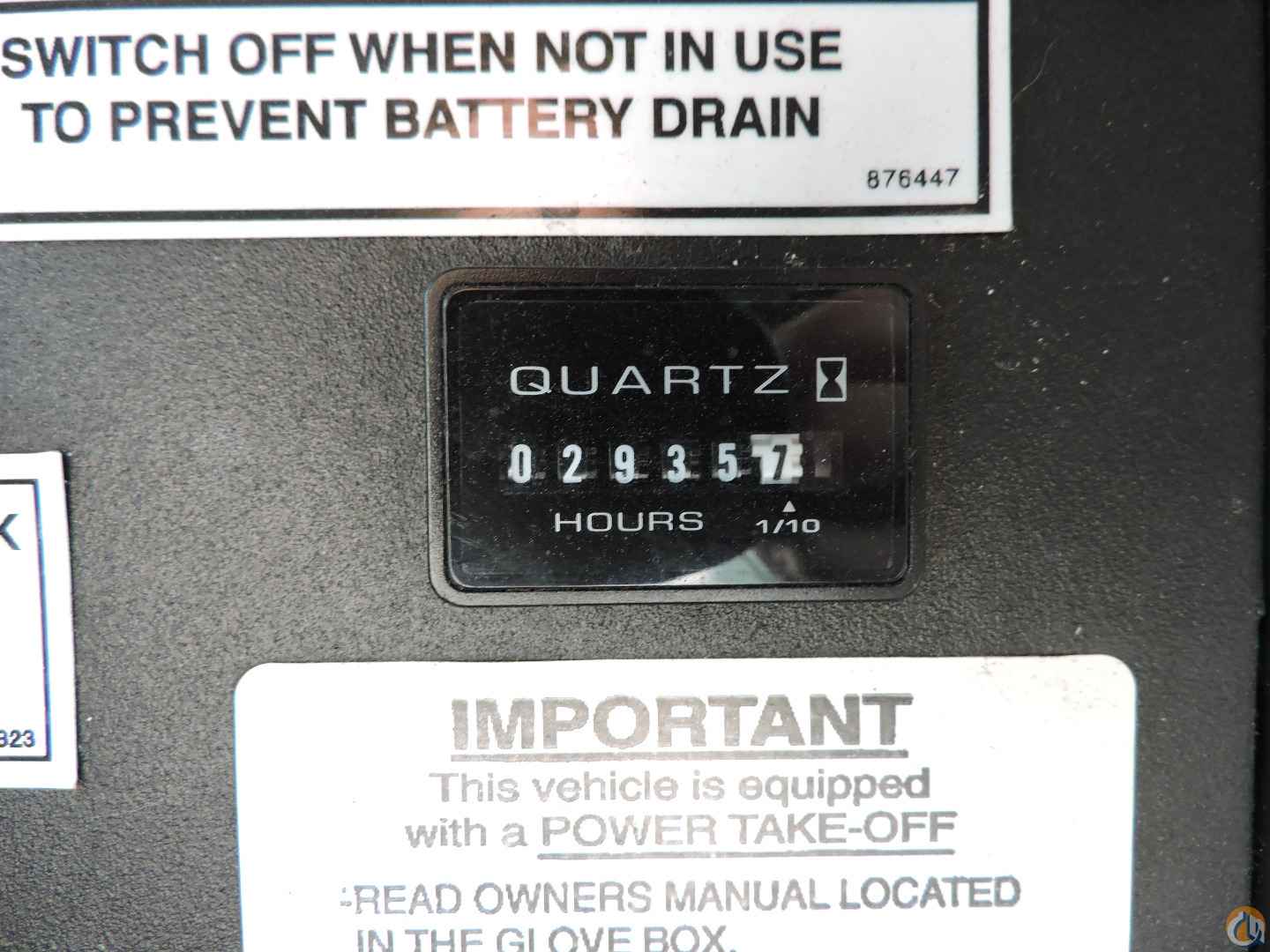

- Hour meter

- Reverse back-up alarm

- Air shift P.T.O.

- 22’ super duty wood deck with bulkhead

- Includes pintle hitch and two toolboxes

MOUNTED ON:

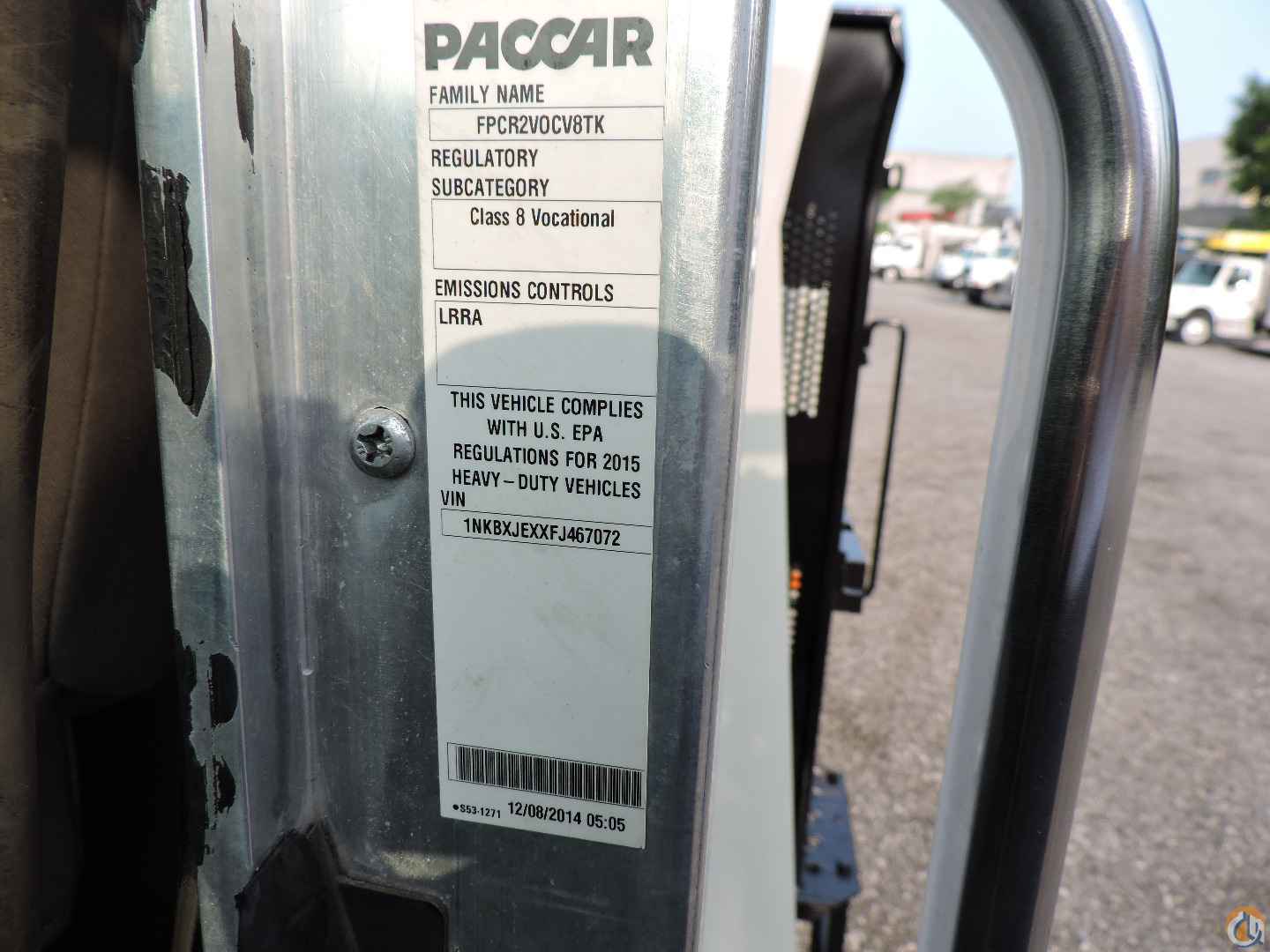

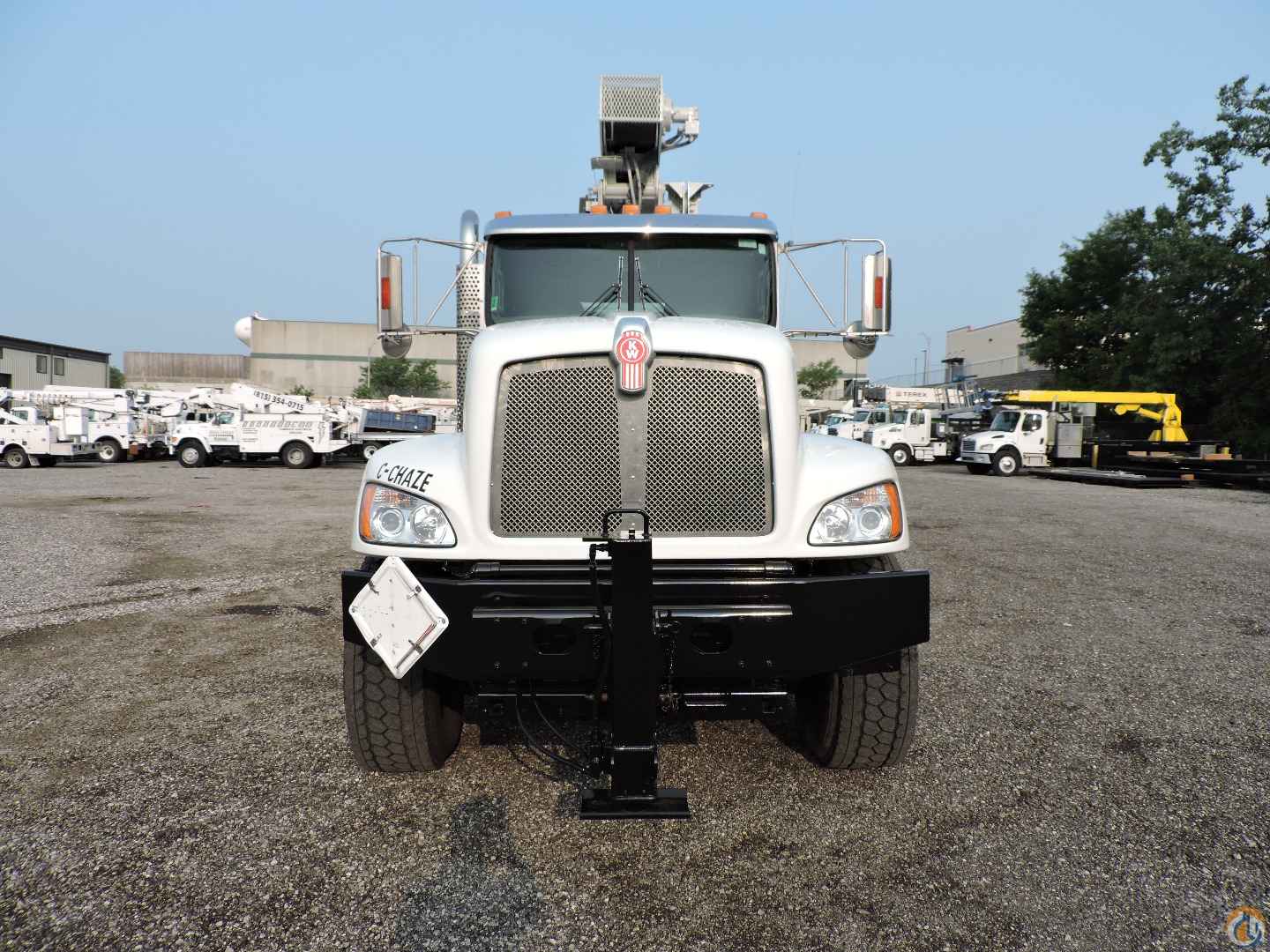

2015 Kenworth T470 equipped as follows:

- Cummins ISL9 380@1900, 365@2100, 1300@1400

- Fuller RTO14908LL 10-speed transmission

- Dana Spicer D2000F 20,000#

- Air cam front drum brakes 16.5 x 6

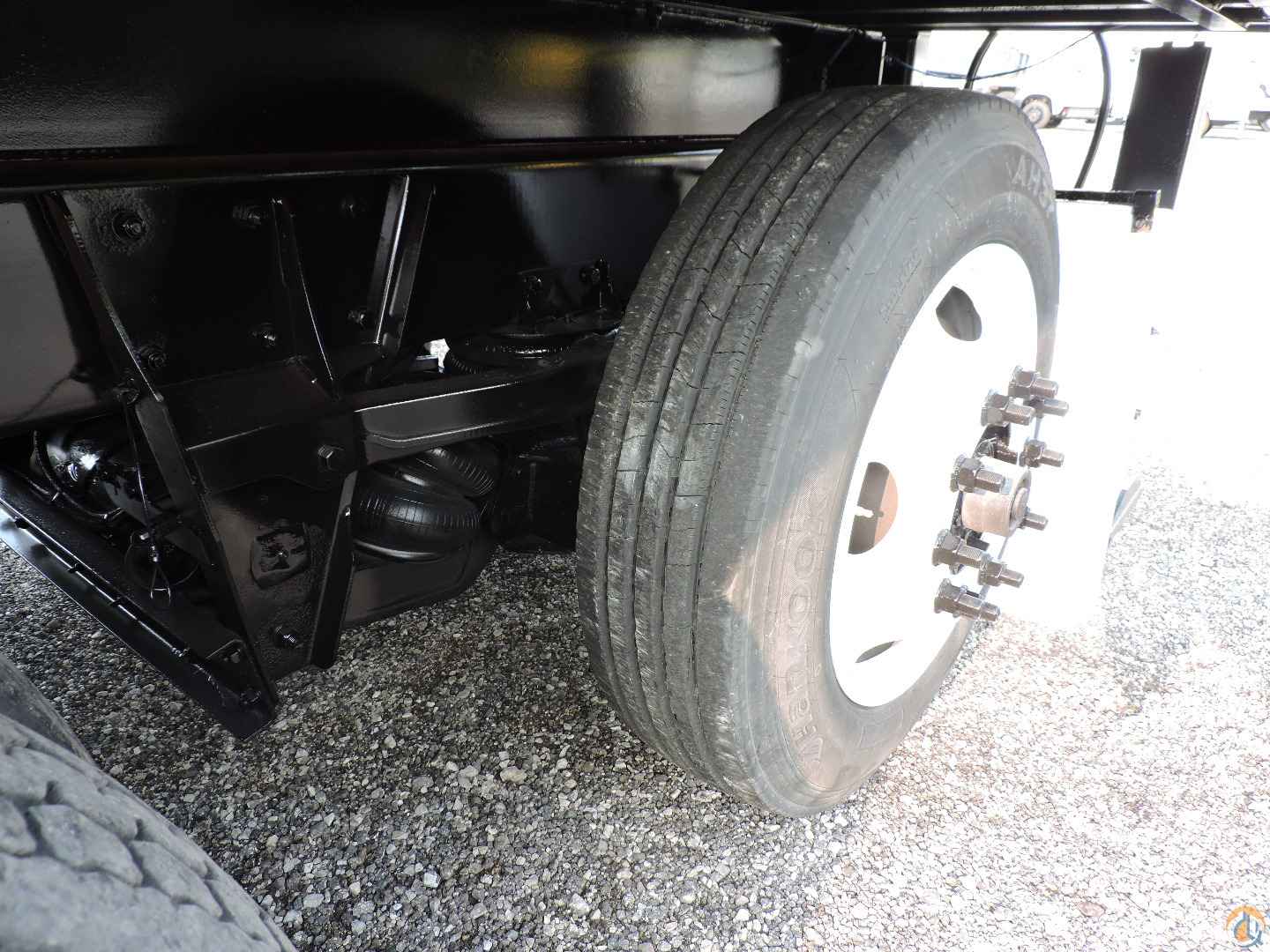

- Watson-Chalin TruTrack 13.2k rated tag axle

- Hendrickson Haulmaax HMX400 40,000#

- Front tires: Bridgestone M844F 425/65R22.5

- Rear tires: Bridgestone M711 11R22.5

- Front wheels: 22.5 x 12.25 aluminum

- Rear wheels: Steel

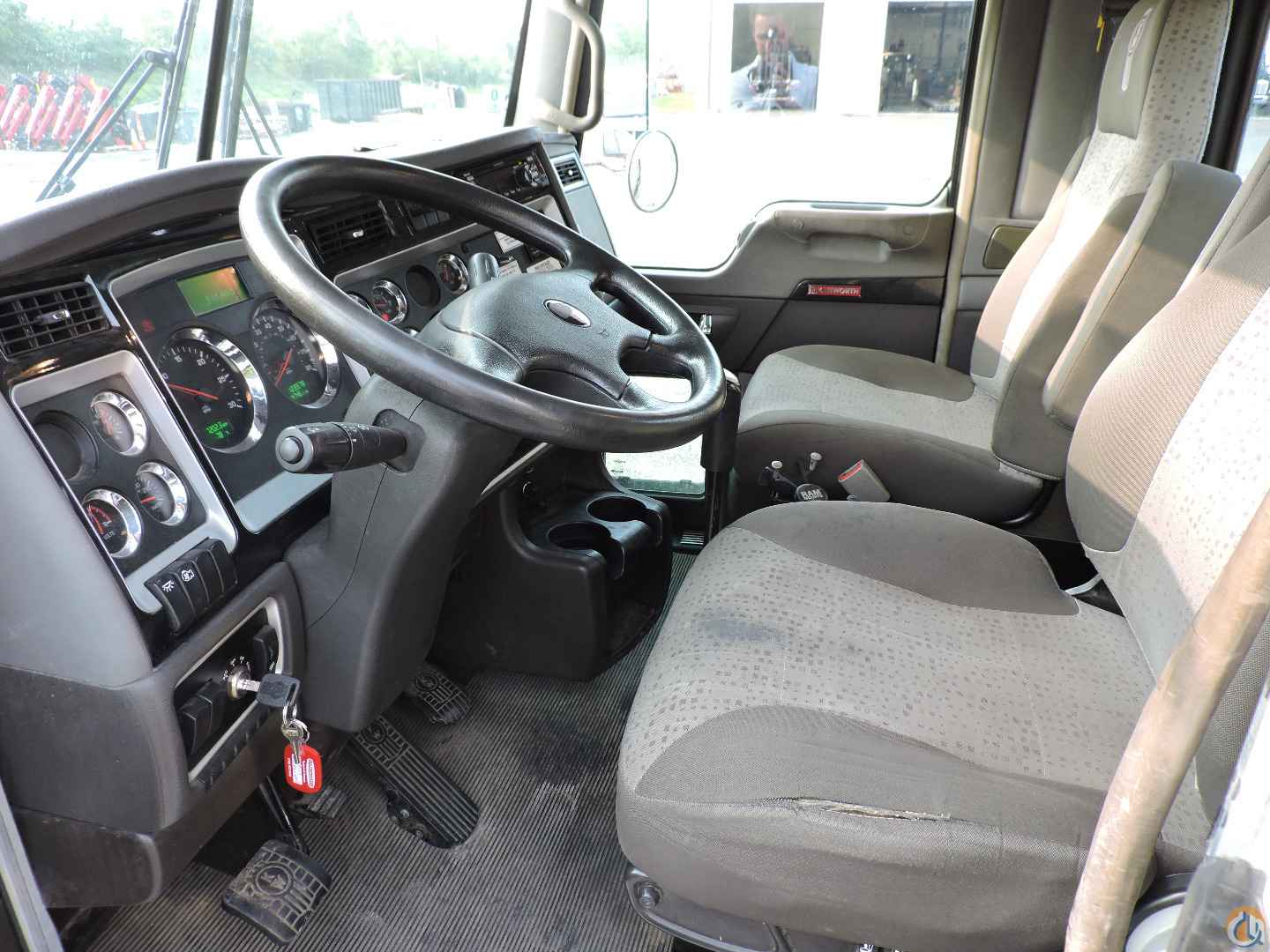

- 18” 4-spoke steering wheel

- Slate gray w/trim dark slate gray

- Kenworth air cushion driver seat

- Kenworth AM/FM/CD weather band w/LED radio
