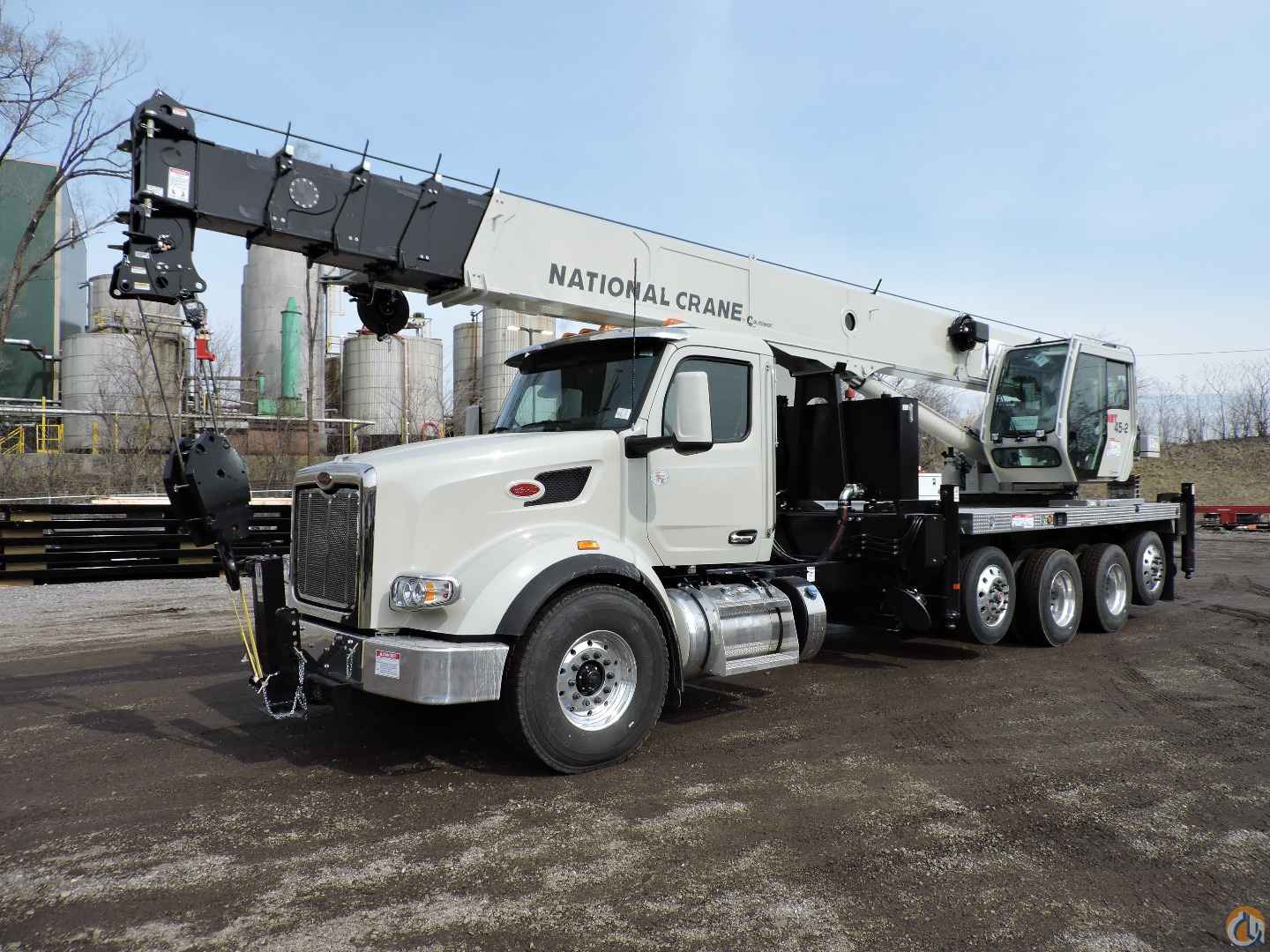

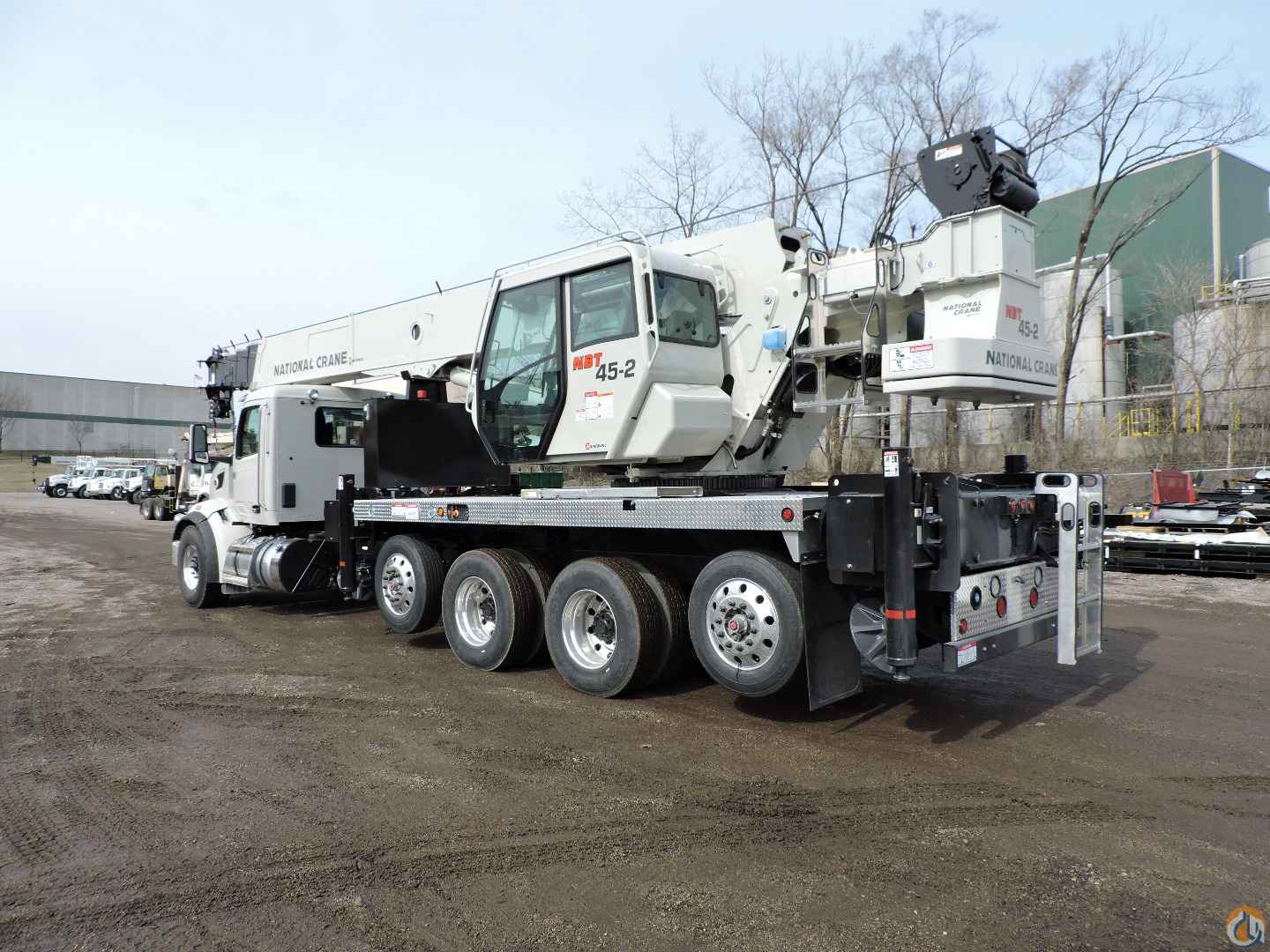

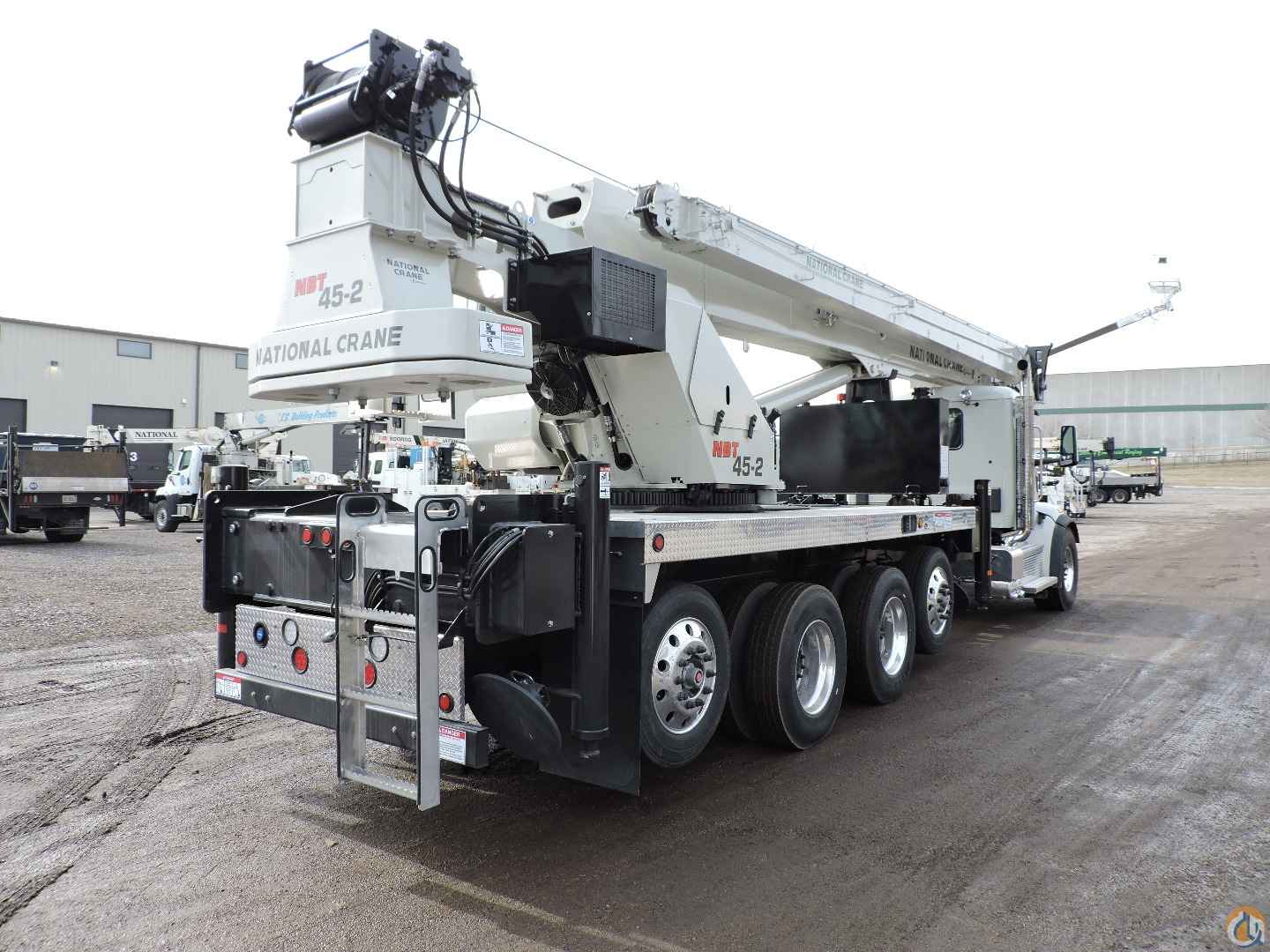

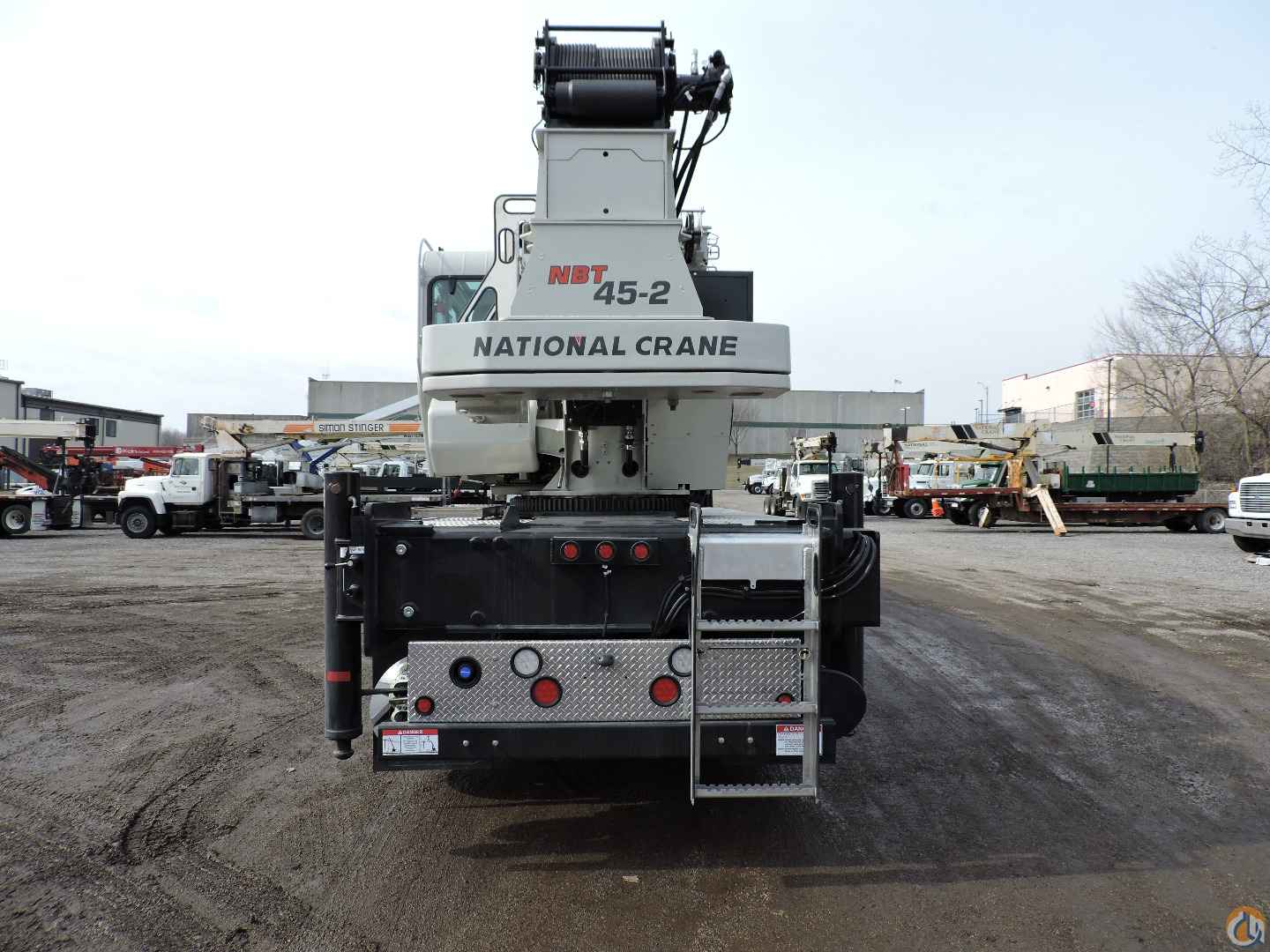

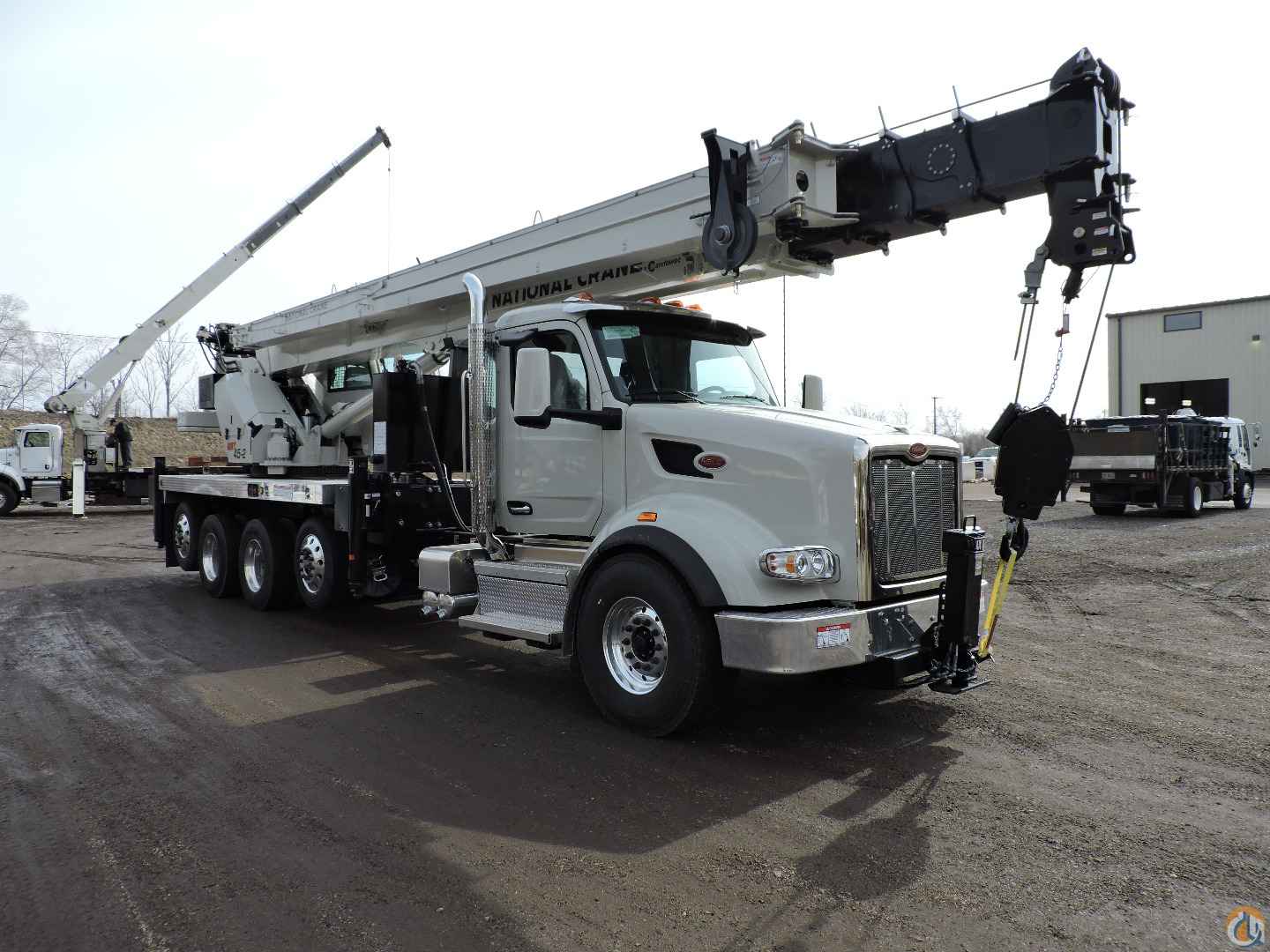

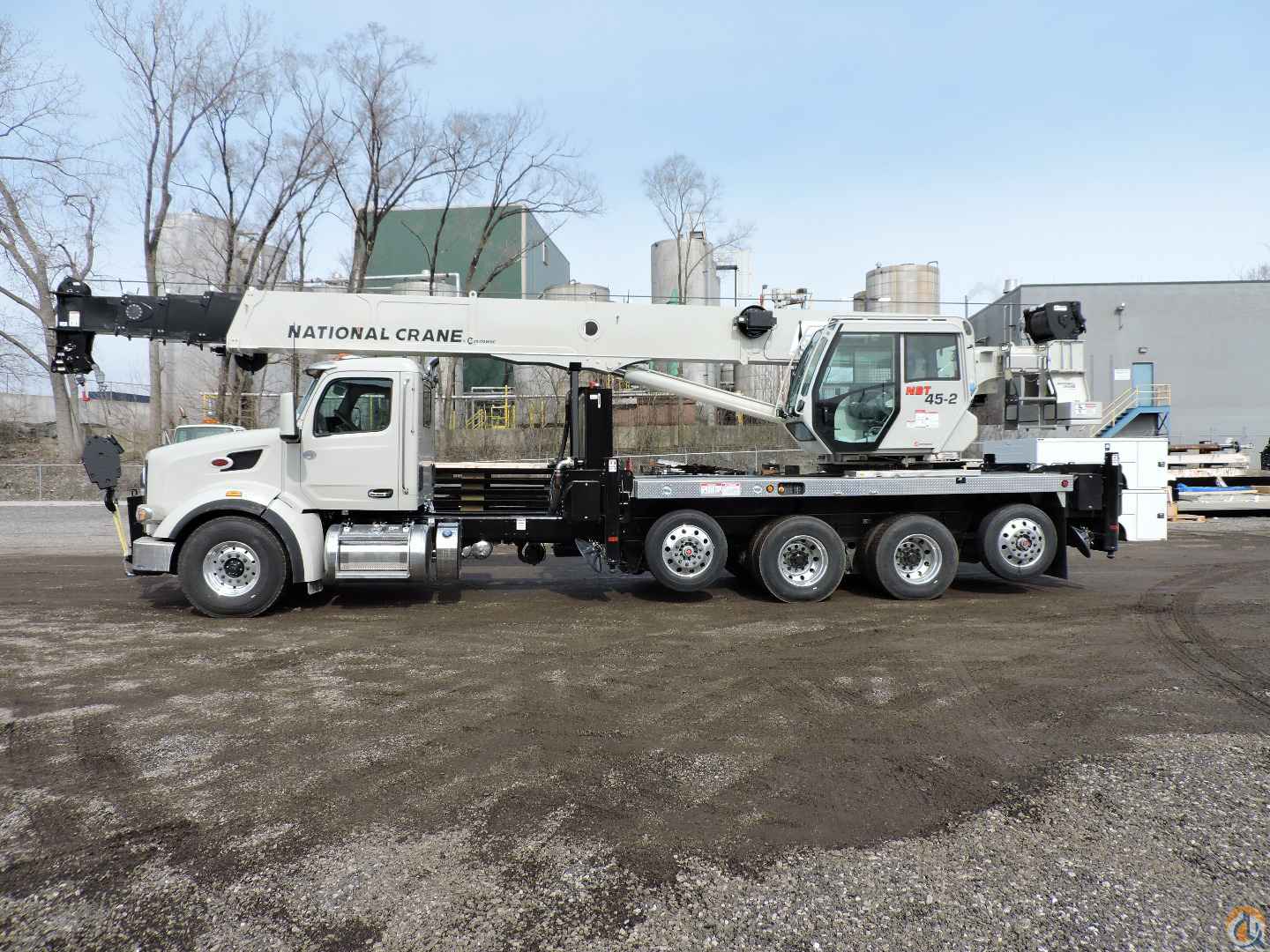

National Crane NBT45-2 equipped as follows:

- 45-ton capacity

- 5-section boom 31’ – 127’ – 137’ tip height

- Three quick reeve cast iron sheaves

- 31’ - 55’ manually telescoping jib

- Max counterweight package – Two rotating, superstructure mounted, non-removable counterweight slabs increasing load chart capacities

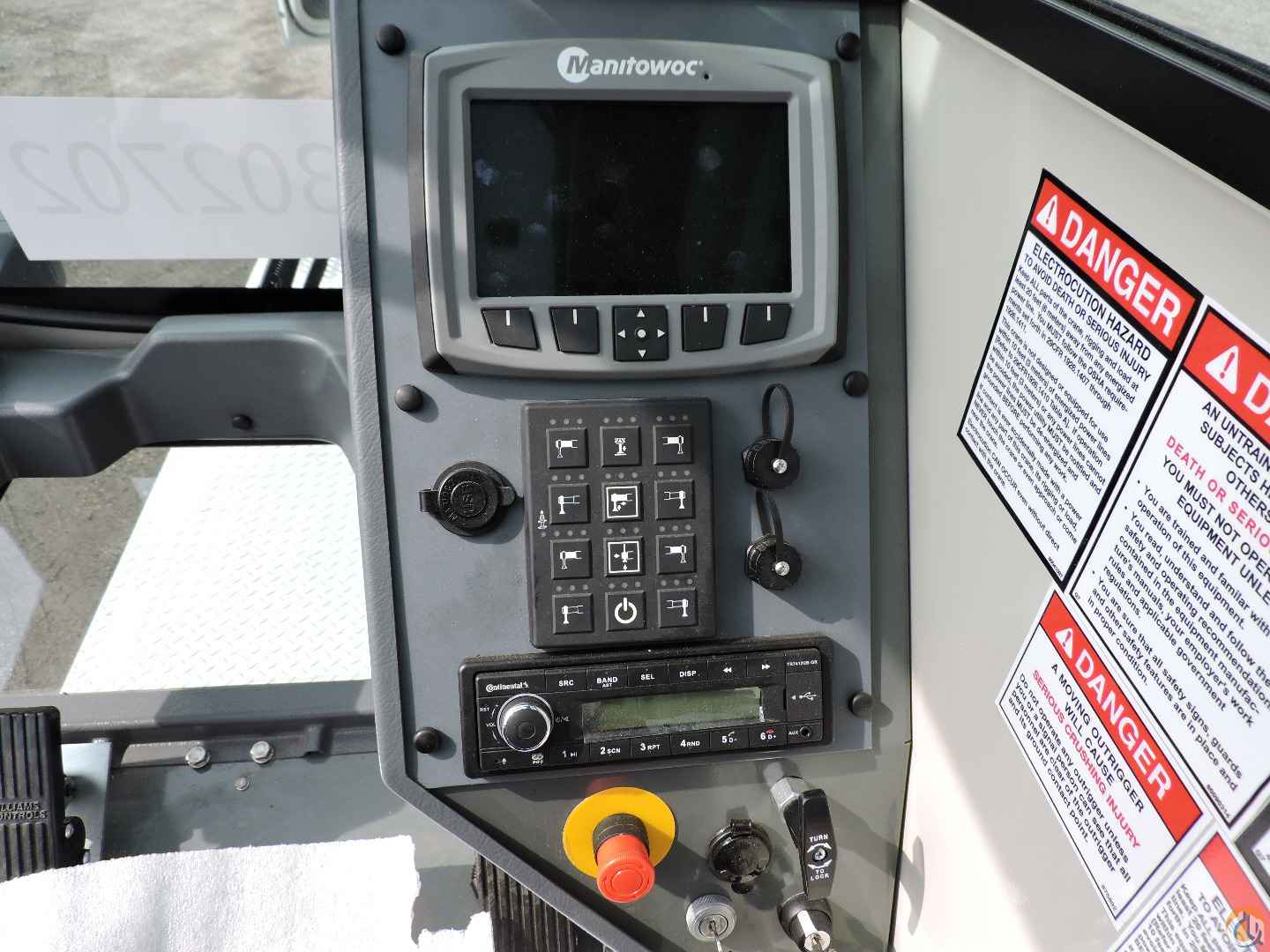

- Rated Capacity Limiter (RCL) and anti-two block system; graphical, color RCL system with audio/visual warning system and control lever lockout. Electronic display of boom angle, boom length, relative load moment indication, rated load, load, radius and boom tip height.

- Internal anti-two block system.

- Standard work area definition system (WADS) allows the operator to pre-select and define safe working areas. When crane approaches set limits, audio/visual warnings alert the operator of jobsite obstructions

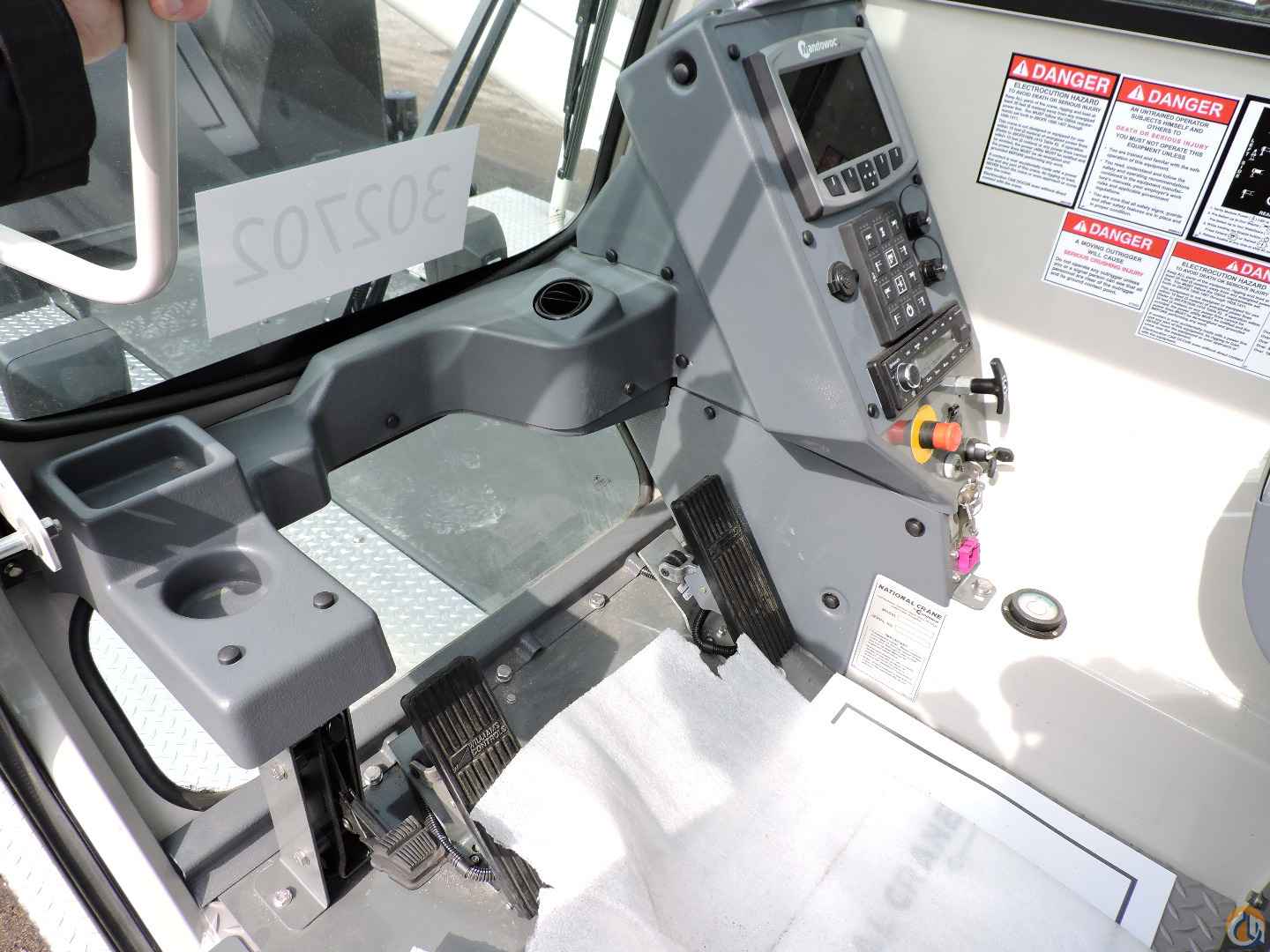

- 0° to 20° tilting cab with all steel construction crane cab, acoustical lining, and tinted glass

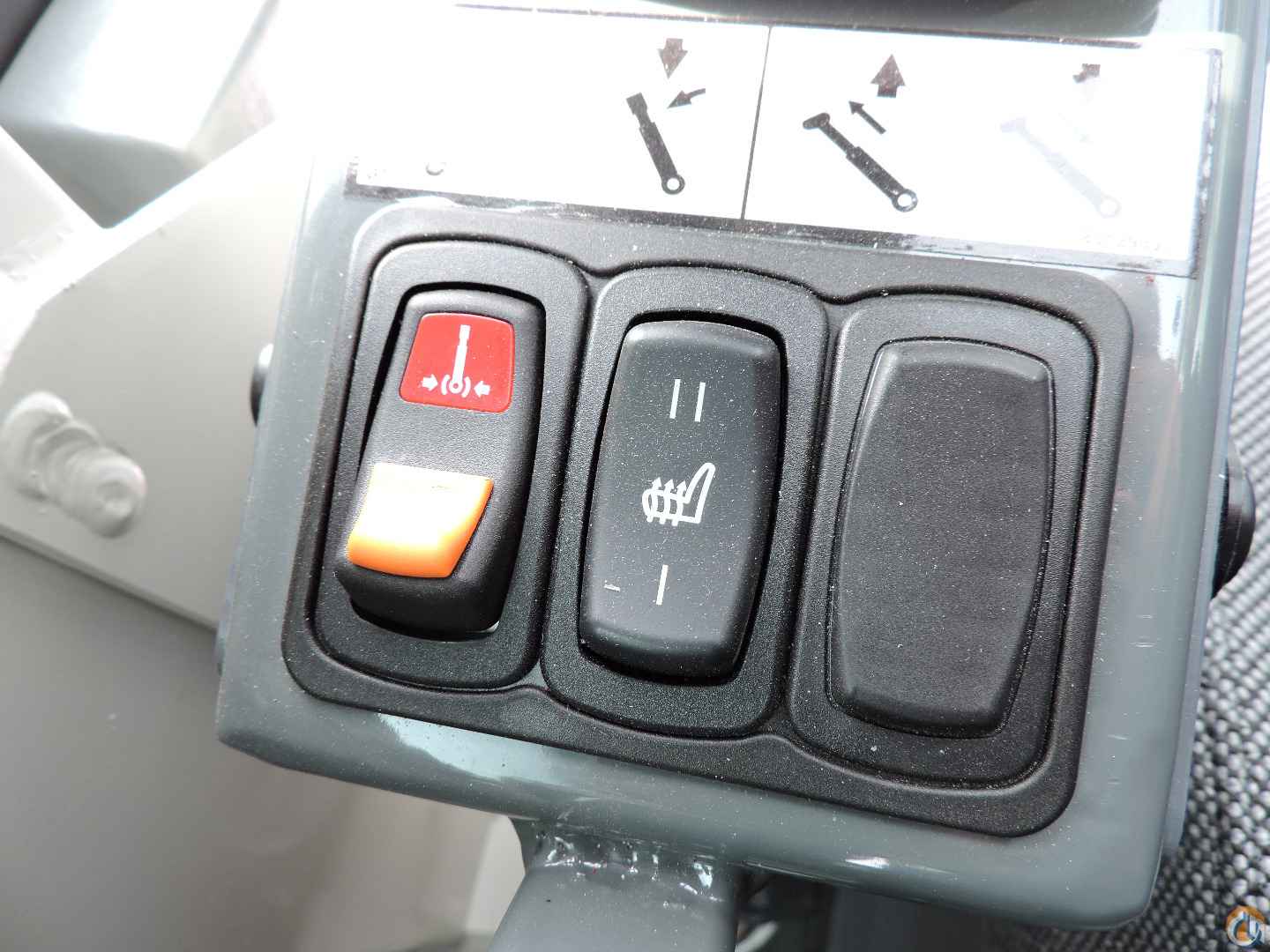

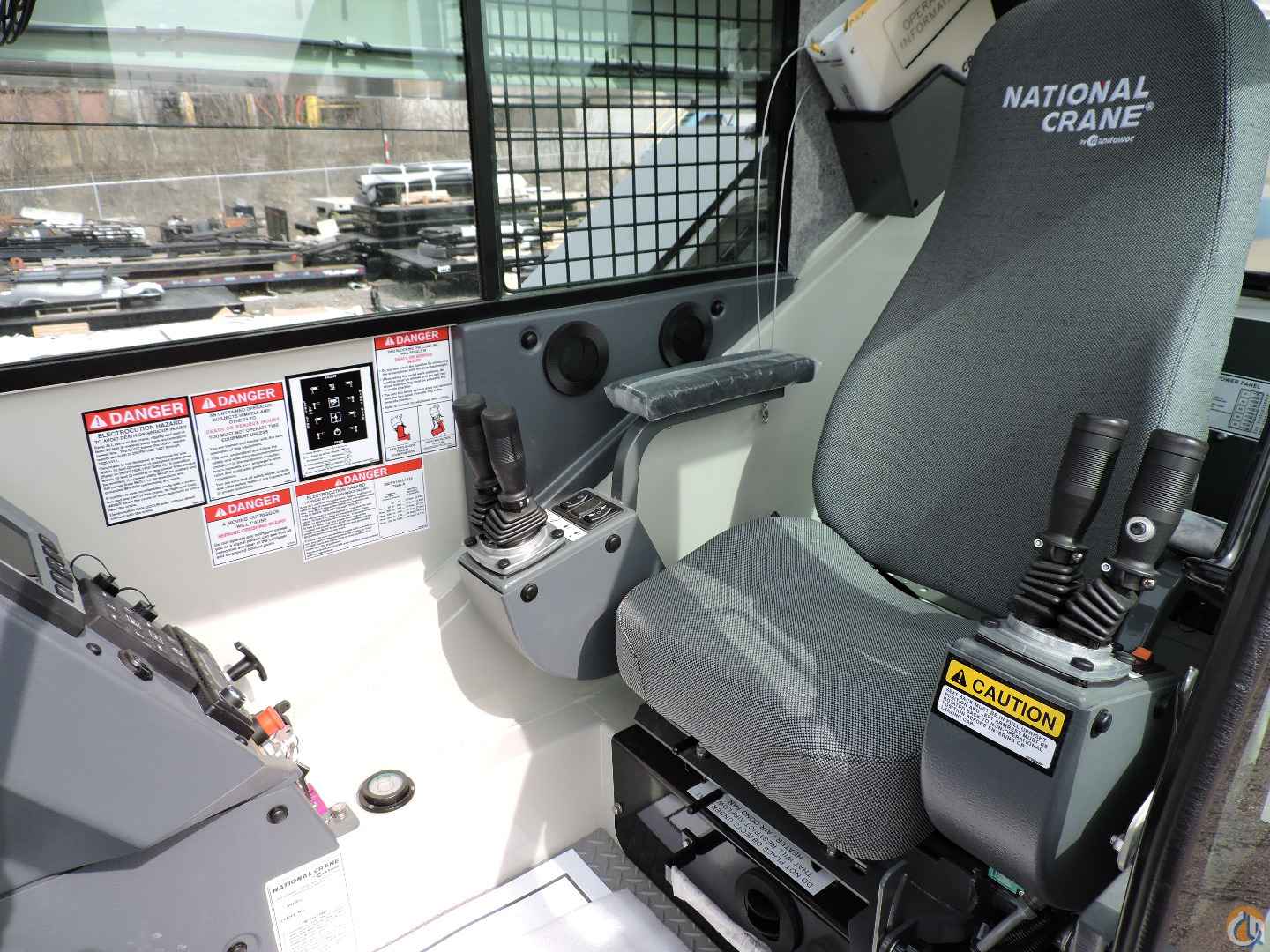

- Deluxe heated seat with armrest mounted single-axis electric controllers

- Windshield with electric wiper

- Sliding skylight with sunshade

- Hot water cab heater with defroster (diesel fired with remote diesel tank mounted to cab)

- Air conditioning and circulating fan

- AM/FM/Bluetooth radio with two (2) speakers

- Fire extinguisher

- Dual cab mounted work lights

- Engine start/stop switches

- Signal horn

- 360-degree continuous rotation

- Planetary glide swing with foot actuated multi-disk brake and pinion guard

- Manually applied rotation lock

- Pressure compensated, load sense, closed center hydraulic system

- Variable displacement piston pump

- 122-gallon hydraulic reservoir

- Filter condition indicator

- Oil temperature transducer and oil cooler with electric fan and butterfly valve on suction line

- Main hoist with grooved drum, two-speed power up and down, automatic multi-disc brake, electronic drum rotation indicator and drum cable follower. Bare drum maximum pull 17,250 lbs.

- 450’ of 5/8” diameter 35x7 wire rope (5:1 design factor) for main hoist

- Single line pull 11,280 lbs.

- 20-ton single sheave “Quick Reeve” type block with swivel hook and safety latch

- Hydraulic front and rear outriggers. Two section extendable beams with integral check valves. 20” diameter polymeric outrigger floats. Controls located in crane cab and on both sides of sub frame.

- Single front outrigger

- Outrigger Monitoring System included

- Outriggers have three position settings (0%, 50%, 100%)

- Outrigger motion alarm

- 360 degrees stable

- Back-up alarm

- Marker and indicator lights

- Full-length aluminum flat decking

- Fold down ladder on driver’s side for crane cab access

- One removable ladder stowed/locked at the rear of the crane frame

MOUNTED ON:

2023 Peterbilt 567 equipped as follows:

- Cummins X15 500 hp @1900 rpm, GOV@2000, 1650 ft/lb @950 rpm

- Engine block heater 110-120V

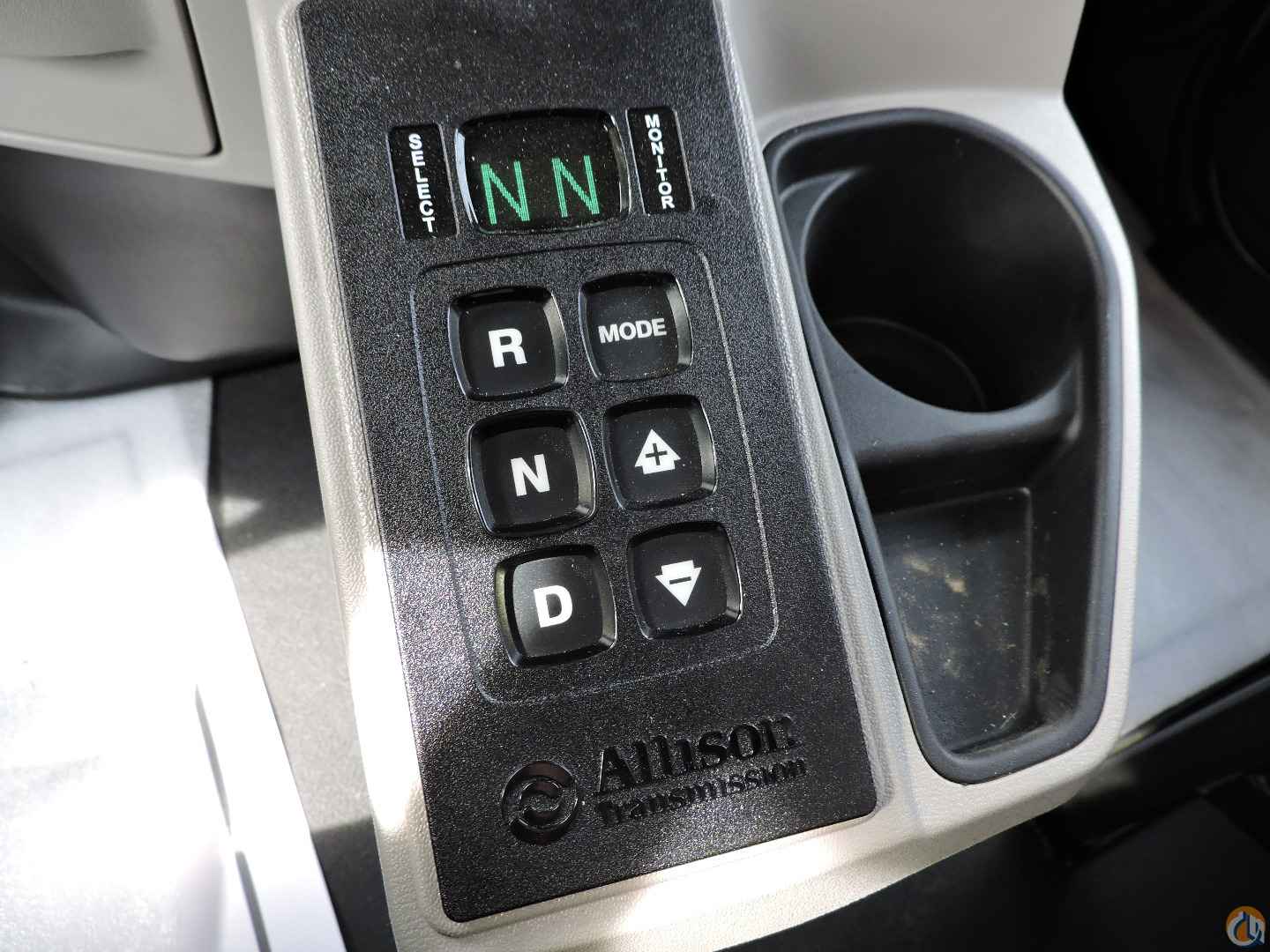

- Allison 4500 RDS-P Transmission, Gen 5

- 20,000 lb PACCAR front axle

- 20,000 lb front Taper-leaf spring suspension with heavy resistance shocks

- 46,000 lb Dana Spicer rear axle

- 46,000 lb Hendrickson Haulmax HMX460 rear suspension

- 4.30 rear axle ratio

- Differential lock tandem axles

- Watson-Chalin 13,500 lb self-steering tag axle

- Watson-Chalin 13,500 lb self-steering pusher axle

- Tires

- Front – 20 ply 425/65R22.5

- Rear – 14 ply 11R22.5

- Tag/Pusher – 18 ply 275/70R22.5

- Aluminum wheels with clean buff finish

- 4 PACCAR premium 12V batteries – 2920 CCA total

- Exhaust single RH side of cab, chrome

- Bendix air dryer with heater

- Polished aluminum air tanks outside

- 26” aluminum 90-gallon fuel tank

- Aluminum bumper swept back polished

- Stainless steel cover for DEF tank

- Thermal insulation package in cab

- Rubber fender lips 4.5” extra wide

- Peterbilt high-back driver seat, air ride, vinyl, w/ dual arm rests

- Peterbilt high-back passenger seat, fixed, vinyl

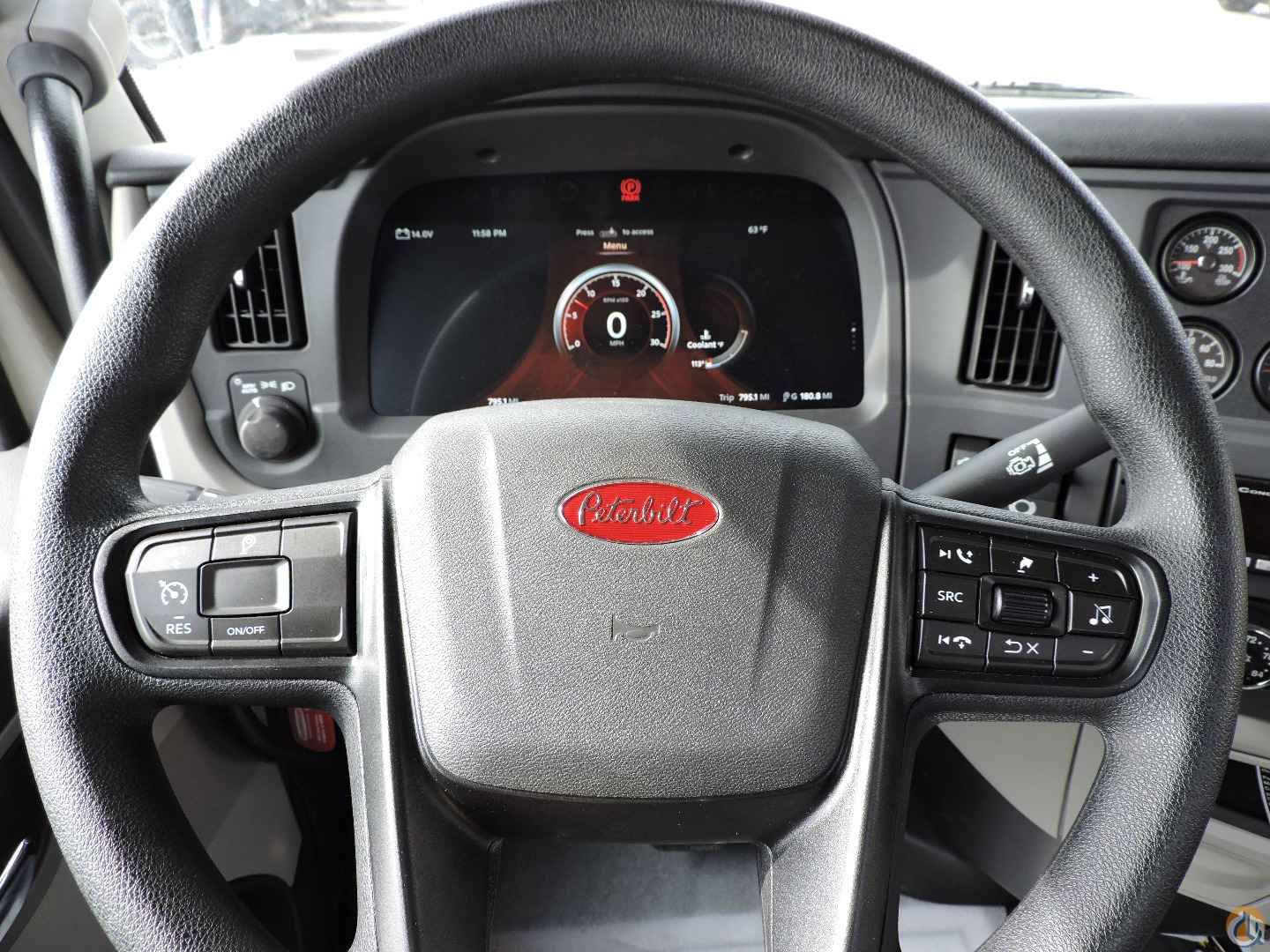

- Adjustable steering column, tilt/telescope

- ConcertClass stereo – AM/FM, WB, USB, BT phone

- Power lift windows

- Power door locks

- Outside sunvisor stainless steel

- Air horn

- Cab air suspension

- Triangle reflector kit

- Fire extinguisher

- Painted Sand Gray

STOCK PHOTOS – MAX COUNTERWEIGHT NOT SHOWN
