BOOM DETAILS

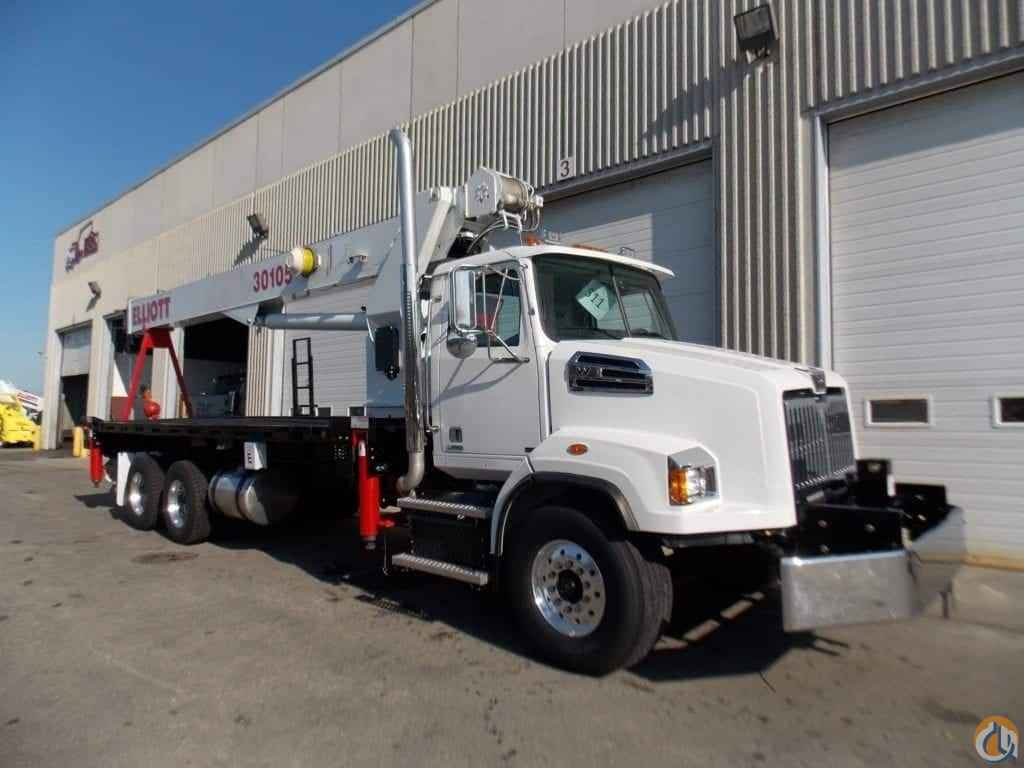

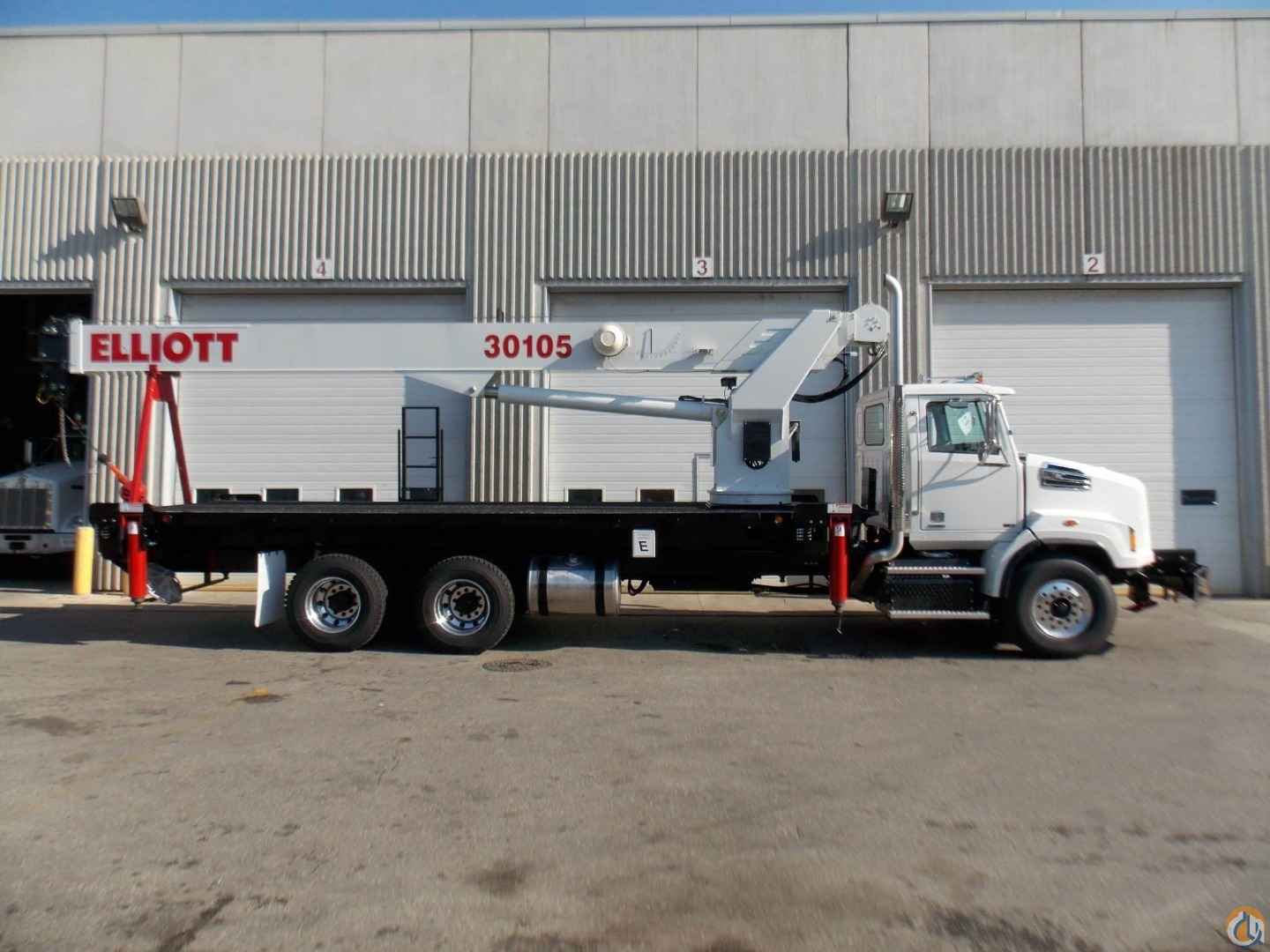

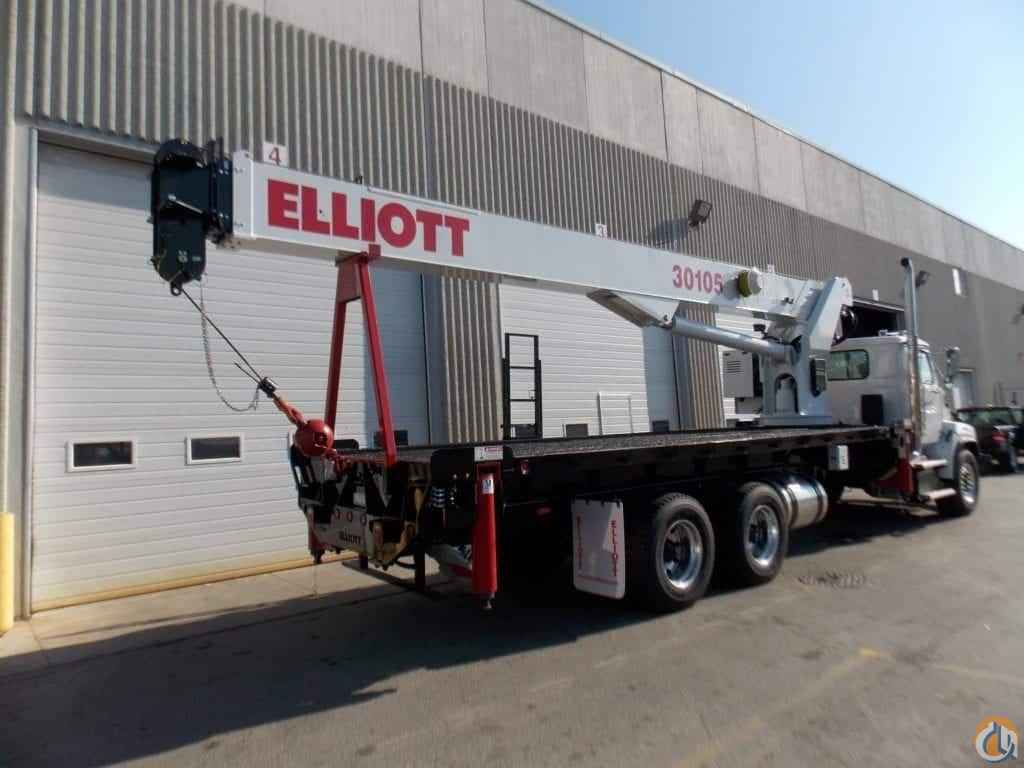

NEW ELLIOTT MODEL 30105F – 30-Ton Capacity @ 5 ft Load Radius
- 31’ – 105’ High Strength 4-Section Boom
- 117 ft Sheave Height Fully Extended – 3-Sheave Head
- 372 Degree Non-Continuous Rotation
- 2 Sets Hydraulic Out & Down Outriggers – 20 ft Span Each C/W Removable Ball Socket Aluminum Pads
- 120-Gallon Hydraulic Oil Tank
- Independent Individual Outrigger Controls – Mid and Full Span Outrigger Options

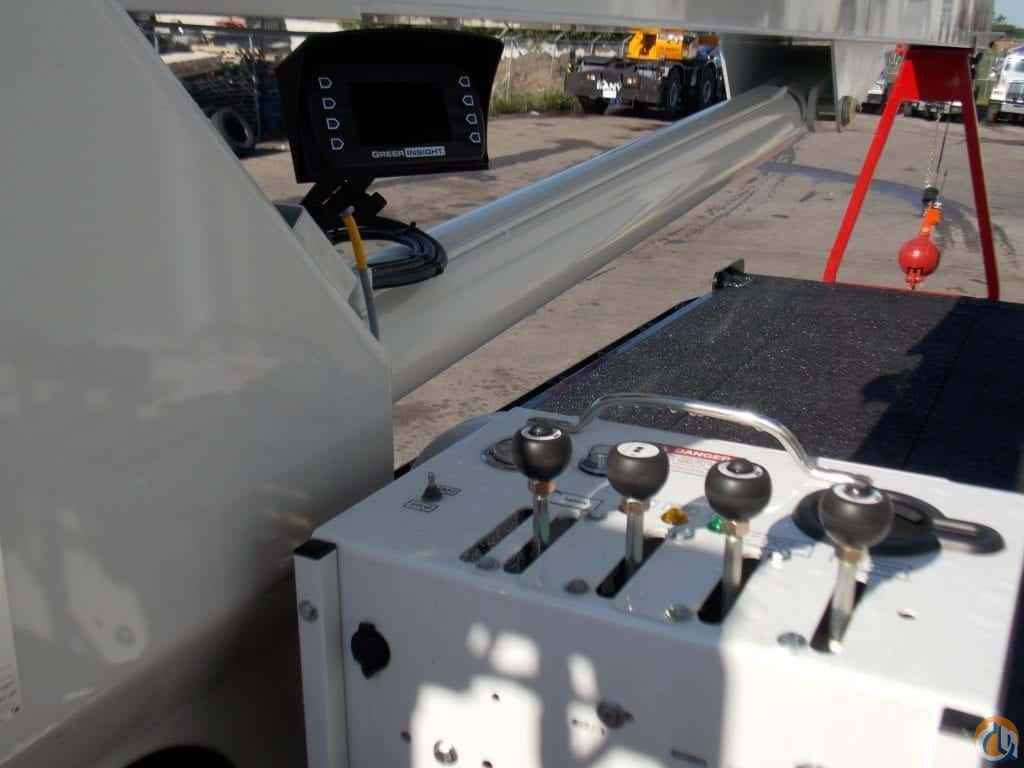

- Stand-up Operator Console & Platform – Rotates with Turret
- 9/16” Diameter Rotation-Resistant Wire Rope – 425 ft w/ 4-Sheave Boom Head, Downhaul Ball w/Swivel Hook
- 12,700 lb Planetary Burst of Speed Bare Drum Pull Winch w/ 9,060 lb Single Line Pull
- Anti-Two Block Device and Load Moment Indicator w/Hydraulic Overload Lockout
TRUCK DETAILS

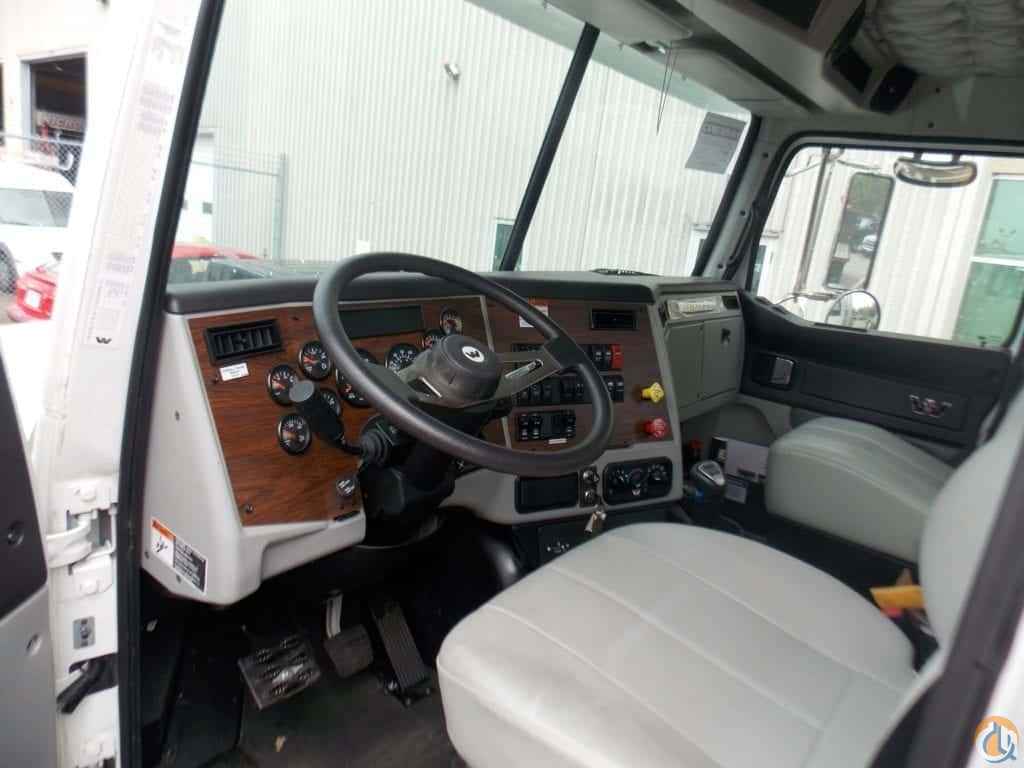

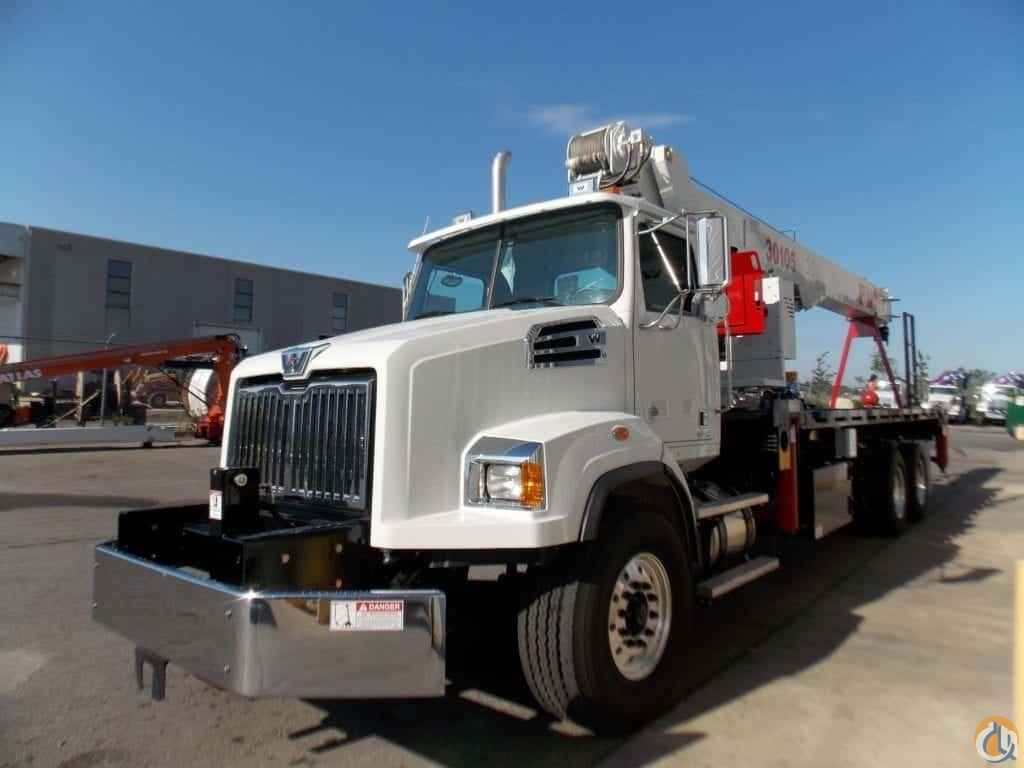

NEW WESTERN STAR 4700 T/A TRUCK
- Detroit Diesel DD13 – 470 HP Engine – 1,650 ft/lbs Torque with Jake Brake
- Eaton Ultrashift Plus 18-Spd Automated Trans
- 4.33 Rear Axle Ratio, Double Frame, 270” Wheel Base
- 20,000 lbs Steer Front Axle on 425/65/R22.5 Tires
- 40,000 lbs Rear Axle on Tuftrac Suspension with 11R22.5 Tires, 54″ Spread
- 60,000 lbs GVWR
- Included Options: AM/FM Stereo, A/C, 60 & 80-Gallon Fuel Tanks, Power Windows, Power Locks, Heated Mirrors, Aluminum Front & Rear Rims, Chrome Bumper
DECK DETAILS

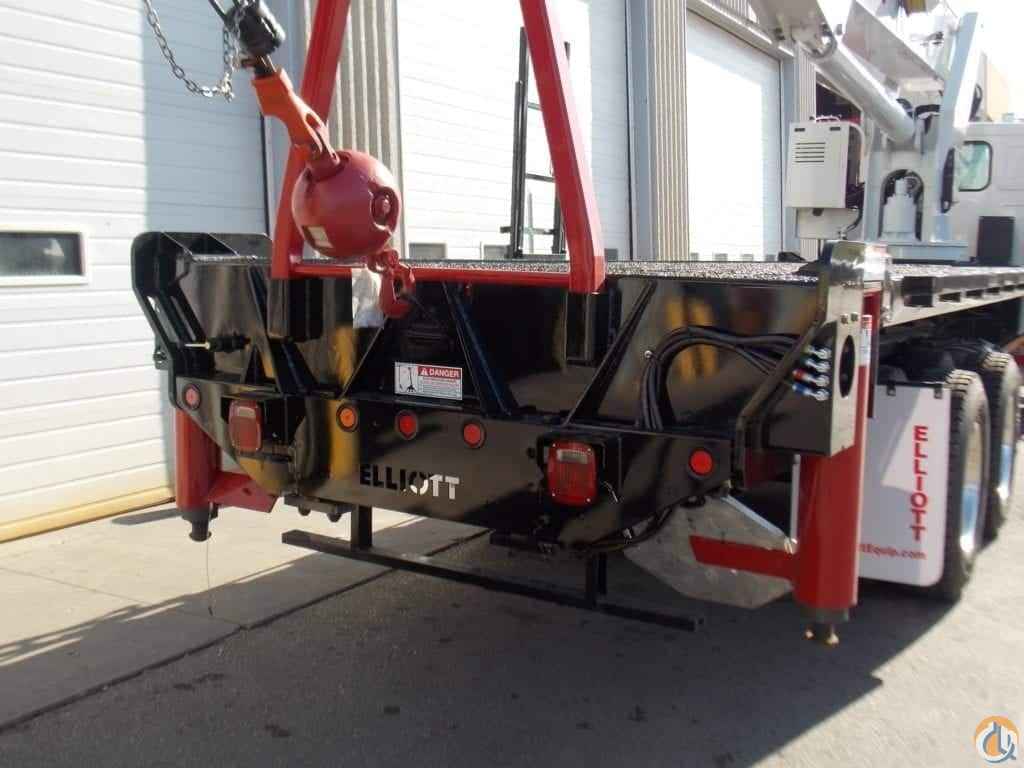

NEW 22’ STEEL FLAT DECK
- Steel Deck with Rubberized Top Coating on Surface
- Reflectors and Side Lights as Required by DOT Standards
- Condition: New
- Location: Milford Massachusetts USA
