BOOM DETAILS

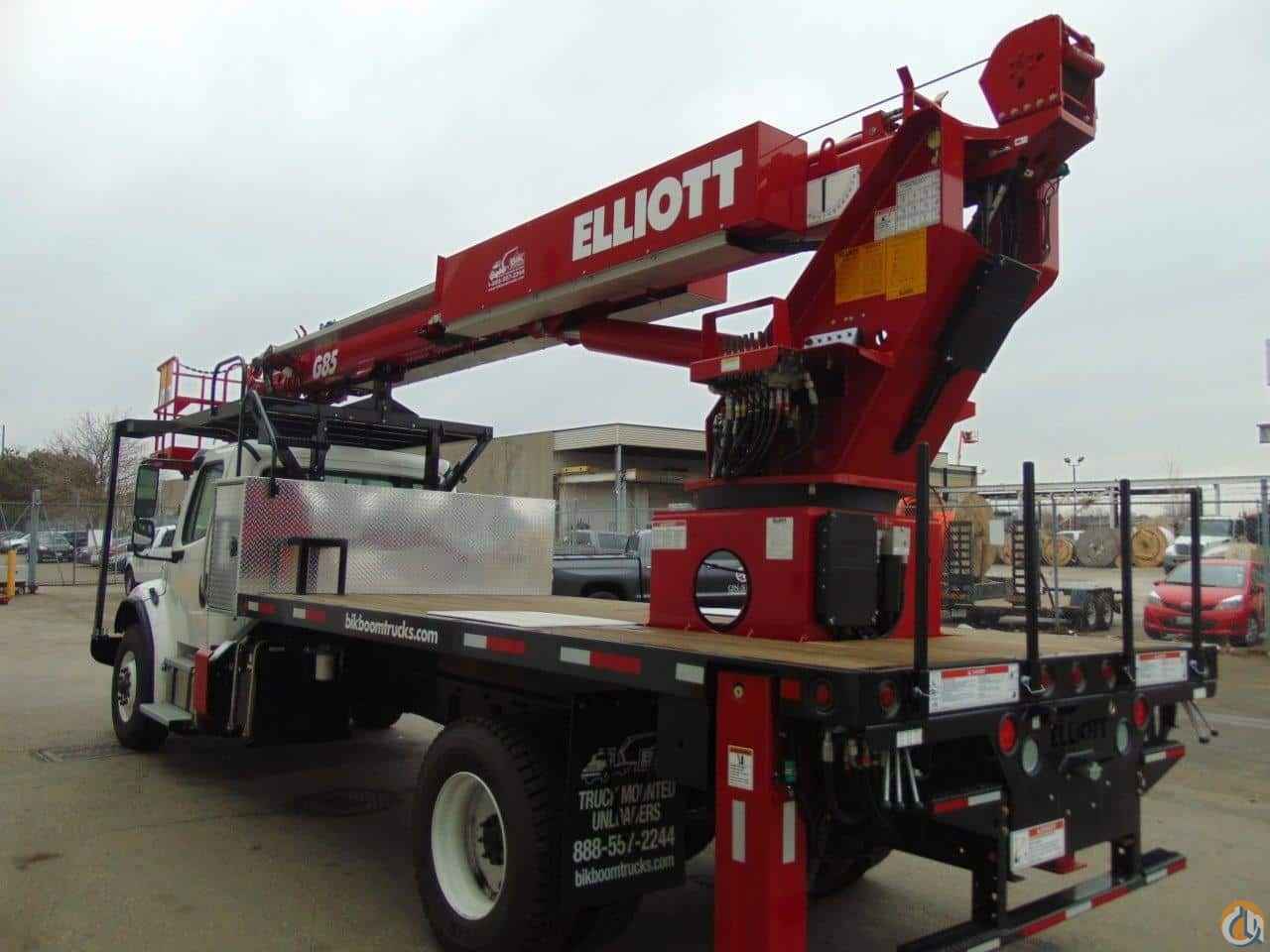

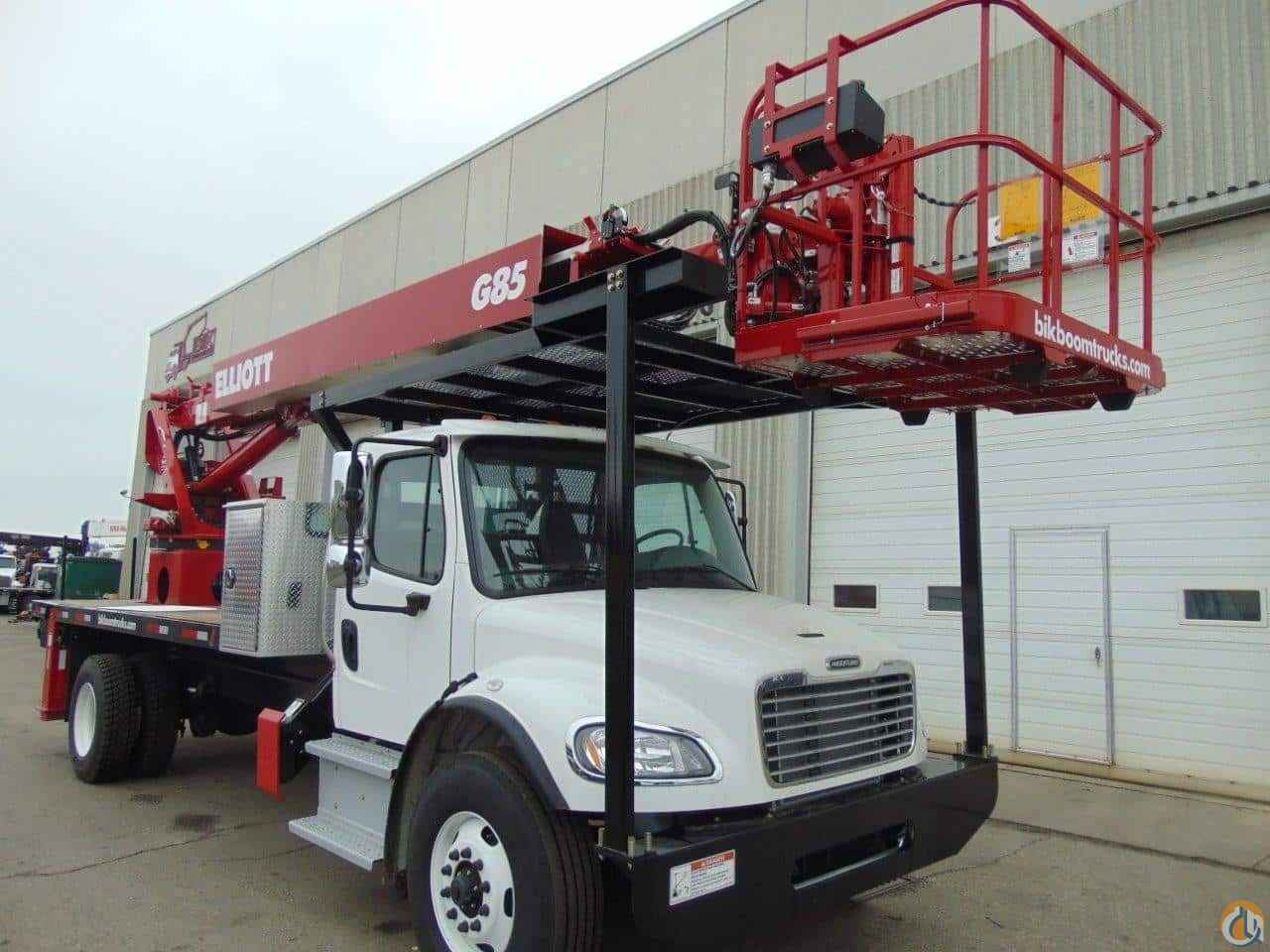

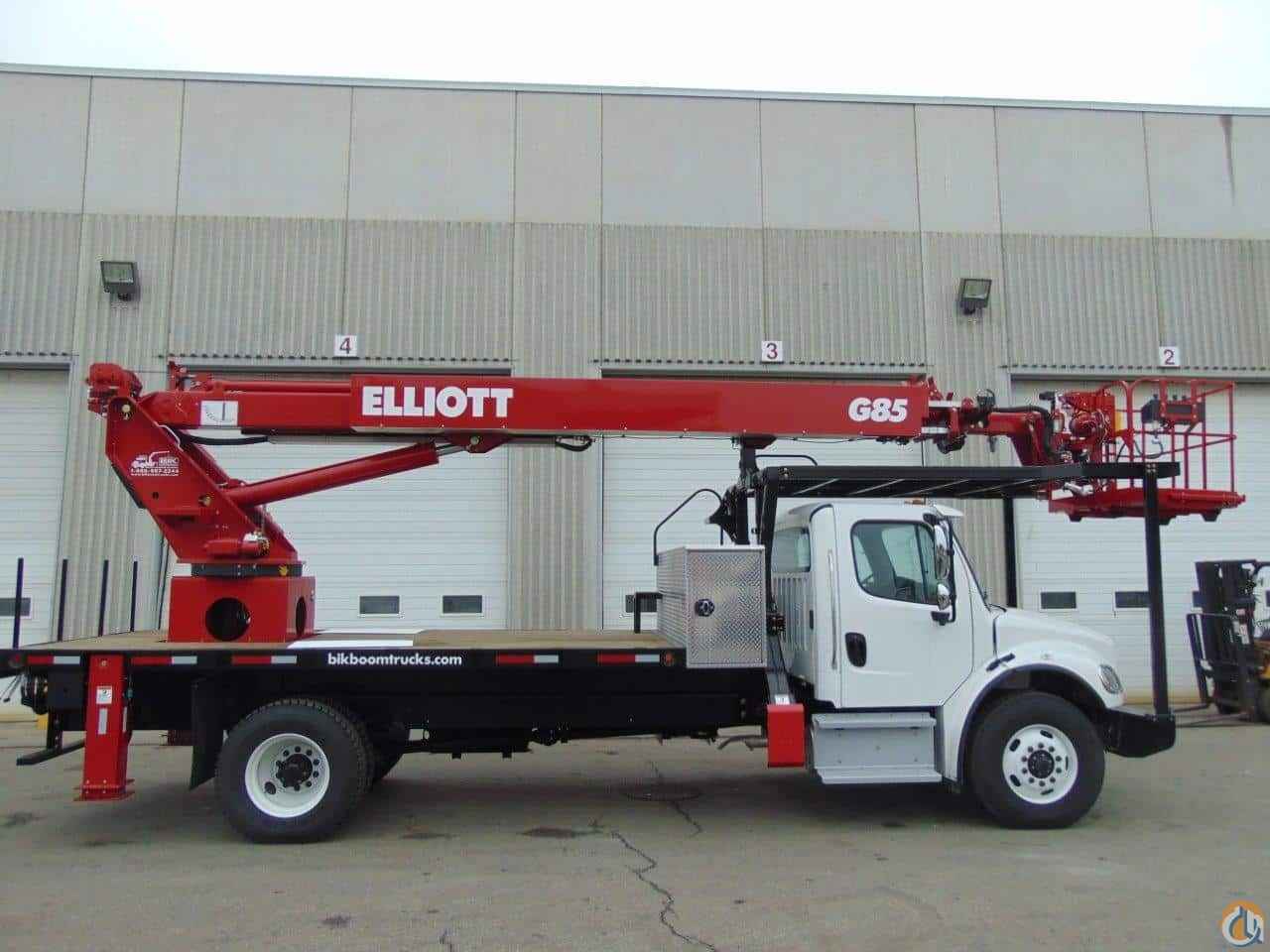

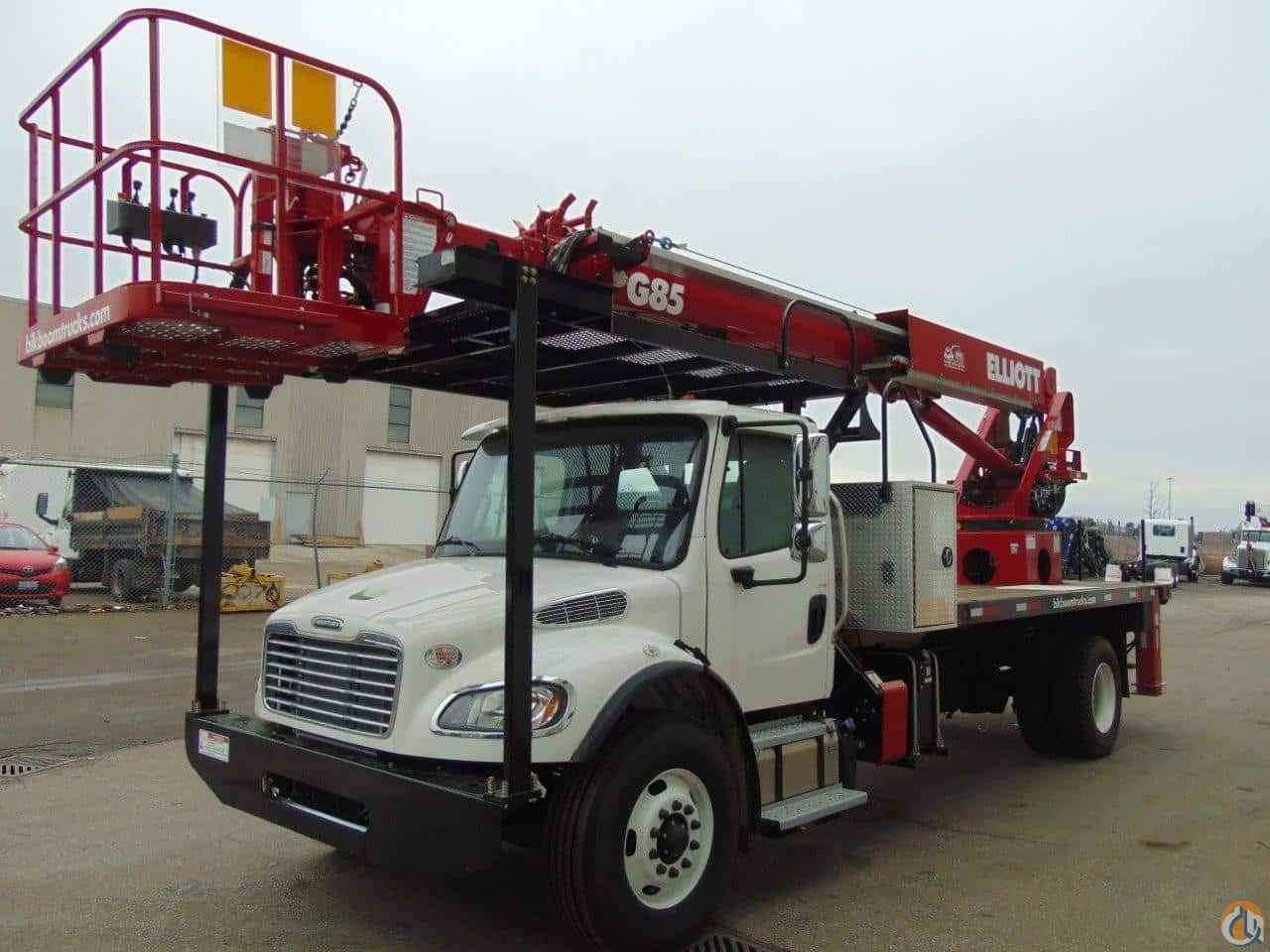

NEW Elliott G85 R HiReach: 4-section Hydraulic reach to 85’ vertical reach with 85’ working height, 74’ horizontal reach
- Installed END OF FRAME by Elliott factory technicians, prepped, primed and painted
- New Air Operated PTO (Chelsea)
- Hour meter, Hydraulic Pump
- Supply and Return Lines
- Hydraulic tank mounted on truck frame w/ shut-off valve
- Load Tested
Standard Features include:

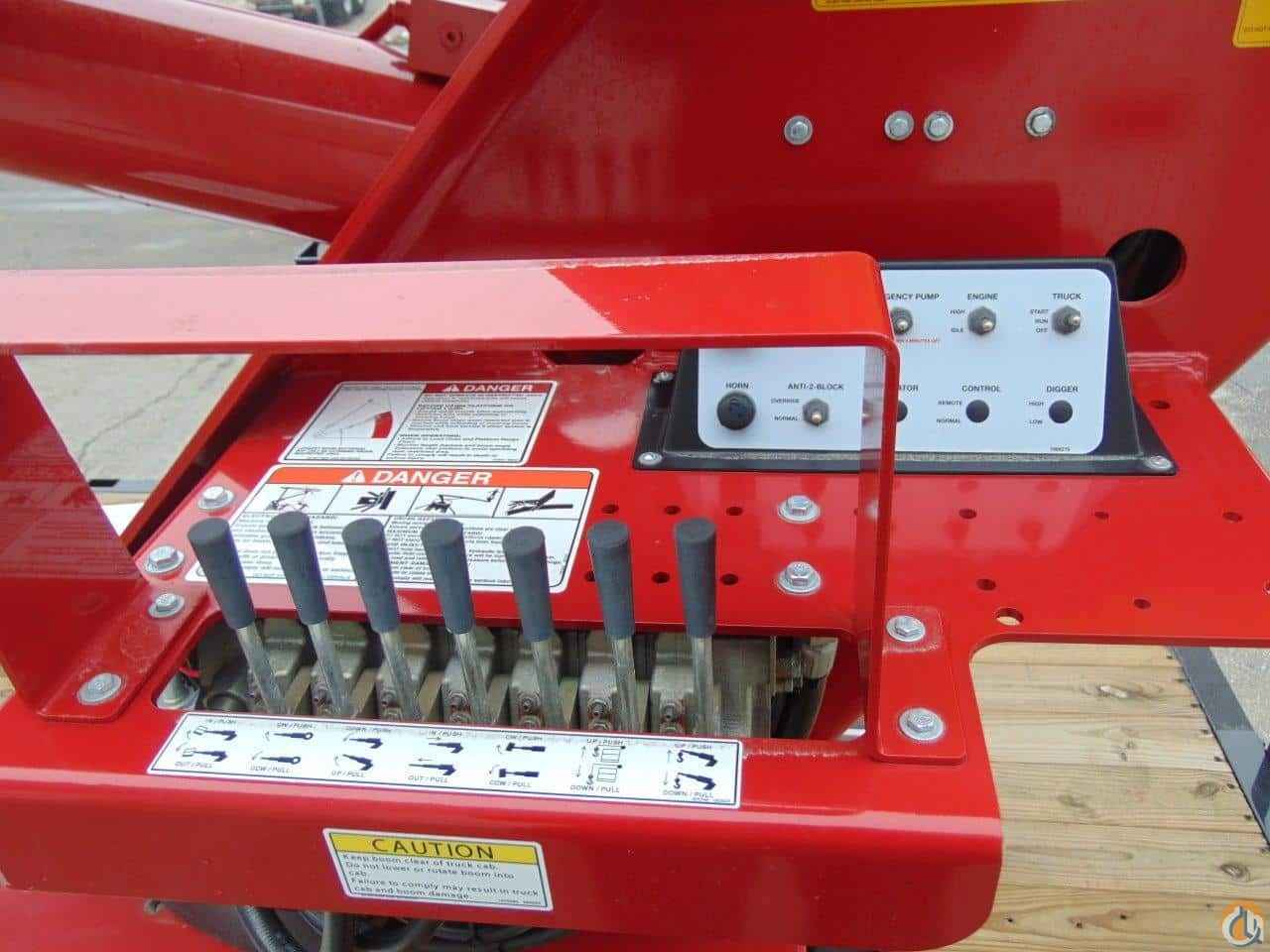

- Electronic Proportional three stick controls on platform. Manual ground controls located on side of turret.
- Remote star/stop from upper and lower controls. Two exposed cable carriers to boom tip.

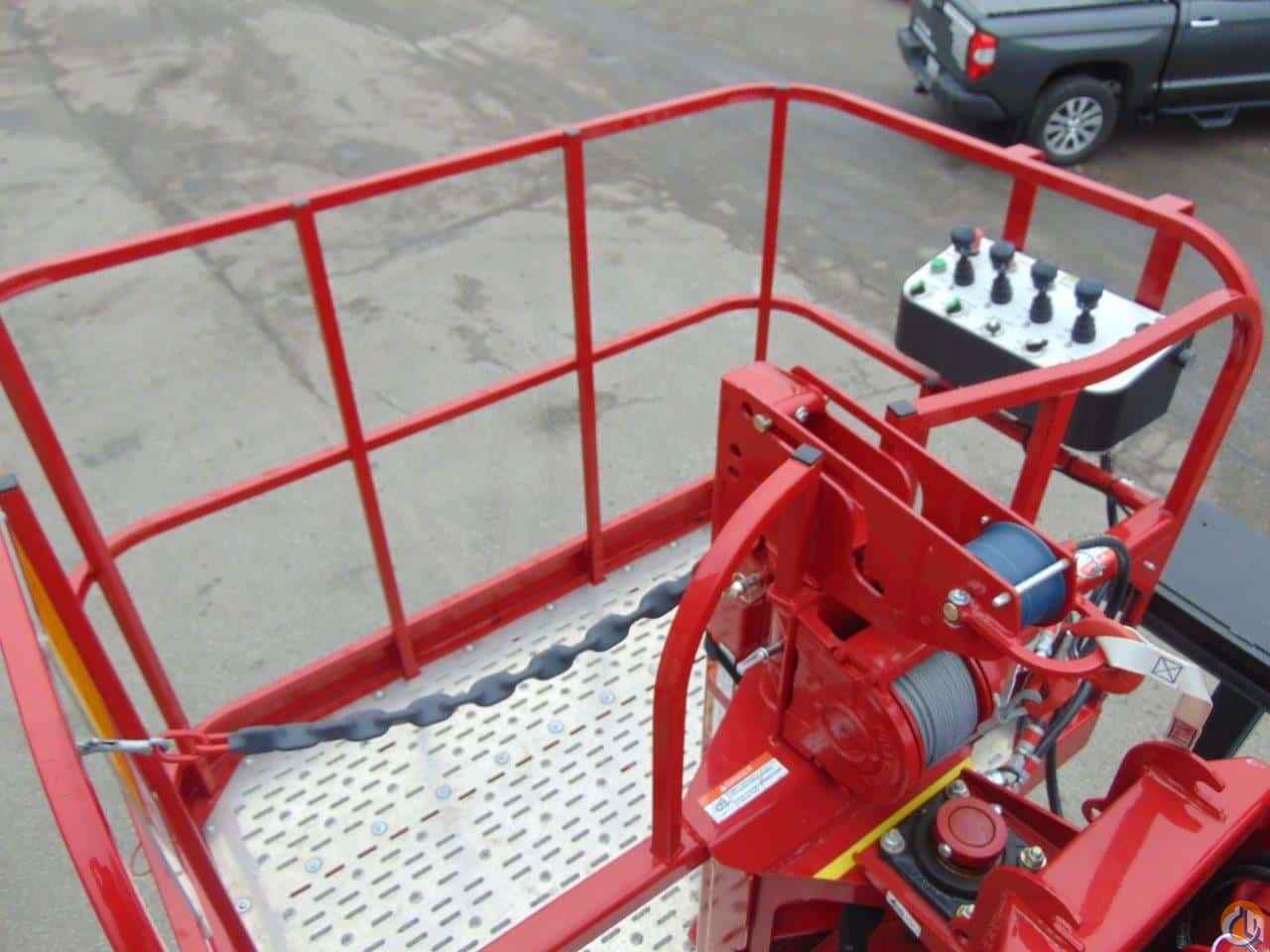

- Hydraulic self levelling and rotating 40” x 60” EZR work platform with remote levelling from platform, platform capacity 500 lbs
- One double acting 7” full displacement long stroke boom elevation cylinders provides smooth, stable elevation.

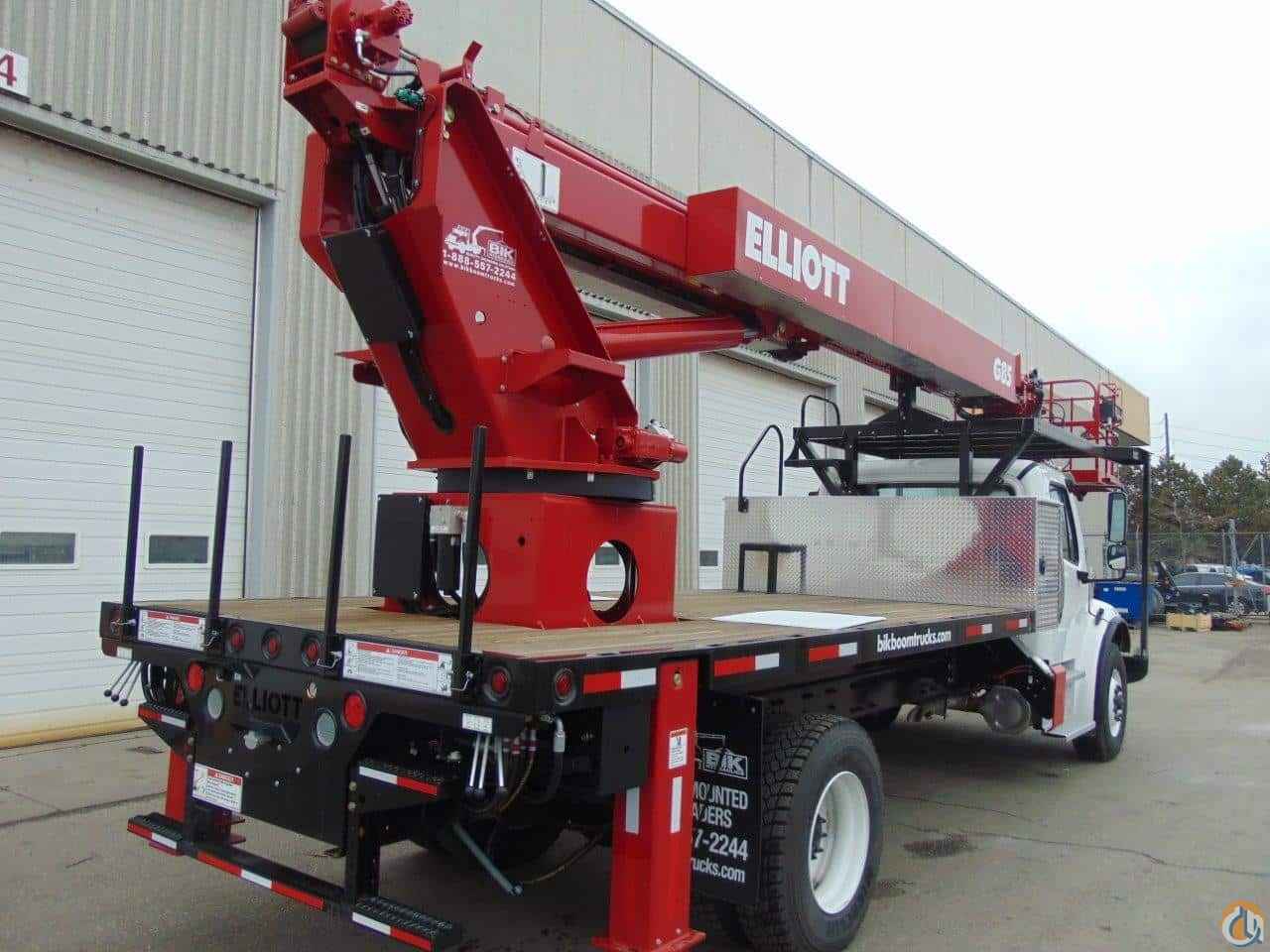

- Continuous off set turret rotation with no stops with ball bearing slewing bearing and self locking gear box.
- Hydraulic OUT and DOWN “MH” stabilizers at base with a 18’ spread, “A” frame secondary stabilizers at front.
Included Options Are:
- 5,900lb planetary winch w/anti-two block switch, horn, two part hook and 130’ of 3/8” cable
- Platform mounted jib with hydraulic winch drum mounted on horizontal arm
- 110 V power supply to work platform, Sign forks on platform (2 pcs)
- 16’ x 96” Aluminum bed, Truck cab windshield guard, steel carrier cover
- 8’ Aluminum cross box, 24” x 36” tall with doors on each side mounted at front of deck
