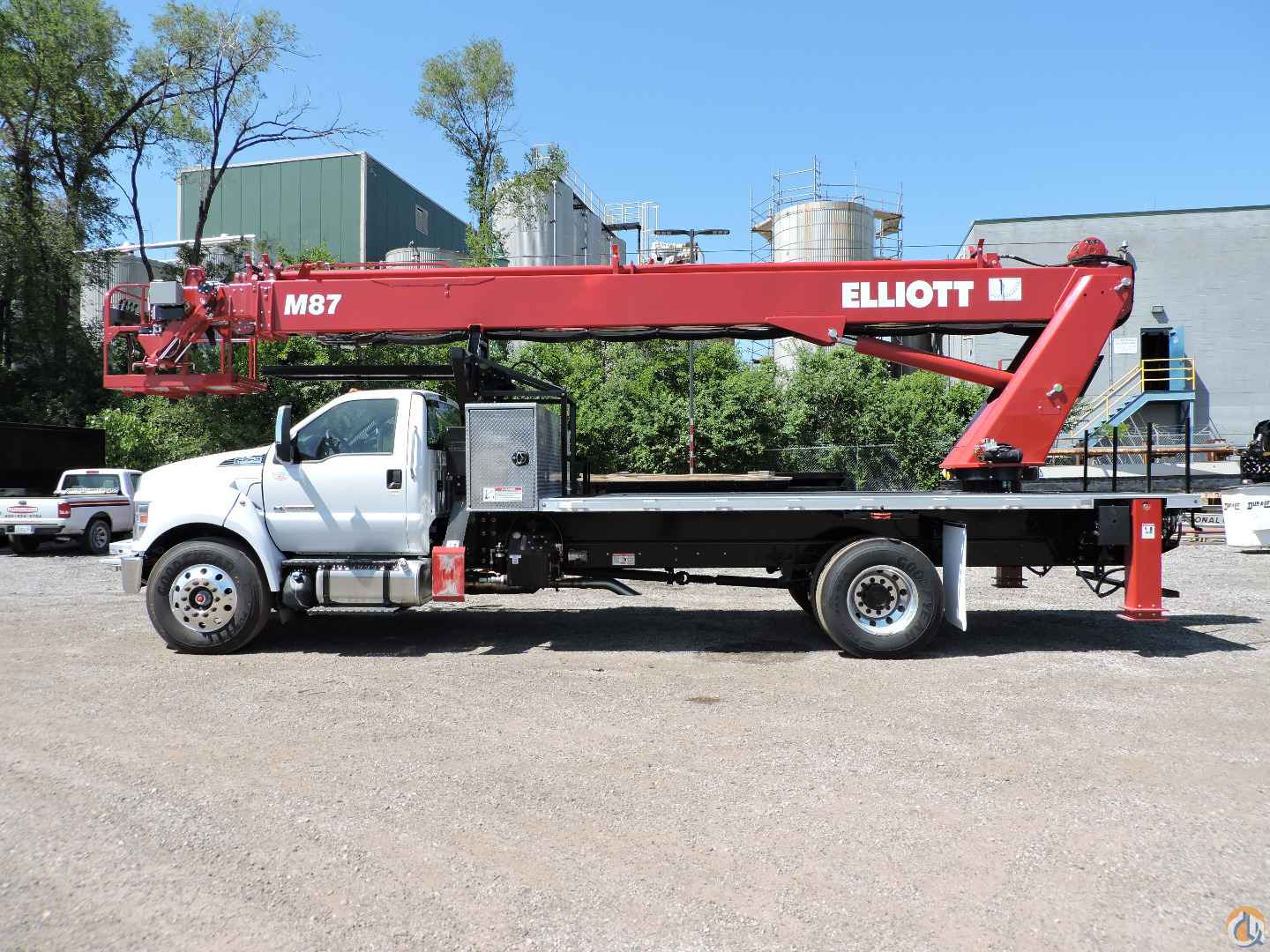

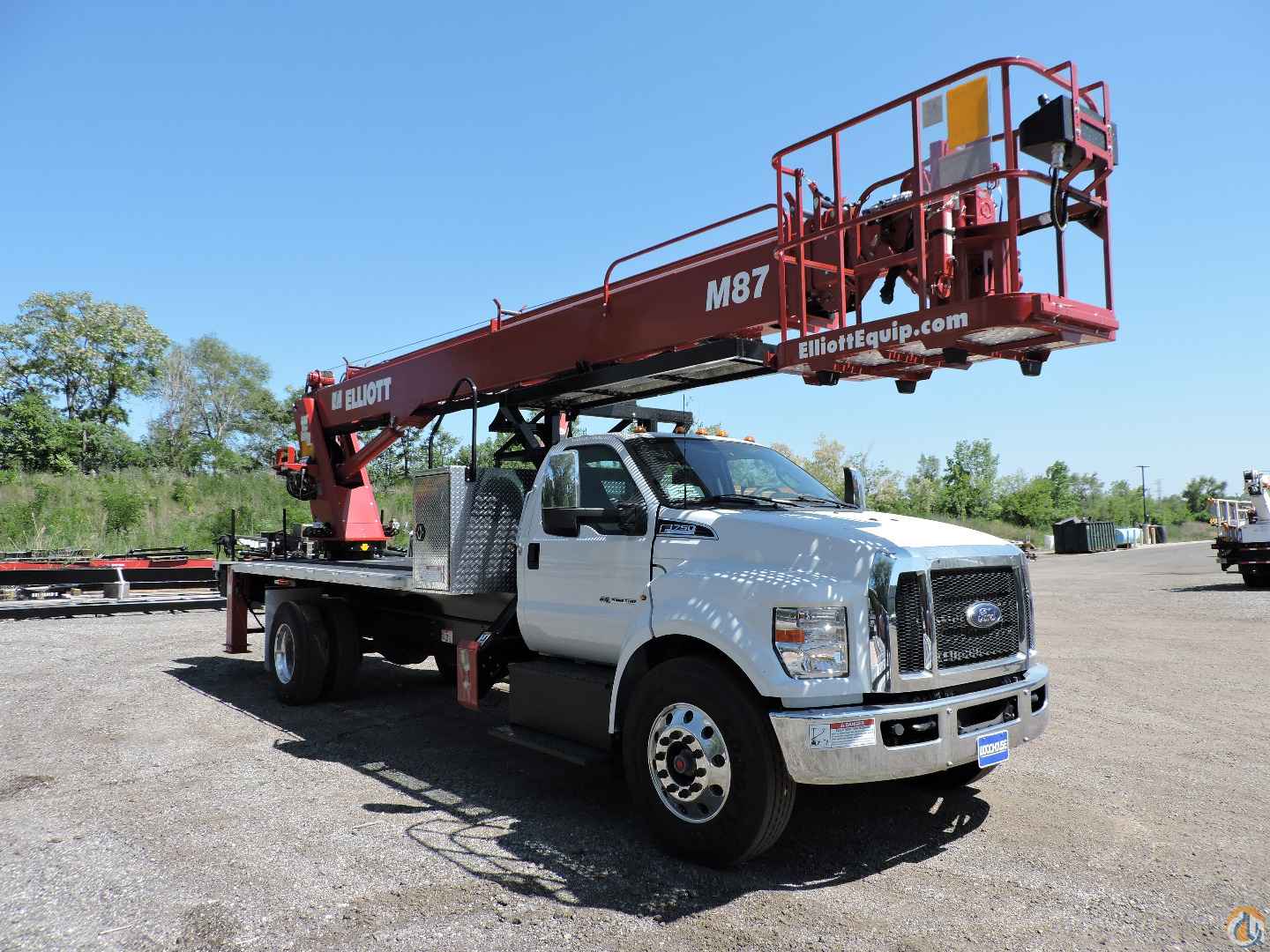

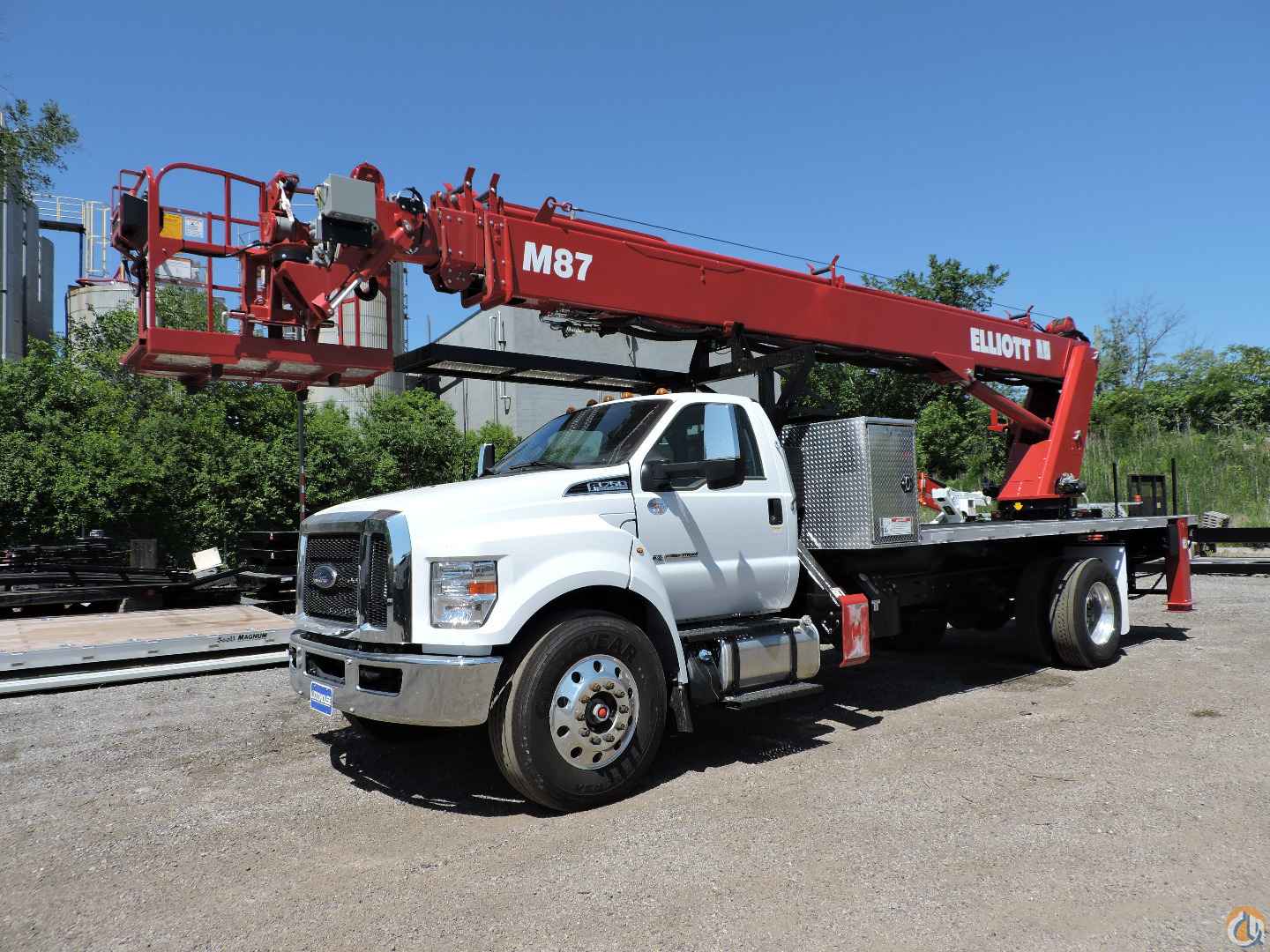

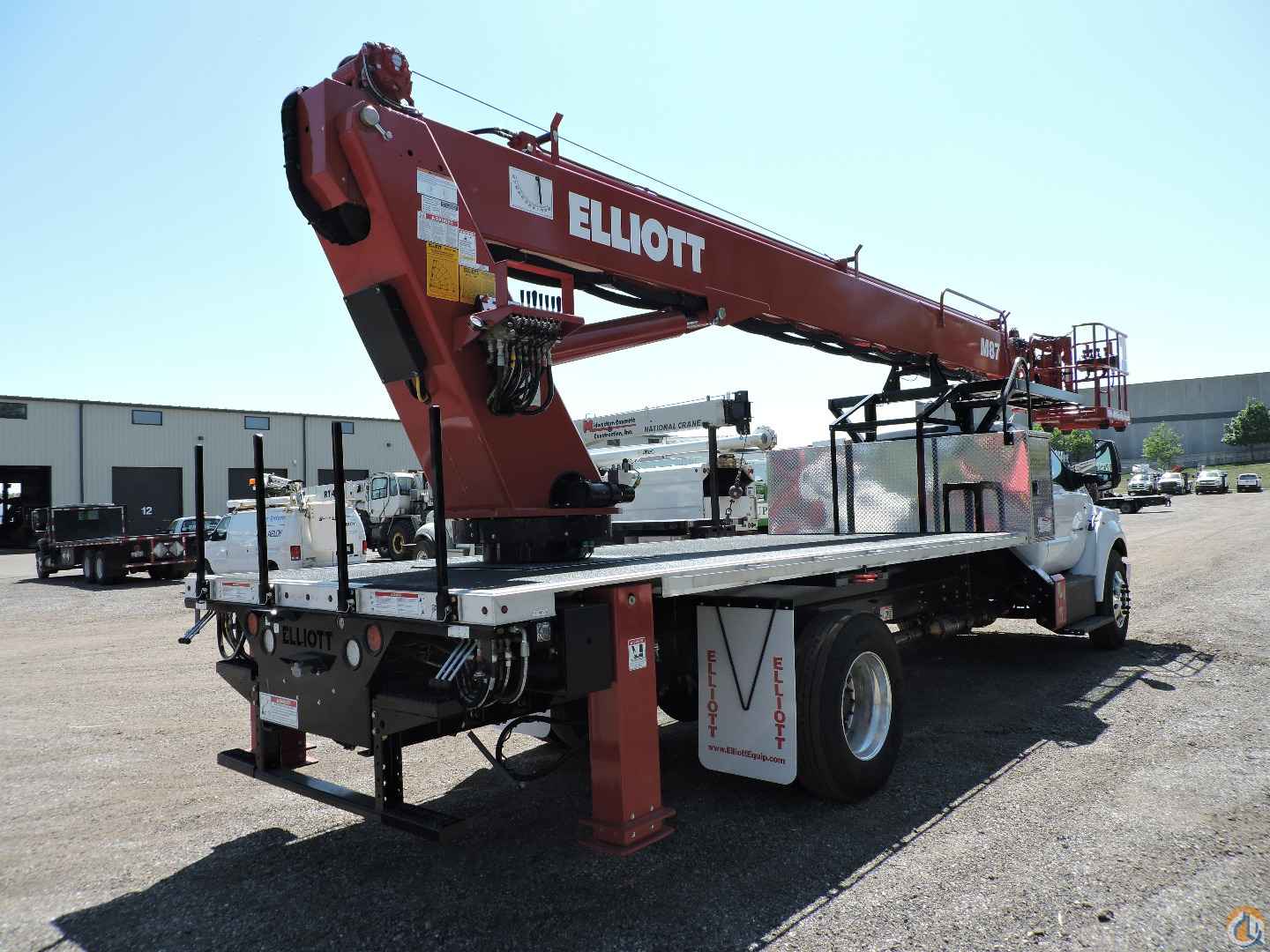

ELLIOTT M87R equipped as follows:

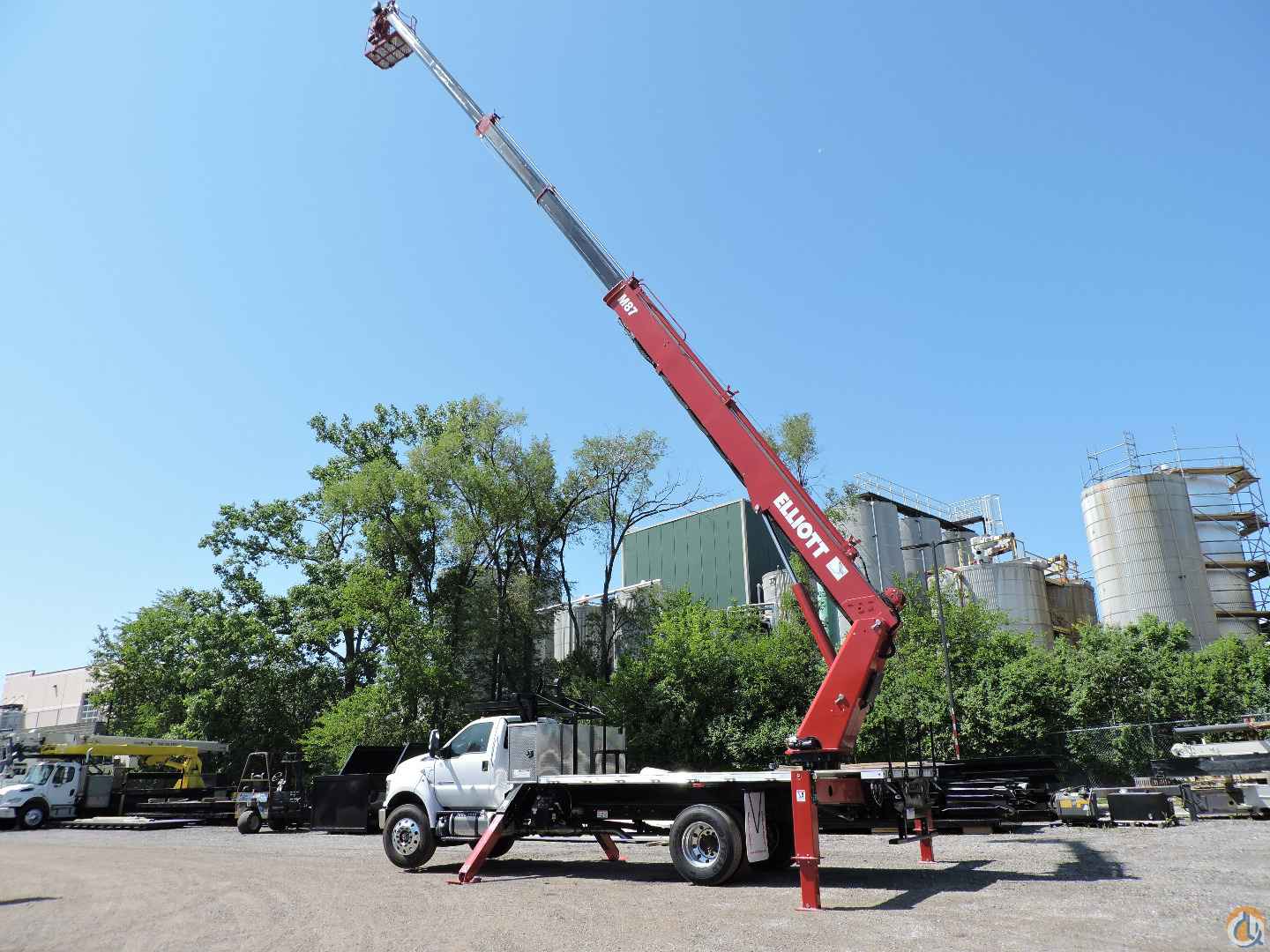

- 87’ working height

- 77’ side reach

- Unit includes base assembly supporting rear-mounted rotating turret

- Hydraulically powered continuous rotation mechanism

- Oil reservoir mounted to truck frame

- Hydraulic controls mounted to turret

- Electronic proportional three stick remote controls on platforms

- Remote start/shutdown at upper and lower controls

- Base mounted “MH” type hydraulically powered, individually controlled rear main outriggers

- “A” style secondary outriggers behind cab

- Four (4) 24”x24”x1” composite outrigger pads with (2) steel holders

- Automatic rotation lockout-prevents boom from rotating to side where “MH” outriggers are not fully extended horizontally

- 2,000 lbs. Planetary winch with anti-two block switch, horn, 5/16” cable & retainer lug

- Platform-mounted jib with hydraulic winch with 500 lb capacity. Stows in basket

- Steel three section telescoping boom

- Pump and holding valves on all cylinders

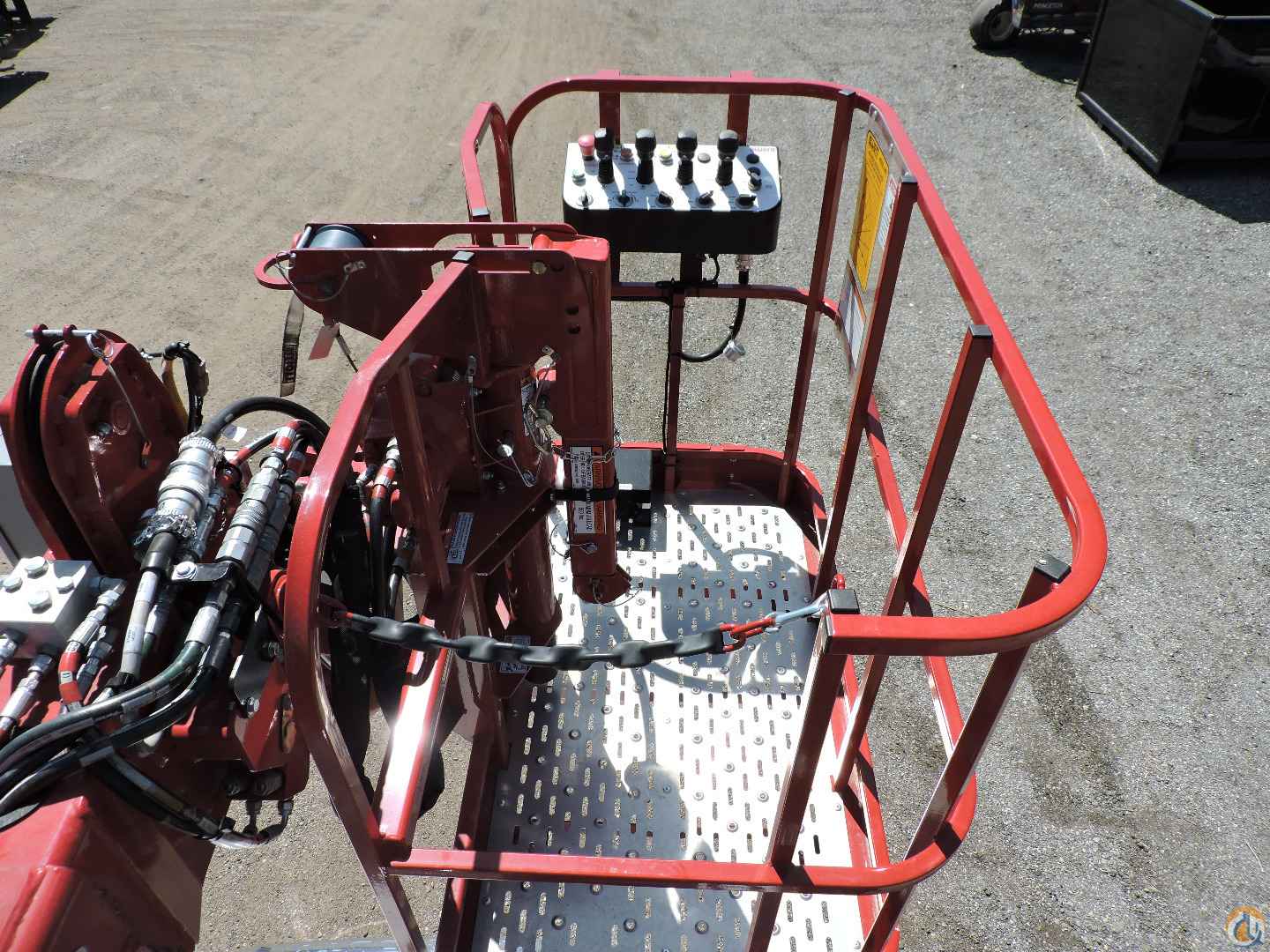

- Electronic/hydraulic self-leveling and rotating 30”x 54” work platform with remote level from platform, aluminum floor

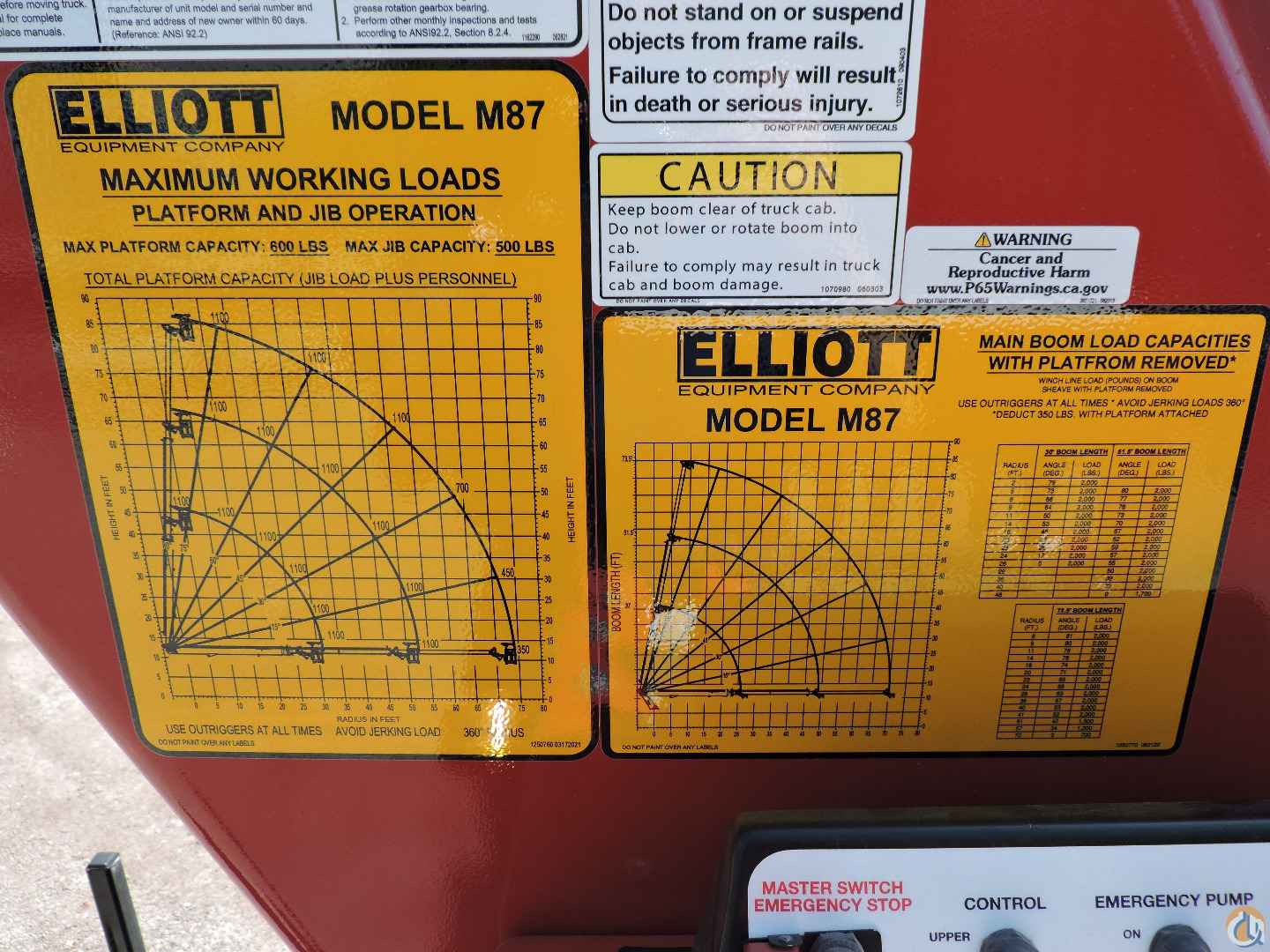

- Platform capacity 600 lbs.

- 110 volt line to platform

- (2) Sign forks on platform

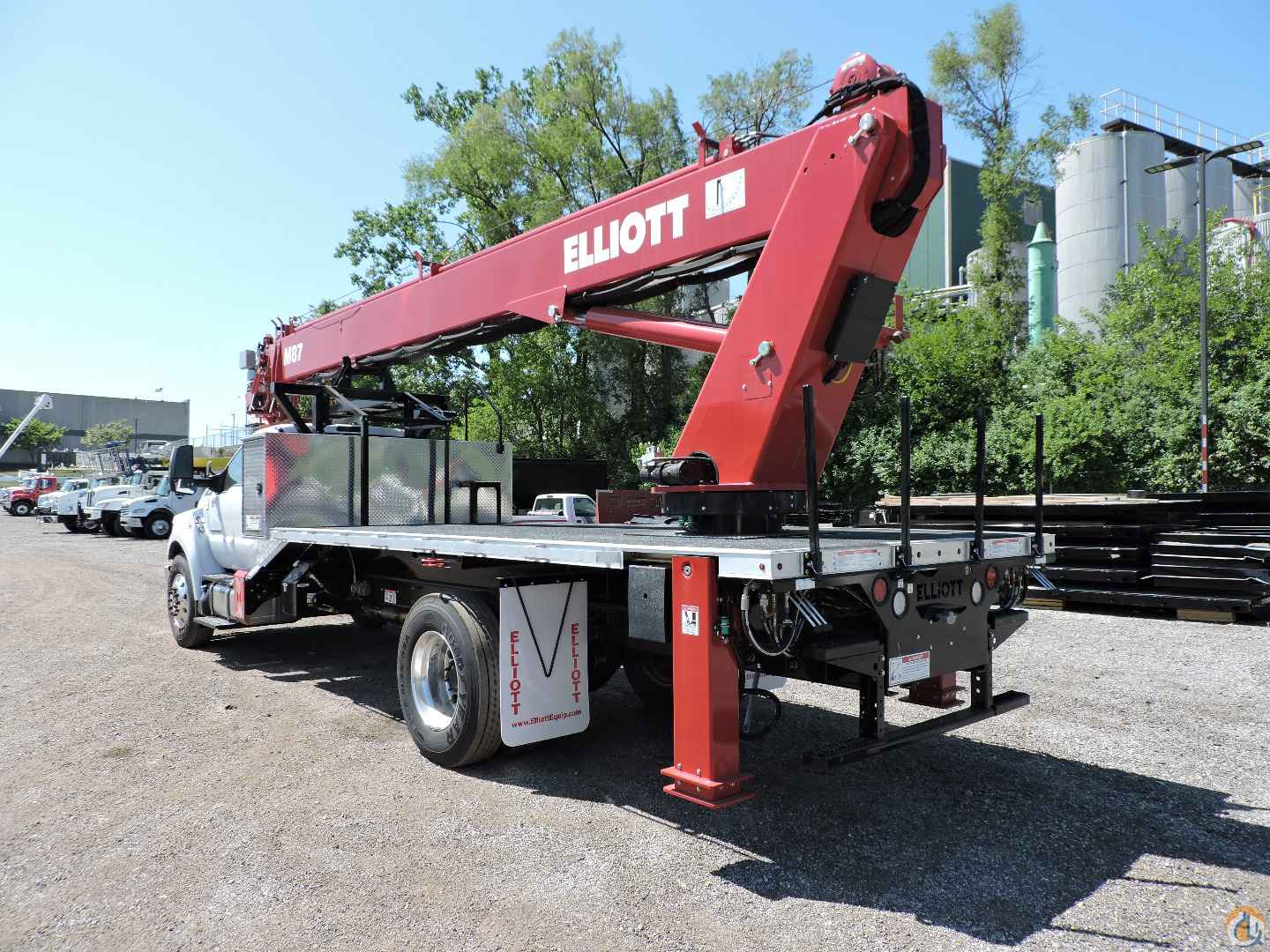

- 18’ aluminum bed with grip deck coating and LED lights

- 98” x 36” x 24” aluminum cross body box

- Standard rear bumper w/steps and grab handles

- Walkway access to platform when boom is stowed

- 12-volt emergency pump with switch at upper and lower controls

- PTO hour meter

- Hot shift PTO

- Backup alarm

- Two body harnesses and lanyards

- Safety triangle kit

- HiReach painted Red

MOUNTED ON:

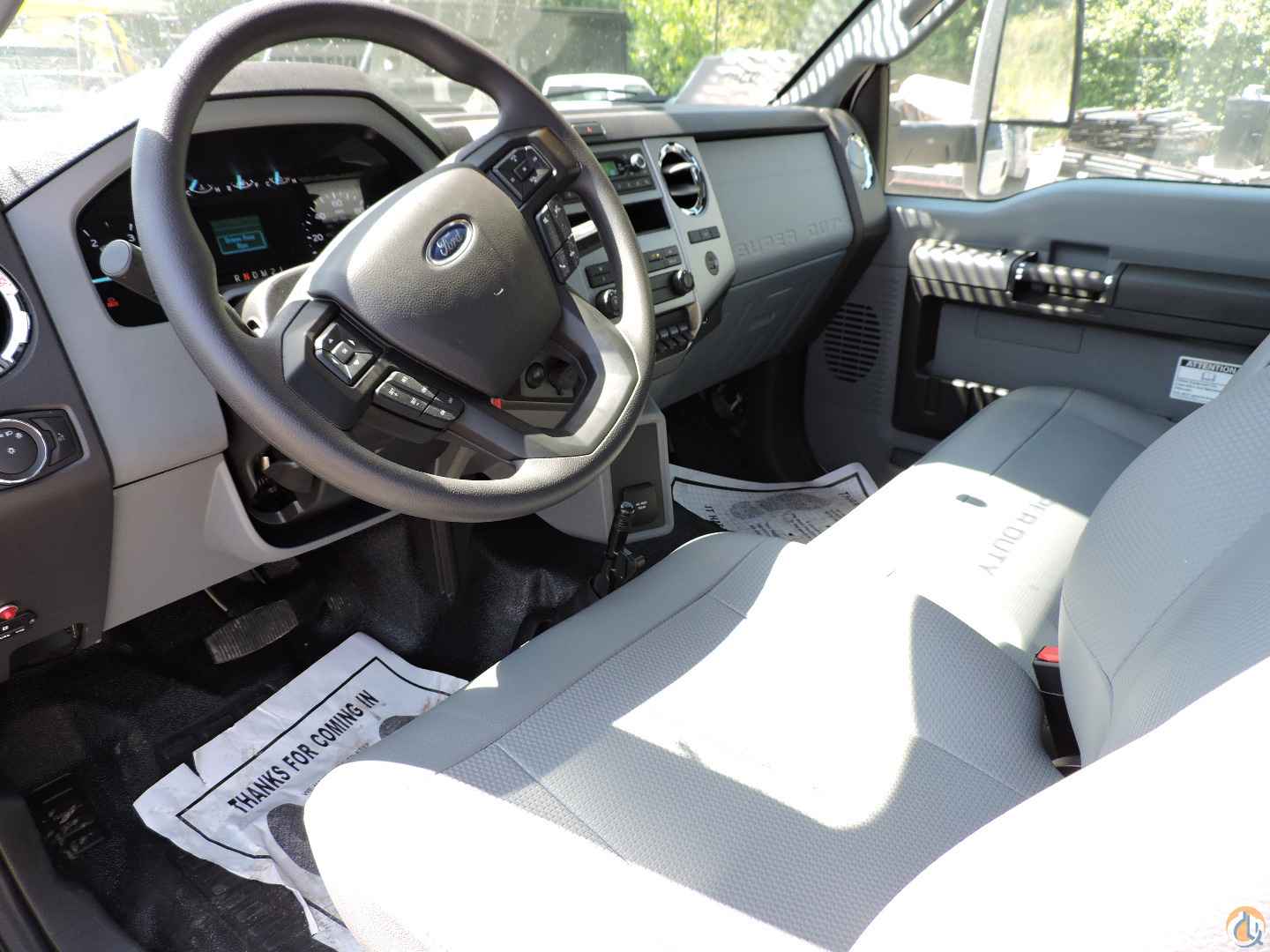

2023 Ford F750 equipped as follows:

- 31,000 GVWR

- 270 hp 6.7L V8 diesel engine

- Engine block heater

- Ford Torqshift 6-speed automatic transmission

- 10,000# front axle

- 21,000# rear axle

- 50 gallon aluminum fuel tank

- 11R22.5 front and rear tires

- Aluminum wheels

- Chrome front bumper and grill

- Hydraulic brakes

- Air conditioner

- Air suspension driver seat

- Two man passenger bench seat

- Power locks and windows

- Heated and motorized mirrors

- AM/FM radio with Bluetooth

- Cab color: white
