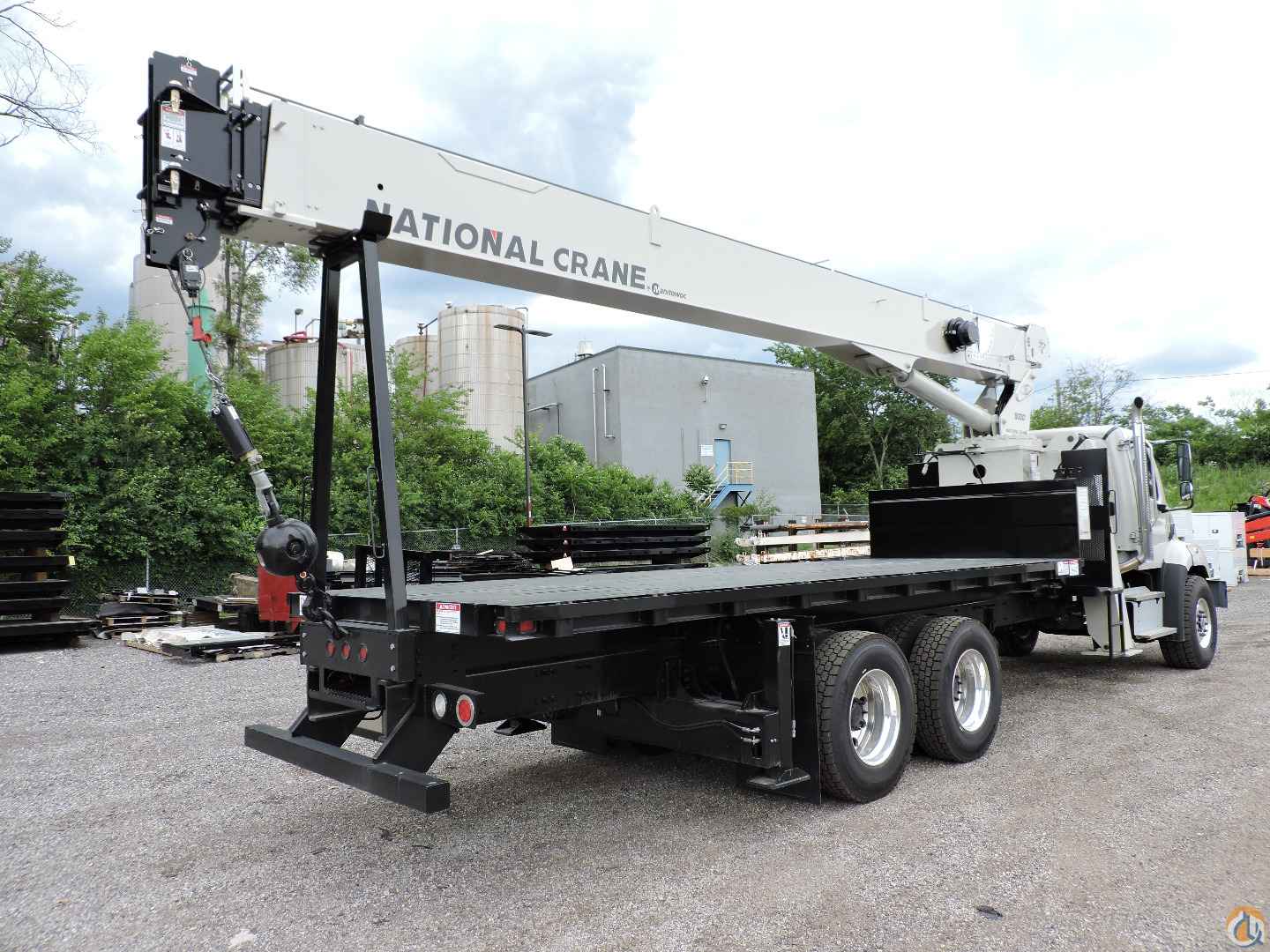

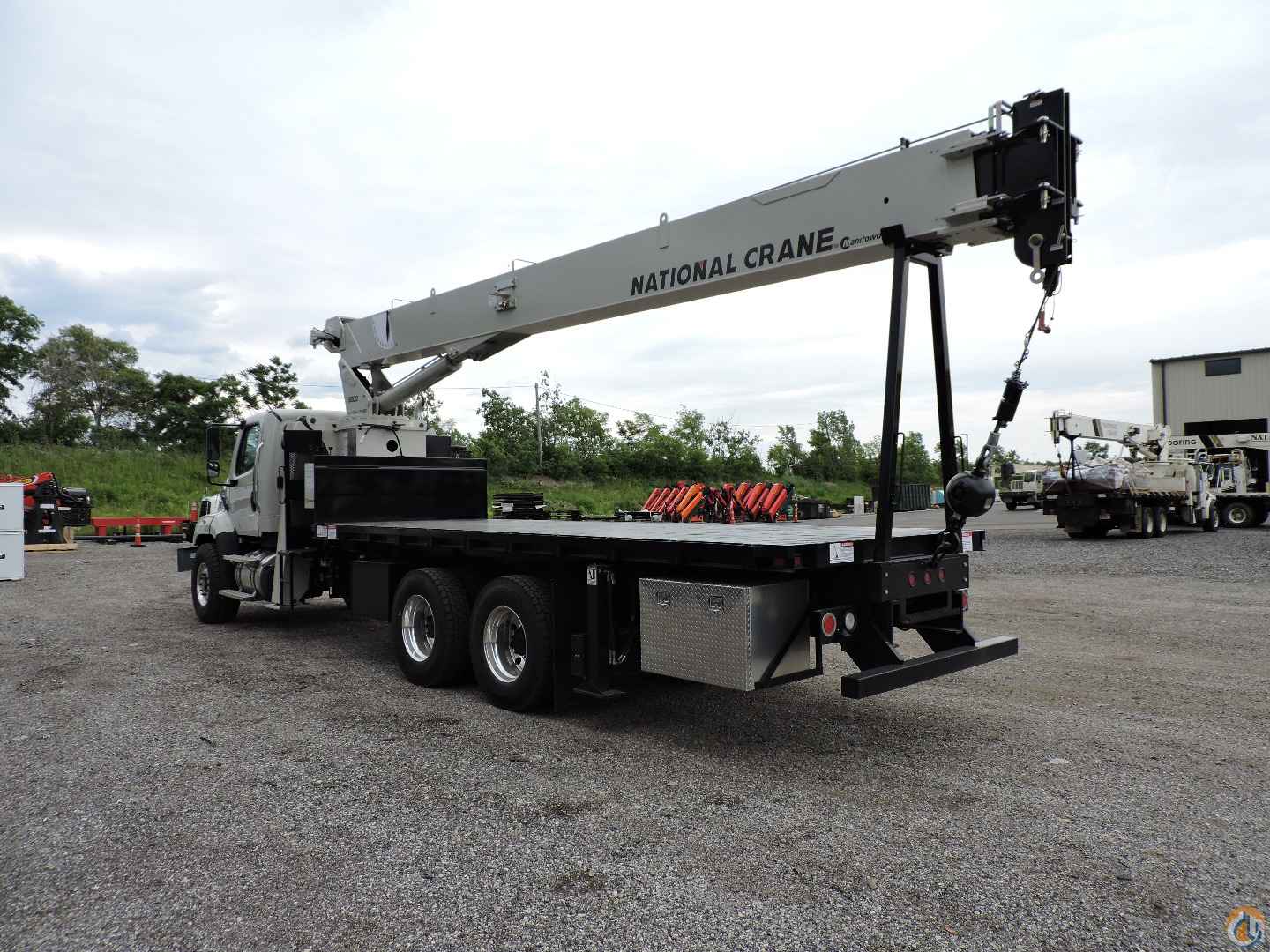

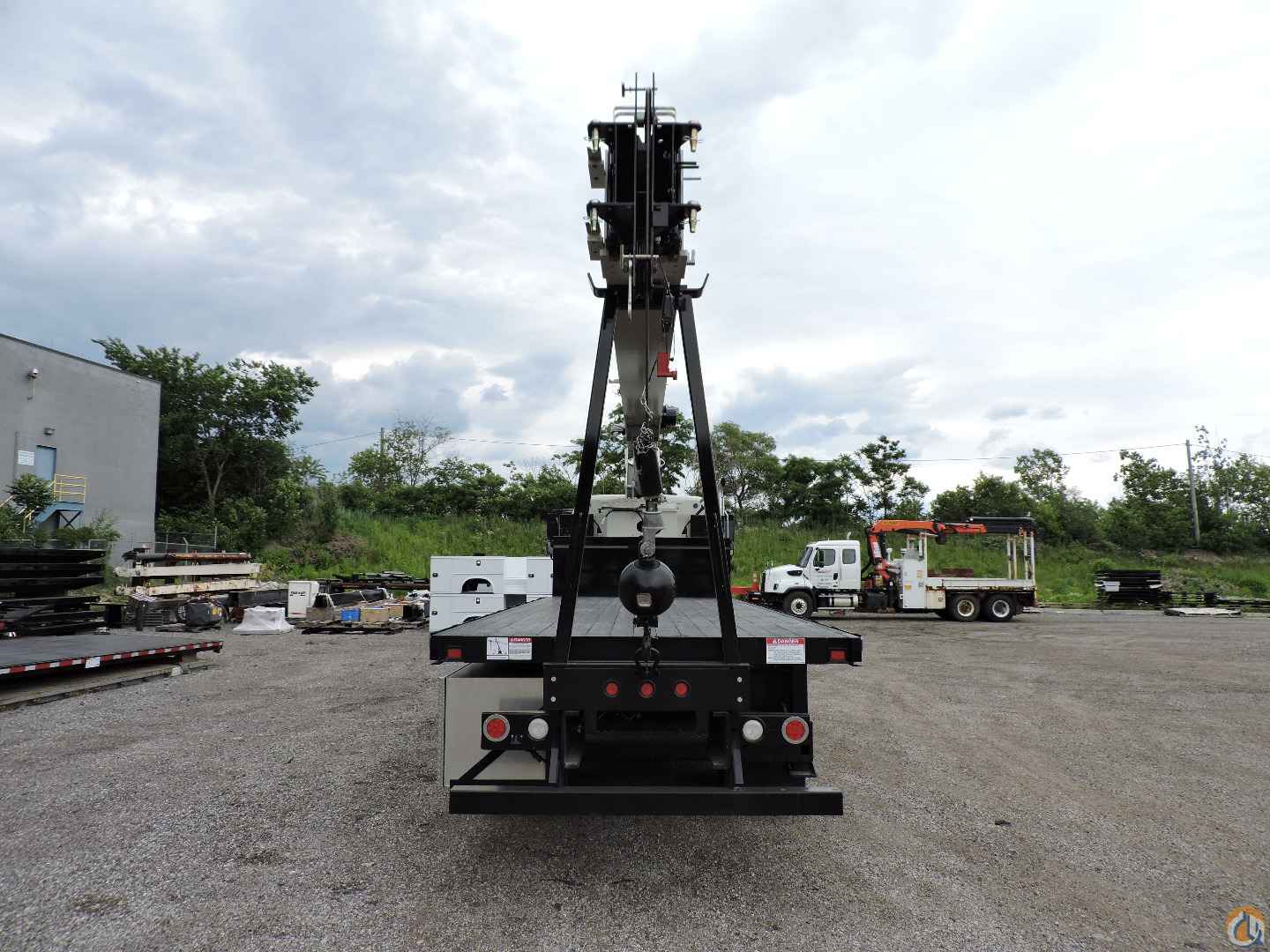

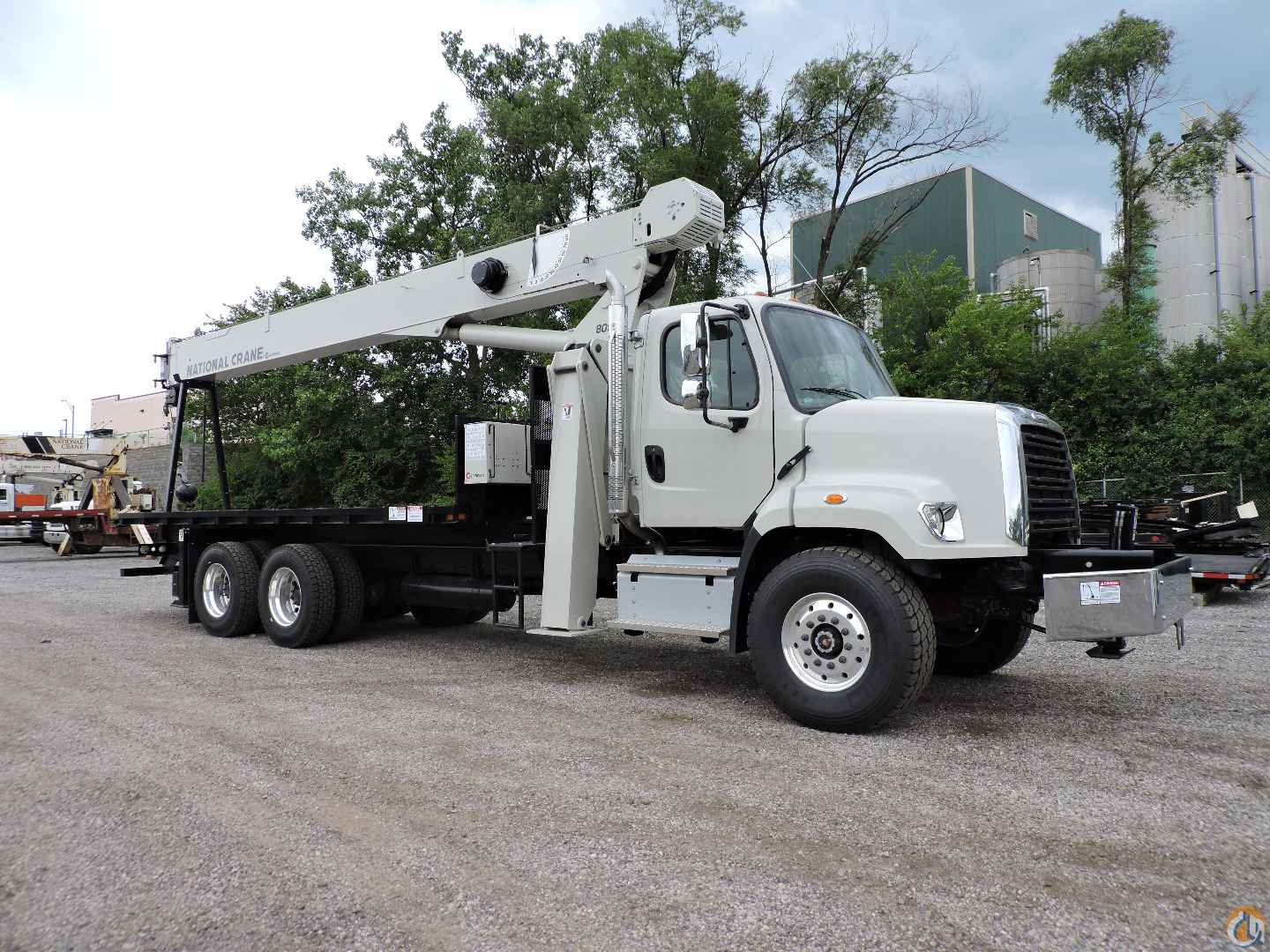

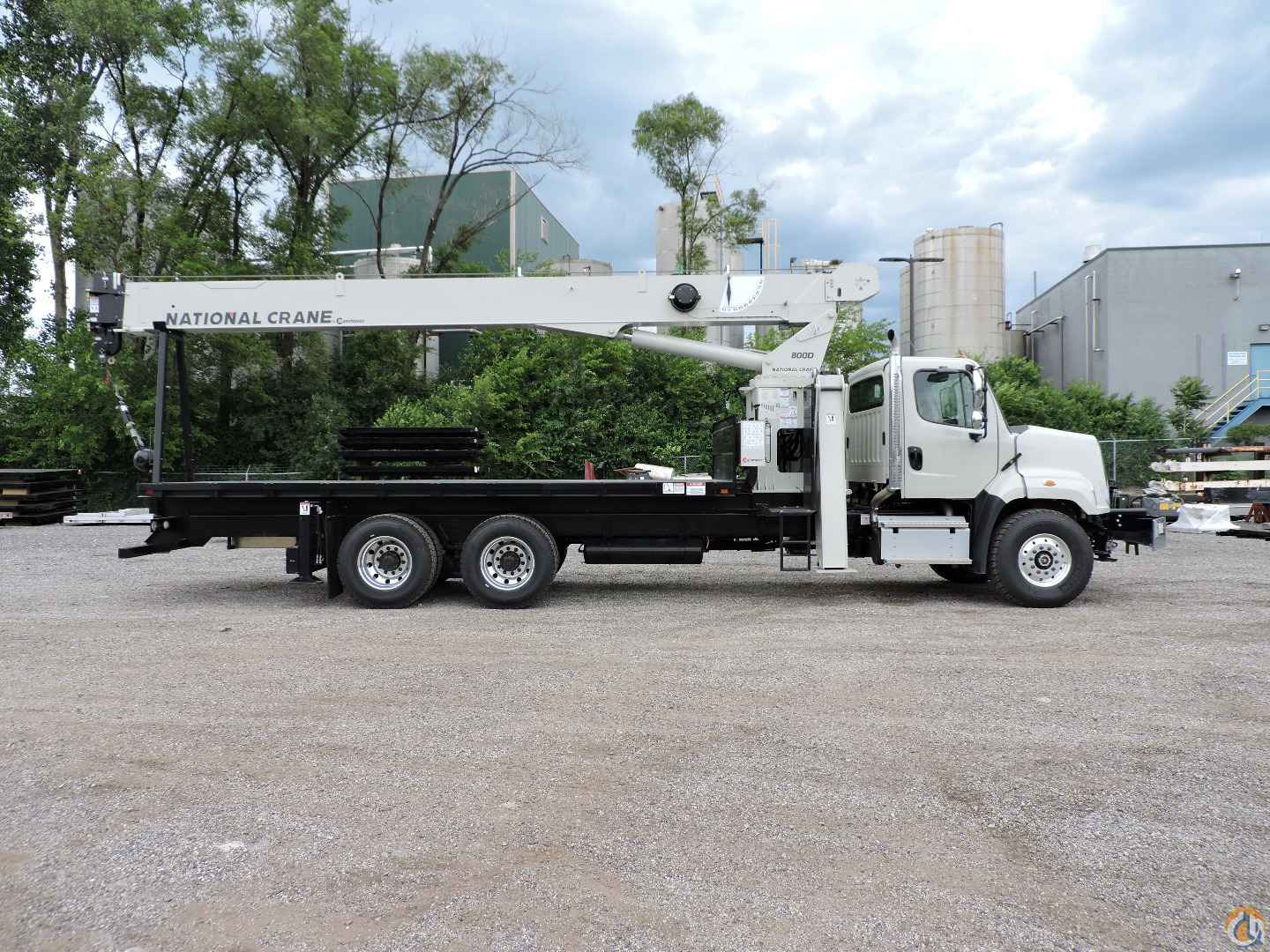

National Crane Model 8100D equipped as follows:

-          23 ton capacity

-          29.5” to 100’ four (4) section telescopic boom – 110’ sheave height

-          Calibrated for future jib

-          “A” type box slide outriggers with swivel pads

-          Out and down rear hydraulic stabilizers with 16’ span

-          Single front outrigger for 360 degree stability

-          22’ super duty wood deck with 30” steel bulkhead

-          Outrigger motion alarm

-          Anti-two block safety device; shuts off telescope out and winch up controls and does not allow hook to be pulled into sheave case.

-          Internal anti-two block wiring

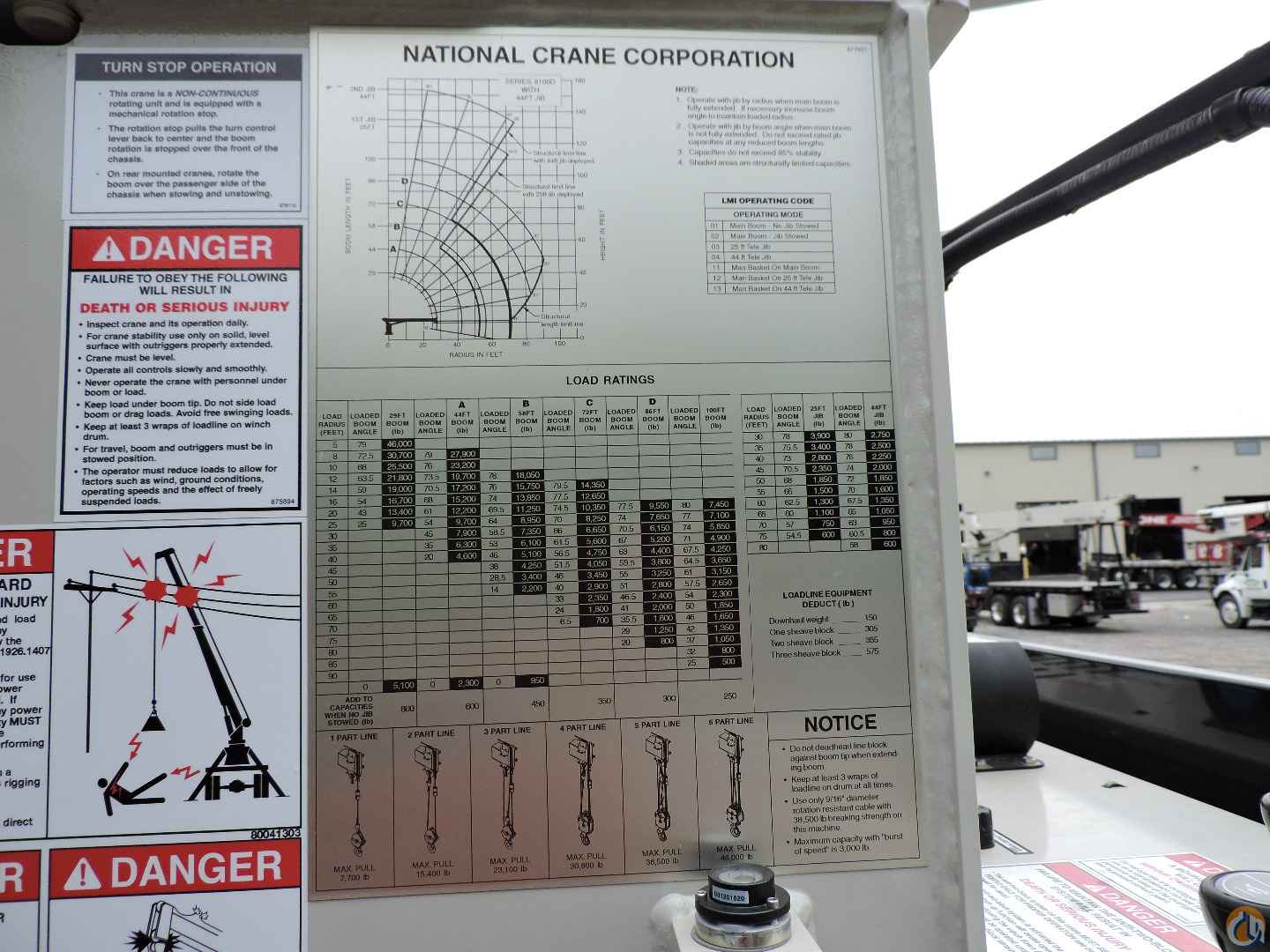

-          Rated Capacity Limiter System (RCL) computer capacity alert system RCL displays boom angle and length, working radius, rated load and total weight being lifted

-          Hi-performance planetary winch with 9/16” spin resistant wire rope

-          7 ton round downhaul style weight with top swivel and hook

-          Burst-O-Speed winch with 147 FPM and 206 FPM line speed

-          Dual side stand-up operator’s stations, dual engine throttle, horn and

-          engine start/stop.

-          Operator platform 40” above ground for maximum visibility

-          375 degree non-continuous rotation, adjustable swing drive

-          Adjustable swing speed

-          Heavy duty hydraulic system with triple pump, provides three (3) separate hydraulic circuits for independent operation of winch, swing and crane functions

-          66 gallon hydraulic tank with return line filter, oil diffuser, sight gauge, and shut off gate valve

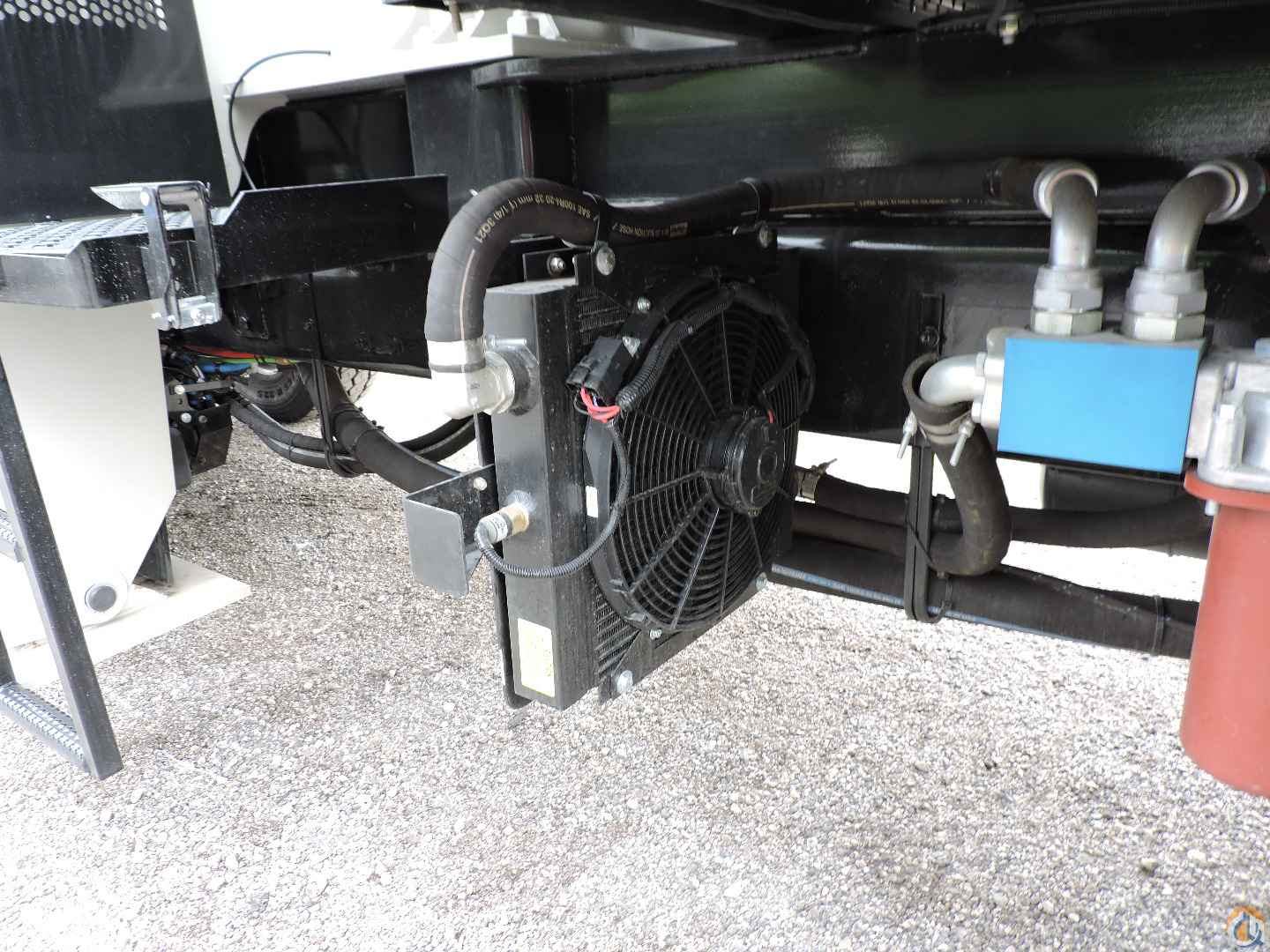

-          Single fan oil cooler

-          Painted National Platinum

-          One removable boom rest

-          Hour meter

-          Back-up alarm

-          Hot shift P.T.O.

-          Rear bumper underride protection

-          One owner’s manual and one CD owner’s manual

-          36” x 24” x 24” aluminum tool box

MOUNTED ON:

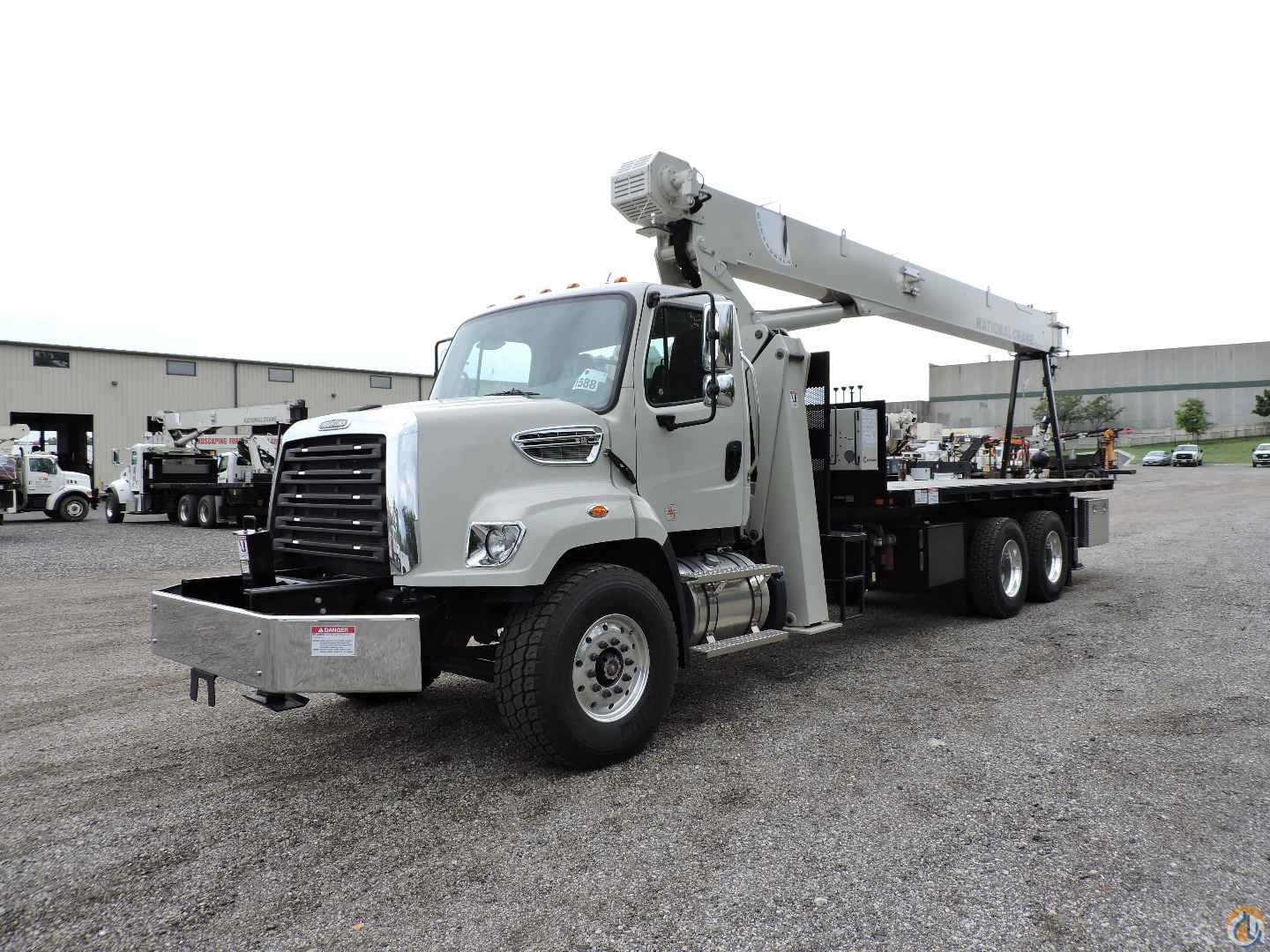

2022 Freightliner 108SD equipped as follows:

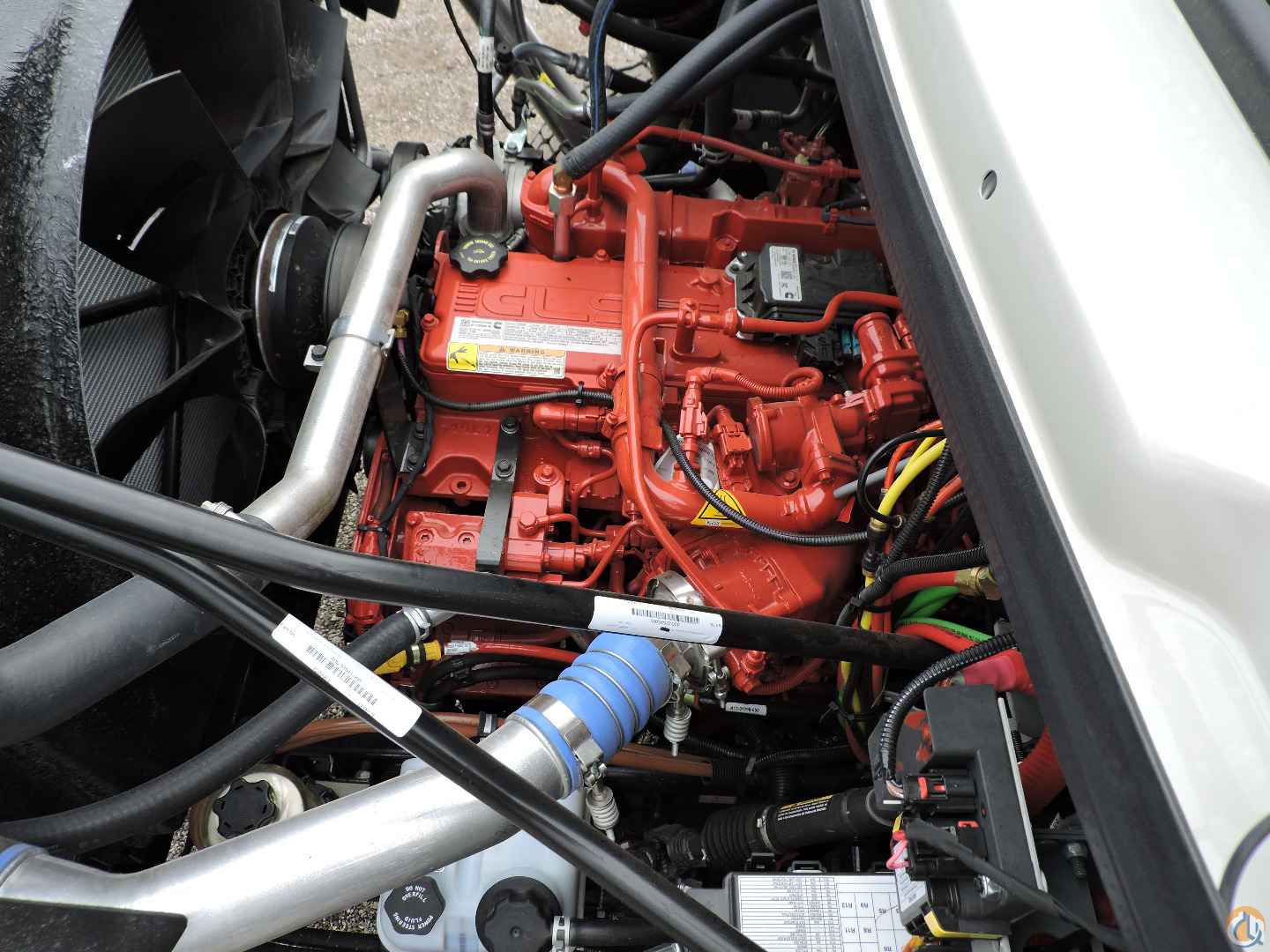

-          Cummins L9 350 HP @2200 RPM, 1050 lb-ft @ 1200 RPM, 2200 GOV RPM

-          Cummins engine brake

-          Allison automatic transmission

-          Front axle 20,000# capacity with TaperLeaf suspension

-          Tandem rear axle 40,000# capacity with Hendrickson HaulMaax suspension

-          Driver controlled traction differential – both tandem rear axles

-          Three (2) batteries – 2000 CCA total

-          Heated air dryer

-          On/off engine fan clutch

-          70 gallon aluminum fuel tank

-          6 gallon DEF tank

-          Front tires 425/65R22.5

-          Front wheels 22.5x12.25 aluminum disc with polished finish

-          Rear tires 11R22.5

-          Rear wheels 22.5x8.25 aluminum with polished finish on outer wheels

-          14” chromed steel bumper

-      Chrome hood-mounted air intake grille

-          Heated mirrors with remote

-          Driver’s seat- high back, air suspension with mechanical lumbar

-          Passenger’s seat-high back, non-suspension

-          8” convex spot mirrors

-          Down view mirror – RH

-          Air conditioning

-          Power windows and door locks

-          Tilt and telescoping steering wheel

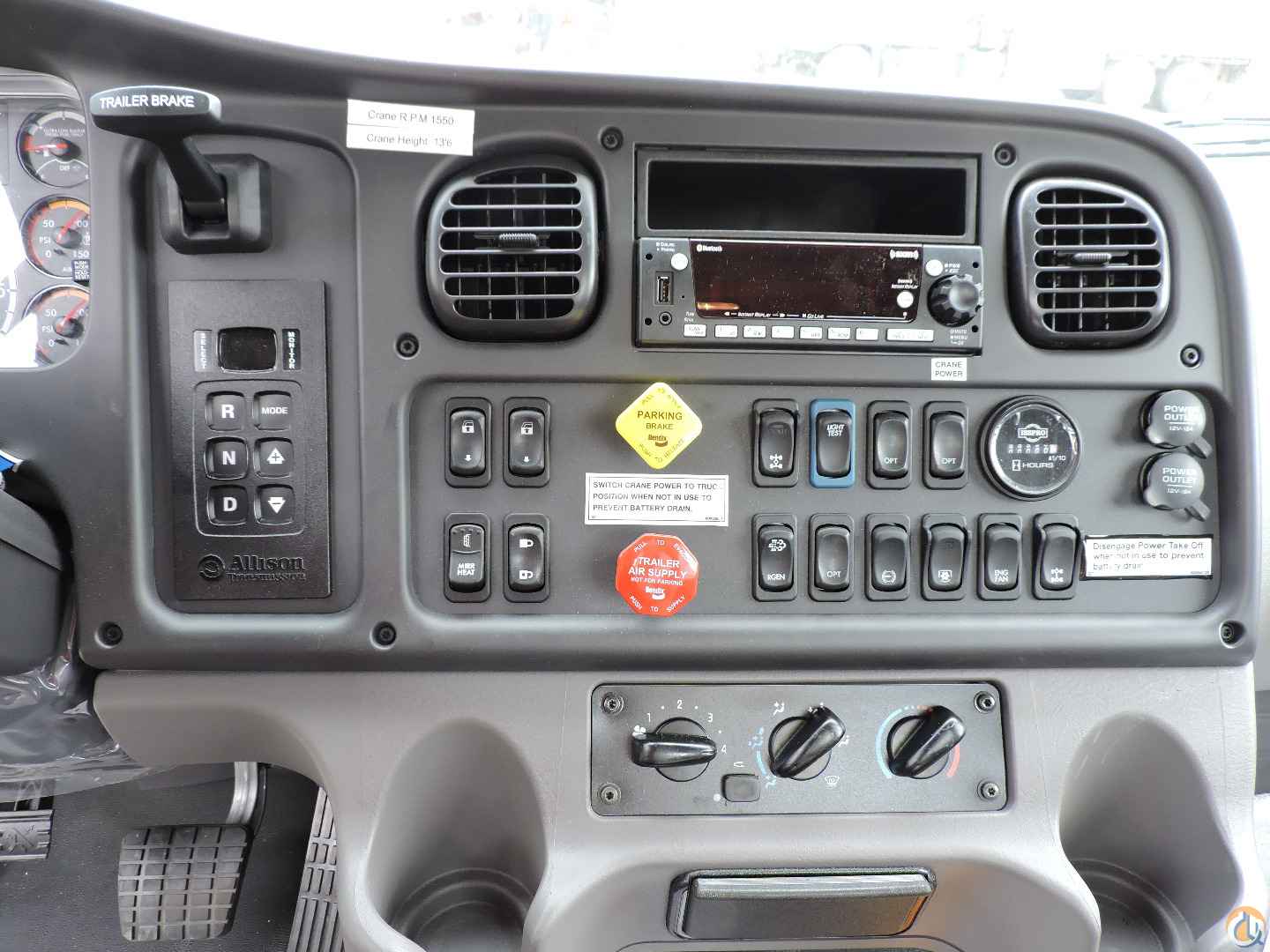

-          AM/FM/WB stereo with Bluetooth, CD, USB, and aux inputs

-          Air and electric horns

-          Painted National Platinum
