BOOM DETAILS

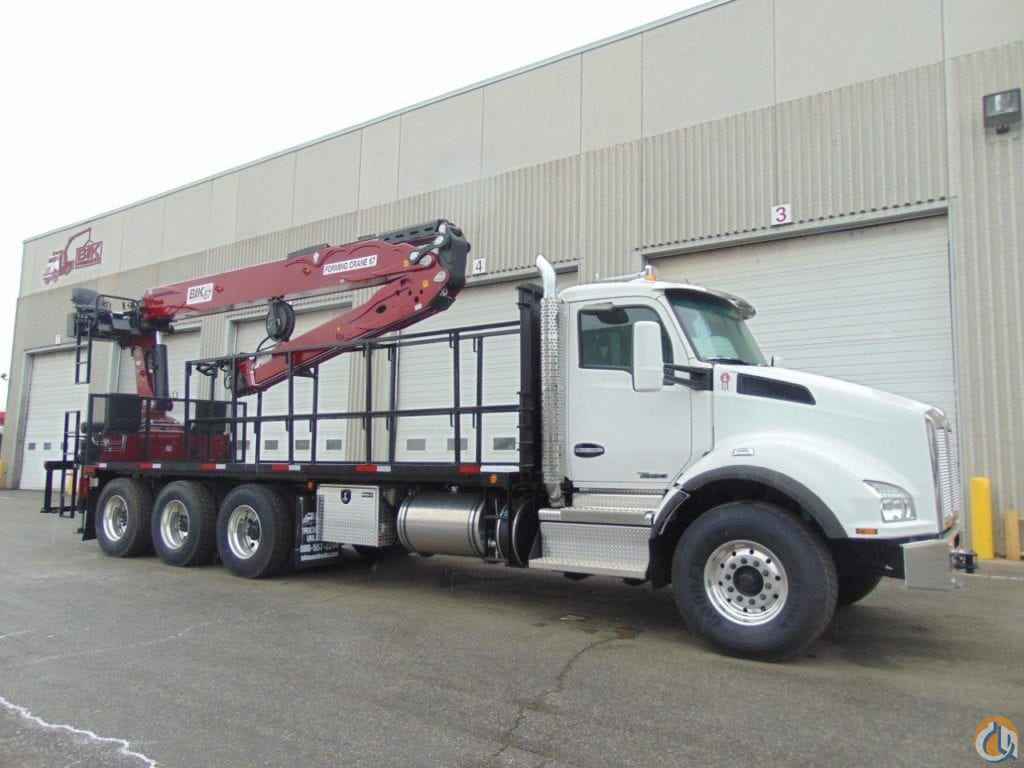

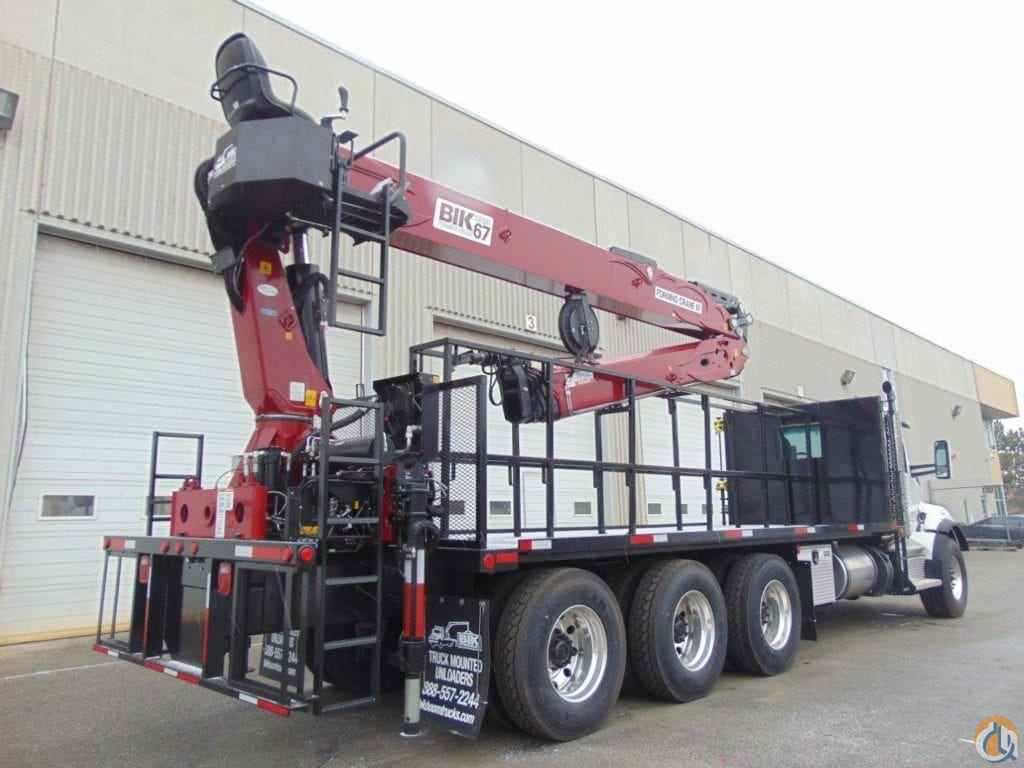

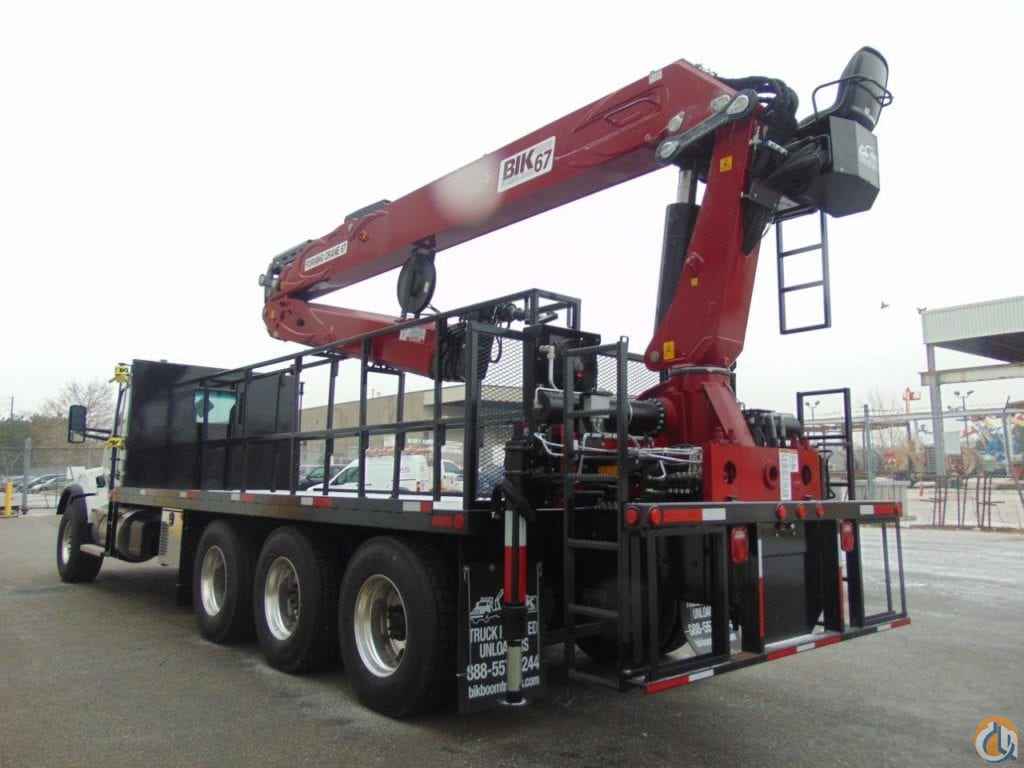

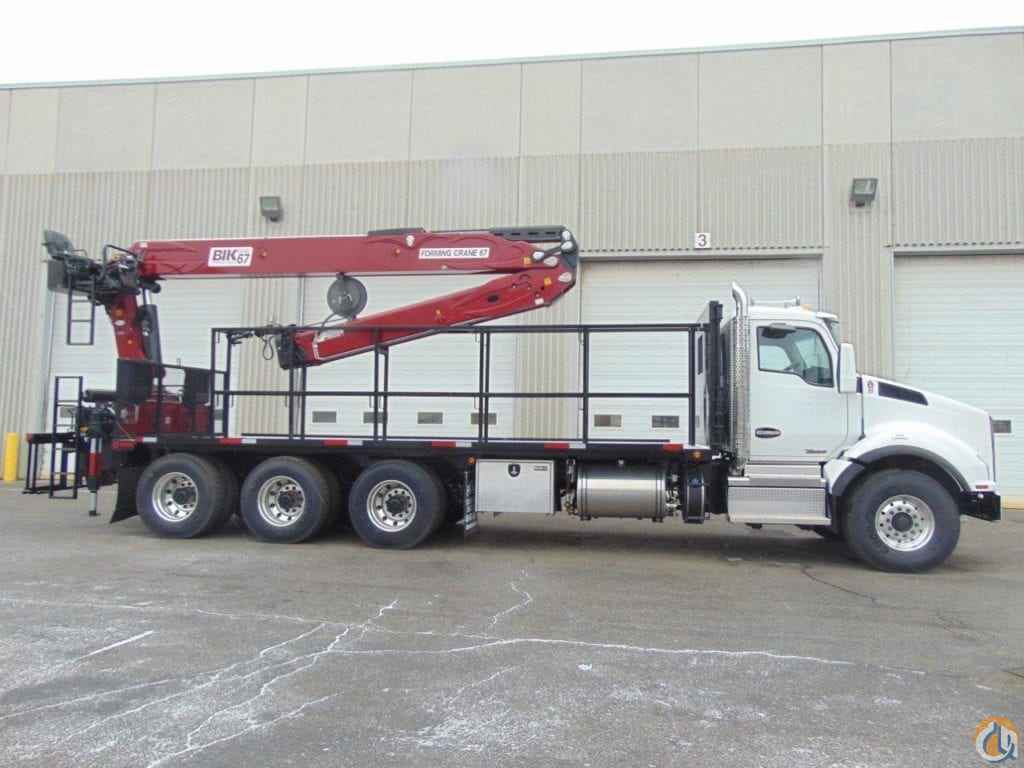

New – BIK Series Forming Crane FC-67 Unloader – 4 Hydraulic Extensions, (simulated 70’ rearward reach w/reverse mount)

• Horizontal Capacities
  • 7,400 lb @ 28’
  • 3,100 lb @ 55′
  • 2,500 lb @ 62′
  • 2,200 lb @ 67′
• Internal cylinders on all boom extensions, Outer boom cylinder guard
• Rack & Pinion type 390 degree non-continuous rotation , Mechanical stop between main boom and boom unit
• Power Link Connections at Main and Articulating Cylinders, enhanced lifting power throughout
• Extra Wide Stabilizers – 24’ 3” span, hydraulic out and down type
• Flanged holding valves, double acting check valve for the down movement of the stabilizers
• Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom
• DANFOSS Valve – At Top Seat Level controls full access catwalk
• Hydraulic hook rotator with T-hook at end of boom

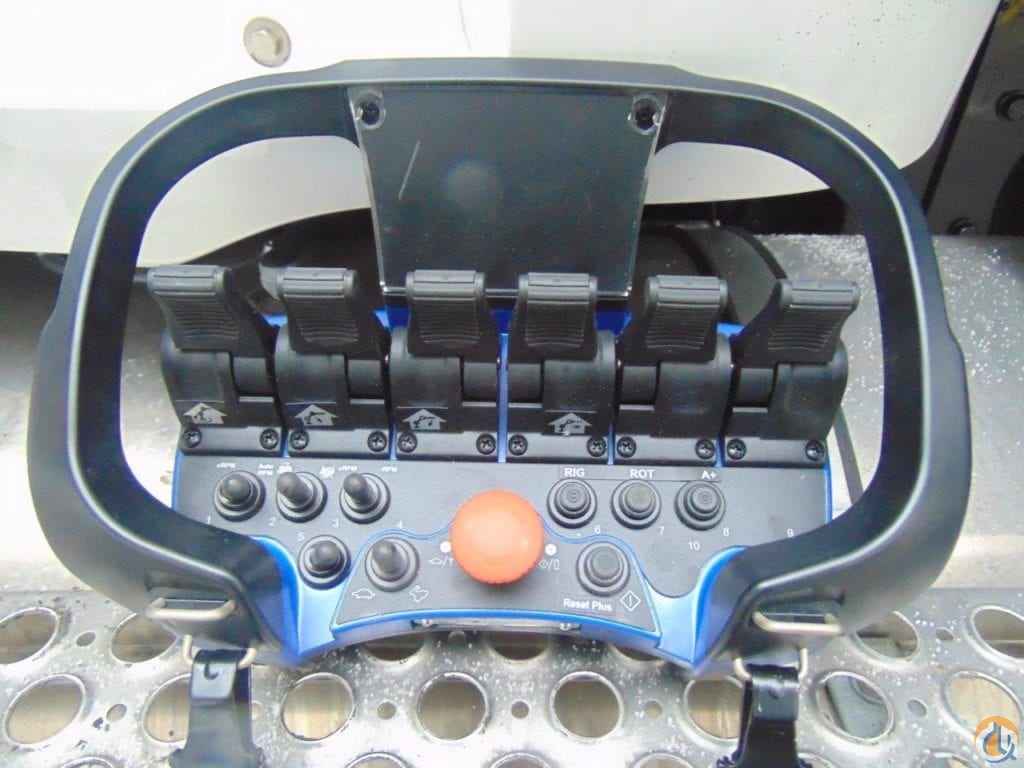

• SCANRECO Proportional Radio Remote Control Included: 2-batteries, in-cab charger, and back-up cord,
• Load Tested & Installed end of frame on pre-engineered sub base.

DECK DETAILS

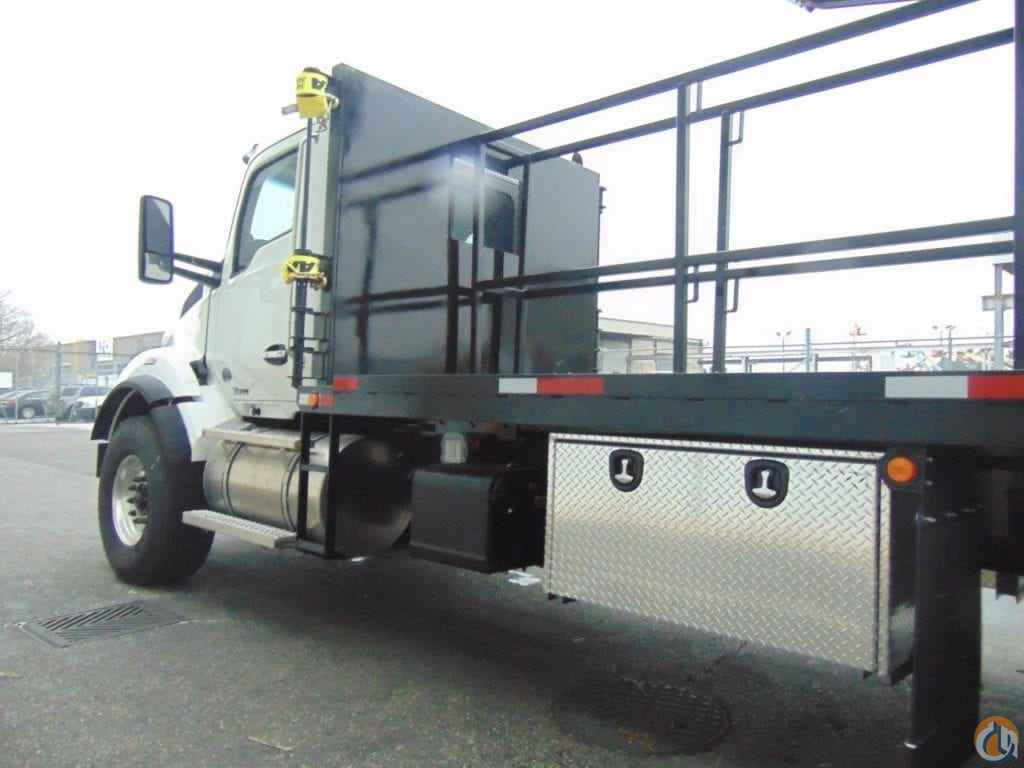

New – 23’ 4” x 102” LOW PROFILE Steel Checker plate Flat Deck With Center Divider

• Checker plate steel deck surface
• 60” + headboard with two sets of straps and winches ahead of the headboard
• 2” lip around deck for form cage handling
• 3” cross members side welded for low profile deck
• Expanded metal removable rear tailboard
• Winch bar holder and winch bar, ladder, reflectors and 5-side lights
• Integrated torque box with X-bracing and sheer plating mount to frame for optimum stability
• Primed/painted gloss black.

TRUCK DETAILS

New – Kenworth T880 Tri-Drive 4-axle truck: 89,000 lbs GVWR

• Cab white Paccar 485 HP – 1,650 ft/lb torque, Jake Brake
• Eaton Ultrashift Plus 18 spd automated trans
• 20,000 LB front steer axle with 425 / 65R22.5 tires on Aluminum Rims
• 69,000 LB Rears on Hendrickson Primax Suspension with 11R22.5 tires on aluminum outer rims
• 54” spread at ta
• Double Frame

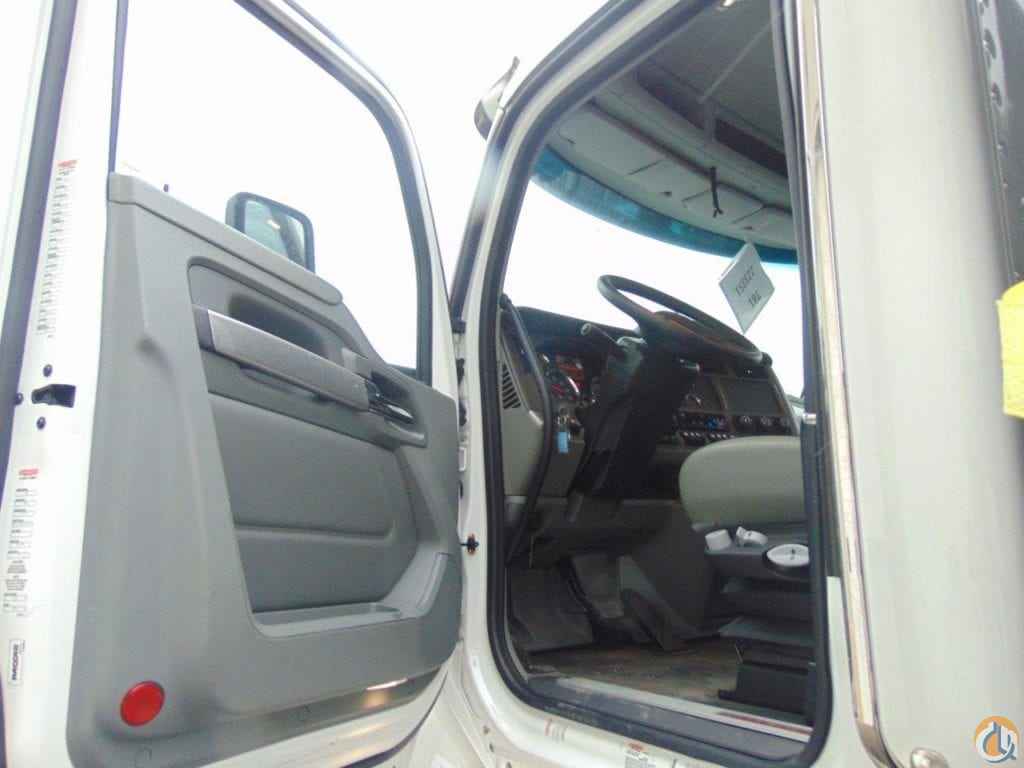

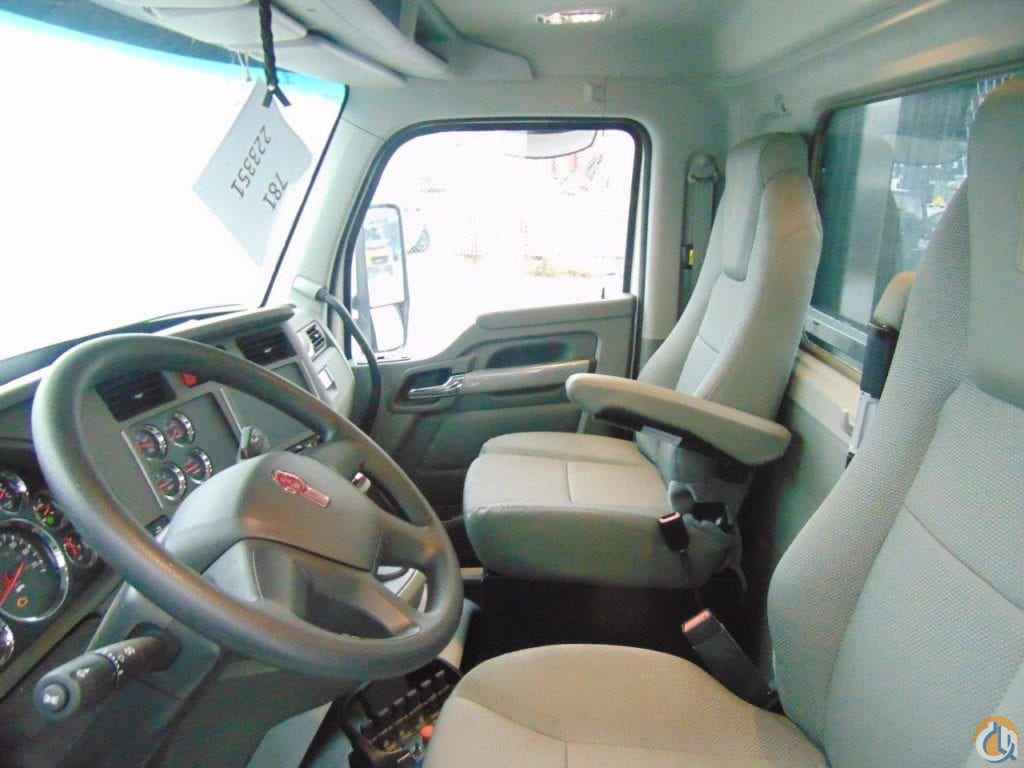

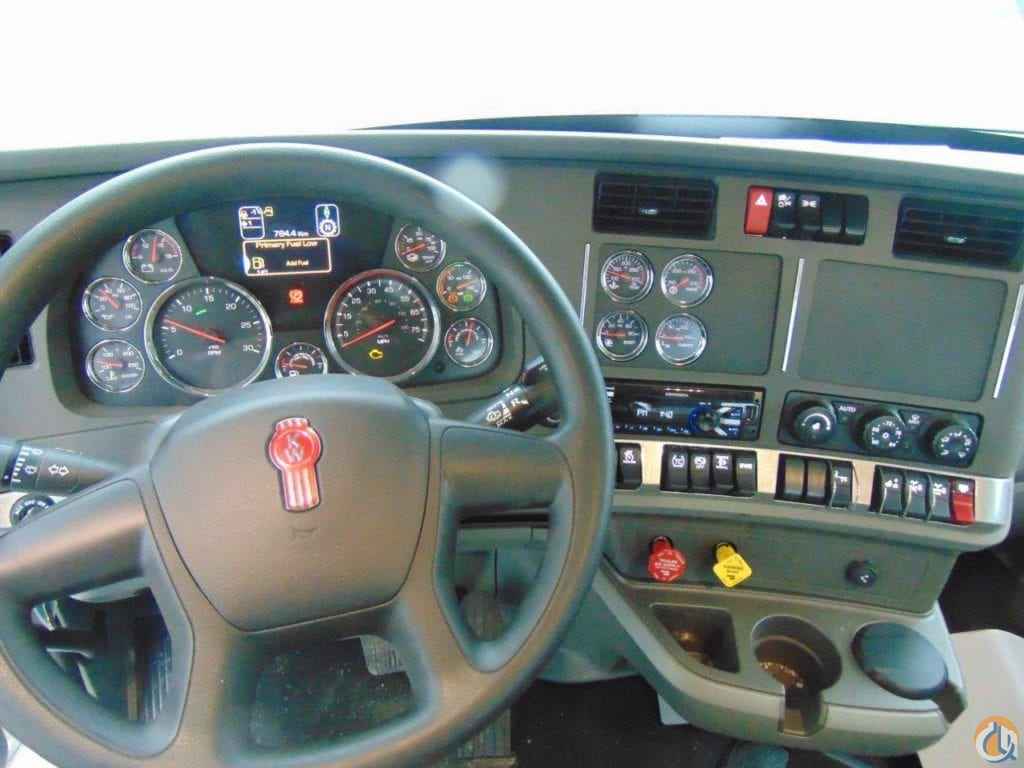

• Truck features include: A/C, Tilt/Telescopic steering, power windows & locks, AM/FM/MP-3 w/bluetooth, air driver’s seat and standard pass seat, cruise, htd mirrors, stainless exterior sun visor, Air ride cab, 4-wheel lock ups, trailer air tow package, Chromed Front and side Grille & Bumper, 100 gal alum fuel tank, etc..

Options Included:

• (1) x 36” Aluminum Toolbox installed, – Wireless Proportional radio remoTE
• LED spot lighting on the boom
• 1” drawplate at rear (for possible pintle hook)
• Junction box at top seat for full engine controls
