THIS LISTING SOLD FOR $2,000,000

Condition

Excellent

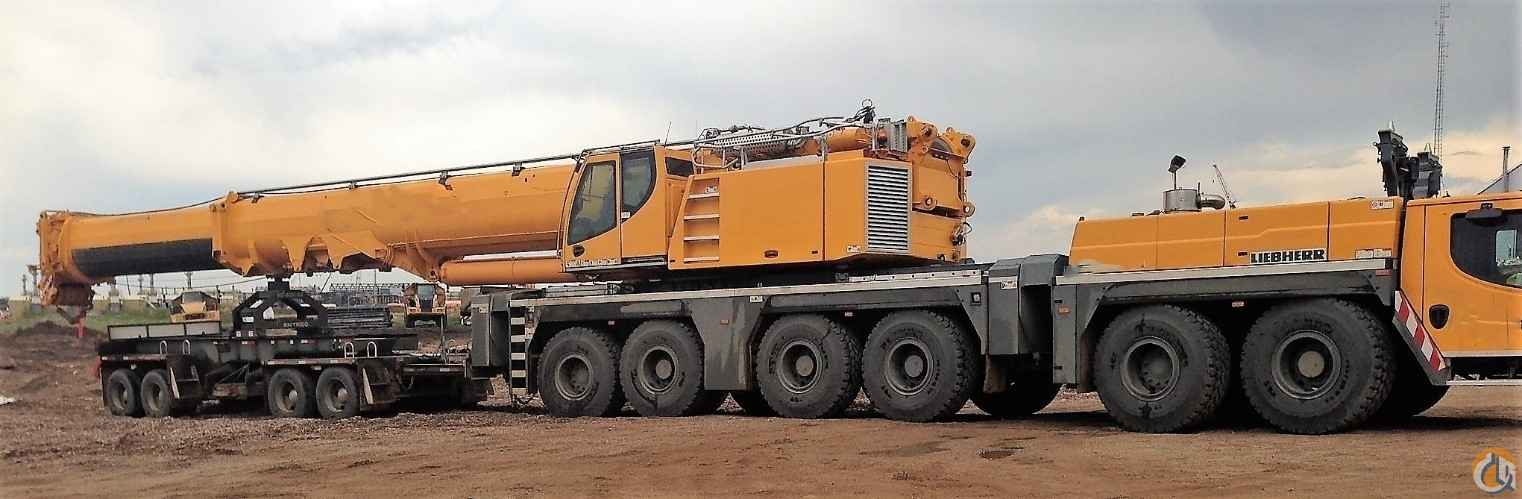

LIEBHERR LTM 1350-6.1 2013

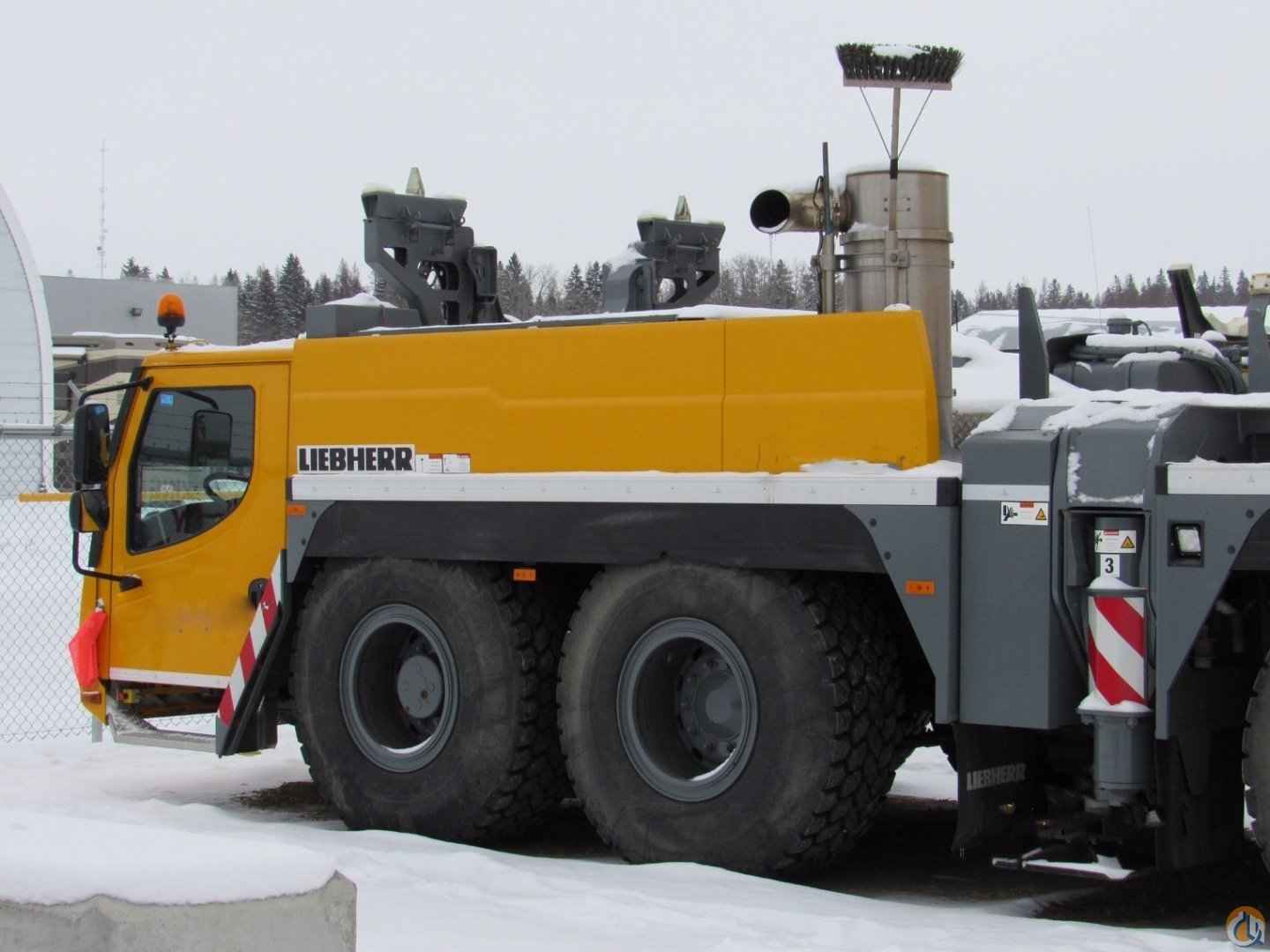

CRANE CARRIER



LIEBHERR 6 axle carrier with hydro-pneumatic NIVEAUMATIC-SUSPENSION with level adjustment. LIEBHERR

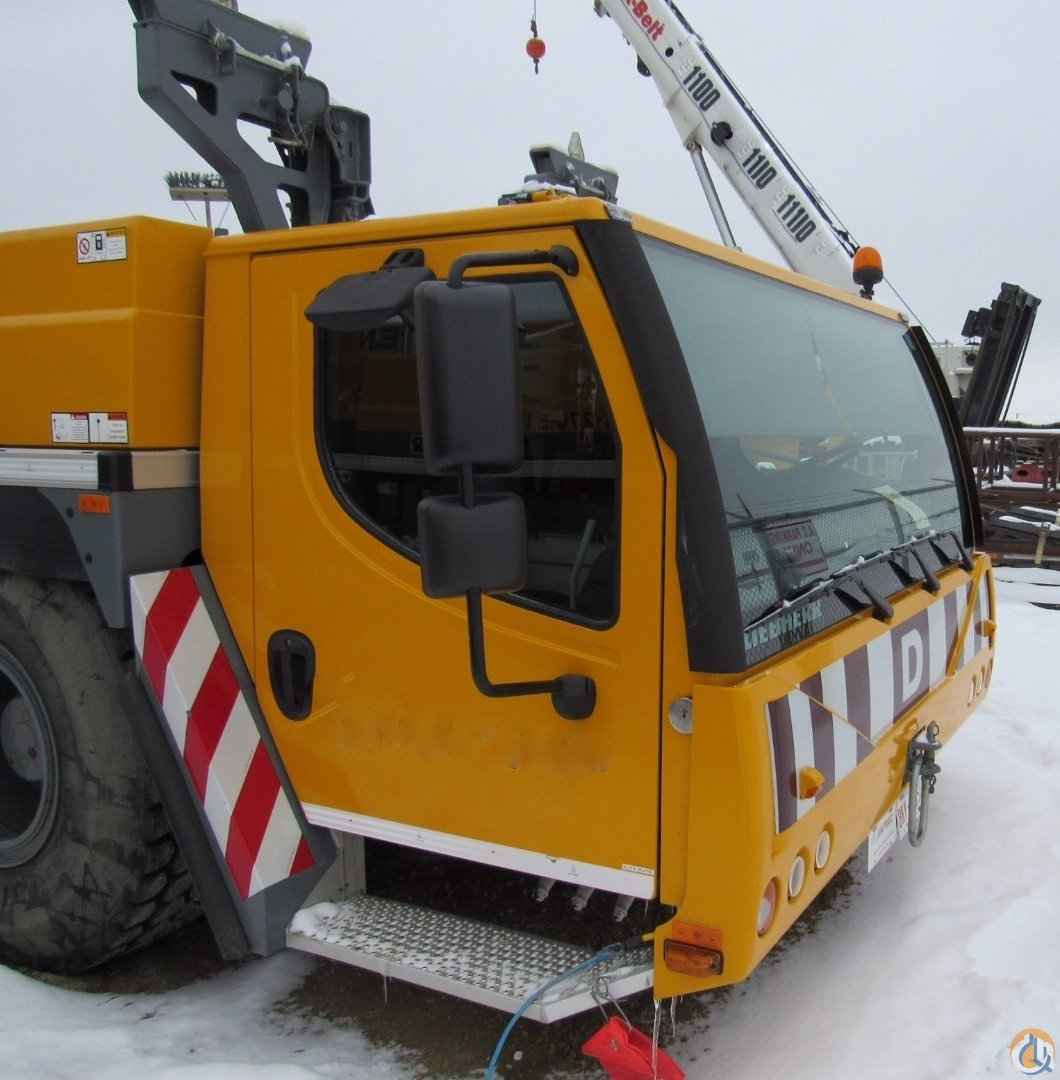

diesel engine with 450 kW  {612. HP), exhaust emission acc. to 97/68/EC and EPA/CARB, spark arrestor. ZF TC-Tronic transmission wlth torque converter and retarder. Transfer gearbox. DRIVE 12X8X12. ZF-steering system -2 circuits with active rear-axle steering, all-wheel steering, crab walk. Compressed air servo brake system-2 circuits with disc brakes. Axles and suspension cylinders demanding low maintenance, drive shafts maintenance  free.  Spacious, dip-primed carrier cabin with engine-independent heating incl. timer and CD-radio. Hydraulic outriggers with rigidly mounted outrigger pads. Mobile operating and lndicating unit (BTI -Bluetooth Terminal} for comfortable support incl. electronic inclinometer, supporting pressure indication and automatic levelling. illuminatron of supporting area. Acoustic reverse drive alarm. Manoeuvring coupling at front and rear. Acceptance tests of carrier.



SUPERSTRUCTURE



LIEBHERR roller-bearing slewing ring connecting carrier and superstructure.  Central greasing.
LIEBHERR diesel engine with 180 kW {245 HP), exhaust emission acc. to 97/68/EC and EPA/CARB,
spark arrestor. Hydraulic system with 5 axial-piston swivel pumps and double gear pump. Electronic
capacity control for  hoisting  and slewing ·gear  with closed oil circuits,  luffing and
telescoping gear with open oil circuits. Reeving-winch. Oil cooler. Electro-hydraulic control of
crane. Telescopic boom consisting of the pivot section and 5 telescope sections,. boom length

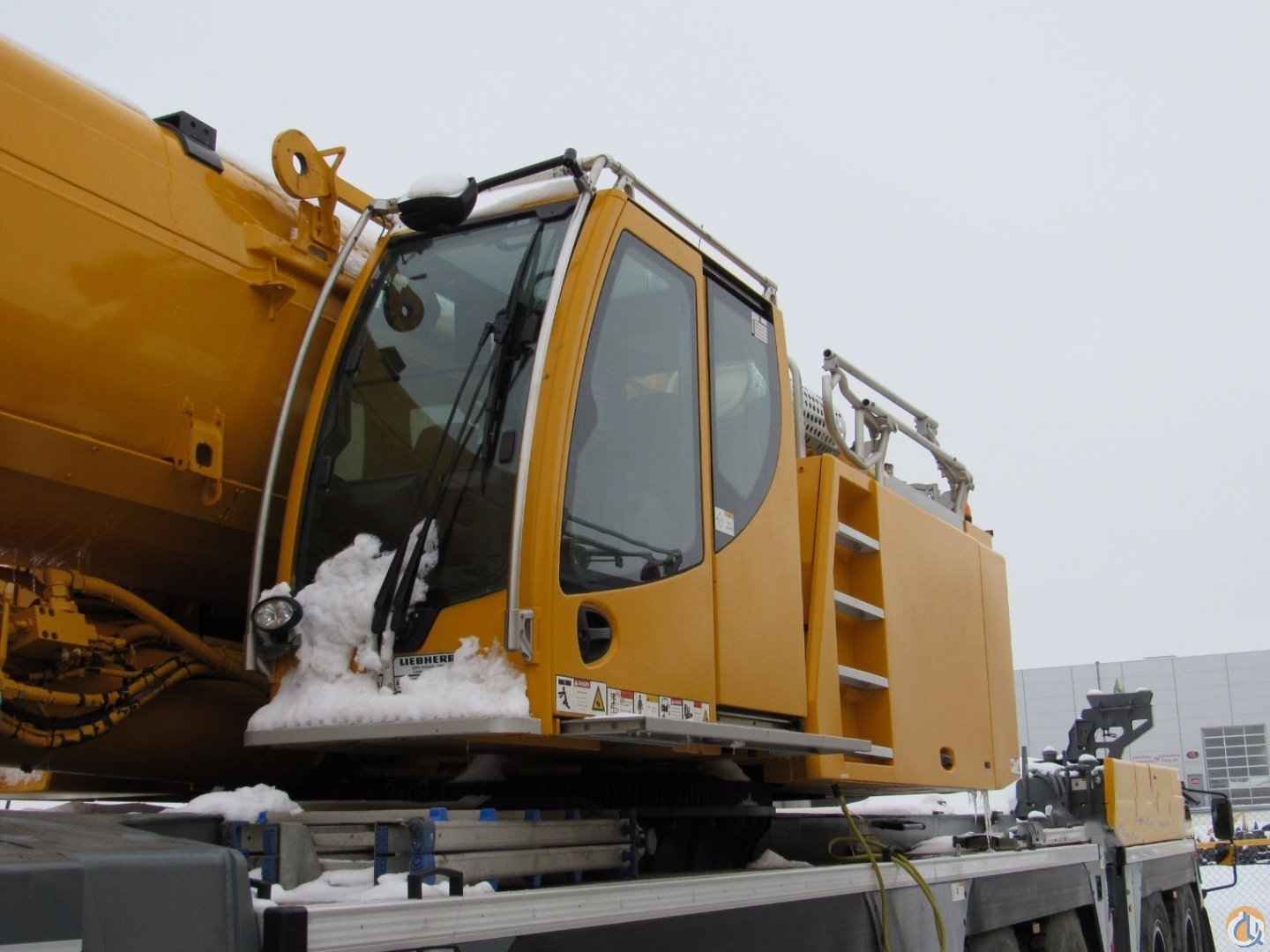

14.9 m -  70 m, TELEMATIK_  Non-corroding crane  cabin  with engine-independent heating incl..
timer and CD-radio, tiltable hydraulically backwards 20 degrees. Control of the outriggers from- crane
cabin. Counterw,eight  100 t.  Safety  devices  including LICCON2 overload safety  indicator (incl.
standard program) with electronic inclinometer, electronic supporting pressure indication. TEST
SYSTEM for servicing. LICCON-Lift Planner. Wind gauge. Flight warning light.  Standard acceptance
tests  of crane.




STANDARD PAINTING:



Carrier, rims



Cabins, superstructure, telescopic boom & counterweight







BASIC MACHINE:



Lattice-type luffing jib 78m (256 FT)



Attatchment parts for fixed jib mounting of the luffing jib



Winch 2 (auxilliary winch or winch for control of the luffing jib)

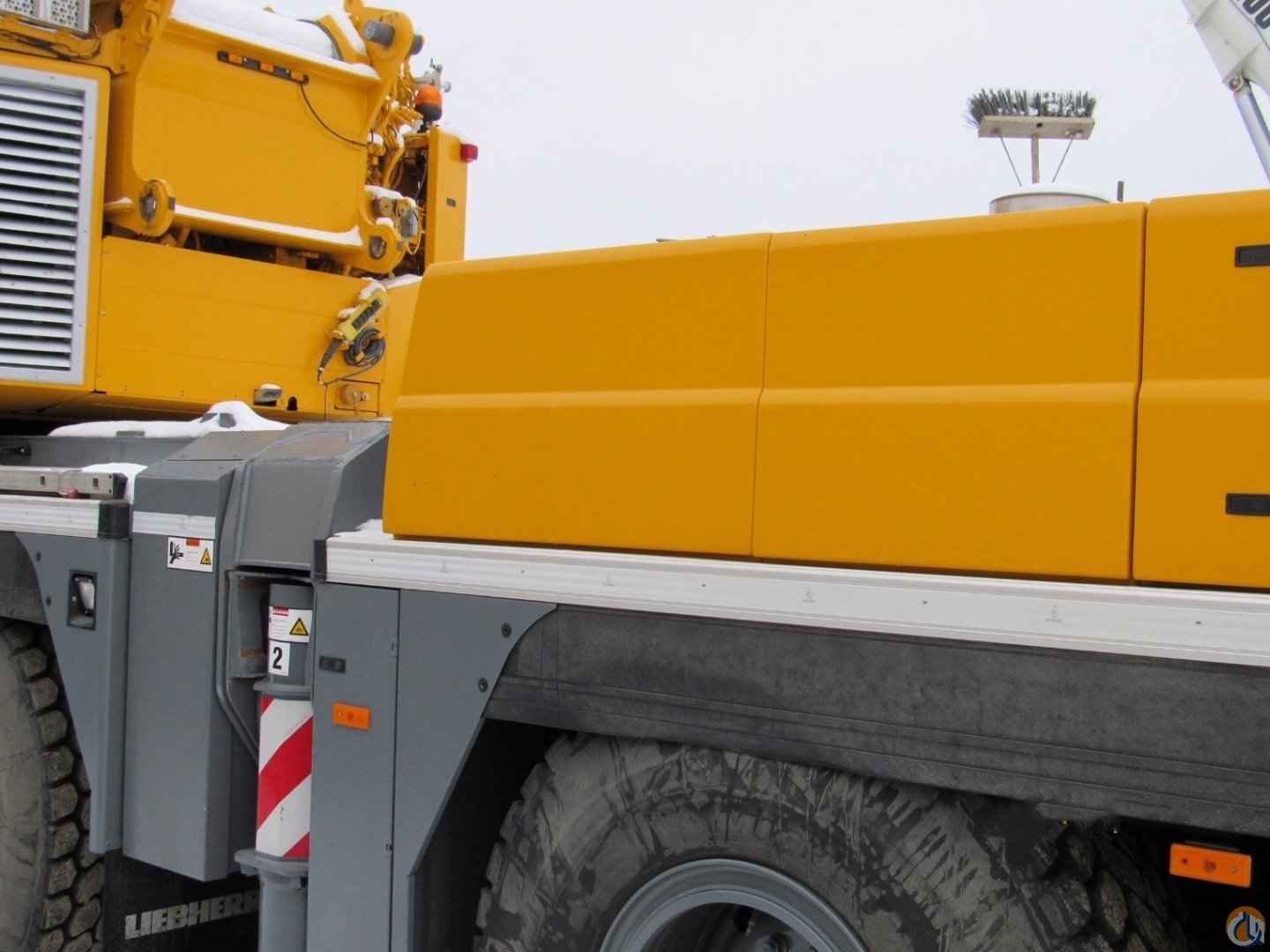

Additional counterweight 40 t (for total 140 t)



Y-type guyed telescopic boom



Excenter with extension of the telescopic boom 3.5 m (VE) to increase the lifting capacities at the lattice-type jibs.



Hookblock 156 t, 7 sheaves, double hook



Hookblock 80 t, 3 sheave, double hook (needed for the lattice-type luffing jib 12 m)



Hookblock 36,2 t, 1 sheave, single hook



Crane hook 12,2 t



Rooster sheave, foldable to the side



Runner 48 t (H), 2 sheaves



Second boom head top sheave



Addittional pulley block for loads up to 215 t

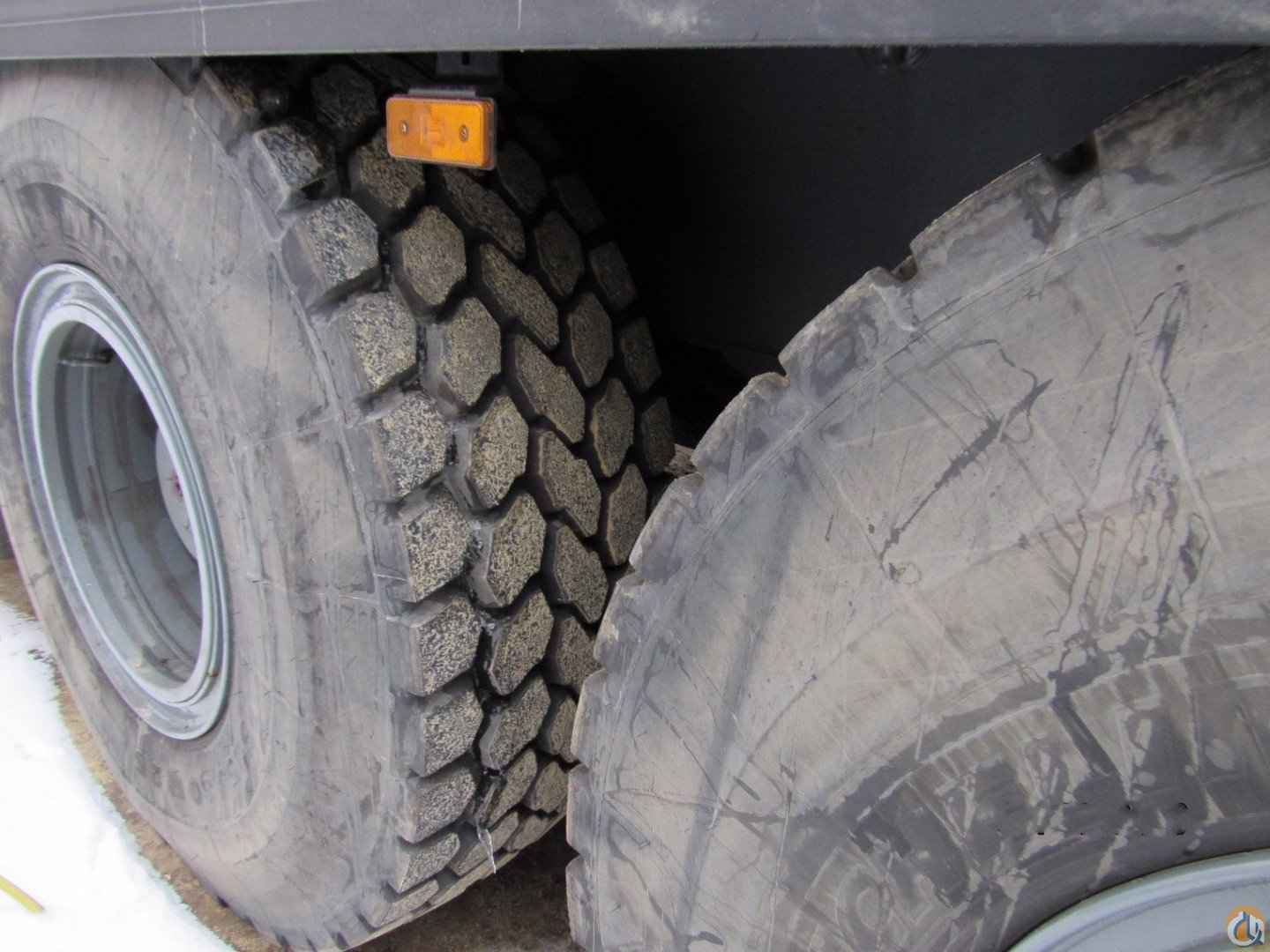

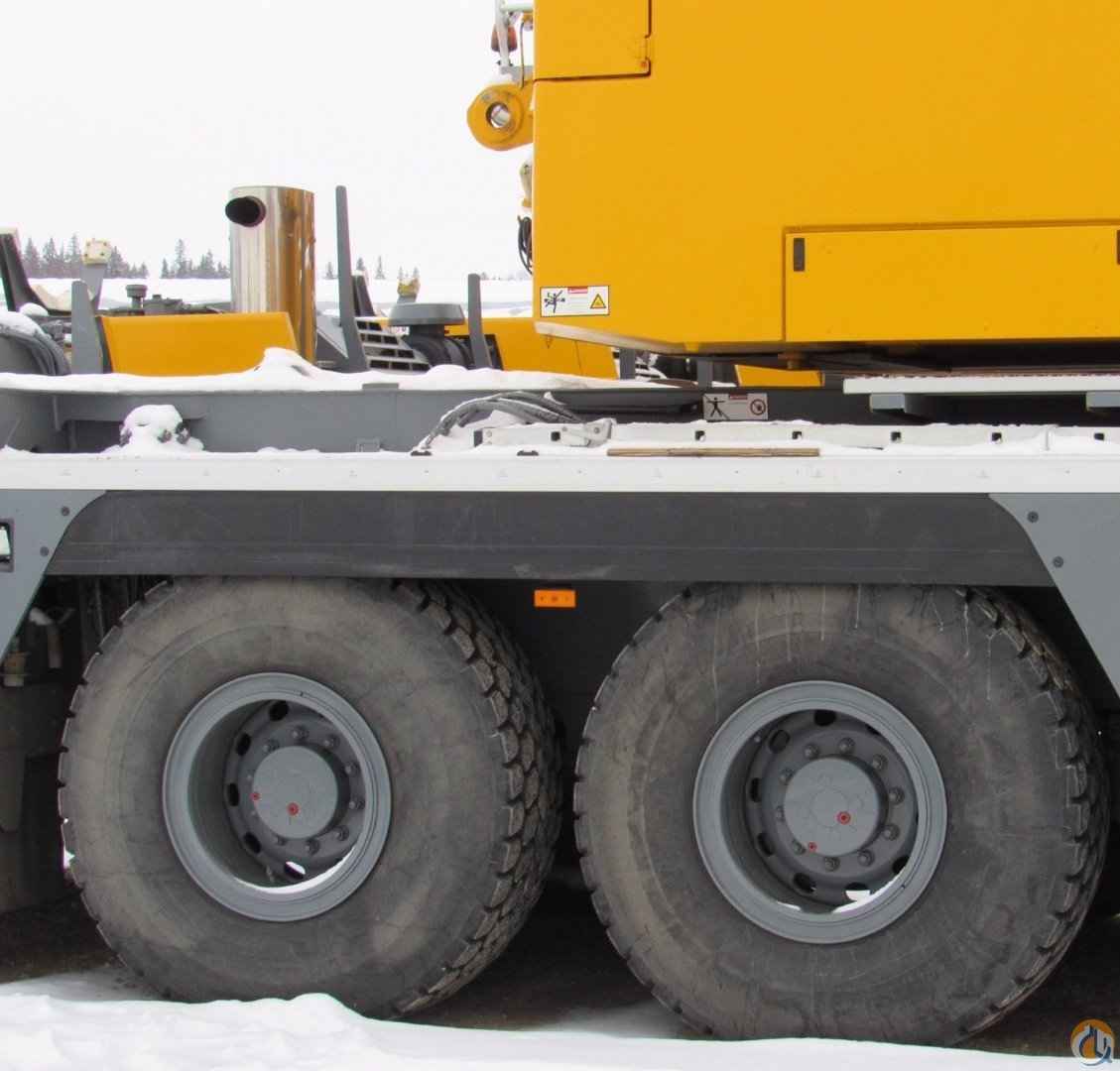

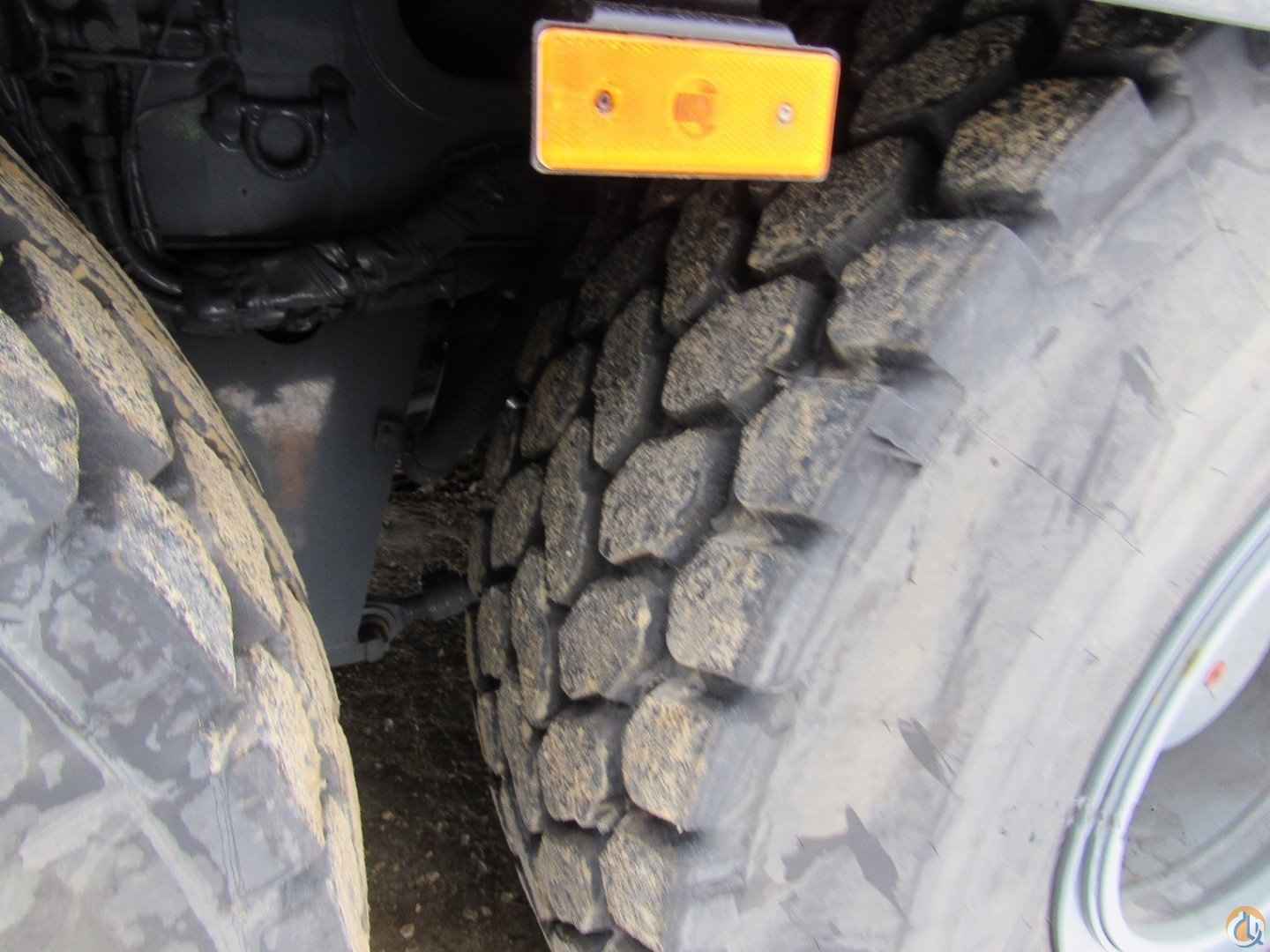

Tires 525/80 R 25 (20.5 R 25) – Michelin



Drive 12x8



Eddy-current brake type TELMA



Trailer coupling D-factor 26, incl. draw eyelets for 17 t



Supporting base detection



Air condition for carrier cabin



Camera system for reverse drive with colour monitor



Low temperature hydraulic oil



Engine shut down valve incl. overspeed protection for both engines.



Emergency shutdown button – carrier cabin & crane cabin



12 V-socket for carrier cabin



Fan heater for carrier cabin including 230 V connection



Calix engine-preheating for carrier, including 230 V / 110 V connection



External starting connection for carrier and superstructure incl. cable



Draw eyelets rear



Detatchable outrigger beams



Additional support at the vehicle rear end



Air condition for crane cabin



Working area limitation



Anti-twist device



Remote diagnosis with GSM-module



Second hoist limit switch at telescopic boom head



Two working floodlights at pivot section electrically adjustable (Xenon)



Flight warning, flashlight



12 V-socket for crane cabin



Fan heater for crane cabin including 230 V connection



Emergency operation of crane hydraulic



Hydraulic transformer for emergency operation



Calix-engine preheating for superstructure including 230 V / 110 V connection



Preparation for Dolly



LICCON Data Logger with evaluation software – Liftanalyser



LICCON – Lift Planner



Three-dimensional (3D) crane data for CAD-applications on compact disc (CD)



Cold weather package



Rear removable outrigger box

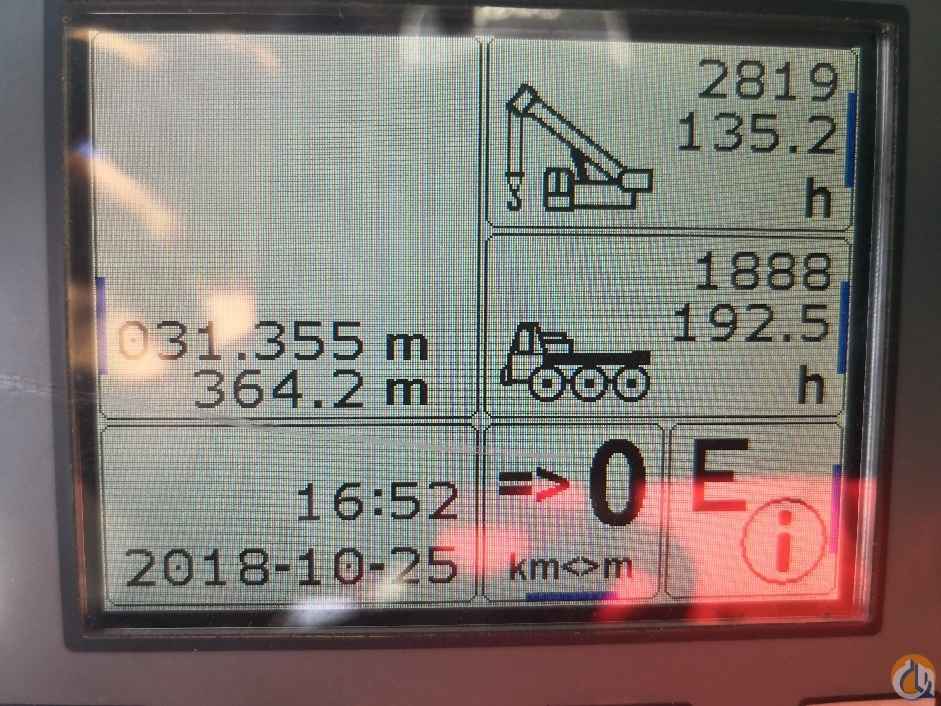

Upper hours 2816



Lower Hours 1888



Kilometres 45,586 (28,326 MILES)



SUBJECT TO AVAILABILITY

PLEASE CALL OR EMAIL FOR MORE INFORMATION















  • Year: 2013
  • Boom: 229'
  • Capacity: 400.00
  • Condition: Excellent
  • Location: Texas USA

View the manufacturer specifications here: Liebherr LTM 1350-6.1 Specs
