Available for immediate sale with delivery in July 2018.

Features

The tightest locations, the heaviest loads, the longest boom extensions

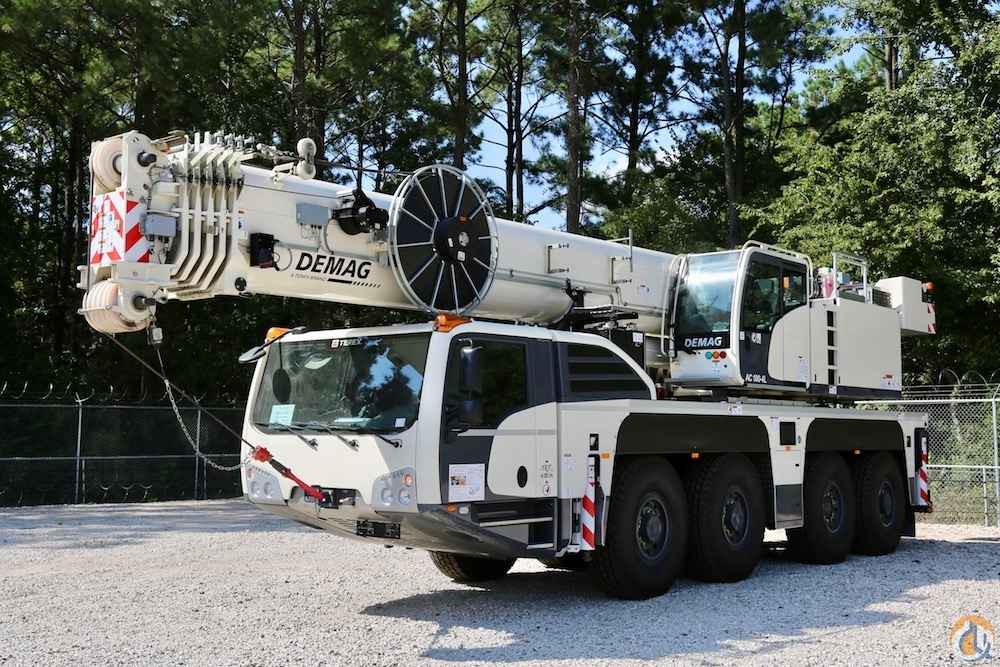

In fact, with a width of 2.55m, this Demag AC 100-4L is the most compact in its class. it goes places other 4-axle cranes just can’t go

With a system length of over 80 meters, the AC 100-4L has the largest operating range of any all terrain crane in its class in all configurations

Completely redesigned carrier and crane cabs, developed relied on extensive input from focus groups

Specifications

Capacity class: 100 t, 120 US-tons

Main boom length: 59,4 m, 194.9 ft

Main boom extension: 19 8 m, 62.3 26.2 ft

Maximum system length: 54,6 8 19 = 81,6 m, 179.1 26.2 62.3 = 267.7 ft

Maximum counterweight: 24,5 t, 27.0 US-tons

Overall length: 13,37 m, 43.9 ft

Carrier length: 10,64 m, 34.9 ft

Turning radius over cabin: 9,64 m, 31.6 ft

Carrier engine: 340 kW, 462 hp

Superstructure engine: 129 kW, 175 hp

Maximum travel speed: 85 km/h, 53 mph

Drive chain (optional): 8 x 4 x 8 (8 x 6 x 8)

Tires: 14.00 (16.00 / 20.5)

Maximum gradeability: 70%
