Features

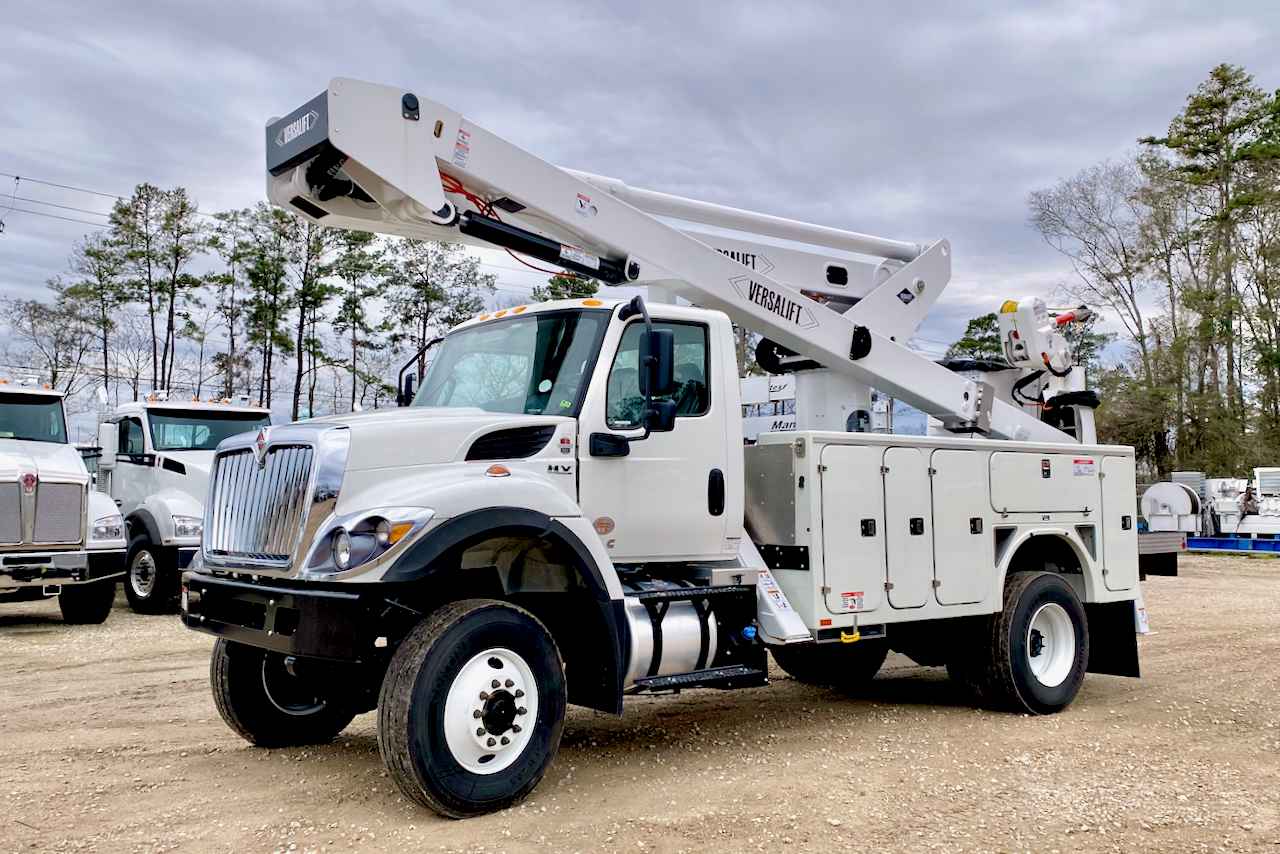

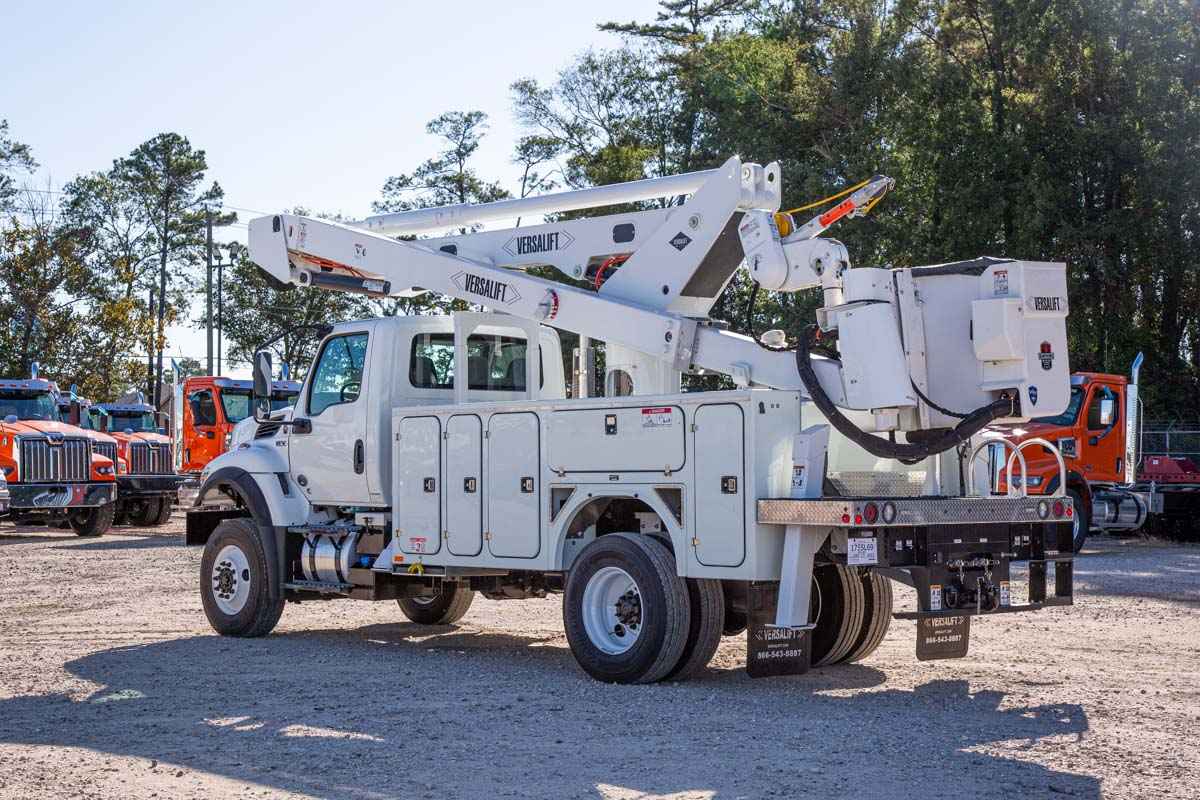

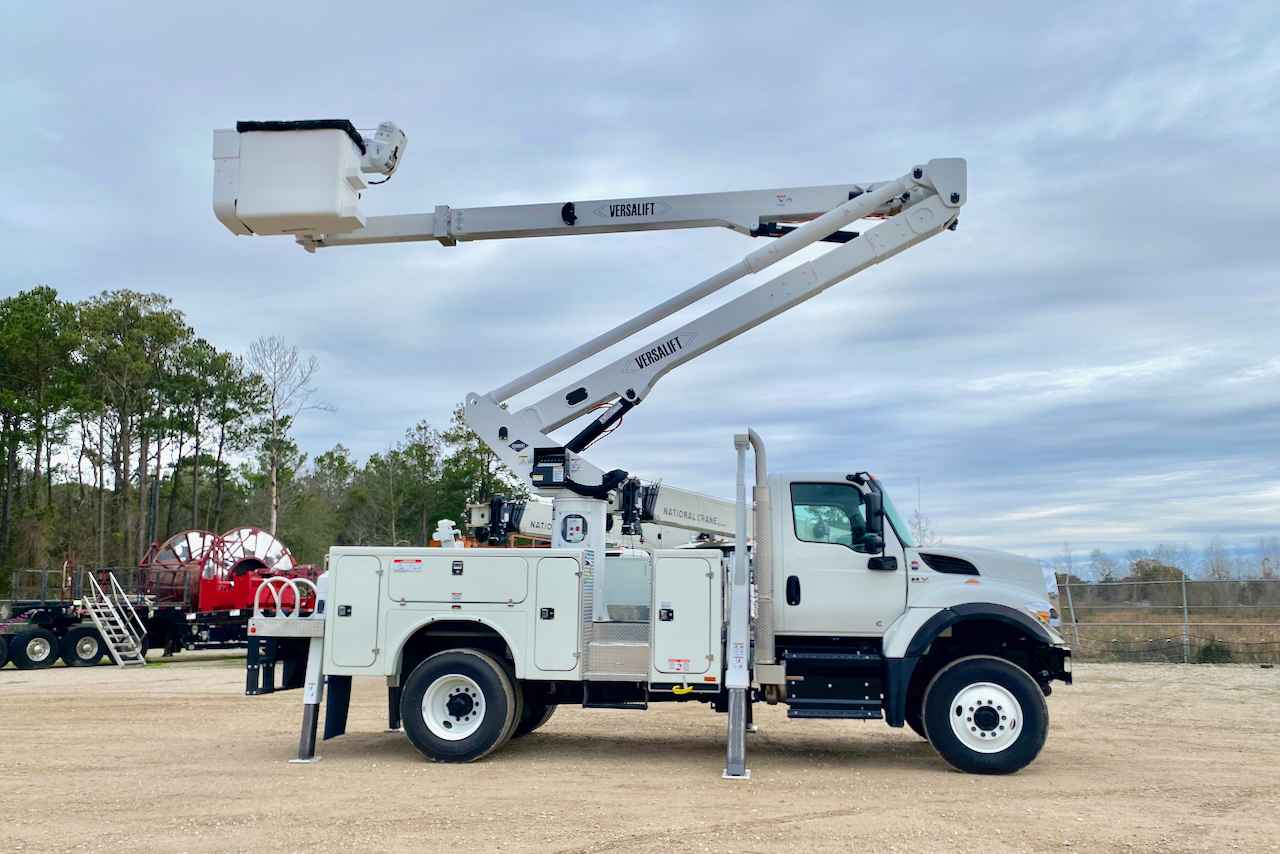

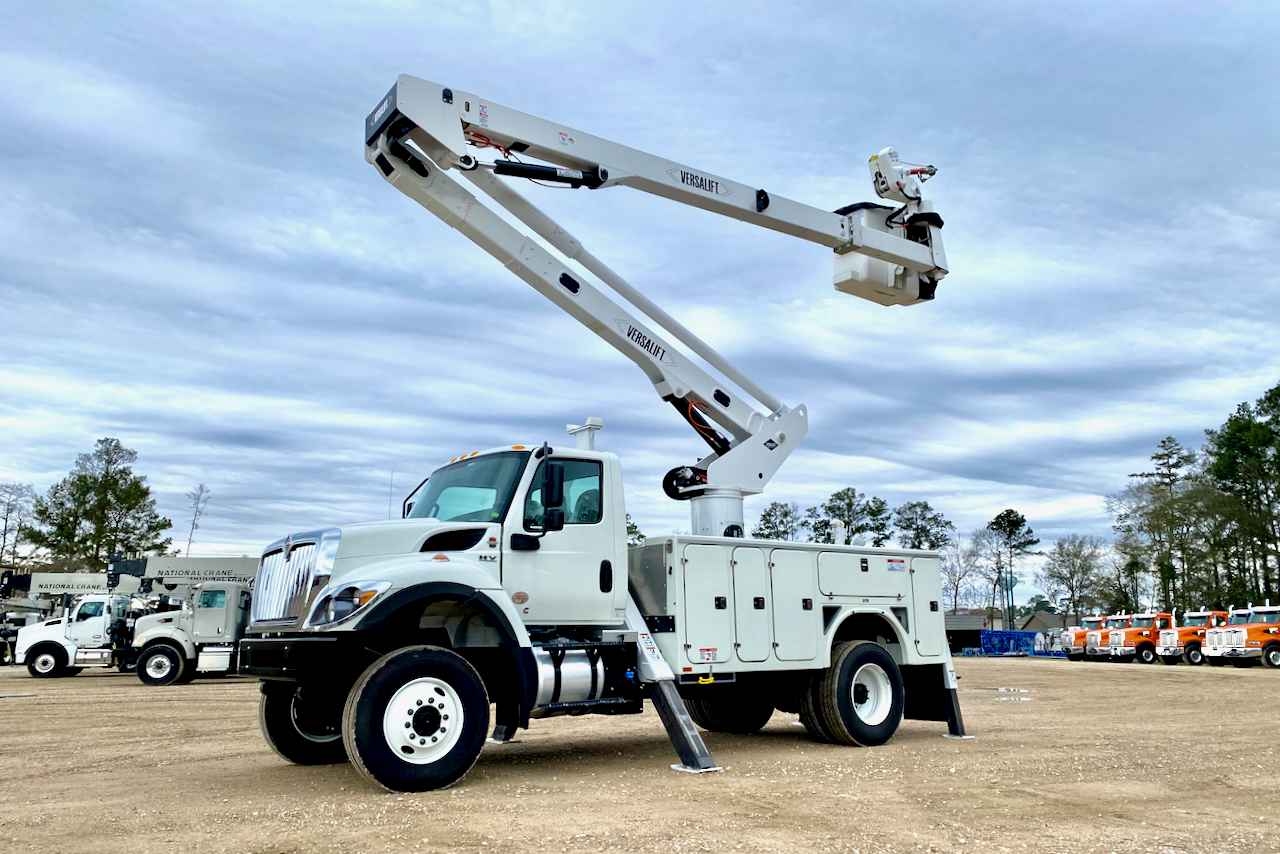

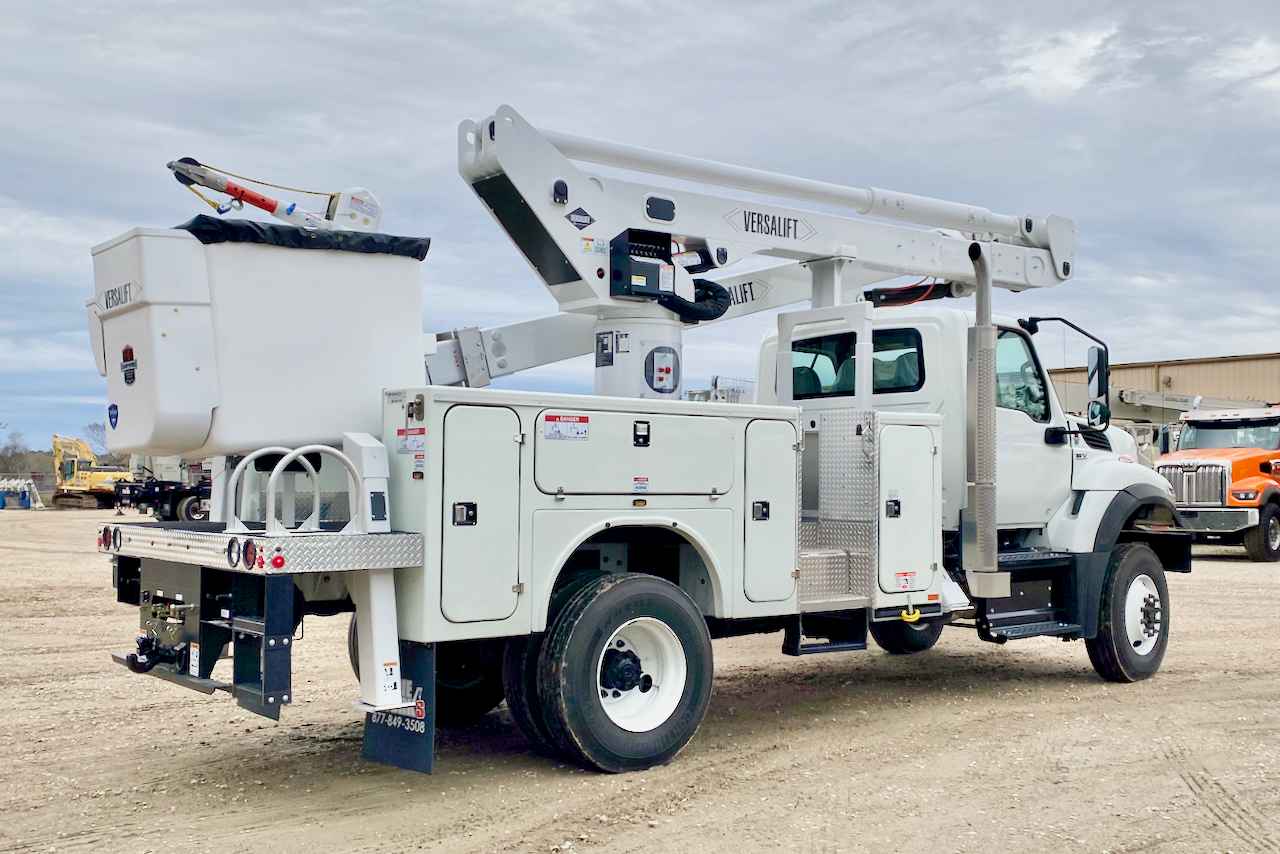

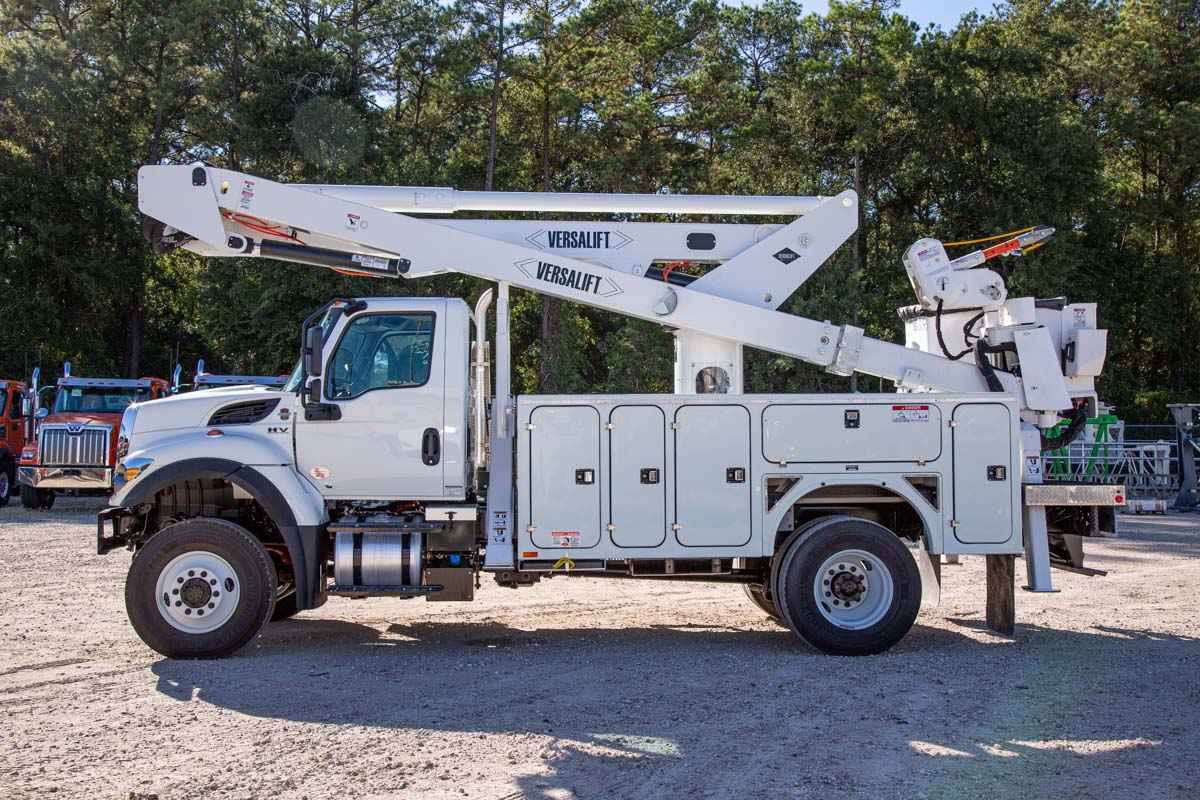

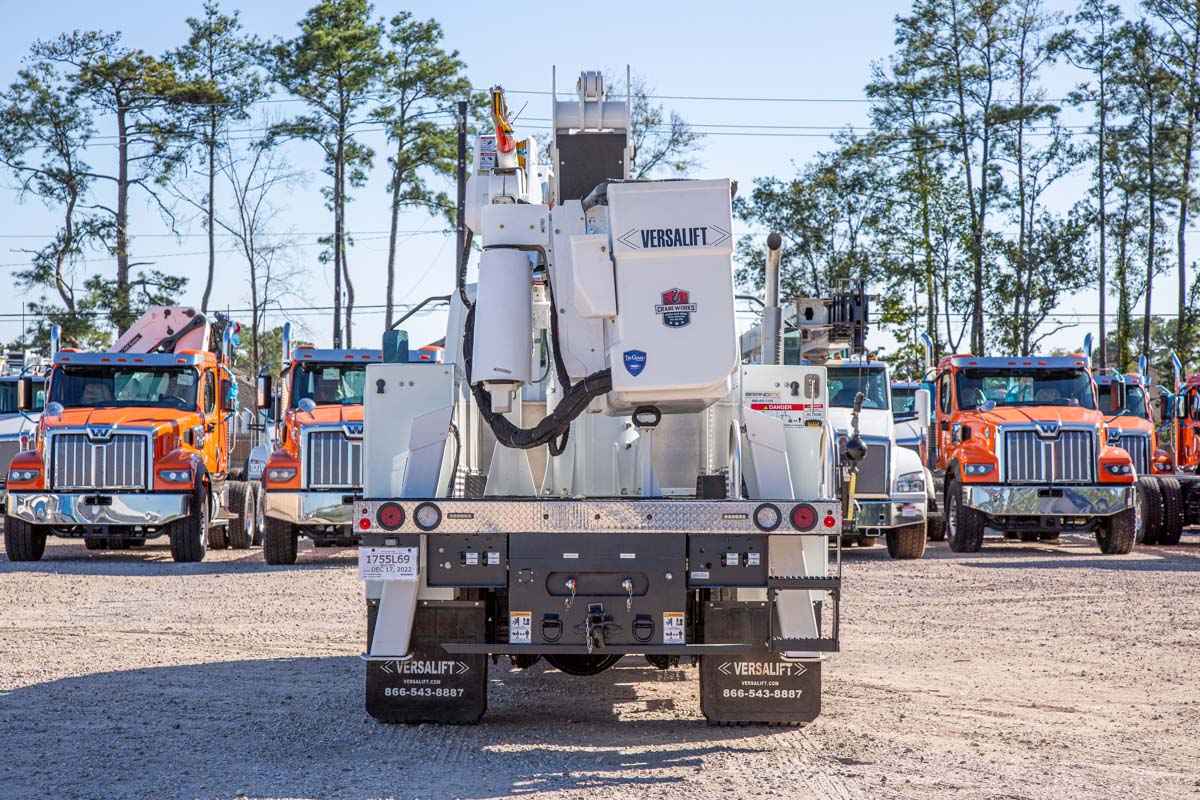

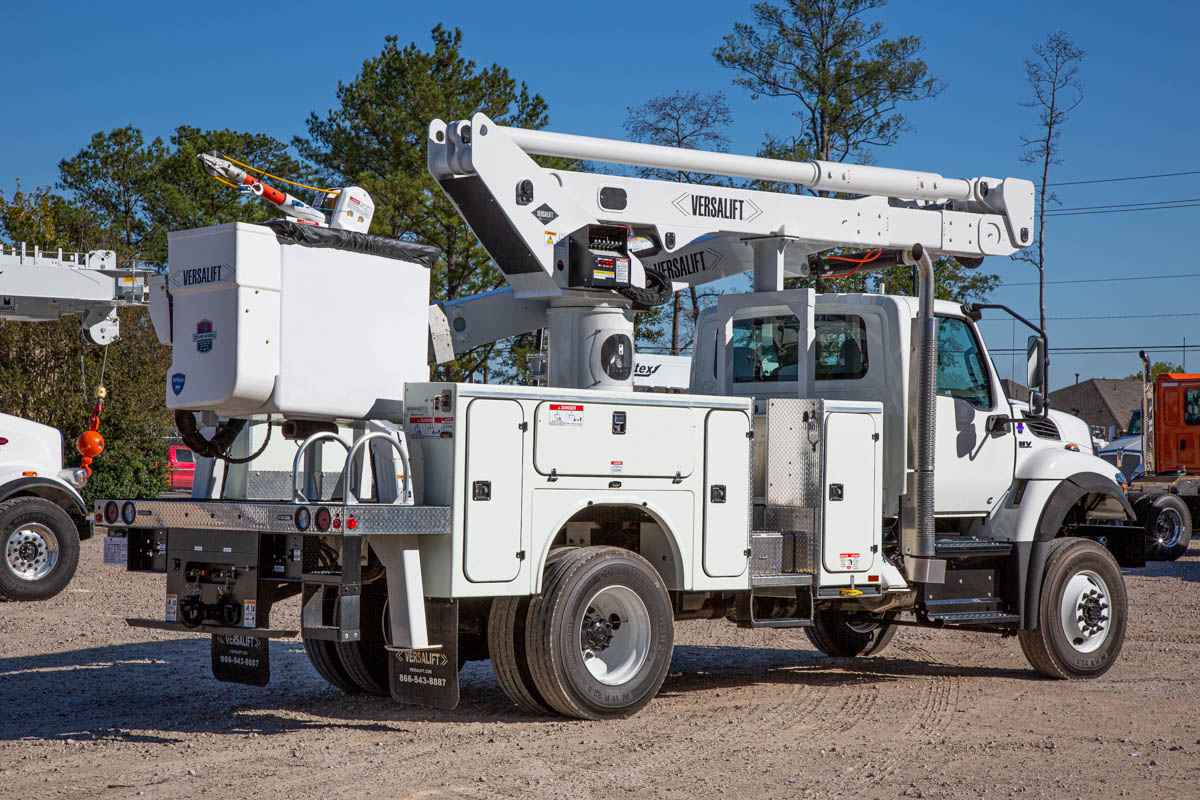

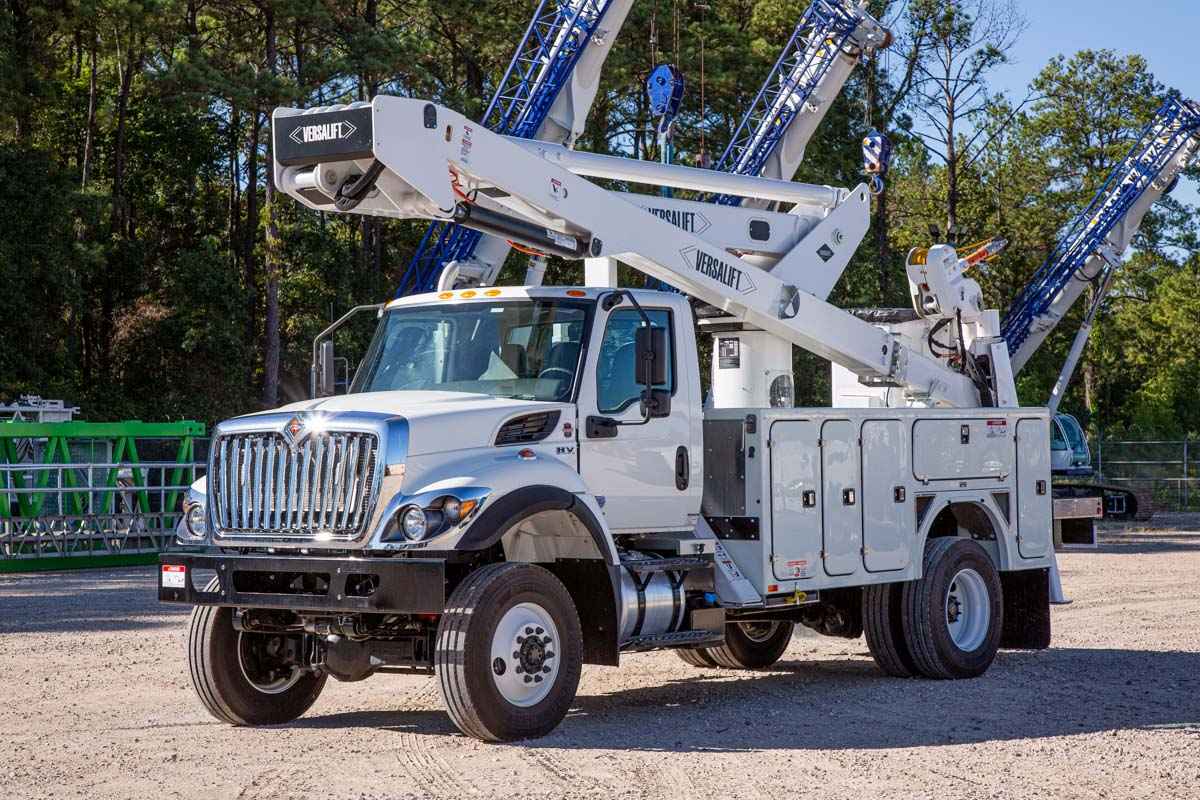

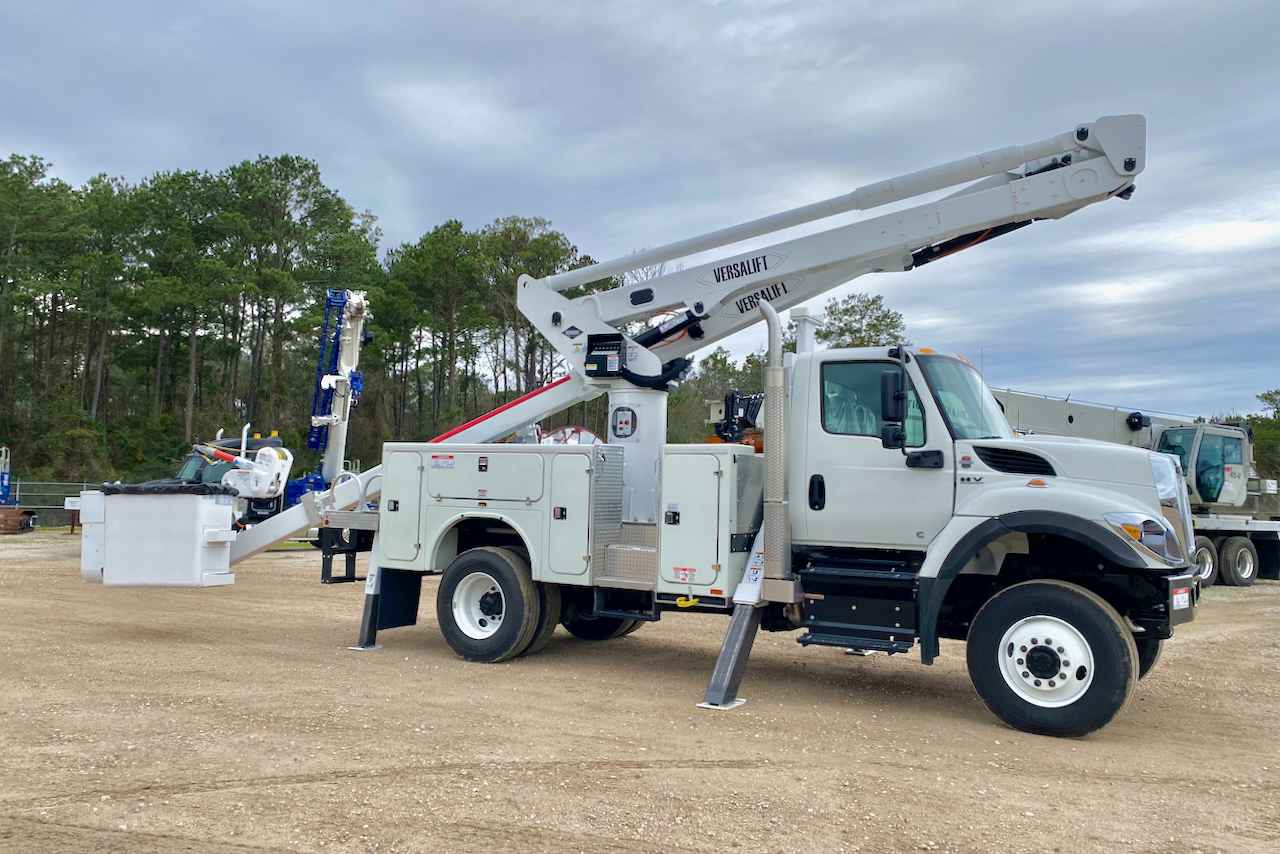

PRODUCT OVERVIEW Working Height: 65.08 ft (19.81 m) Height to Bottom of Platform: 60.08 ft (18.29 m) Horizontal Reach: 38.75 ft (11.58 m) Stowed Travel Height: 11.92 ft (3.35 m) Platform Capacity: 650 lbs (294.83 kg) Insulated or Non-insulated: Insulated Material Handling: Yes SPECIFICATIONS HYDRAULIC SYSTEM Hydraulic Controls: Full Hydraulic Operating Pressure: 2250 psi (158.19 kg/cm²) Flow Rate: 7.5 gpm (26.5 lpm) Filtration: 10 micron return | 100 mesh suction System Type: Open Center Power Source: PTO Pump BOOM Lower Boom Articulation: 0° to +86° Inner/Outer Boom Articulation: -25° to +85° Inner Boom Extension: 141 in (3.58 m) Insulation Gap Fully Retracted: 38 in (0.97 m) Insulation Gap Fully Extended: 179 in (4.55 m) Lower Boom Insulation Gap: 24 in (0.61 m) Lower Boom Lift Eye Capacity: 1000 lbs (453.59 m) Boom Rotation: Continuous
