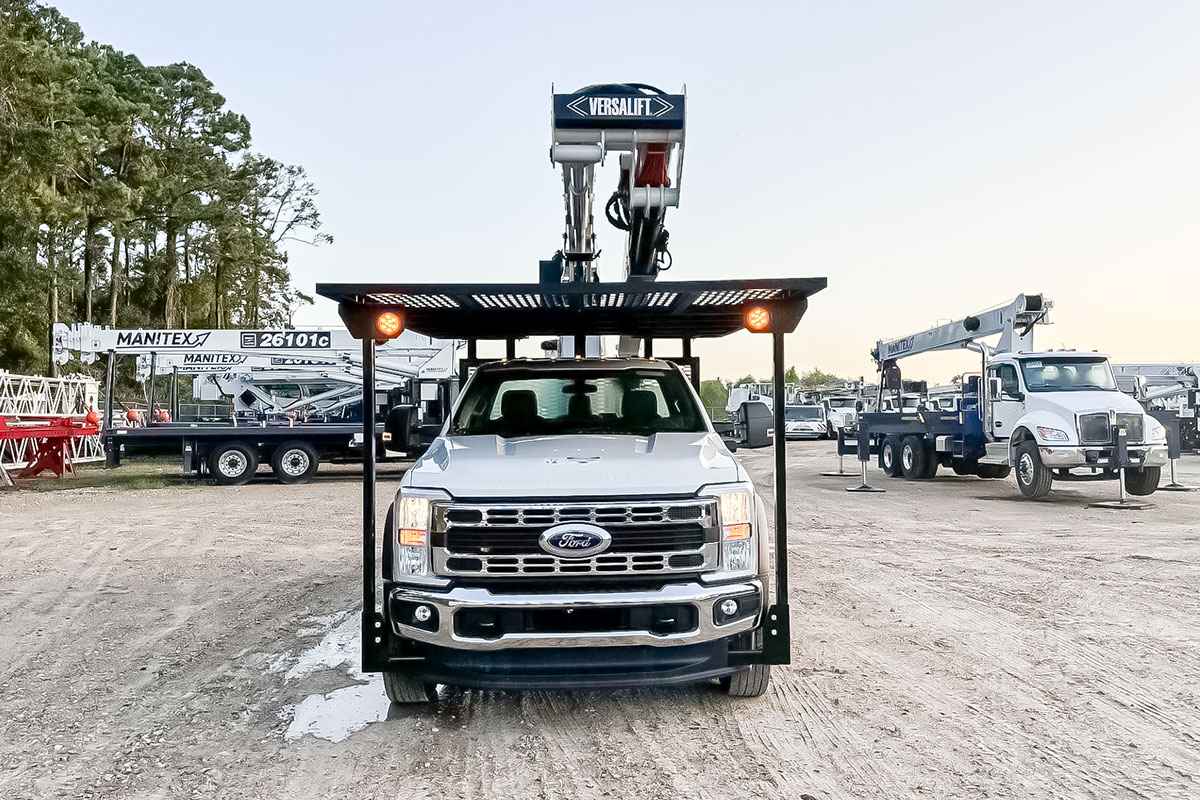

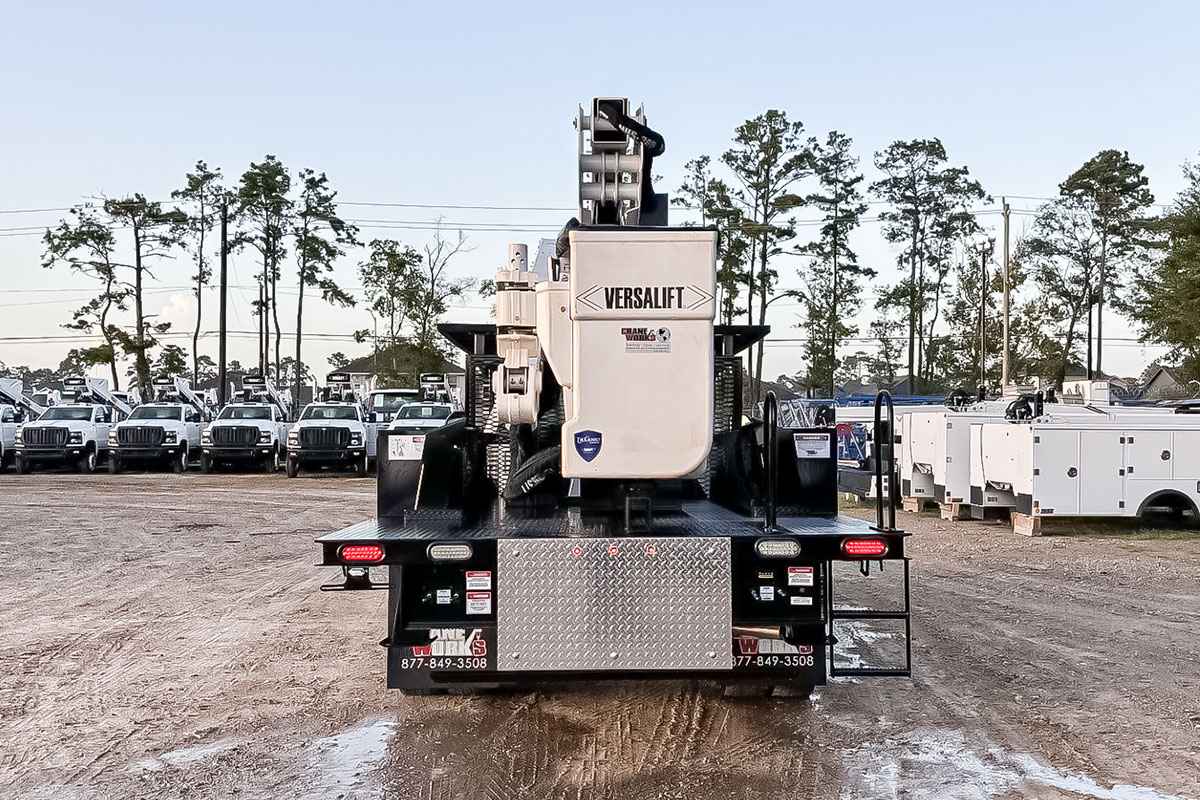

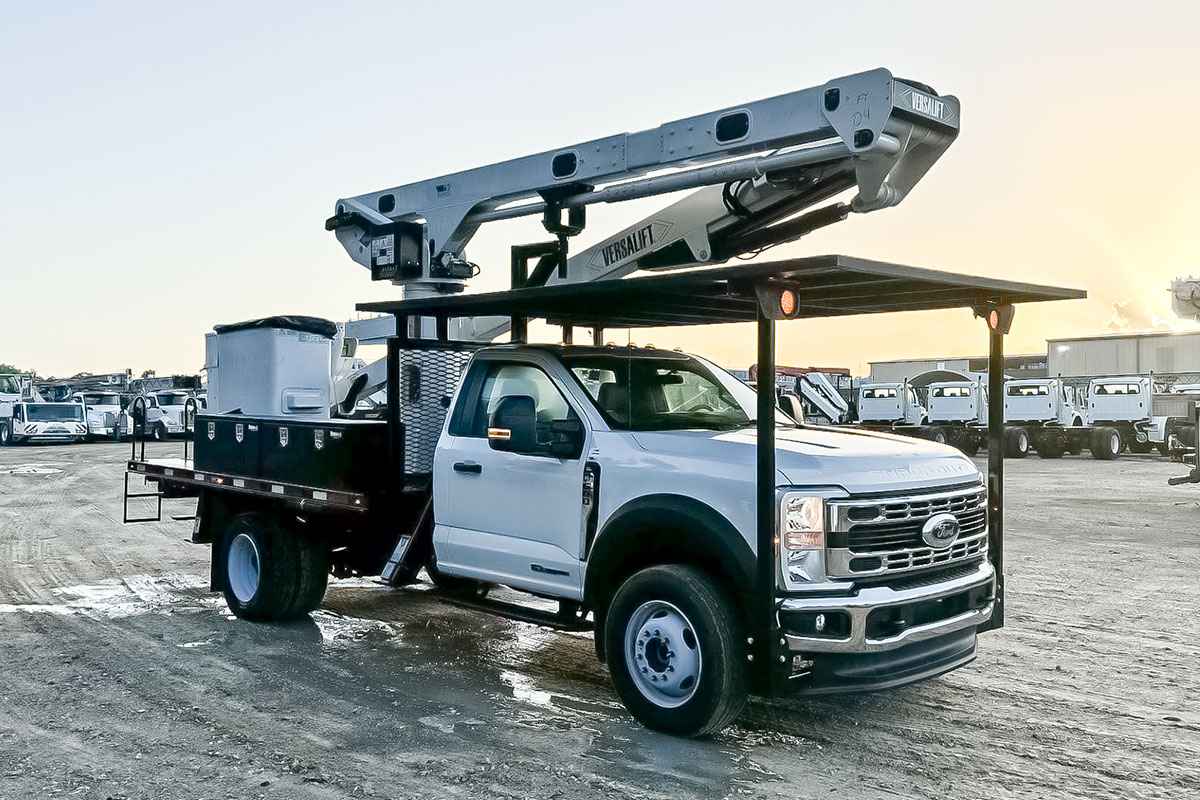

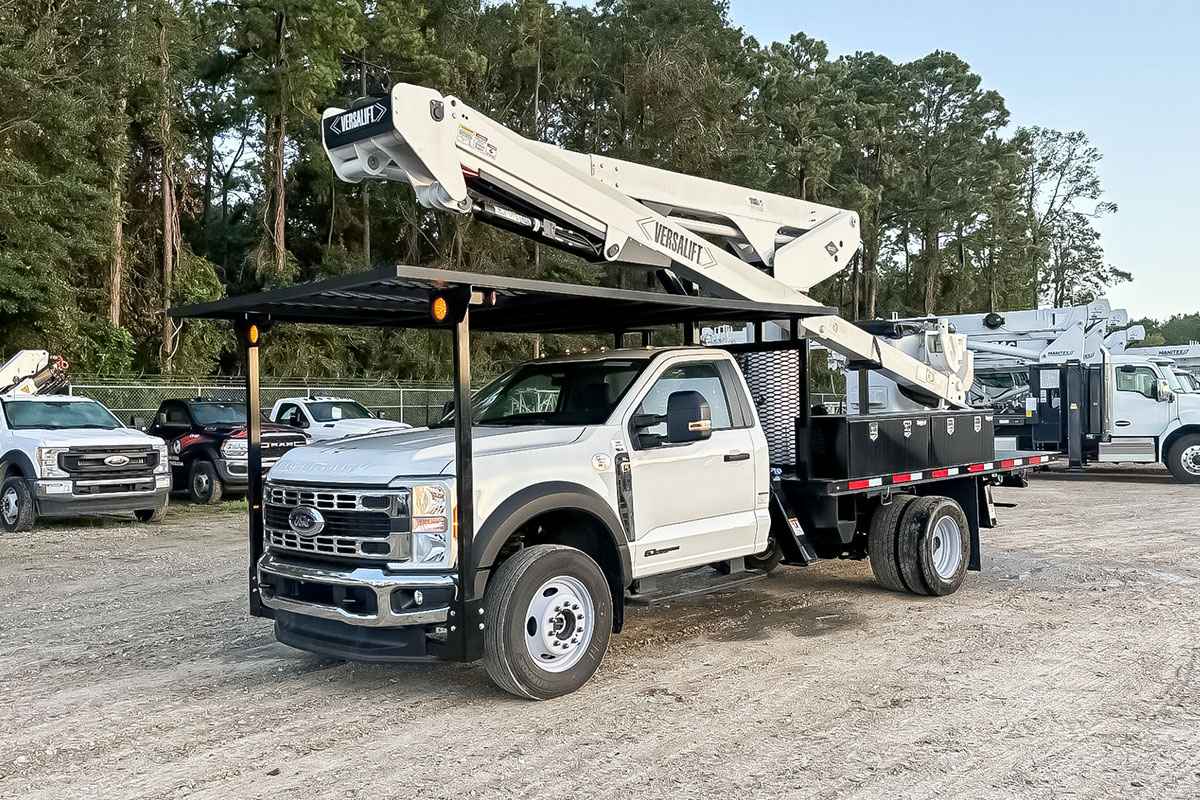

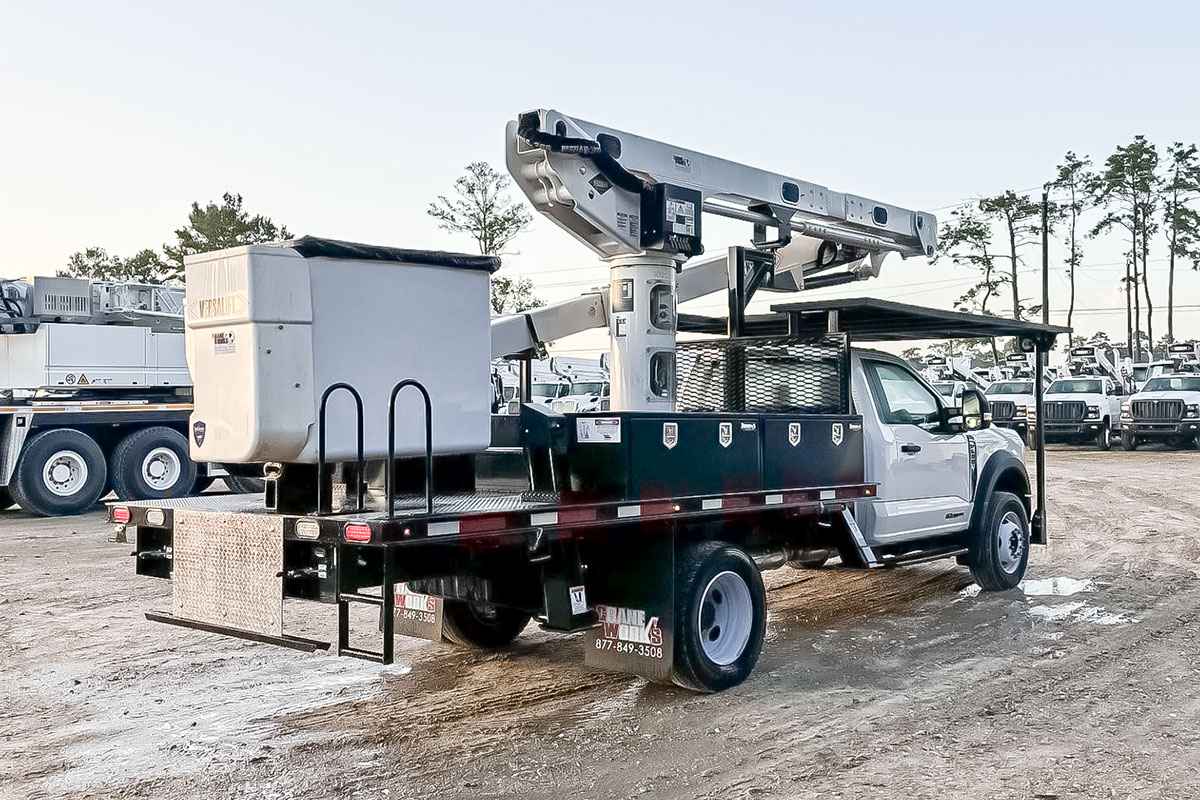

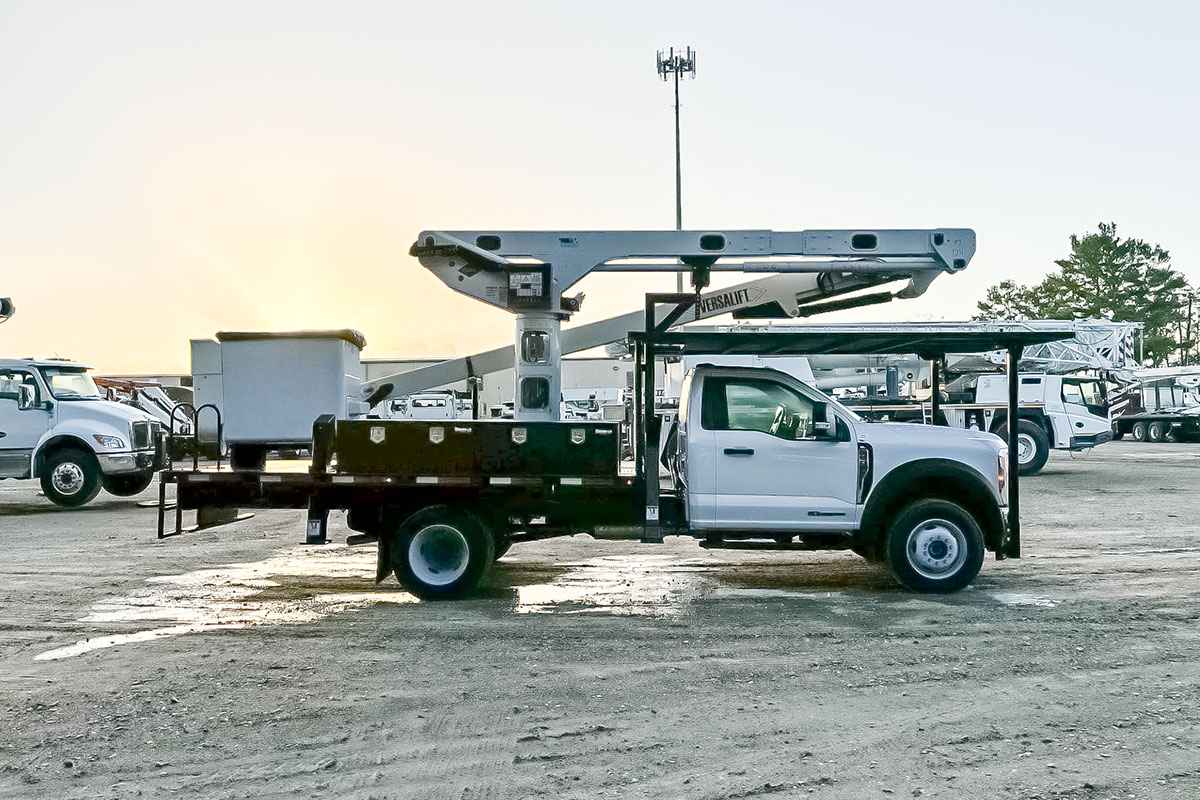

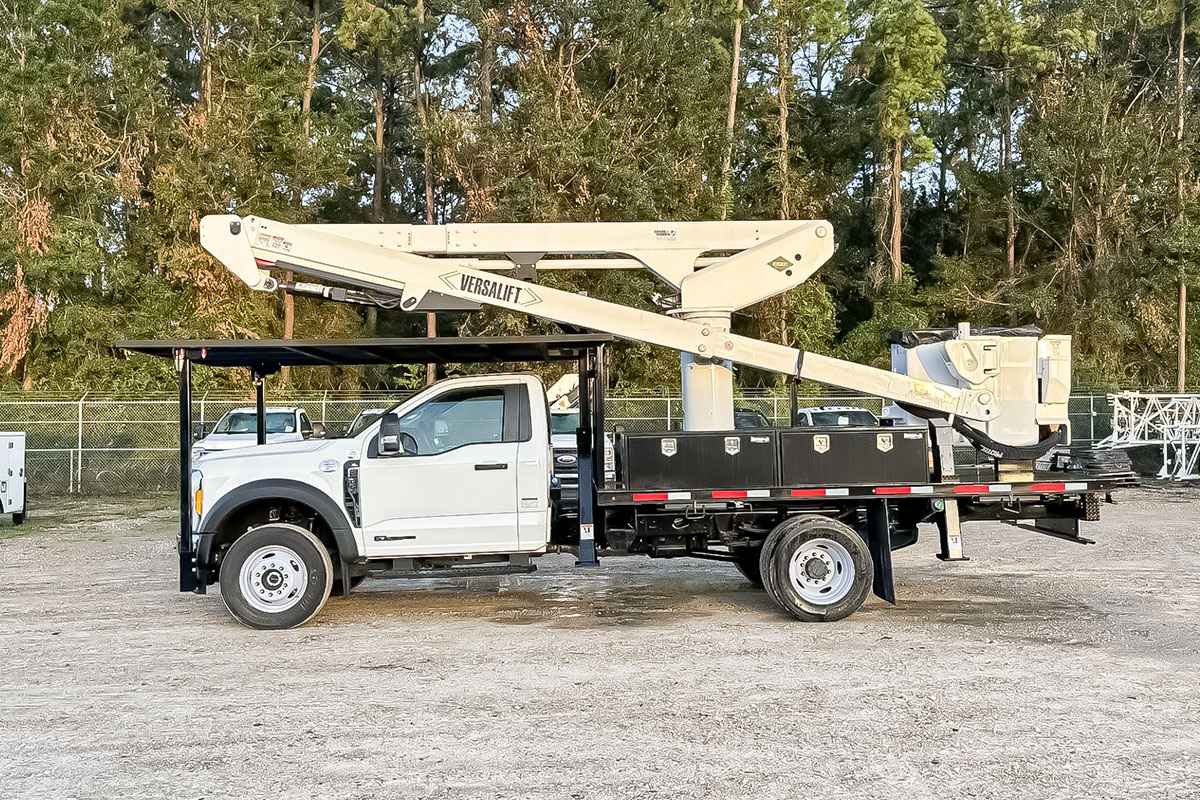

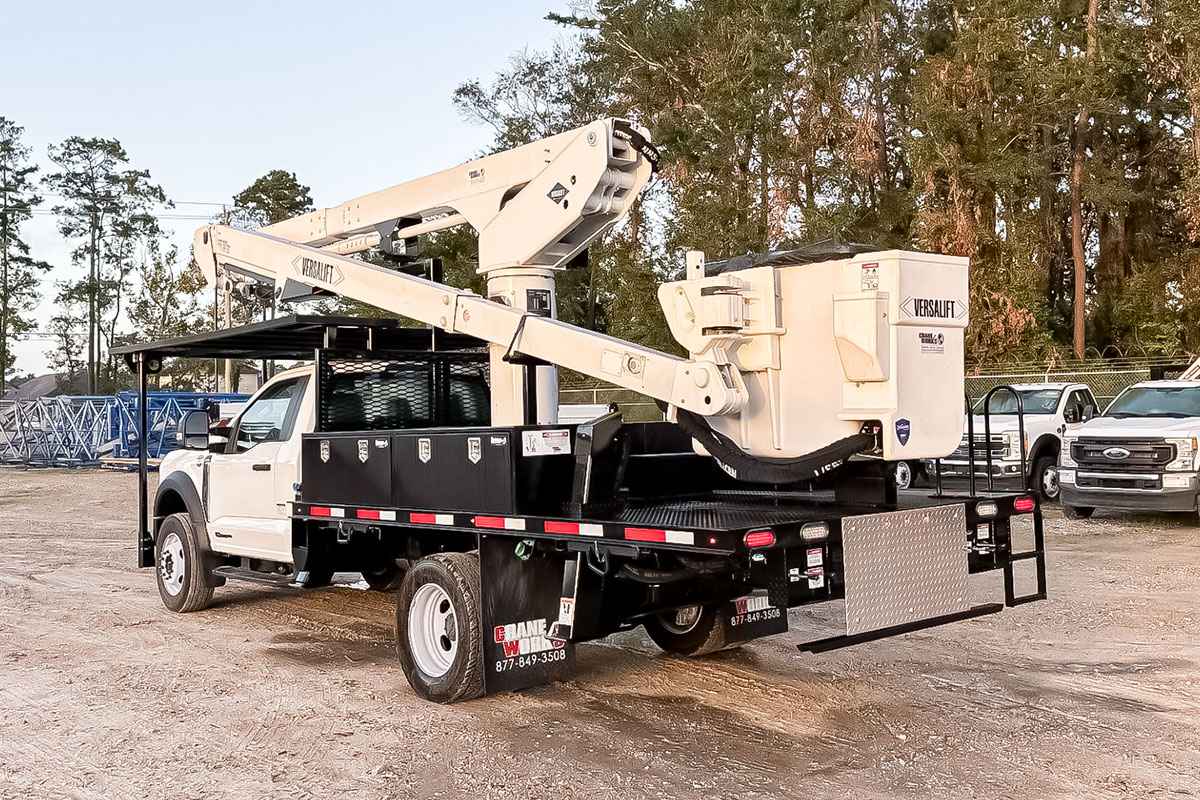

Versalift VST-52-MHI 52′ Insulated Material Handling Articulated/Telescopic Bucket Truck INDUSTRIES SERVED: Electric Power Distribution, Electric Utilities TYPE: Articulated Telescopic HEIGHT RANGE: 45ft - 65ft MODEL SERIES: VST Product Overview - Working Height: 56.5 ft (17.07 m) - Height to Bottom of Platform: 51.5 ft (15.54 m) - Horizontal Reach: 30.33 ft (9.14 m) - Stowed Travel Height: 11.5 ft (3.35 m) - Platform Capacity: 400 lbs (181.44 kg) - Insulated or Non-insulated: Insulated - Material Handling: Yes SPECIFICATIONS HYDRAULIC SYSTEM Hydraulic Controls: Full Hydraulic Operating Pressure: 3000 psi (210.92 kg/cm²) Flow Rate: 6 gpm (22.71 lpm) Filtration: 10 micron return | 100 mesh suction System Type: Open Center Power Source: PTO Pump BOOM Lower Boom Articulation: 0° to +84° Inner/Outer Boom Articulation: -25° to +85° Inner Boom Extension: 53 in (1.35 m) Upper Boom Insulation Gap: 64 in (1.63 m) Lower Boom Insulation Gap: 12 in (0.3 m) Lower Boom Lift Eye Capacity: 1000 lbs (453.59 kg) Boom Rotation: Continuous VEHICLE REQUIREMENTS GVWR: 24000 lbs (10886.16 kg) Cab to Axle (minimum): 102 in (2.59 m) MATERIAL HANDLING OPTIONS Jib & Winch Capacity: 1000 lbs (453.59 kg)
