Features

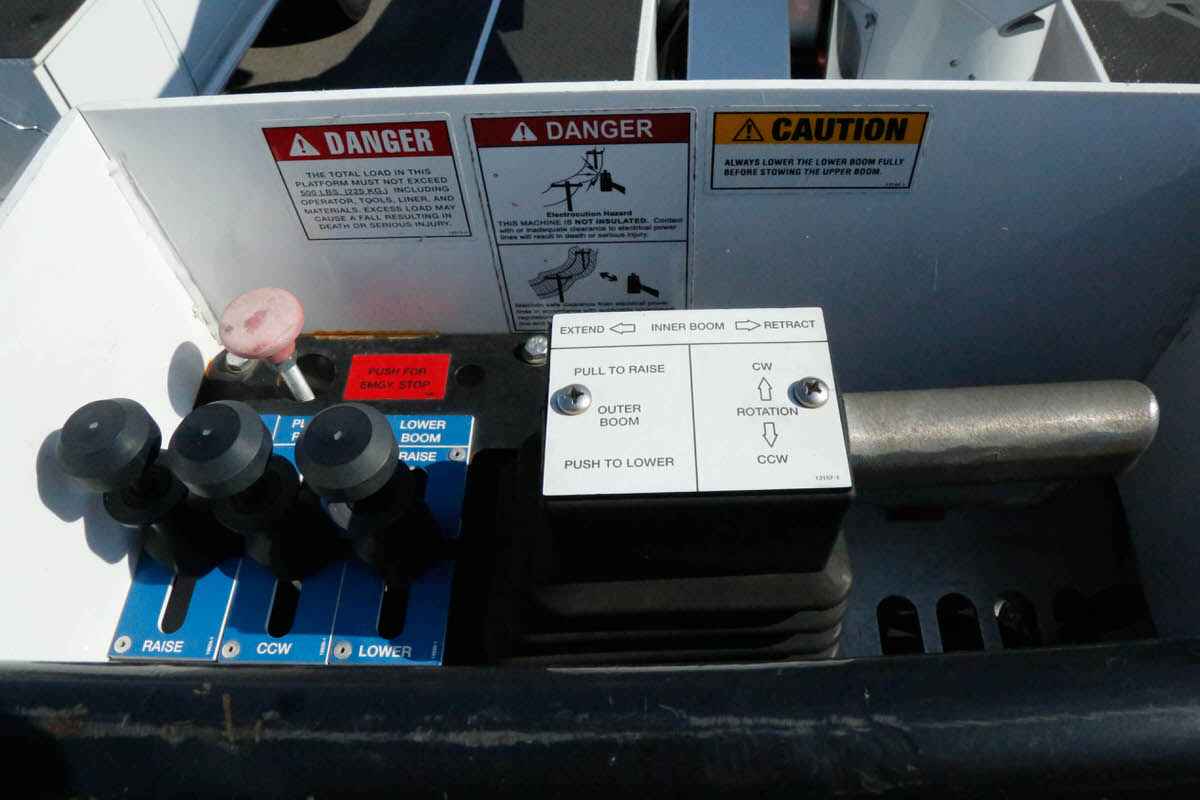

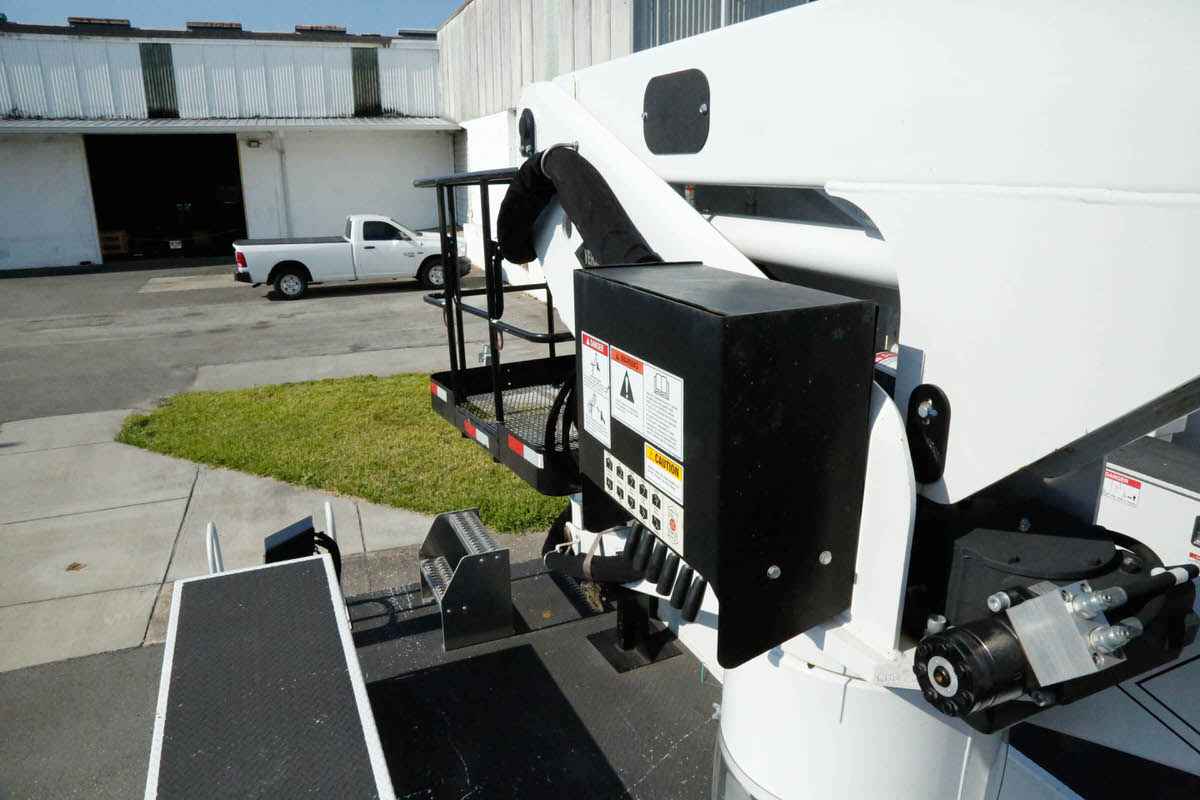

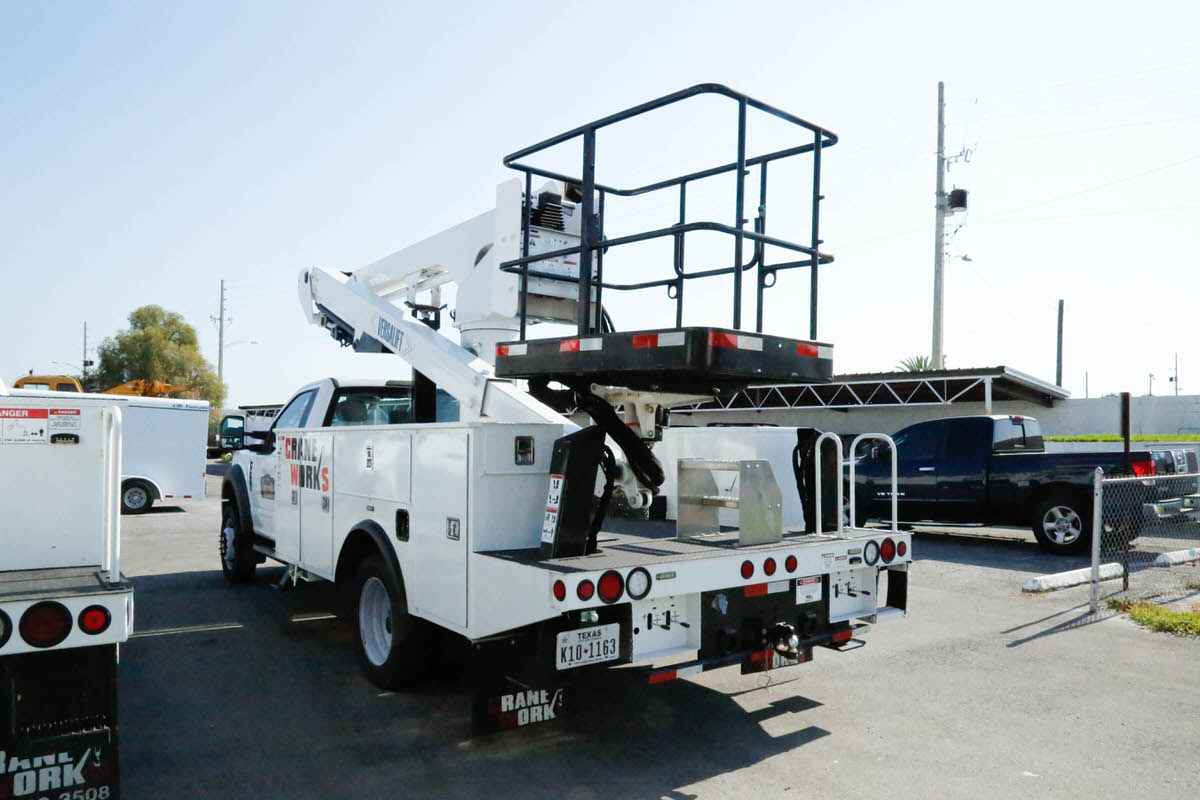

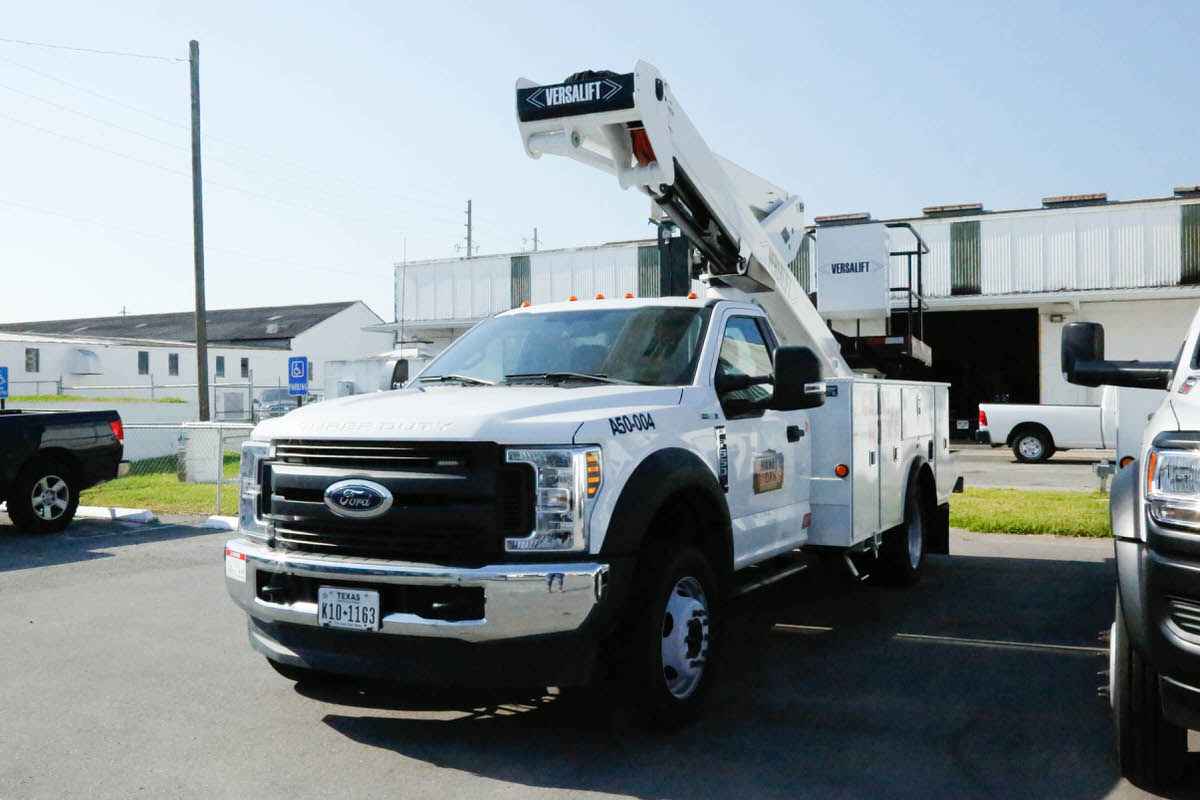

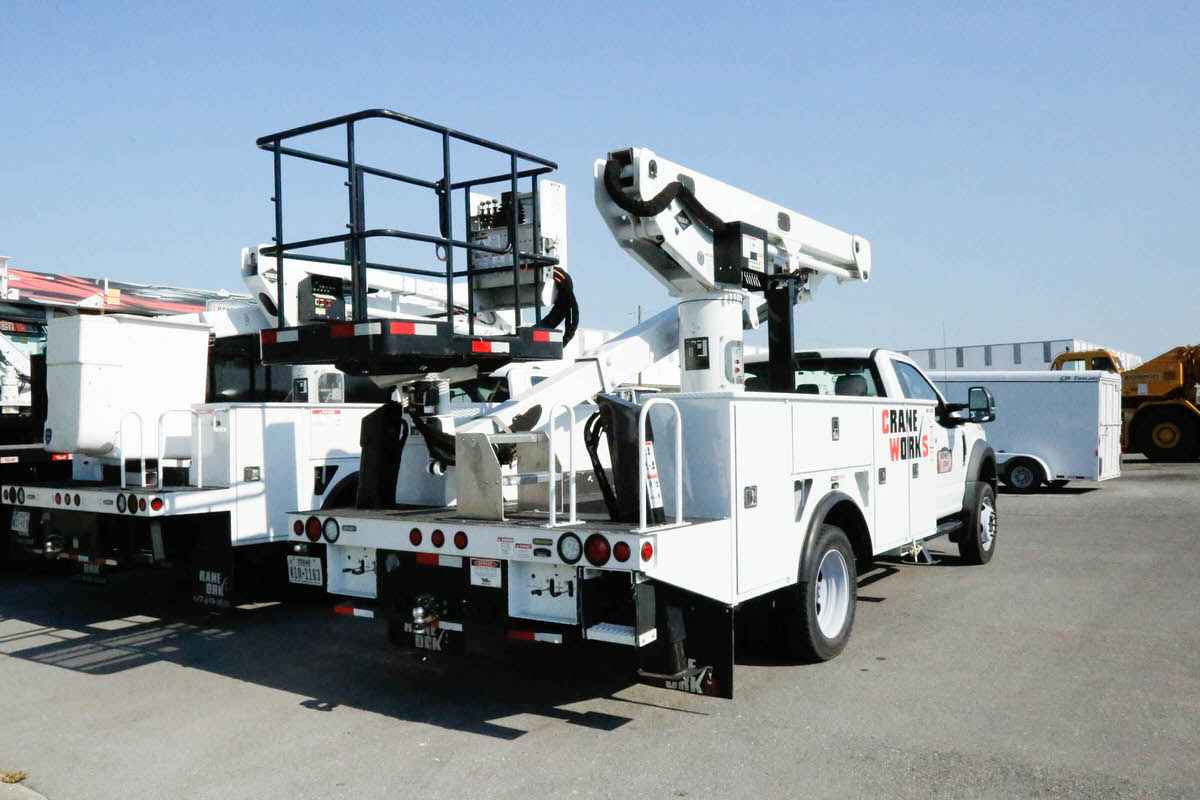

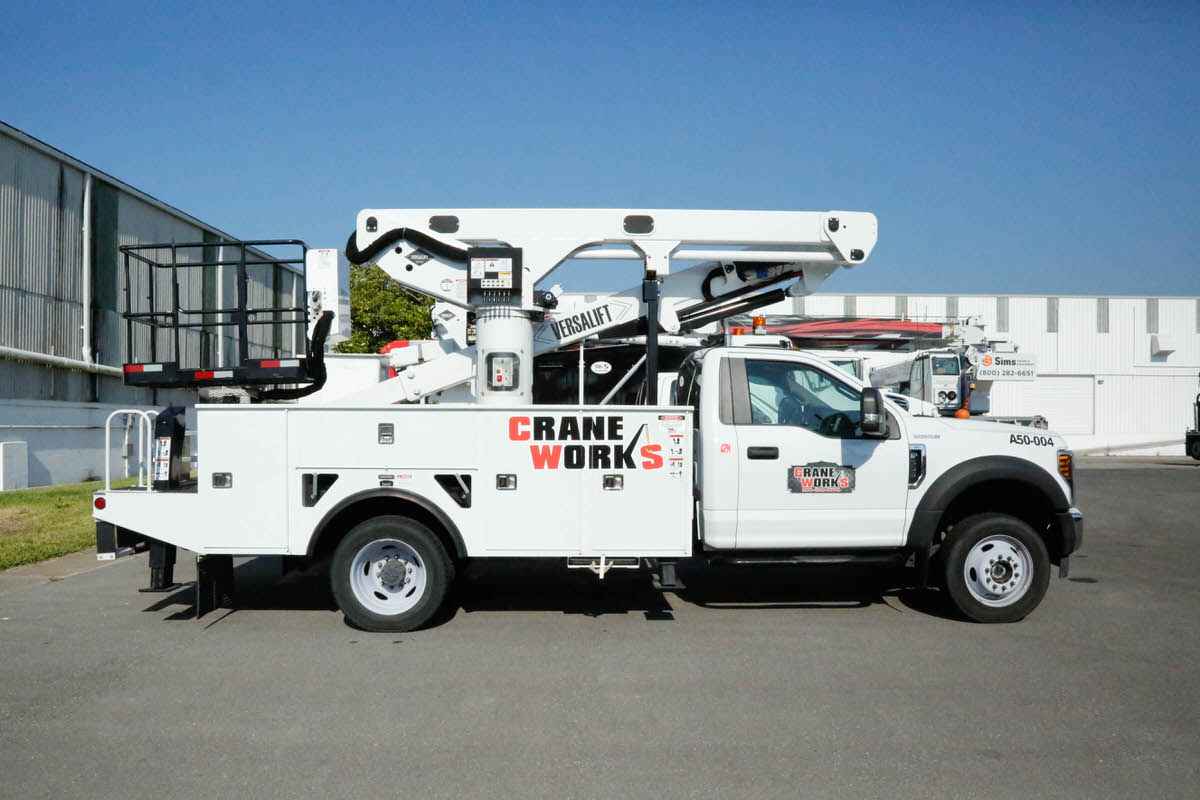

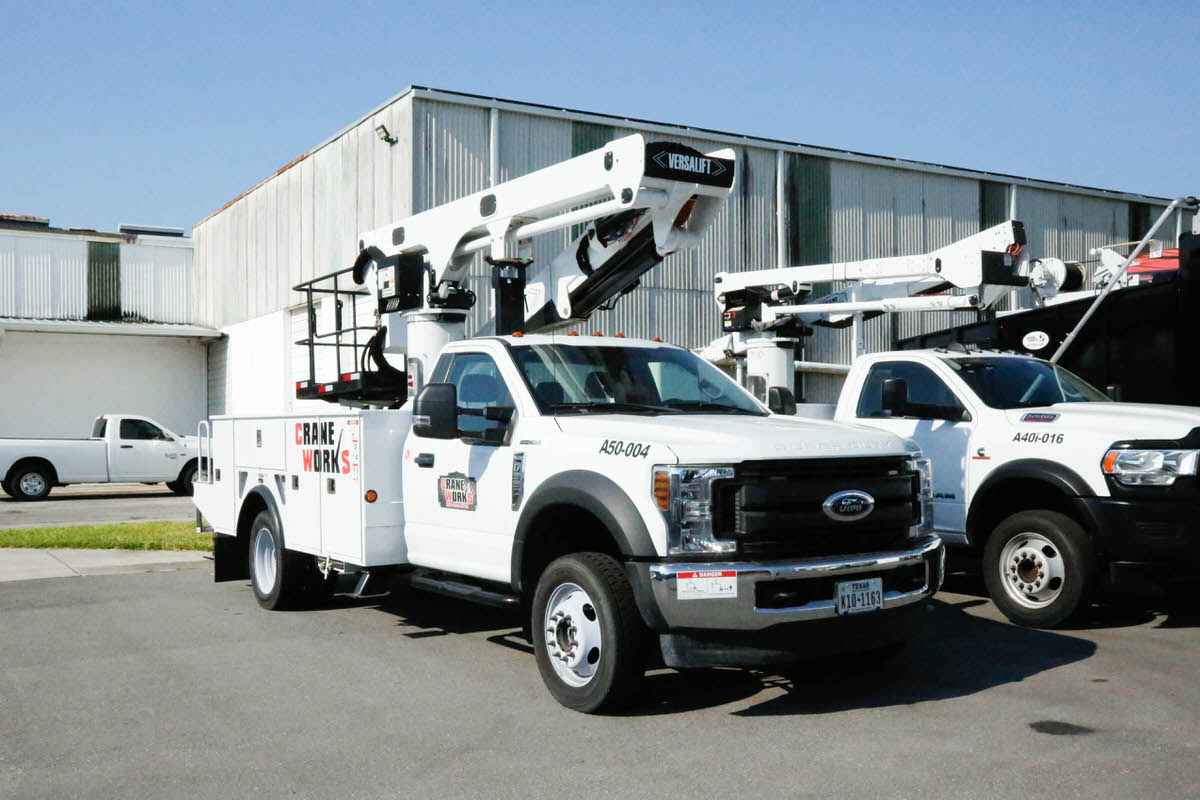

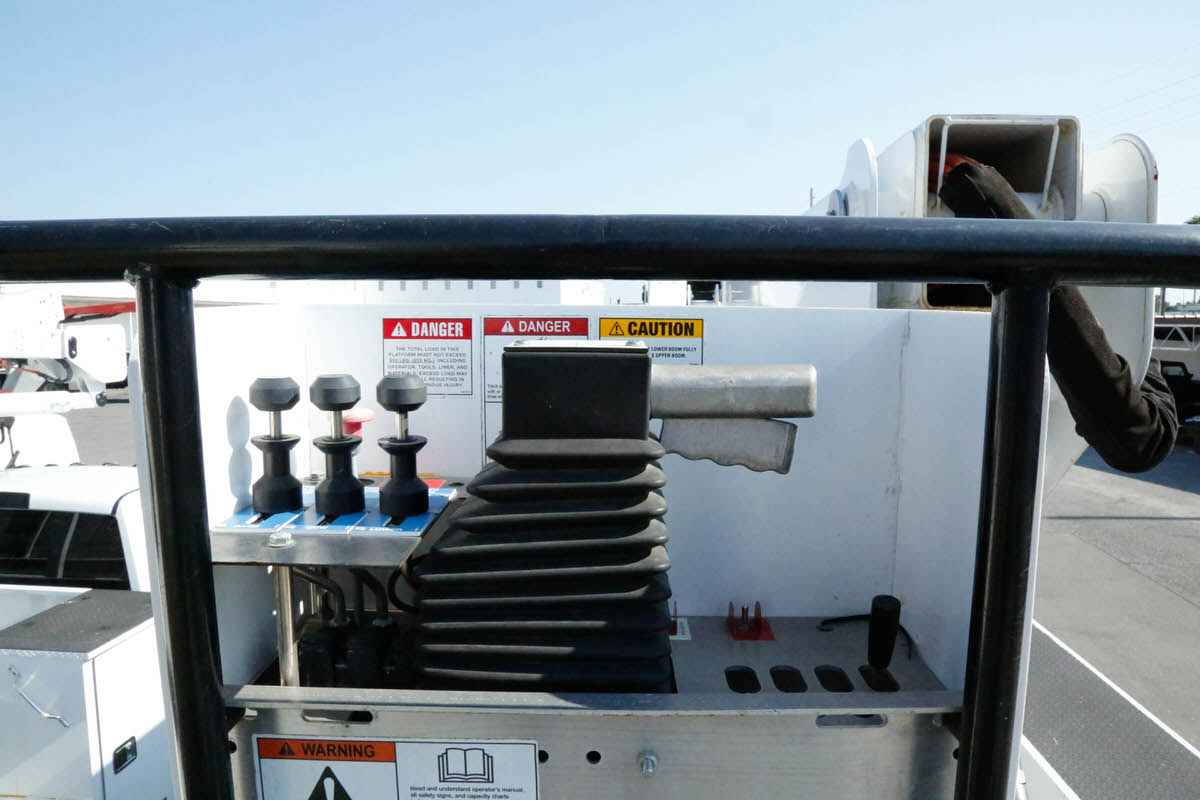

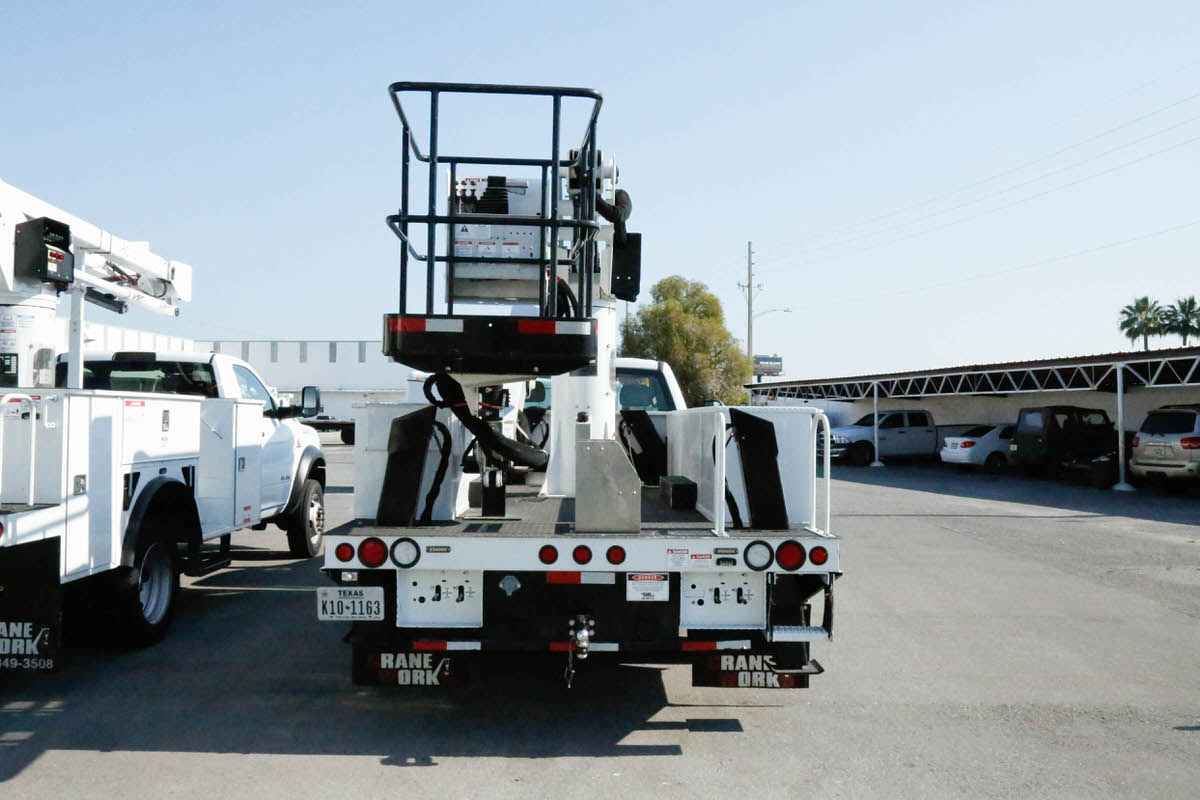

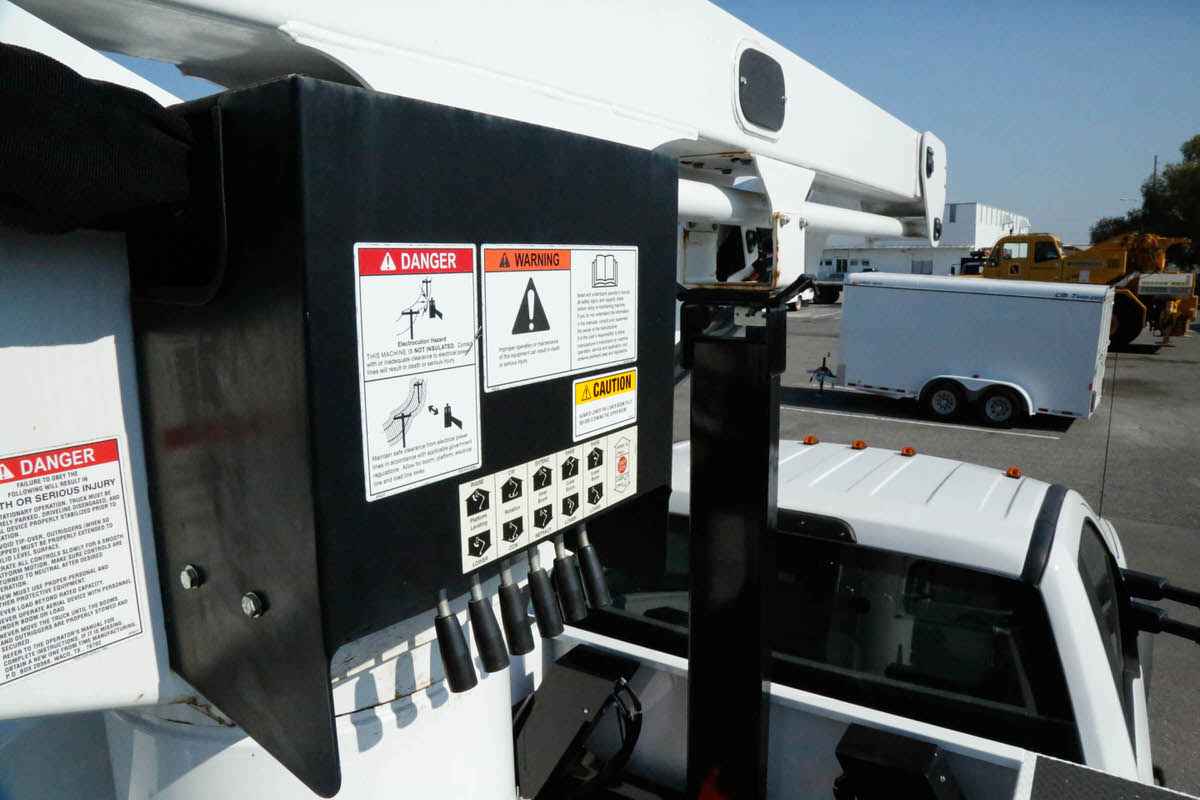

PRODUCT OVERVIEW Working Height: 54.92 ft (16.46 m) Height to Bottom of Platform: 49.92 ft (14.94 m) Horizontal Reach: 30.58 ft (9.14 m) Stowed Travel Height: 11 ft (3.35 m) Platform Capacity: 500 lbs (226.8 kg) Non-insulated SPECIFICATIONS HYDRAULIC SYSTEM Hydraulic Controls: Full Hydraulic Operating Pressure: 3000 psi (210.92 kg/cm²) Flow Rate: 6 gpm (22.71 lpm) Filtration: 10 micron return | 100 mesh suction System Type: Open Center Power Source: PTO Pump BOOM Lower Boom Articulation: 0 to +84° Inner/Outer Boom Articulation: -25° to +85° Inner Boom Extension: 103 in (2.62 m) Lower Boom Lift Eye Capacity: 1000 lbs (453.59 m) Boom Rotation: Continuous VEHICLE REQUIREMENTS GVWR: 17500 lbs (7937.83 kg) Cab to Axle (minimum): 84 in (2.13 m)
