Features

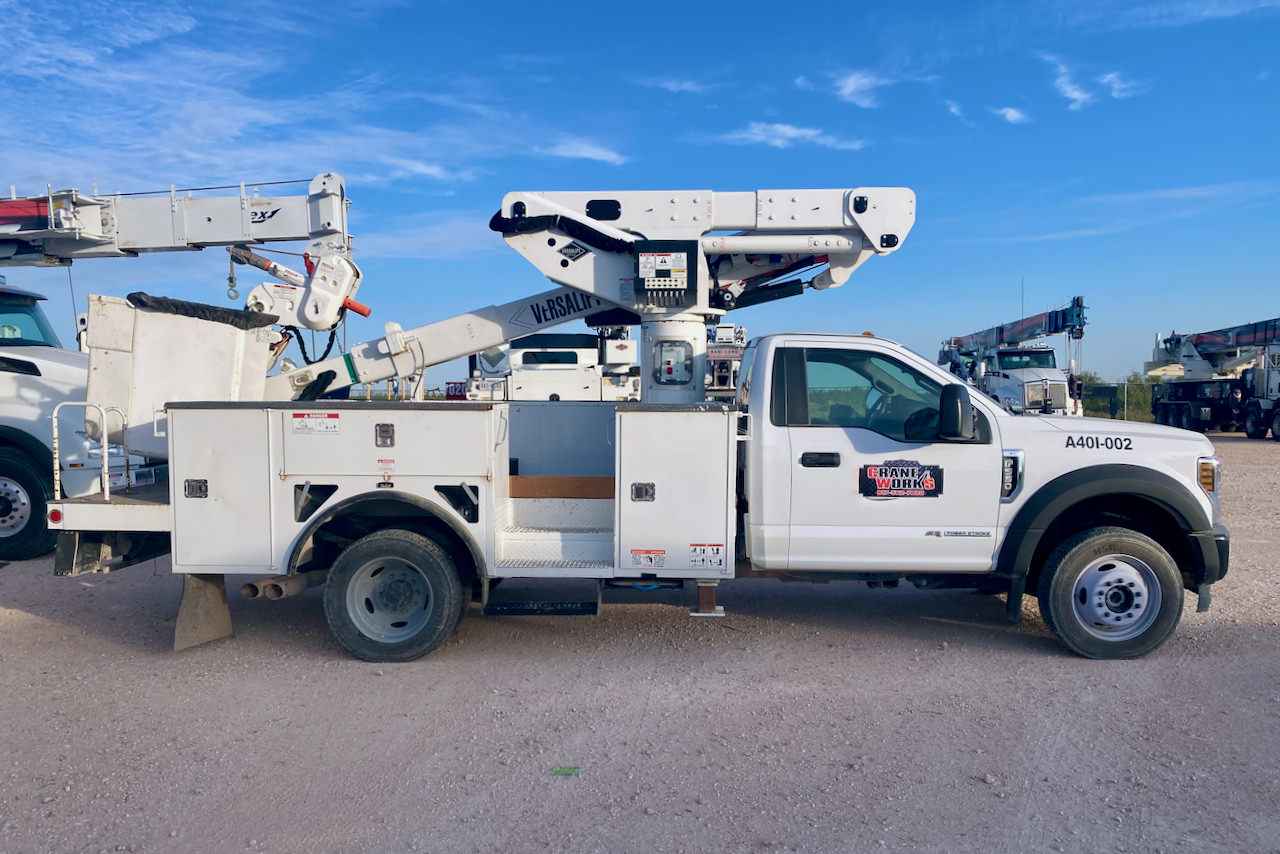

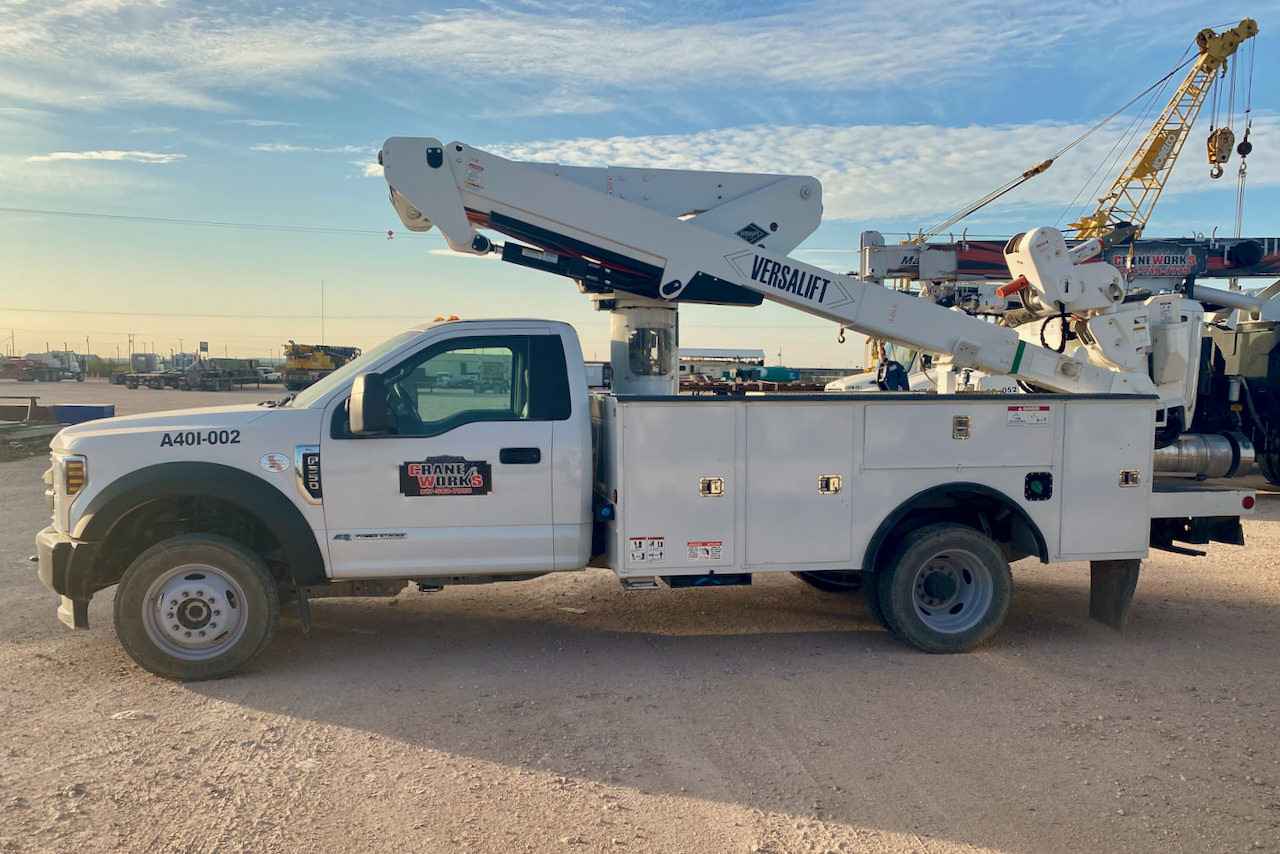

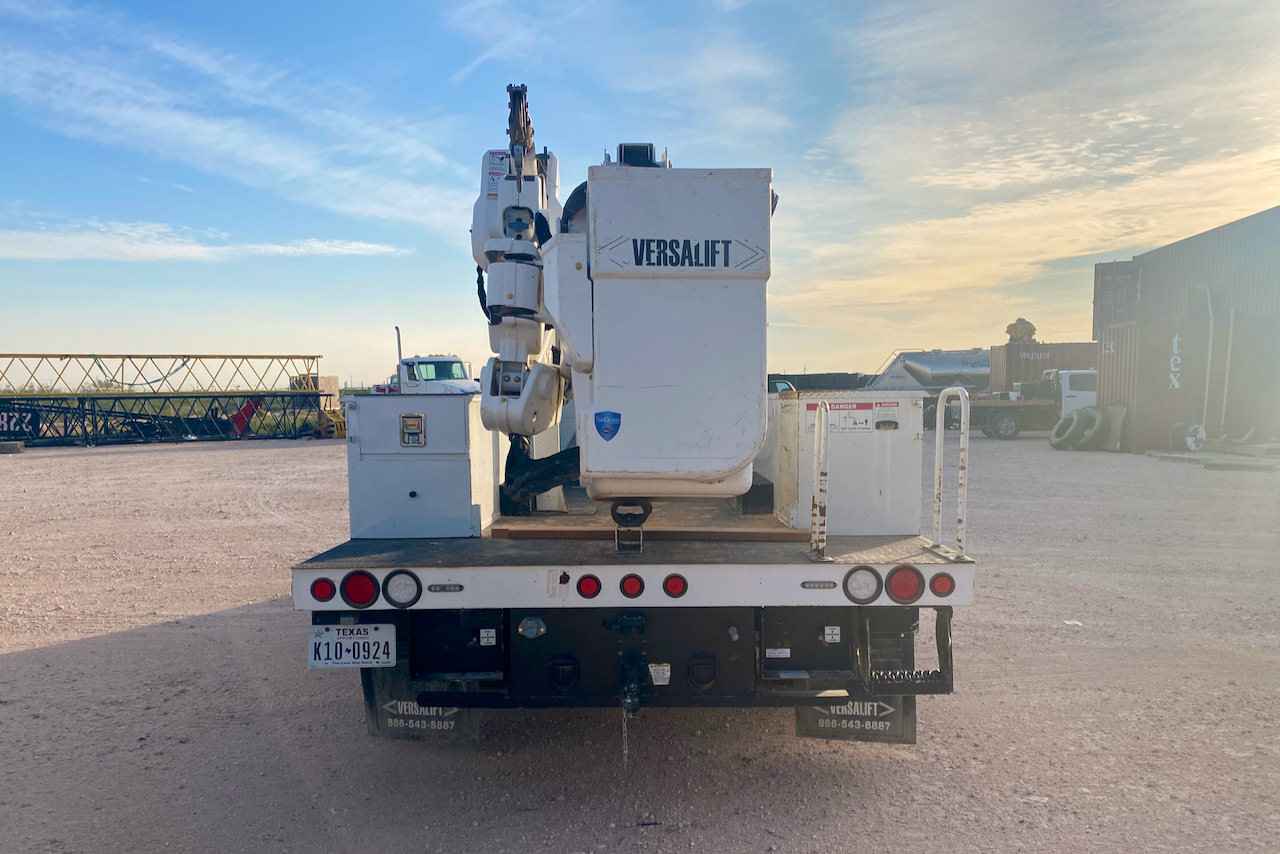

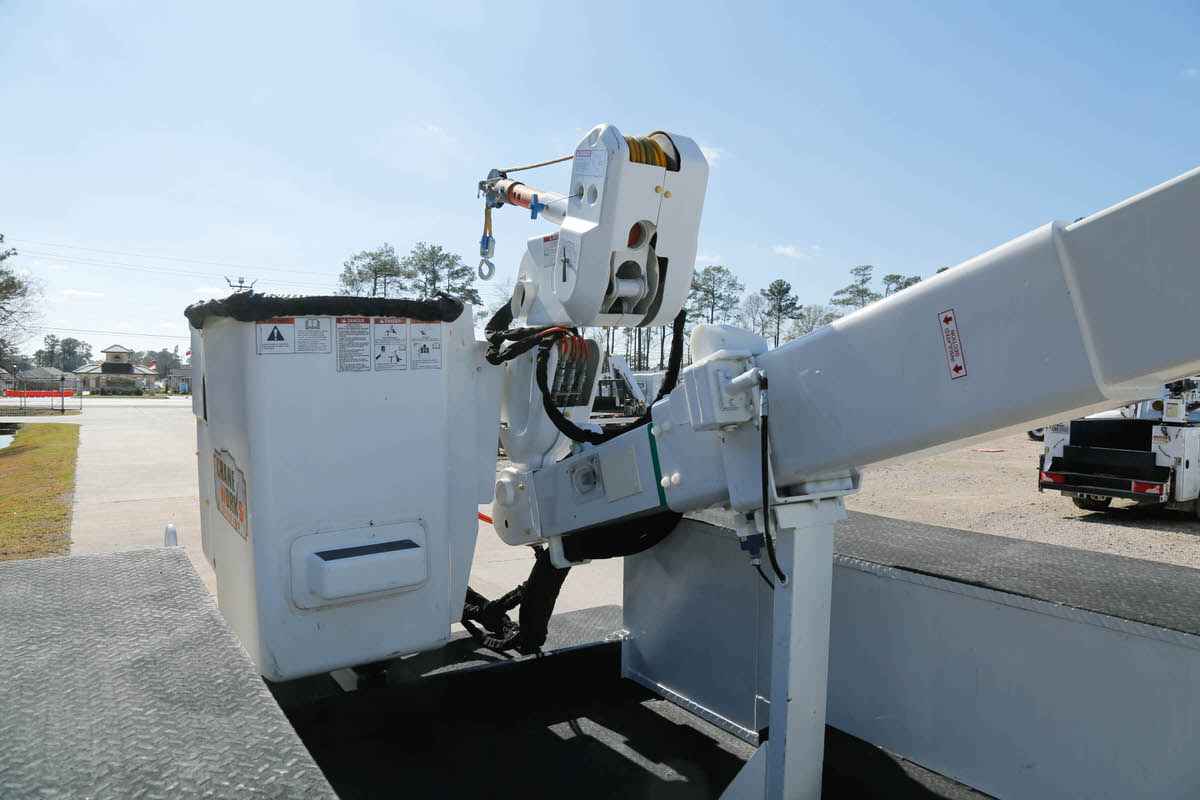

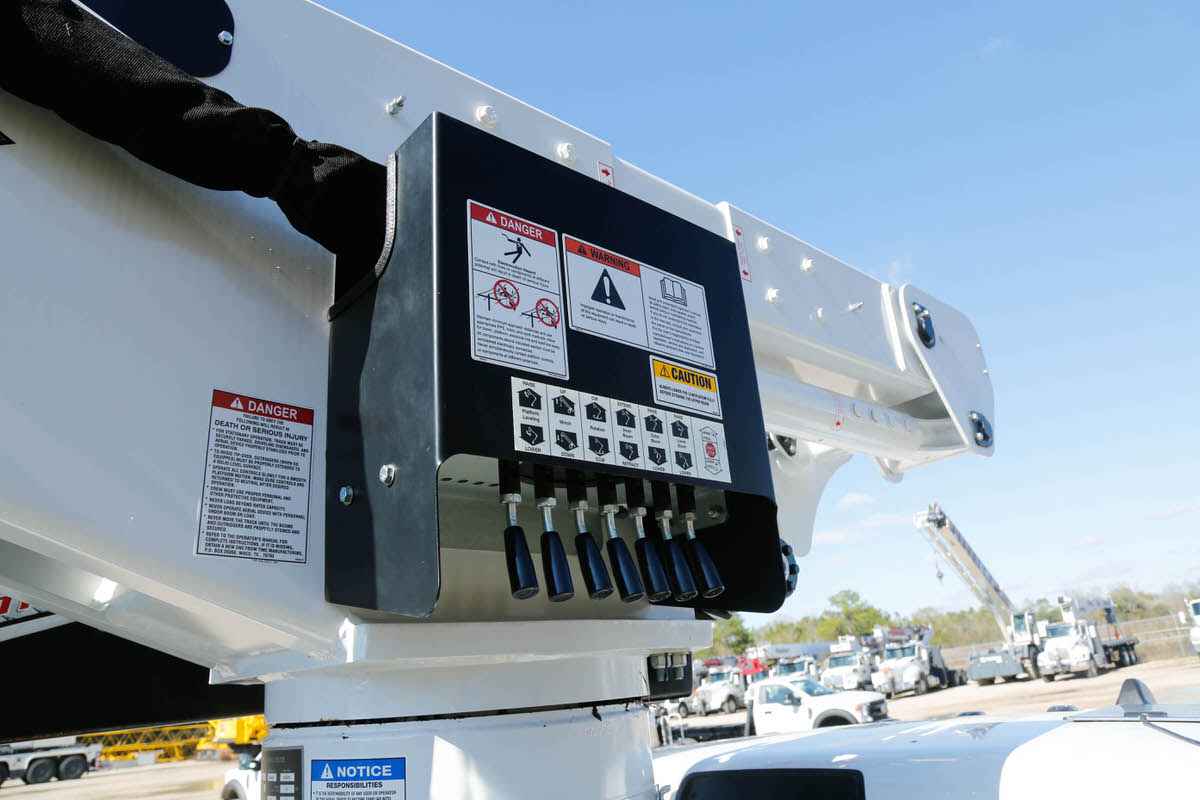

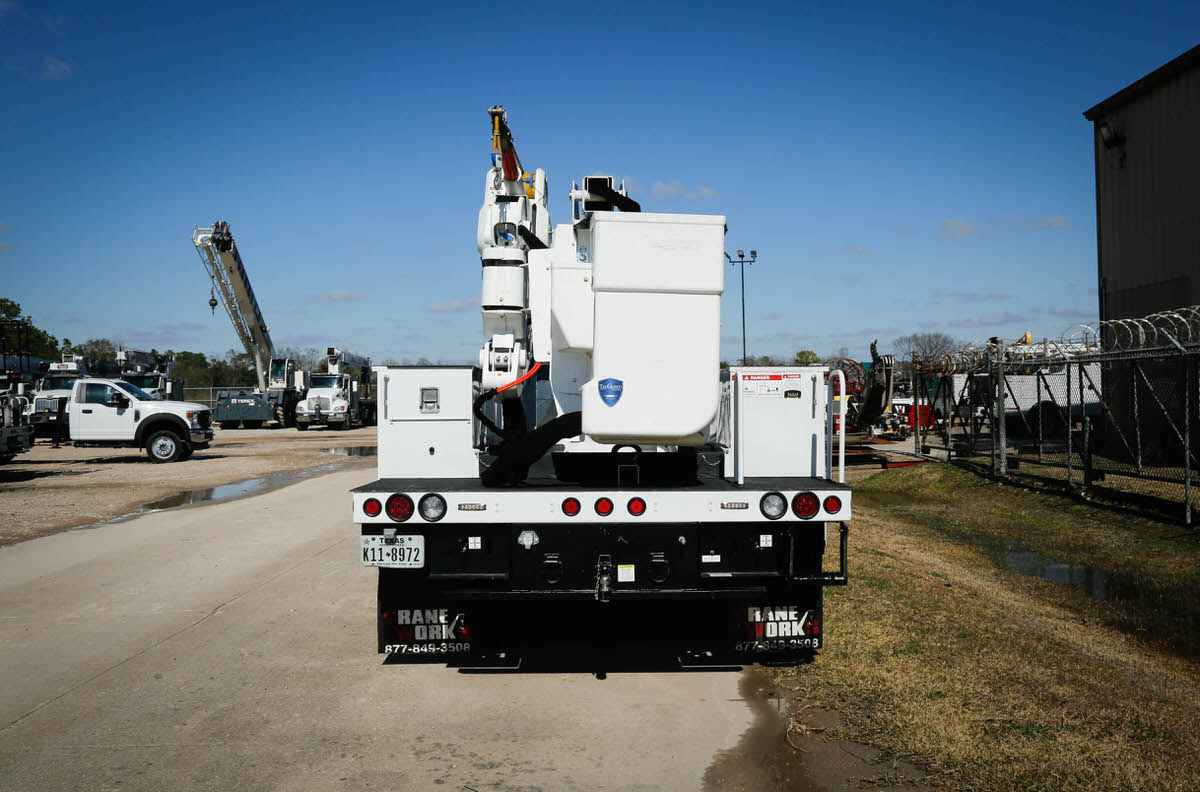

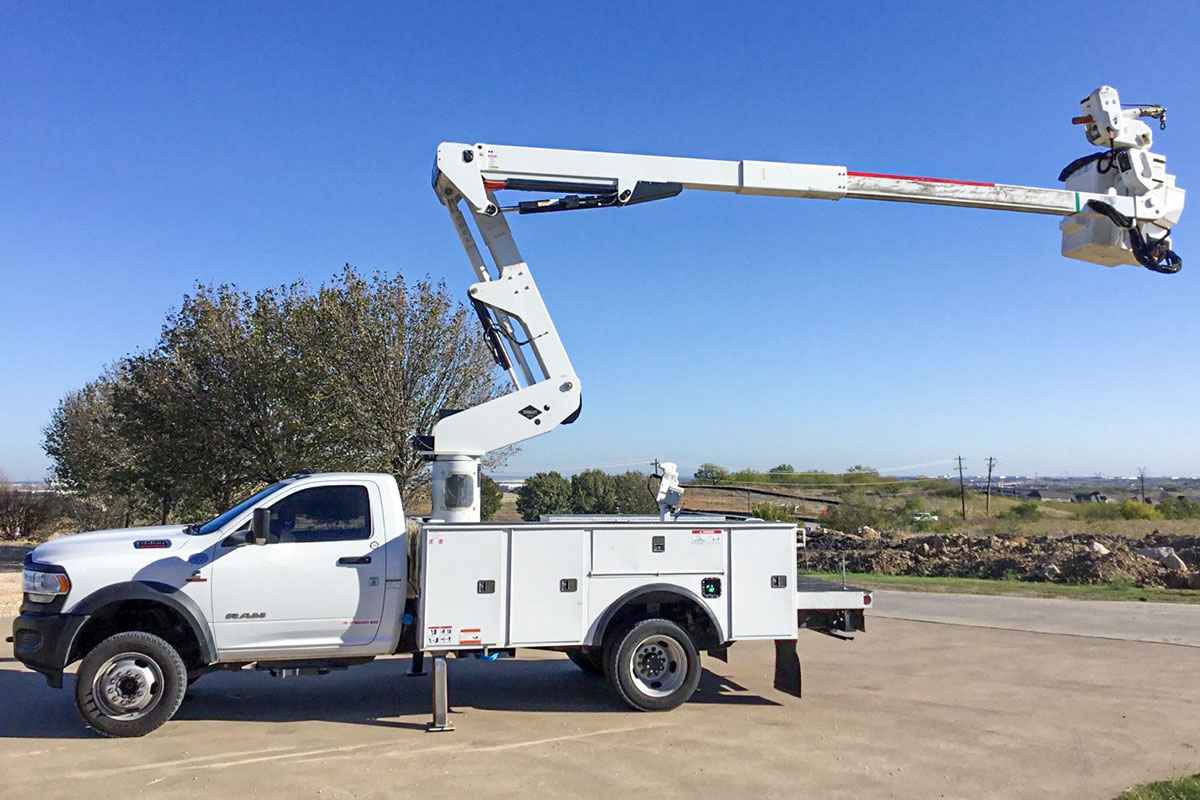

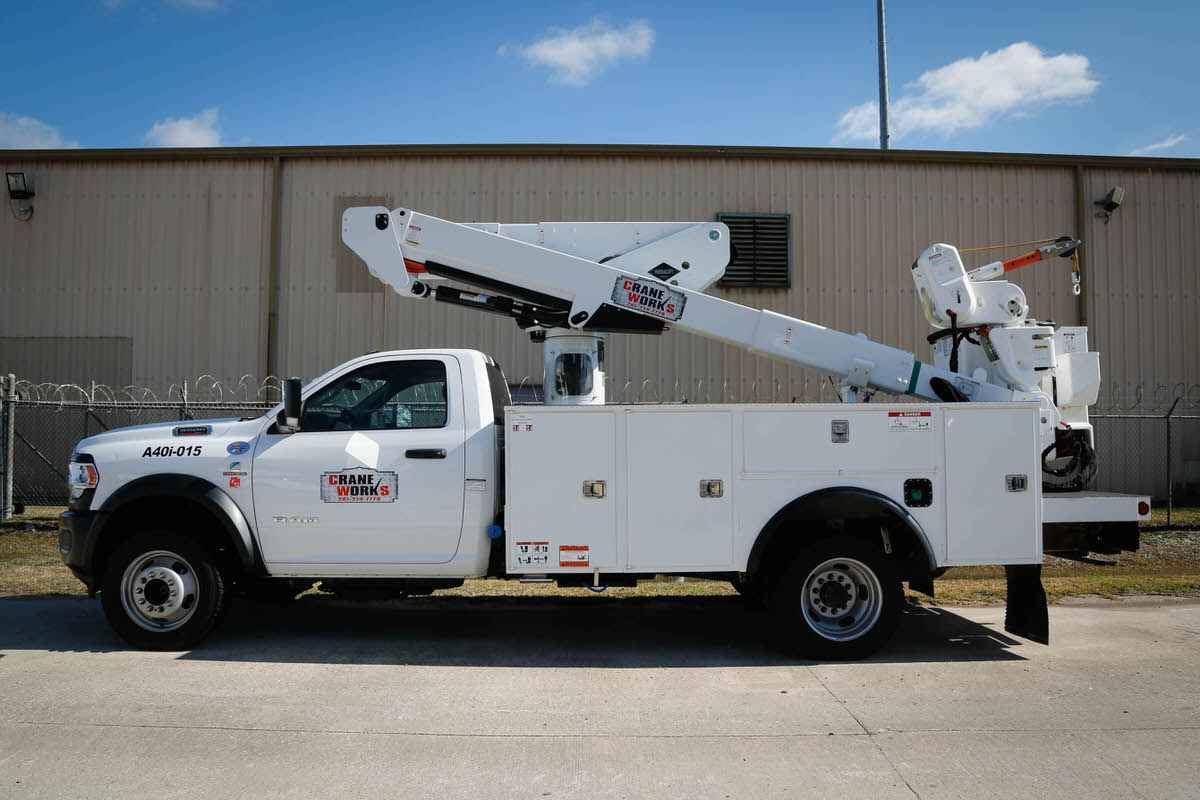

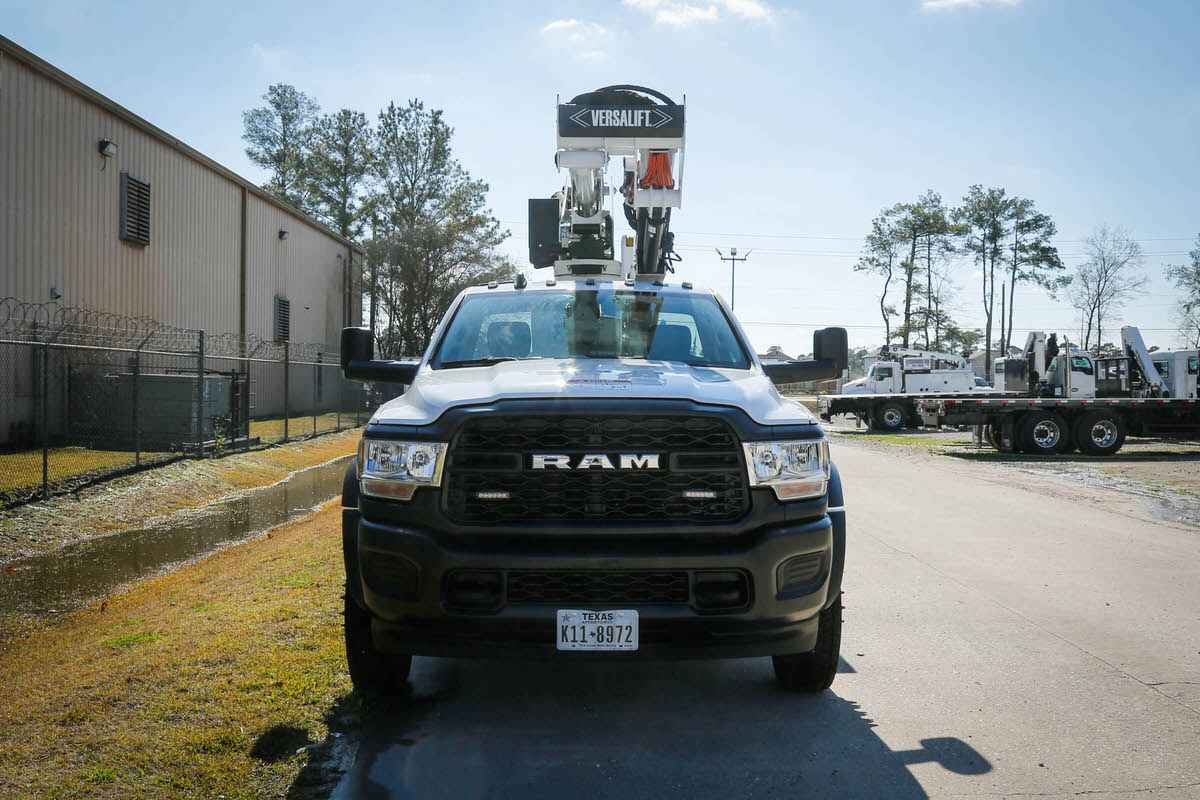

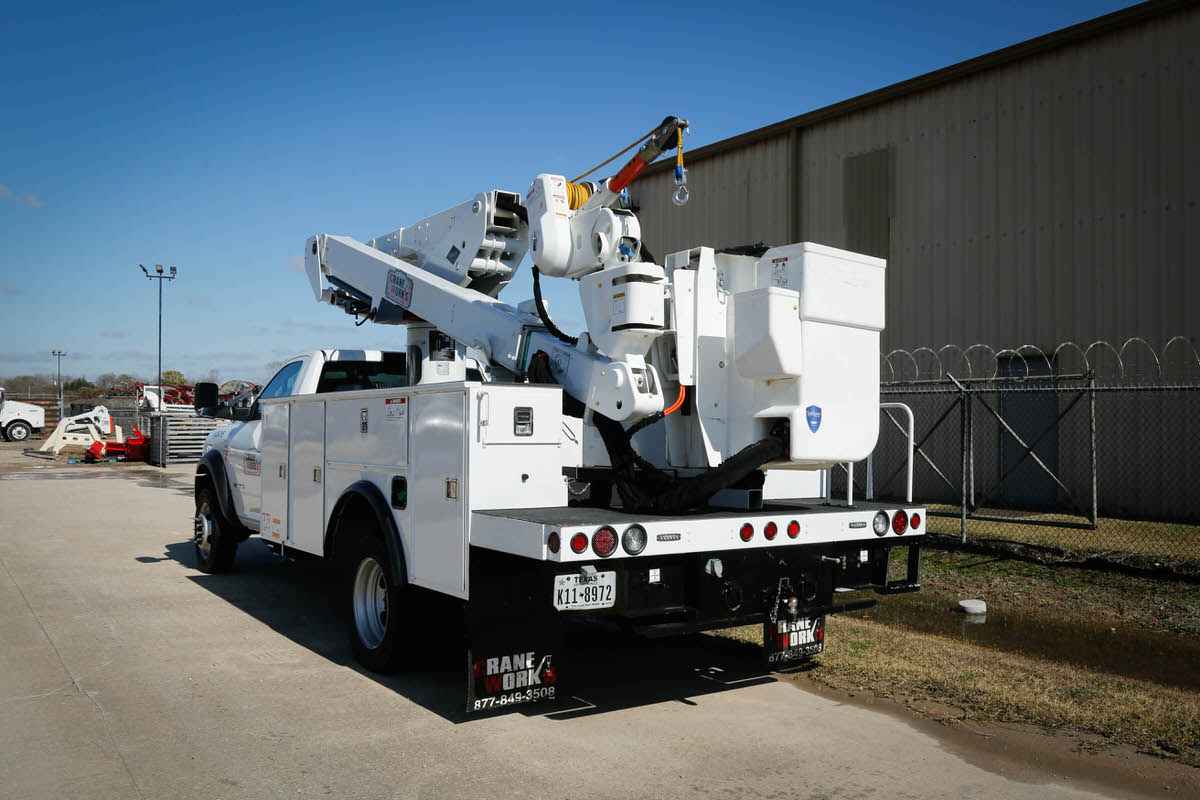

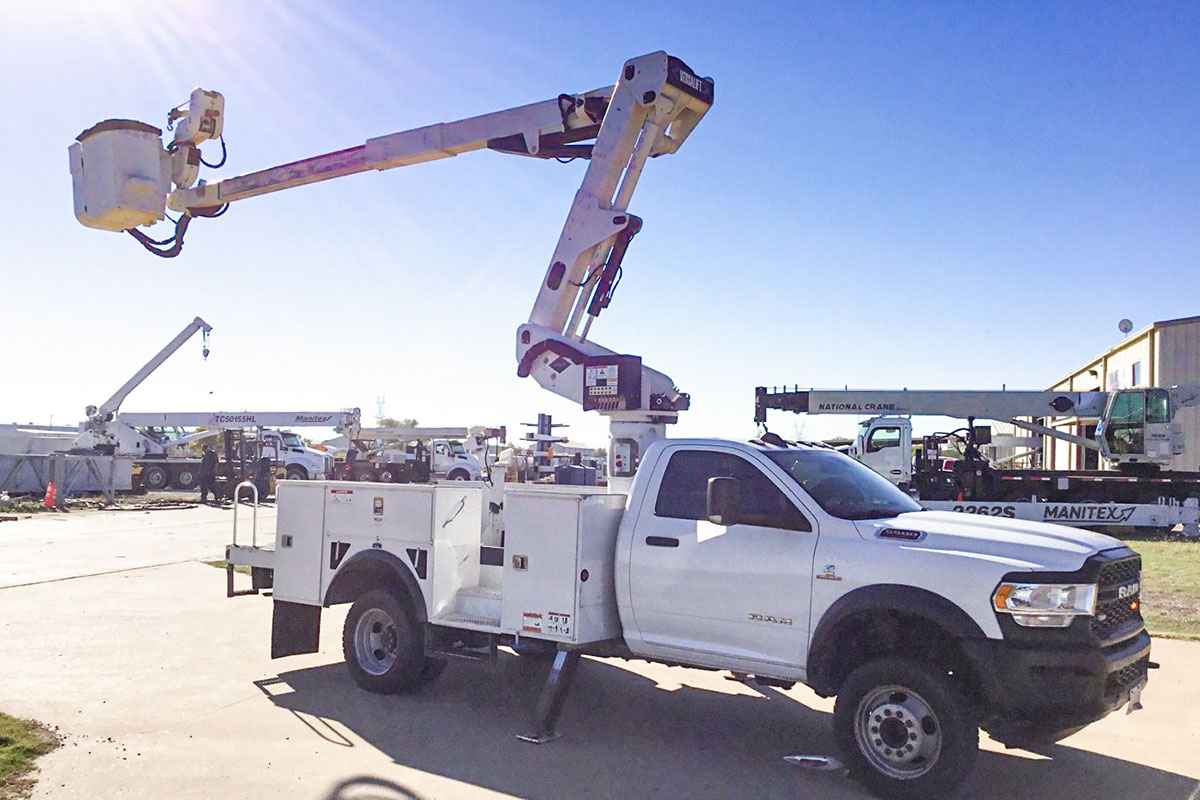

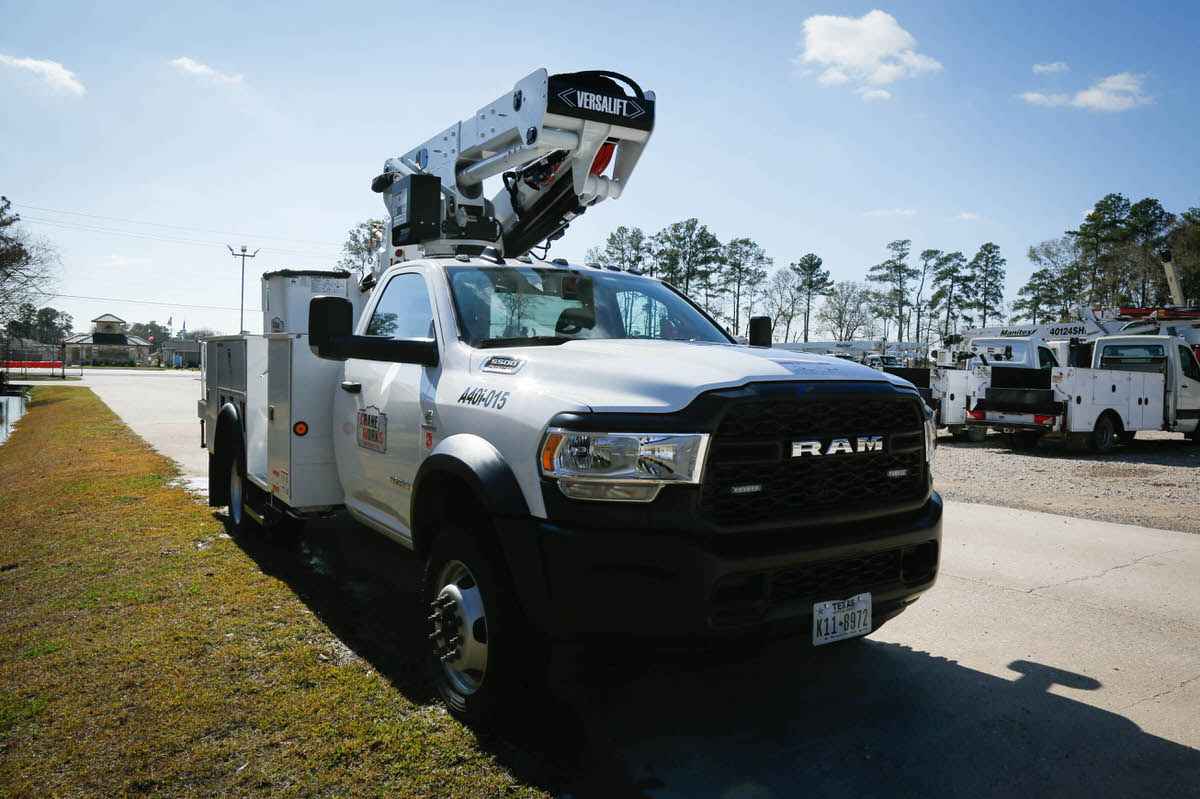

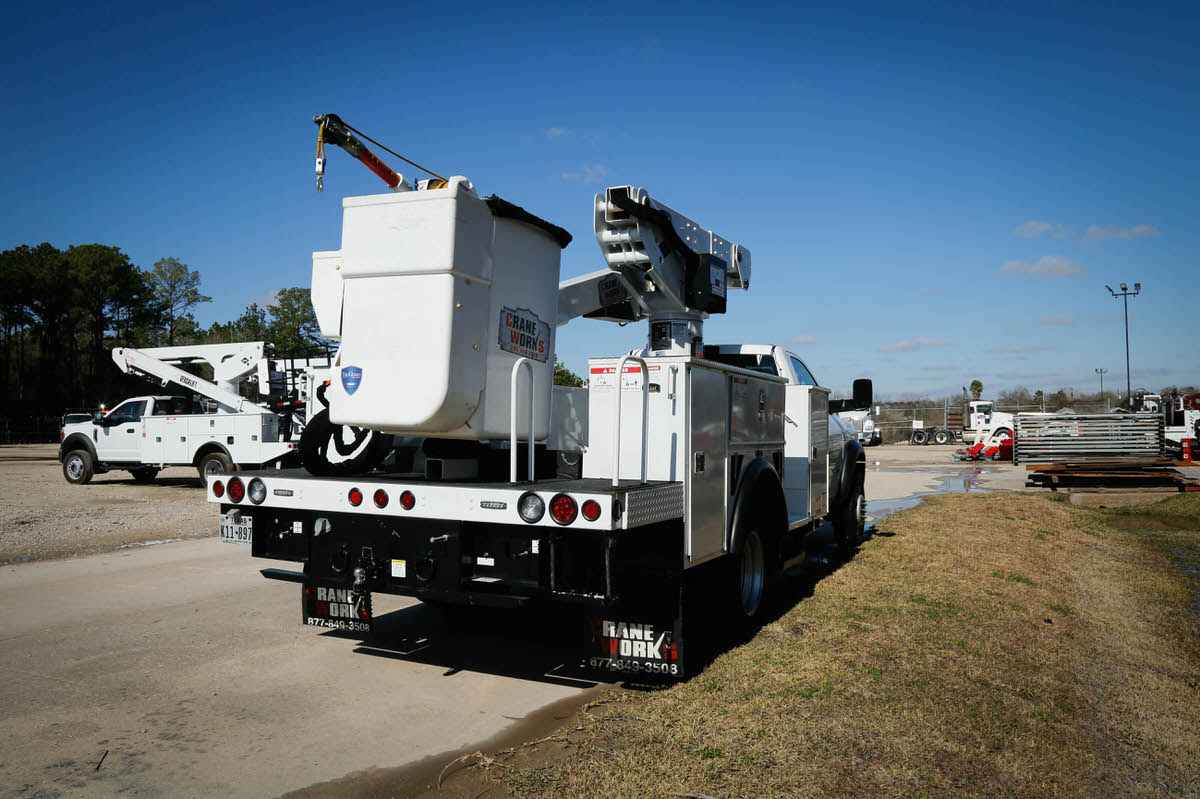

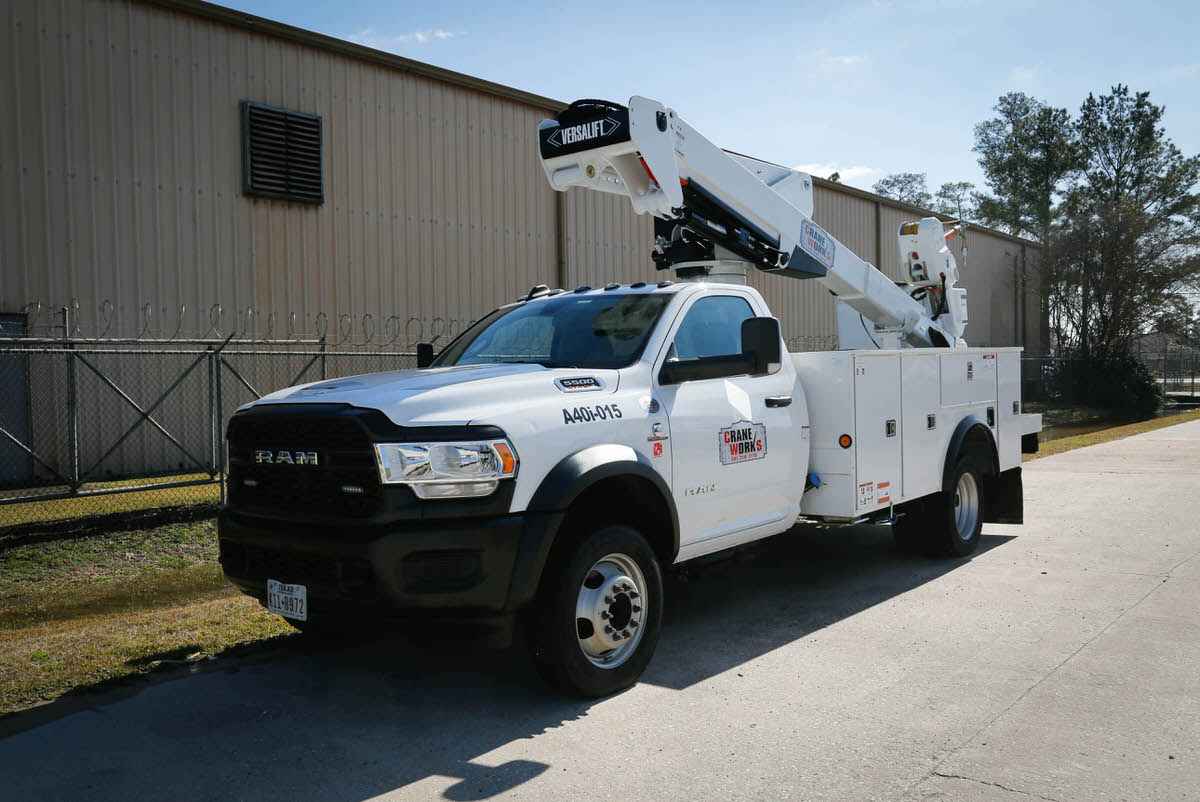

40 ft Insulated Articulated/Telescopic Material Handling Bucket Truck INDUSTRIES SERVED: Electric Power Distribution, Electric Utilities TYPE: Articulated Telescopic HEIGHT RANGE: 29ft - 45ft MODEL SERIES: VST PRODUCT OVERVIEW Working Height 45.33 ft (13.72 m) Height to Bottom of Platform 40.33 ft (12.19 m) Horizontal Reach 30.17 ft (9.14 m) Stowed Travel Height 10.5 ft (3.05 m) Platform Capacity 500 lbs (226.8 kg) Insulated or Non-insulated: Insulated Material Handling: Yes SPECIFICATIONS HYDRAULIC SYSTEM Hydraulic Controls Full Hydraulic Operating Pressure 3000 psi (210.92 kg/cm²) Flow Rate 6 gpm (22.71 lpm) Filtration10 micron return | 100 mesh suction System Type: Open Center Power Source: PTO Pump BOOM Lower Boom Articulation: 0 to +87° Inner/Outer Boom Articulation: -25° to +85° Inner Boom Extension 103 in (2.62 m) Upper Boom Insulation Gap 46 in (1.17 m) Lower Boom Insulation Gap 12 in (0.3 m) Lower Boom Lift Eye Capacity 1000 lbs (453.59 m) Boom Rotation: Continuous VEHICLE REQUIREMENTS GVWR 17500 lbs (7937.83 kg) Cab to Axle (minimum) 84 in (2.13 m) MATERIAL HANDLING OPTIONS Jib & Winch Capacity 1000 lbs (453.59 kg)
