Features

Overview

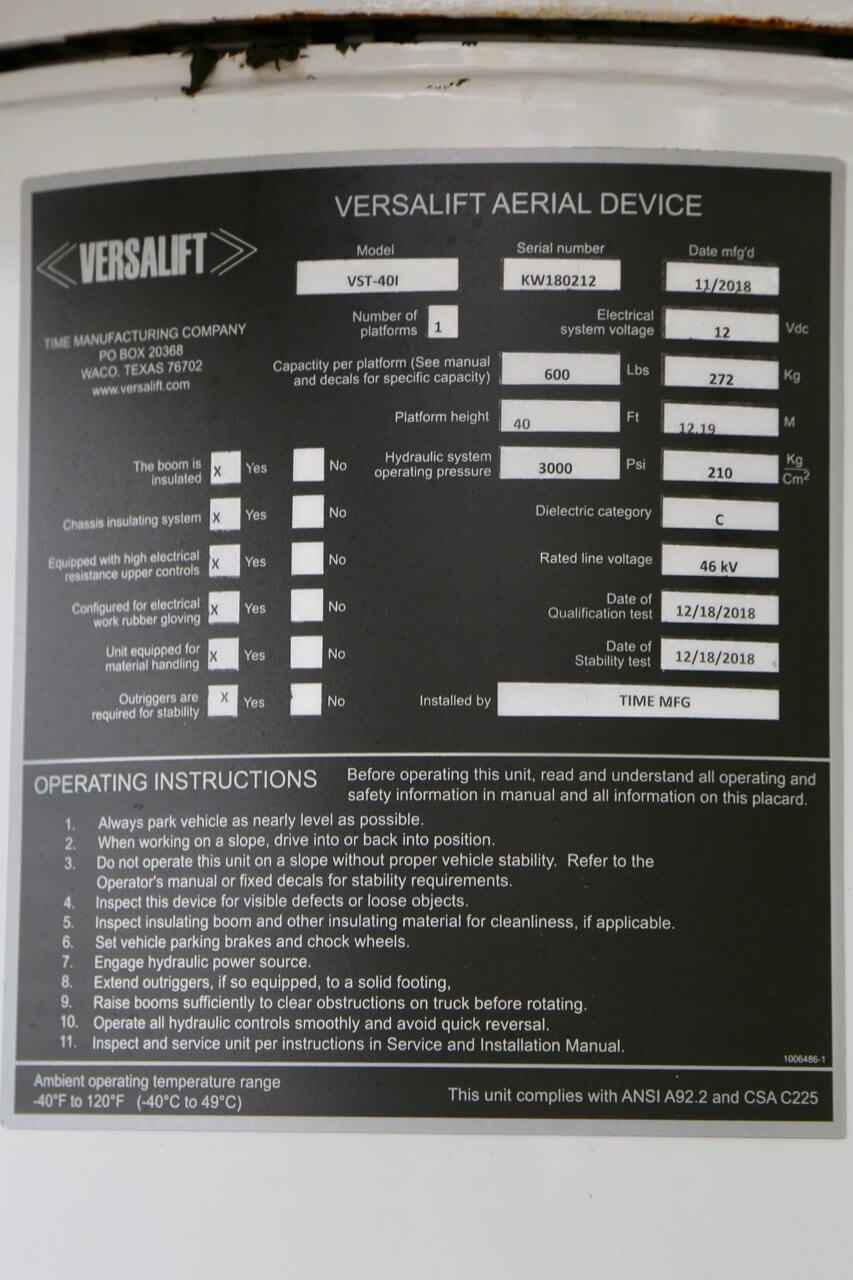

• Working Height 45.33 ft (13.72 m)
• Height to Bottom of Platform 40.33 ft (12.19 m)
• Horizontal Reach 30.17 ft (9.14 m)
• Stowed Travel Height 10.5 ft (3.05 m)
• Platform Capacity 600 lbs (272.15 kg)
• Insulated or Non-insulated: Insulated
• Material Handling: No

Specifications

HYDRAULIC SYSTEM

• Hydraulic Controls: Full Hydraulic
• Operating Pressure 3000 psi (210.92 kg/cm²)
• Flow Rate 6 gpm (22.71 lpm)
• Filtration10 micron return | 100 mesh suction
• System Type: Open Center
• Power Source: PTO Pump

BOOM

• Lower Boom Articulation 0 to +87°
• Inner/Outer Boom Articulation -25° to +85°
• Inner Boom Extension 103 in (2.62 m)
• Upper Boom Insulation Gap 46 in (1.17 m)
• Lower Boom Insulation Gap 12 in (0.3 m)
• Lower Boom Lift Eye Capacity 1000 lbs (453.59 m)
• Boom Rotation: Continuous
