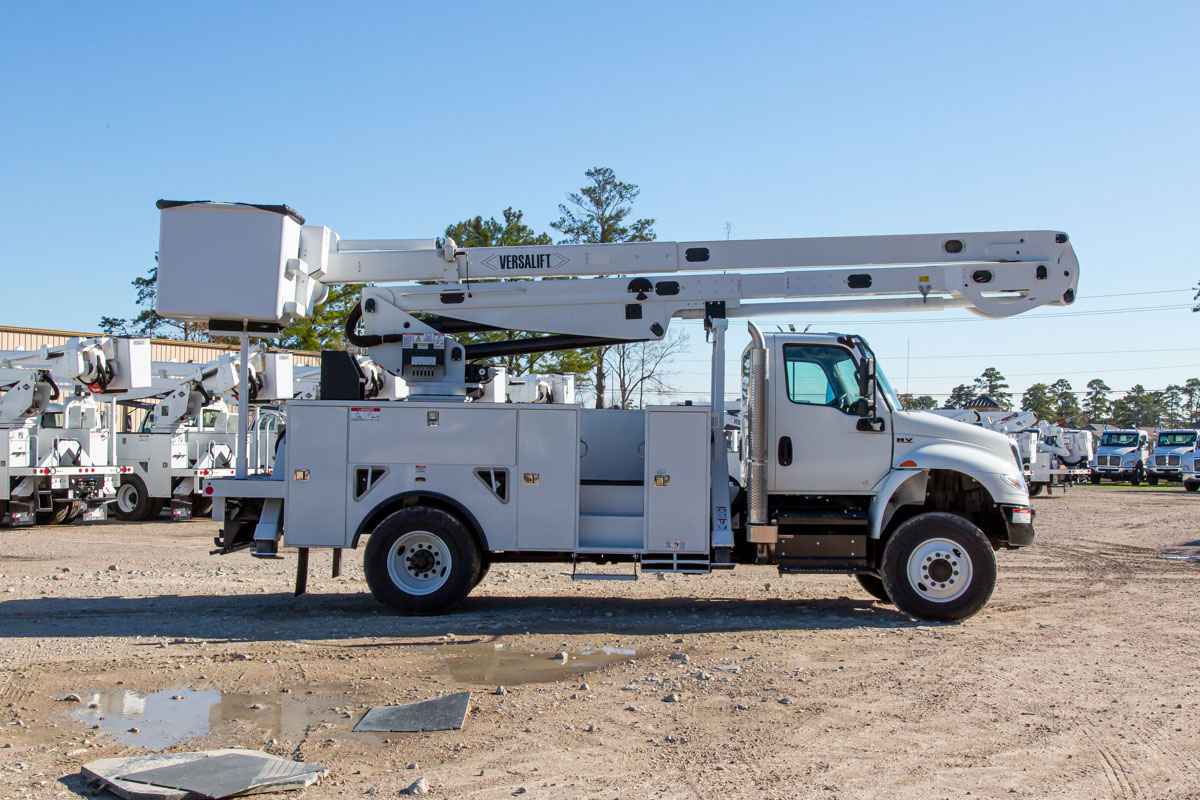

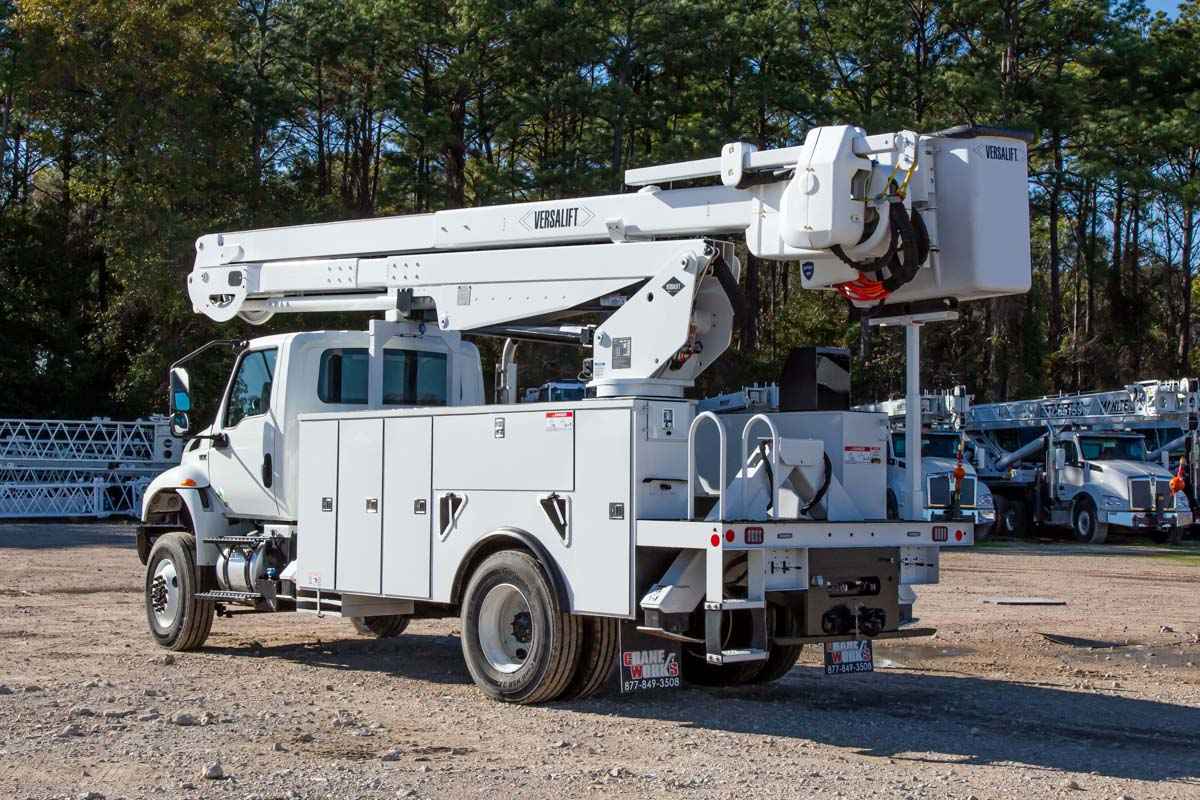

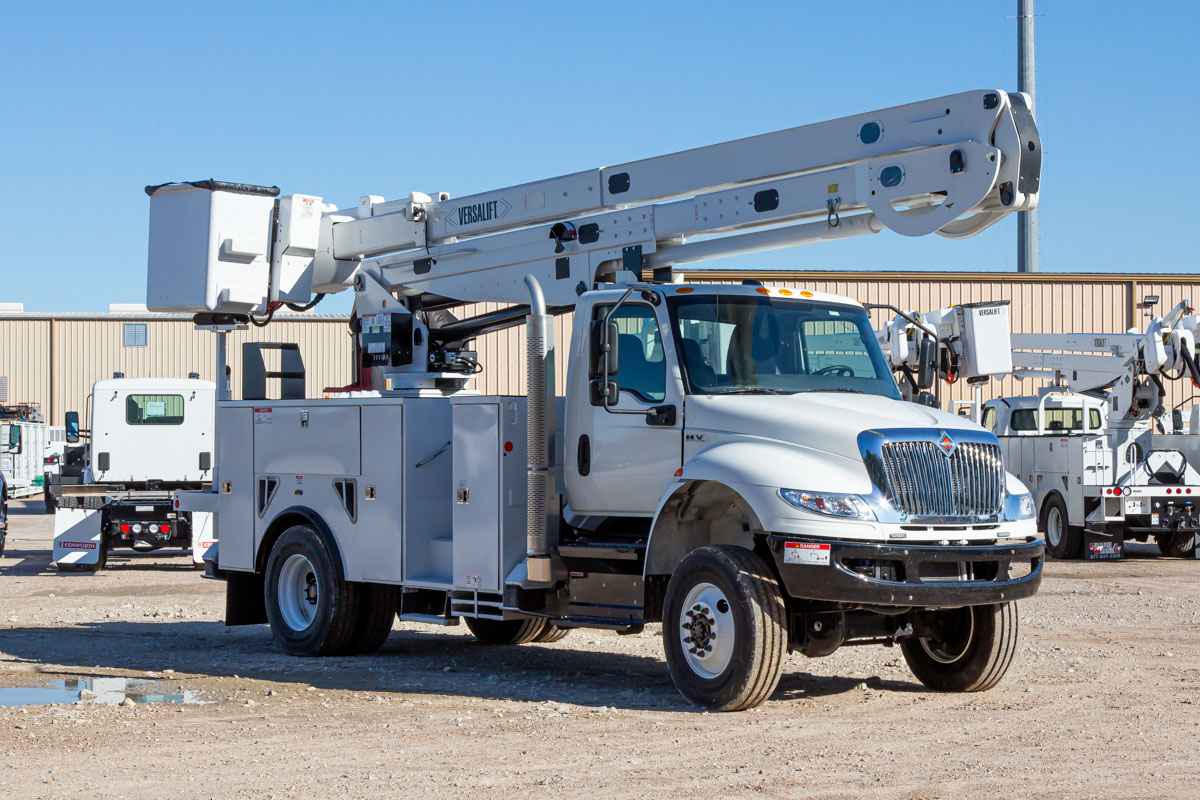

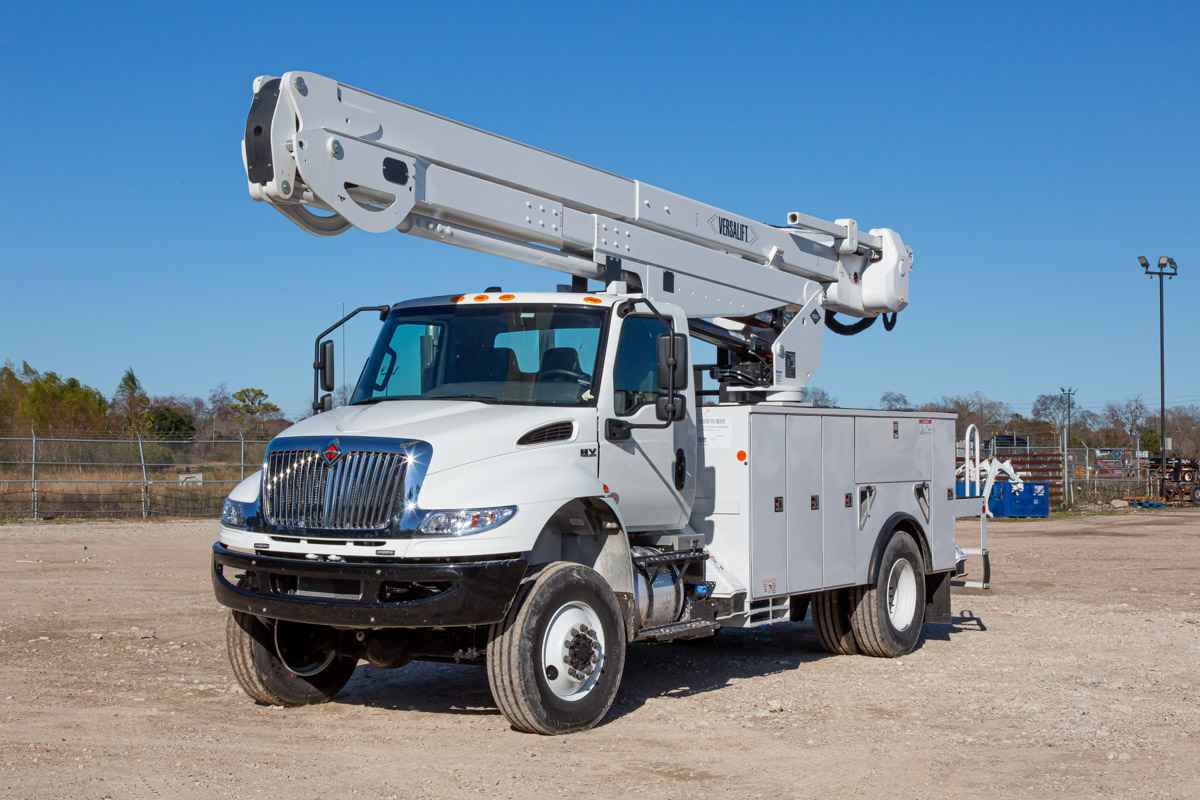

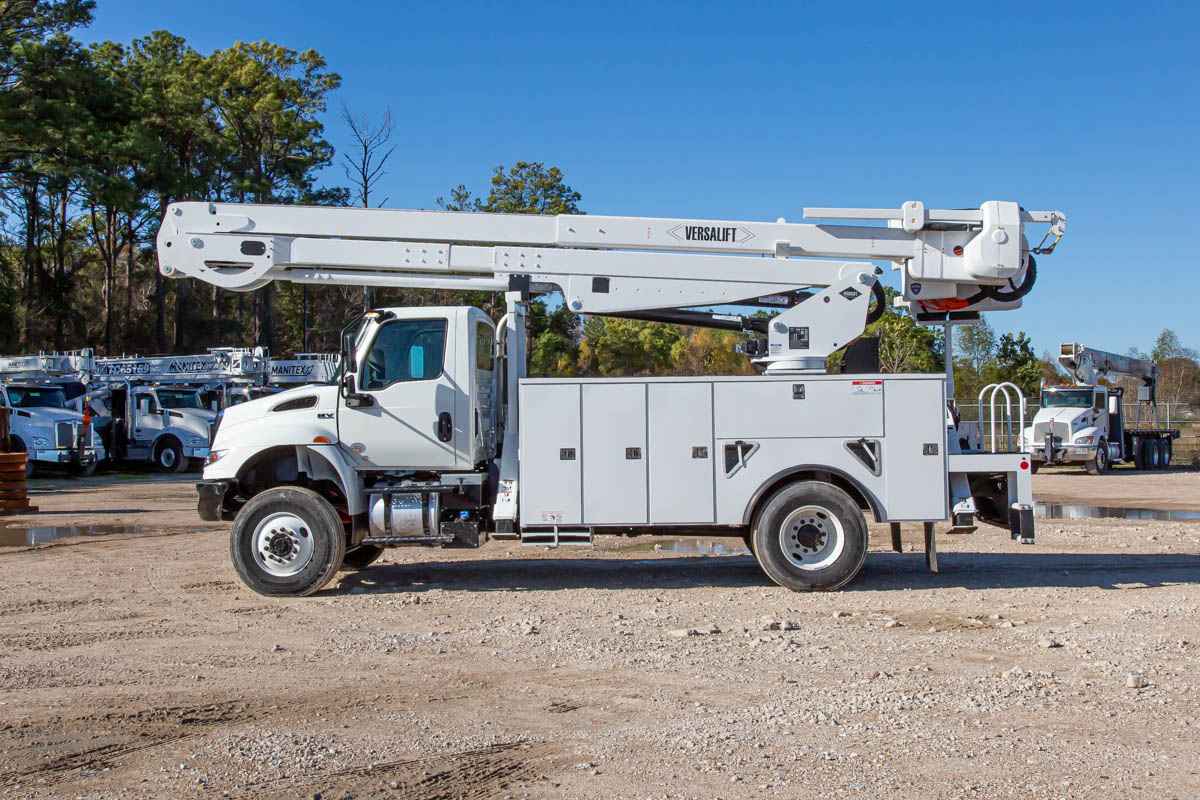

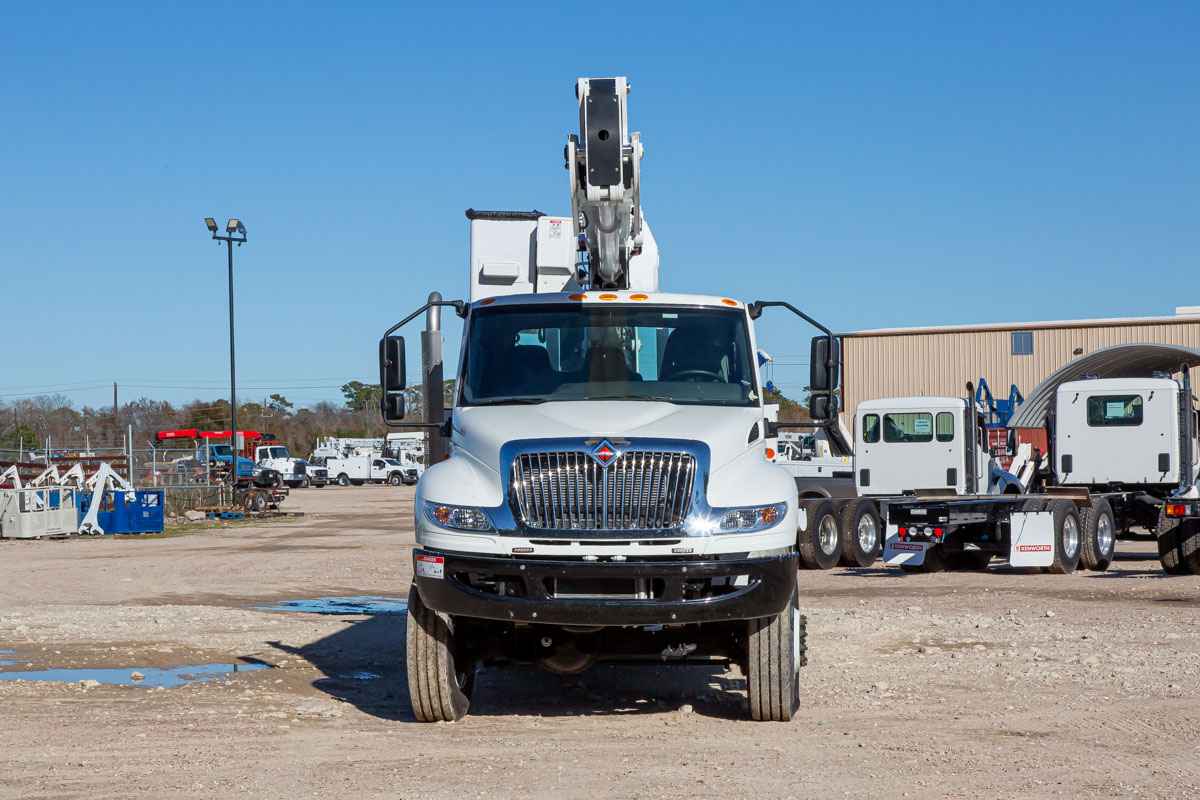

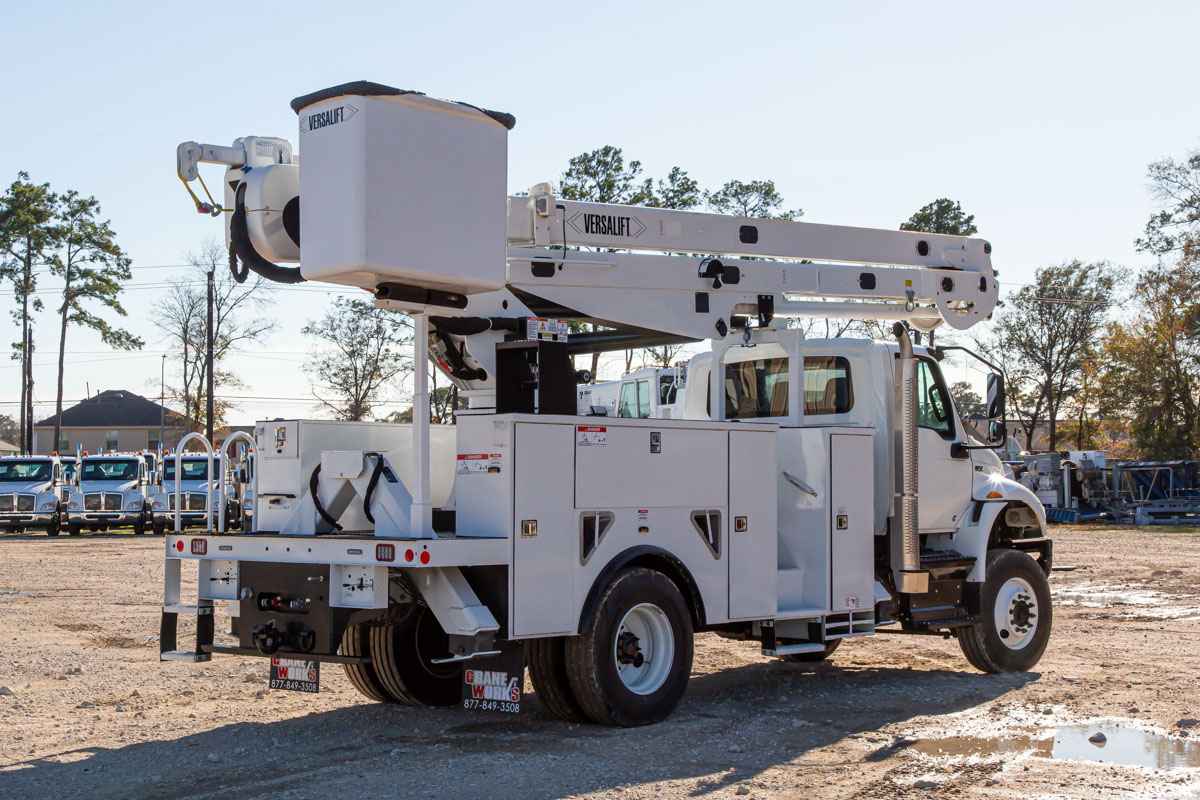

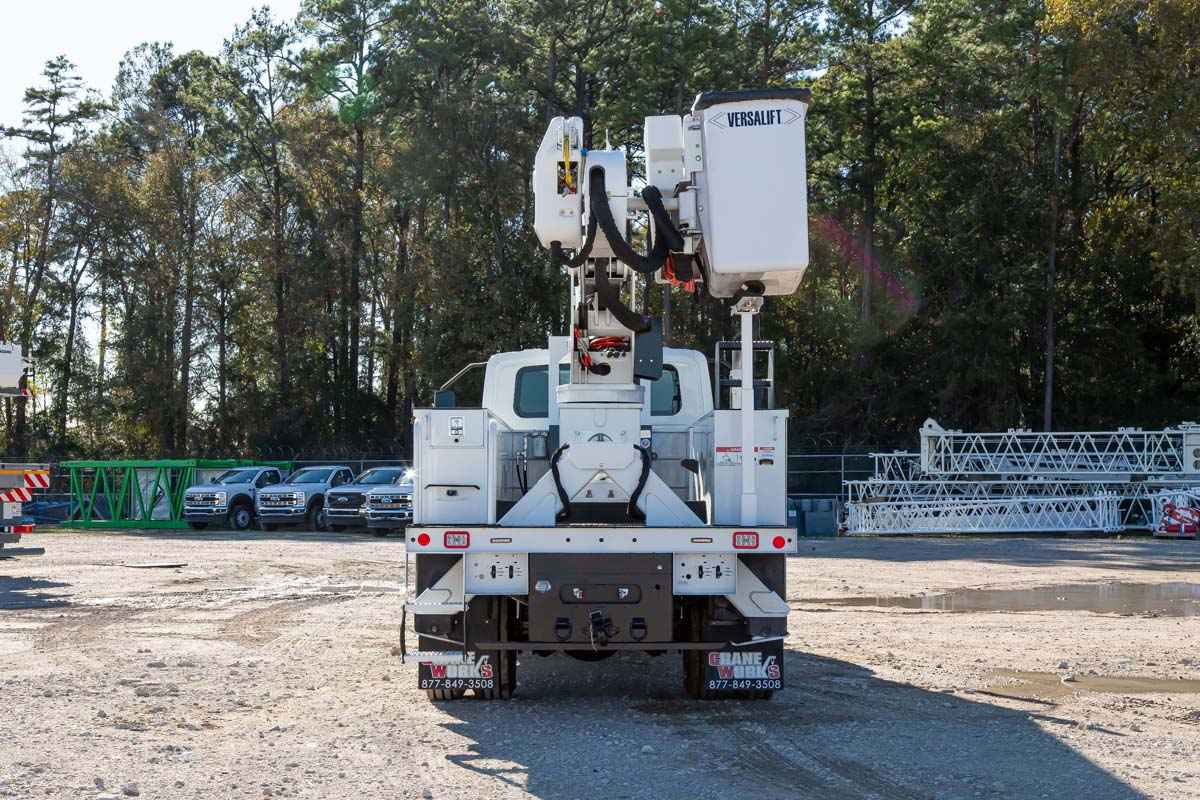

Versalift VN-555-MHI Non-Overcenter Bucket Truck - Powerful Non-Overcenter Material Handler - Truguard® Safety System Standard - Simple Mechanical Linkage for Boom Compensation INDUSTRIES SERVED: Electric Power Distribution, Electric Utilities TYPE: Non-Overcenter HEIGHT RANGE: 45ft - 65ft MODEL SERIES: VN Product Overview - Working Height: 60.5 ft (18.4 m) - Height to Bottom of Platform: 55.5 ft (16.9 m) - Horizontal Reach: 42.8 ft (13 m) - Stowed Travel Height: 12.3 ft (3.74 m) - Platform Capacity: 700 lbs (318 kg) - Platform Rotation: 90 - Insulated or Non-insulated: Insulated - Material Handling: Yes SPECIFICATIONS HYDRAULIC SYSTEM Hydraulic Controls: Full Hydraulic Operating Pressure: 3000 psi (210 kg/cm²) Flow Rate: 12 gpm (45 lpm) Filtration: 10 micron return | 100 mesh suction System Type: Open Center Power Source: PTO Pump BOOM Upper Boom Articulation: 192 Lower Boom Articulation: 120 Upper Boom Insulation Gap: 108 in (2.74 m) Lower Boom Insulation Gap: 18 in (0.46 m) Lower Boom Lift Eye Capacity: 2500 lbs (1133.98 kg) Boom Rotation: Continuous VEHICLE REQUIREMENTS GVWR: 33,000 lbs (12700.52 kg) Cab to Axle (minimum): 108 in (2.59 m) MATERIAL HANDLING OPTIONS Jib & Winch Capacity: 2000 lbs (907.18 kg)
