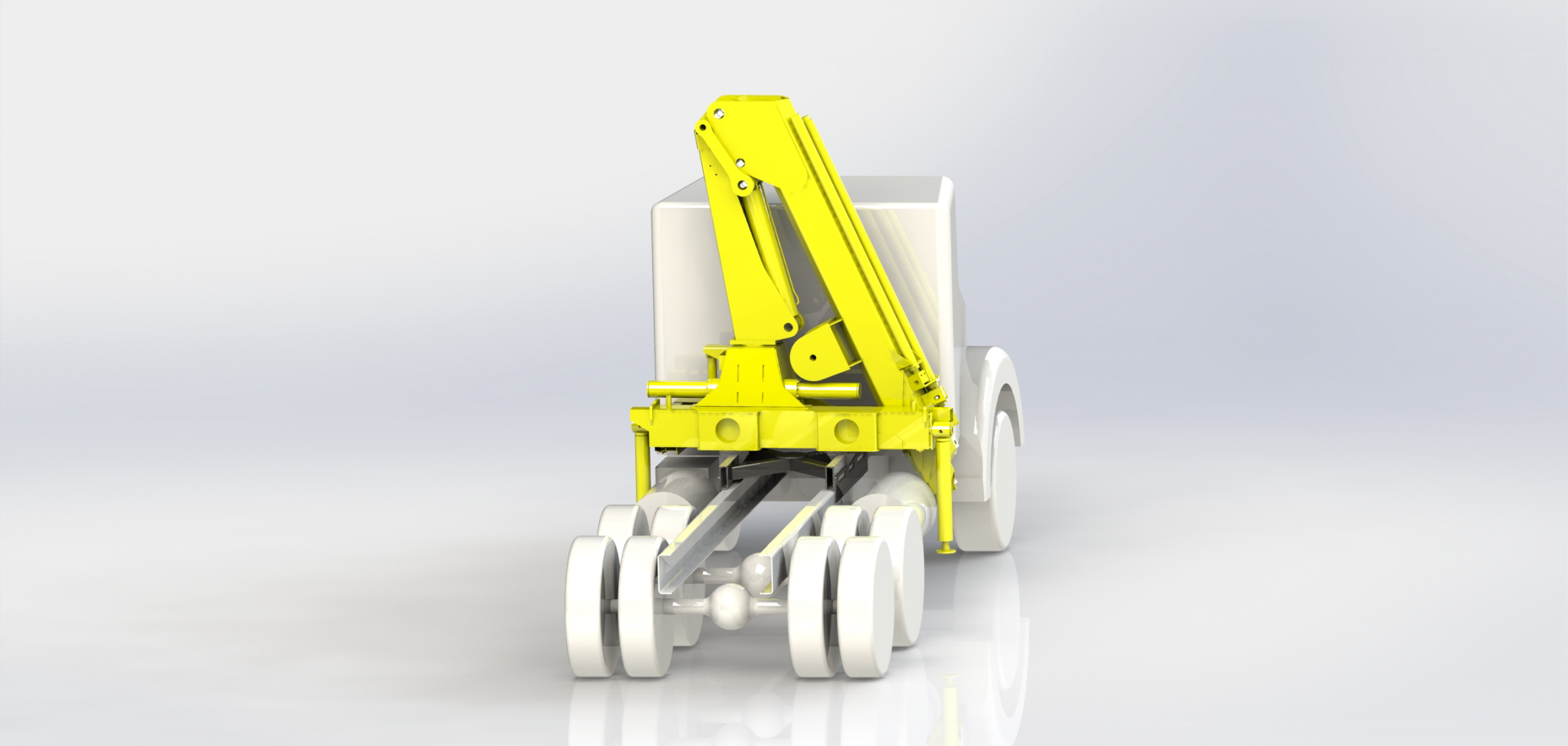

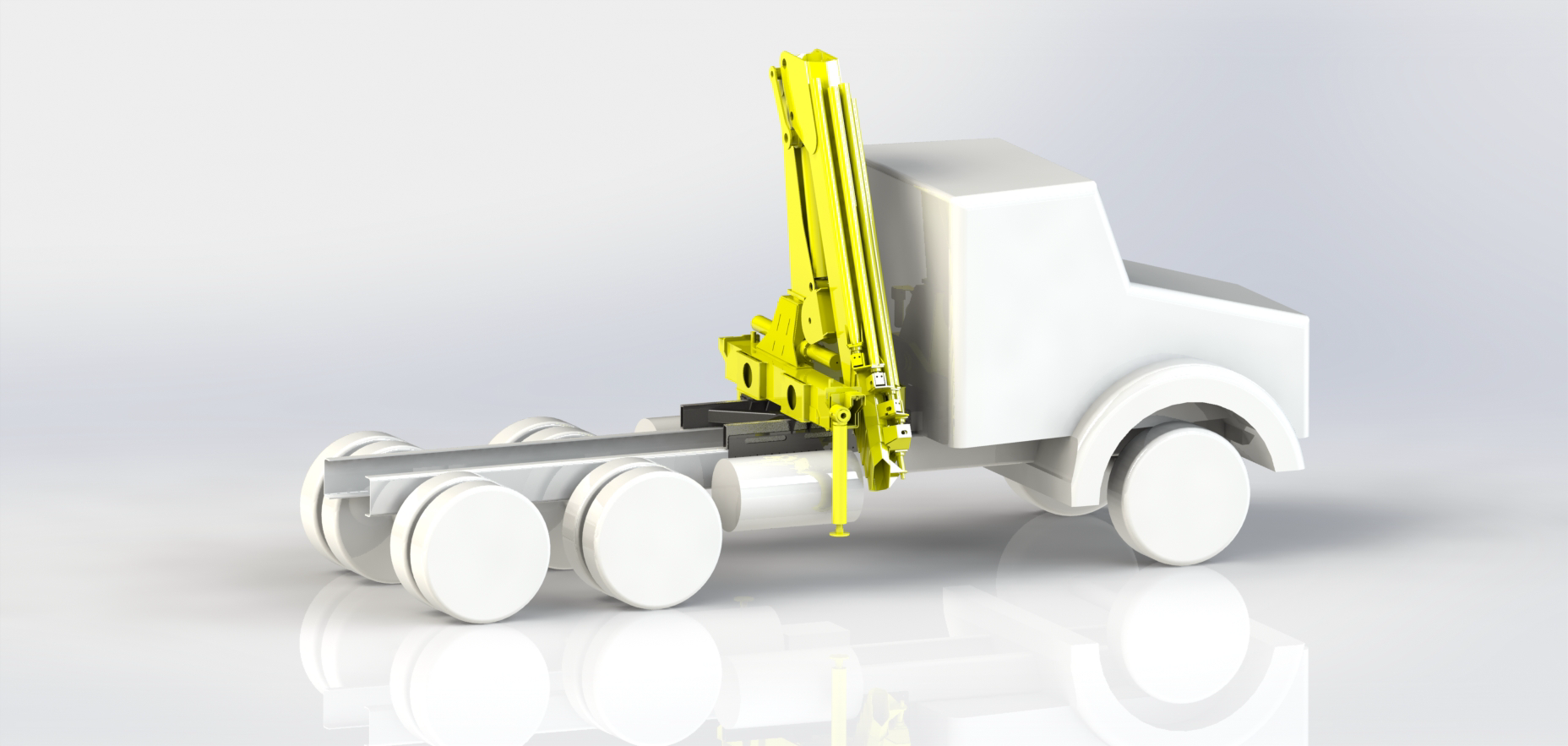

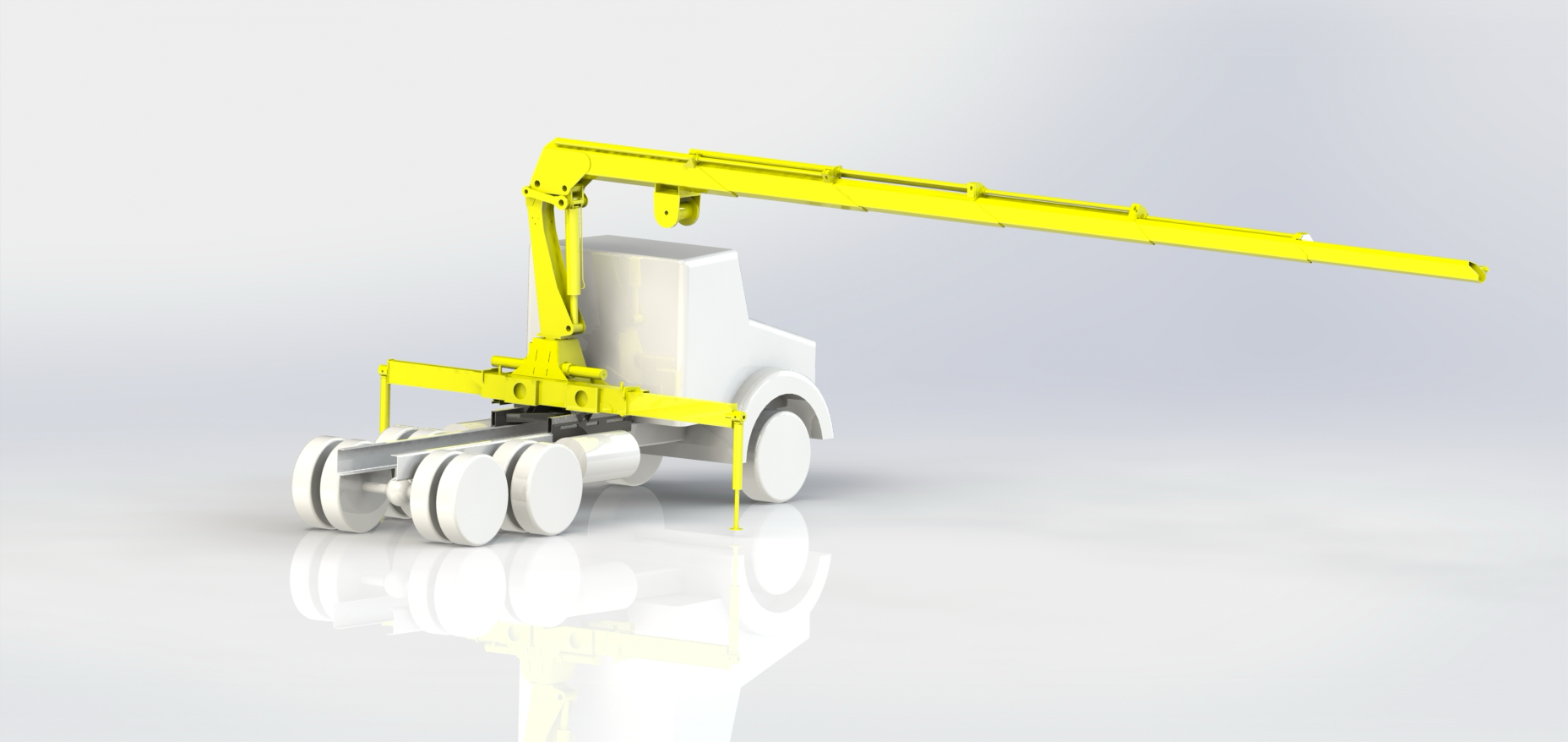

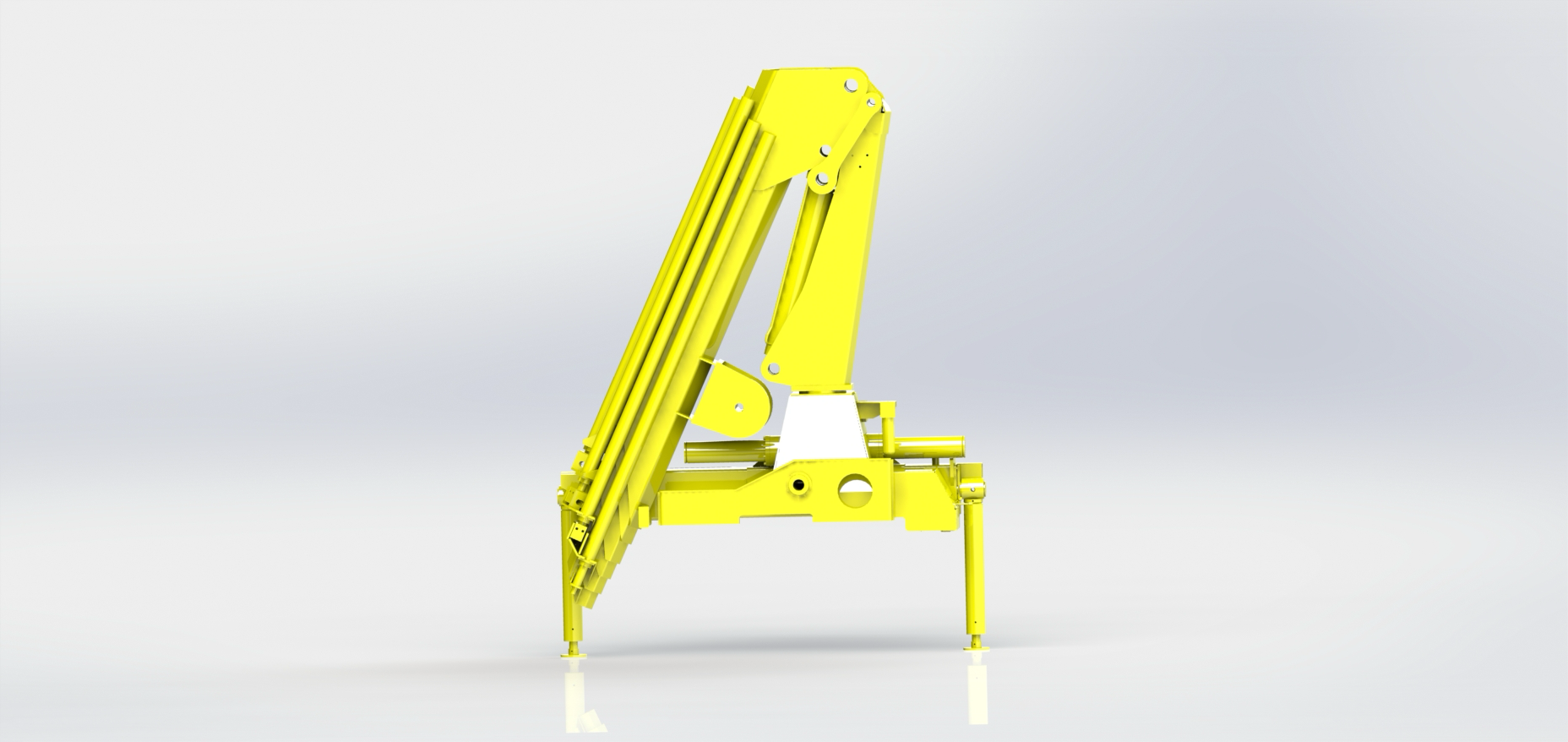

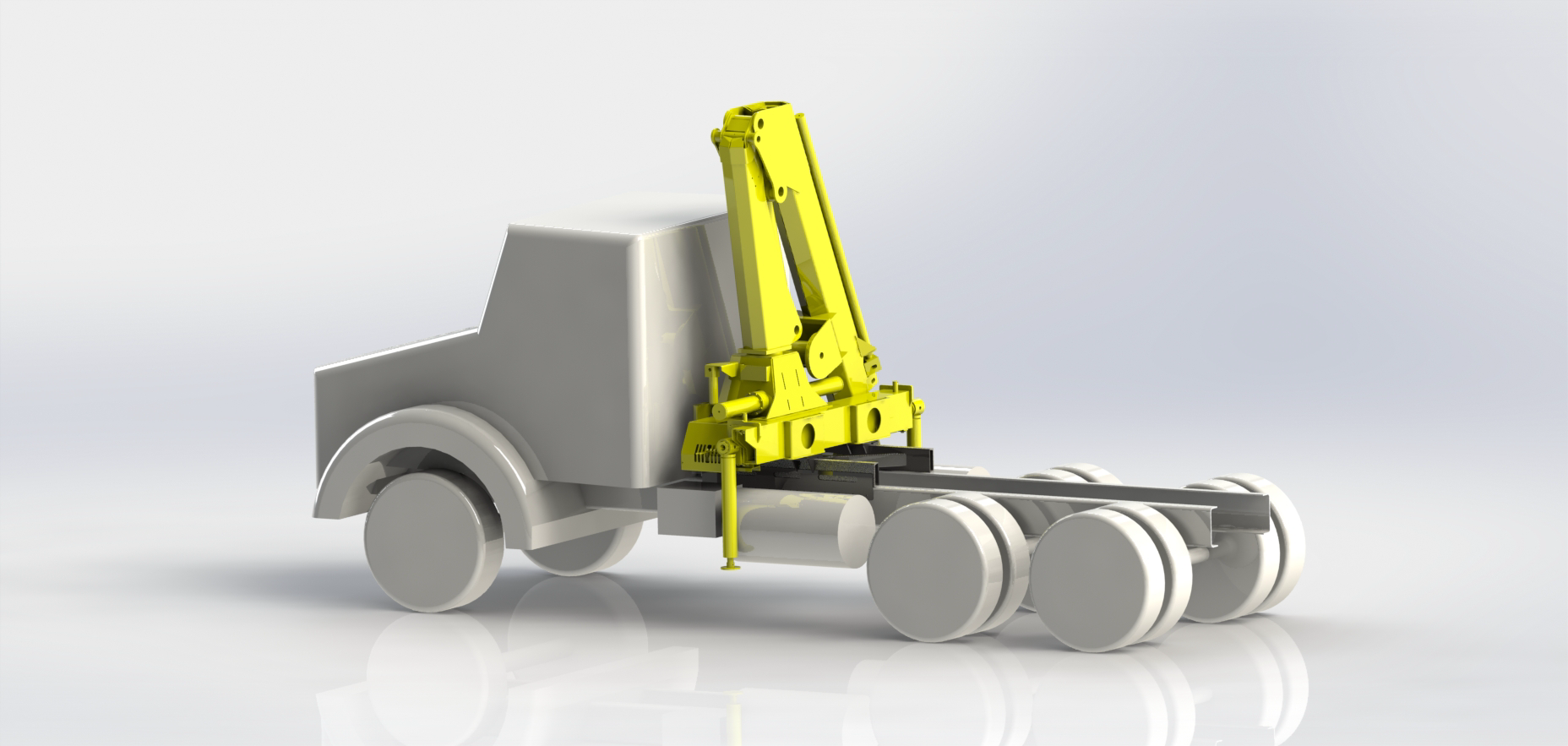

2026 HydraLift HLCF10.56, 10 Ton, Un-Mounted Knuckeboom and Boom Truck Crane; CranesList ID: 1040,
- UN-MOUNTED KNUCKEBOOM AND BOOM TRUCK CRANE ALL IN ONE...
- 43' Maximum working horizontal extension,
- 56' Maximum working height,
- Hexagonal telescopic boom,
- Independent hydraulic cylinders for the extension of the telescopic booms equipped with sequence valves,
- with sequence valves,
- No Jib,
- 2.5 Ton Hydraulic winch capacity with one rope,
- Visual and audio load indication (light bar indicating 80%, 90%, 100% and overload),
- Electronic overload limiting device with stability control,
- Slew angle : 380 deg (optionally can be endless),
- Slew mechanism : gear – rack (optionally slew gear with slew drive)
- Load holding valves in every function,
- Full proportional wireless remote control,
- Construction material 100% high strength steel Strenx 700 by SSAB,
- Full hydraulic operated stabilizers in horizontal and vertical movement, Stabilizers spread 19 ft,
- Maximum lifting moment : 110.000 ft lbs,
- Maximum lifting weight : 10 US tn @ 5 ft,
- Crane dead weight 5800 lbs,
- Oil tank capacity 16. US gallons (optionally 30 gallons with separate oil talk to be fitted on the truck chassis),
- Maximum working pressure : 295 bar,
- Preferable oil flow : 60 L/m (16 gal/min),
- Advantages Of This Crane: Unique design that only we are providing now.The crane is fully foldable exactly as a knuckle boom crane. The crane can work as a normal telescopic crane by using the hydraulic winch but also as a knuckle boom crane in horizontal position using the winch or a hook because of the design of the hexagonal telescopic booms and the independent hydraulic cylinders of them. Light dead weight. It is possible to be equipped with fly jib and this option makes it a powerful multipurpose lifting machine with abilities than none of the competitors can provide. Flexibility because of each unique design,
http://www.CranesList.com,
LOCATED IN BULGARIA!
