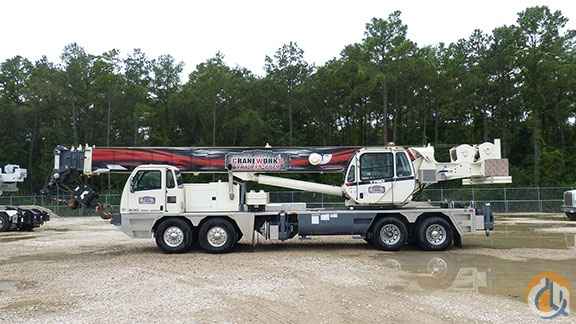

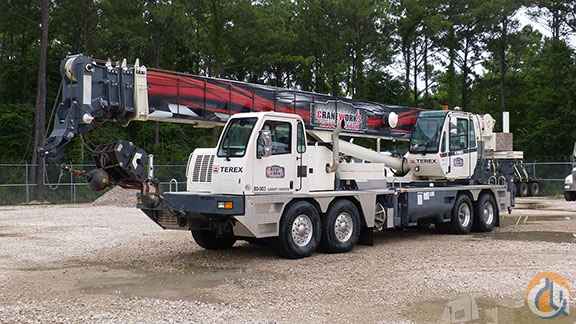

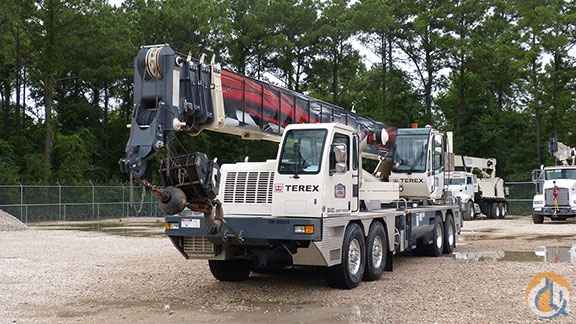

Terex T780 Truck Mounted Telescopic Boom Crane (Sold)

2013 TEREX T780

STANDARD FEATURES

Capacity

Lifting capacity 80 tons (72.5 mt)

Boom

Four section, full power, mechanically synchronized boom.

High strength, four plate construction welded inside and out with embossed side plate holes to reduce weight and increase strength.

Quick-reeving boom head; no need to remove wedge from socket.

Single boom hoist cylinder provides boom elevation of -4 degrees to 76 degrees for easier reeving changes and close radius operation.

Hoist cylinder is equipped with integral hold valves.

Hoist

460 fpm (162.5 m/min) maximum line speed, 18,450 lb (8,369 kg) maximum line pull.

Electronic drum indicators.

Integral automatic brakes.

Two speed main hoist with standard lay wire rope.

Grooved drum, tapered flanges, and spring loaded cable roller for improved spooling.

Electronic hoist rotation indicator.

Cab

Rated Capacity Indicator (RCI) system with audible and visual warning and automatic function disconnects. Anti-two block system with audible and visual warning and automatic function disconnects.

Deluxe six-way adjustable operator's seat with torsion bar suspension and adjustable head and arm rests. Armrest mounted controls for hoists, swing and boom elevation; foot control pedals for swing brake, boom telescope and throttle.

Sound and weather insulated for comfort.

Removable front window, hinged tinted glass skylight, and sliding right-hand window.

Tinted safety glass throughout.

Environmentally sealed rocker switches.

Circuit breakers located in cab.

Complete instrumentation.

360-degree house lock standard.

Counterweight

Standard upper counterweight, with auxiliary hoist 13,450 lb (6,101 kg), without auxiliary hoist, 15,000 lb (6,804 kg).

Carrier

Rugged, 8x4 drive, box type chassis construction, with full aluminum decking.

Fuller manual transmission, with 11-speeds forward and three reverse.

Hydraulic assisted power steering.

Full air brakes on all wheels with ABS split circuit system.

Fully independent hydraulic outriggers available for use fully extended to 26-ft (7.9 m), 1/2-extended position, or fully retracted.

5th front outrigger.

Removable aluminum outrigger pads.

Tail swing only 13'10" (4.2 m).

Engine U.S. & Canada Only - EPA 2010 Road Reg. Compliant Engine

Cummins ISX, 2010 Road Reg. compliant, 450-HP (336 kW) @ 1,800 rpm, 1550 lb. ft @1200 rpm.

With Automatic Transmission selection.

6-cylinder, water-cooled, fuel injected diesel with an intercooled, turbo-charger.

Fuel tank capacity - 100 gallon (379 L). Heavy duty batteries [(3) 12 volt, 2400 cca].

Hydraulic System

High capacity, full flow oil filtration system with a 202 gallon (765 L) capacity reservoir.

Three gear pumps driven off the transmission.

Combined system capacity is 131 gpm (495 lpm).

Cab

One-man aluminum cab mounted on vibration absorbing pads.

Optimum visibility with safety glass, acoustical foam padding inside cab for insulation against sound and weather.

Hot air defroster.

Six-way adjustable air suspension seat with seat belt and arm rests.

Lockable door with roll down window.

Manuals

1-set of operators and parts manuals will be shipped with the machine.

INCLUDED ITEMS

Model T780 (80 U.S. Ton ) BASIC MACHINE (126' (38.4 m) boom included)

Equipped with: EPA 2010 ROAD REG. COMPLIANT ENGINE - U.S. & CANADA ONLY

Domestic Shipment (within the US)

Imperial (English) - Includes imperial load chart, chip, and boom markings

Jib Offset 33' (10.0 m) - 57' (17.4 m)

Rotation Resistant Wire Rope

Auxiliary Hoist (Includes auxiliary sheave assembly)

Rotation Resistant Wire Rope

Single Lever, Dual Axis Controls

Hydraulic A/C and LP Heater

A/C Selected

Automatic Transmission

No Remote Steering Selected

12-ton (10.9 mt) Capacity Overhaul Ball with Hook Latch

80-ton (72.6 mt), 5-sheave, Hook Block With Hook Latch

Remote Outrigger Controls Selected

Pintle Hook -- Rear of Machine (only)

Yellow Strobe Light (Contains 1 light)(qty of 2 max)(Used in place of revolving amber light; cannot be combined)

Work Light Package (Contains 3 lights mounted on the base of the boom, front of the cab, and superstructure)

360-degree Spotlight

3rd Wrap Kit - Main Hoist (Consult factory for pricing)

3rd Wrap Kit - Auxiliary Hoist (Consult factory for pricing)

Tire Inflation Kit

Boom Float Kit

Exworks CraneWorks Inc. - Houston, TX

1T9T700ACDW120315. SR# 120315
