Type: Truck Mounted Telescopic Boom Cranes
Make: Terex
Year: 2013
Capacity: 60.00 Tons
Condition: Excellent
Hours: 1300
Location: Fort Pierce, Florida
Boom: 110

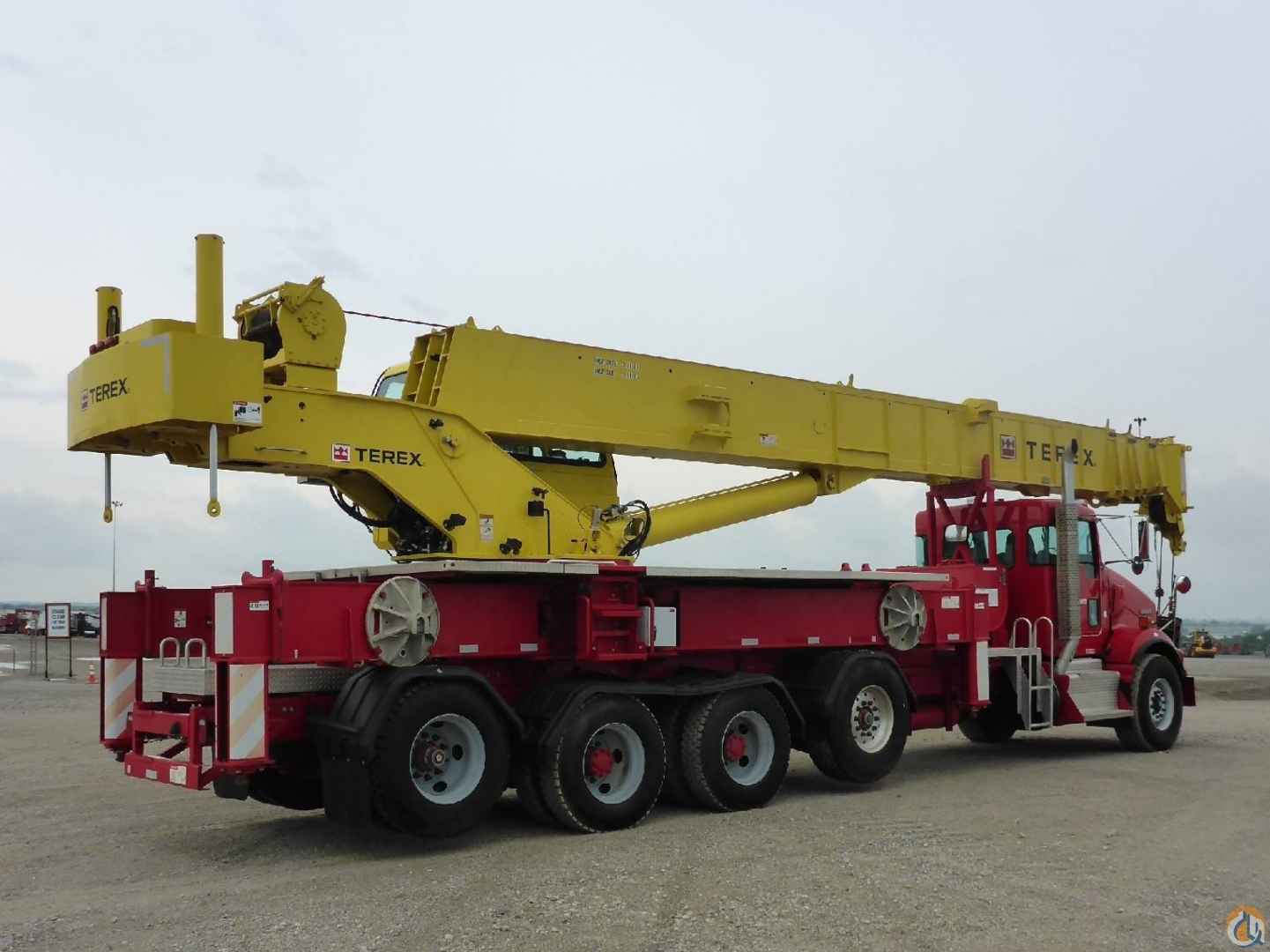

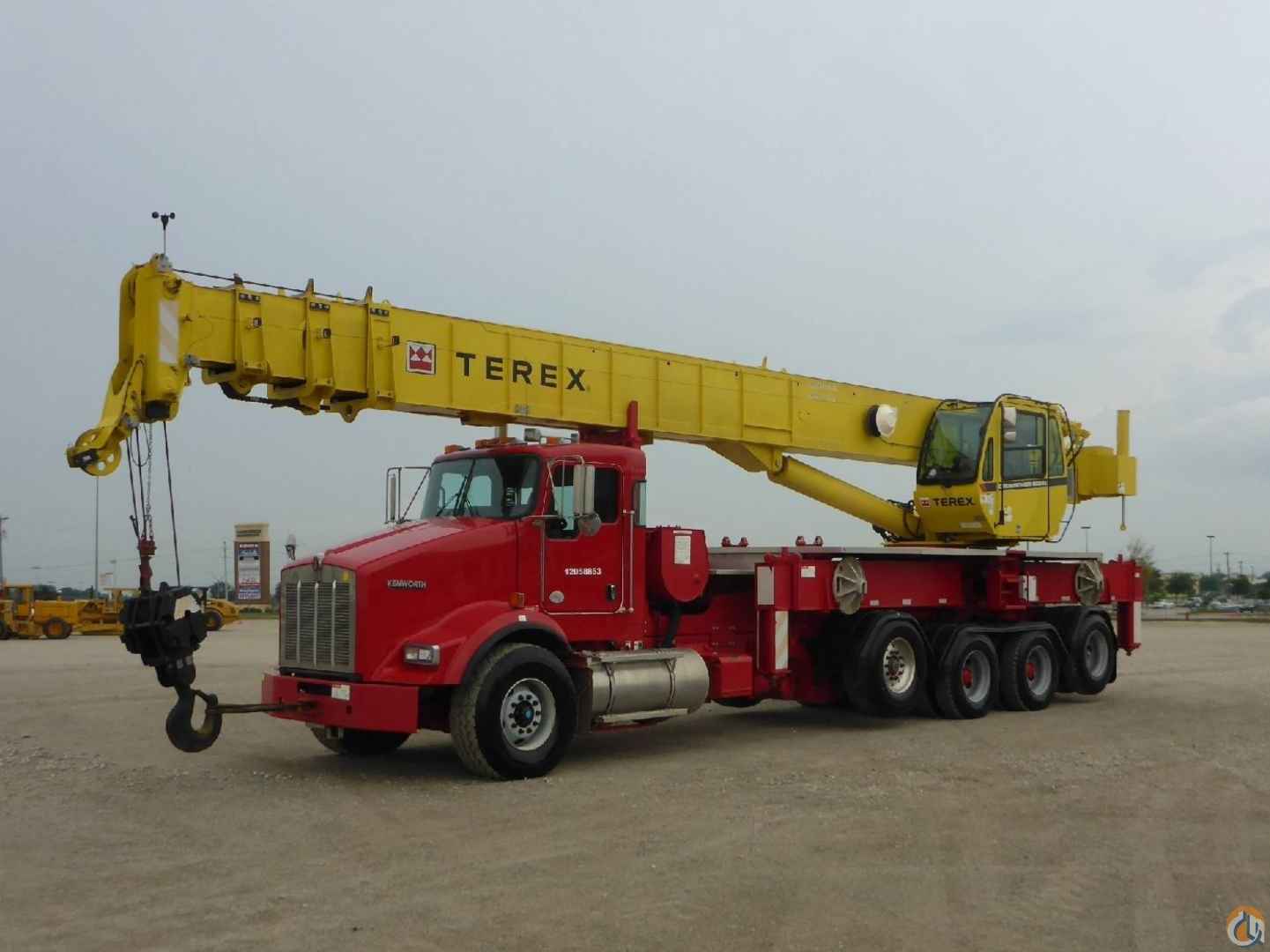

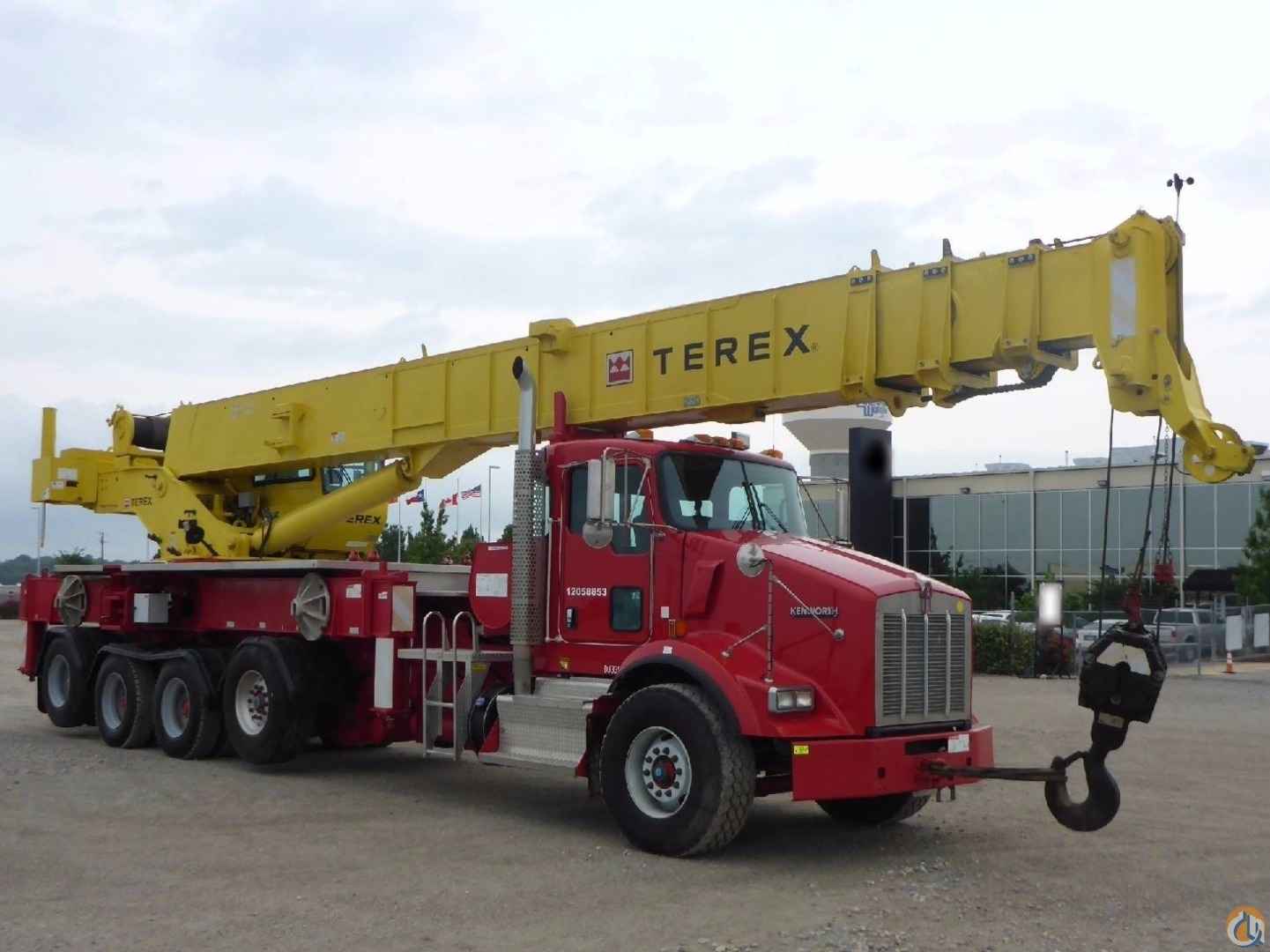

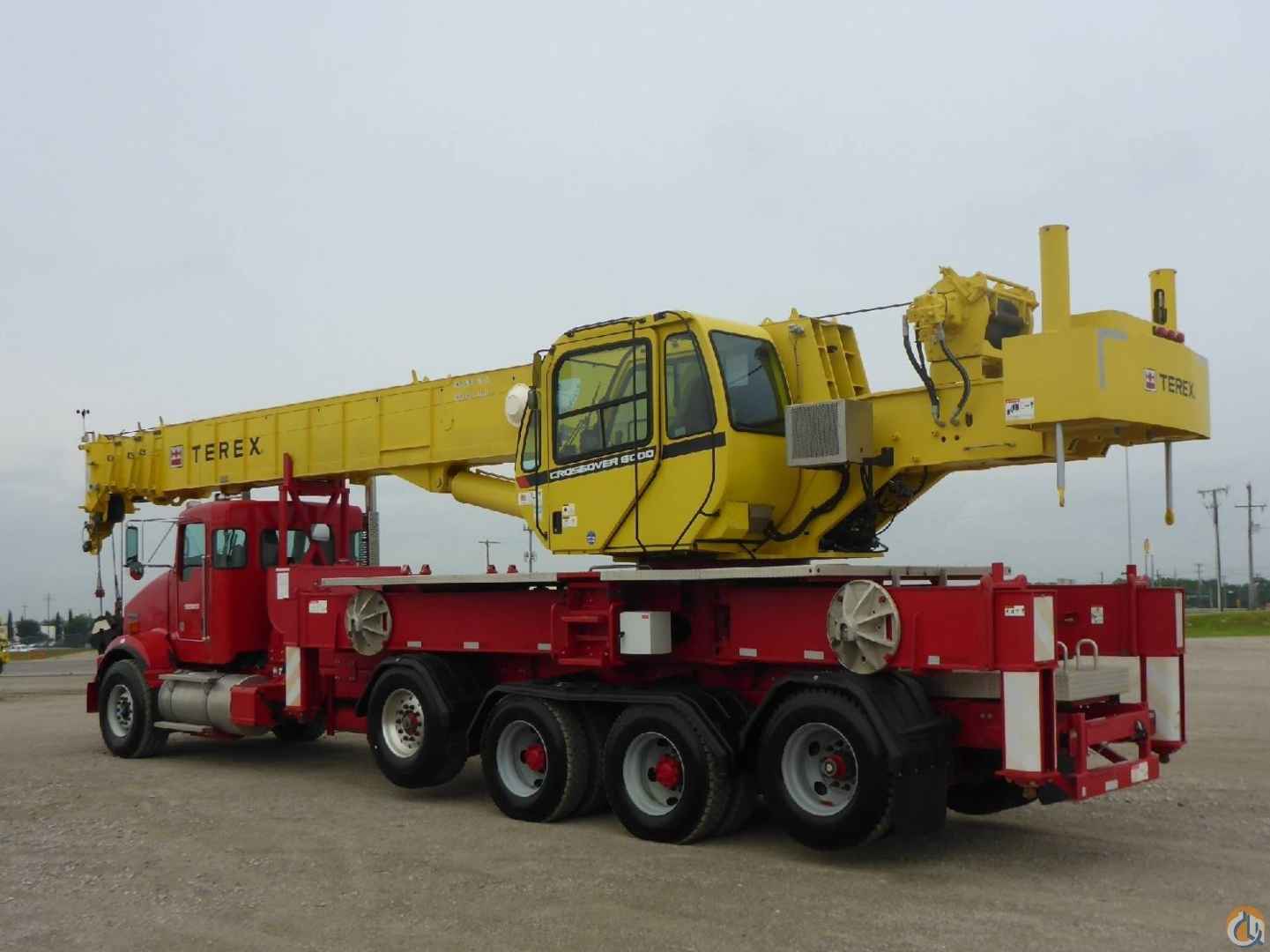

2013 Terex CROSSOVER 60 TON
RECIEVING NEW PAINT AND CHROME
THIS CRANE IS LIKE NEW INSIDE AND OUT
ONLY 1,300 TOTAL HOURS AND 7900 MILES!
WHY BUY NEW ?
16,500 LB EXTRA HEAVY LIFT REMOVABLE CWT PACKAGE
110' plus 57' JIB FOR 177' tip height
28,600 lbs @40'radius, 2000 lbs @ 160'radius
164' MAX RADIUS!
NO FRONT JACK NEEDED FOR 360 CHART
5 AXLE FOR HIGHWAY TRAVEL
STANDARD FEATURES
60 ton (54.4 mt) capacity rating @ 10 ft. (3 m) radius.
Mainframe Outrigger Hub Base and Crane Upper Super Structure consists of all-steel formed construction.
X pattern Hyd. swing out and telescopic 3 position (retracted, mid and full extended) 4 outrigger beam system. Approximate outrigger spread is 24' (7.3m) wide by 25' 10" (7.86 m) long.
Outrigger control station in the crane cab.
No front bumper outrigger required for 360° load capacity.
Deluxe contoured flexible fenders
Aluminum Diamond plate decking
Access ladders and steps
Recessed locking storage box in decking.
Continuous rotation (no swing stop) foot peddle swing brake and 360 degree swing lock
Hydraulic Oil cooler
BOOM:
110' (33.5 m) Four section, full power, mechanically synchronized boom "120' TIP HEIGHT"
57' Swing away offsetting jib
High strength, four plate construction welded inside and out with embossed side plate holes to reduce weight and increase strength.
Single boom hoist cylinder provides boom elevation of -4° to 76°.
Quick reeving boom head; no need to remove the wedge from socket. 4-5 bottom head sheaves in boom tip depending on hook block selection
ENVIRONMENTAL OPERATORS CAB:
Greer Element VGA Rated Capacity Limiter (RCL) system including anti-two block system with automatic function disconnects.
Deluxe six-way adjustable (heated) operator's seat with air ride & air height adjustment riser and ventilation system at seat base.
Joystick Controls in armrests are adjustable fore and aft, pivot up 90° with shutoff controls, mounted controls in armrests for hoist(s), swing and boom elevation;
Foot control pedals for swing brake, boom telescope (with integral 2psd extend function) and throttle.
Sound and weather insulated for comfort.
Engine instrumentation in dash
Environmentally sealed rocker switches. Circuit breakers in cab.
360-degree house lock standard.
Removable front window, hinged tinted glass skylight, and sliding right-hand window. Tinted safety glass and overhead retractable UV sunscreen.
HYDRAULIC SYSTEM:
High capacity, full flow oil filtration system with a 117 gallon (443 L) capacity reservoir.
(2) PTO DRIVEN Three gear pump system
Combined system output is 115 gpm (435 lpm) and up to 3,500 psi operating pressure
HOIST:
Single Main Planetary 2spd Hoist -533 fpm (163m/min) maximum line speed 15,639 lb. (7093 kg) maximum line pull.
(Optional Choice) of 5/8" wire rope standard lay or rotation resistant
Integral automatic brake.
Grooved drum, tapered flanges, and spring loaded cable roller tensioner for improved spooling.
Electronic drum rotation pulse indicators in control handles
COUNTERWEIGHT:
ADDITIONAL EXTRA HEAVY LIFT CWT PACKAGE FOR TOTAL OF 16,500 LBS!!!!
Hydraulic counterweight removal system.
INCLUDED ITEMS
Standard Lay Wire Rope 500ft
Hydraulic A/C and LP Heater
7-Ton (6.4mt) Capacity Overhaul Ball with Hook Latch – Weight 250lbs.
60-Ton (54.4 mt), 5-sheave, Hook Block with Hook Latch – Weight 1,150lbs.
(2) Remote Outrigger Ground Control stations located at each side access ladders
TRUCK
Kenworth T800 FIVE AXLE
Engine: ISX12
engine brake
cruise
Transmission: 10-speed
Immersion engine block heater 110-120V
