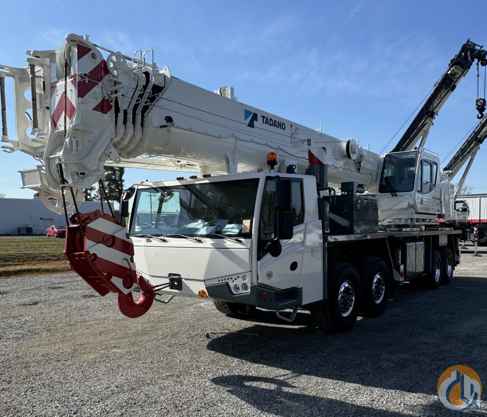

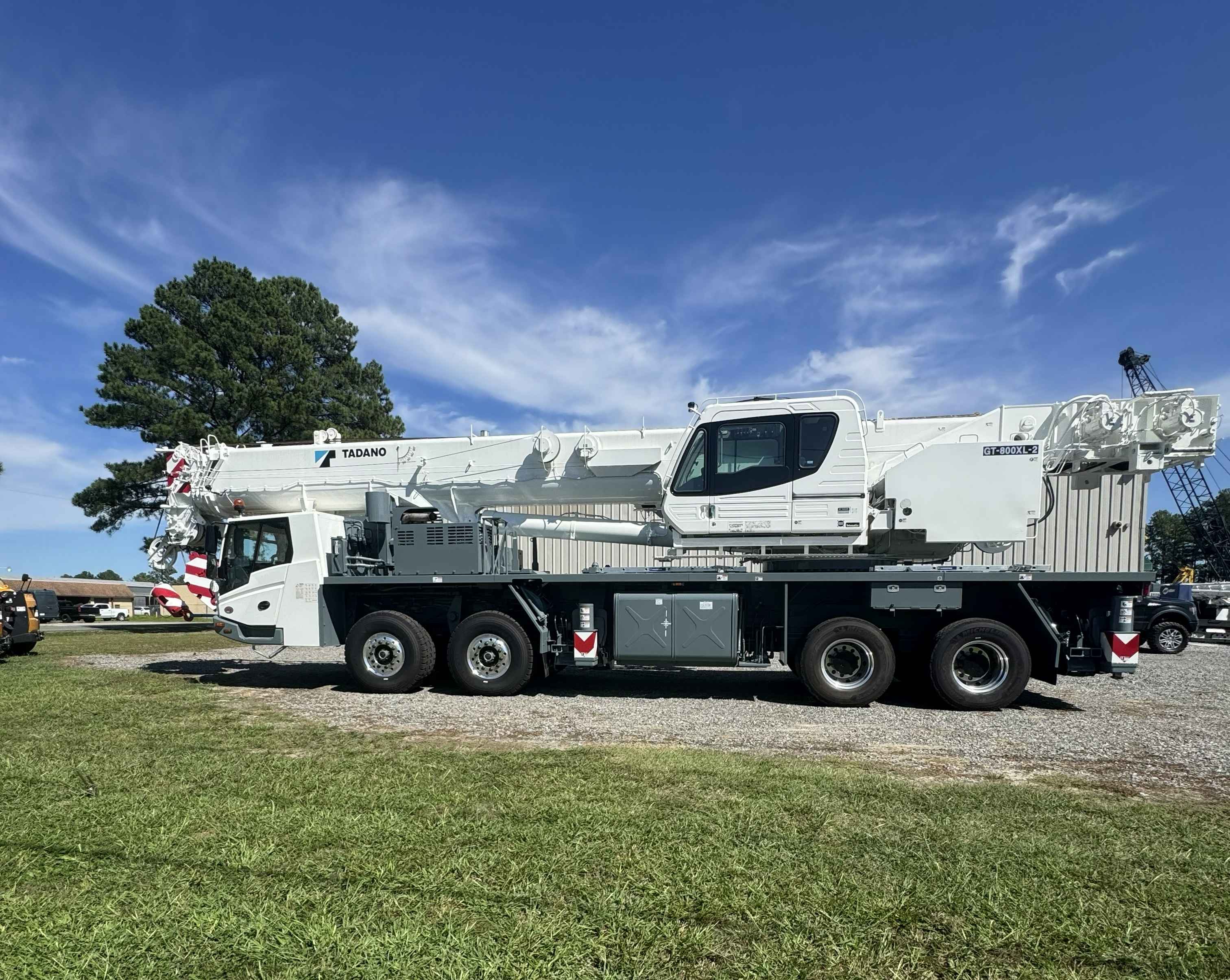

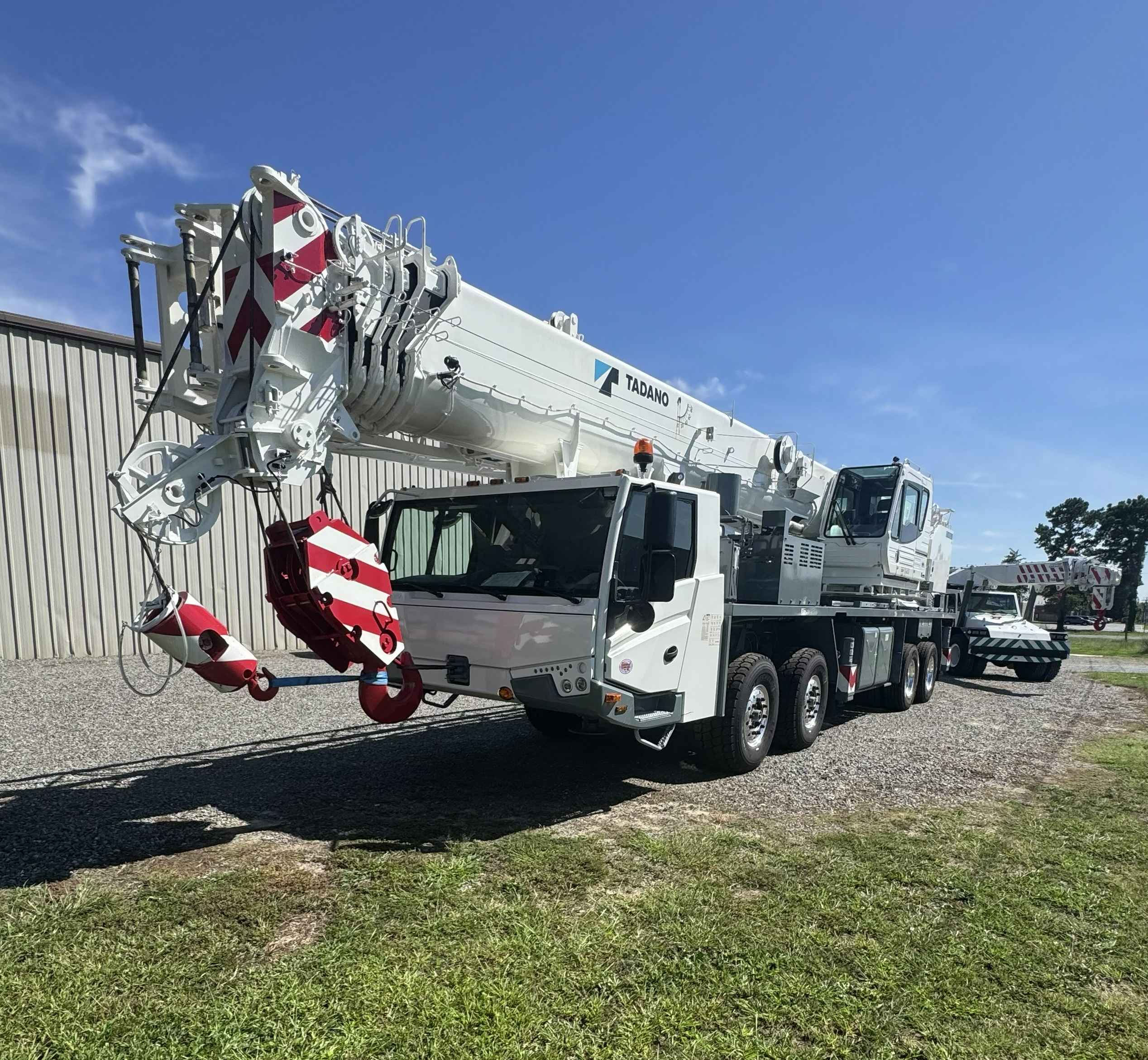

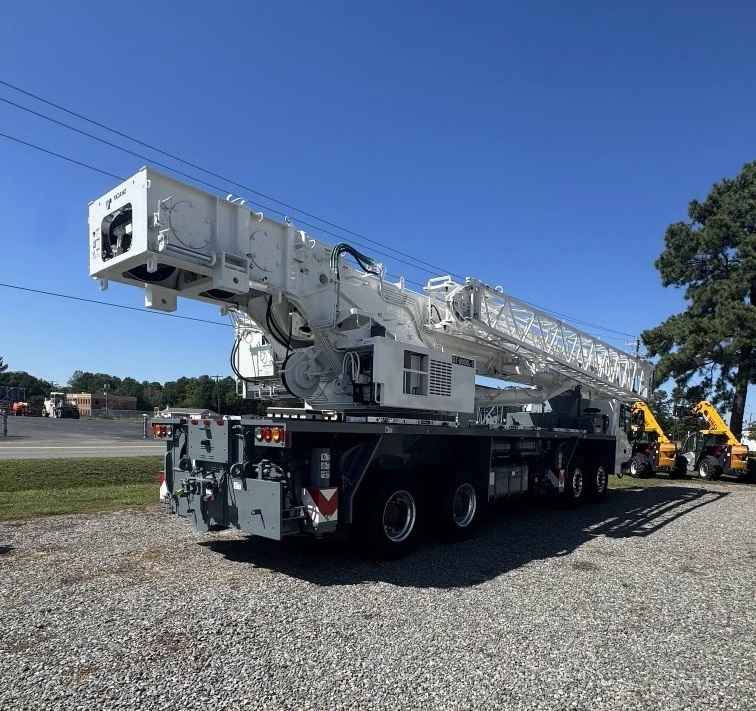

2024 Tadano GT-800XL-2

• 80 US Ton

• 5 section full power synchronized telescoping boom 39.5'–154.3' (12.0 m–47.0 m)

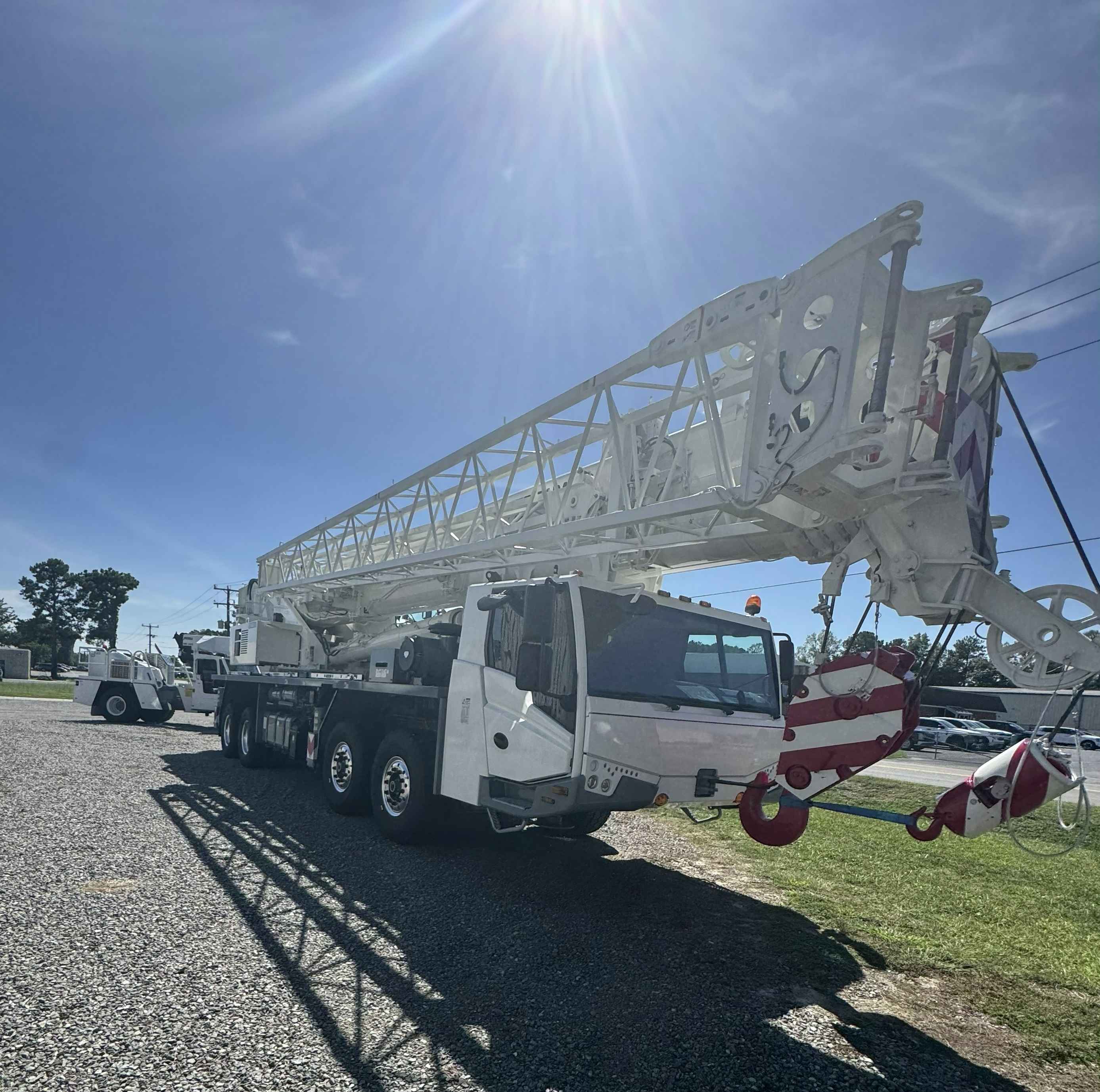

• 33.8' or 58.7' (10.3 m or 17.9 m) quick reeving type bi-fold lattice jib (tilt type) with 3.5°, 25° or 45° pinned offsets and self-storing

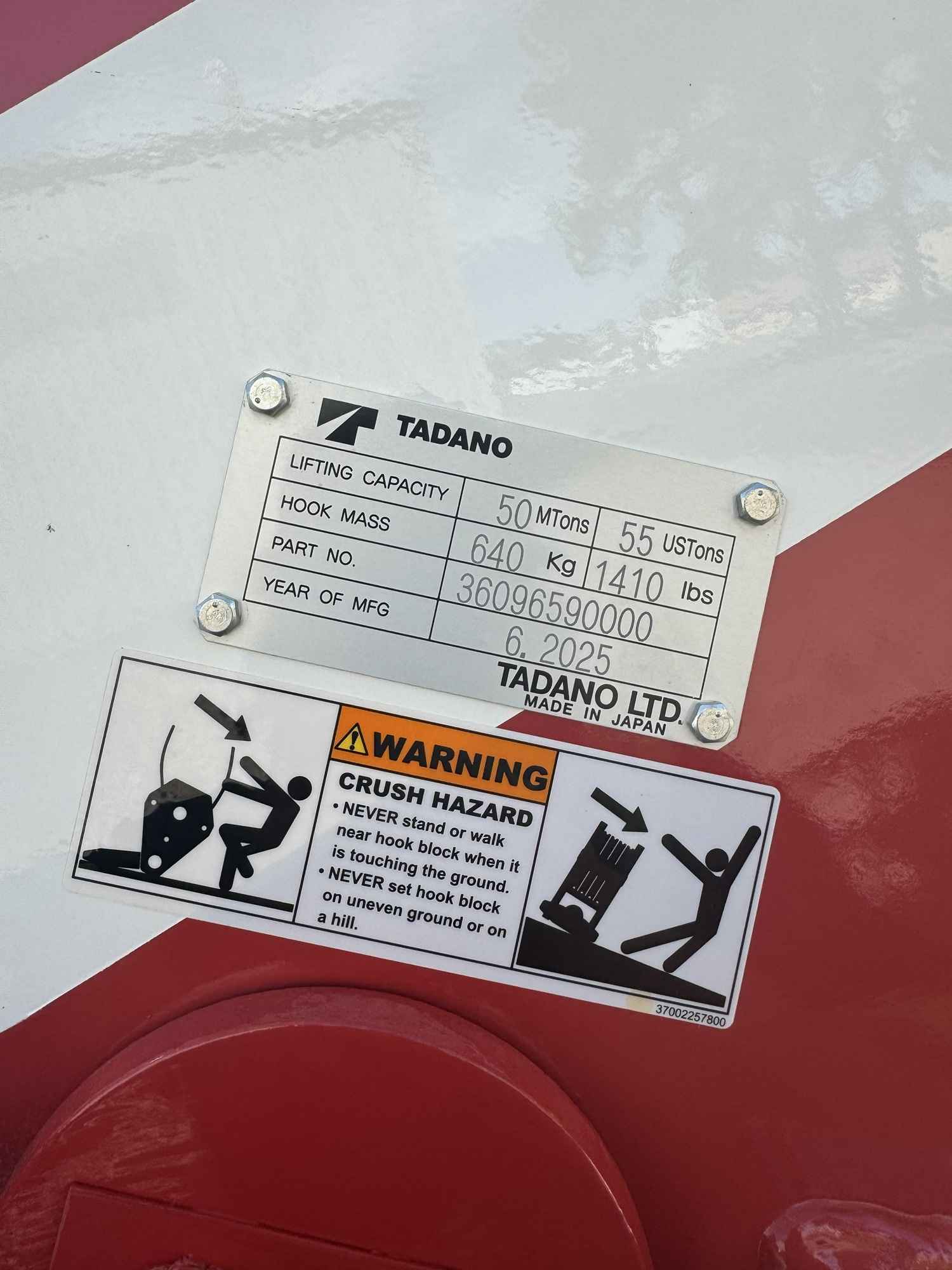

• 55 Ton Block & Ball

• Auxiliary lifting sheave (single top) stowable

• Variable speed main hoist with grooved drum, cable follower and

• 892' of 3/4" cable.

• Variable speed auxiliary hoist with grooved drum, cable follower

• and 482' of 3/4" cable.

• 2-speed winch

• Tadano electronic load moment indicator system (AML-E2)

• Self-removable counterweight (total 17,900 lbs)

• Independently controlled outriggers

• Three outrigger extension positions (min/mid/max)

• Outrigger extension length detectors

• Front jack (Fifth jack)

• Trailer coupling device

• Hydraulic circuit for dolly (Elevation, swing and swing brake)

• Smart Chart

• Drum rotation indicator (audible, visible and thumper type) main

• and auxiliary hoist

• Anti-Two block device (overwind cutout)

• Winch over-unwinding prevention

• Telematics (machine data logging and monitoring system) with

• HELLO-NET via internet

• Hydraulic oil cooler

• Weighted hook storage compartment

• Tadano twin slewing system and 360° positive slewing lock

• LED work lights

• Positive control

• Eco mode system

• Winch drum cameras

• Boom angle indicator

• 15° tilt cab

• Control pedals for boom elevating and boom telescoping

• 3 way adjustable cloth seat with armrests and high back

• Hot water cab heater and air conditioner

• Tinted safety glass and sun visor

• Front windshield wiper and washer

• Roof window wiper and washer

• Power window (cab door)

• 12 V power outlet

• USB port (power supply)

• Anemometer

• Cummins X12 (EPA 2021) direct injection diesel engine

• ZF TraXon 12TX 2615 SO automatic mechanical transmission with

• electro-pneumatically operated dry-type clutch and automatic gear

• shifting with 12 forward gears and 2 reverse gears.

• ZF TC27L Transfer case (2 stage)

• Hendrickson independent air suspensions

• 8 x 4 Drive

• Inter wheel differential lock on axles 3 and 4

• Aluminum disc wheels

• Front tires 445/65R22.5 Single x4

• Rear tiers 315/80R22.5 Dual x4

• Air Disc brakes

• Anti-lock braking system (ABS)

• Engine compression brake

• BOSCH-Servocom, dual circuit hydraulic and mechanical steering

• system with emergency steering pump Multi-Function Display

• Fuel Tank 100 gallon

• Hook block tie down (front bumper)

• Towing hooks-Front and rear

• Carrier mounted storage box

• Aluminum fenders

• Air dryer

• Water separator with filter(high filtration)

• Battery Disconnect Switch

• Backup camera

• Beacon lamp

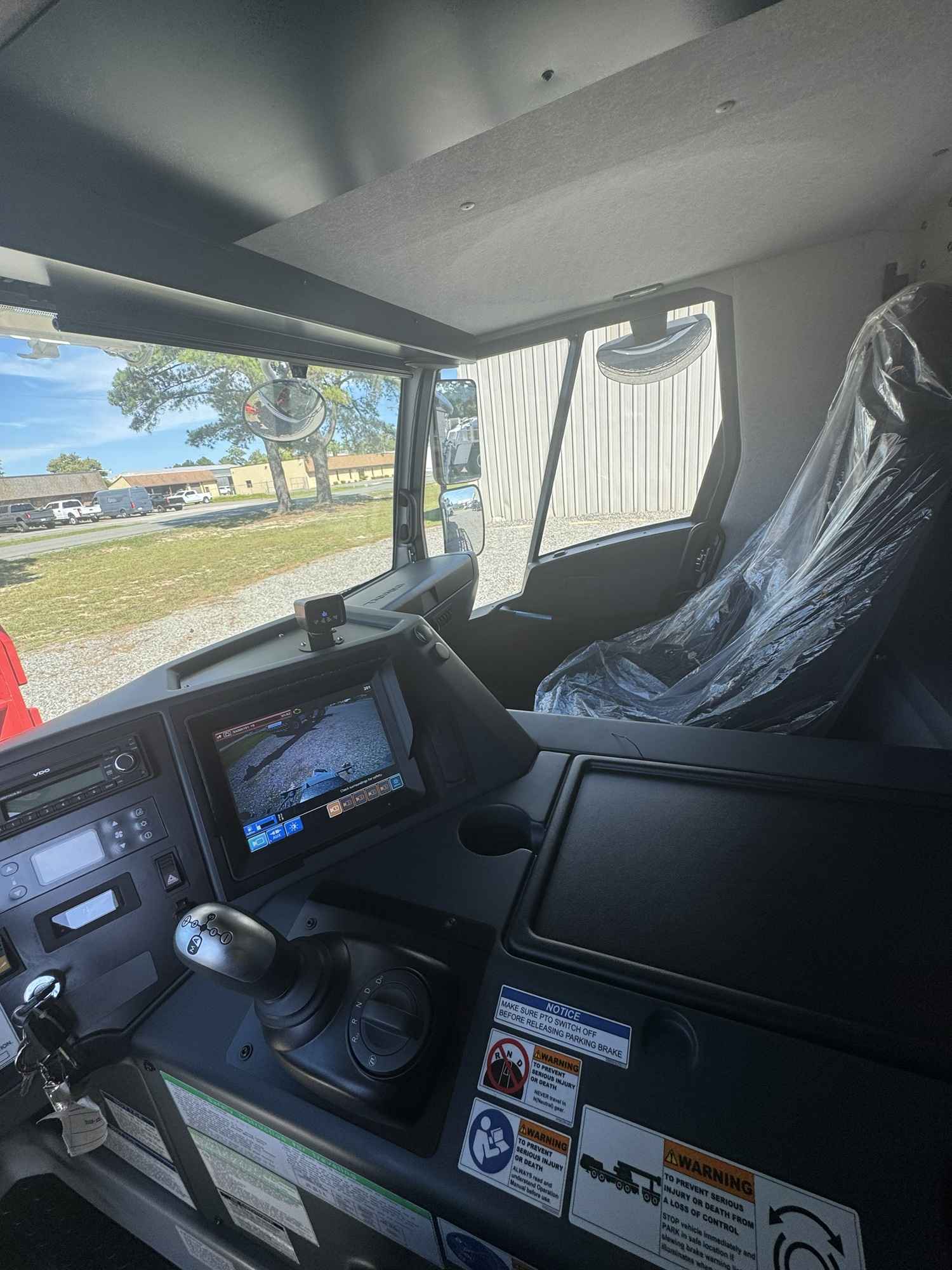

• Resin full cab

• 3 way adjustable air-cushioned seat

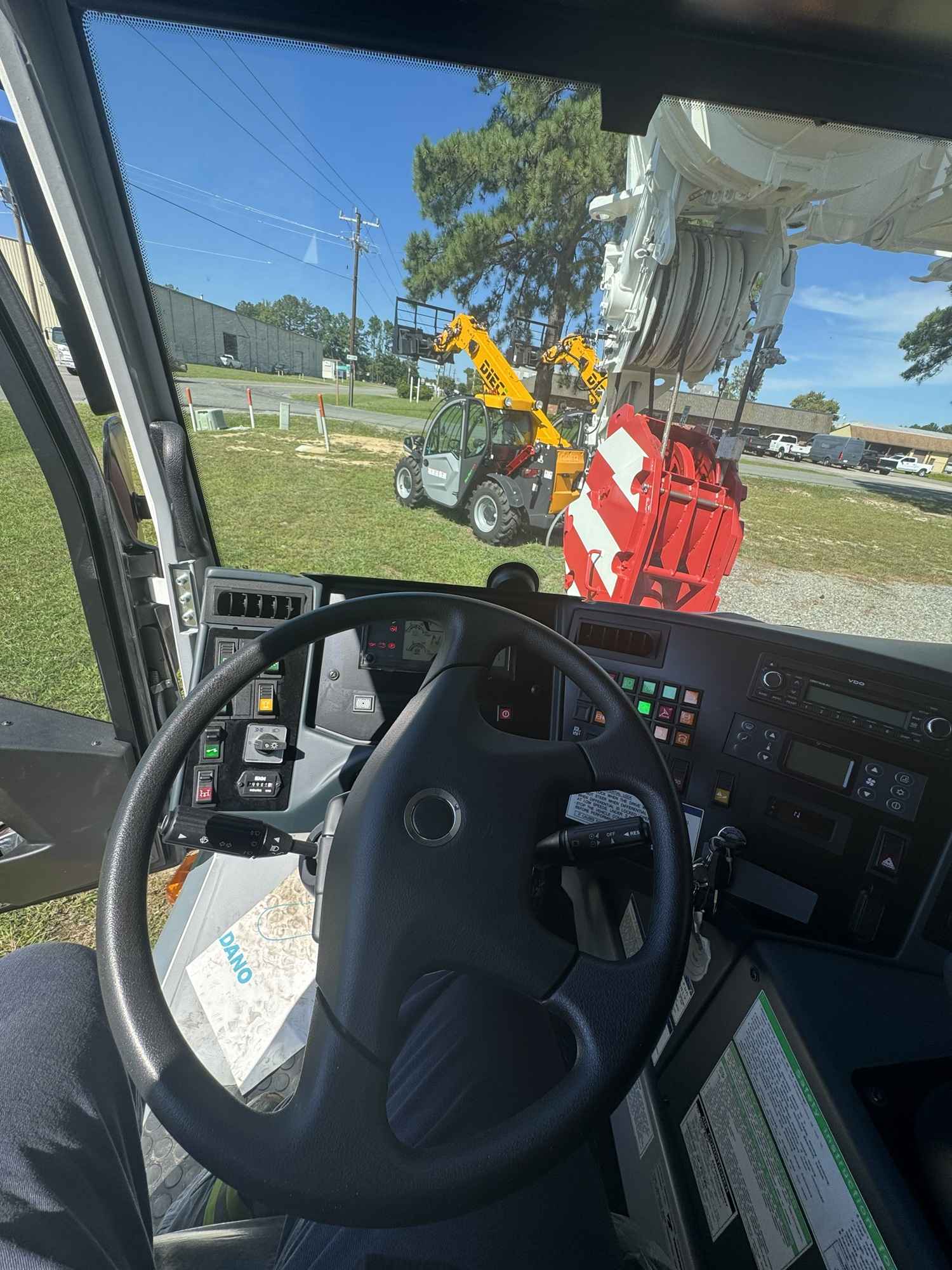

• Tilt telescoping steering wheel

• Hour meter (Operation from the carrier and superstructure)

• Air conditioning

• USB port (power supply)

• Cruise control

• Clearance sonar (Rear side)

• Tire inflation kit

• 12 Month Standard Warranty

Location: Ashland VA

AVAILABLE IMMEDIATELY
