2023 Tadano GT 800XL-2 Truck Mounted Telescopic Boom Crane (Sold)

2023 Tadano GT-800XL-2

**ARRIVING January 2024 **

SC-581

80 US Ton

5 section full power synchronized telescoping boom,

39.5'–154.3' (12.0 m–47.0 m)

33.8' or 58.7' (10.3 m or 17.9 m) quick reeving type bi-fold lattice

jib (tilt type) with 3.5°, 25° or 45° pinned offsets and self storing

pins.

Auxiliary lifting sheave (single top) stowable

55 ton (50 metric ton) - 3 sheaves with swivel hook block and

safety latch for 3/4"(19 mm) wire rope

7.9 ton (7.2 metric ton) hook ball with swivel

Variable speed main hoist with grooved drum, cable follower and

892' of 3/4" cable.

Variable speed auxiliary hoist with grooved drum, cable follower

and 482' of 3/4" cable.

2-speed winch

Tadano electronic load moment indicator system (AML-E2)

Self-removable counterweight (total 17,900 lbs)

Independently controlled outriggers

Three outrigger extension positions (min/mid/max)

Outrigger extension length detectors

Front jack (Fifth jack)

Trailer coupling device

Hydraulic circuit for dolly (Elevation, swing and swing brake)

Smart Chart

Drum rotation indicator (audible, visible and thumper type) main

and auxiliary hoist

Anti-Two block device (overwind cutout)

Winch over-unwinding prevention

Telematics (machine data logging and monitoring system) with

HELLO-NET via internet

Hydraulic oil cooler

Weighted hook storage compartment

Tadano twin slewing system and 360° positive slewing lock

LED work lights

Positive control

Eco mode system

Winch drum cameras

Boom angle indicator

15° tilt cab

Self centering nger control levers with pilot control

Control pedals for boom elevating and boom telescoping

3 way adjustable cloth seat with armrests and high back

Hot water cab heater and air conditioner

Tinted safety glass and sun visor

Front windshield wiper and washer

Roof window wiper and washer

Power window (cab door)

12 V power outlet

USB port (power supply)

Annemometer

FOR CARRIER

Cummins X12 (EPA 2021) direct injection diesel engine

ZF TraXon 12TX 2615 SO automatic mechanical transmission with

electro-pneumatically operated dry-type clutch and automatic gear

shifting with 12 forward gears and 2 reverse gears.

ZF TC27L Transfer case (2 stage)

Hendrickson independent air suspensions

8 x 4 Drive

Inter wheel differential lock on axles 3 and 4

Aluminum disc wheels

Front tires 445/65R22.5 Single x4

Rear tiers 315/80R22.5 Dual x4

Air Disc brakes

Anti-lock braking system (ABS)

Engine compression brake

BOSCH-Servocom, dual circuit hydraulic and mechanical steering

system with emergency steering pump Multi Function Display

Fuel Tank 100 gallon

Adblue Tank 15 gallon

Hook block tie down (front bumper)

Towing hooks-Front and rear

Carrier mounted storage box

Aluminum fenders

Air dryer

Water separator with filter(high filtration)

Battery Disconnect Switch

Backup camera

Beacon lamp

Resin full cab

3 way adjustable air-cushioned seat

Tilt telescoping steering wheel

Hourmeter (Operation from the carrier and superstructure)

Air conditioning

USB port (power supply)

Cruise control

Clearance sonar (Rear side)

Tire inflation kit

12 Month Standard Warranty

Call For Pricing

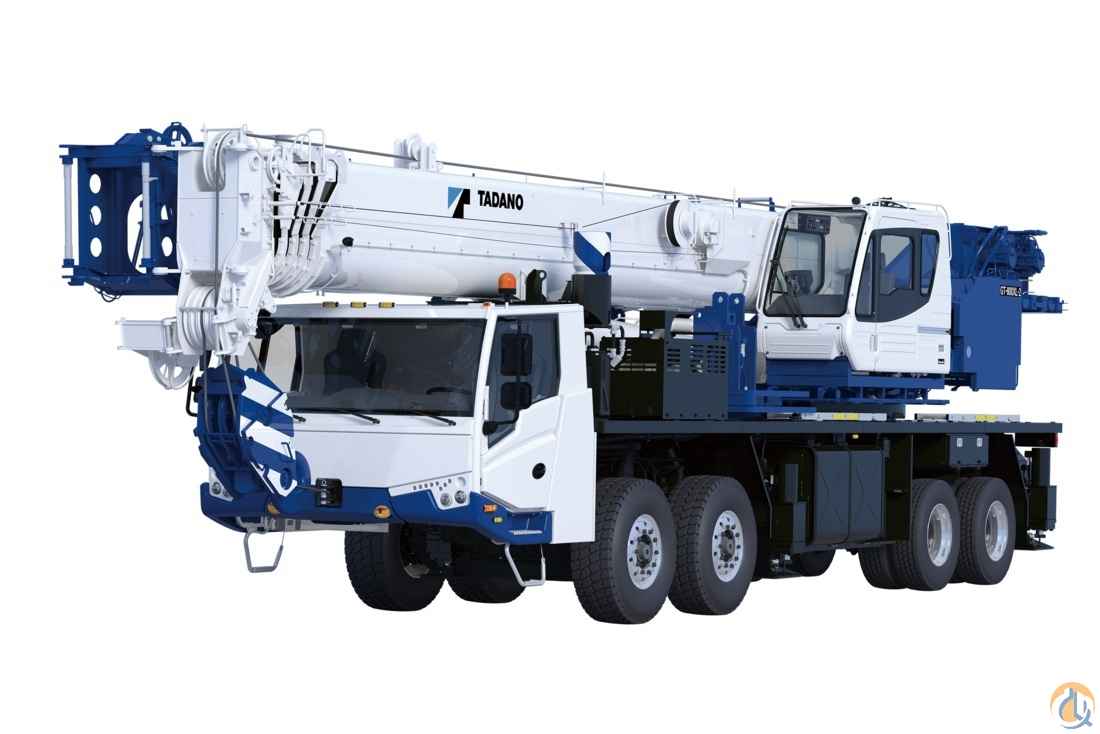

* STOCK PHOTO SHOWN *
