Tadano GT1200XL-2 Truck Crane (NEW)
167' 5-Section, single cylinder w/pinning system boom
33.8' - 58.7' Quick reeving, 2-stage bi-fold lattice-type jib
Jib offsets at 3 positions: 3.5º, 25º, 45º
Auxiliary lifting sheave
Variable speed main hoist w/grooved drum, cable follower and 892' of 3/4" cable
Variable speed auxiliary hoist w/grooved drum, cable follower and 482' of 3/4" cable
Winch cameras
4 Independently controlled outriggers w/3 extend positions (min/mid/max)
Front bumper stabilizer (front jack)
Outrigger controls located on both sides of crane & upper cab
Smart chart
Anti-two block
Anemometer
AML-E2 Tadano electronic load moment indicator system
HELLO-NET Telematics via internet
Tadano twin-slewing system and 360º positive slewing lock
55,100 lbs. Self-removable counterweight

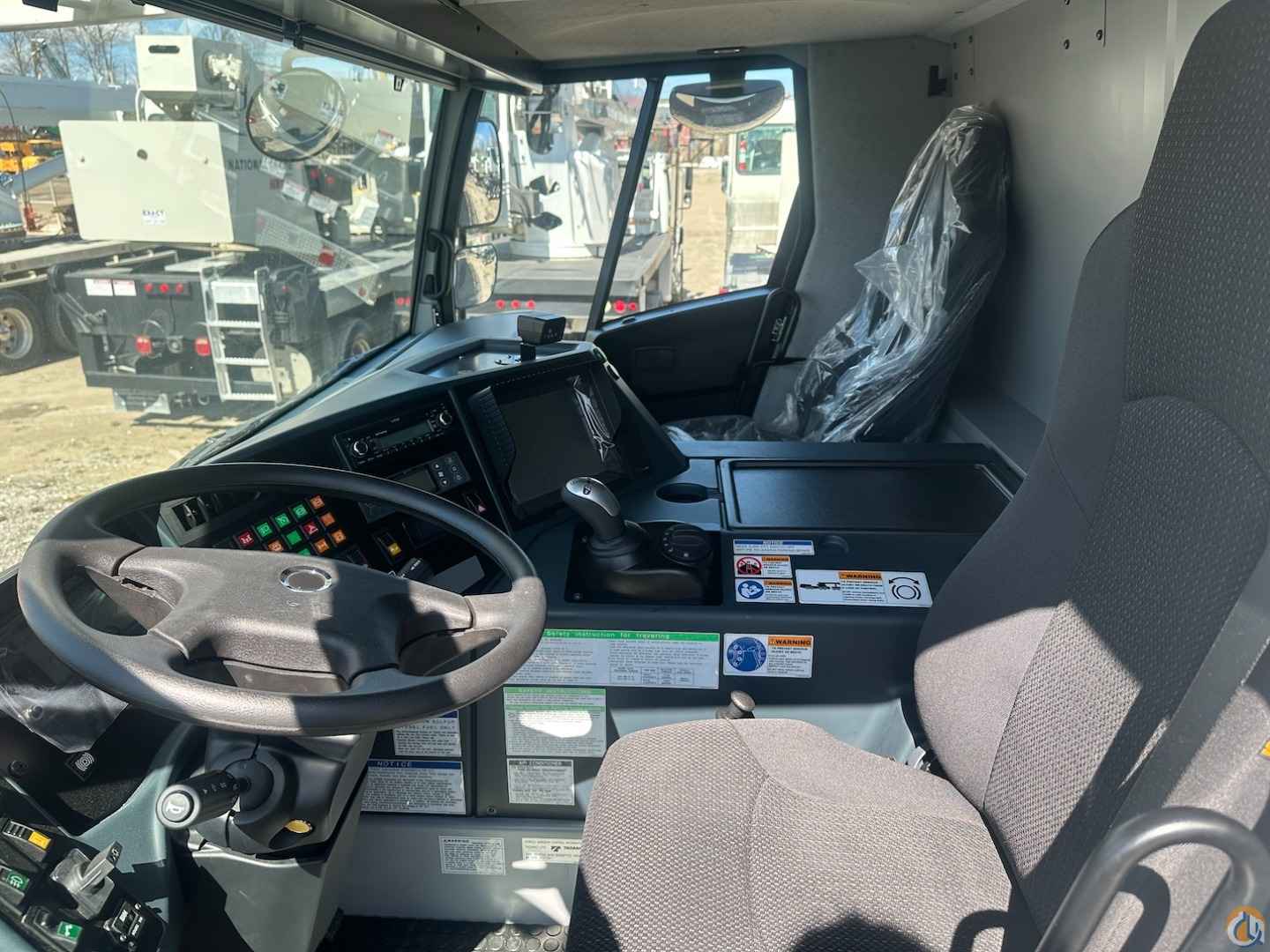

15º Tilt cab with air condition & heat
LED work lights
Hook block & headache ball
CARRIER SPECIFICATIONS
Cummins X12 engine
ZF TraXon automated manual transmission
8x4 Drive
BOSCH-Servocom steering system
Hendrickson Independent air suspension
Independent front suspension & Independent rear suspension
Eco mode
100 gallon fuel tank
Trailer coupling device
Hydraulic circuit for dolly (elevation, swing and swing brake)
Front Tires: 445/65R22.5 Single x 4
Rear Tires: 315/80R22.5 Dual x 4
Tire inflation kit
Clearance sonar & backup camera system
View detailed video of a Tadano Truck Crane on YouTube at Exact Crane & Equipment
Contact Exact Crane if you have any questions or would like a formal quote.
