2014 Link-Belt HTC-8675 Series II Truck Mounted Telescopic Boom Crane
CranesBoomandJib.com
Mark Lomas: 562-438-3860
Last Updated: 26 Jan 2022
Mark Lomas: 562-438-3860
Last Updated: 26 Jan 2022
Price: $414,000
Location: Denver, Colorado, United States
Year: 2014
Capacity: 75.00
Boom/Jib: 127
Hours: 6859
Condition: Good
Serial #: P9K4-4020
Unit #: 1057
Capacity: 75.00
Boom/Jib: 127
Hours: 6859
Condition: Good
Serial #: P9K4-4020
Unit #: 1057

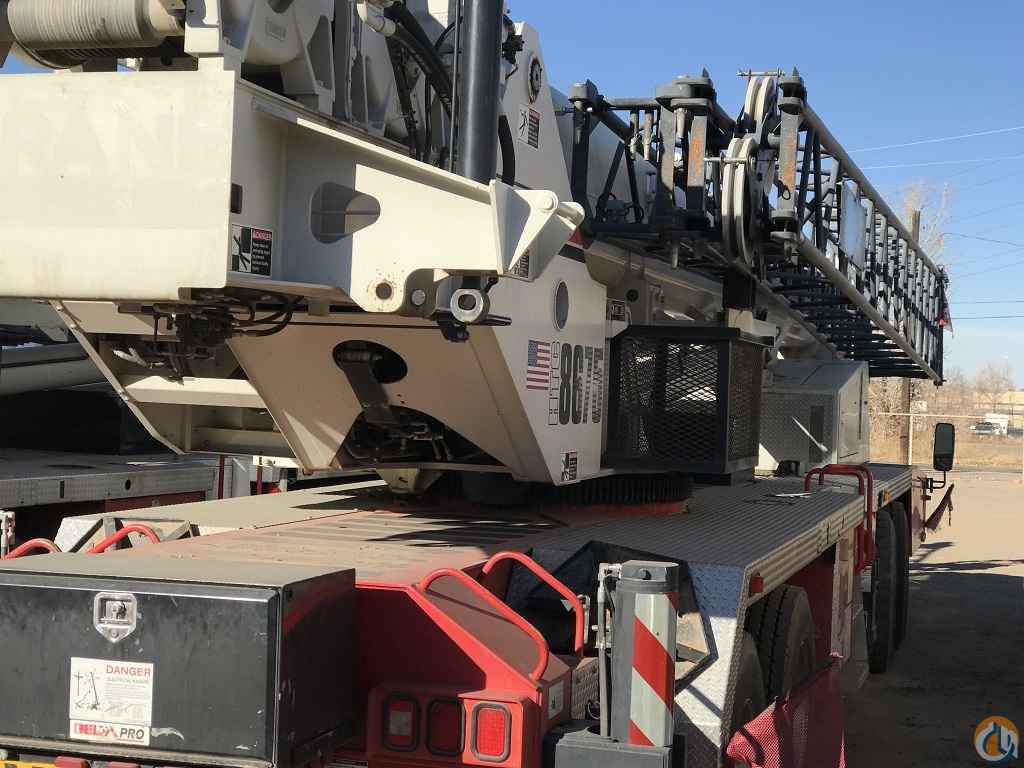

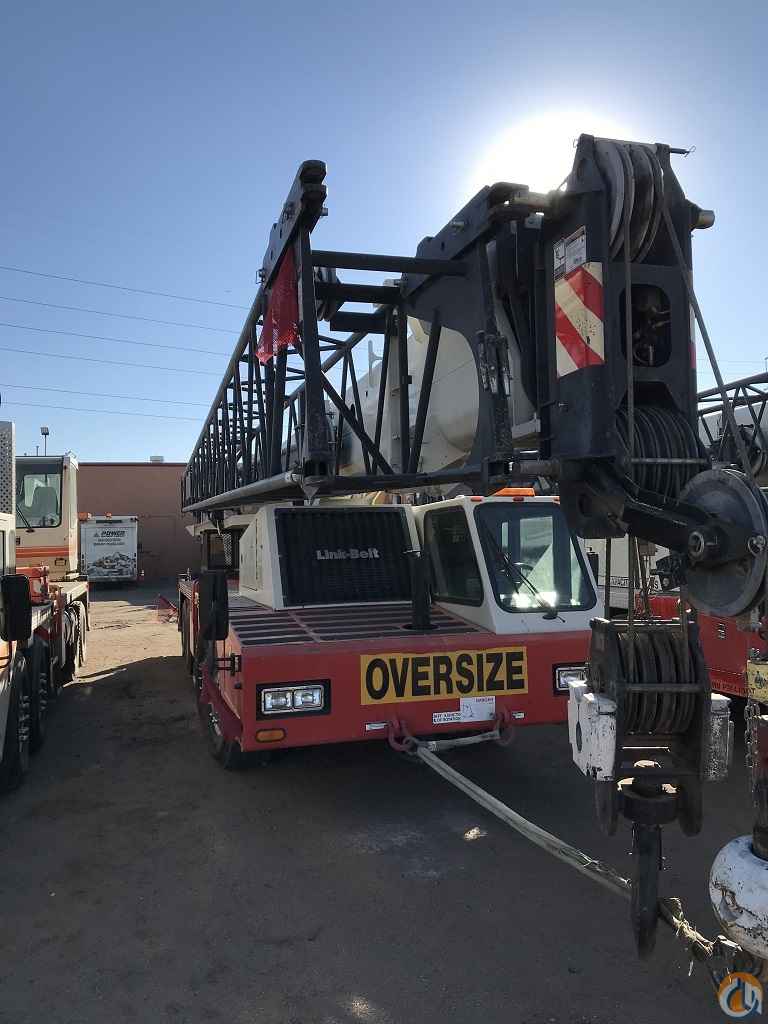

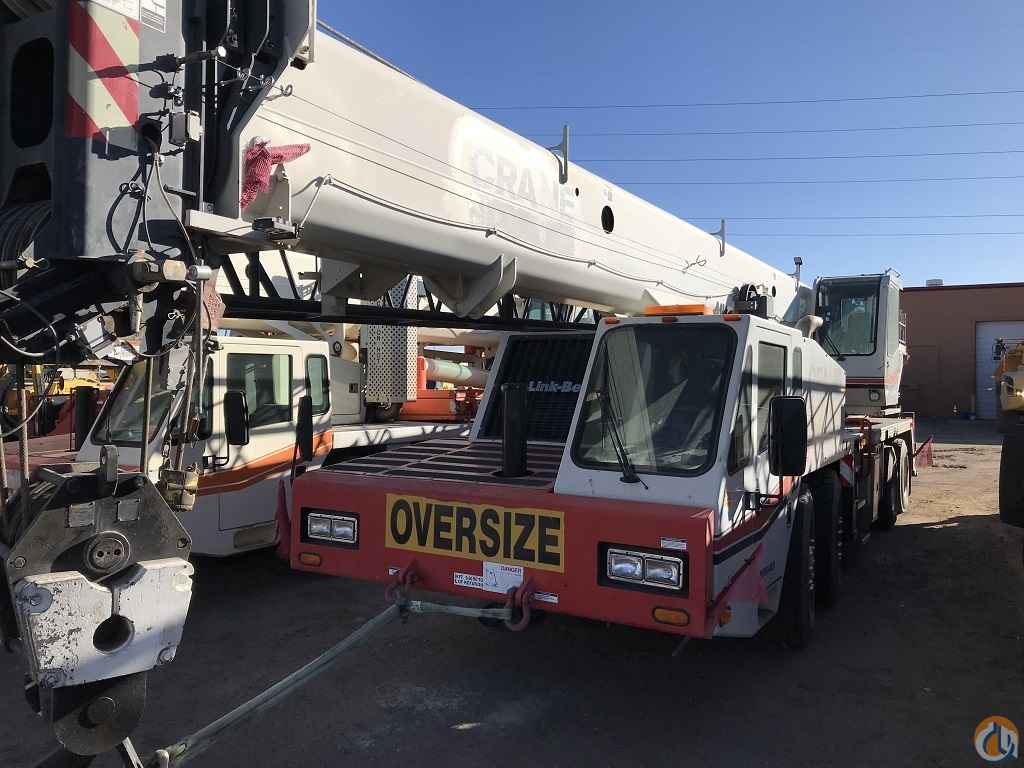

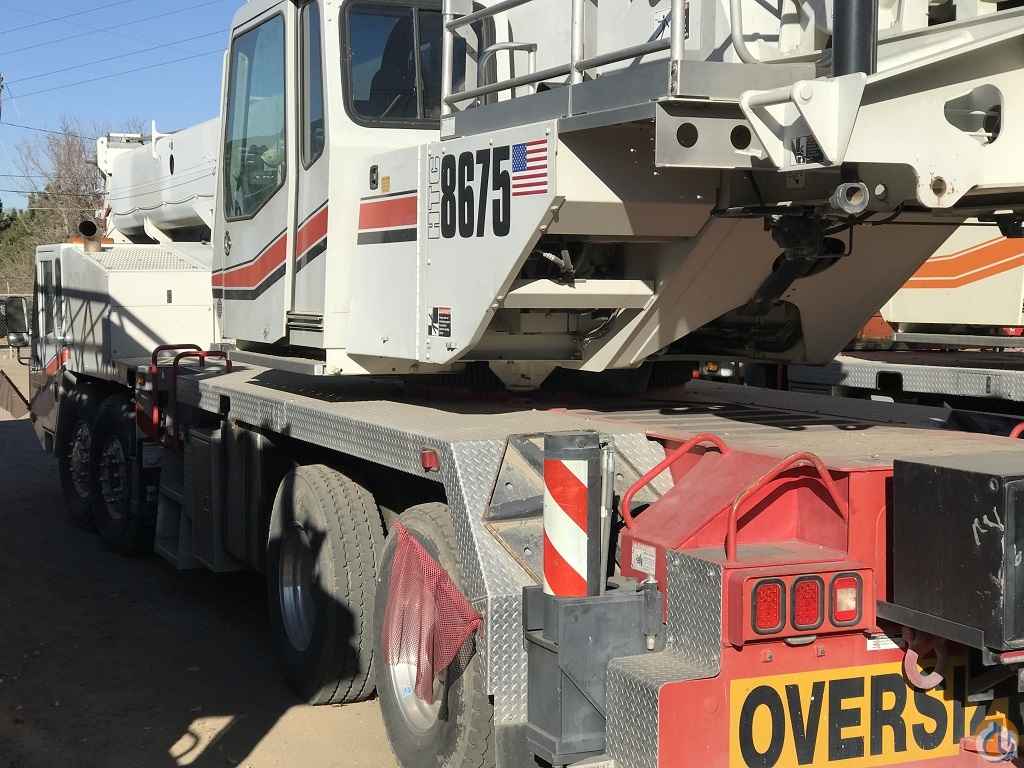

2014 Link-Belt HTC8675sII, 75 Ton, Hydraulic Truck Crane
- 41'-127’ Four Section Full Power Latching Boom w/Auxiliary Lifting Sheave, Boom Flood Light
- 38'-64’ two piece bi-fold lattice fly/jib, stowable, offsetable (2°, 15°, 30°, 45°)
- Main and Auxiliary Winches w/Drum Rotation Indicators, Winch Rollers, Two Speed, 3/4" wire rope
- Rated Capacity Limiter w/RCL Light Bar, Anti-Two Block,
- Single Axis Armchair Joystick Controls
- Air Conditioning and Heater up and down
- Pull-out Catwalk for easy access to and from the operator's cab

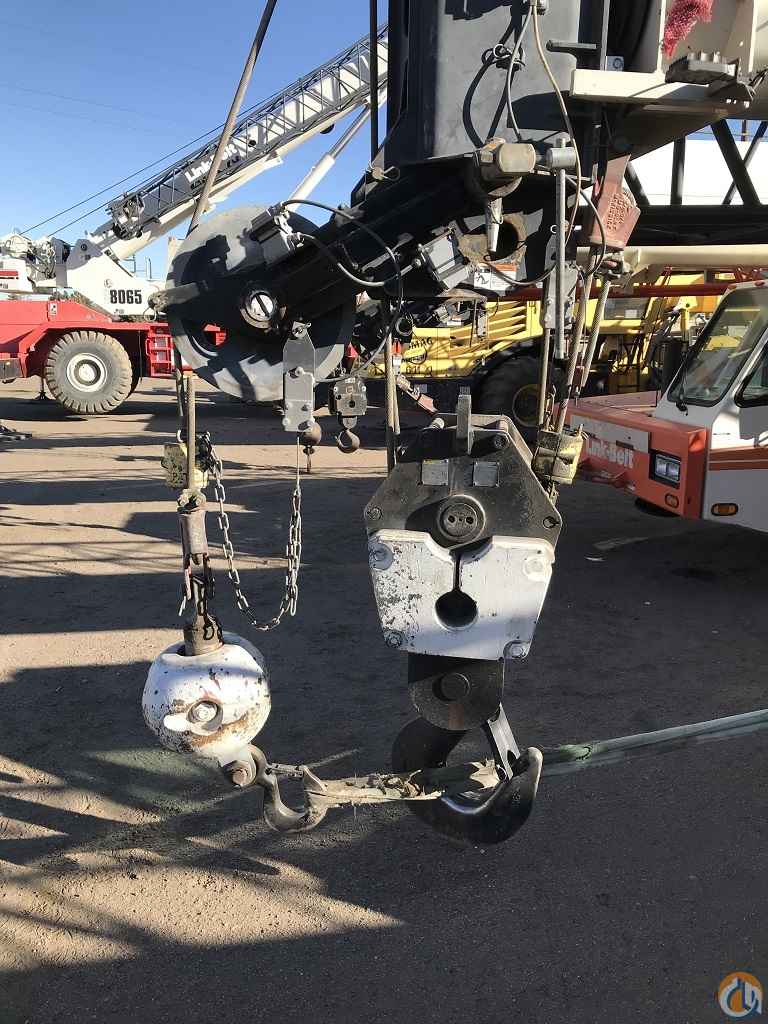

- Johnson Quick Reve 60 Ton 4 Sheave Hook Block-1,082#
- Johnson 8.5 Ton Hook Ball
- Upper Storage Box
- W/W Opt. Cab Windshield &Top Hatch
- Access ladders and folding guardrails
- Optional 18,400# Max. Counterweights
- Job site travel with max. counterweight
- Upper & Carrier Camera System
- Top hatch window assembly in the Operator's Cab
- Boom Float Kit, Air & Elec. Connections for Boom Dolly
- 8'6" Wide Link-Belt 8x4x4 Carrier
- Cummins ISX11.9 Diesel Engine (SN:75015531)
- ZF AS-TRONIC ZF 12-AS-2302 (no clutch pedal) manual 12 forward gears and 2 reverse gears transmission
- Front Tires: 425/65R22.5,40%-50%% Remaining as of 12/21
- Rear Tires: 12R22.5,50%-60% Remaining as of 12/21
- Air Suspension Front and Rear
- Confined Area Lifting Capacities (CALC) Outriggers
- 5th Front Outrigger
- Aluminum Storage Box
- Rigging Box & Bin on Deck
- Aluminum Diamond Plate Decking
- Towing Shackles
