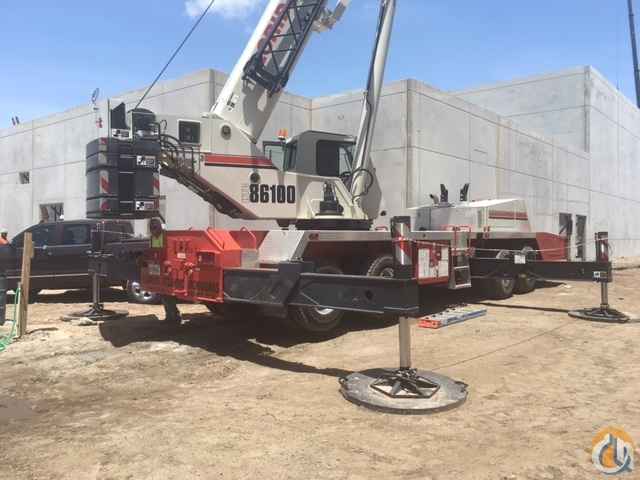

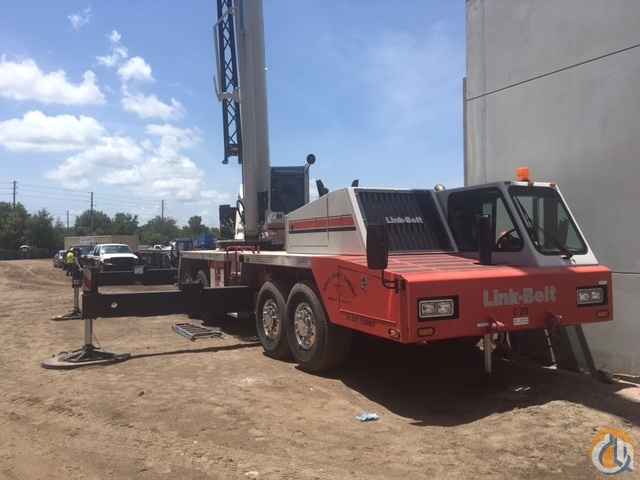

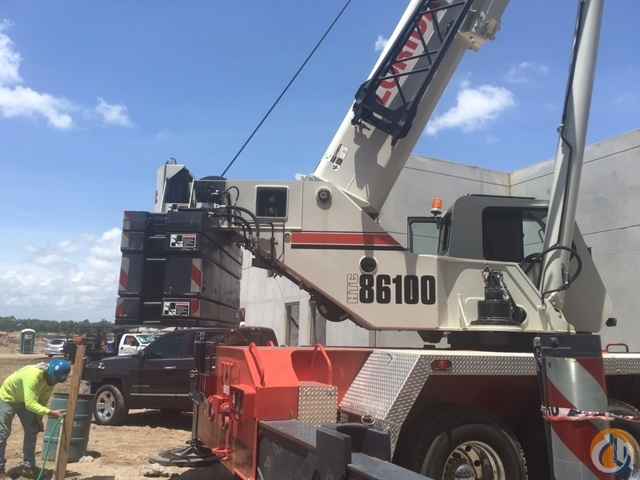

Link-Belt HTC-86100

100 UST (85 MT) HYDRAULIC TRUCK CRANE

• 38 - 140 ft (11.6 - 42.7m) 5-section pin & latch boom
• Optional 35 - 58 ft (10.7 - 17.7 m) two-piece offsettable fly
• 237 ft (72.2 m) maximum tip height
• Height: 11 ft 7 in (3.53m)
  Width: 8 ft 6 in (2.59m)
  Length: 45 ft 7 in (13.89 m)
• 19 ft 3 in (5.87m) wheel base

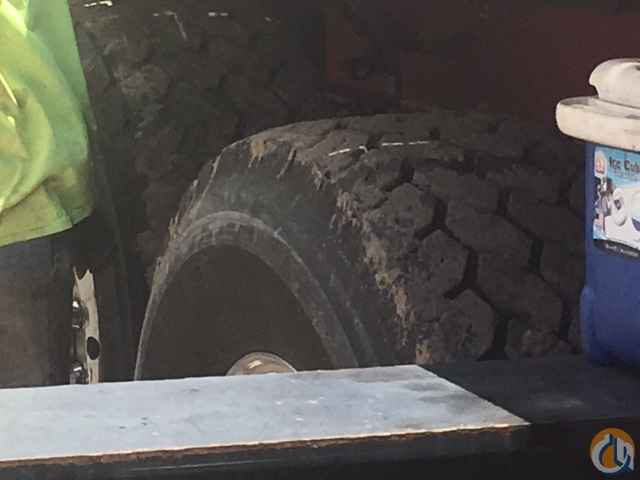

• Front tires: 445/65R22.5
• Rear tires: 12R22.5
• ZF AS-Tronic automated 12-speed transmission
• 24 ft (7.32m) outrigger spread, 20 ft 6 in (6.25m) outrigger base
• 16,880 lbs (7 656.6kg) maximum winch line pull
• 480 fpm (146.3 m/min) maximum winch line speed
• CRANE ONLY HAS MAIN HOIST LINE *NO AUX HOIST*

KEY FEATURES:

• Excellent transportability - can be configured to meet some of the toughest transportation laws
• Both fly options feature four offset positions of 2°, 15°, 30° and 45°
• "Stow 'n go" outrigger pontoons are easily secured for transport
• Next generation operator's cab with improved visibility and ergonomics
• Pull-out CabWalk for easy access to and from the operator's cab
• Integral air conditioning
• Large swing out engine hood doors for ease of service
• Full length aluminum fenders
• Job site travel with counterweight
• Halogen daytime running headlights and LED lighting
• Illuminated compartments and controls for night-time operation
• Compliant to the highest emission requirements
