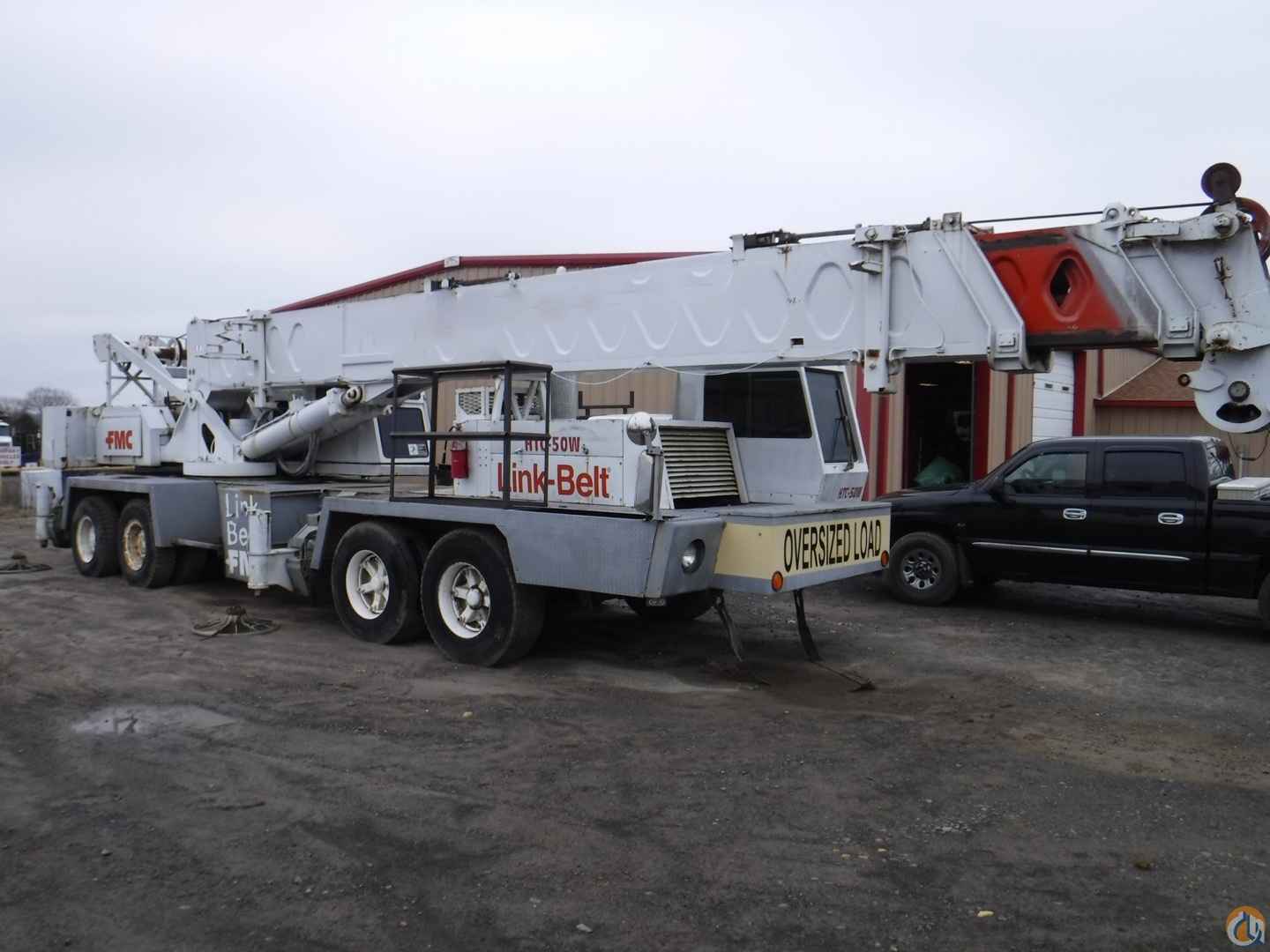

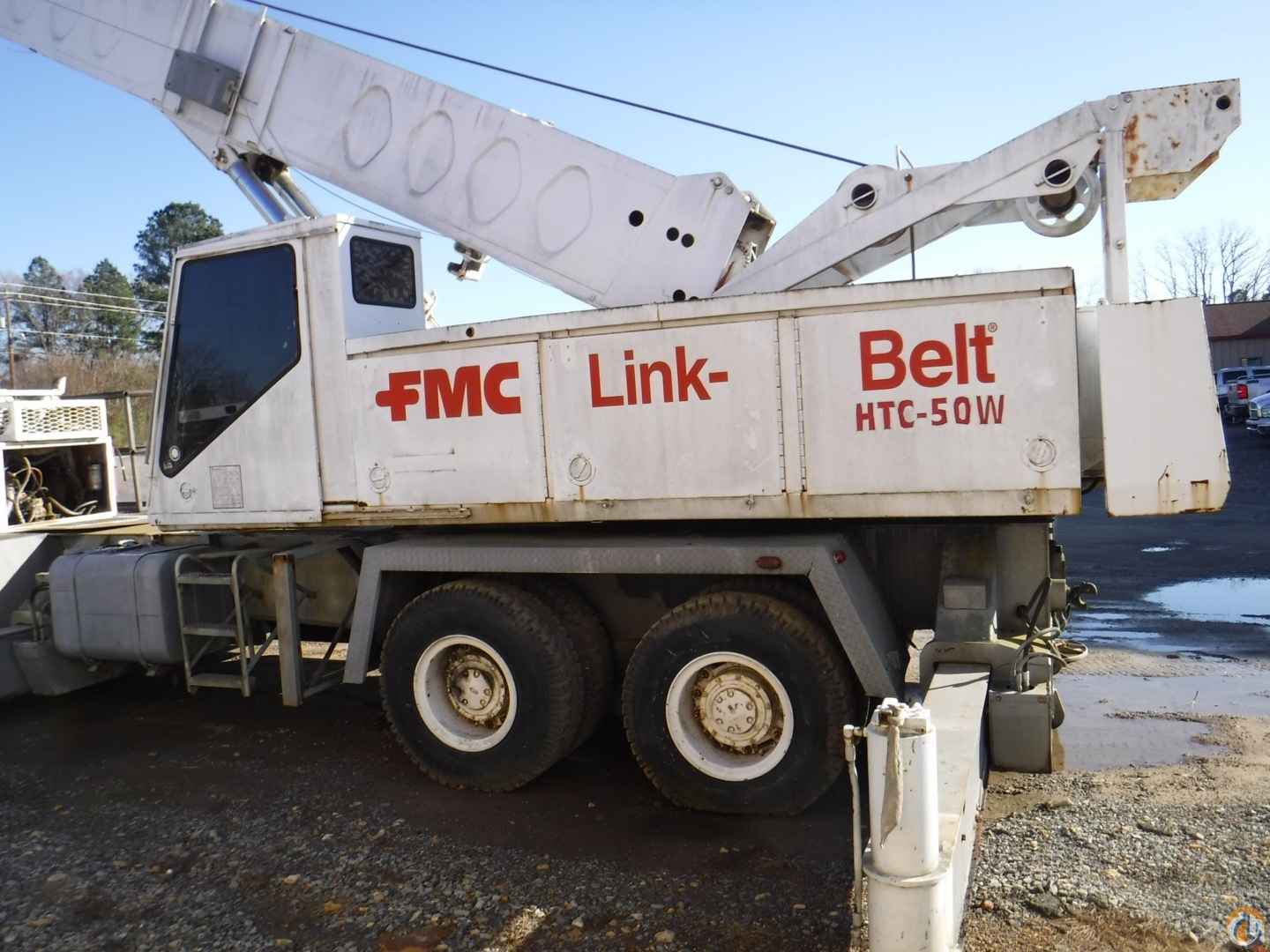

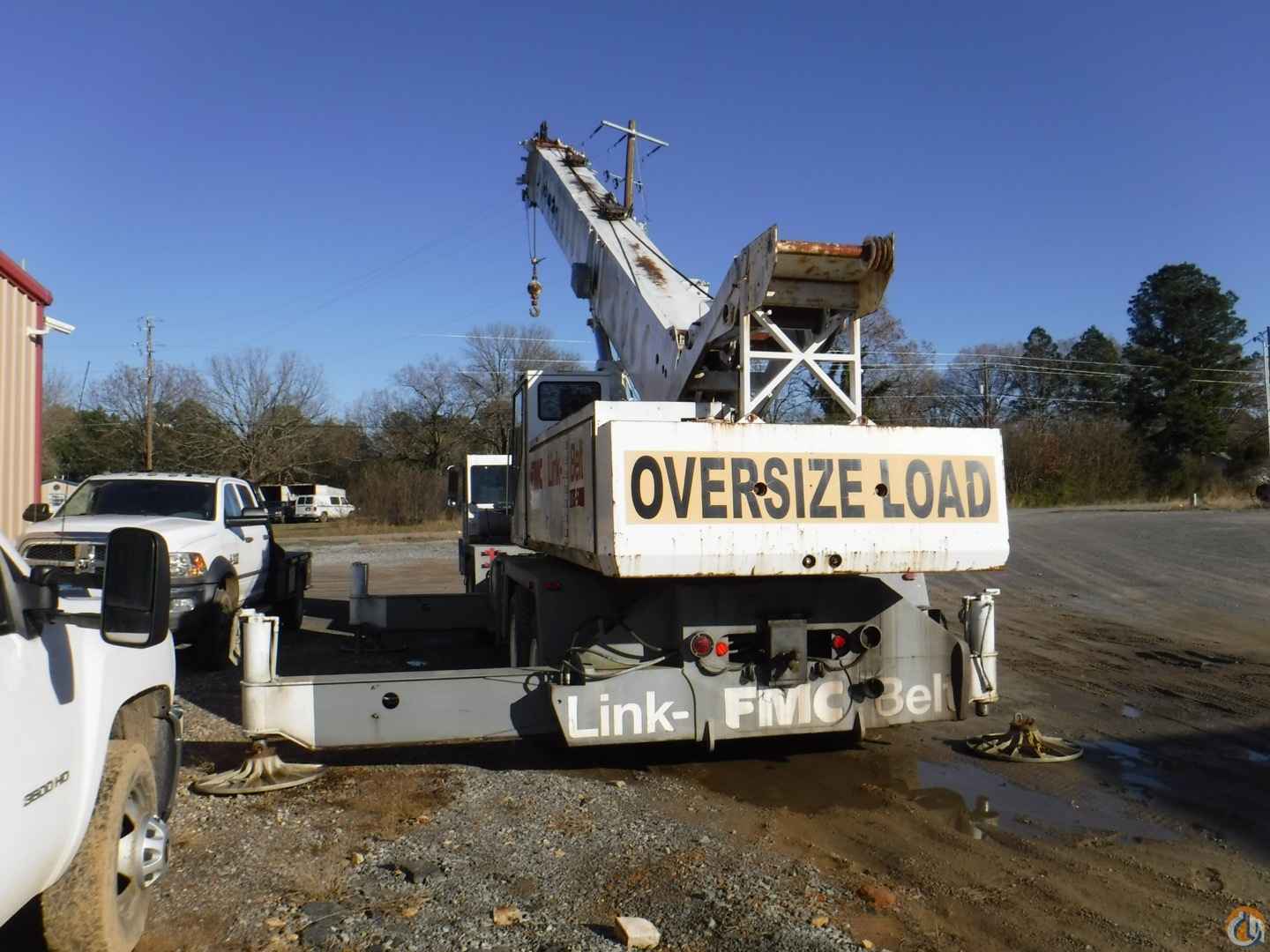

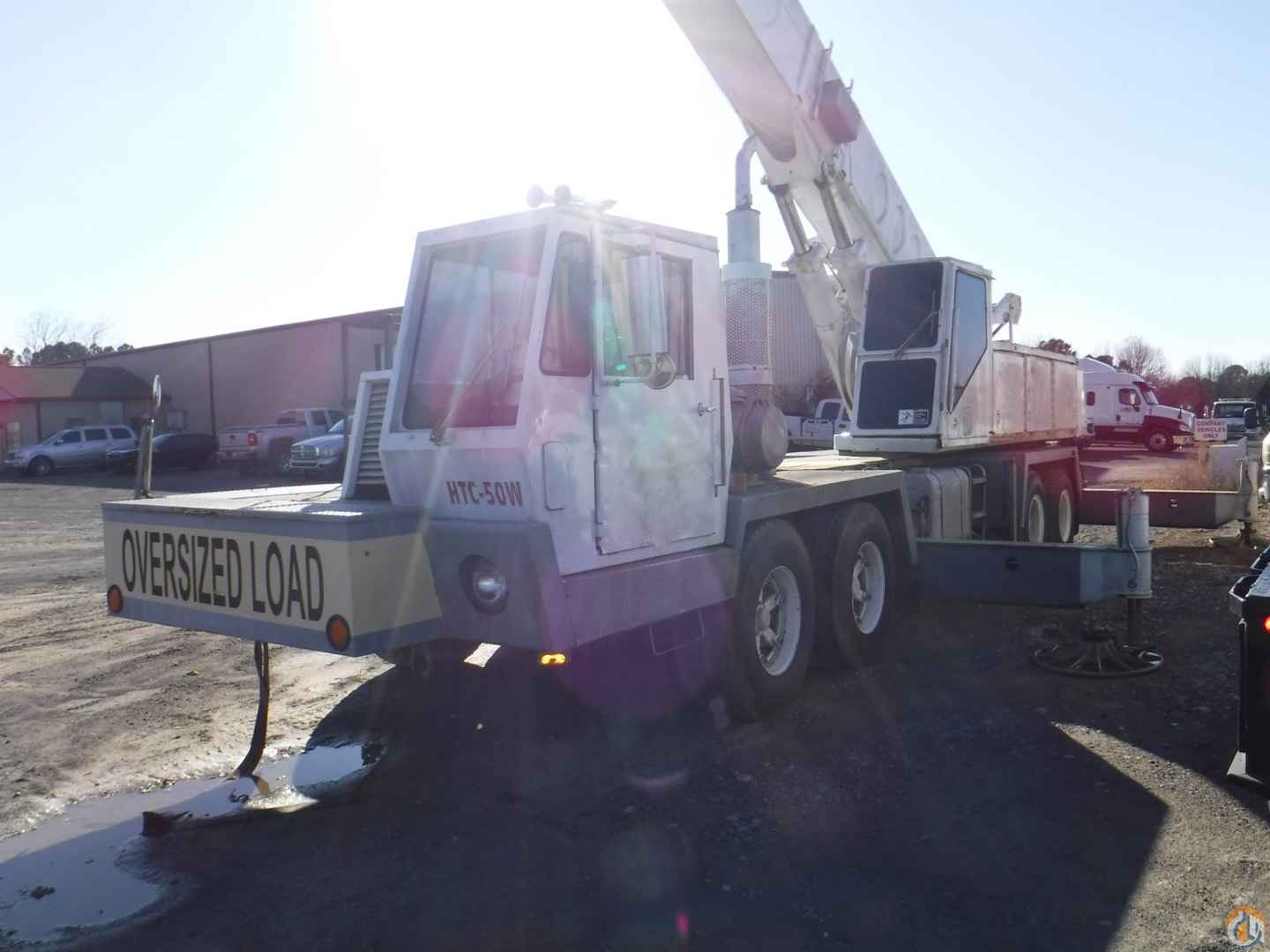

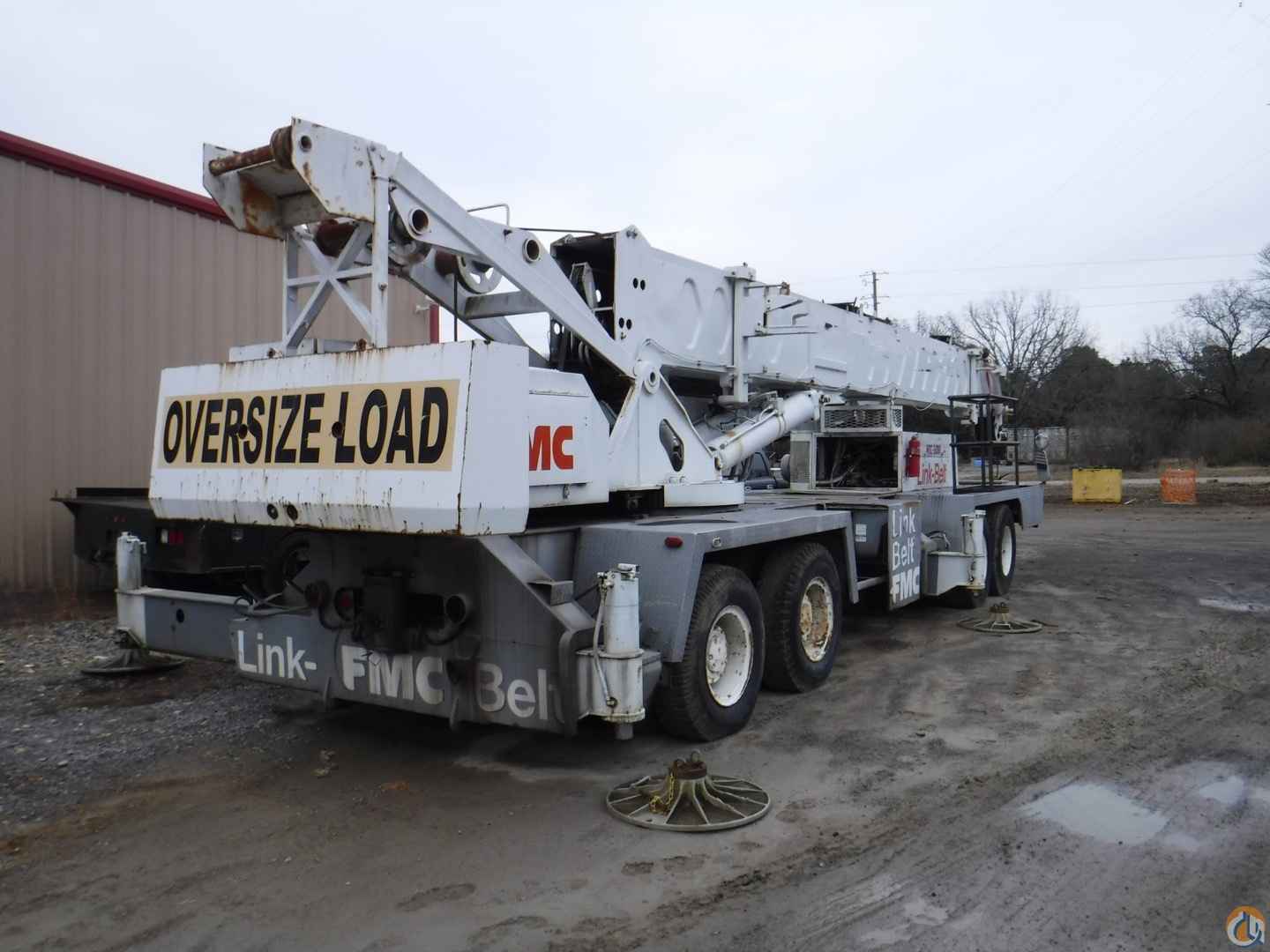

1979 Link-Belt HTC45W, 45 Ton Hydraulic Truck Crane; CranesList ID: 553,
- 35'- 90' Three Section Full Power Boom with Auxiliary Lifting Sheave,
- No 32’ Swing-Away Lattice Fly but 28' and 20' jib pieces with the mast to make the 80' jib are available in Texas for an additional cost,

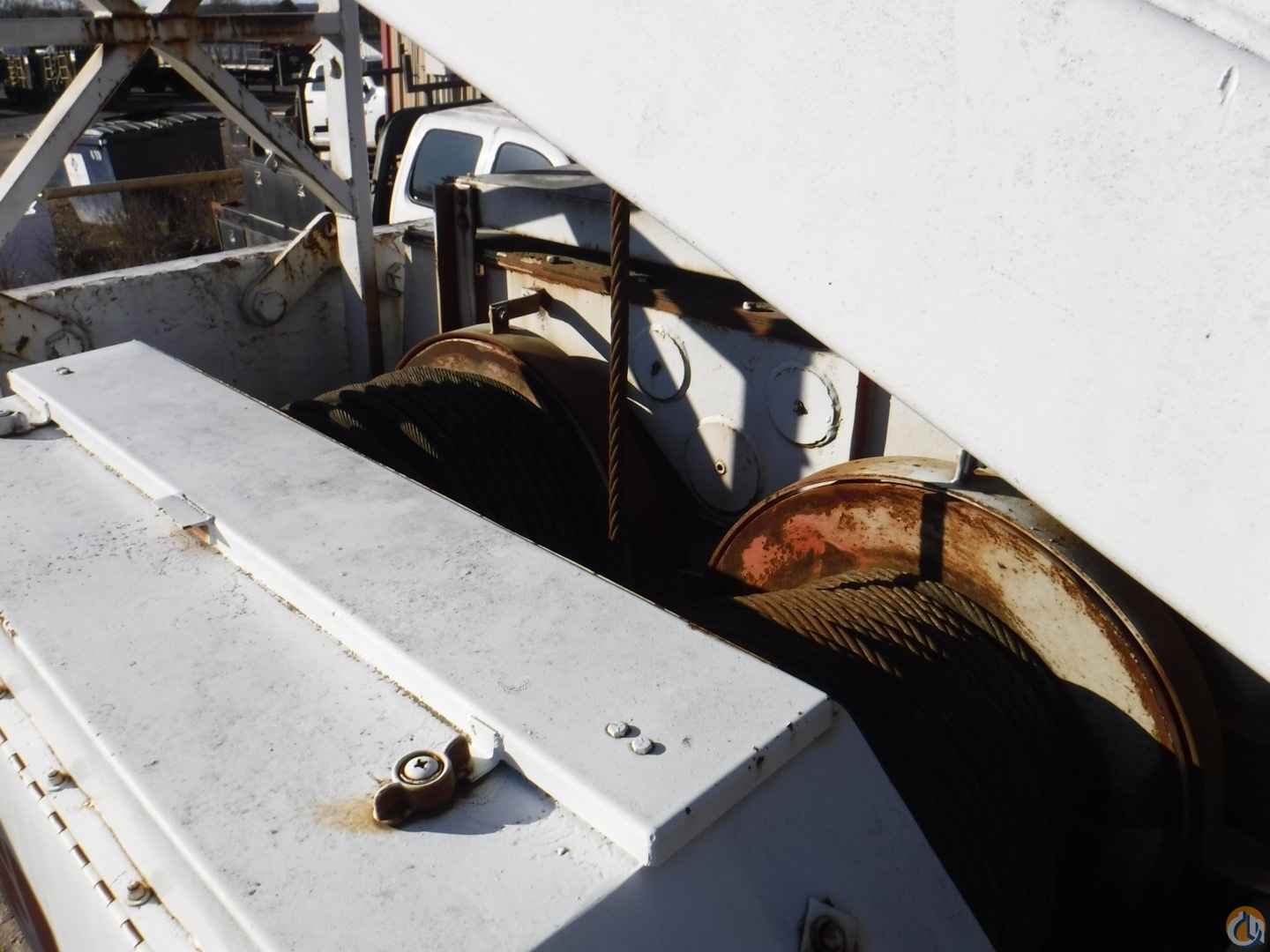

- Main and Auxiliary Winches with 3/4" wire rope

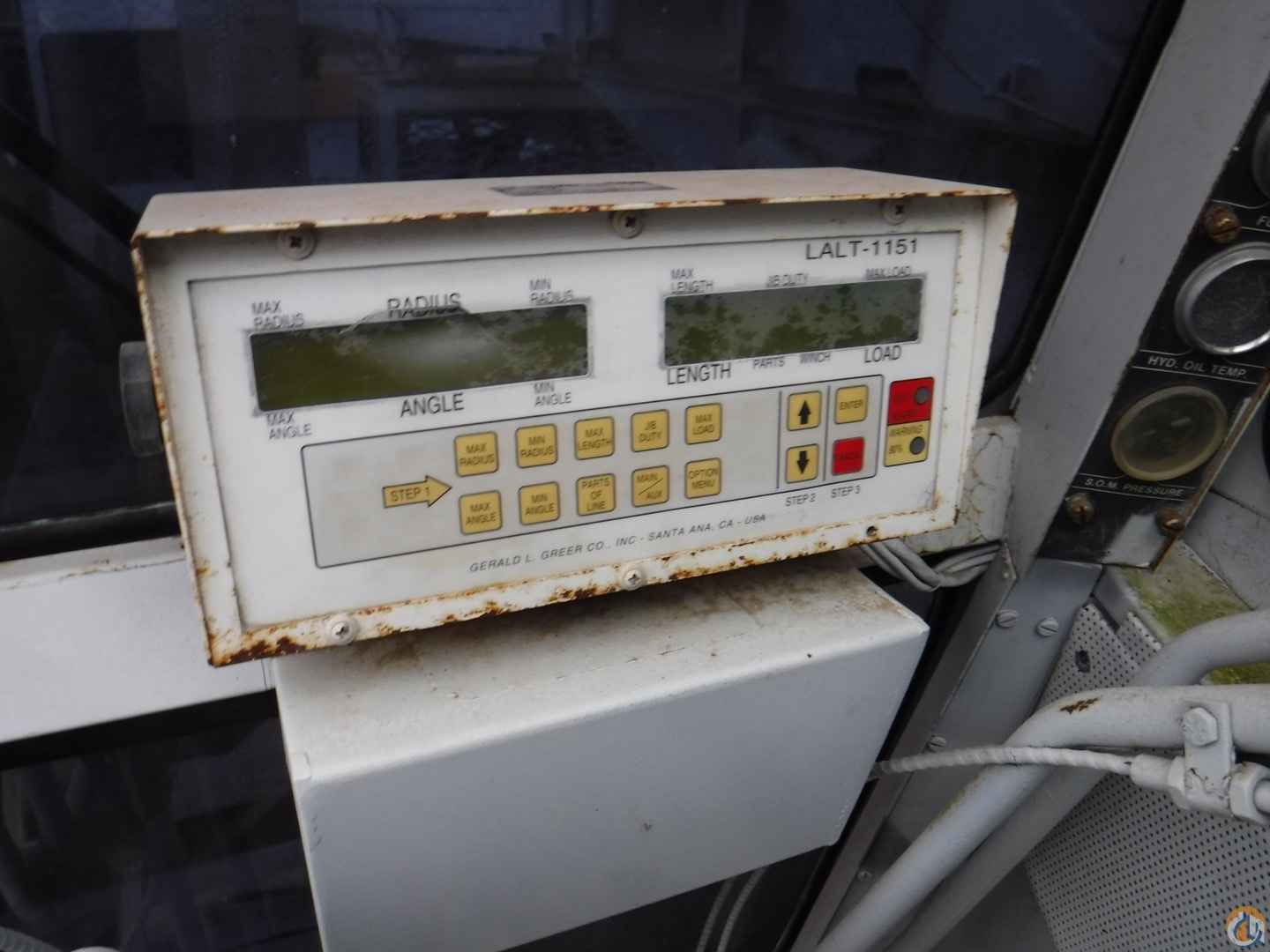

- True Free Fall lowering On Both Drums, Boom Angle Indicator, Drum Rotation Indicator, Two-speed (Main), Anti Two Block,
- Hook Ball,
- Hook Block,
- 6,700# counterweight - AS PER LINK-BELT SPECIFICATIONS & SUBJECT TO FINAL CONFIRMATION,
- Extendable Hydraulic Counterweight,
- Heater and defroster fan UP and Down,
- 10' 3" Wide Link-Belt 8 x 4 Drive with rear tandem steering Carrier,

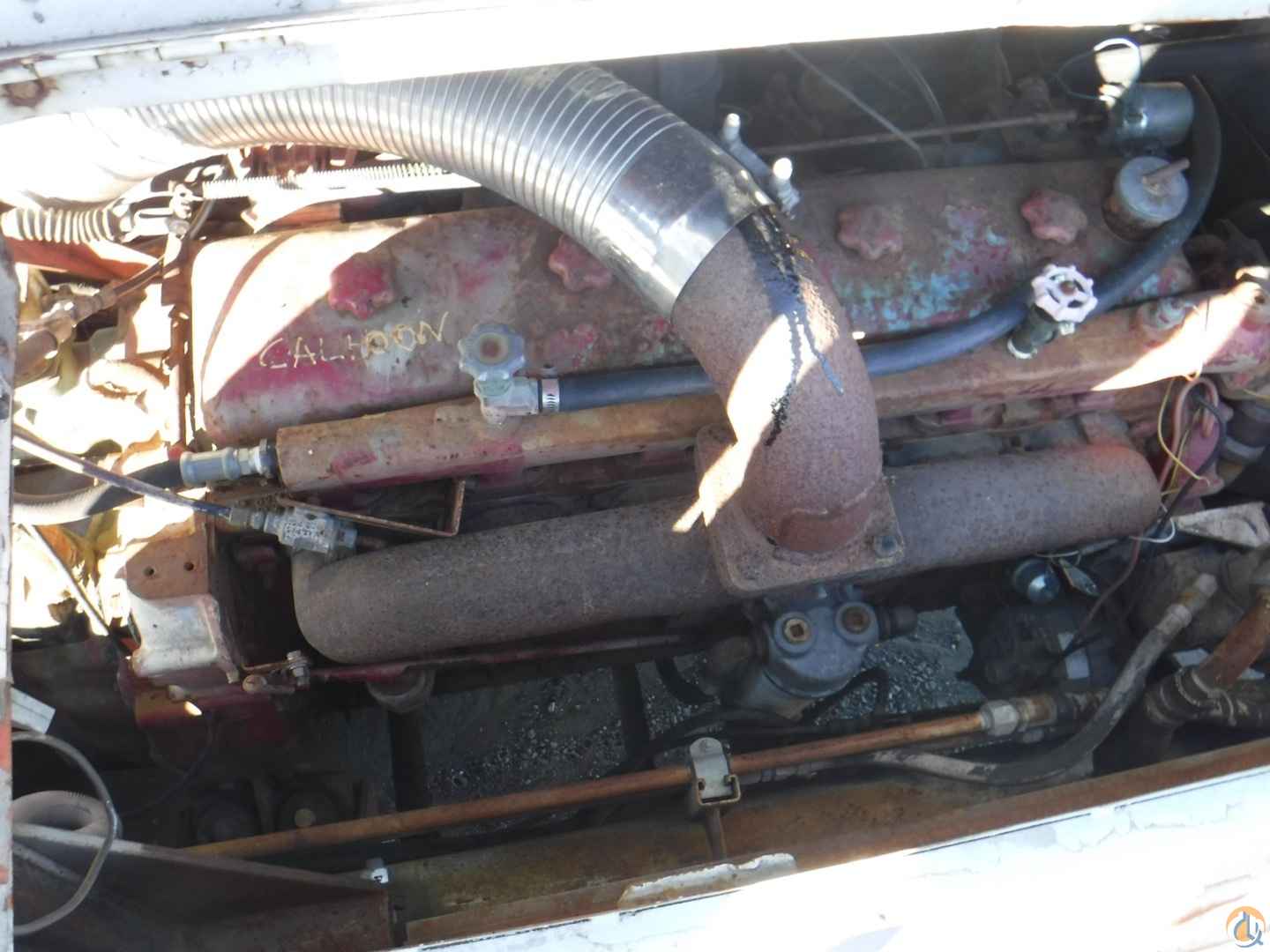

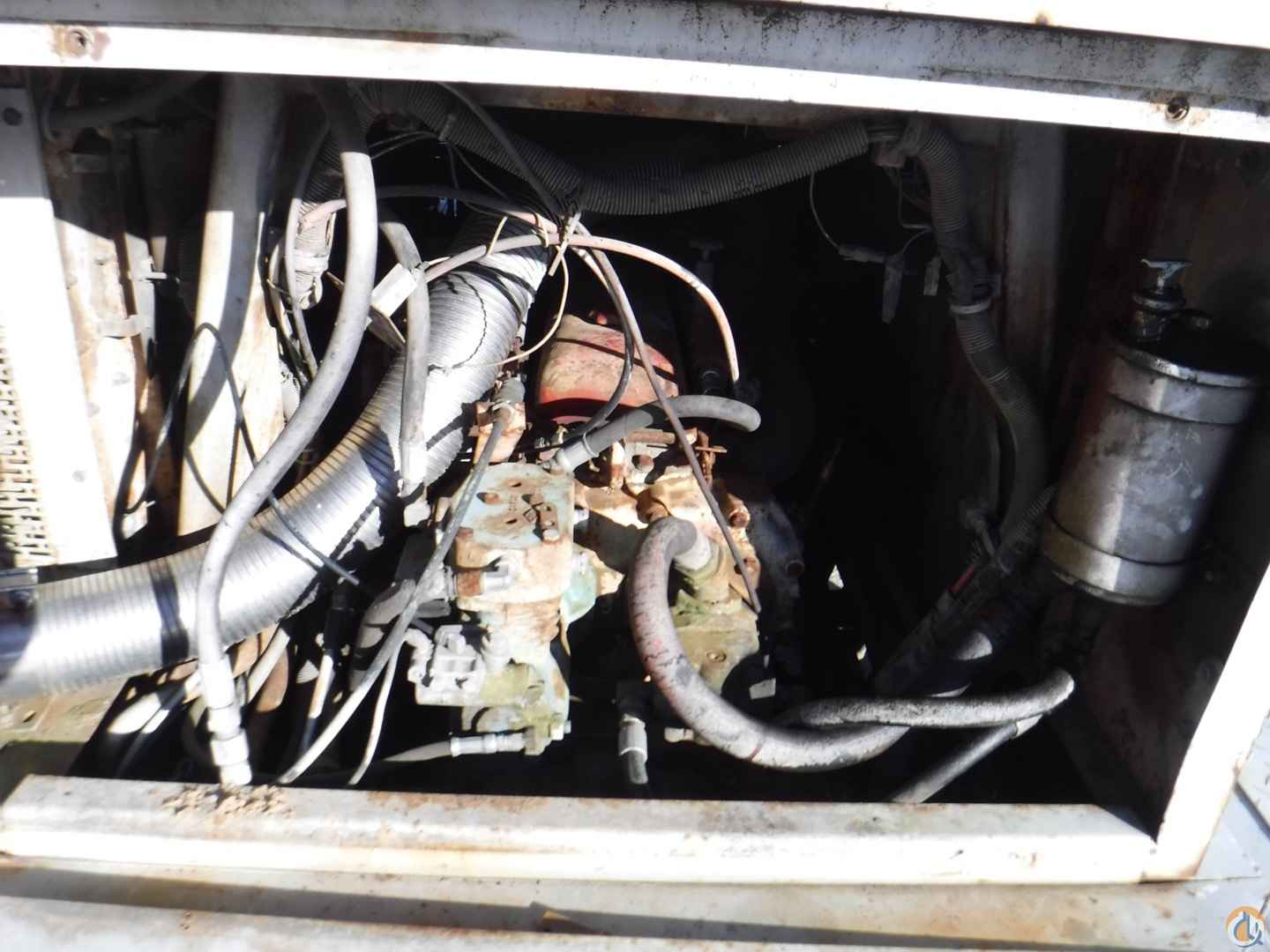

- GM 6-71 238 H.P. Diesel Engine - AS PER LINK-BELT SPECIFICATIONS & SUBJECT TO FINAL CONFIRMATION,
- Jake Brake,

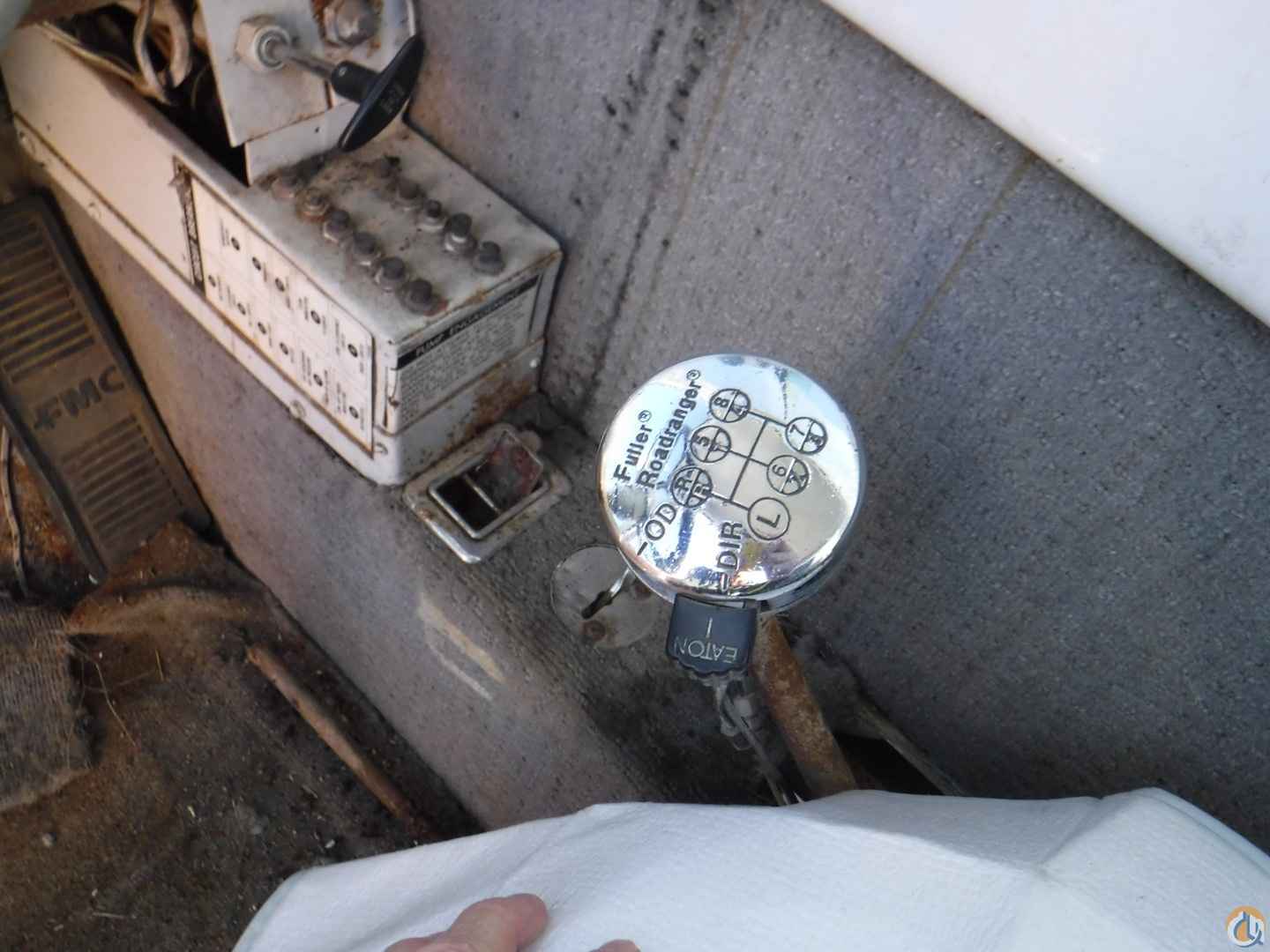

- Fuller Roadranger RTO-613 Transmission, 13 forward, 3 reverse speeds,
- Front Tires: 16.50 x 22.5 (16 Ply) - AS PER LINK-BELT SPECIFICATIONS & SUBJECT TO FINAL CONFIRMATION,

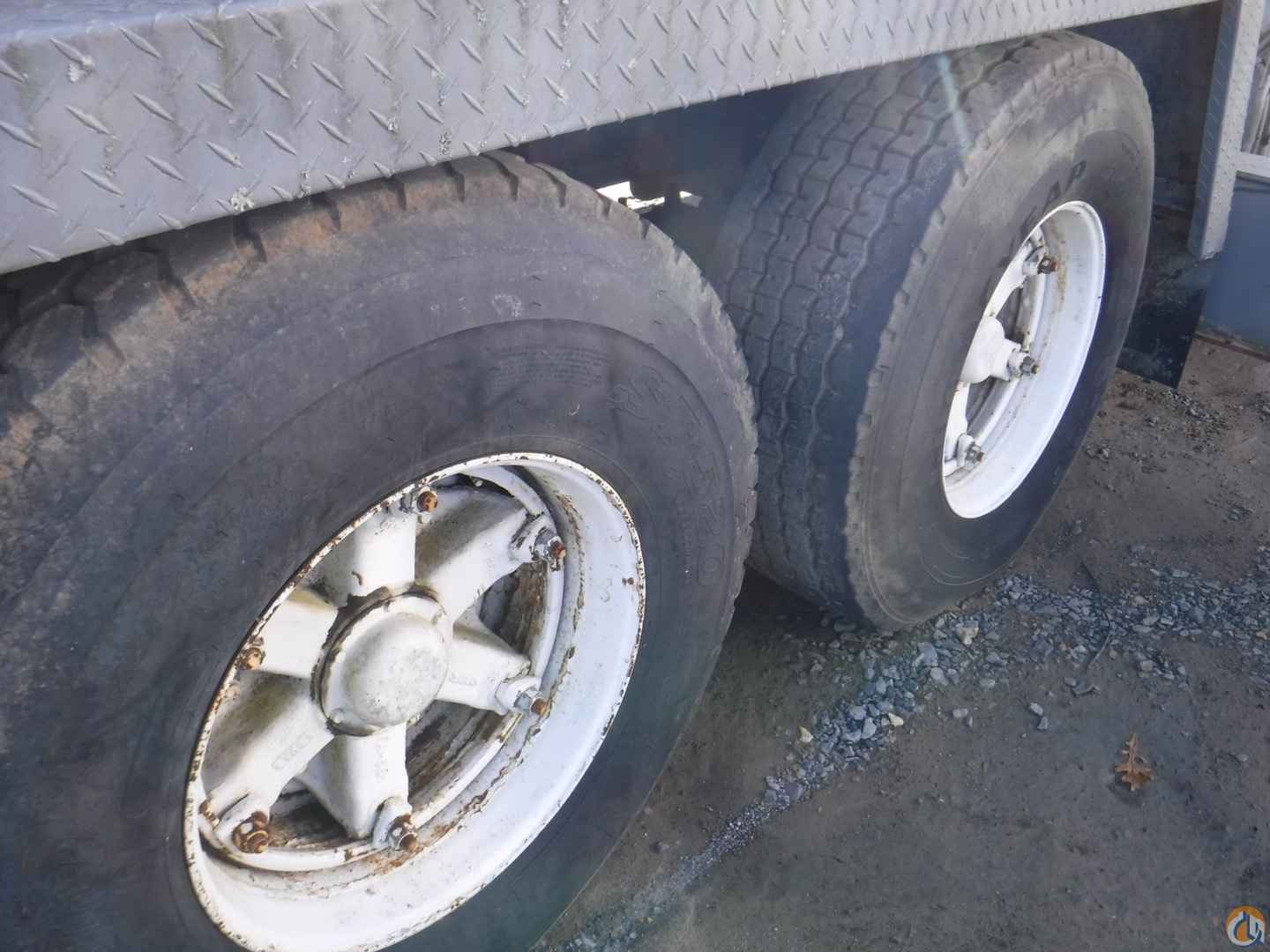

- Rear Tires: 12:00 x 20.0 (16 Ply) - AS PER LINK-BELT SPECIFICATIONS & SUBJECT TO FINAL CONFIRMATION,
- 230" wheelbase,

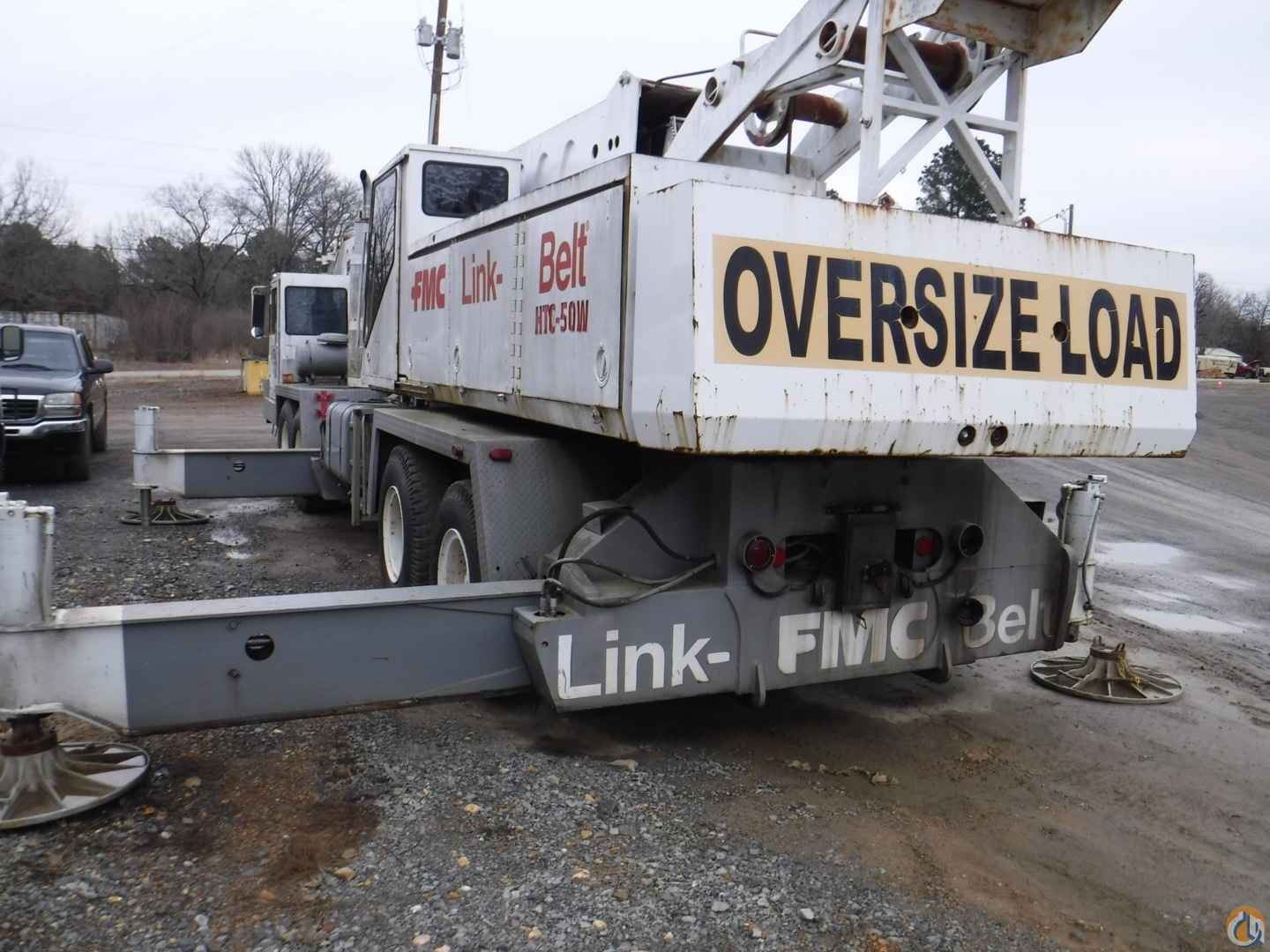

- 9' 10" retracted and 21' extended Outriggers,
- Controls for outriggers and site level bubble are in the operator's cab,
- Aluminum outrigger pads,
- Tool Boxes,

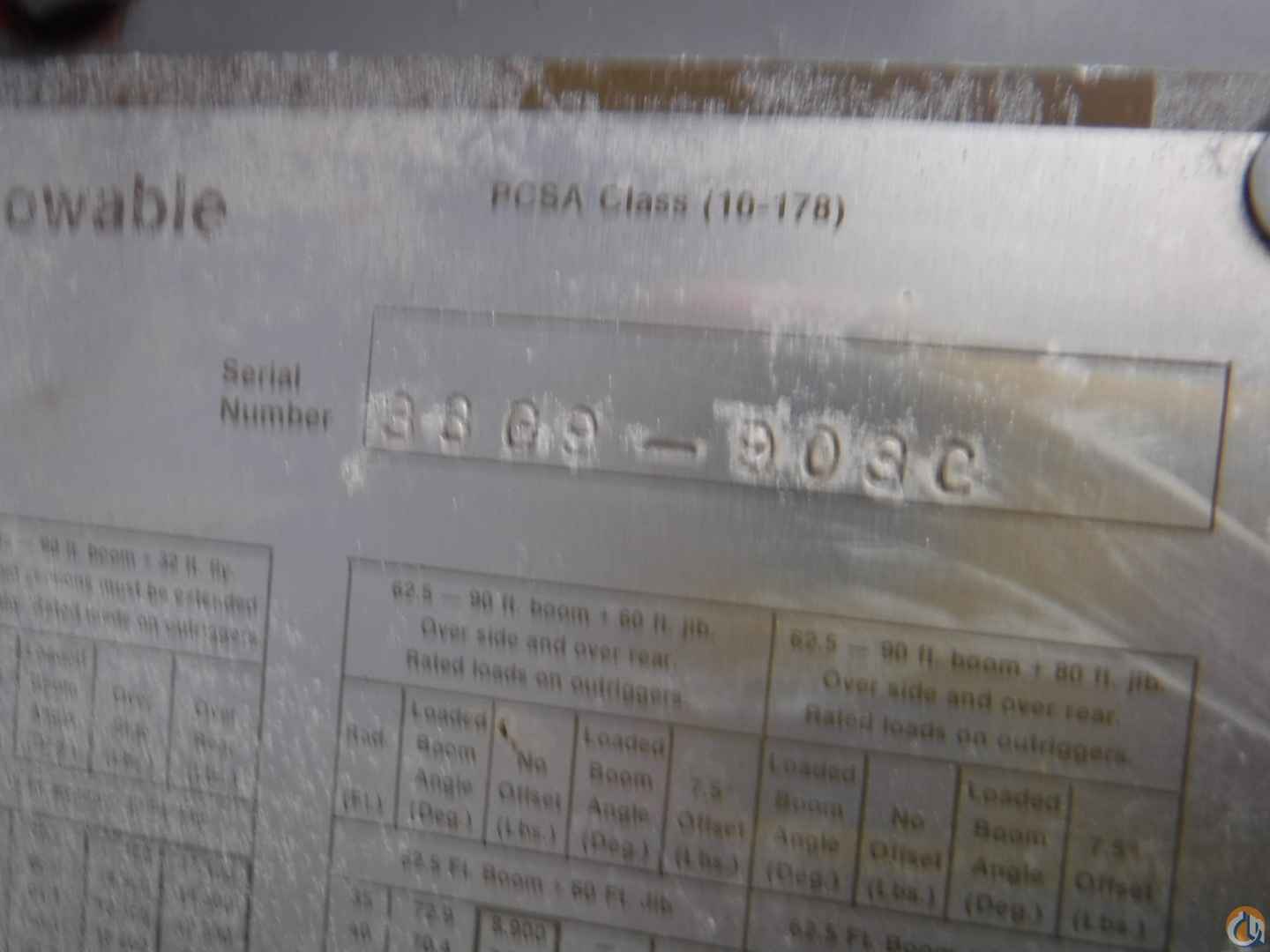

- YEAR & SERIAL NUMBER TO BE CONFIRMED.
http://www.CranesList.com
LOCATED IN ARKANSAS!
