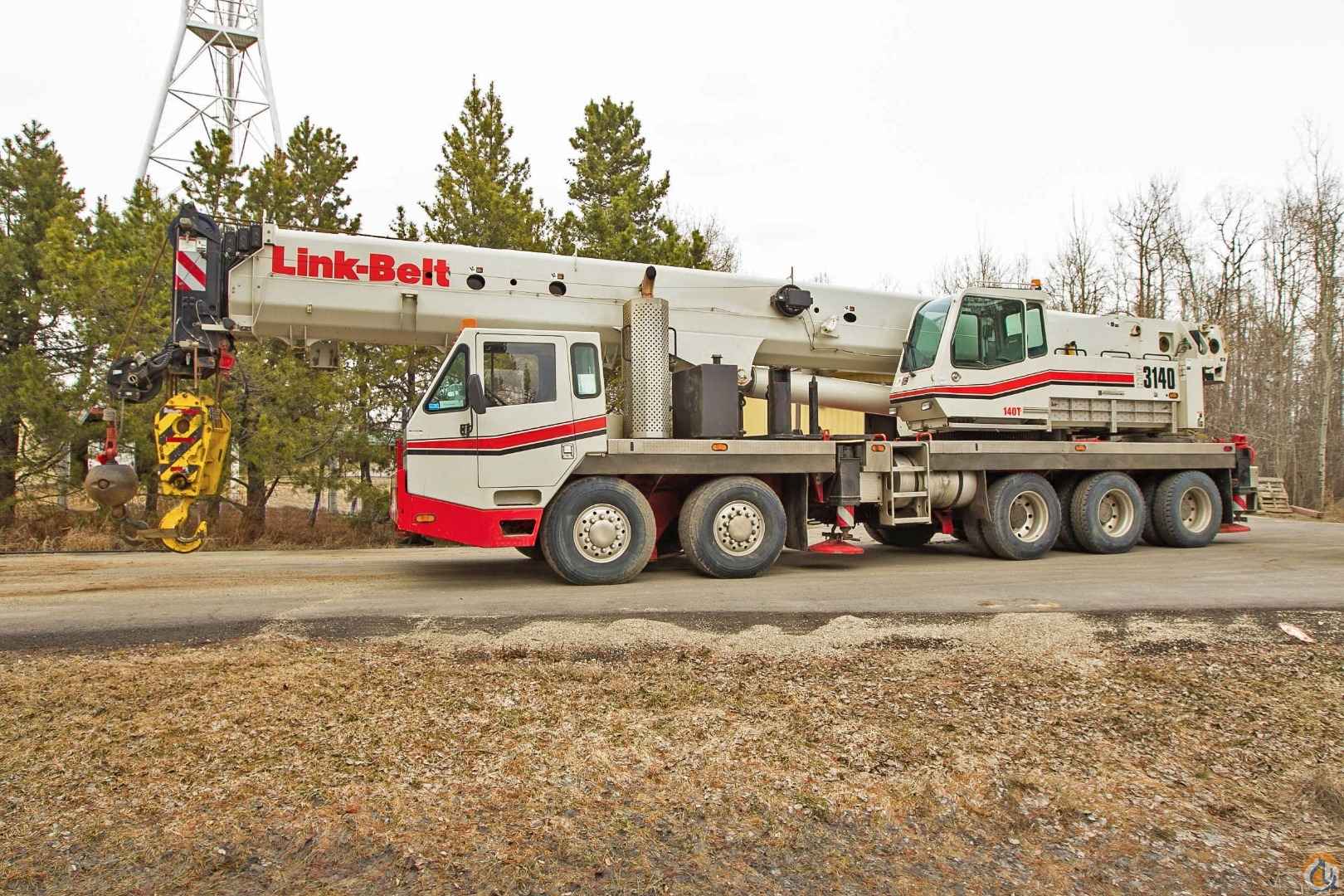

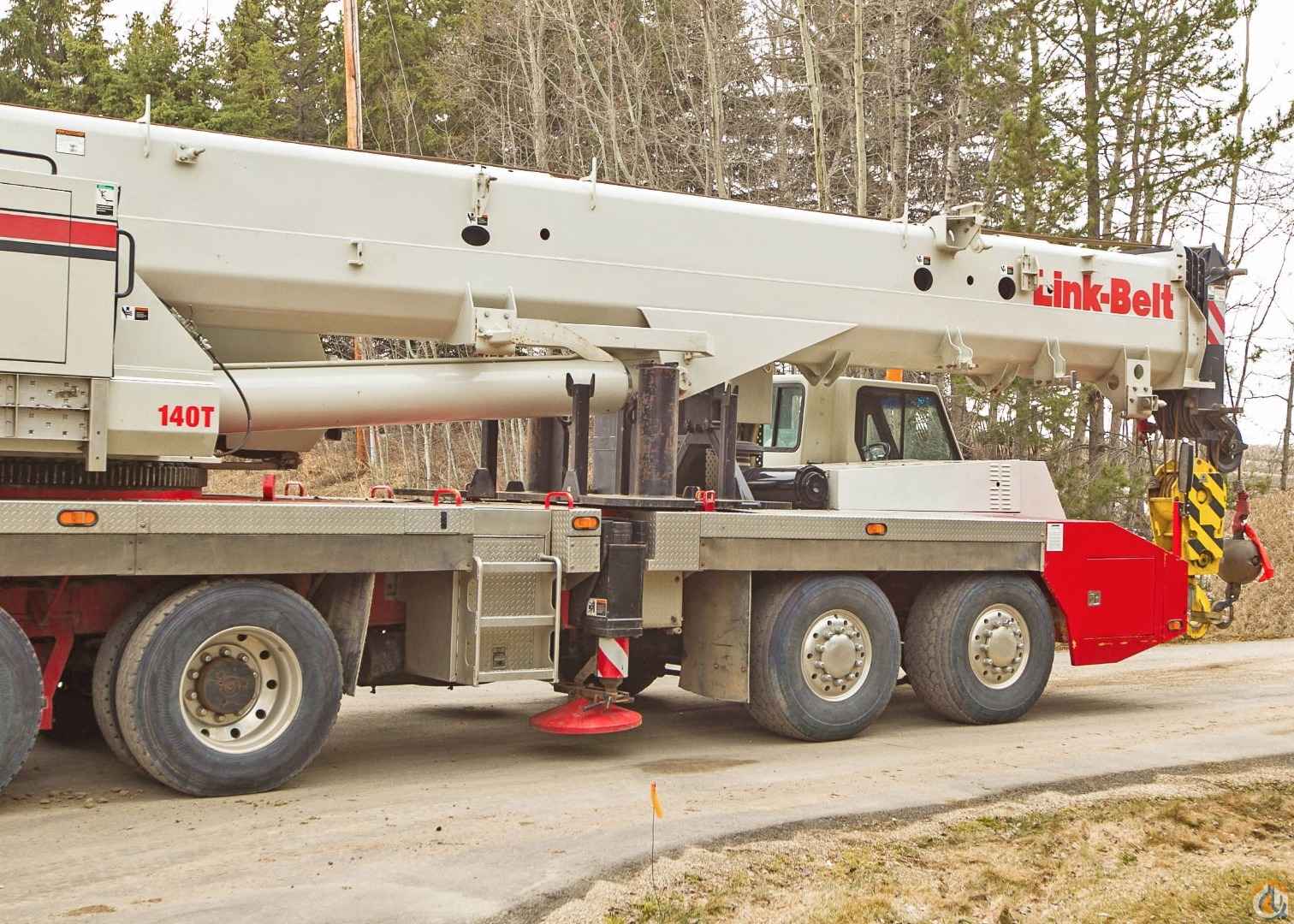

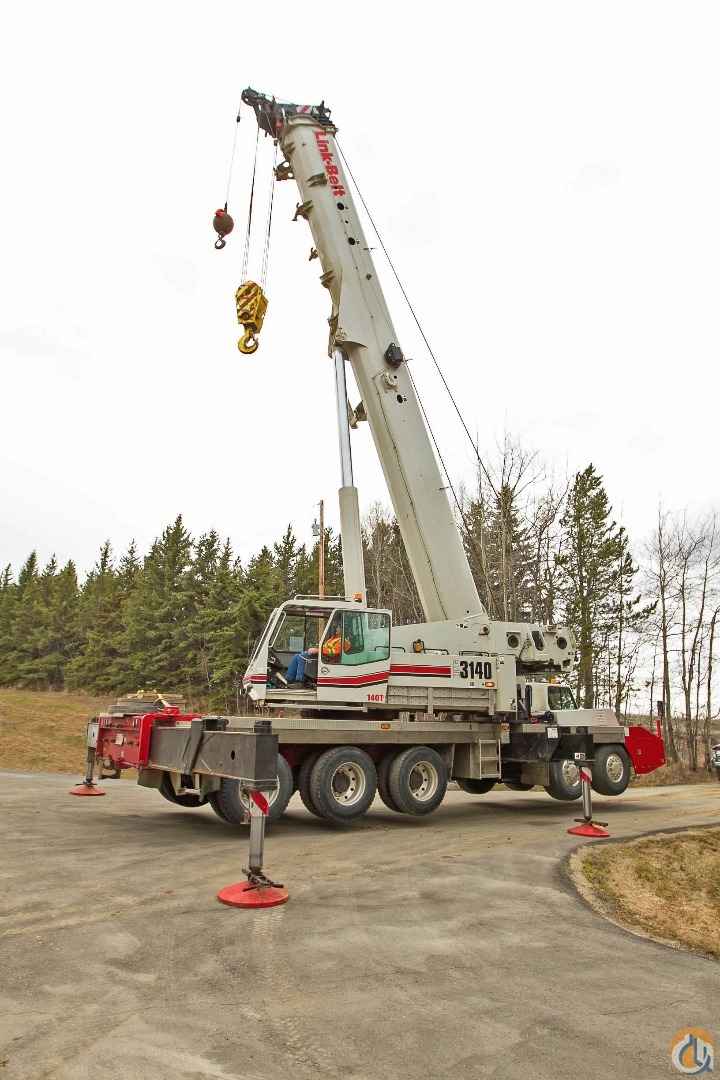

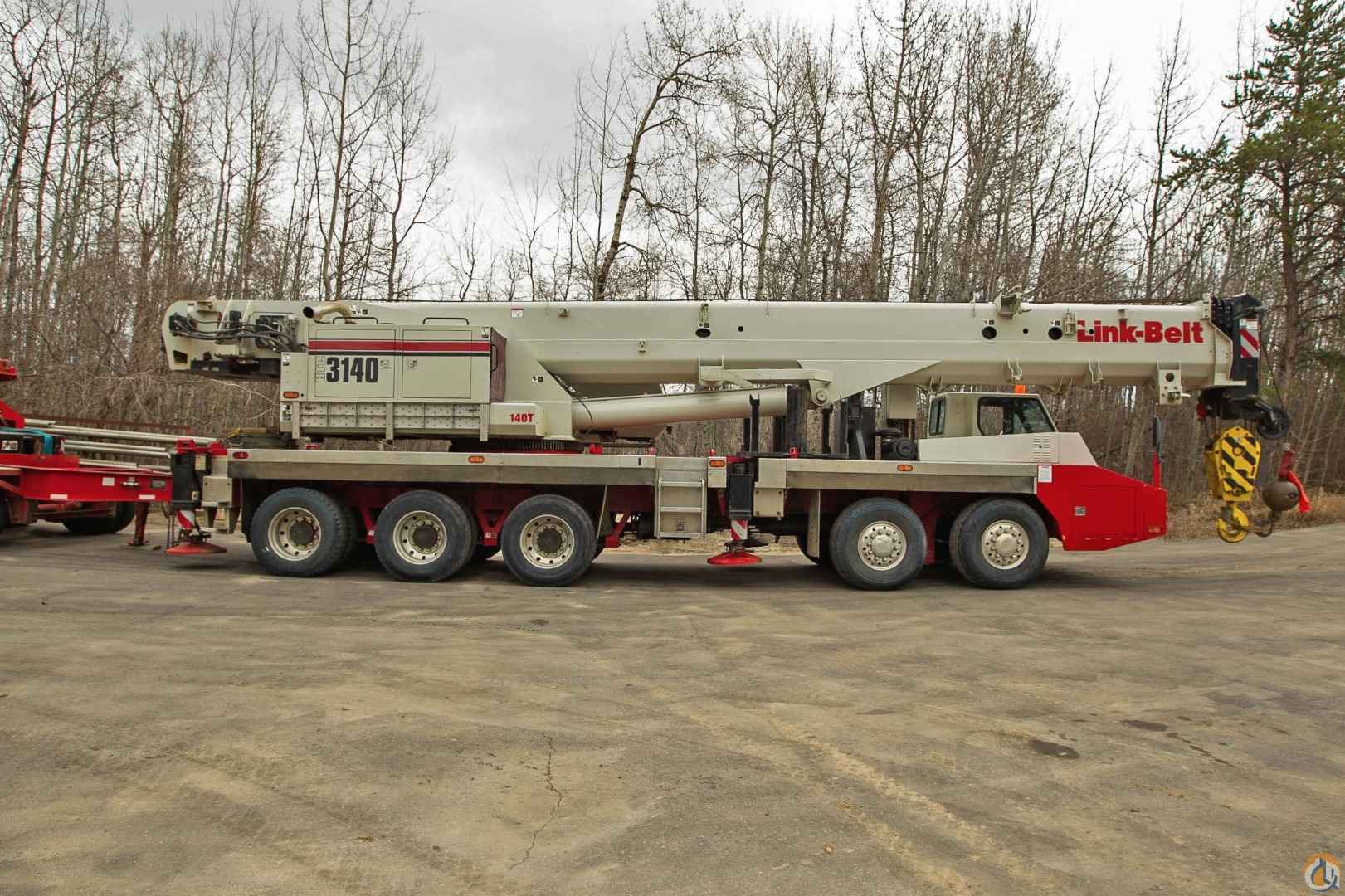

Link-Belt HTC-3140

140 UST (120 MT) TELESCOPIC TRUCK CRANE

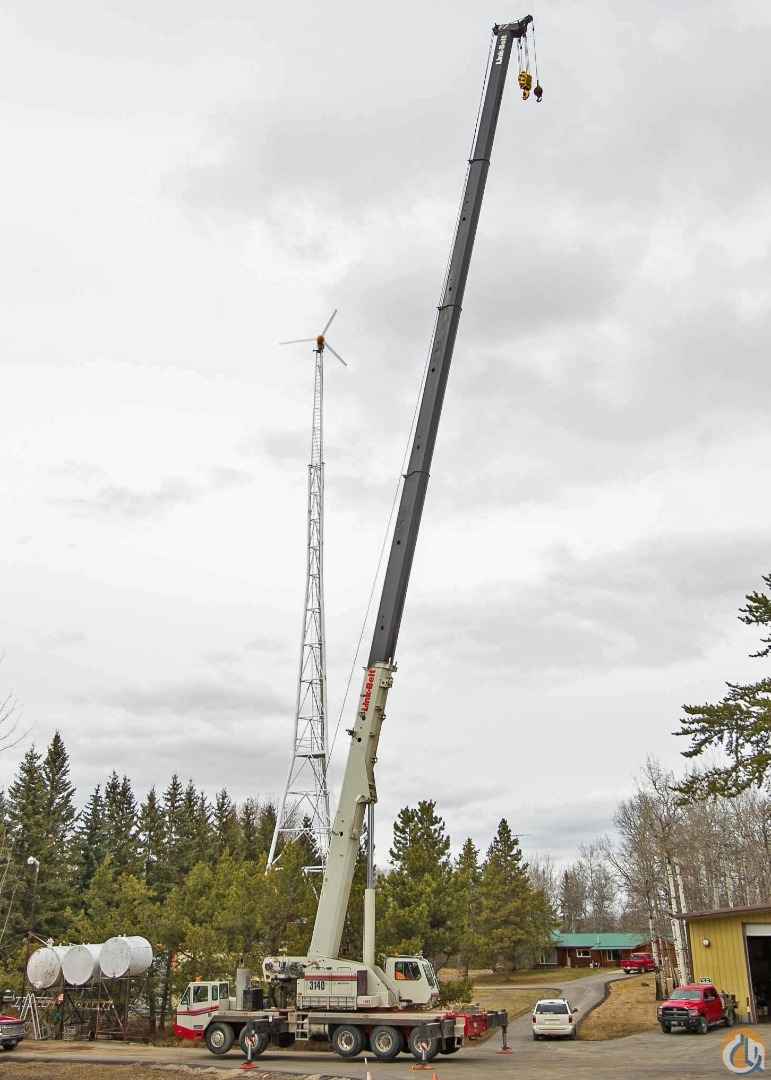

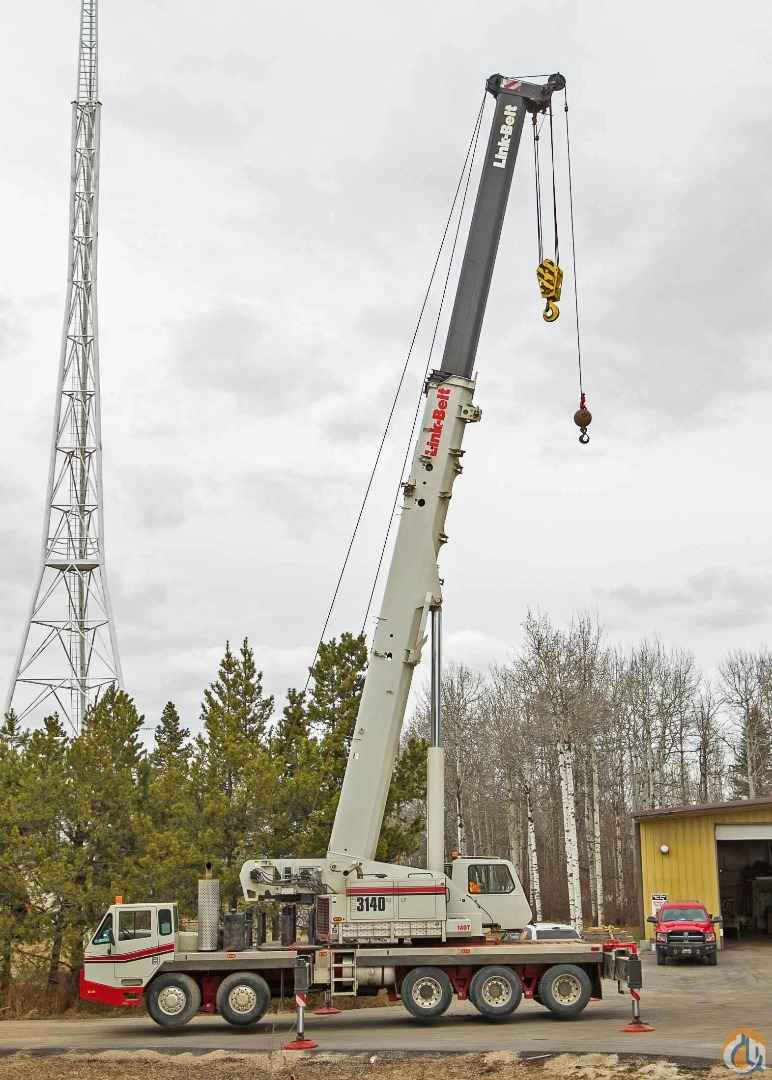

• 41.4 - 162 ft (12.6 - 49.3 m) five section formed latching boom
• Optional 31-55 ft (9.4 - 16.7m) two-piece, bi-fold, on-board lattice attachment with 2°, 15°, 30°, and 45° offsets
• Overall dimensions:
  Height: 12 ft (3.66 m)
  Width: 9 ft 10 in (3.0 m)
  Length: 49 ft 5.4 in (15.07 m)
• 28 ft 10 in (8.56 m) wheel base

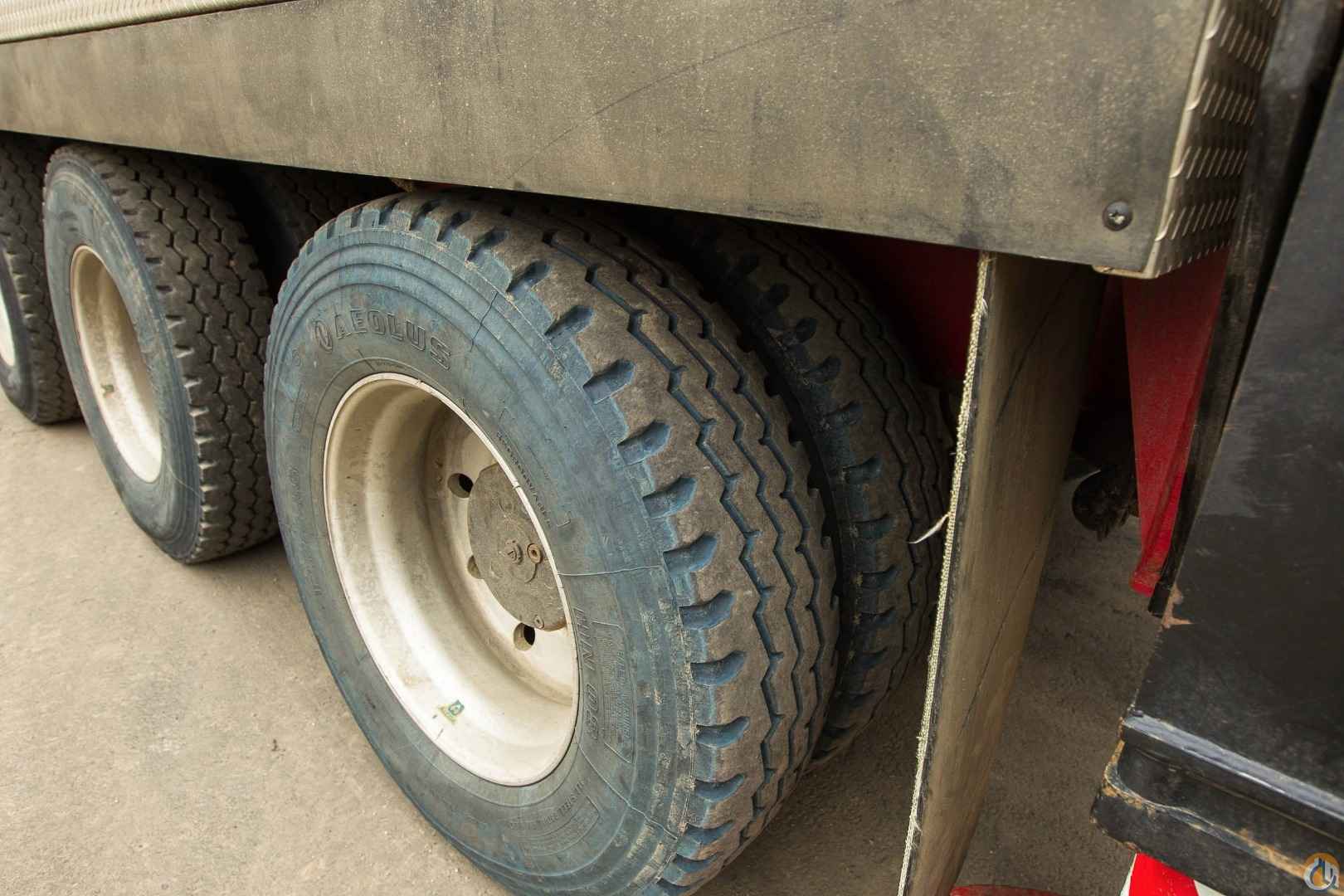

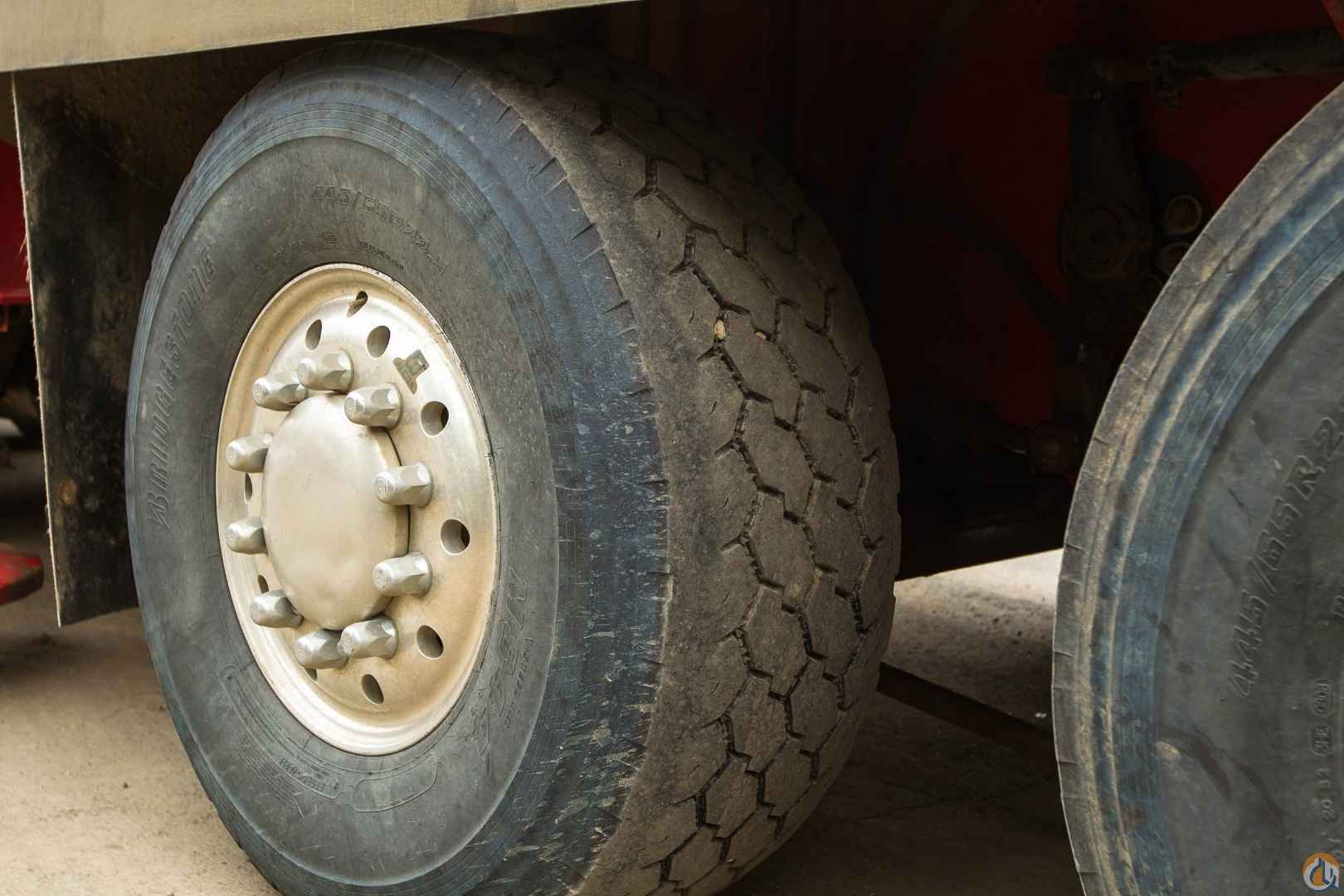

• Front tires: 445/65R22.5

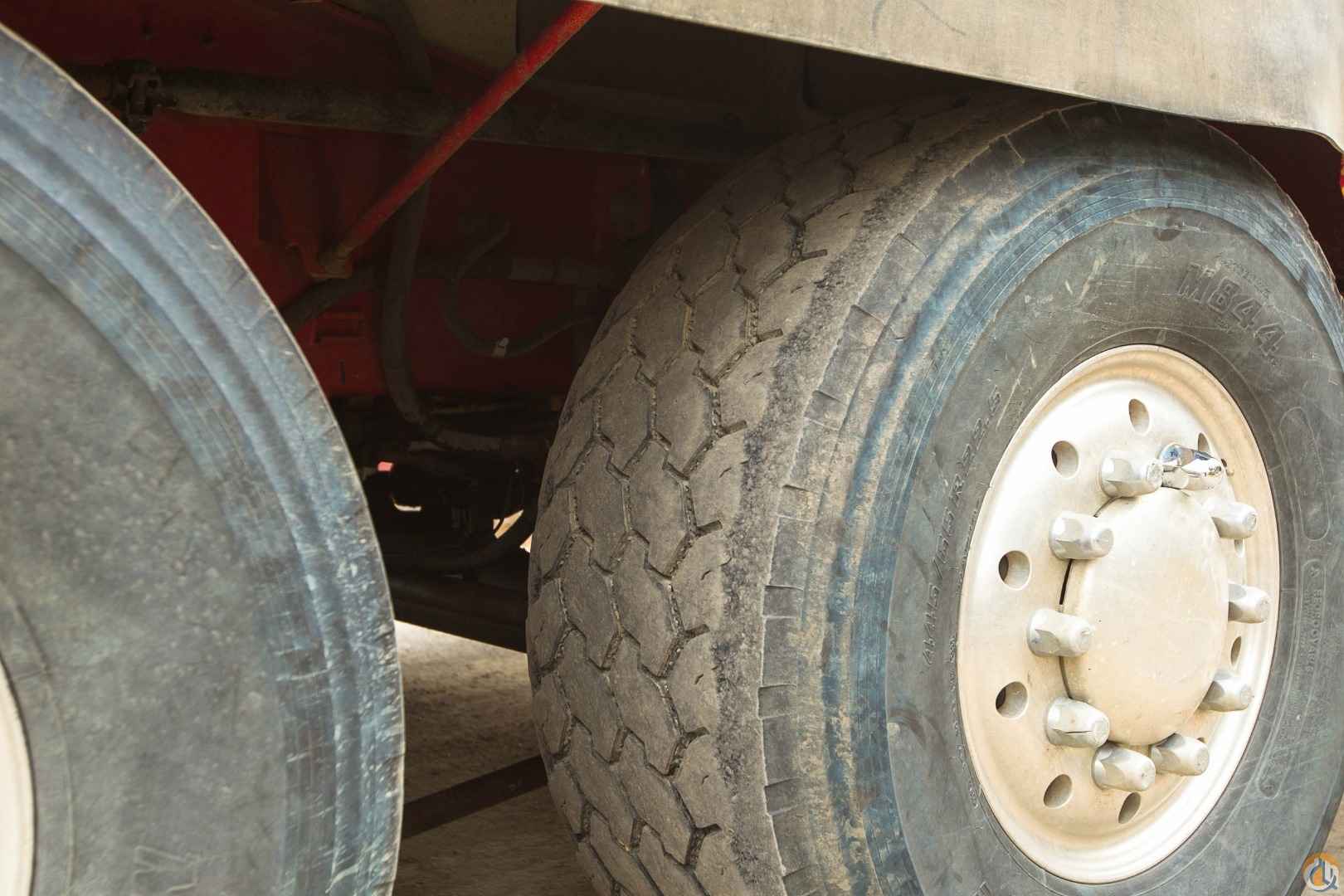

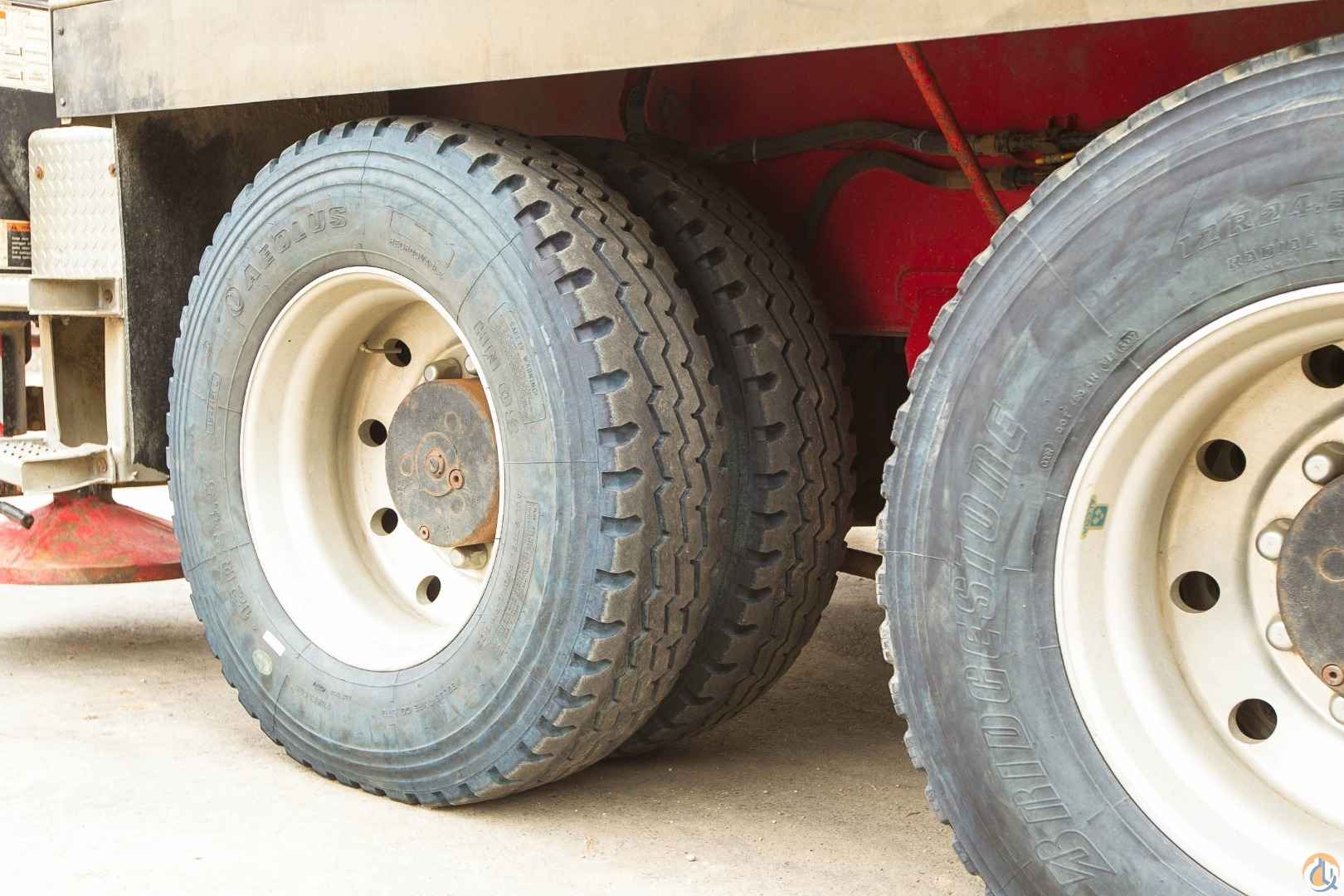

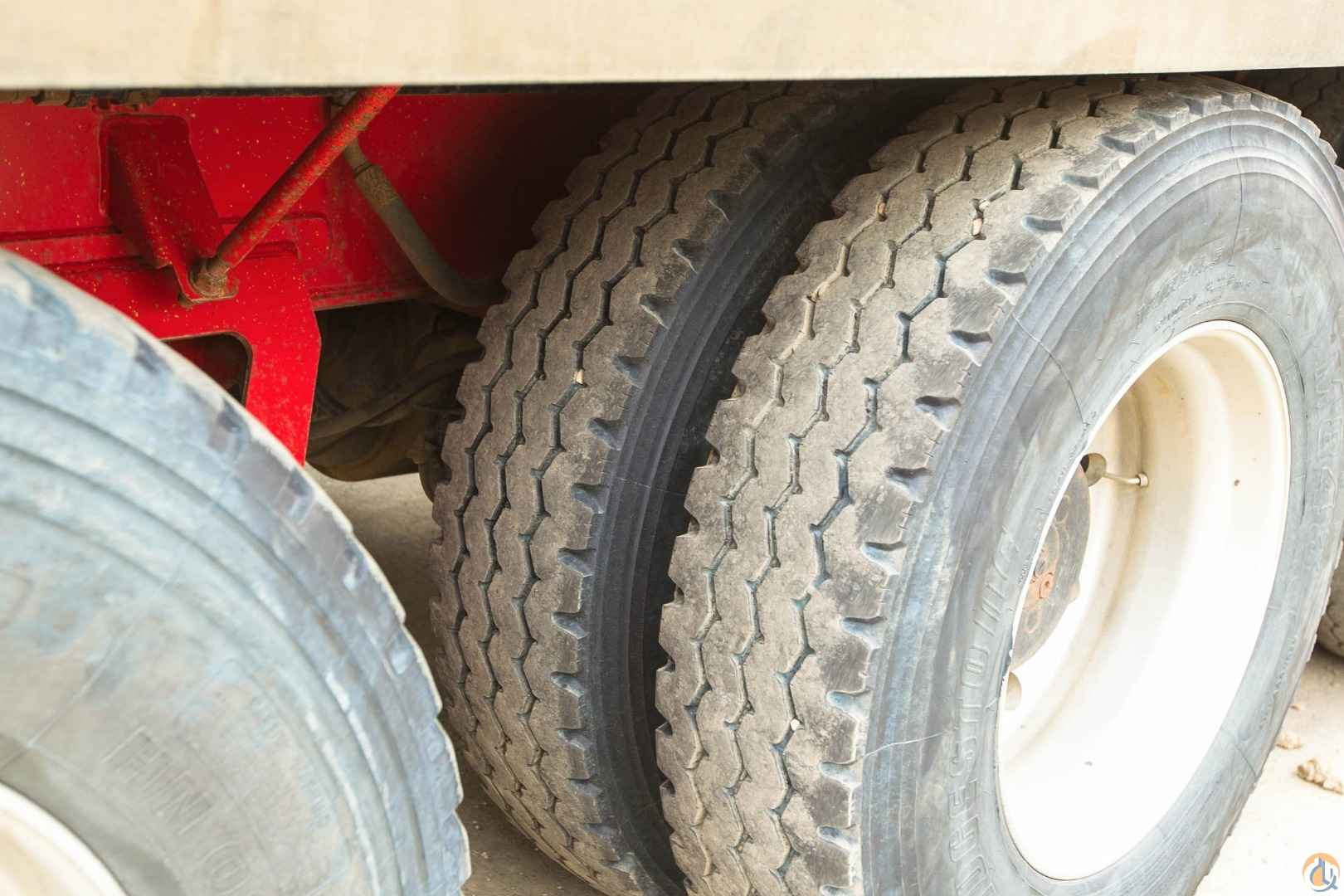

• Rear tires: 12R24.5
• Eaton Ultra Shift Plus automated 11-speed transmission with 2-speed auxiliary transmission
• 27 ft (8.23 m) outrigger spread, 22 ft (6.71 m) outrigger base
• Maximum winch line pull: 21,022 lbs (9 535.4 kg)
• Maximum winch line speed: 419 fpm (127.7 m/min)

KEY FEATURES:

• Excellent transportability - can be configured to meet some of the toughest transportation laws
• All manually offsettable fly options feature four offset positions of 2°, 15°, 30°, and 45°
• "Stow 'n go" outrigger pontoons are easily secured for transport

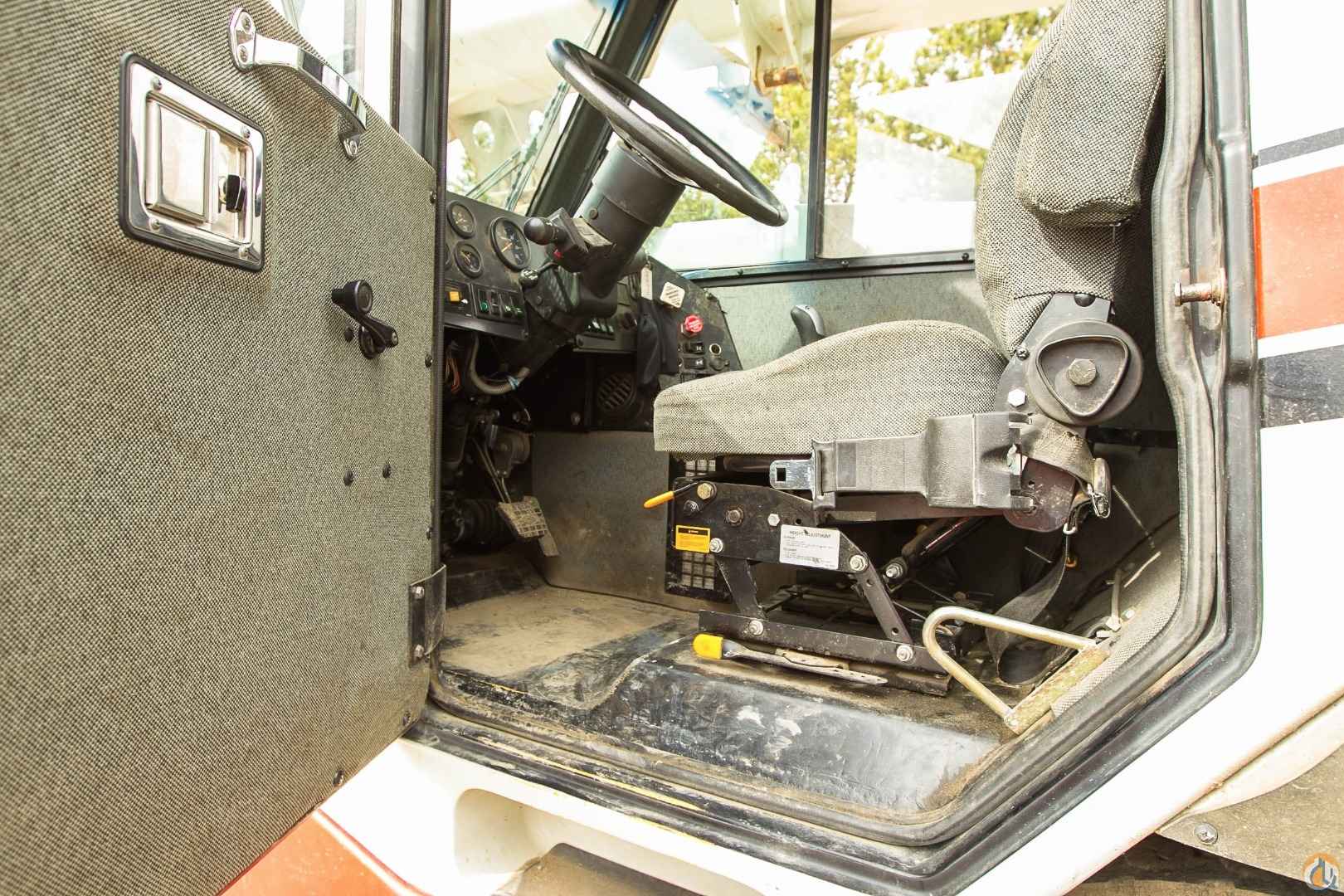

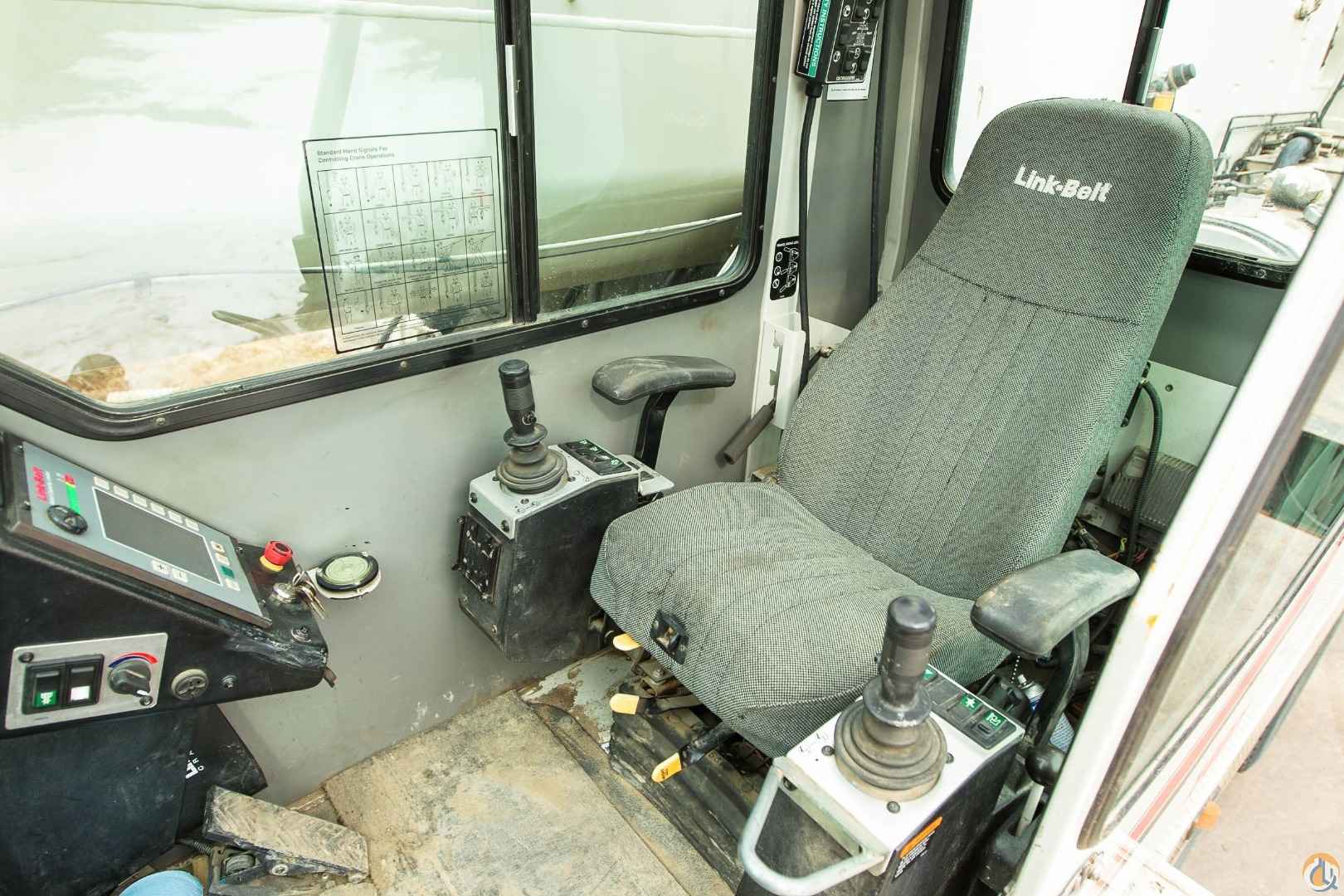

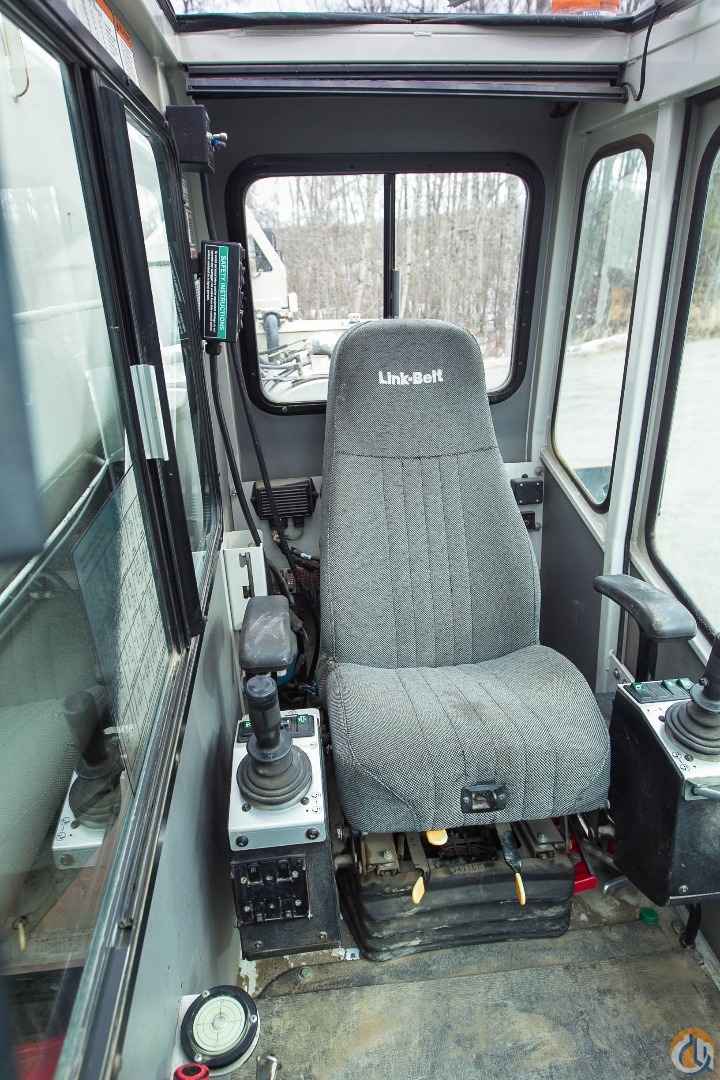

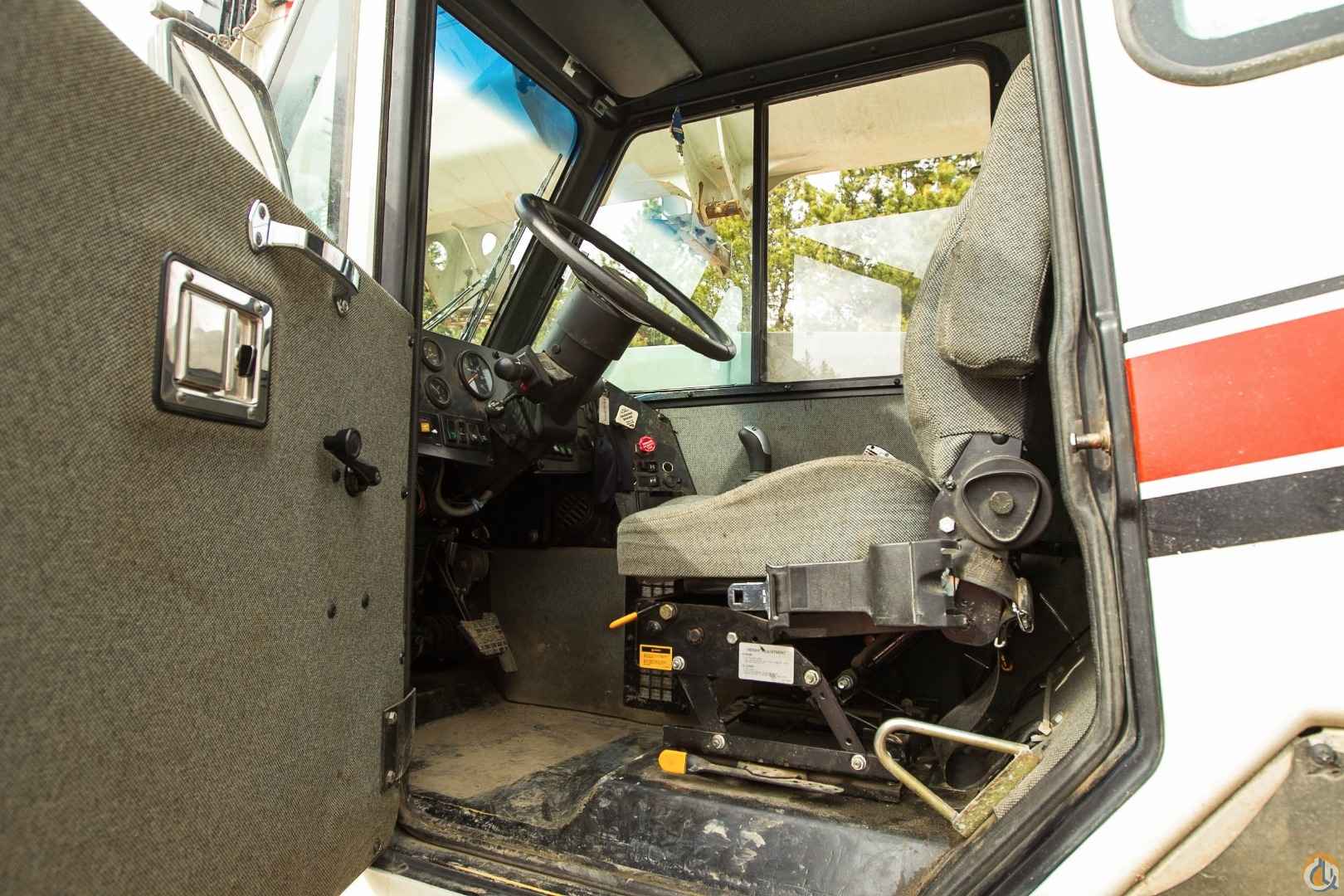

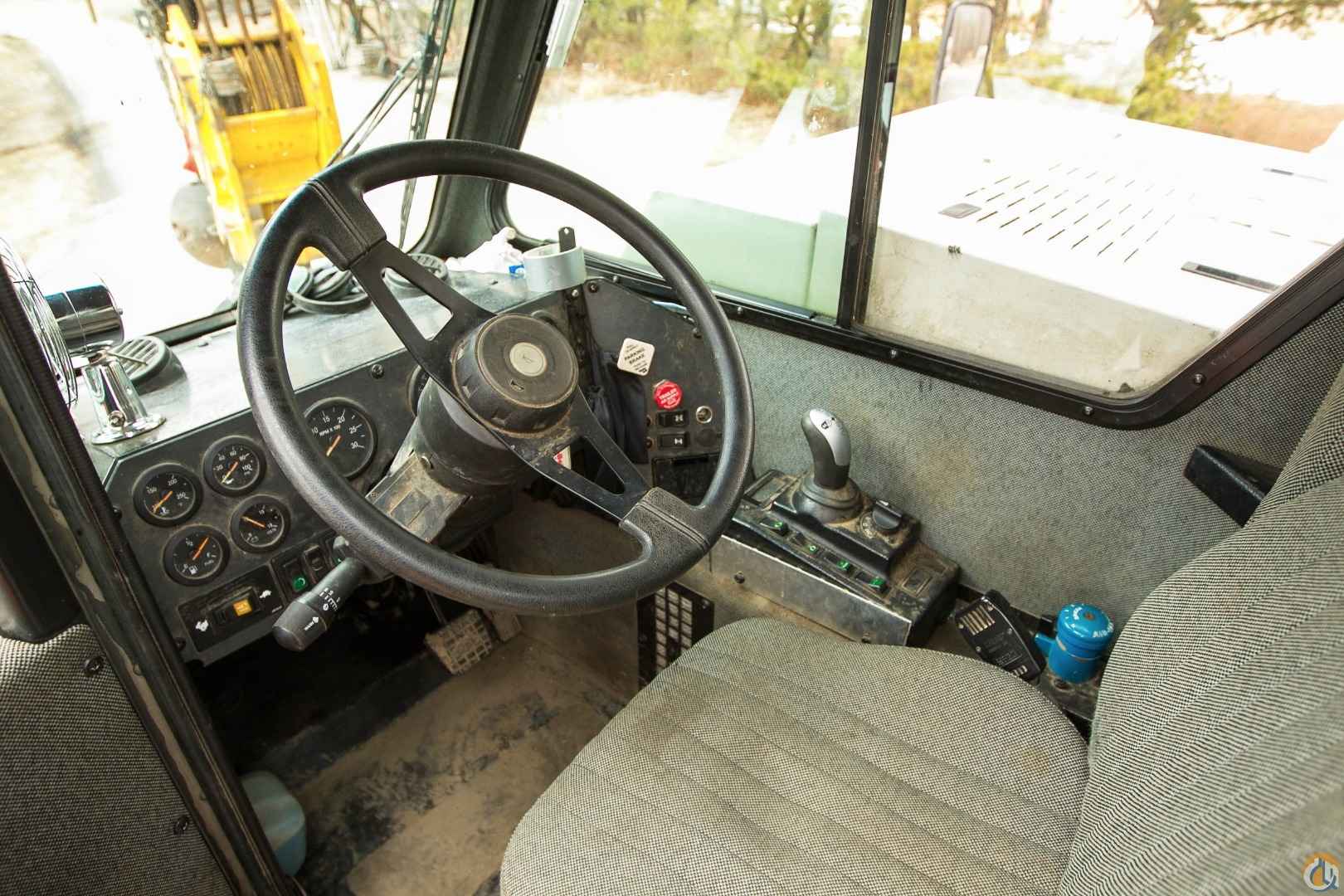

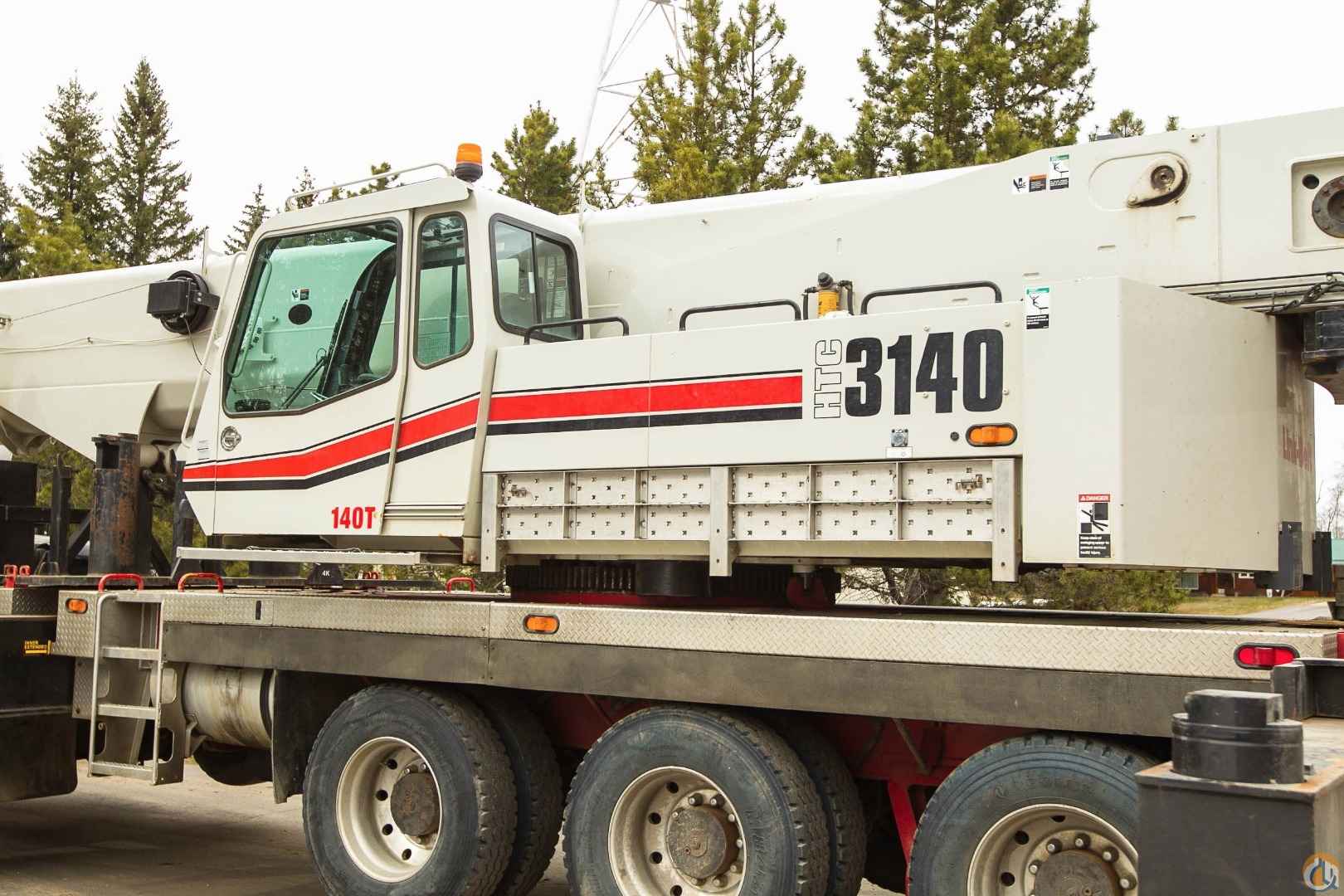

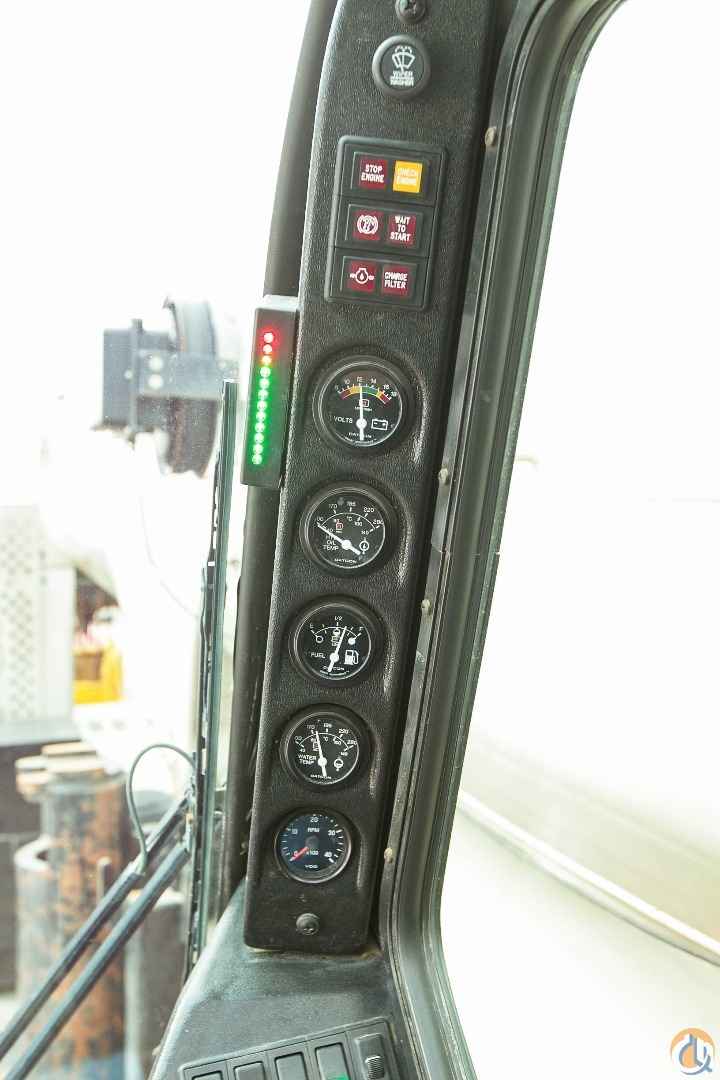

• Next generation operator's cab with improved visibility and ergonomics
• Pull-out CabWalk for eash access to and from the operator's cab
• Integral air conditioning standard on upper and lower cabs
• Large removable engine hood doors for ease of service
• Job site travel with counterweight
• Tilting cab
• Outriggers with auto-leveling
• Access ladders and folding guardrails

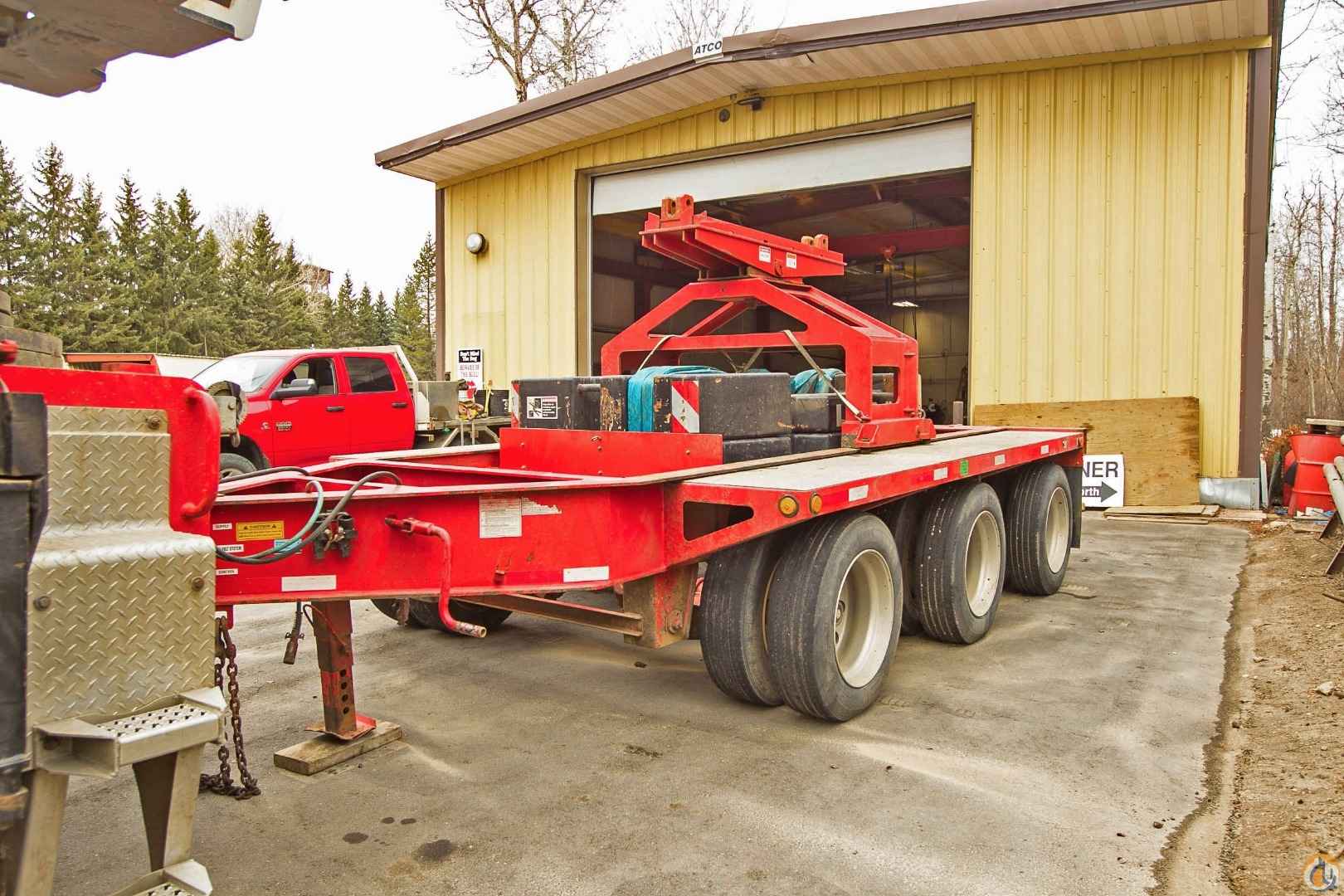

*3 AXLE NELSON BOOM DOLLY IS AVAILABLE

APPROXIMATE MILES: 49,000

APPROXIMATE HOURS ON UPPER: 5,000.

PLEASE CONTACT US FOR MORE INFO AND ADDITIONAL PHOTOS.
