Arriving in July 2024!

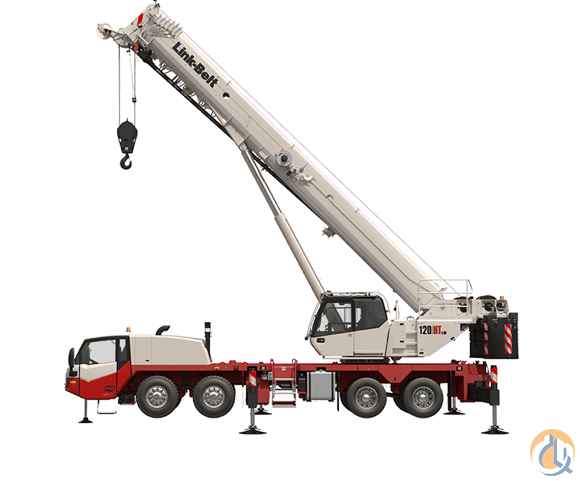

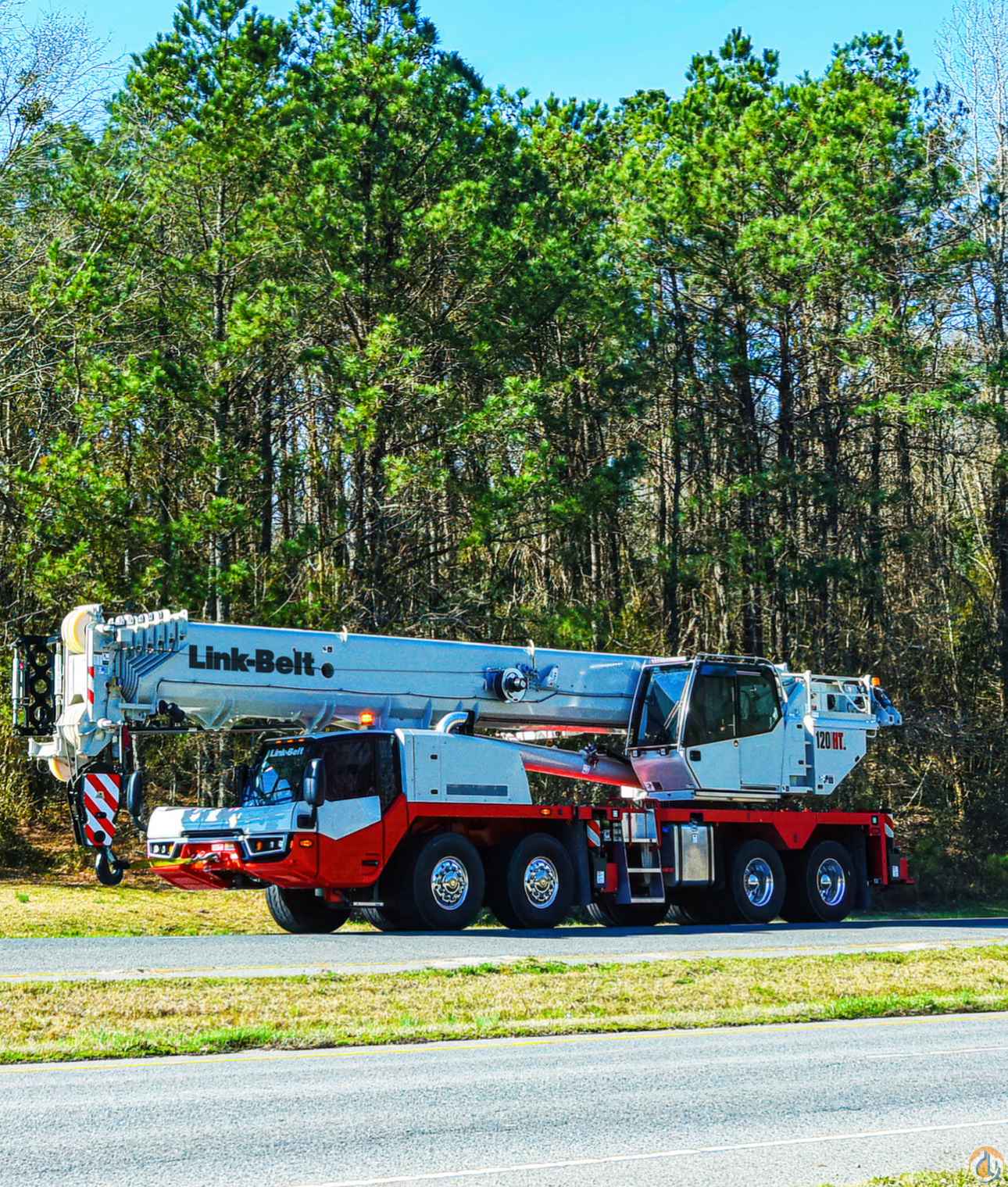

The 2024 Link-Belt 120-HT-LB. The only 120 ton truck mounted hydraulic crane with 197’ of main boom in a *8’-6” wide carrier.
Key Features
- Greaseless 39.8-ft – 196.9-ft “pin & latch” seven-section boom
- Longest attachment in the truck crane market: 264-ft max tip height
- Link-Belt SmartFly: different configurations to address any jobsite need
- NEW for the 120|HT: 3-piece (9.5 ft – 35 ft – 58 ft) fly with integrated heavy-lift section: offsettable to 0°, 15°, 30°, and 45°
- One or two available lattice extensions to reach max tip height of 262 ft
- Full three-piece fly is stowable on the machine: no capacity deducts for stowed attachment
- Excellent transportability — can be configured to meet some of the toughest transportation laws in North America
- Industry-first suspension and axle design: independent air-ride suspension & air disc brakes — for the first time on a truck crane!
- Highest gross axle rating (51,200 lbs on front tandem) of any other truck crane in the market
- Transports at 110,000 lbs with 20,000 lbs of counterweight, three-piece fly, 60-t block, and 10-t ball installed
- Cummins X12 Engine: EPA 2022 Compliant On-Highway 455 HP Engine
- ZF TRAXON (no clutch pedal) Manual Transmission
- Link-Belt Pulse 2.0 operating system, including 81-position V-CALC individual outrigger extension system
- Link-Belt Vision Package & full LED lighting package: Standard
- All new carrier cab: NEW wider carrier cab, 9 inches wider than previous generation of truck crane cab
- Airbag-mounted cab for improved ride quality & operator comfort
- TPMS: Wireless Tire Pressure and Temperature Monitoring
- Flat deck design — maintains four points of access regardless of upper position
For more information, contact Robert Greene at (703) 975-8200 or via email at rgreene@linkbelt.com
