Type: Truck Mounted Telescopic Boom Cranes
Make: Grove
Model: TMS9000E
Year: 2013
Capacity: 110.00 Tons
Condition: Excellent
Unit #: 01
Location: Wichita, Kansas
Boom: 36

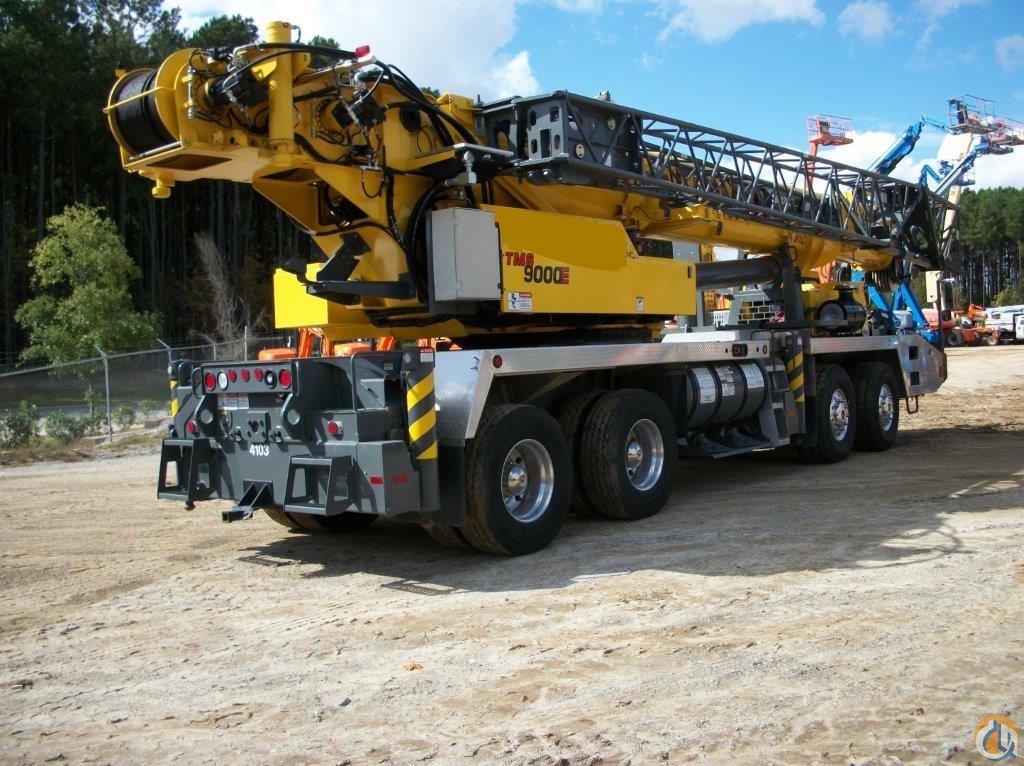

ONE 2013 GROVE TMS9000E (110 ton) TRUCK MOUNTED CRANE
Powered with a Cummins ISX 11.9 (450 hp.) 6-cylinder Turbo Diesel Engine with Jacobs Engine Brake, Approx. 1,800 hours & 15,000 miles, with Manual 11 speed Transmission,
BOOM: (36'- 142') 5-section "Megaform Style" Main Boom with "Twin-Lock" boom pinning system, Aux. single sheave Boom Nose,
JIB: (33' - 56') fixed offsetable (0-20 & 40 degrees) bi-folding swingaway,
LOAD MOMENT SYSTEM ("LMI"): EKS 5 load moment indicator with automatic control cut-out and digital display,
OPERATORS CAB: Full Vision Aluminum Cab which is hydraulically Tiltable to 20 degrees, Dual Axis Joystick Crane Controls,
COUNTERWEIGHT: 16,000 lbs. with hydraulic rigging and removable system operated from the crane cab, 4 removable sections,
(1) Base plate at 3,000 lbs., (1) pin-able plate weighing 3,000 lbs. and (2) pin-able plates weighing 5,000 lbs. each.
MAIN & AUX. HOISTS: Axial piston motors with planetary gear reduction and automatic multipal disc brakes, DRI's & 5th wrap indicators.
OUTRIGGERS: Hydraulic front and rear three position outriggers with settings at (0%, 50% & 100%) and with Auto Leveling.
DRIVE?STEER: 8x4x4 with inter-axle differential lock on rear axle. Automatic traction control.
SUSPENSION: Air over walking beam with shock absorbers.
BRAKES: Dual line, full air, ABS braking system with traction control and S-cam brakes front & rear.
TIRES: Front; 445/65R 22.5 Michelin XZY-3 tubless, Rear; 315/80R 22.5 Michelin XZY-3 tubless (highway tread). (15,000 miles)
CRANESTAR: Truck Crane Asset Management System Software Package for TMS9000E, includes internet access up-to date crane information; monitor machine locations, working conditions and lifting schedules.
HOOK BLOCKS: 60 ton 5-sheave, quick reeve hook block weight 1,280 lbs.
HEADACHE BALL: 8.3 ton single line, top-swiveling hook ball , weight 370 lbs.
OPTIONS: Heavy Lift "XL" counterweight package; (2) 10,000 lbs. slabs, (2) 4,000 lbs. wing weights and (2) 2,250 lbs. wing weights in addition to standard; total of 48,500 lbs. of counterweight (includes calibration).
Two Work Lights mounted to the boom base section plus Aux. Lighting PKG. and Trailing Boom PKG. plus all the standard equipment.
CASH SALE PRICED $732,500 F.O.B. EASTERN - USA
