Your Price: (was: $210,000)
Equipment Specifications:
Year:
1995
Boom:
240'
Capacity:
200.00
Jib:
100'
Condition:
Good
Hours:
Inquire
Unit #:
690
Serial #:
Verify
Location:
Utah, USA
Seller Contact:
CranesList
Jeffery Lomas
562-743-2338
www.CranesList.com
3350 E 7th St, Long Beach, CA 90804, USA
Seller Notes:

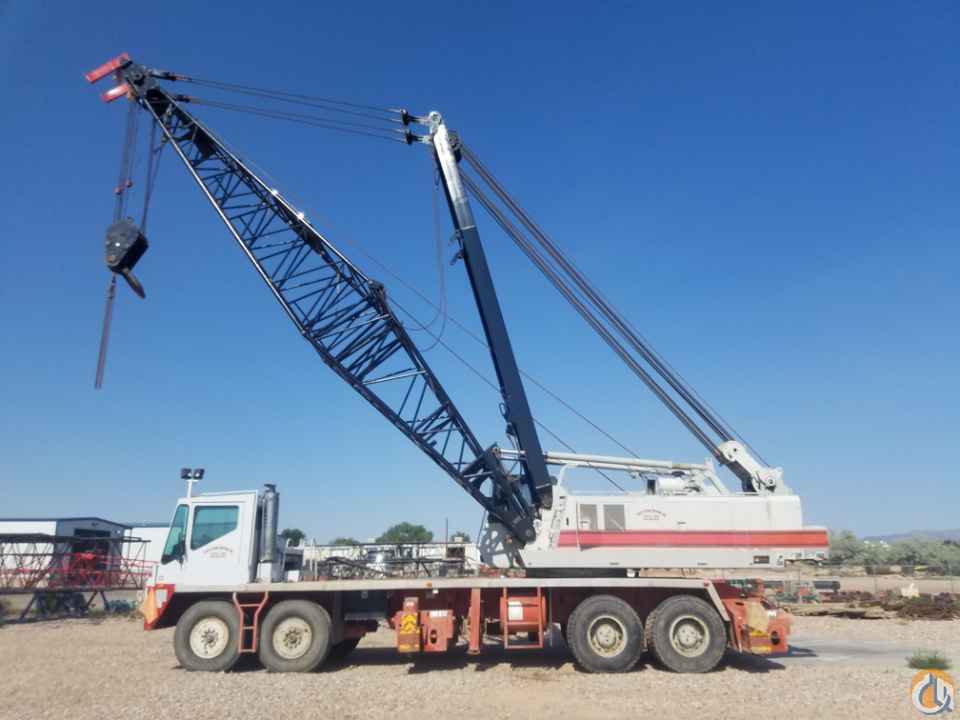

1995 HC248H, 200 Ton Lattice Boom Truck Crane; CranesList ID: 690,

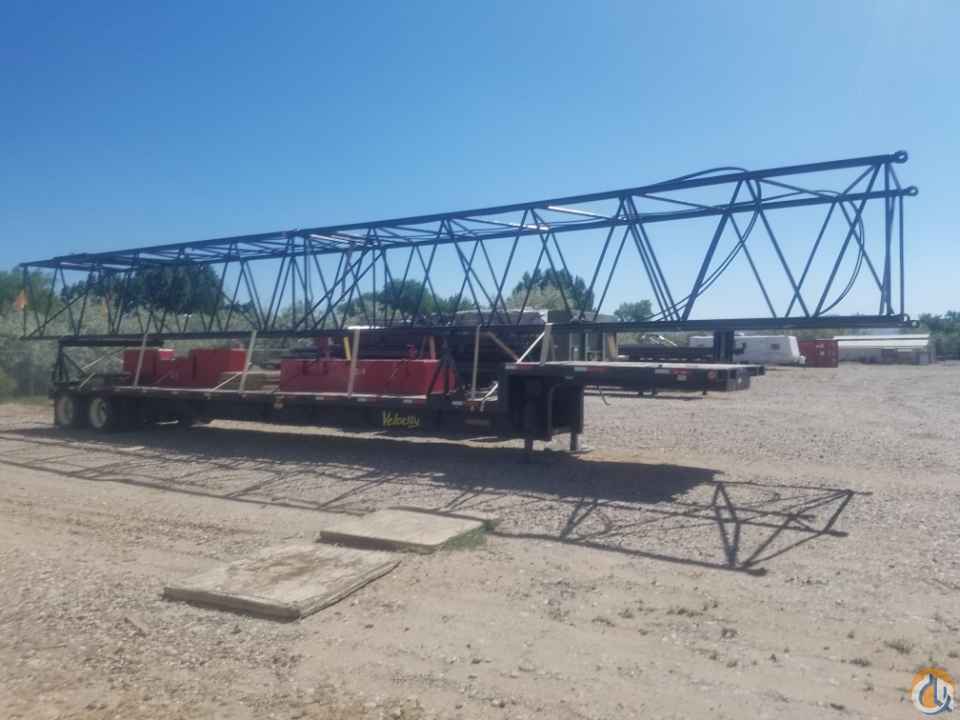

  • 240' Tubular Main Boom including 1 X 20' Base, 1 X 30' Tip and various lengths of inserts,
  • 100' Basic Jib Offsettable at 5, 15, 25 degrees,
  • 30' Boom Live Mast - long supports the boomhoist bridle and boom pendants, and is required for all boom lengths and combinations.
  • Isuzu 6SD1TQB-01, Six Cylinder, 248 HP, Diesel Engine UP,
  • Main and Auxiliary Winches with 8 Parts Of Line and 1" Wire Rope,
  • Boom Angle Indicator, Drum Rotation Indicator, Power Load Lowering with Freefall, 2 Speed on Main,  Anti-Two Block, PAT DS-350 Rated Capacity Limiter,
  • Hook Ball and Hook Block,
  • Three-piece "ABC"counterweight consisting of 23,000# "A" counterweight, 19,330# "B" counterweight, and 21,110# "C" counterweight. Total weight: 64,440#,
  • Rooftop access ladder to Machinery Cab,
  • Catwalks on operator's side. Catwalks remove to reduce travel width,
  • Operators Cab - Fully enclosed, one person. Galvaneal steel construction lined with vinyl covered acoustical insulation. Equipped with: Swing-up roof window, Sliding right-side door, Sliding tinted left-side window, Door and window locks, Fire extinguisher, Sun visor, Dome light, Rubber floor mat,
  • 11' Wide 8 x 4 x 4 Link-Belt Carrier with Tilt-out cab,
  • Detroit Series 60 Six Cylinder Diesel Engine,
  • Eaton RTO14908LL Manual and Spicer Auxiliary with 8 progressive highway gears and 2 "super low" gears for 10 forward and 3 reverse speeds Transmission,
  • Front and Rear Tires: 14R24 3- star radial with on-off highway tread with 90% left,
  • Outriggers: Double-box, dual beams front and rear, pin connected to carrier frame. Hydraulically operated beams and jack cylinders are individually controlled from each side of carrier,
  • 5th Front Outrigger,
  • Bumper Counterweight - Two-piece AB counterweight consisting of 13,500# A counterweight and 11,500# B counterweight. Total weight - 25,000#.
  • Crane was repainted in the last two years,
  • Two Axle Boom Dolly,
  • Two Year old Paint Job,
  • Certified.

http://www.CranesList.com,

LOCATED IN UTAH!
