WE HAVE THIS CRANE AVILABLE IN JUNE 2023 FOR RPO .

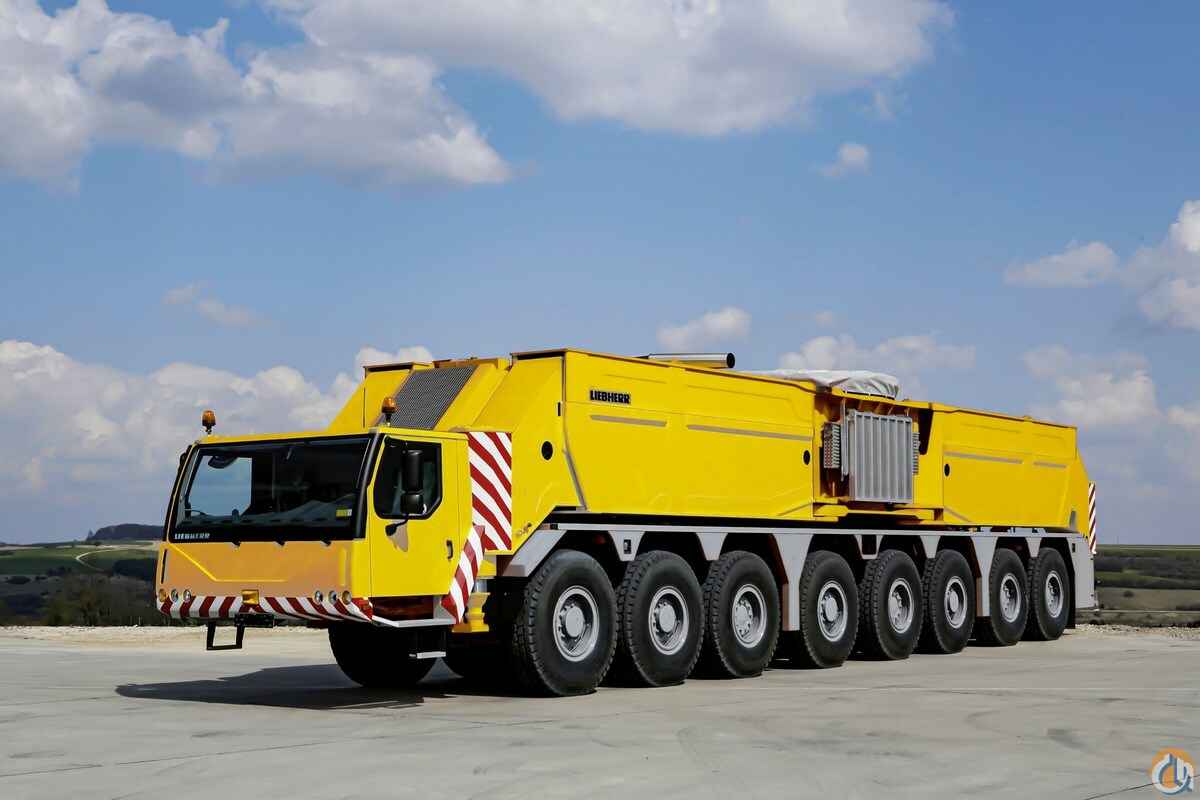

Lattice boom mobile crane Liebherr LG1750

Max capacity 750 t

Max load moment 9864 tm

Crane carrier

Frame

8 Axles, 16x8 drive, 18.00 R25 tires

Motor drive

Exhaust system with spark arrester

ZF TC-Tronic automatic gearbox

Torque converter and retarder

Single-stage transfer case

Hydropneumatic suspension

ZF hydraulic steering, 2 circuits

Steered rear axle, crab steer

2-circuit pneumatic servo brake for all wheels

Carrier cabin with additional heating

Air conditioner

Star setting, hydraulic dismantling

Self-levelling, wedging area illumination

Indication of inclination and lowering of loads

Reversing camera

Reception by approved organization

Crane superstructure

Slewing ring

2 slewing gears

Turret frame

Removable easel

Central counterweight console on the 20 t turret (without counterweight plate) Turret cabin with heating & air conditioning

Diesel engine with transfer box

Engine emergency stop with spark arrester

Hydraulic radiator

Hydraulic circuit

Electrical circuit

Winch I - lifting

Winch IV - lifting

Reeving winch

LICCON on-board computer

Video surveillance

Central lubrication

LICCON charge controller

Reception by approved organization

Standard painting

Carrier frame – RAL 7012, basalt gray

Turret - RAL 1007, daffodil yellow

Work equipment – RAL 7012, basalt gray or RAL 1007 daffodil yellow

Basic machinery

1000 Chassis

Main boom – wind assembly

2513 Main boom SX2 – 165 m F2 - 15 m for SX2D4F2B incl. S-3,5 m, fixed jib F2 15 m, F-fixing head (only in connection with turret extension, Derrick D4 – 42 m).

3000 Main boom extension SX – 165 m F2 – 15 m to SXL 168 m incl. L – lattice element, L-Jib head 400 t ( only in connection with turret extension, D4 – 42 m ).

Derrick D System

System 2421

Included: lifeline and duckboard

(In addition winches III necessary)

2700 Boom Derrick D4 length 42 m

Counterweight Pallet B

For maxi 400 t Derrick counterweight

For max. 20 m rear reach

For stepless rear without bearings from 13 to 18 m i.e 15 to 20 m

Counterweight pallet, own weight approx. 12.5t

Hydraulically telescopic guide

Compensating hydraulic cylinders

(without counterweight plate)

2750 Counterweight pallet B with guide

2751 Counterweight pallet extension B for Vario-Tray 7172 Counterweight plate 400 t for total 415 t derrick counterweight

Winches

4000 Winch II – Lifting Winch

4010 Winch III – Derrick use

4090 Winch VI – Auxiliary winch

Mittens

4325 Block 160 t - 2x2 Pulleys for F2 system

4350 Single strand hook 16 t

Counterweight

7149 Additional counterweight 150t – for a total of 175 t 9503 Turret extension 5 t

Carrier additional equipment

5010 Telma electrodynamic retarder

5391 Spare wheel 18.0 R25, lose

9502 Wedging plates – 4 pieces – 2.4 m x 6.0 m

Turret additional equipment

7250 Slinging accessories for turret mounting with auxiliary crane 8400 Emergency hydraulic operation

9340 Undercarriage with hydraulic pin extraction device
