Boom Details

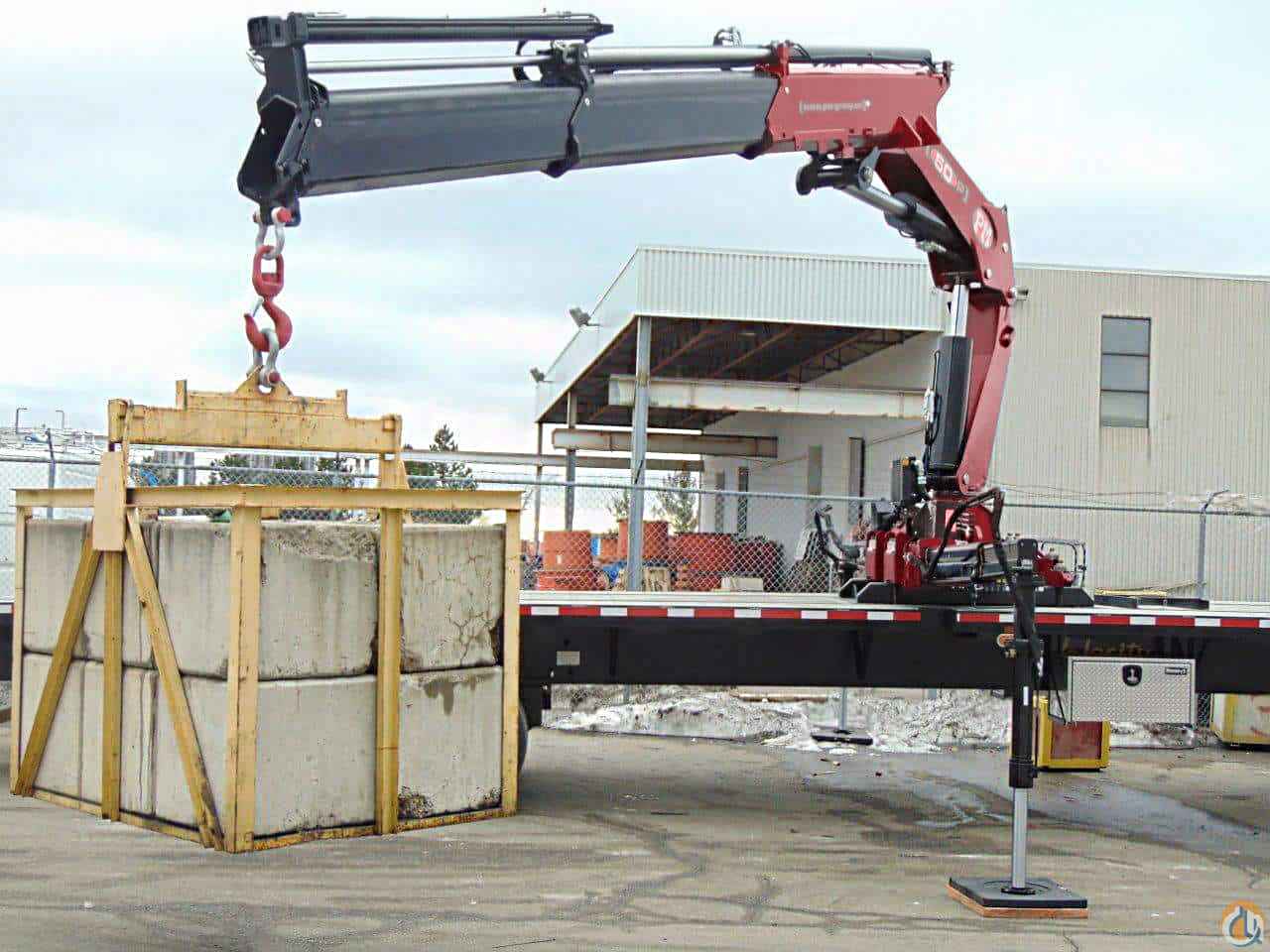

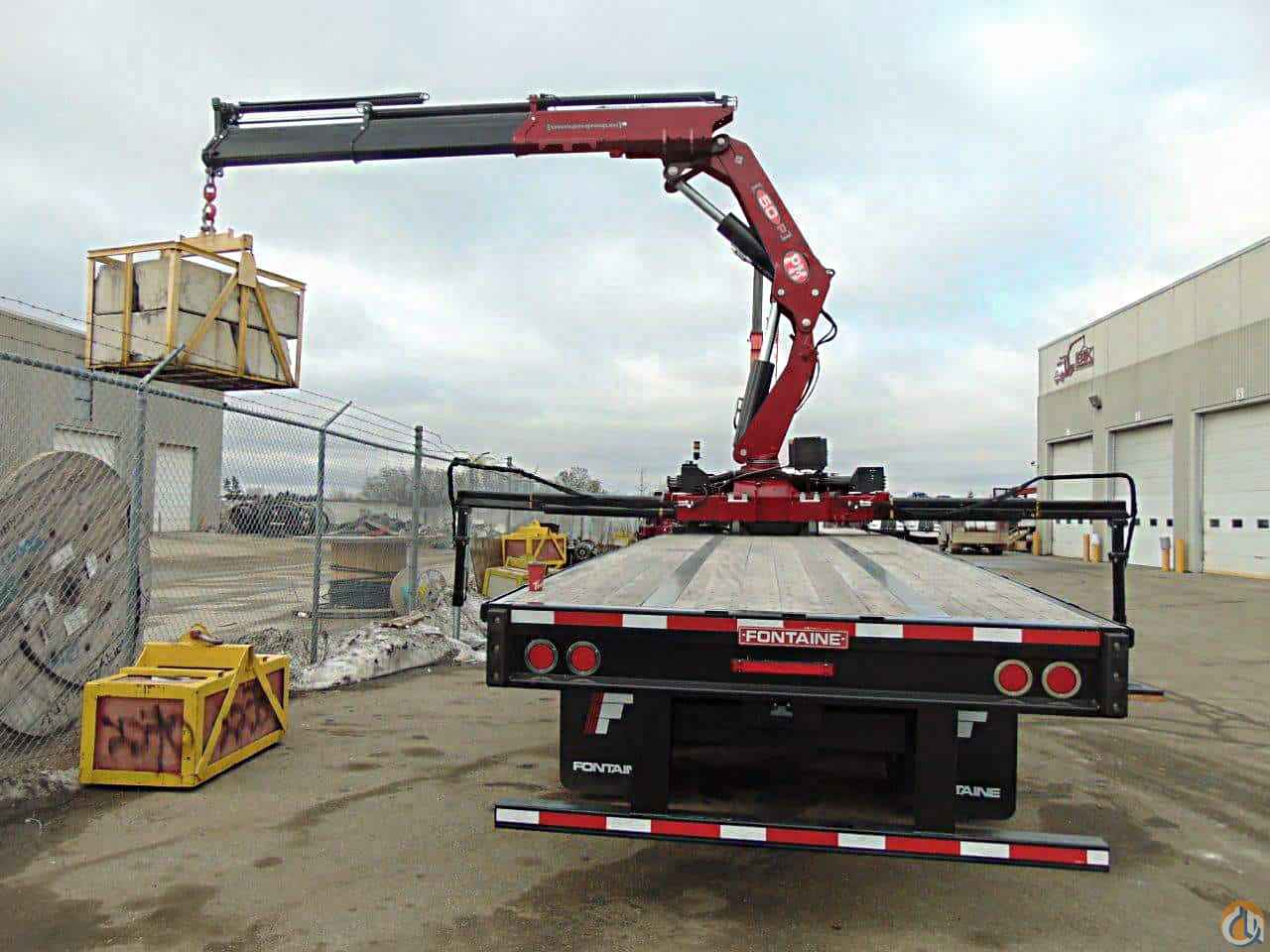

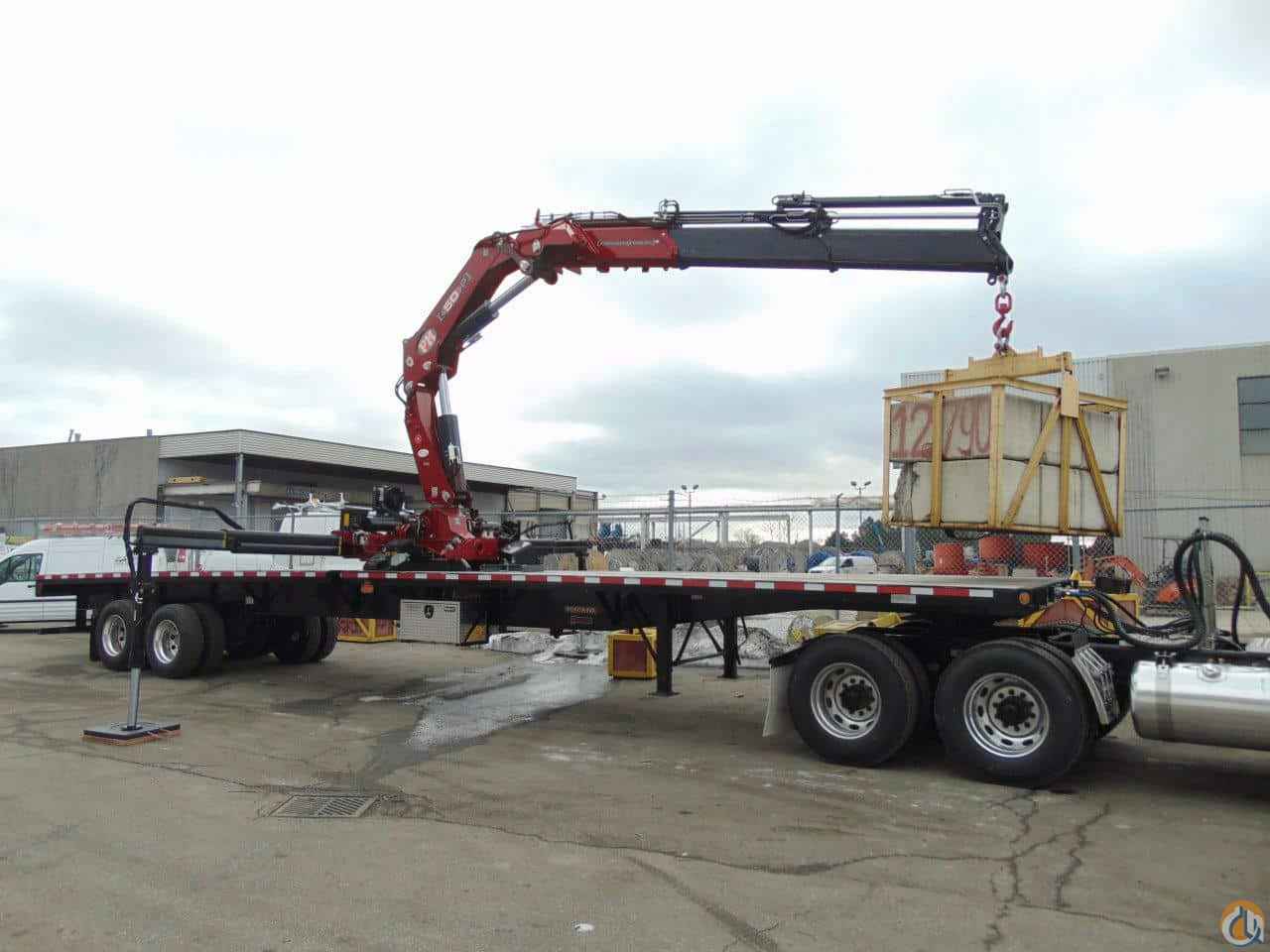

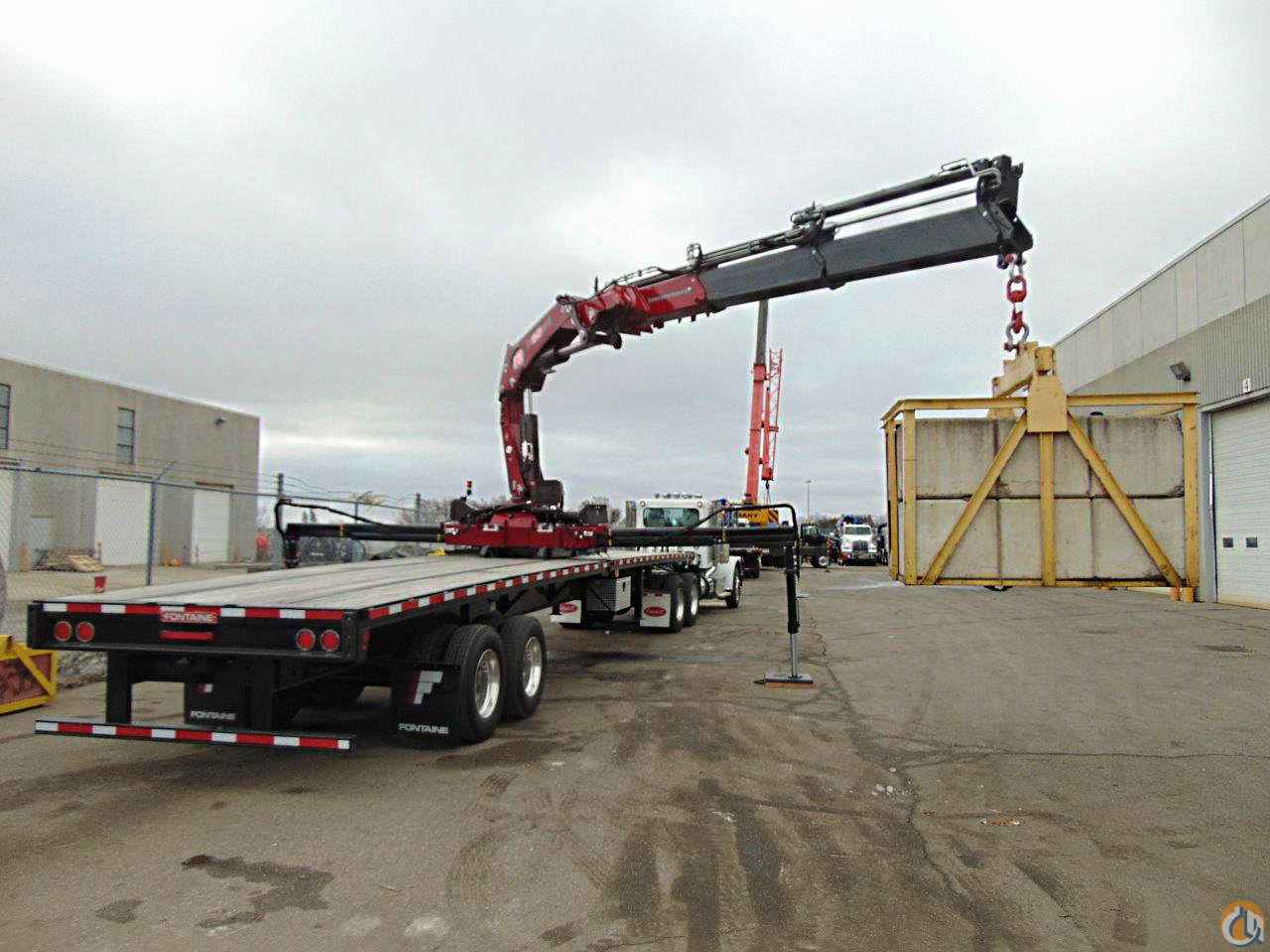

NEW – PM 50023 KNUCKLE BOOM

• Folding Hydraulic Knuckle Boom w/ 32’ 6” Horizontal Capacities as Follows:
  • 46,740 lbs @ 6’ 9”
  • 23,810 lbs @ 13’ 7”
  • 16,640 lbs @ 19’ 8”
  • 12,720 lbs @ 25’ 9”
  • 10,100 lbs @ 32’ 6”
• 3 Independent Extensions to 32’ 6” Total Horizontal – Sequentially Extended
• PM Connecting Rods at First Boom and Knuckle, 400 Degrees Pedestal Rotation
• Double Pilot Operated on Slewing and Pilot Operated Check Valves on All Cylinders
• Hydraulic Extra-Wide Main Outriggers at Pedestal – 25’ 7” Span
• Hydraulic Oil Cooler, High Pressure Return Filter and Min. 52-Gallon Oil Tank for Boom
• DANFOSS Proportional Control Valve & SCANRECO Proportional Radio Remote Control
• Radio Remote Control Includes: 2 Batteries, In-Cab Charger, and Back-up Cord
• Crane Painted PM Blue – Certified Painting Quality System – Load Chart on Boom in FT. & LBS.

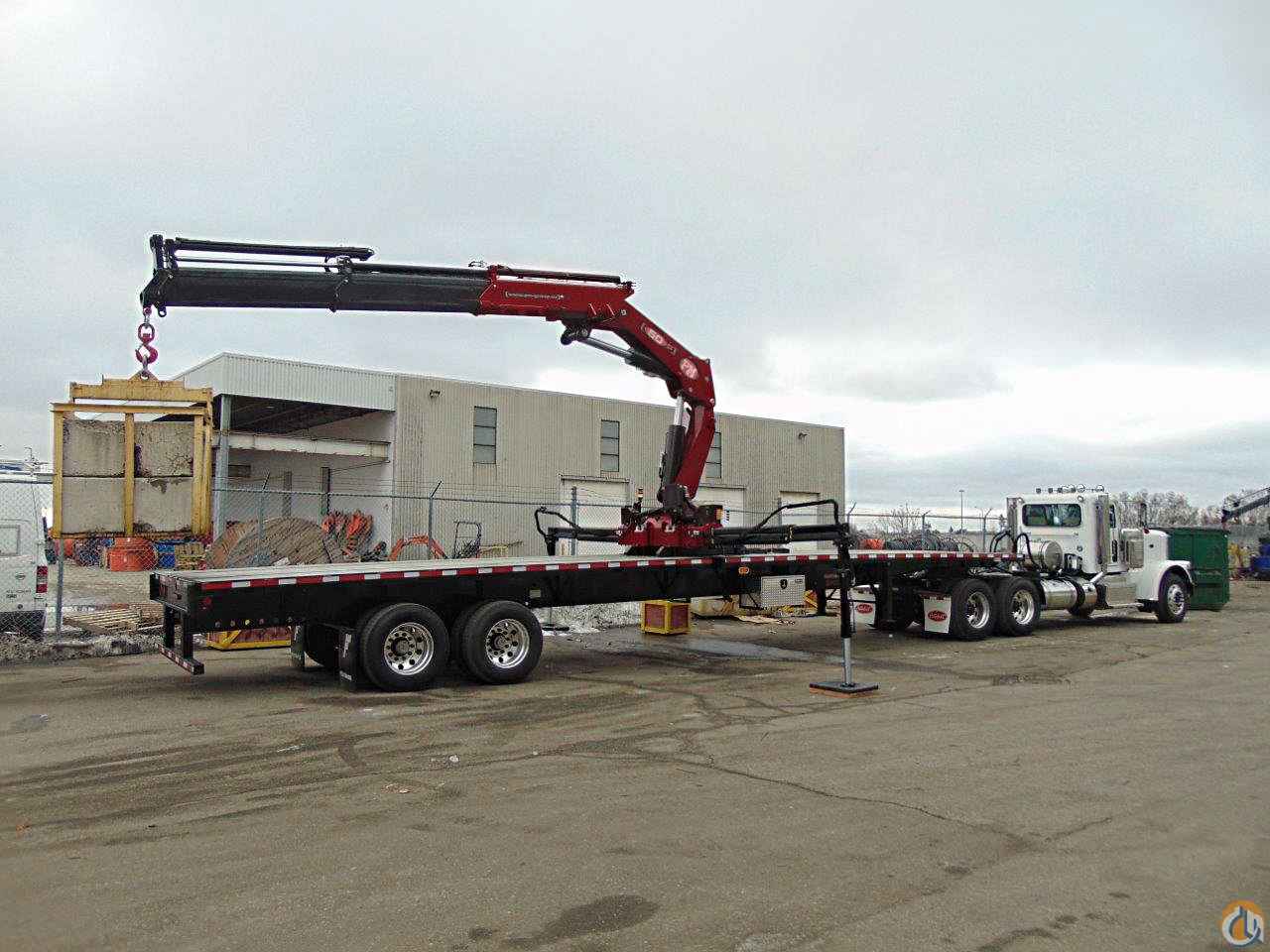

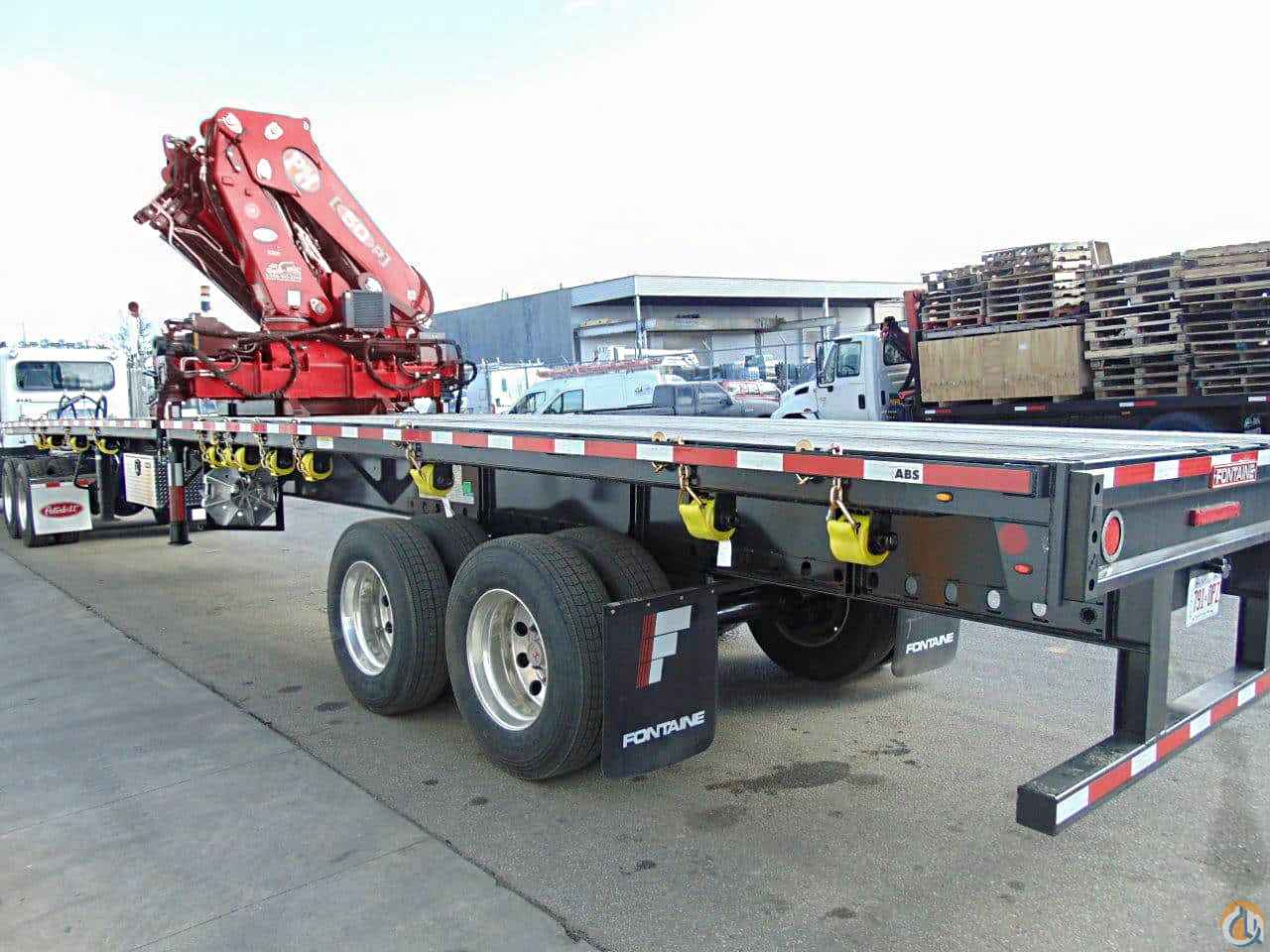

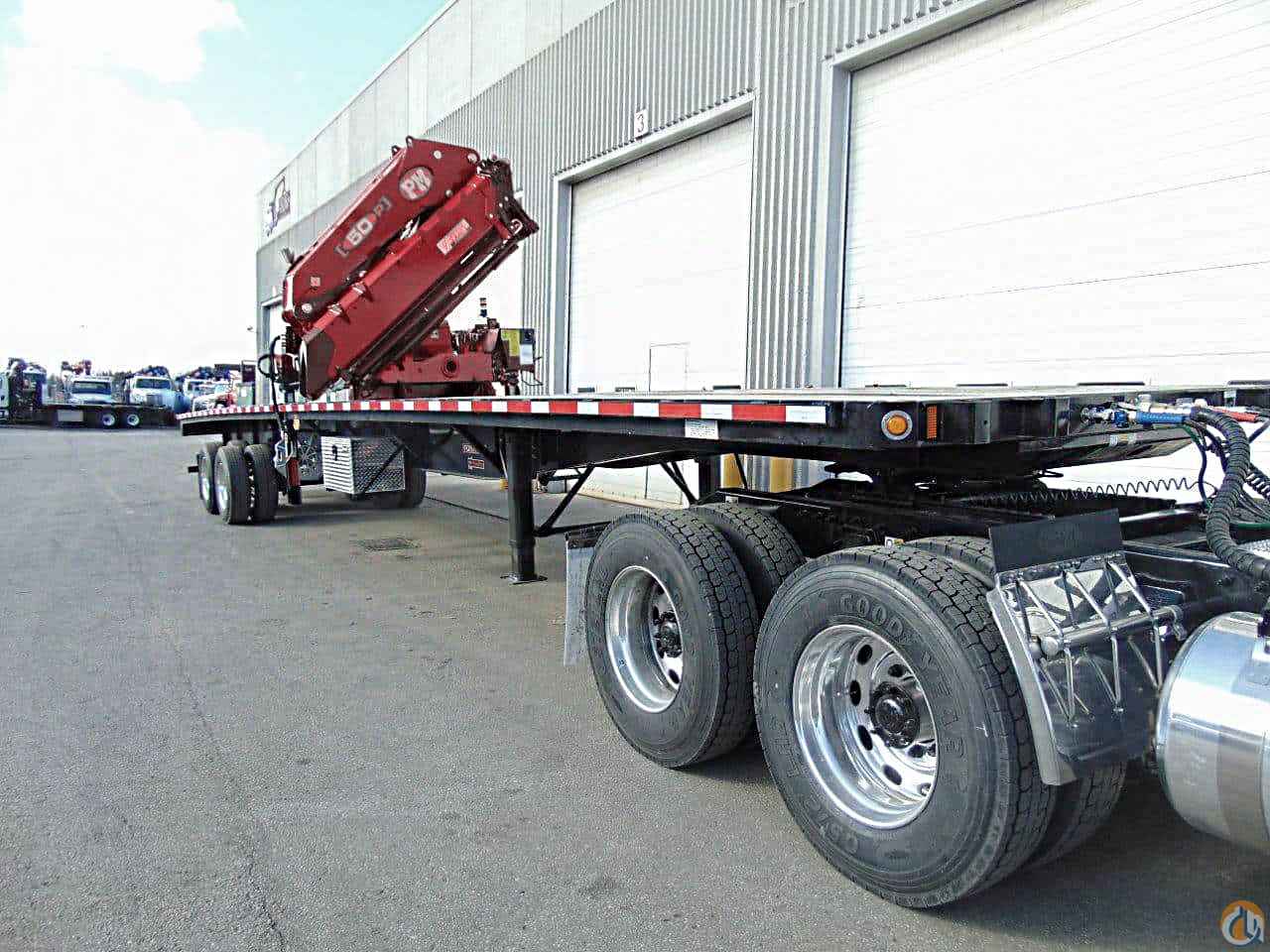

• Mounted Mid-Mount on Trailer, with Hydraulic and Electric Connections for Tractor Wet-Line Operation
• Warranty: 1-Yr. Part & Labor on Entire Boom, 3-Yr. on Structural Components
