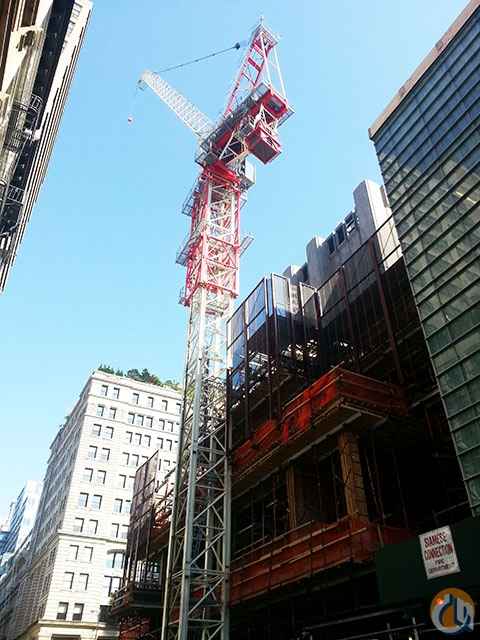

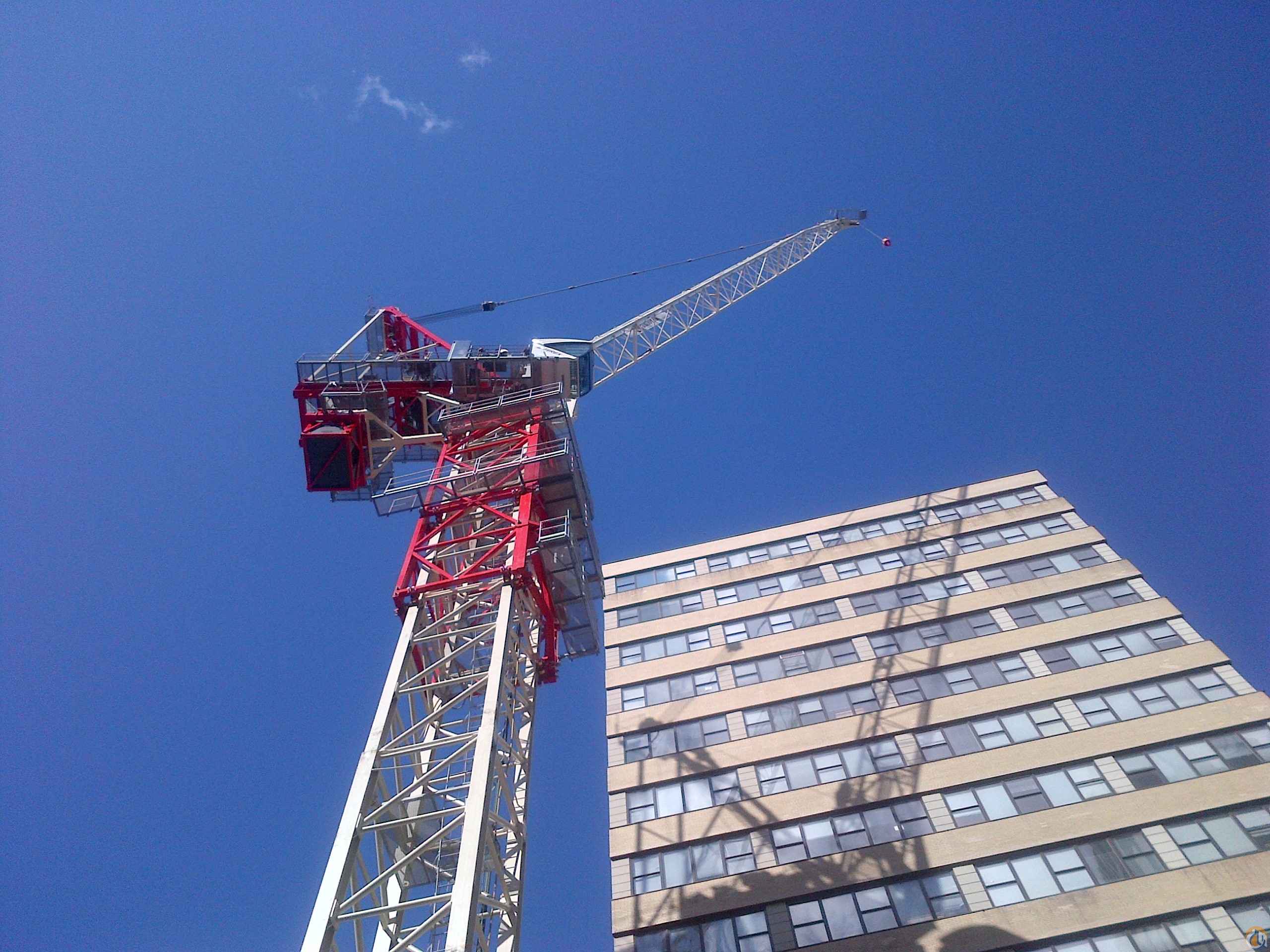

2012 Terex Luffing Tower Crane CTL440-24 HD23

 We thank you for the opportunity to provide you with the detailed specification for a 2012 Terex CTL 440-24 HD23 Luffing Tower Crane.

Basic Technical Data:

• Maximum jib capacity:  60,00 m

• Jib point capacity:  5,20 t

• Maximum capacity:  24,00 t

Hoisting winch 105 AFC 240 Vector with original Lebus drum for 850 m rope

Luffing winch LFC 80 with ORIGINAL LEBUS drum and SVENDBORG emergency brake on the drum Slewing D.C. current type SCC 2 2 132m with progressive speed

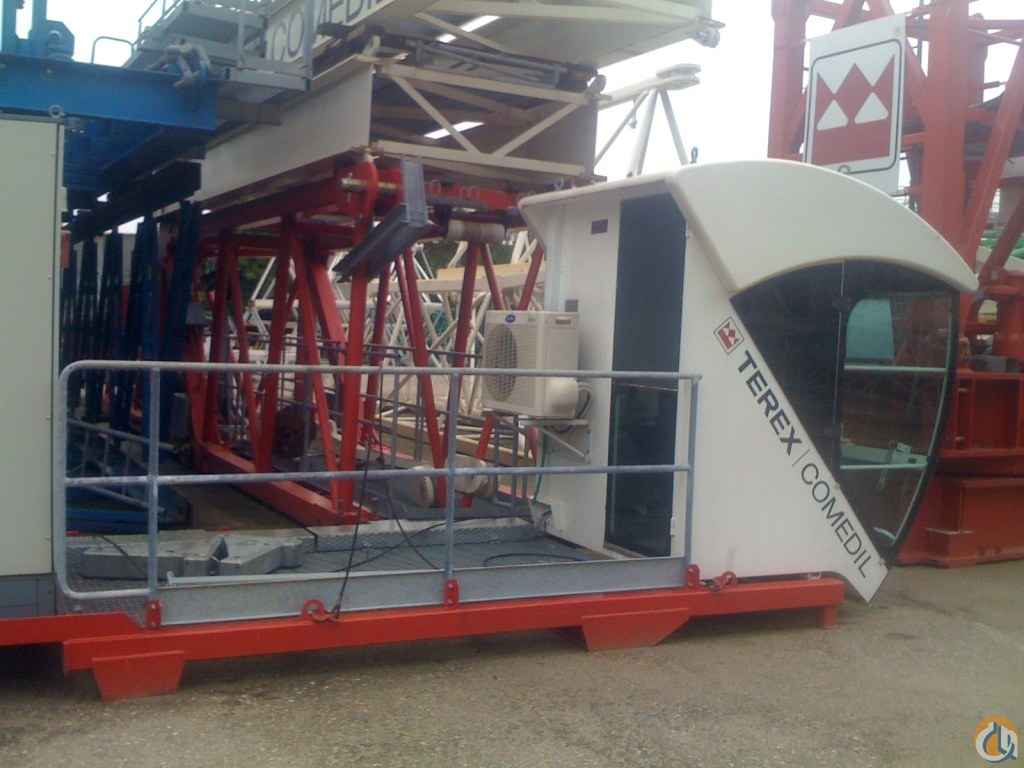

EVO 15/13 849 Panoramic driver’s cabin with heating and lighting, with controls

Air-conditioning in the cabin

PC Panel touch screen

Double anemometer with alarm system (speed and wind direction)

Black box

Ethernet safe UNI EN 14439

Slip ring

Anti-tipping device

Tropicalized inverter IP54

Stainless steel electrical box

Hoist rope and luffing rope

Electrical cables and wire ropes for mast height 60 m

Crane configuration as above (R2) and extras included:

Base Tower height: 42,40 m (tower composition: no. 7 x HD23 22.6)

Additional, three (3) HD23-26.6 towers sections:

Additional, eight (8) HD23-22.6 towers sections:

Jib length: 60 m

Telescopic cage and hydraulic erection unit for mast HD23-A 26.6

Sleepers for HD telescopic cage mounting

Cast-iron counterjib ballast

Service platform for bolt tightening for tower HD 23  1 set of extra wire rope for 300 m tower height (IV falls)

Generator platform

1750ft Electrical Cable – 350 MCM

Cummins Power Generation model DFEJ, rated at 450 kW, 277/480 volt, 3 phase, 4 wire, 60 hertz, 1800 RPM (SEE ATTACHED SPEC.)

Colors: White RAL 1013 and Red RAL 3020

Camera in the cab for video contact with manufacturer

Camera for hoist winch control

Camera on the hook block

Collar One (1) type HD23-22/26 with bolts, wedges and internal bracing.

Collar Eight (8) type HD23-22/TS23 with bolts, wedges and internal bracing.

Description

One (1) 2012 Tower Crane CTL 440-24 HD 23.

Eighteen (18) tower sections, (15) HD 23-22.6 & (3) HD 23-26.6.  Telescopic cage and hydraulic erection unit for mast HD23-A 26.6. Nine (9) Collar sections, (1) HD23-22/26 & (8) HD23-22/TS23.  Generator platform section.

TERMS & CONDITIONS:

• Where is as is.

• Any local or state taxes are additional to the sale prices

• Brokerage fees by purchaser

• F.O.B. Location of Unit – East Coast, USA
• Payment terms: 25% deposit w/ purchase order; remaining balance prior to shipment.
• Unit to be loaded by Seller onto trucks provided by purchaser.
• Equipment availability – ready for pickup.
