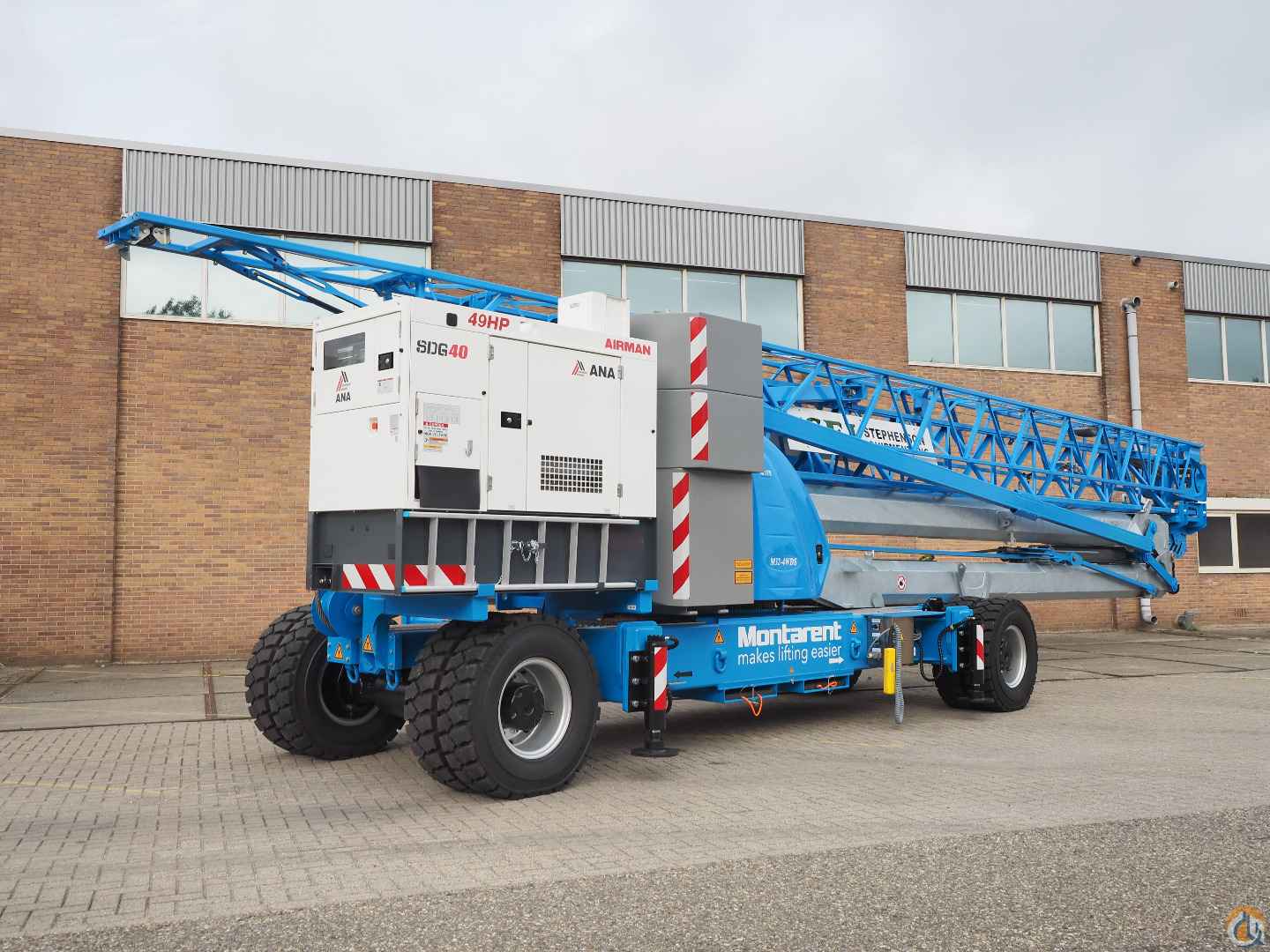

• Potain IGO 32 Self-Erecting Tower Crane Mounted on 4WD/4WS Self-Propelled Undercarriage
• Fast and Easy Set-up
• 8,816 lb. Capacity at 33.1’ Radius
• 2,204 lb. Capacity at 98.4’ Radius
• 93.2’ Height Under Hook
• Radio Remote Operated with tethered backup (crane).
• Driving and steering via tethered control unit with push buttons
• Electro-mechanical four-wheel drive with 2 speeds and four-wheel steer
• Can be driven fully erected (on flat, with no load)
• Heavy duty axles with planetary hub reduction and dual 10.00 x 20 tires with terrain profile
• Four extendable hydraulic outriggers with a base of 13.1 x 13.1 ft

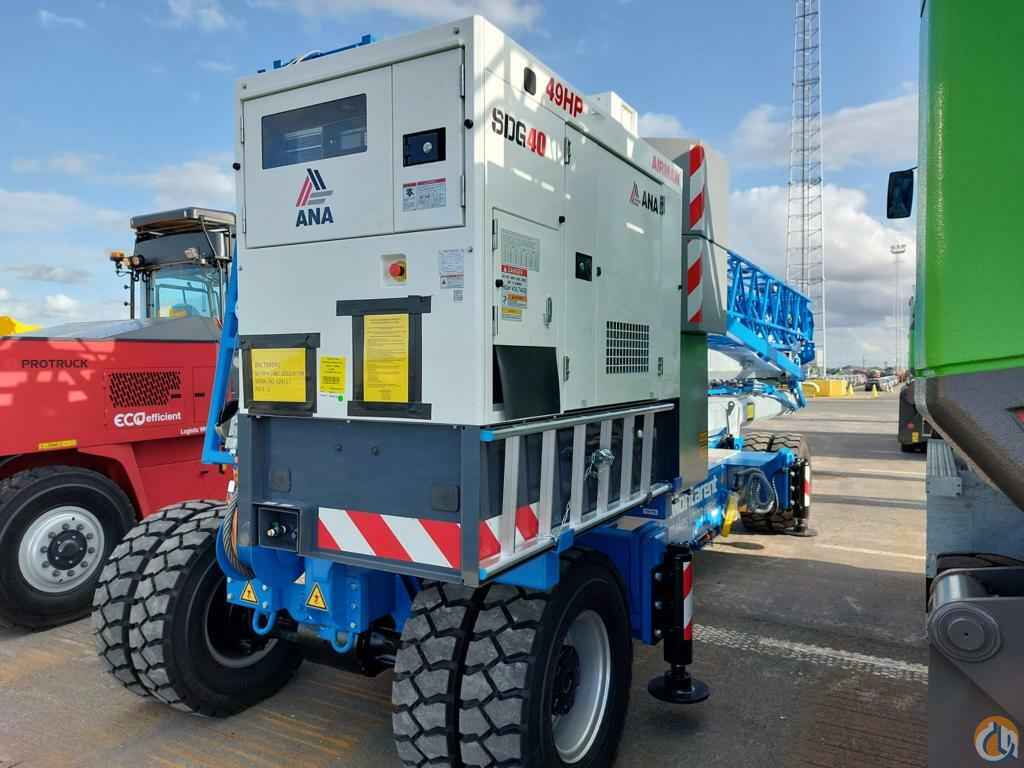

• Power supply: Onboard Airman genset, or use “city power”
• Transport dimensions: (l x w x h) 44.6 x 9.8 x 12.8 ft, total weight approx.79,366 lbs
