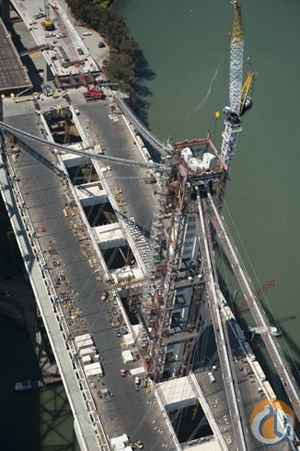

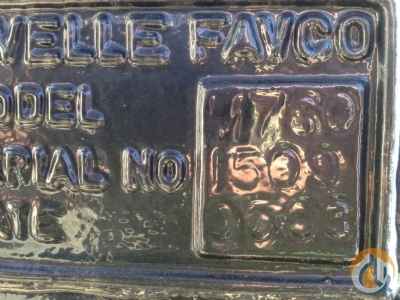

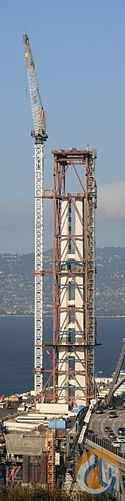

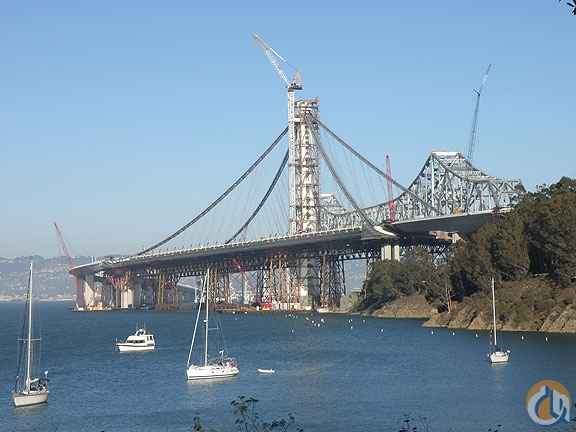

Favelle Favco M760D Luffing Boom Tower Crane
For Sale under private treaty. Serious Enquires only please.
210’ (64 meter) working boom radius.
10.2 ft.(3.10 meter) fly jib / mounts to boom tip @ 30 degree offset.

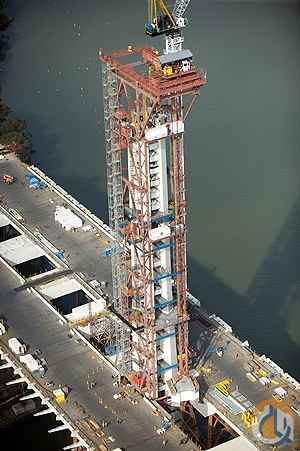

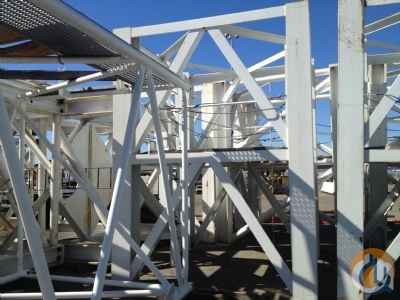

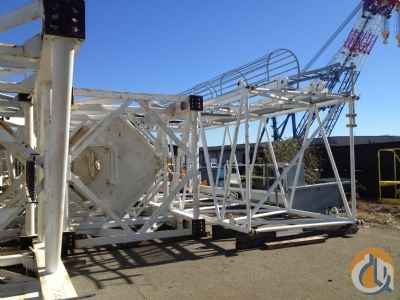

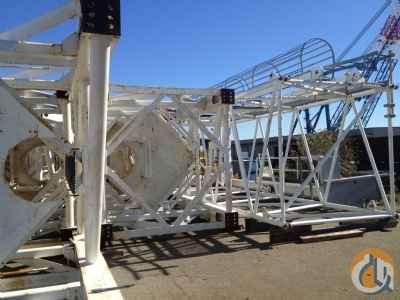

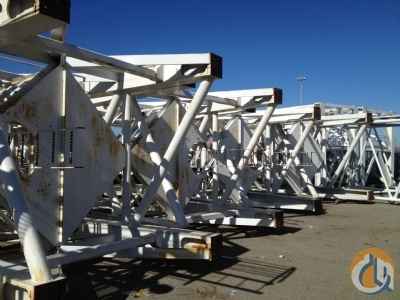

354’ (108 meter) of total tower configured as follows:
13 ea. Modified Type 763.
14 ea. Modified Reinforced Type 763.
1 ea. Modified 763 Starter Leg.
Type 763 Climber system including monorail assembly with trolley & beam.

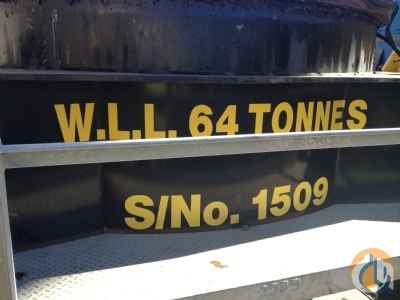

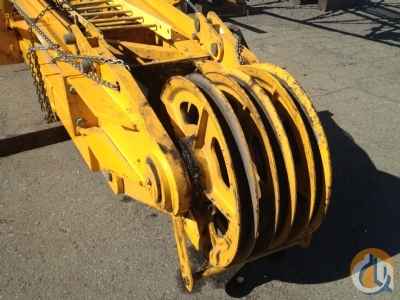

Main Hoist Line pull of 32 Metric ton (70,550 lbs.) @ 36.2 meter x minute (119 fpm) 42 mm wire rope 64t (141,000 lbs.) double fall hook.
Auxiliary hoist Line pull of 12 Metric ton (26,445 lbs) @ 94.4 meter x minute (310 fpm) 32 mm wire rope, Swivel Block.
Multiple variable displacement hydraulic pumps dedicated to Luff, Slew, Hoist,& Climbing.
Luffing Drum fitted with a pawl & rack system, which engages whenever the crane is shut down.

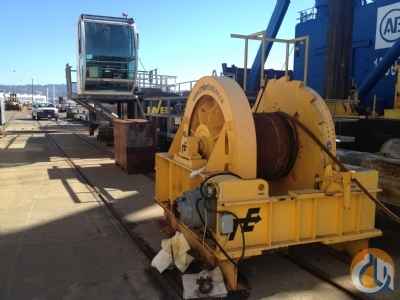

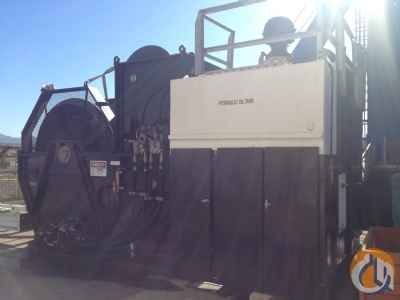

Winches driven by fixed or variable displacement hydraulic motors. Multiple drives are used on each drum, providing multiple brakes on each winch.

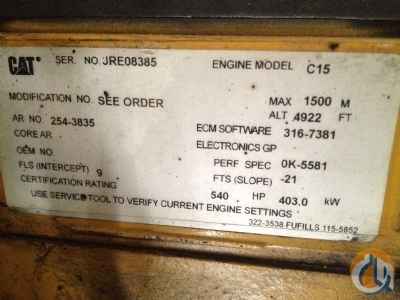

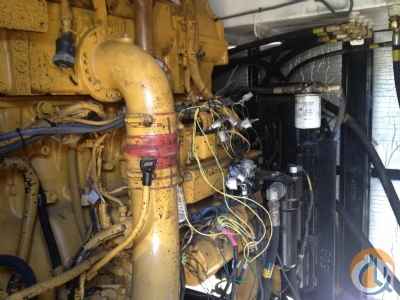

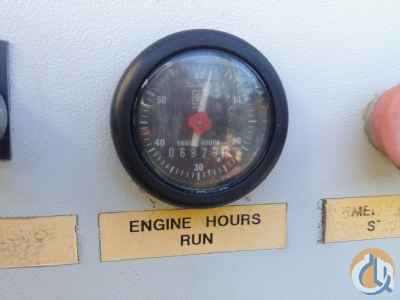

Caterpillar C-15, 515 h.p. tier III diesel engine. Power system monitor.

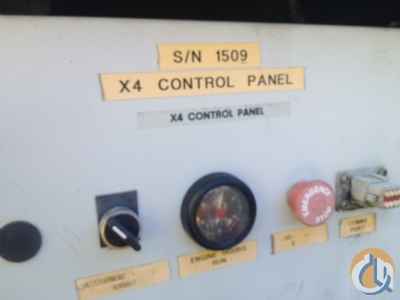

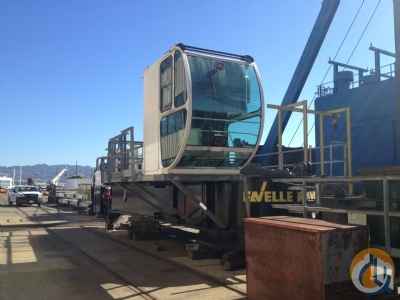

CANBUS Crane Control System; Ergonomically designed Cabin fitted with suspension seat, air conditioning & heater, tinted glass, insulation for sound and heat.

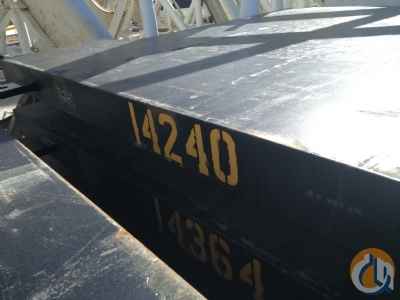

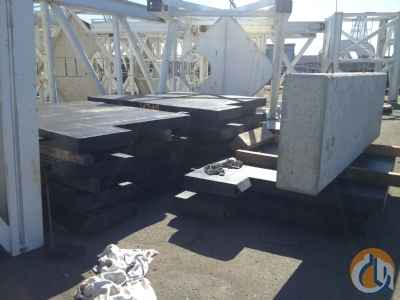

Tie Backs, 65 metric ton (71.65 US Ton) counterweight, Tacking Gear, Track & Swivel Block, Bolts and Hardware.
SOLD
