80 ton capacity
126 foot full power boom, four section, with quick reeve boom head
33-57 foot offsetable jib
Main hoist with rotation resistant wire rope and 3rd wrap indicator
Aux hoist with rotation resistant wire rope and 3rd wrap indicator
Two speed hoists main and aux, with grooved drums
Single PTO driven pump. ( two pump system 1 piston 1 gear)

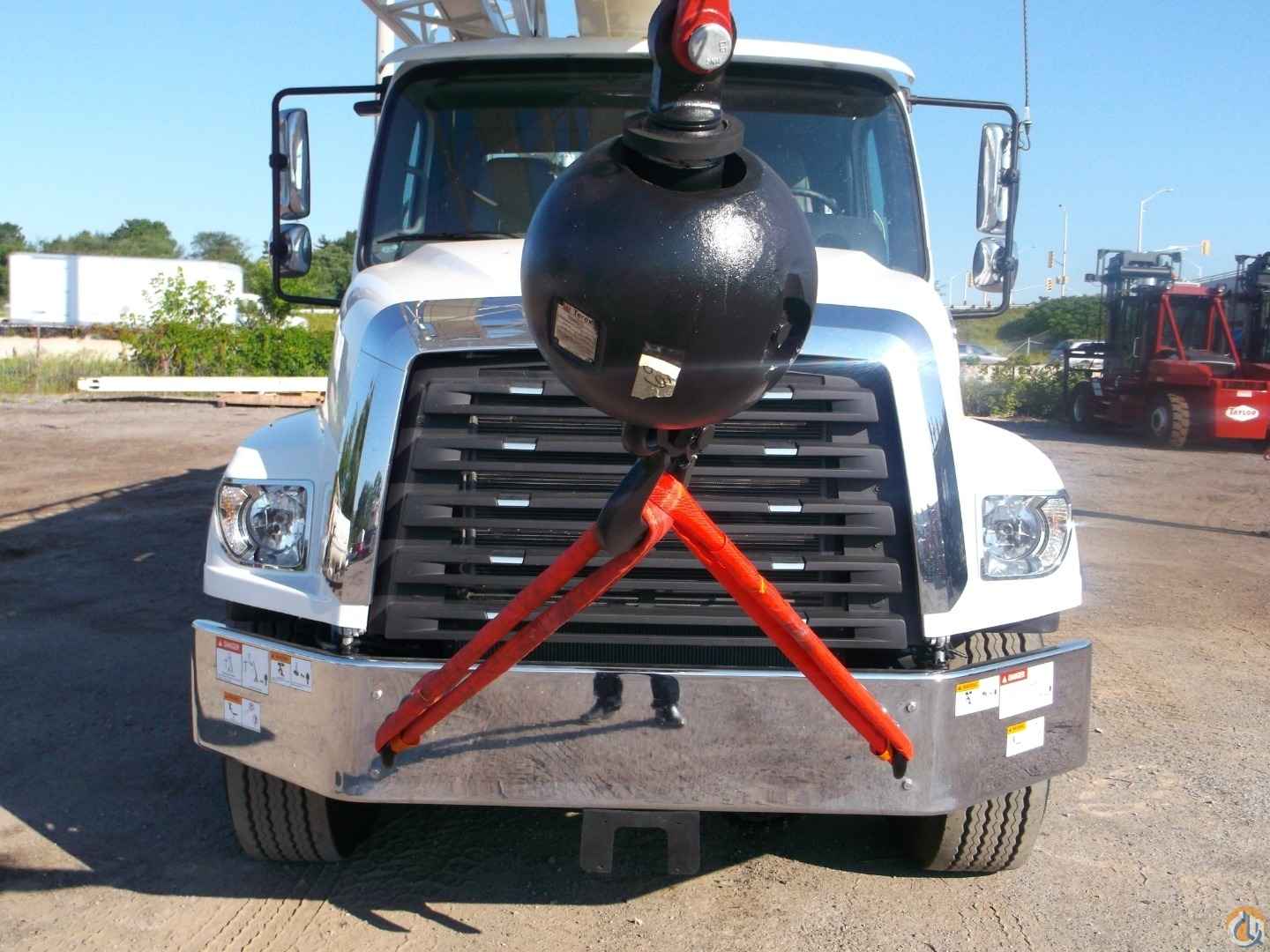

50 Ton three sheave hook block, Headache ball
Deluxe operators cab with full hydraulic tilt 0-18 degrees
Rated capacity limiter with anti two block
Joystick controls with electric pulse indicators for winch
Foot control pedals for swing brake and throttle, Engine display
Air conditioning and flameless heater, Working light package 3 adjustable
12,000lb full counterweight, including hydraulic counterweight removal system (Plus 3000 lbs. fixed ctw)
X pattern hydraulic swing out and telescope 3 position outriggers
360 degree load chart, Front outrigger not required
2595 Hours as of Jan 2019
Mounted on a used 2016 Freightliner 114SD
DD13 - 12.8 Litre 450 HP Engine
40,000 lbs. tandem front axle
69,000 lbs. rear tridem
Dual 100 gallon fuel tanks
Tires 44565R22.5 Front
Tries 12R22.5 Rear
48000 kms as of Jan 2019
