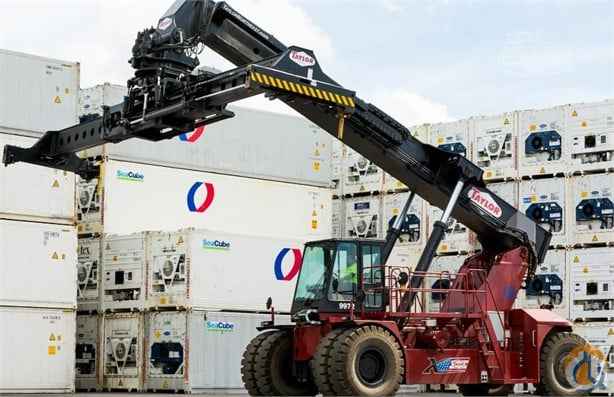

STANDARD FEATURES: XRS-9972 Telescopic Boom for stacking 5-High 1st row, 4-High 2nd row and 3-High 3rd row (9-ft 6-in Loaded) 20-40 ISO Container Handling Attachment, with rotation, side shift, expansion/retraction and damping Accumulator in Lift Circuit Volvo 12.8L TAD1371VE 388-HP Tier 4-Final Diesel (Turbocharged) Fuel/Water separator Donaldson dry-type air cleaner w/safety element & restriction indicator (with TaylorMax Precleaner) Dana TE-30 5-speed powershift transmission Powertrain protection system for engine and transmission Kessler D-102W HD planetary drive axle with wet disc brakes Taylor 800 welded steel steer axle with stud protectors (single hydraulic cylinder design with heavy-duty links from the cylinder ram directly to tapered roller bearing mounted spindles) CHASSIS All-welded steel frame with 4 lifting eyes (lifting eyes not designed for level pick) Bolted counterweight Replaceable bolt-on steps and handrails Lockable Fuel Cap Removable deck plates open to expose drive train for ease of maintenance CAB Climate Controlled sliding (hydraulic/electric) all-welded steel center mount cab (includes right hand and left hand access doors with rear exit window and dome light) 66,000 BTU total heating with front and rear defrosting, cab pressurizer and fresh air intake 40,000 BTU air conditioning and two circulation fans Exterior Cab Positioning Switch allows the cab to be moved while the machine is powered down Tinted glass with front, rear, and top windshield wipers Front and Top windshield washer Fully adjustable air ride swivel seat with 35° of rotation (15°/20° left-right) Multifunction joystick, with integrated directional shift control, mounted on adjustable arm rest Operator Restraint System (Orange, anti-cinch seat belt with starting sequence neutral lock) Operator Presence System with timed idle and neutral shutdown (5 minute default, password adjustable from 1-120 minutes by end user) Taylor Integrated Control System (TICS) …see next page for additional info TaylorTrak Pro - Advanced Fleet Telematics hardware 7-in touch screen color display Rear visibility aid camera system The 2-piece flip-down instrument panel is pre-wired to accommodate heavy-duty accessories. All wiring is color and number coded. Dual USB charging ports Hydrostatic, steer-on-demand power steering with tilt steering column ELECTRICAL 24-volt electrical system with 110 amp alternator Dual heavy-duty batteries Dual Battery disconnect/lock-out switch 2 Sets of Amber/Green/Red Twistlock operation signal lights (mounted in cab and on boom) (4) Chassis mounted LED work lights (4) Boom mounted LED work lights (2) Dedicated Twistlock LED work lights (2) LED step lights Stop-Tail-Turn Lights Circuit breakers with heavy duty connectors (no automotive type fuses) Breaker reset switches Keyswitch-actuated push button start Air Horn with 2-gal air tank (126 dBA) Keyswitch-actuated amber strobe light Forward and reverse-actuated warning alarms
