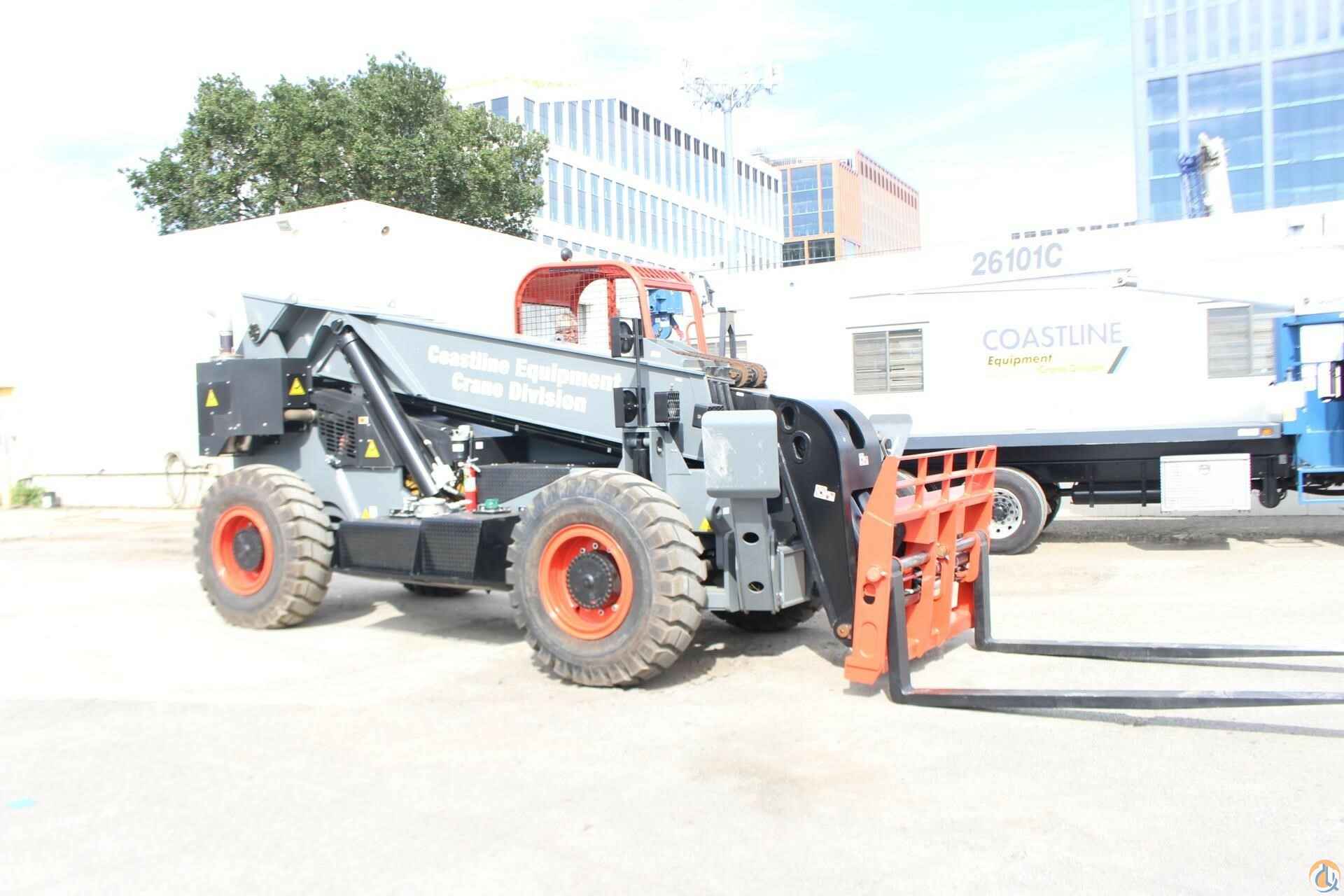

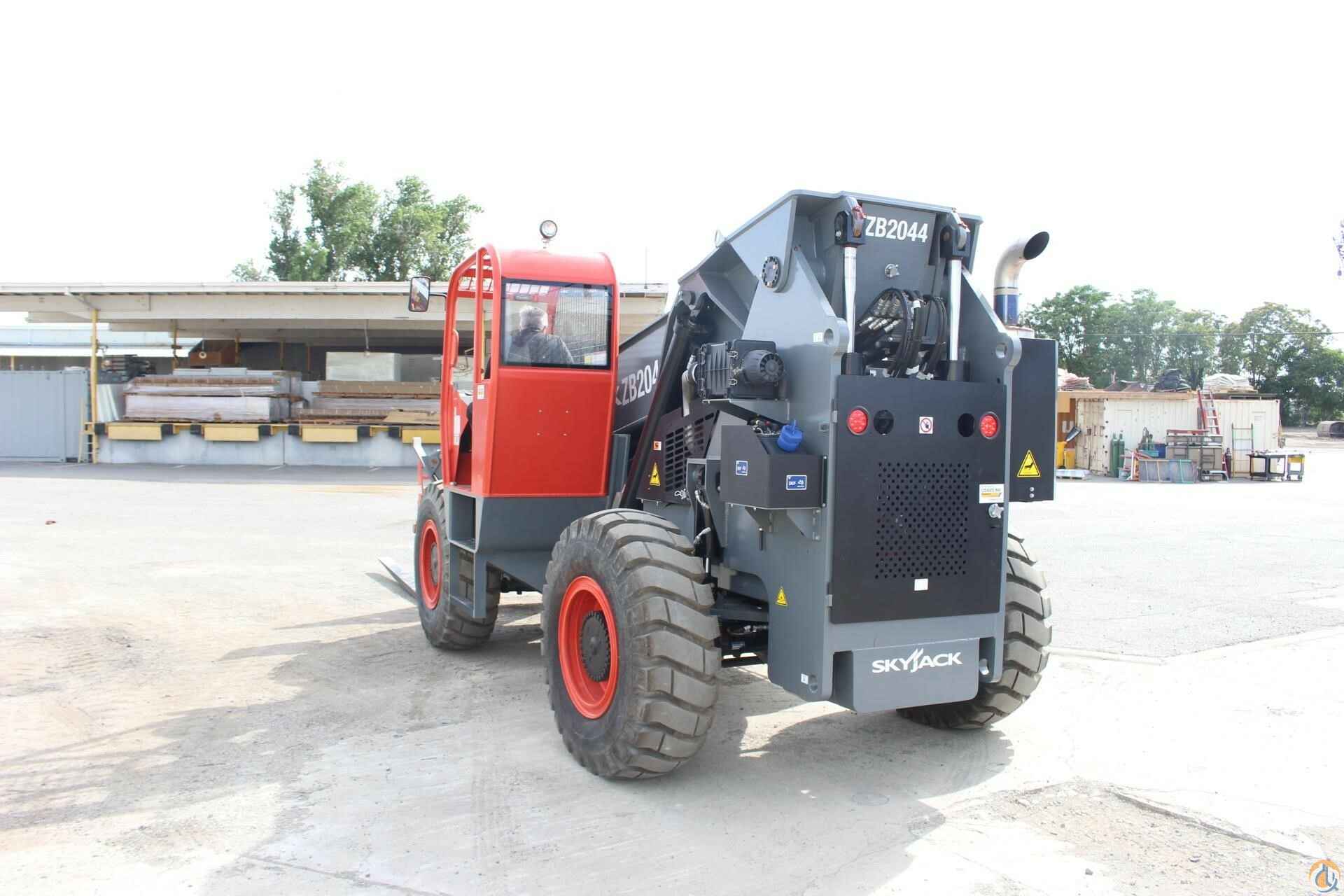

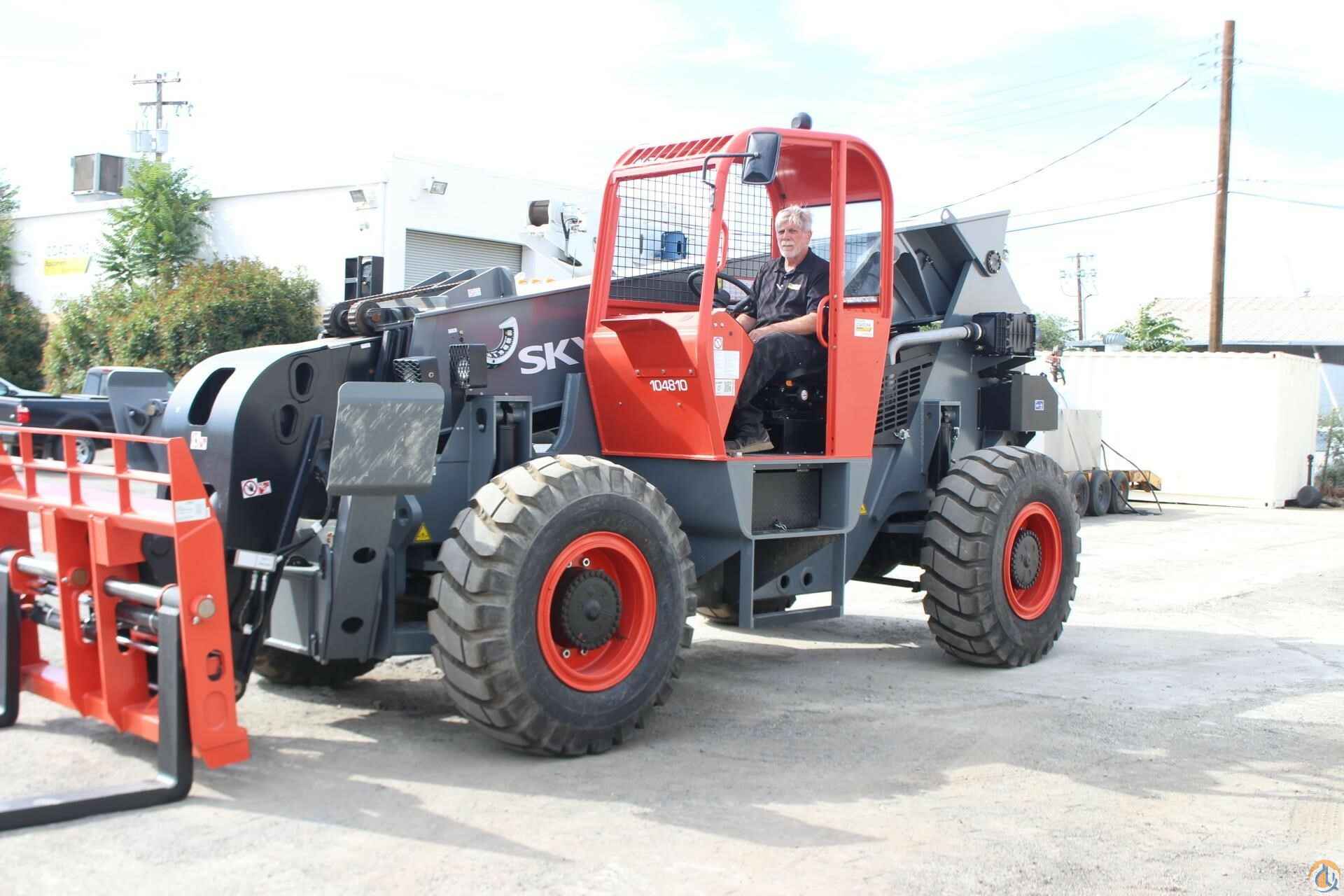

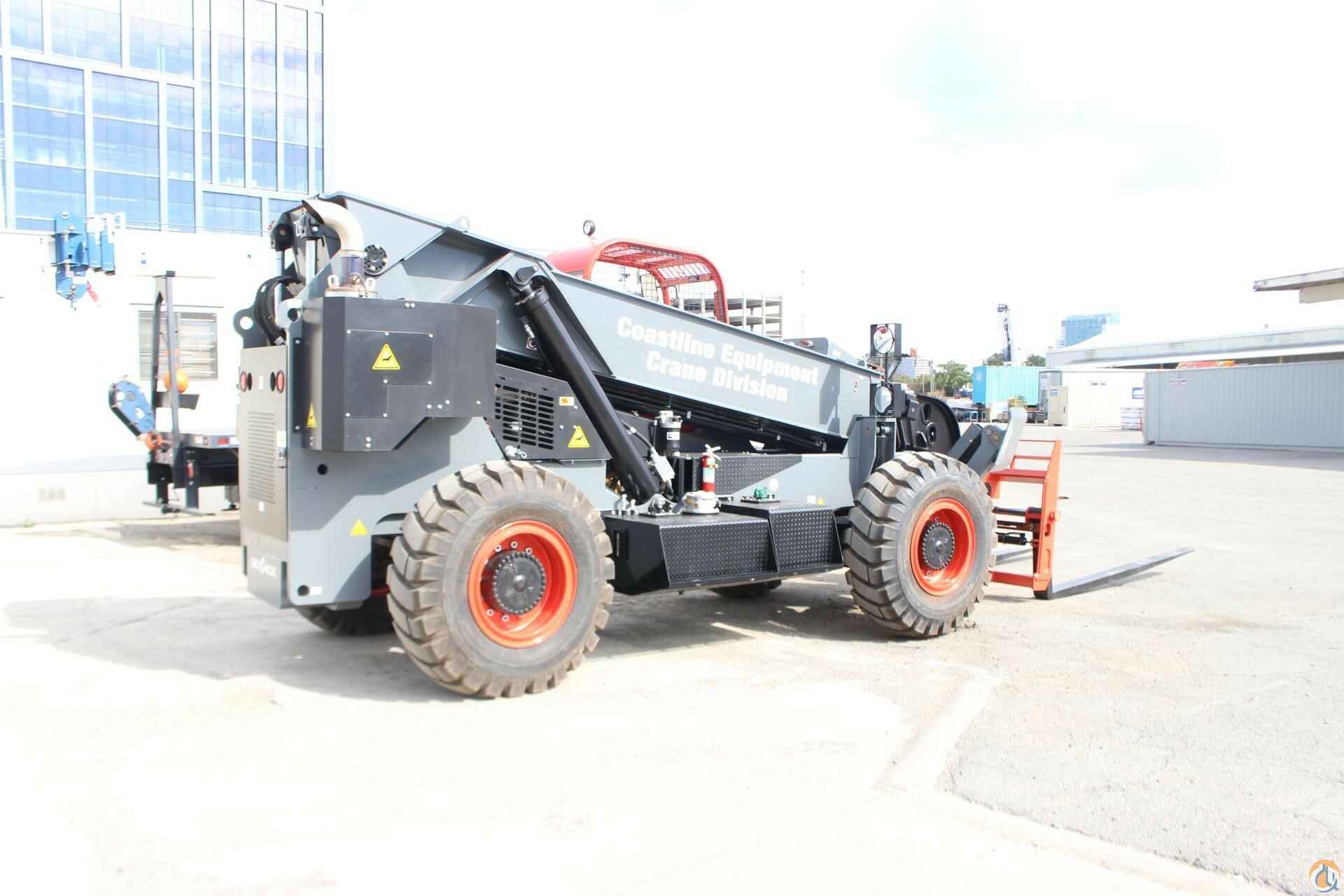

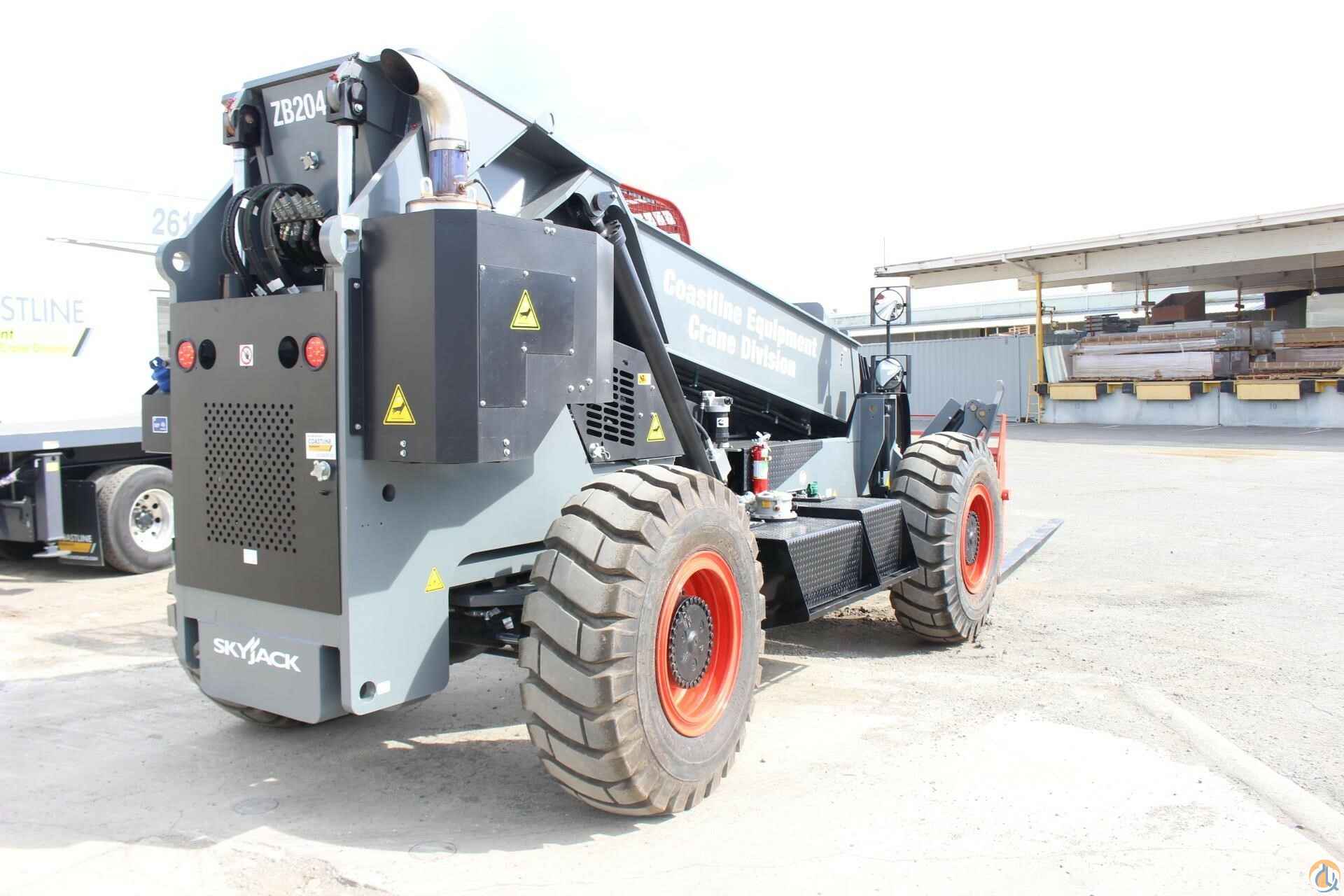

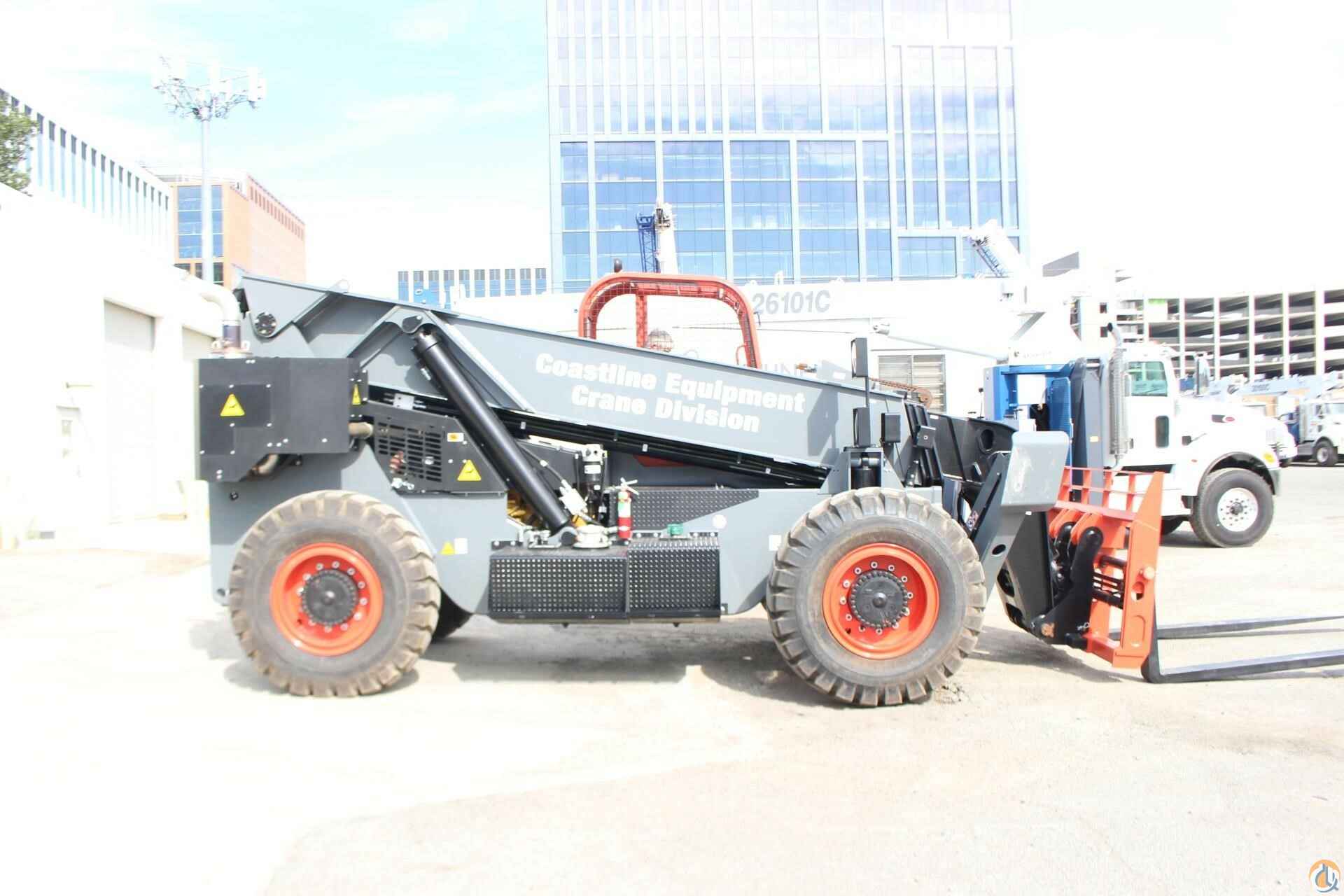

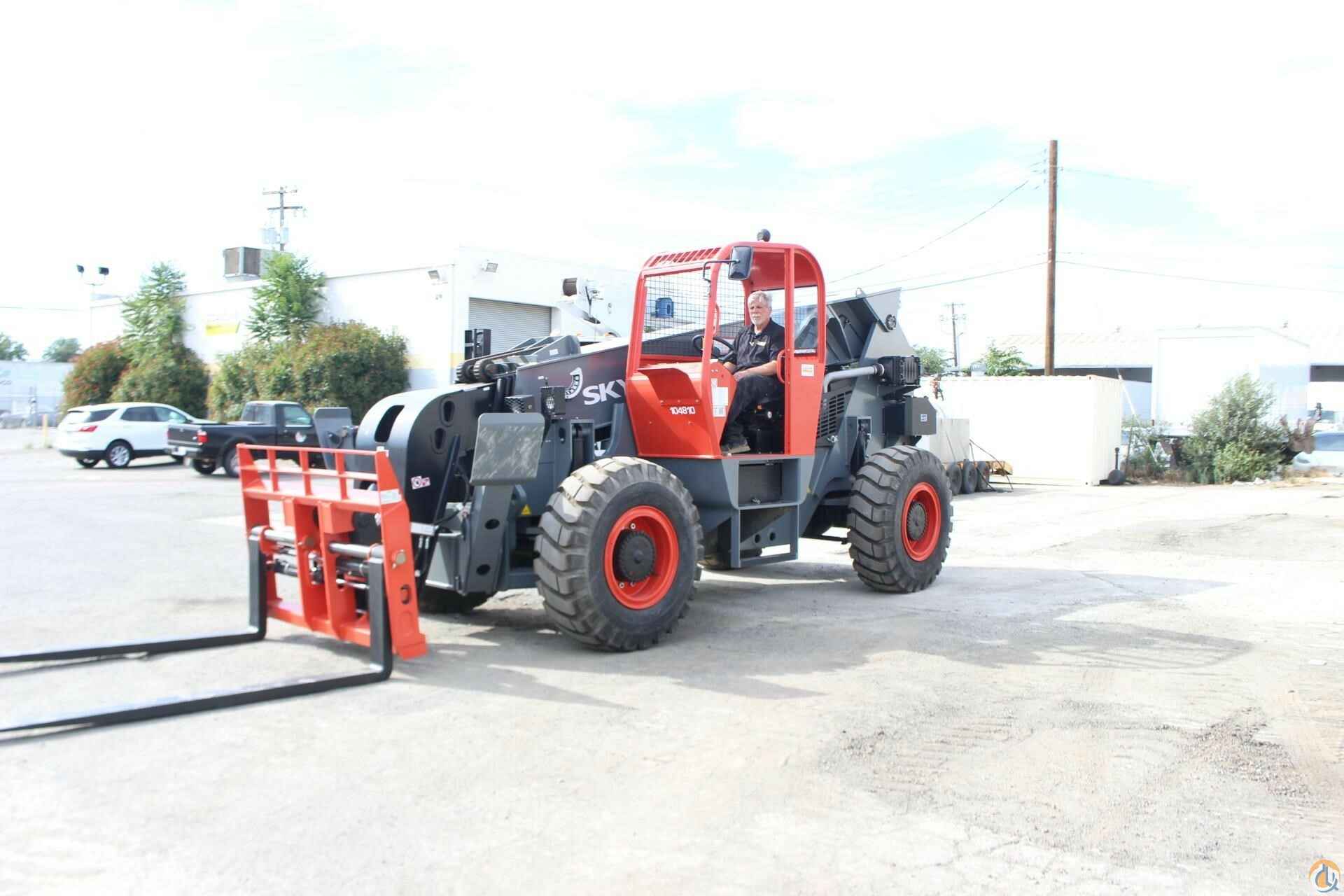

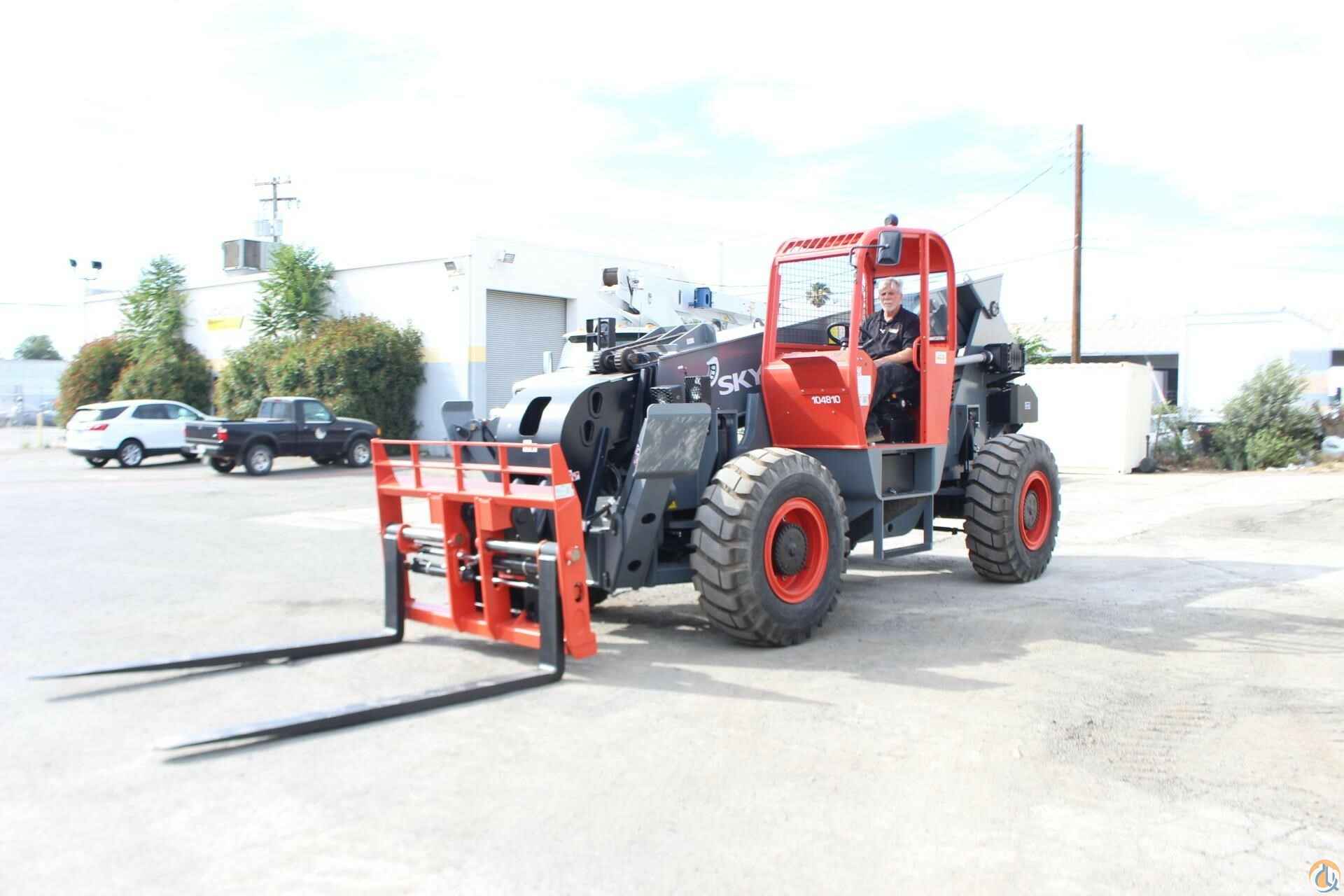

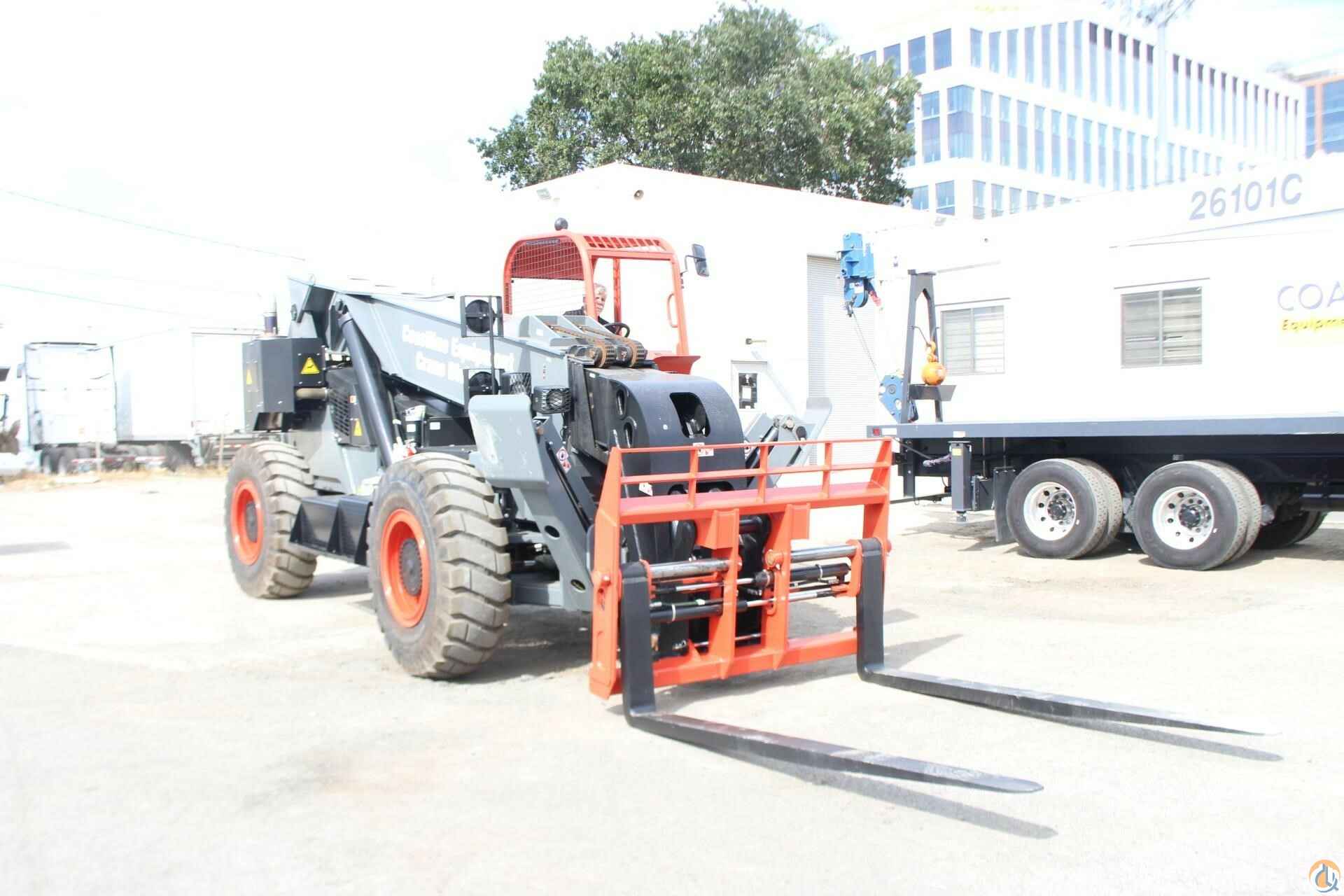

2022 Skyjack ZB2044
Standard features:
• Outriggers
• Rear Axle “Stable-Lock” cylinder with backup accumulator
• Standard quick attach carriage mount system
• Auxiliary hydraulic for boom attachments
• Dual Lift Cylinders
• High pivot boom mount design
• Rear window and side screen
• Lockable under cab storage compartment/step
• Adjustable suspension seat with seat belt
• Dual joystick pilot operated controls for boom and frame level functions
• Tilt adjustable joystick console
• Gauge instrumentation
• Electronic power view engine monitor/gauge
• Lockable steel swing up engine doors
• Dual batteries
• Independent front/rear brake systems
• Dual brake accumulators for dead engine braking
• Brake activated transmission disconnect
• 55 gallon steel hydraulic tank
• 49 gallon steel fuel tank
• Mirrors, right and left side
• Remote grease fittings for axle trunnion mount lubrication
• Easy to move steel component and access covers
Key Features:
• 20,000 lbs. Maximum Lift Capacity
• 44’10” Maximum Lift Height
• 12,000 lbs. Capacity @ Maximum Lift Height
• 27’5” Maximum Forward Reach
• 7,000 lbs. Capacity @ Maximum Reach
• 3 Mode Steering
• 72” floating pin carriage with 60” pallet forks, 22,000 lbs. capacity
Additional Options Included:
• Lighting kit with guard
• Extra operating Light with Guard
• Boom mounted operating lights
• Standard open cab
• 2.75 x 6 x 96 Forks
• Foam Filled Tires
• 72 Dual Hydraulic Fork Positioner
• 8’ fork extensions
Engine: Cummins QSB 4.5C turbocharged and charge air cooled diesel, 168 HP.
Transmission: Dana powershift, 3 speed forward and 3 speed reverse. Top speed 20.5 mph
