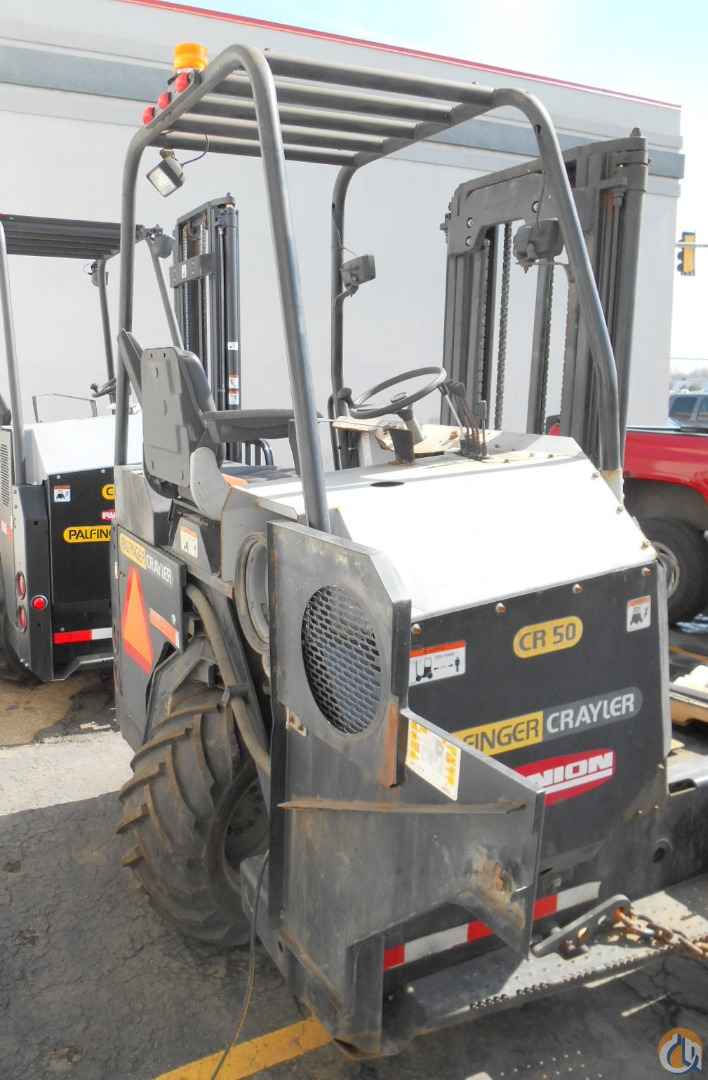

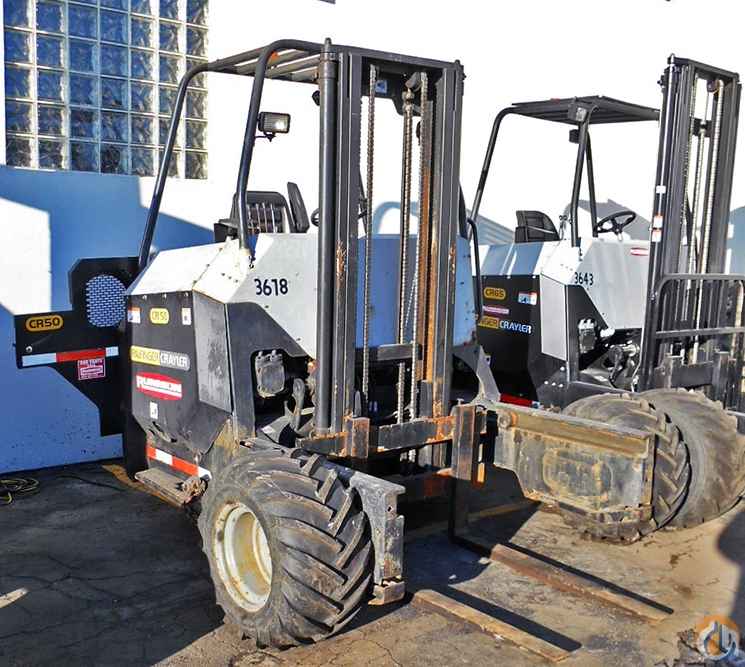

Palfinger Crayler Model CR-50 Truck-Mounted Forklift
- 5,000 lb. load capacity at 24”
- Deutz Model 4FL1011 64 horsepower diesel, air-cooled, four cylinder engine
- with block heater (most powerful engine available in a truck-mounted forklift)
- Protected hydraulic stabilizer pads – will not contact chassis or trailer tires
- Full-time three-wheel drive, hydrostatic drive system with “anti-stall” drive
- pump. Additional option included is push button activated trac-loc system
- which locks hydraulic fluid flow evenly to each wheel
- Three separate hydraulic oil pumps for greater efficiency and power
- Fork type – Class II 48” long X 4” wide X 2” thick pallet forks (2 qty)
- Load back rest included on ITA type fork carriage
- Eight degree forward and backward mast tilt
- Eight inch total of mast side shift
- 146” (12’-2”) mast lift height
- 53” rear overhang on truck mount application (shortest in industry)
- 12” ground clearance when truck mounted
- One strobe light and three work lights
- D.O.T. required tail, brake, and reverse chassis lights installed

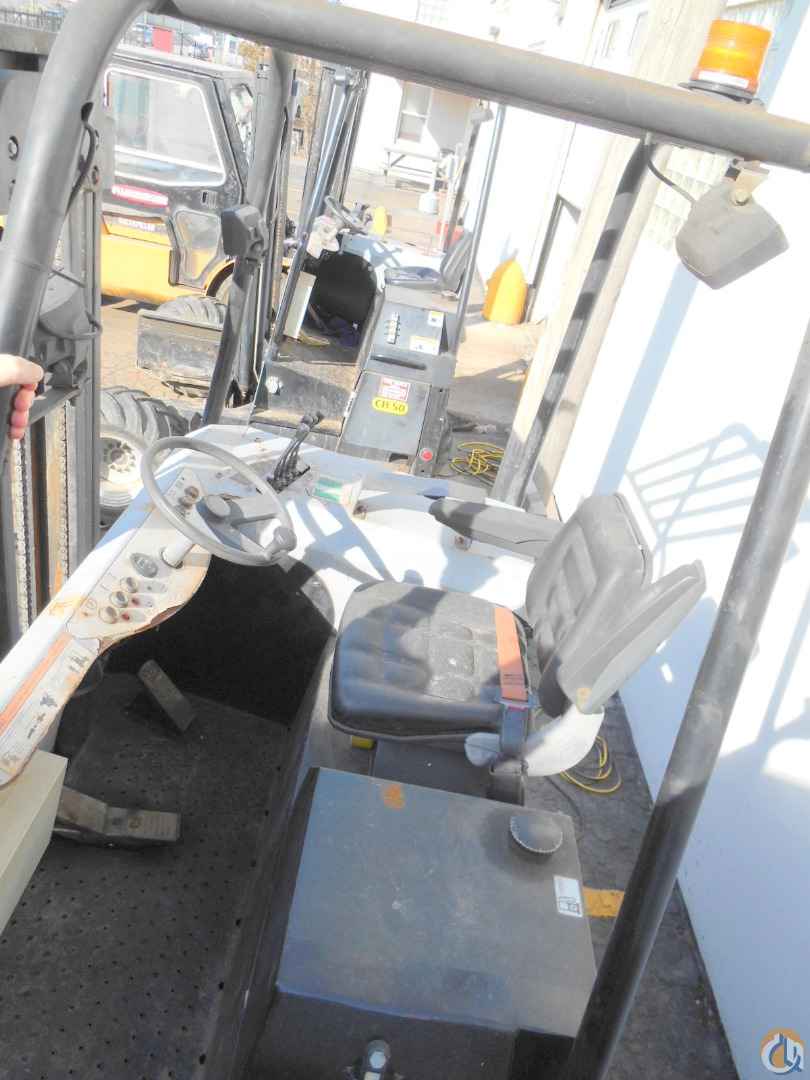

- ROPS roll cage with operators weather shield and seat belt
- Truck attachment chains included
- I.C.C. lighting connection cord assembly
- Back-up alarm, document holder, and tool box all standard equipment
- New tires! Tire size (all) - 31” X 15.5” X 15”
- Machine painted black with gray trim standard
