360 degree Continuous Rotation
Max Lift Height: 96' 8"
Capacity at Max Height: 3,300 lbs
Max Forward Reach: 83' 6"
Capacity at Max Forward Reach: 880 lbs
Approximate Weight: 42,320 lbs
Dimensions: 24' 8"l x 8' 2"w x 10' 2"h
Ground Clearance: 14"
Turning Radius: 22' w/ forks
4 WD, 3 Steering Modes
170 HP Diesel
2 Speed/Hydrostatic Transmission
25 mph Max Speed

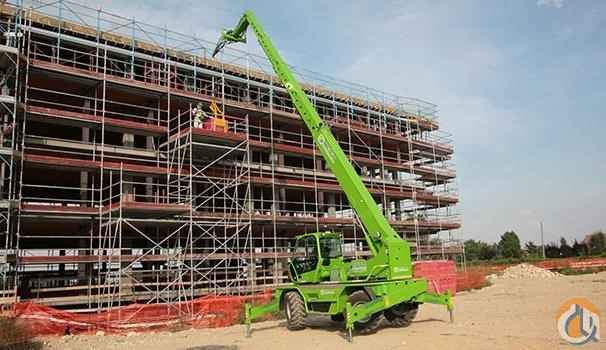

Outriggers with independent extension and jacking
MCSS - Adjusts automatically to the load diagram to suit the outrigger position
Hydropneumatic Suspension
Load sensing hydraulic pump
Available with numerous attachments such as forks, buckets, man baskets, radio remote, jibs with and without winches.
