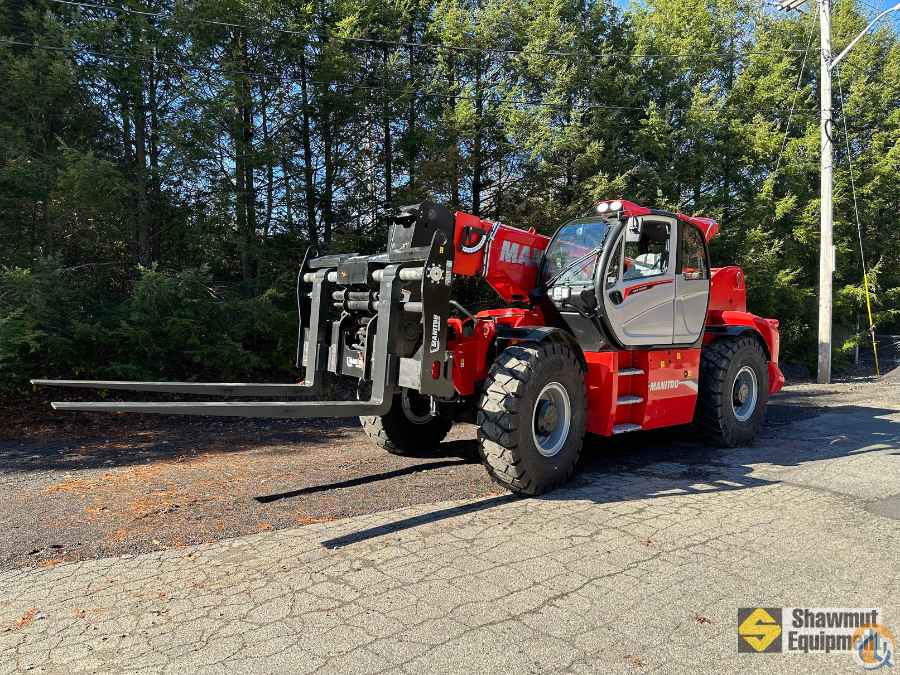

*Stock photo
2024 Manitou MHT10200, S/N: MAN00000E01103490 44,000 LBS Capacity Rough Terrain Telescopic Handler
KEY SPECIFICATIONS
- Capacity: 44,000 lbs. (20,000 kg)
- Lift Height: 31 ft. (9.7m)
- Machine Width: 8 ft. 3 in. (2.52m)
- Machine Height: 9 ft. 9 in. (2.97m)
- Length to FF 22 ft. (6.7m)
- Machine Weight 59,194 lbs. (26,850 kg)
BOOM
2-Section Telescopic Boom
Dual Boom Tip Auxiliary Hydraulic Circuit
ELECTRICAL SYSTEM
Battery Disconnect
Lights - Complete LED Road Light Package
Light - LED Work Front & Rear
LED Flashing Beacon
DRIVETRAIN / CHASSIS
211 HP Yanmar Turbo Diesel Engine
2 Forward-2 Reverse Hydrostatic Transmission
3 Mode Hydraulic Steering
Engine Block Heater
DRIVETRAIN / CHASSIS (CONT.)
Heavy Duty Battery
16.00 R25 Tires
Frame Leveling (10/10 degrees) and Tow Pin
OPERATORS AREA
Fully Enclosed Cab with Heater/ Defroster
Cab Wipers - Front, Rear and Roof
Air Conditioning
Backup Alarm
Deluxe Suspension Seat
JSM® Joystick Controls
Three Camera Video System - back, side, boom tip
Adjustable & Telescopic Steering Column
8-inch Digital Display
Sunshade - windshield and roof
INCLUDED EQUIPMENT
- Work Lights – Two Mounted on Boom
- Shaft Type Carriage, SS FP - 98 in. (2500 mm) Wide w/ 3.75 in. x - 8 in. x 94 in. (95 x 200 x 2400 mm) Forks /Rated 33,000 lbs. (15,000 kg)
- Jib w/ 3 Hooks (JH 20000), Capacity - 44,000 lbs. (20,000 kg)
