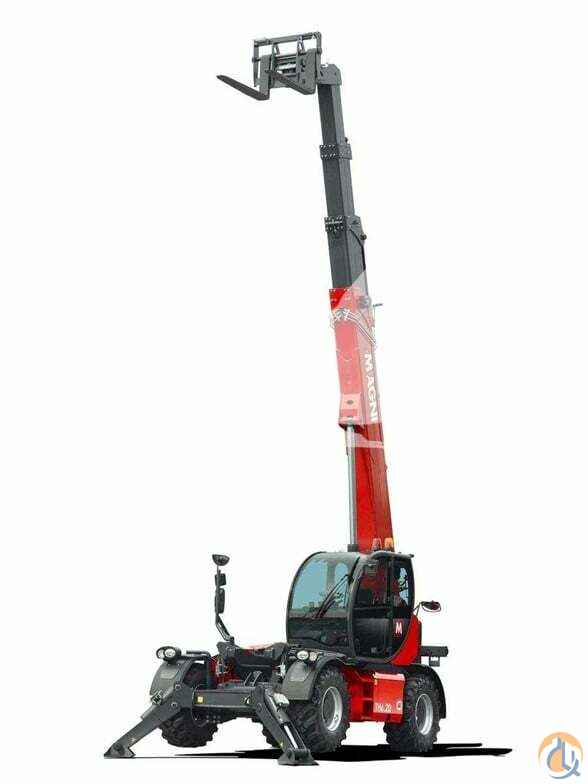

Telehandlers Maximum lifting capacity: 6,000.00 kg Capacity at maximum height: 2,300.00 kg Maximum lifting height: 19.20 m Maximum reach: 14.60 m Engine: Deutz TCD 3.6 L4 - stage IV Rated power: 100 kW - 134 cv Gear box: '2/2 Hydraulic circuit: Load Sensing 350 bar Length: 6.50 mm Width: 2.50 mm Ground clearance: 5.30 mm Weight unladen: 14,500.00 kg Max. travel speed: 40.00 km/h Rotation: No Standard air conditioning: yes Automatic attachment recognition: yes The TH 6.20 model is a telescopic handler designed for challenging construction sites. It safely reaches a height of 20 m on rough terrain, thanks to its self-levelling system (which can be enabled both on its wheels or on the stabilizers) and four drive wheels. Its hydrostatic transmission provides precision and agility. It is compatible with a vast range of accessories and fitted with an RFID system that automatically recognises accessories, creating the related working load diagrams accordingly. It is fitted with a side shift function, allowing the rear section of the frame (and with it the telescopic boom) to move in a direction perpendicular to the machine's longitudinal axis. This allows the operator to adjust the position of the load without having to move the vehicle. This is an important advantage in that it allows for a shift of +/- 5°, which means the boom can move independently by +/- 1.5 m, regardless of the accessory in use. As this model is compliant with EN13000, it can be equipped with a winch, thus can be used to work with suspended loads. Telehandler
