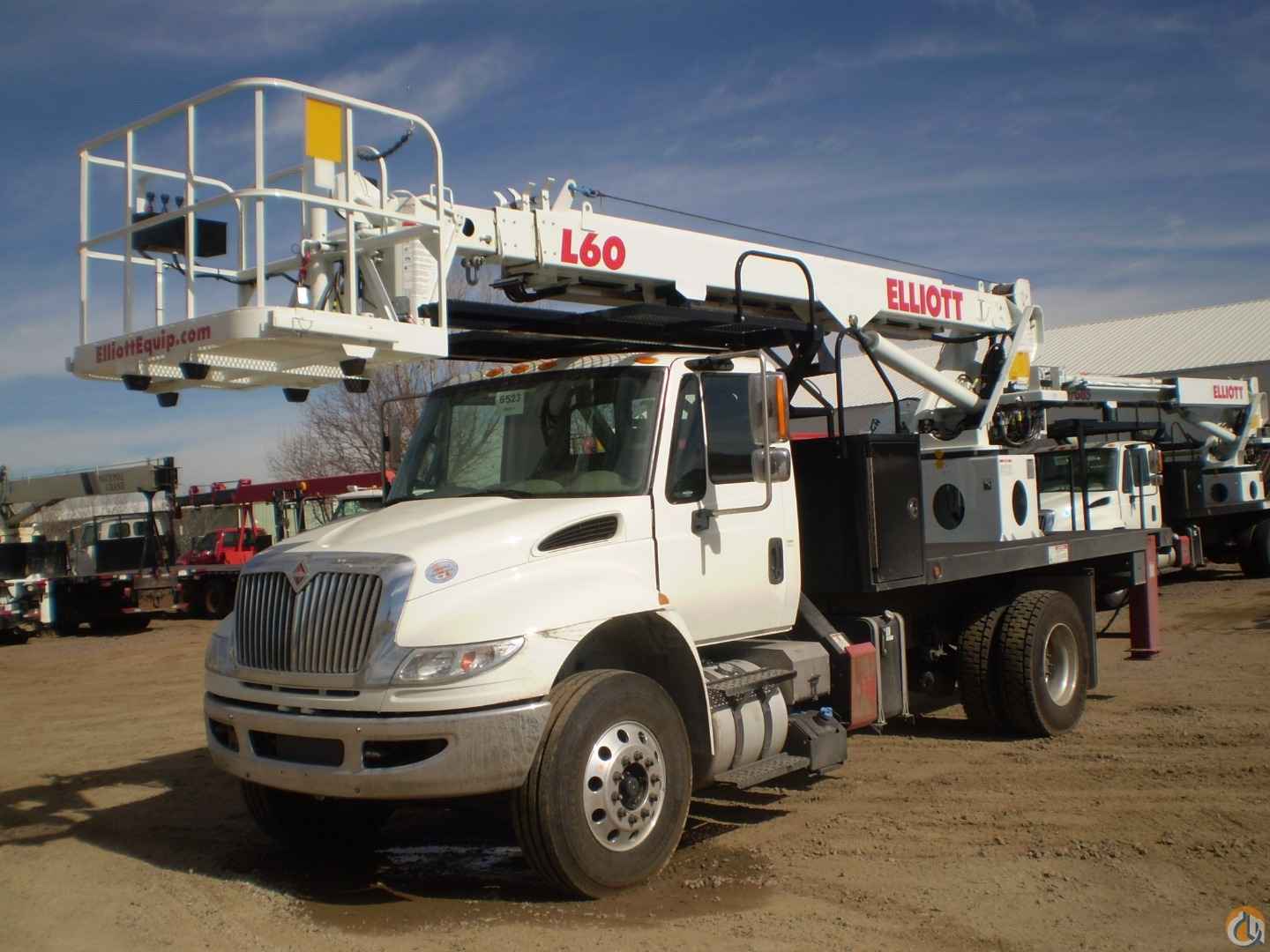

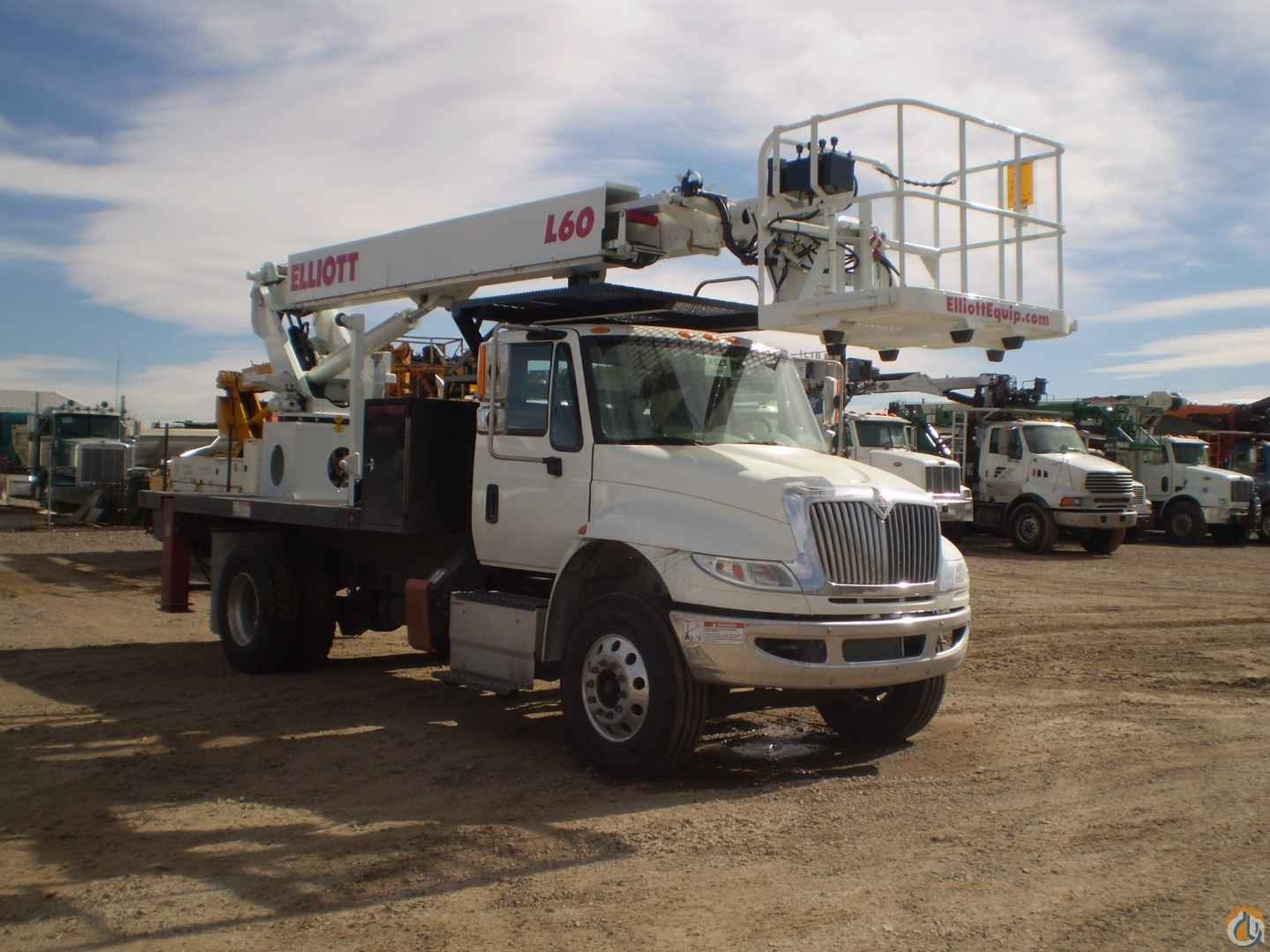

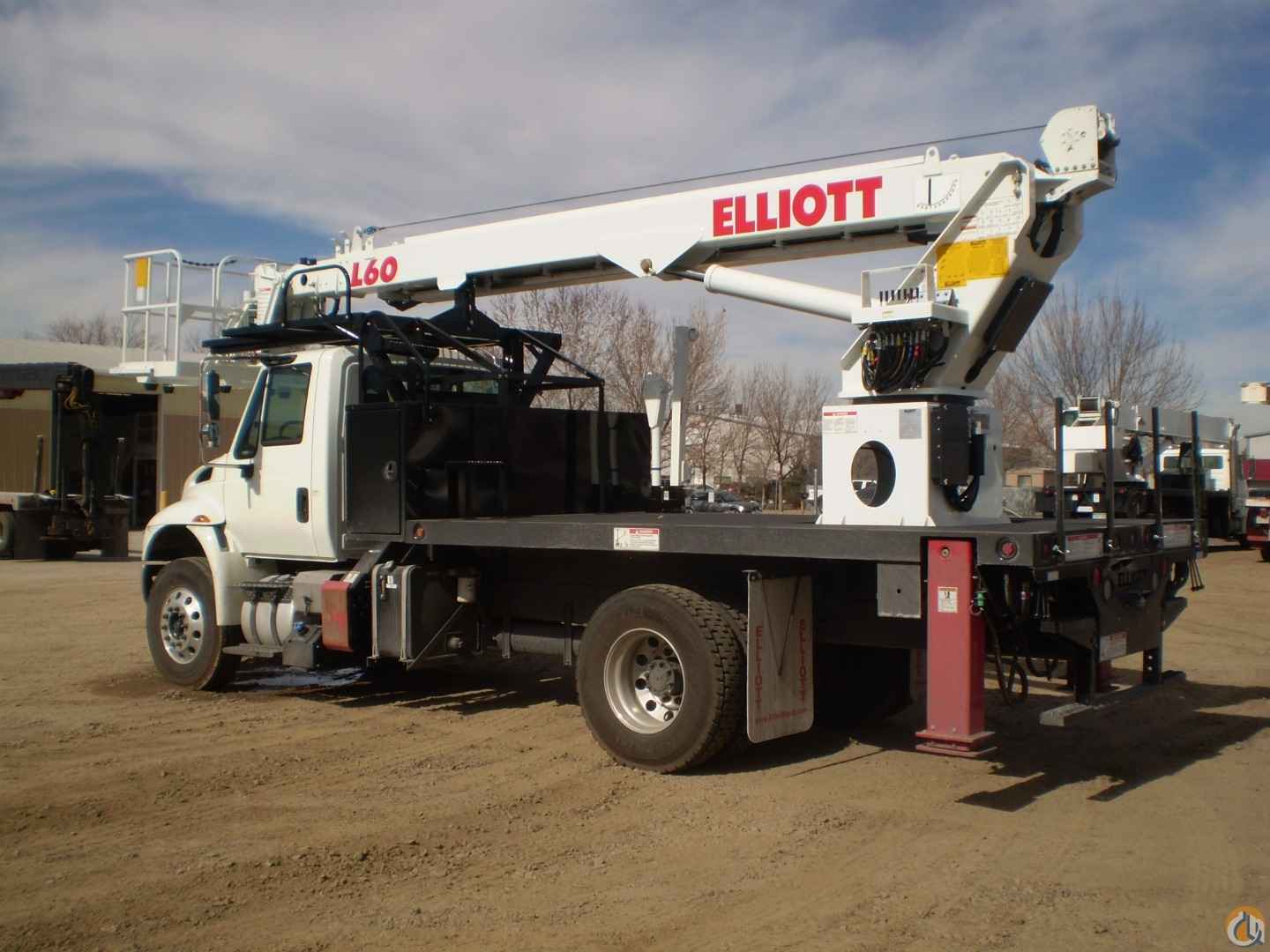

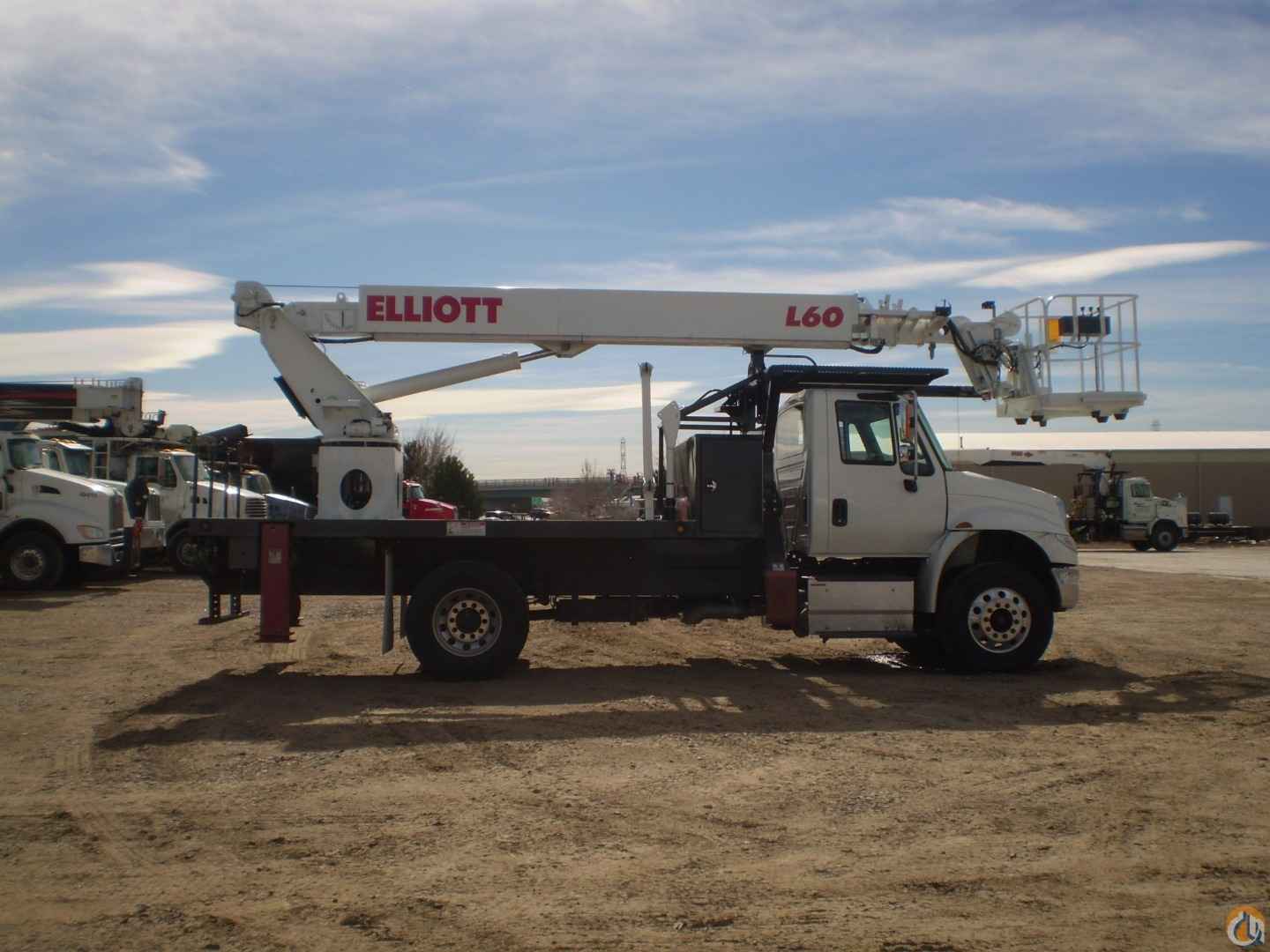

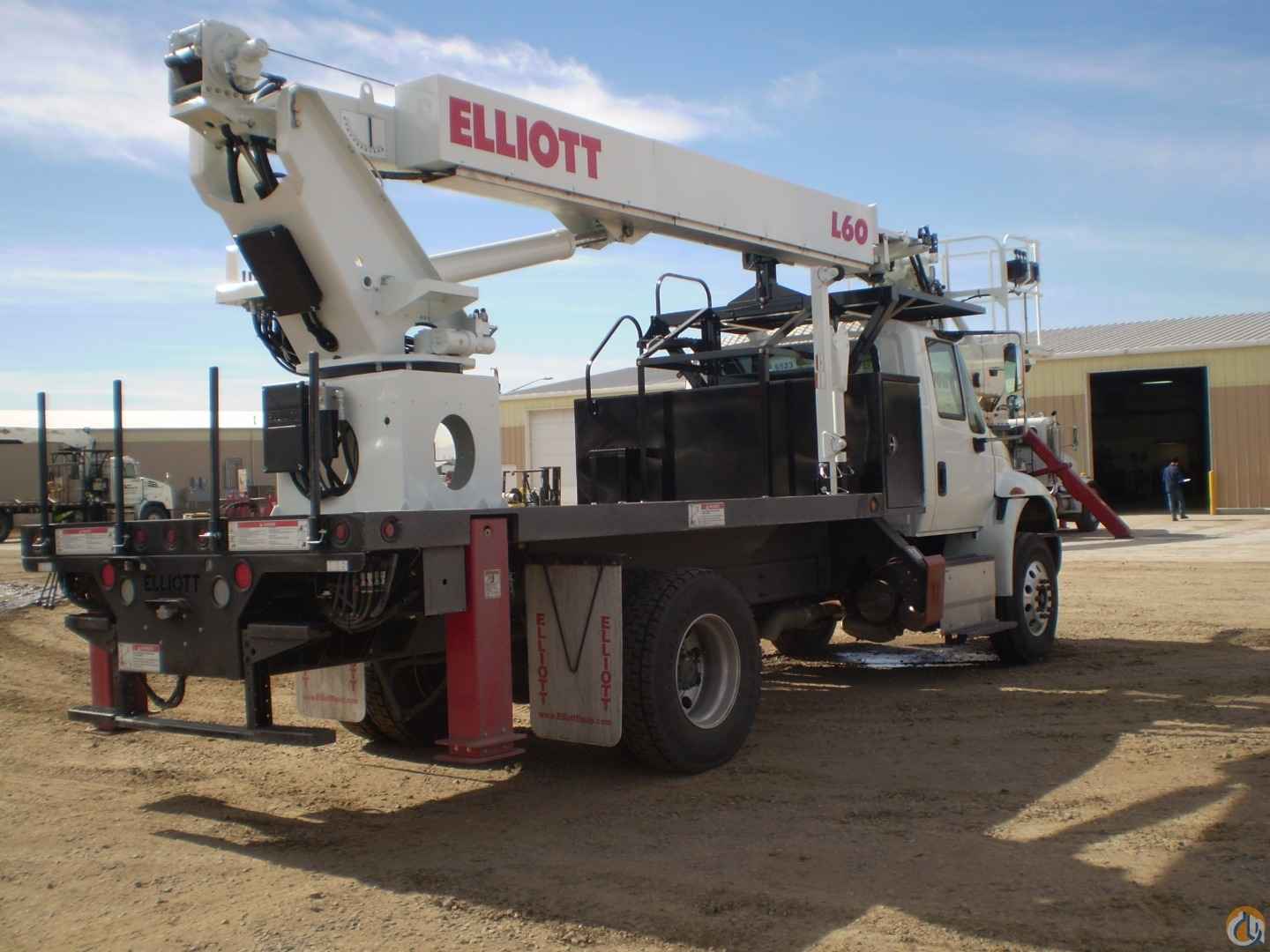

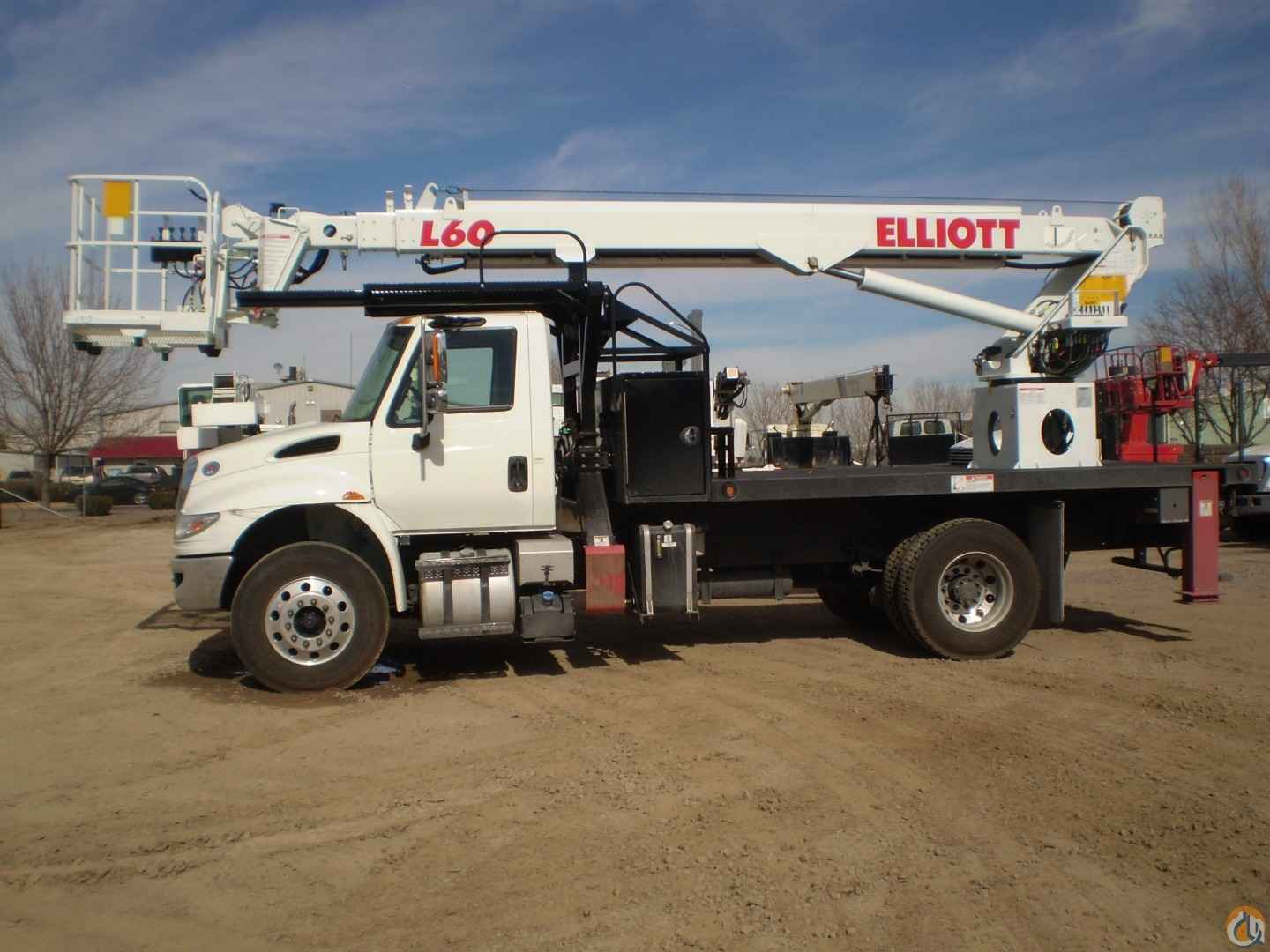

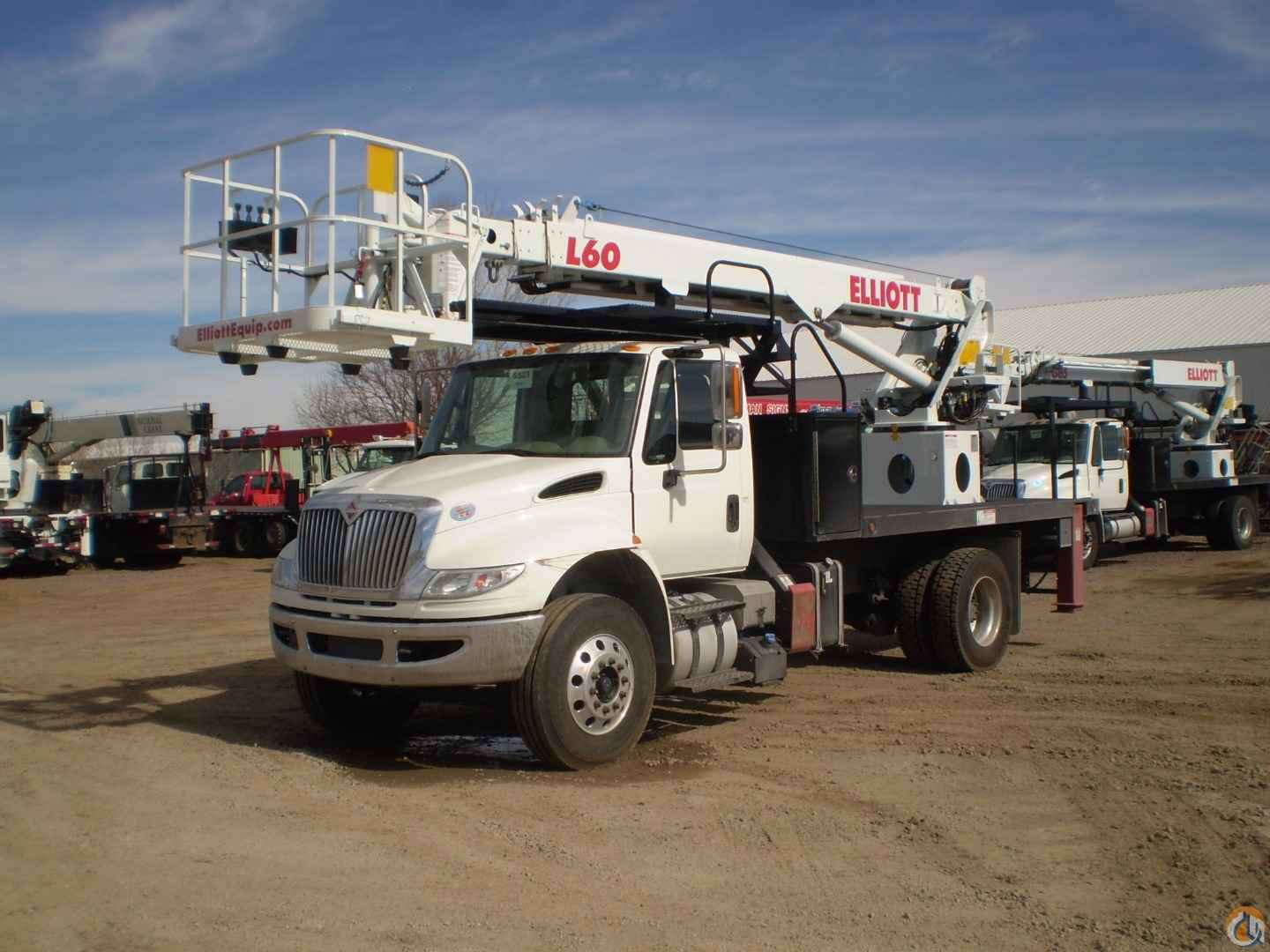

Elliott HiReach L60R, having a 62' working height. Basic unit includes base assembly supporting rear mounted rotating turret, hydraulically powered continuous  rotation mechanism, oil reservoir mounted to truck frame, oil, and manual hydraulic controls  mounted to turret. Electronic proportional three stick remote controls on platform. Base  mounted "MH" type hydraulically powered, individually controlled rear main outriggers and  “A” secondary outriggers behind cab. Steel three section hydraulically  telescoping boom with one double acting 6" lift cylinder plus a 3" piggyback extension cylinder. Exposed cable carrier to boom tip. Electronic self-leveling  and rotating 40" x 60" EZR work platform with remote leveling from platform. Power take off  and pump drive, pressure gauge, pump and holding valves on all cylinders. Remote start/shutdown at upper and lower controls, 12-volt emergency pump with switch at upper and lower controls, PTO hour meter, backup alarm, fire extinguisher, safety triangle kit, and two body harness and lanyards.  Installed on chassis, tested, checked and ready to operate. Unit certified to ANSI A92.2 for Vehicle-Mounted Elevating and Rotating Aerial Devices. Platform capacity 500 lbs.

Included Items

• Elliott L60R
• 14' Steel Bed w Grip Deck Coating (For Use With Crossbody Box)
• Standard ICC Rear Bumper With Steps and Grab Handles
• Automatic Safety Rotation Lockout - Prevents Boom from Rotating to Side Where MH Outriggers Are Not Fully Extended Horizontally. ("A" Outriggers Remain Fully Extended)
• 5,900 lb. Planetary Winch With Anti-Two-Block  Switch, Horn, Two Part Hook & 130' 3/8" Cable & Retainer Lug
• 500 lb. Platform Mounted Jib With Hydraulic Winch Mounted in Platform Floor
• 110 Volt Line to Platform
• Hot Shift PTO For Automatic Transmission
• (2) Sign Forks On Platform
• 98" x 36" x 24" Steel Crossbody Box (Requires 2' Shorter Bed)
• Steel Cable Carrier Cover
• Cab Windshield Guard and Platform Walkway
• HiReach Unit Painted White, Subframe Painted Black, Outriggers Painted Red (STD)
• Upfitting Preparation Charge for Customer Supplied Chassis (Net Price)

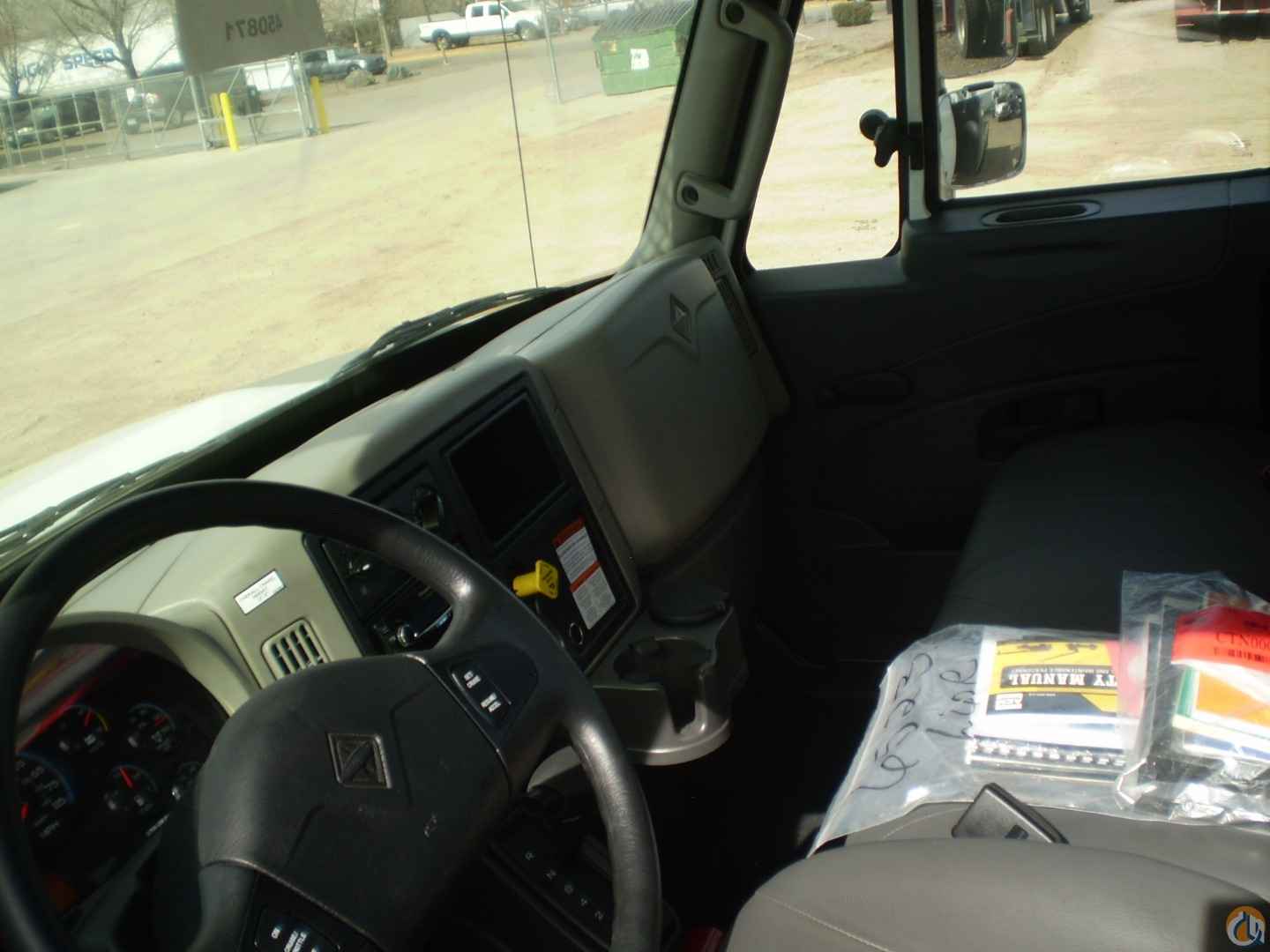

Truck

• 2016 International 4300 SBA 4X2 (MA025)
• 33,000 lb GVWR
• 13,000 Lb Front Axle
• 20,000 Lb. Rear Axle
• International Vari-Rate Spring Suspension, 23,500 Lb.
• Cummins ISB 260 260HP Engine
• Allison Automatic Transmission
• Air Brakes
• Power Steering
• Block Heater
• Panasonic AM-FM Stereo
• Driver’s Seat:  National, Air Ride
• Rider’s Seat:  Two Man Bench with Under Seat Storage Compartment
• Air Conditioner
• Front Tires:  11R22.5 on Aluminum Wheels
• Rear Tires:  11R22.5 on Aluminum / Steel Wheels
• 50 Gallon Aluminum Fuel Tank

 Ref no: PO8221
