Stellar TMAX1-11 Aluminum Mechanic Body equipped as follows:

- Demonstrator unit

- Aluminum doors and side packs

- Torsion box understructure with isolated, steel crane compartment

- Master-Lock system

- 133” long

- 50” load bed width

- Six (6) recessed cargo tie-downs

- Two (2) rear mounted grab handles

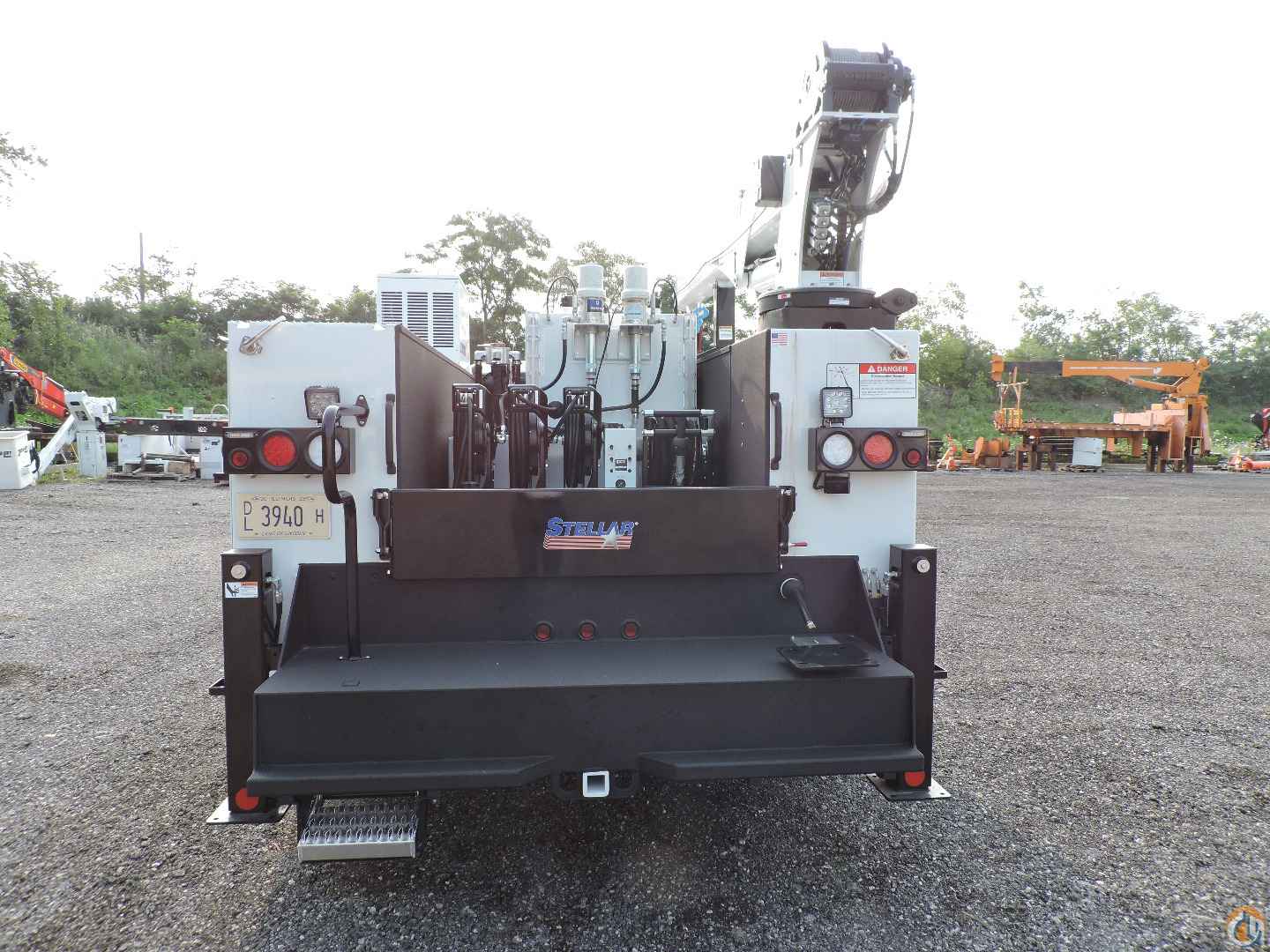

- 12” fold down tailgate – painted black

- 21” step bumper with thru compartment

- Vise mounting plate – receiver workbench mount

- Step, slide out for TMAX mechanics work bench bumper

- Rubber fenderettes

- All compartments raised to 52” H x 22” D

- Overlapped doors on SS1V/CS1V and horizontal compartments

- 2 & 3 point stainless steel compression latches

- Stainless steel “Billet Style” hinges

- Spring loaded door stops

- Dual-seal automotive type compartment weather seal

- LED compartment lights

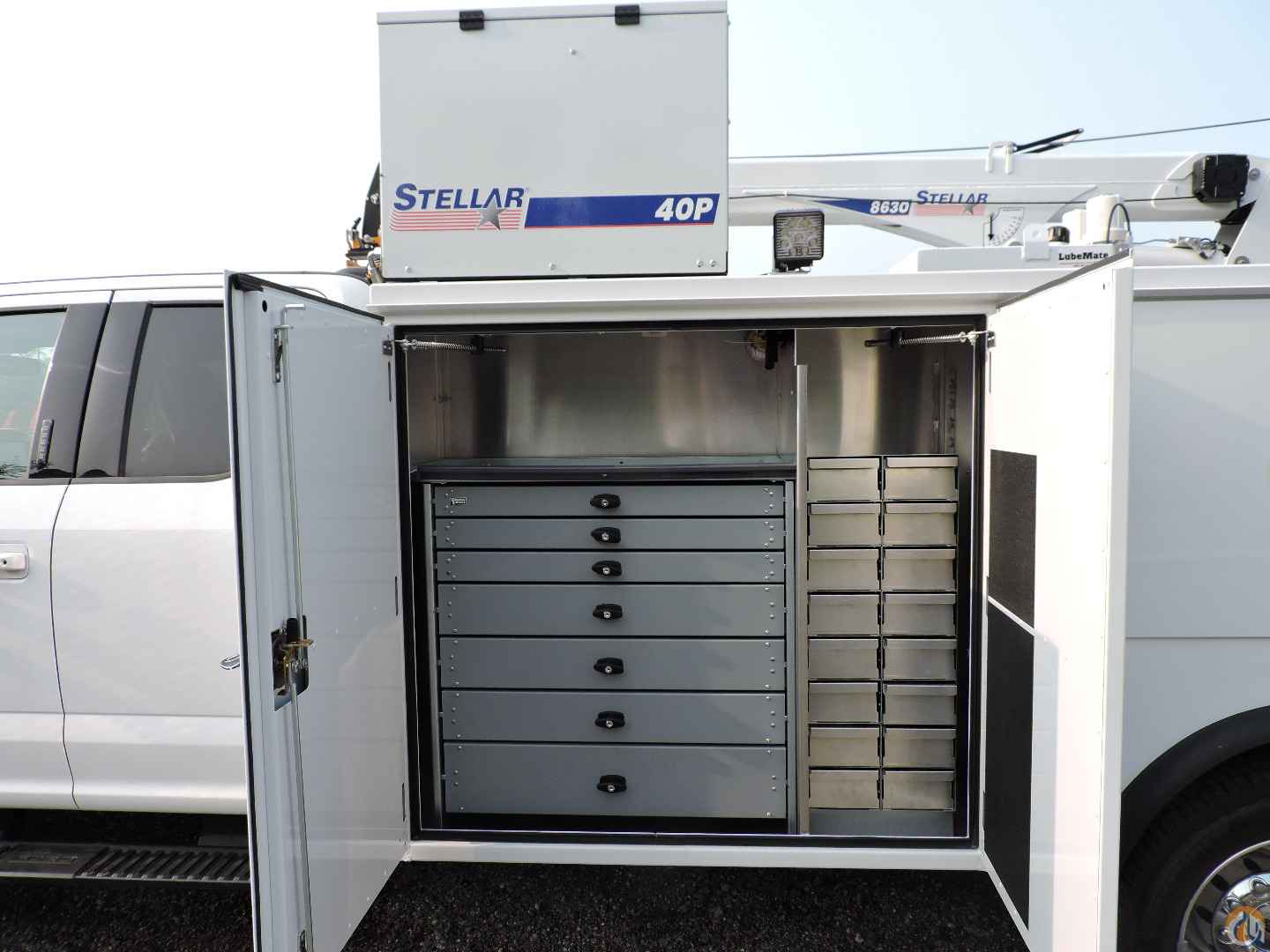

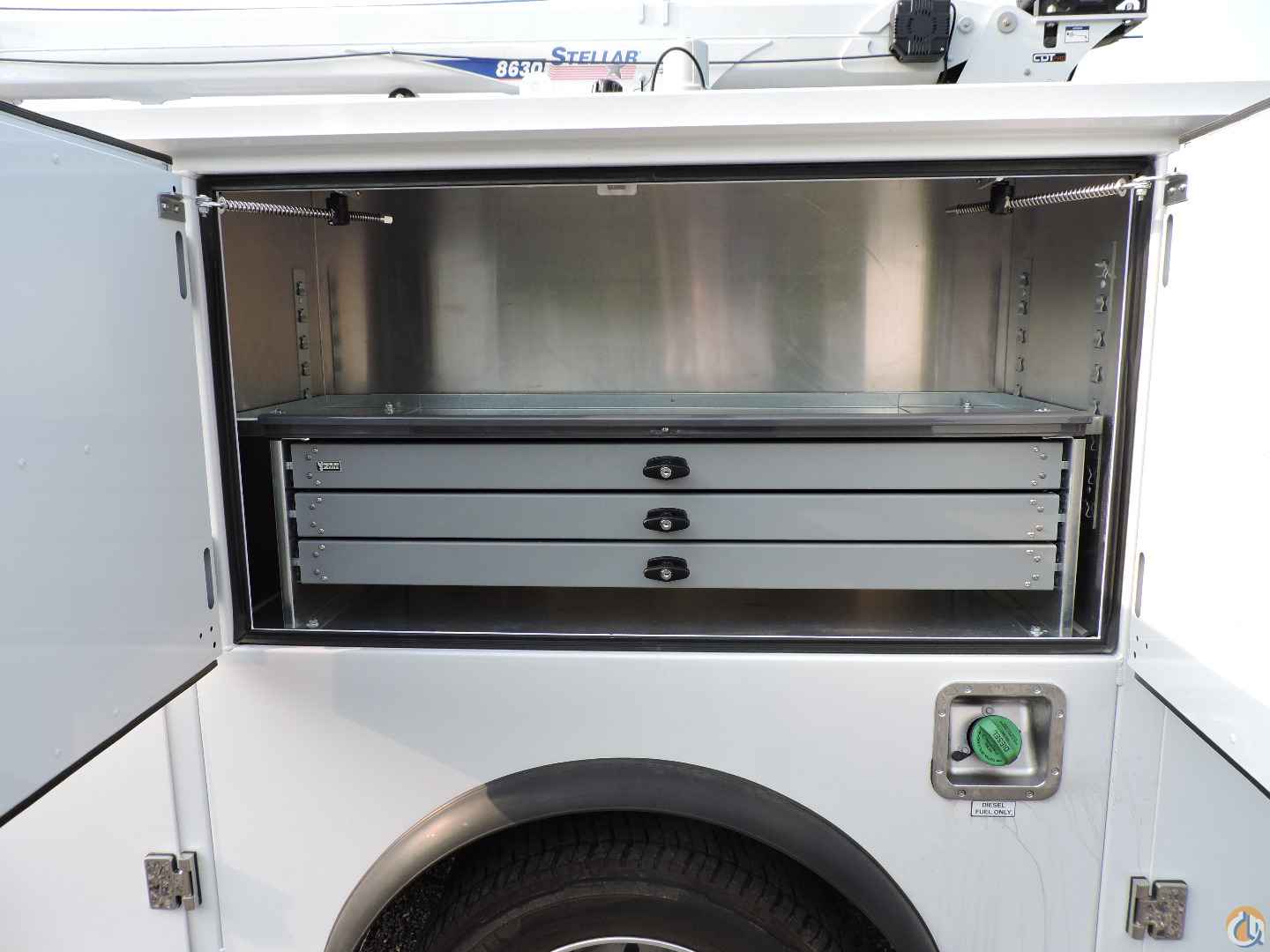

- SS1VF – Heavy duty aluminum drawer set – 35.5” H x 34” W x 18” D
– 3-3”, 3-5”,1-7” with drawer light bar

- SS1VR – 16 drawer steel bolt bin with aluminum pull outs

- SS Horizontal – Heavy duty aluminum drawer set – 3-3”with drawer light bar

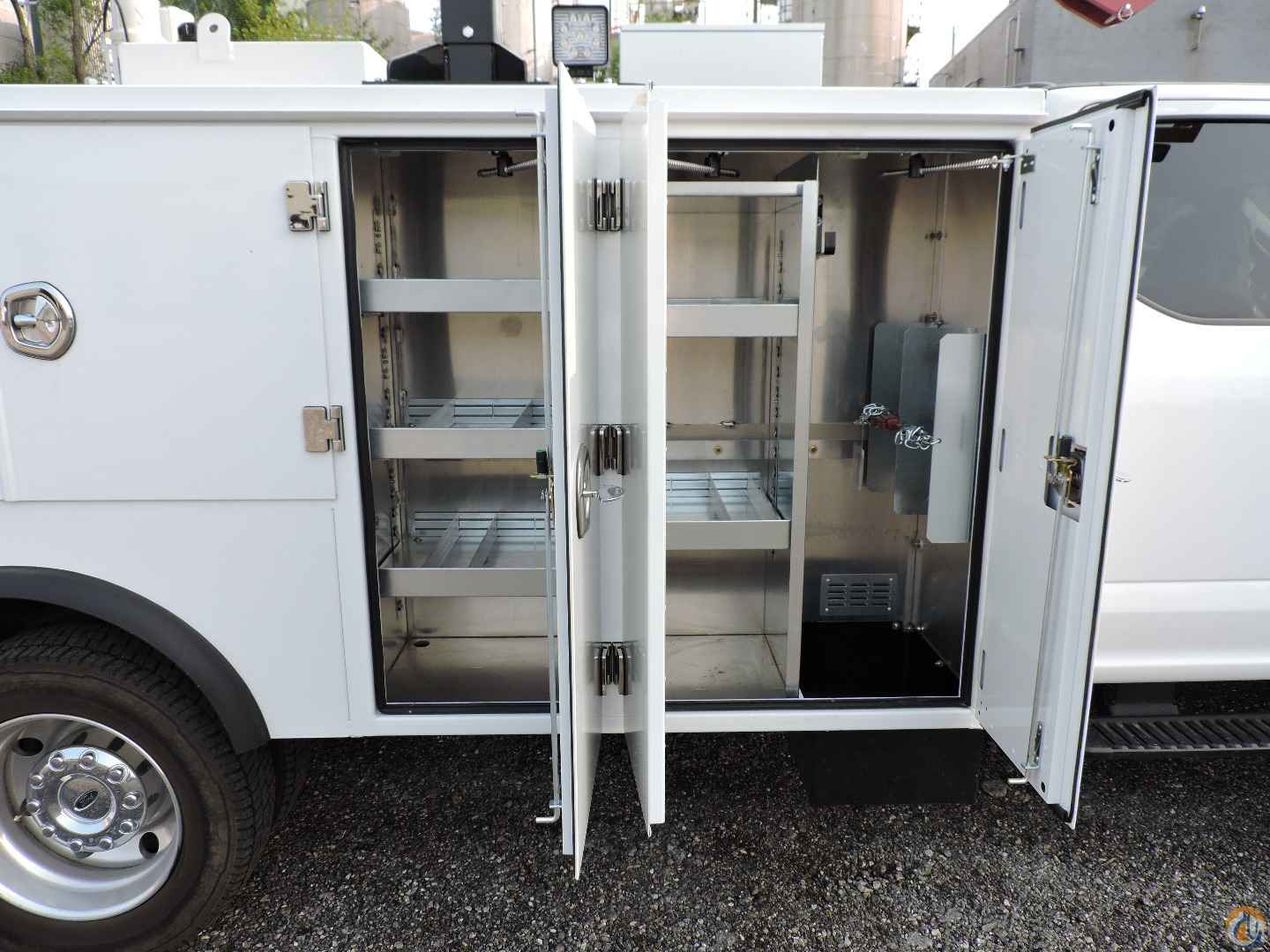

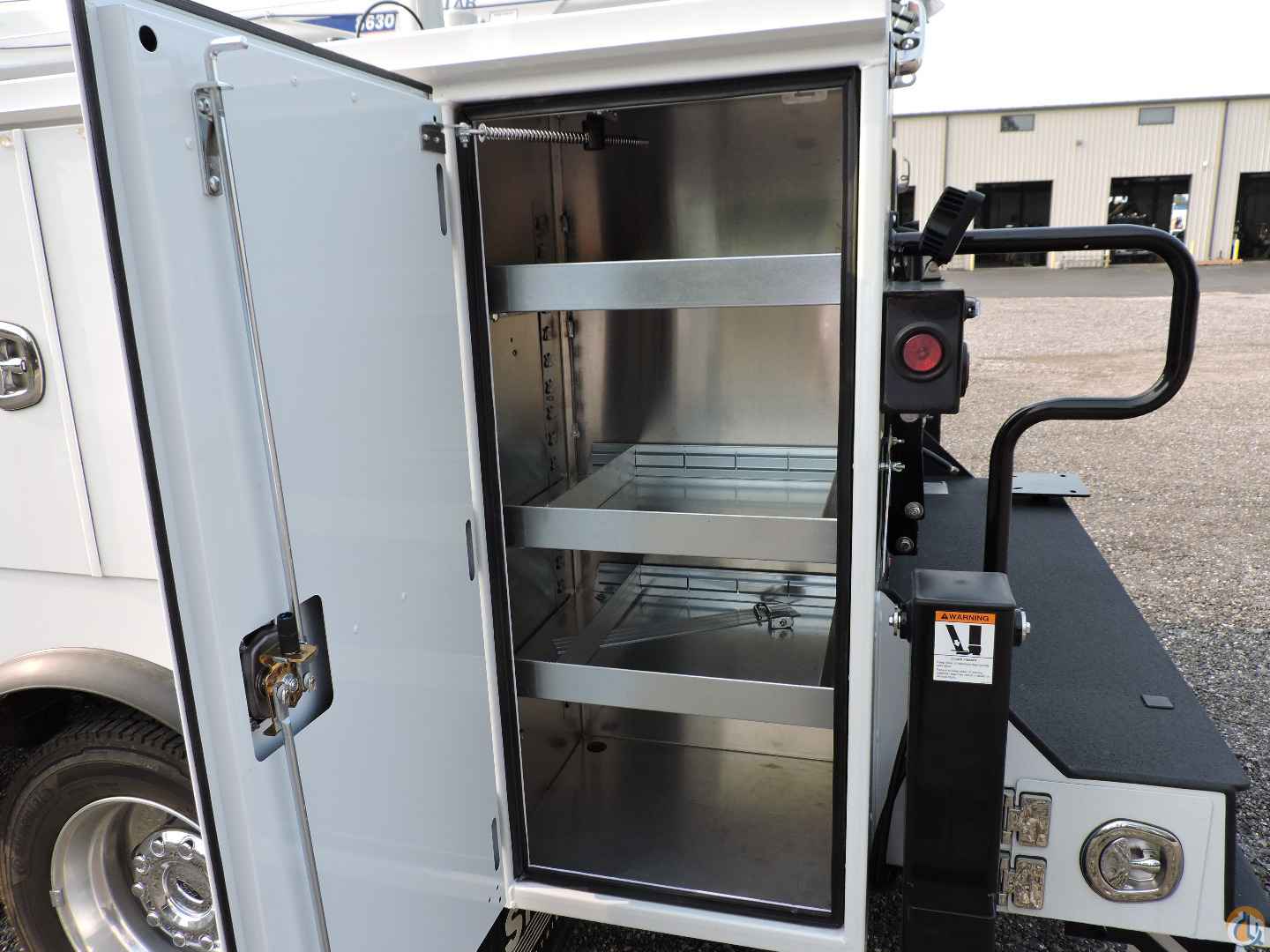

- SS Rear – Three (3) shelves with (3) dividers

- CS1V – Divider kit with shelves 19.00” wide for oxy/acet, 2
bottle oxy-acet holder and twin hose reel (Reelcraft with 50’ twin hose)

- CS2V – Three (3) shelves with (3) dividers

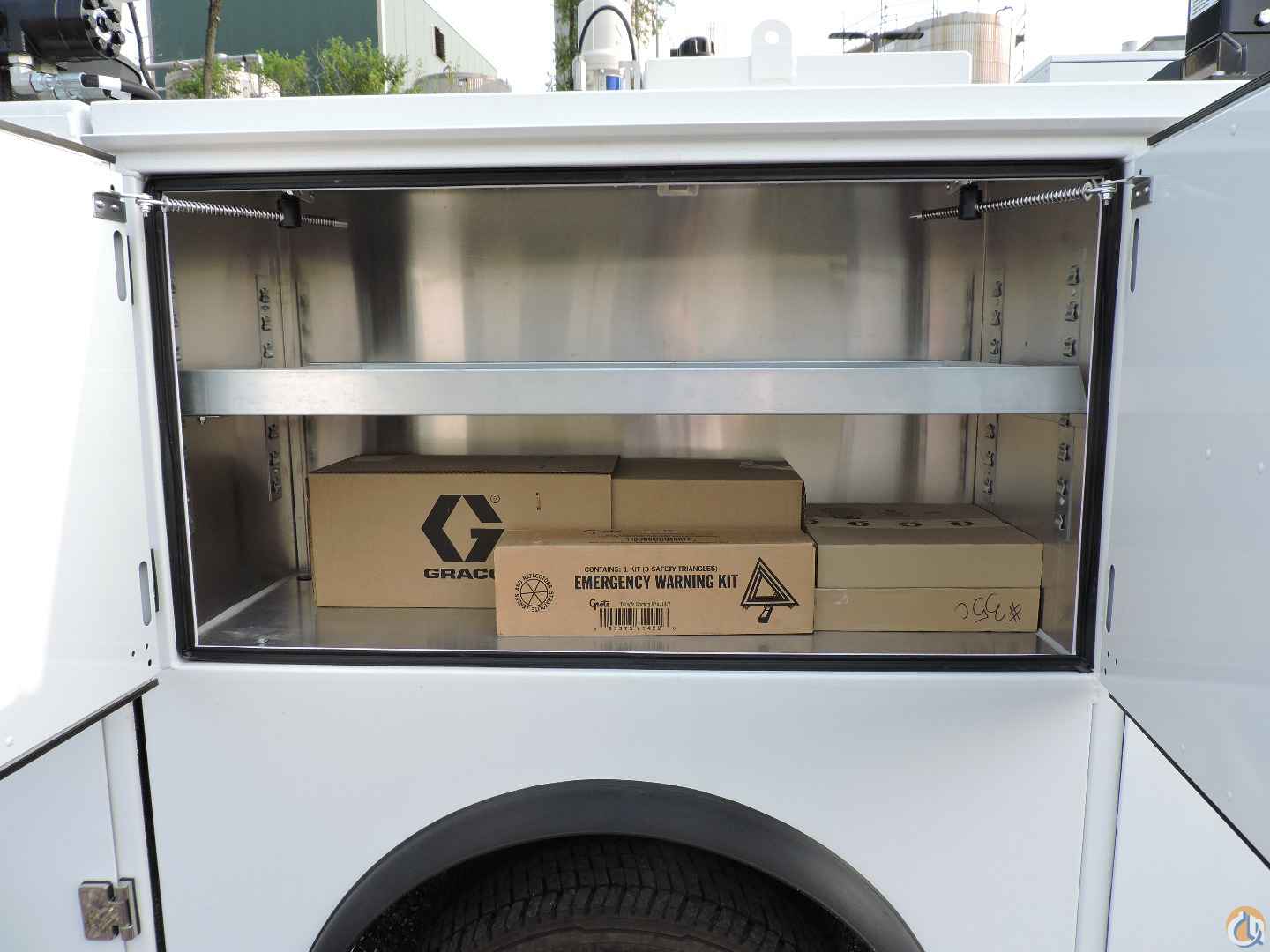

- CS Horizontal – Shelf with 3 dividers

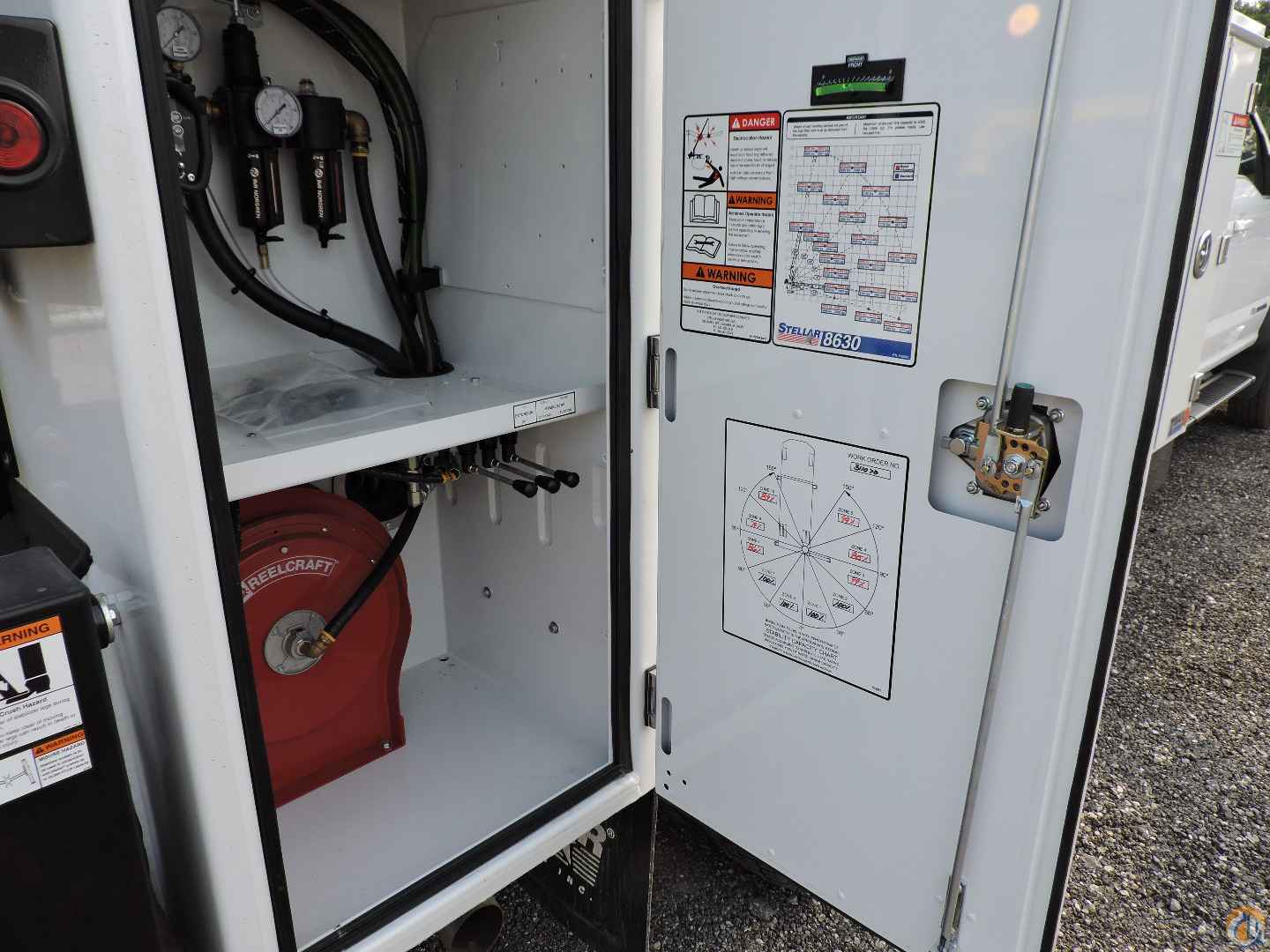

- CS Rear – ½” x 50’ hose reel with roller guide – exits rear of body

- American Eagle hydraulic driver compressor – produces 40 CFM at
100 psi, 2-cylinder, single stage compressor, direct drive coupling,
and hydraulic motor

- 25-gallon air tank kit (1 10-gallon, 1 15-gallon)

- FLR system – (filter, lubricator, regulator)

- 20-gallon hydraulic reservoir – bulkhead mounted

- LED floodlights – Four (4) total. 1 on boom support, 1 SS behind
compressor, 1 on each rear taillight box

- 4 corner LED strobe light kit

- Backup alarm

- ICC safety kit – 2.5# fire extinguisher and reflector kit

- Weld-on receiver hitch

- Aluminum rock guard kit

- Spray-on bed liner for load bed walls and floors, and workbench

- Undercoated

- Prime painted white

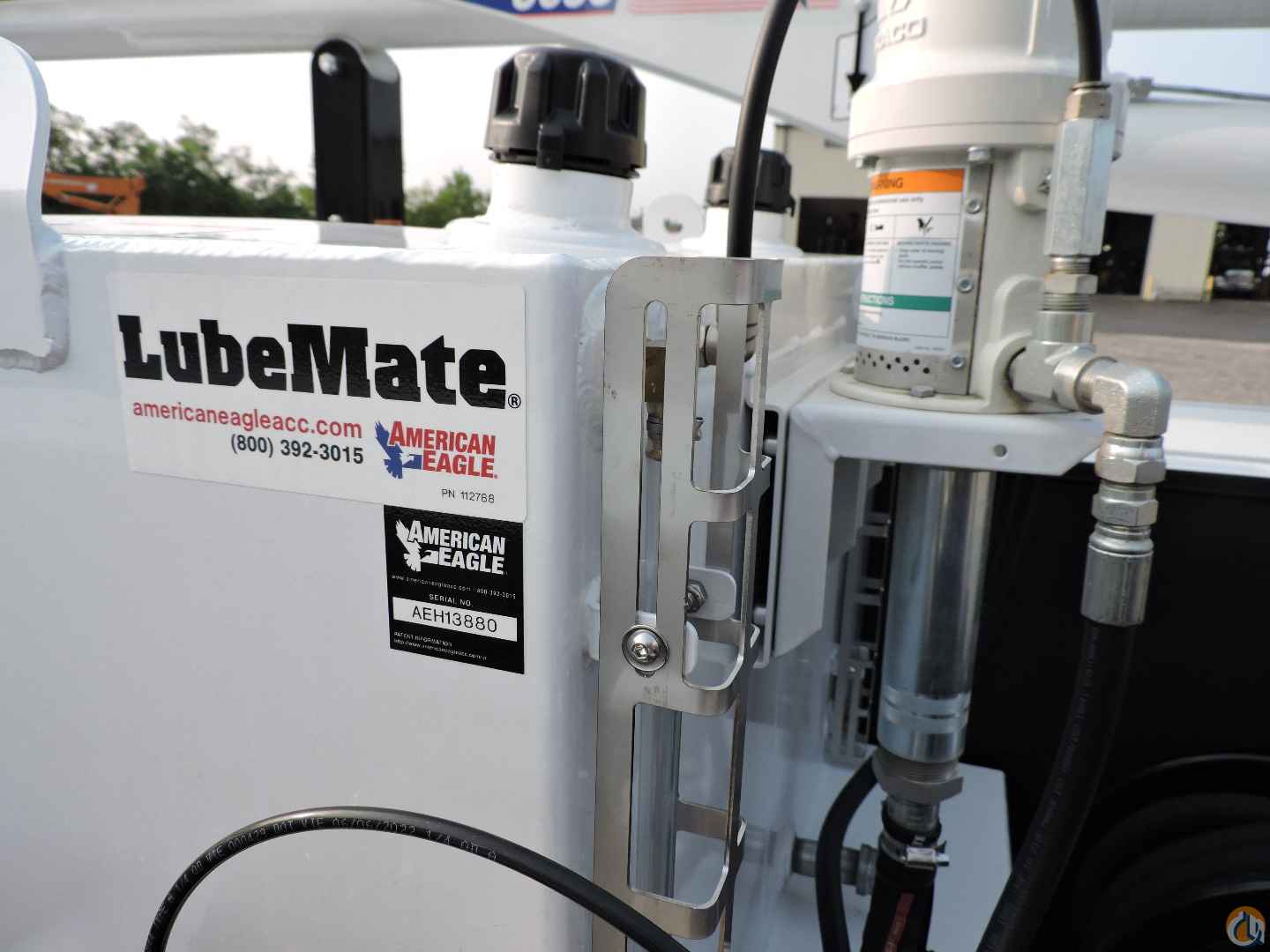

V160 Mobile LubeMate System equipped as follows:

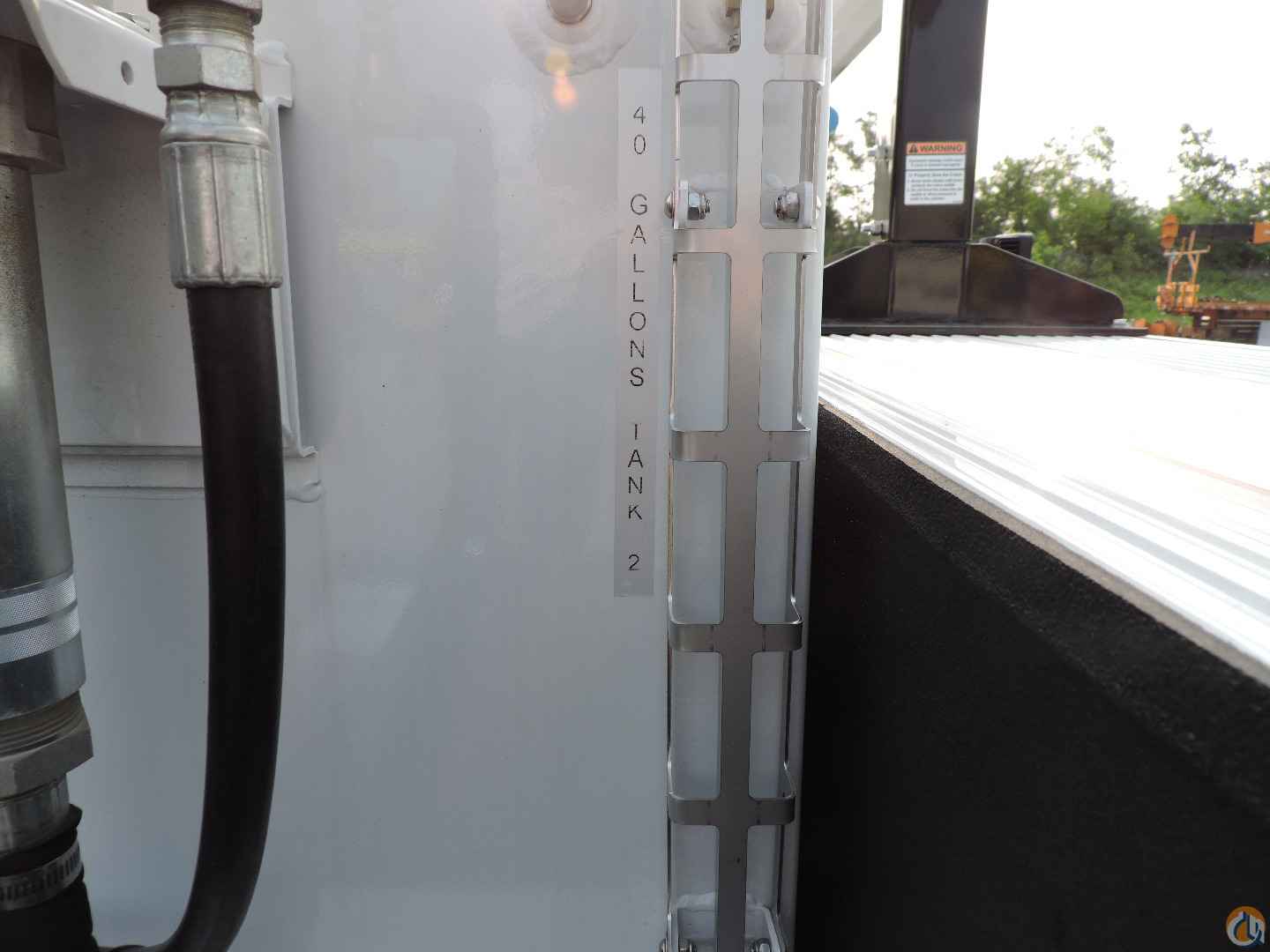

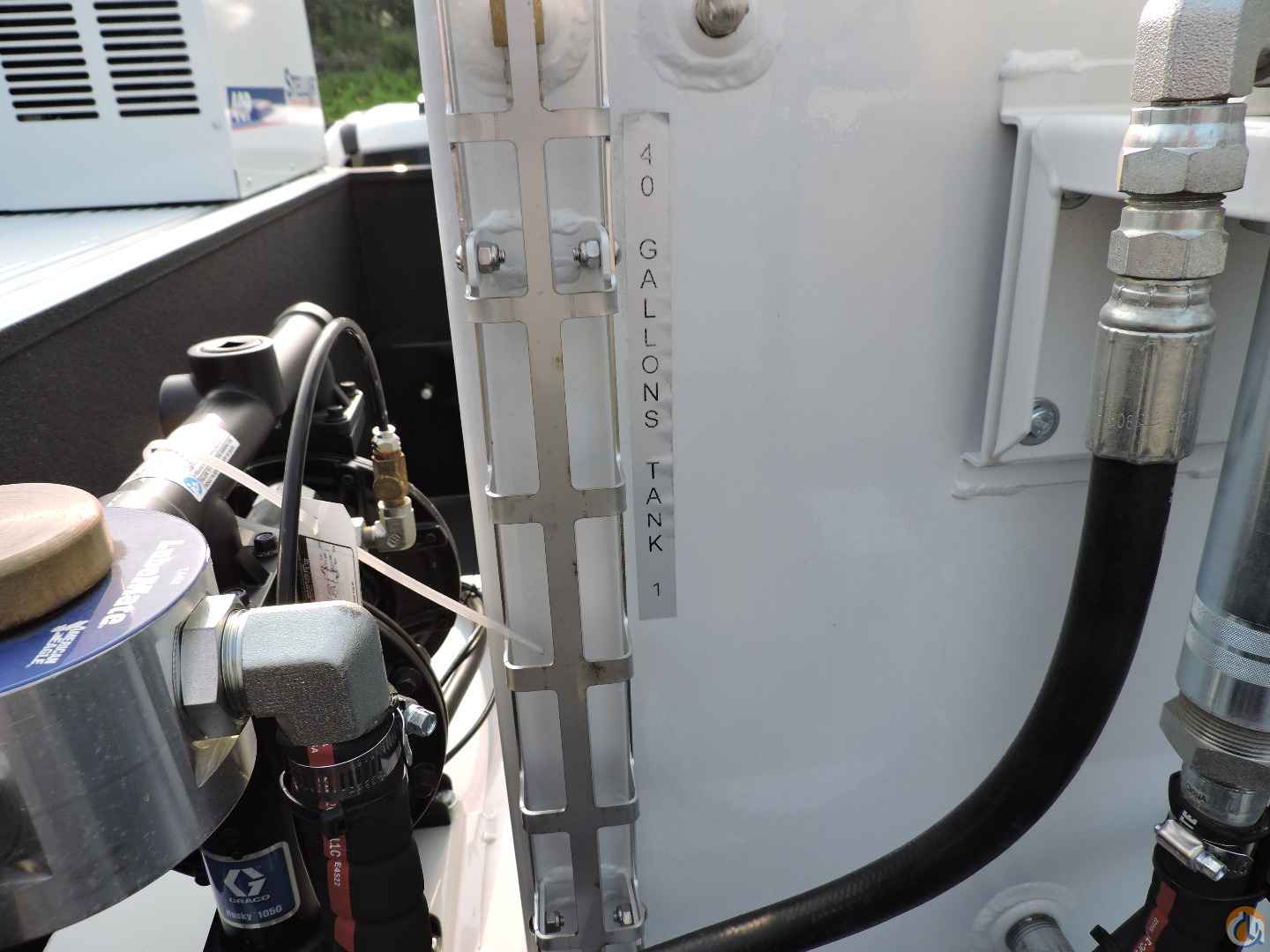

- Two 40 gallon new oil tanks internally baffled with sight gauge and vented cap

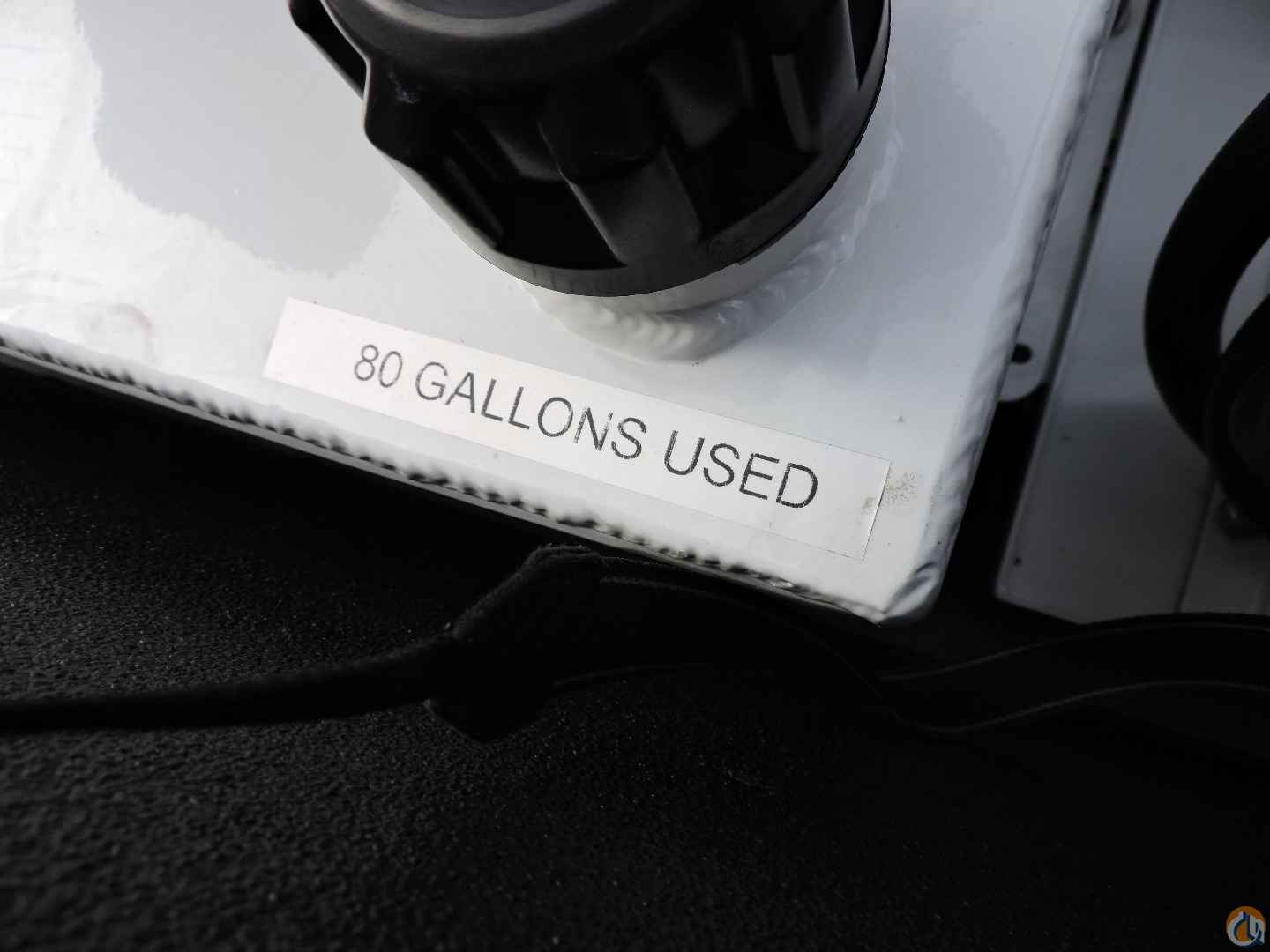

- One 80 gallon salvage oil tank internally baffled with dip stick and vented cap

- Two Graco 5:1 pumps with relief for new oil

- One Graco 1” diaphragm pump with 4-way valve for salvage oil

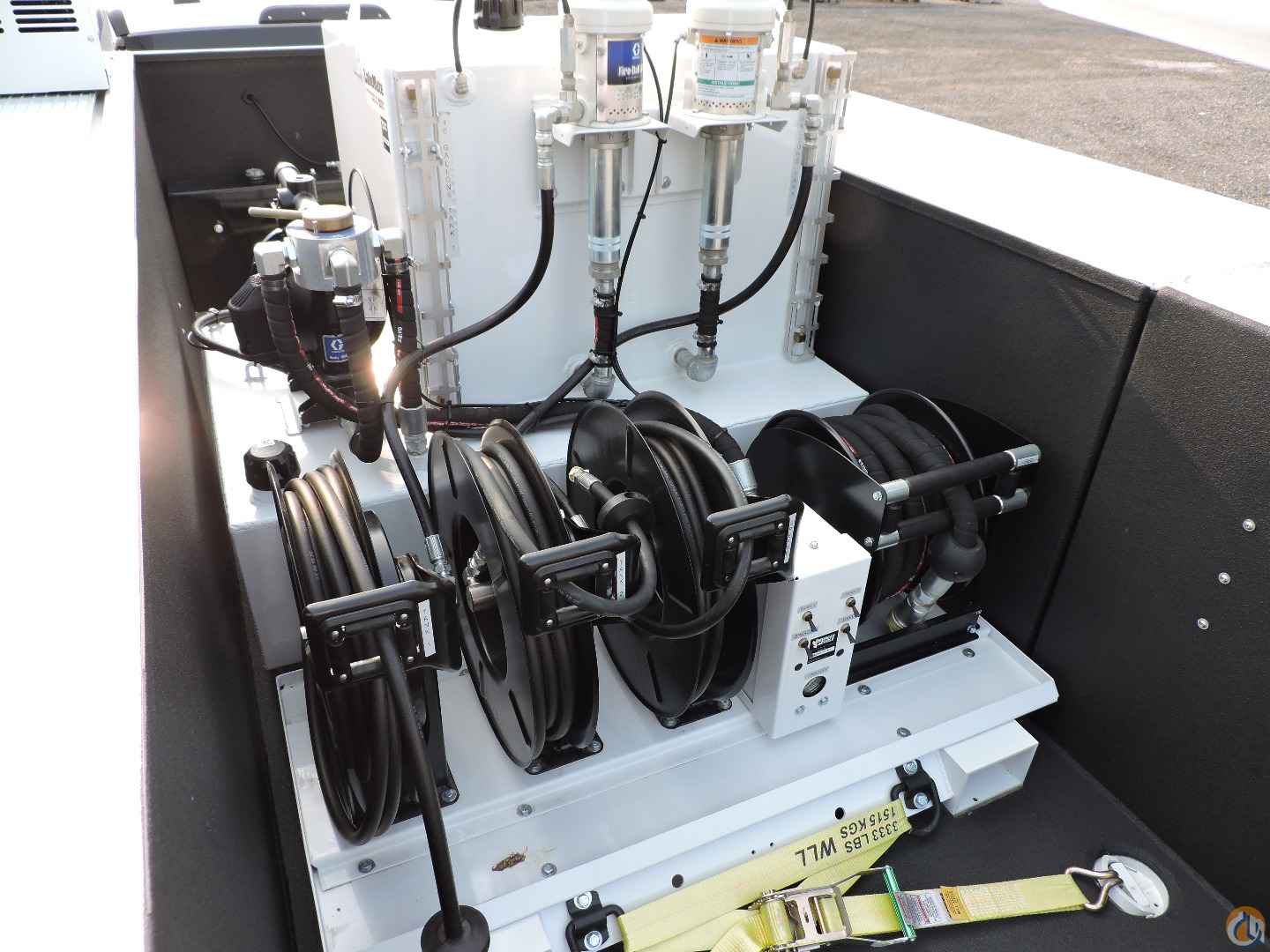

- Two ½”x50’ Reelcraft new oil reels with Graco mechanical meters

- One 1”x25’ Reelcraft salvage oil reel with coupler

- Mobile package includes 3”x6” forklift sleeves with d-ring tie downs and ratchet straps

- Drip pan with pneumatic control panel

- 7 gallon drain pan with quick coupler and stub

- Connecting hoses

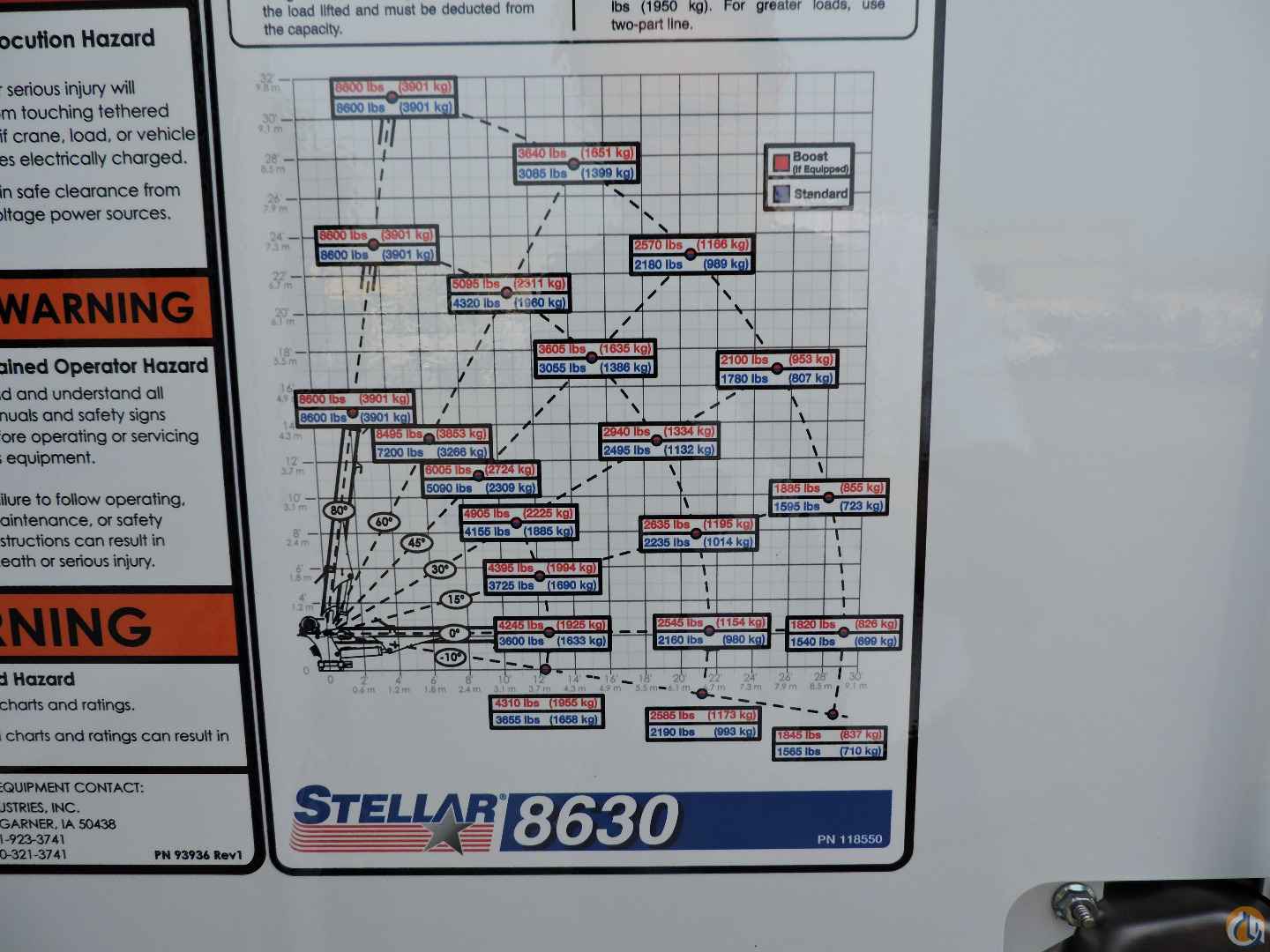

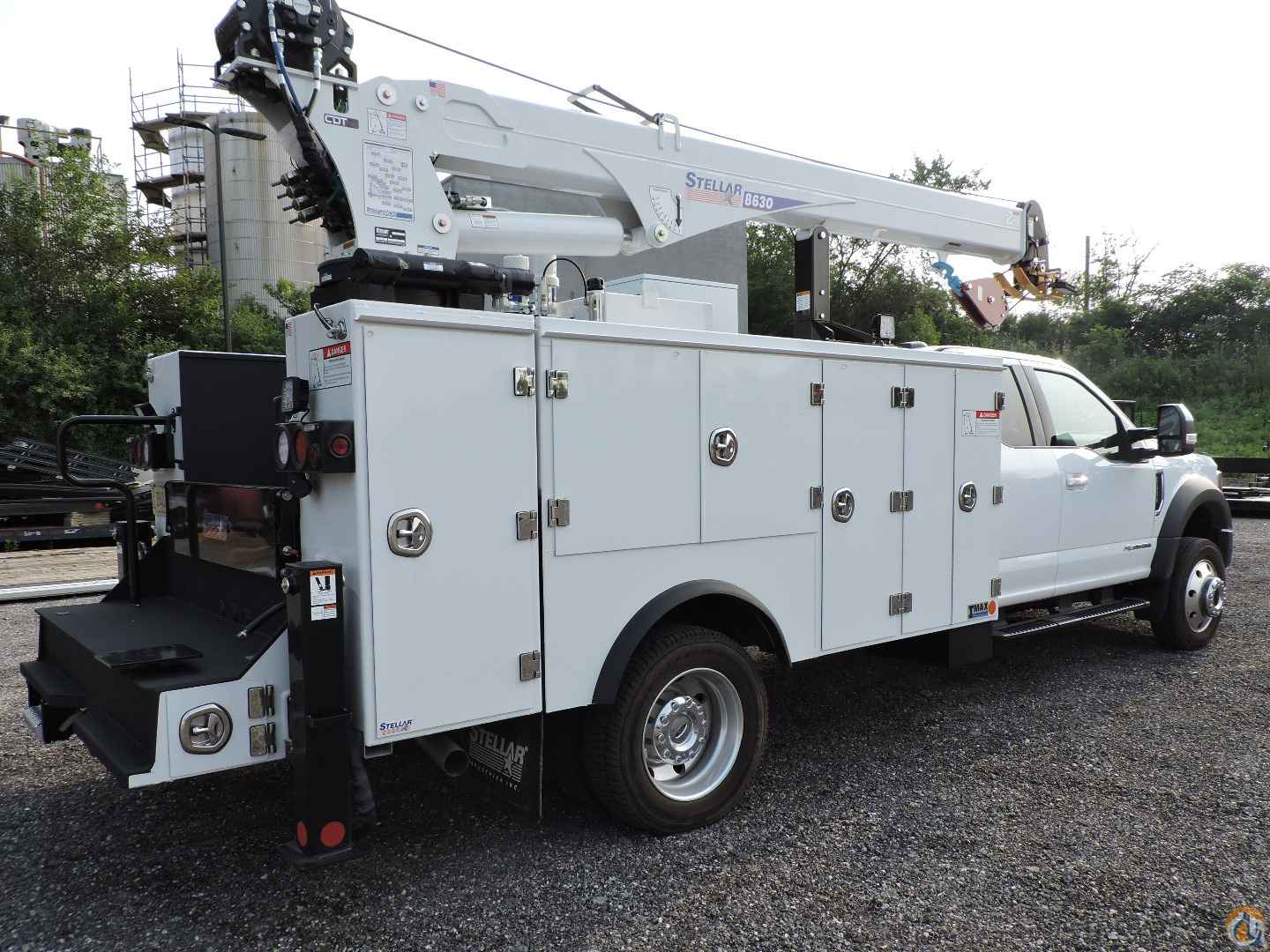

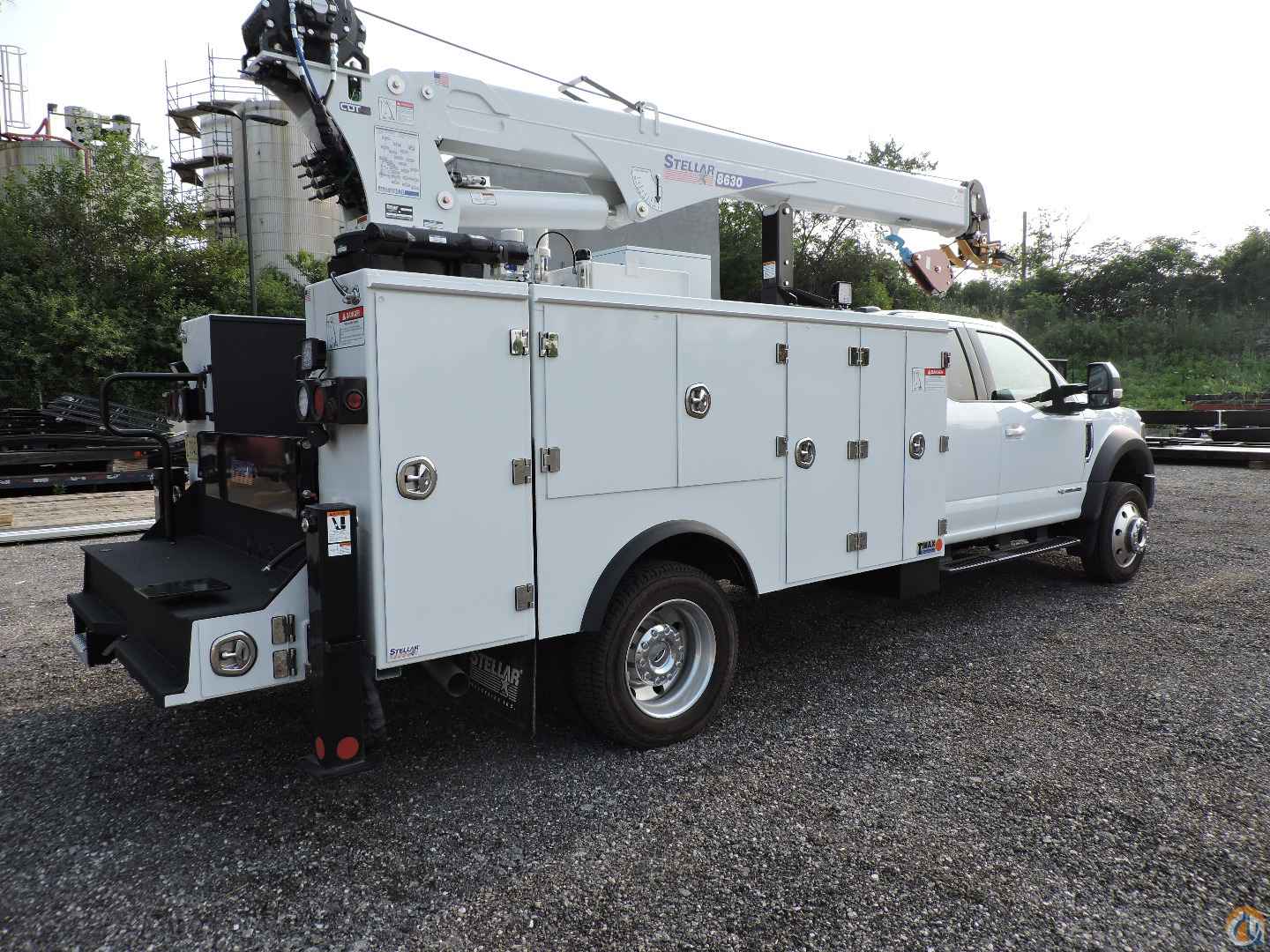

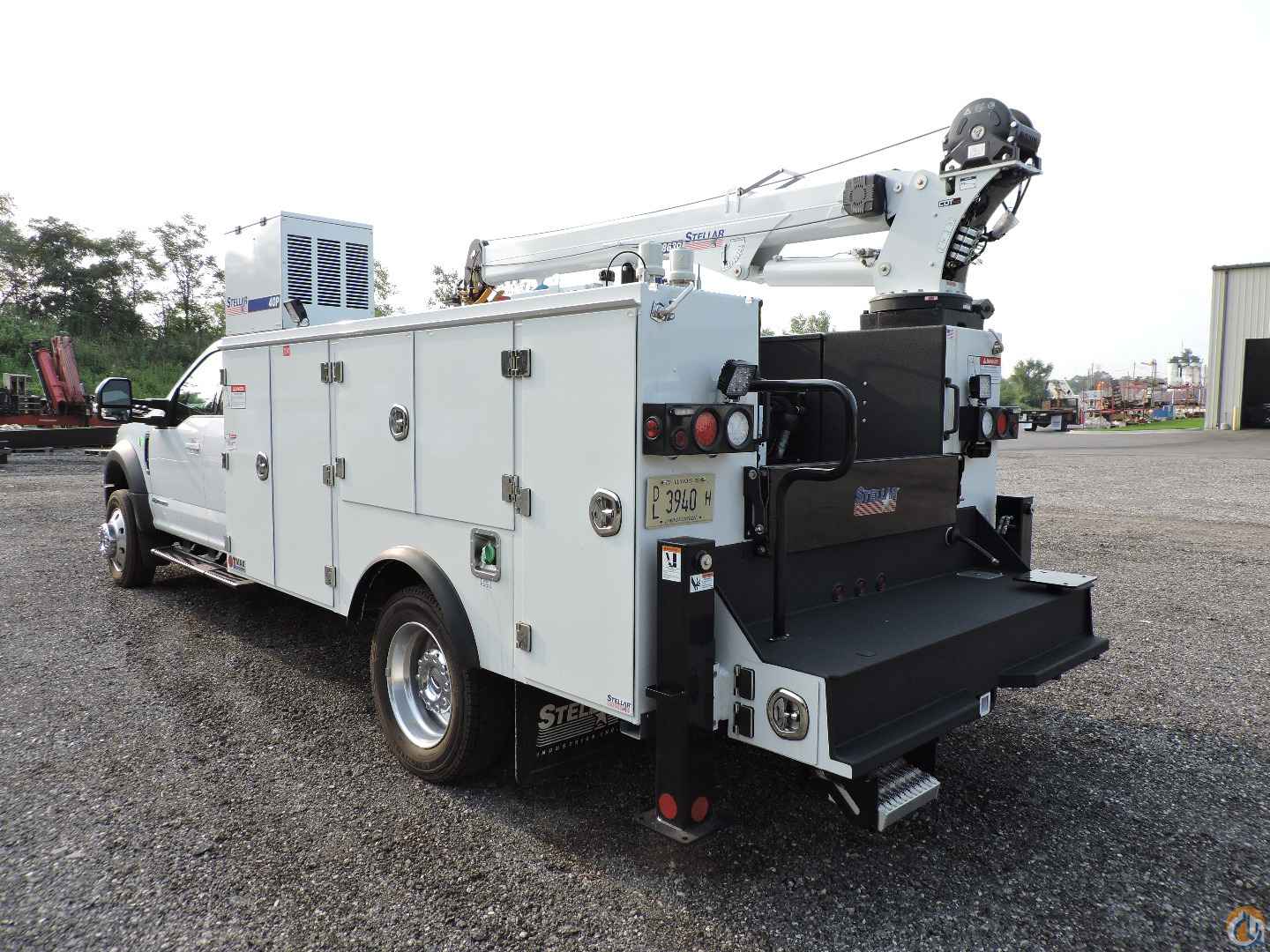

Stellar 8630 telescopic crane equipped as follows:

- 53,100 ft/lb rated when in boost mode

- 8,600# maximum capacity at 5’10’ radius

- 30’ maximum hydraulic reach

- Boom elevation: -10° to +80°

- 400° non-continuous rotation – durable enclosed rotation system
with a cast iron base and an internal mechanical stop

- Planetary winch with 100’ of 3/8” wire rope

- Max line pull speed 60ft/min

- Quick release snatch block stow

- Adjustable boom support, roller rest

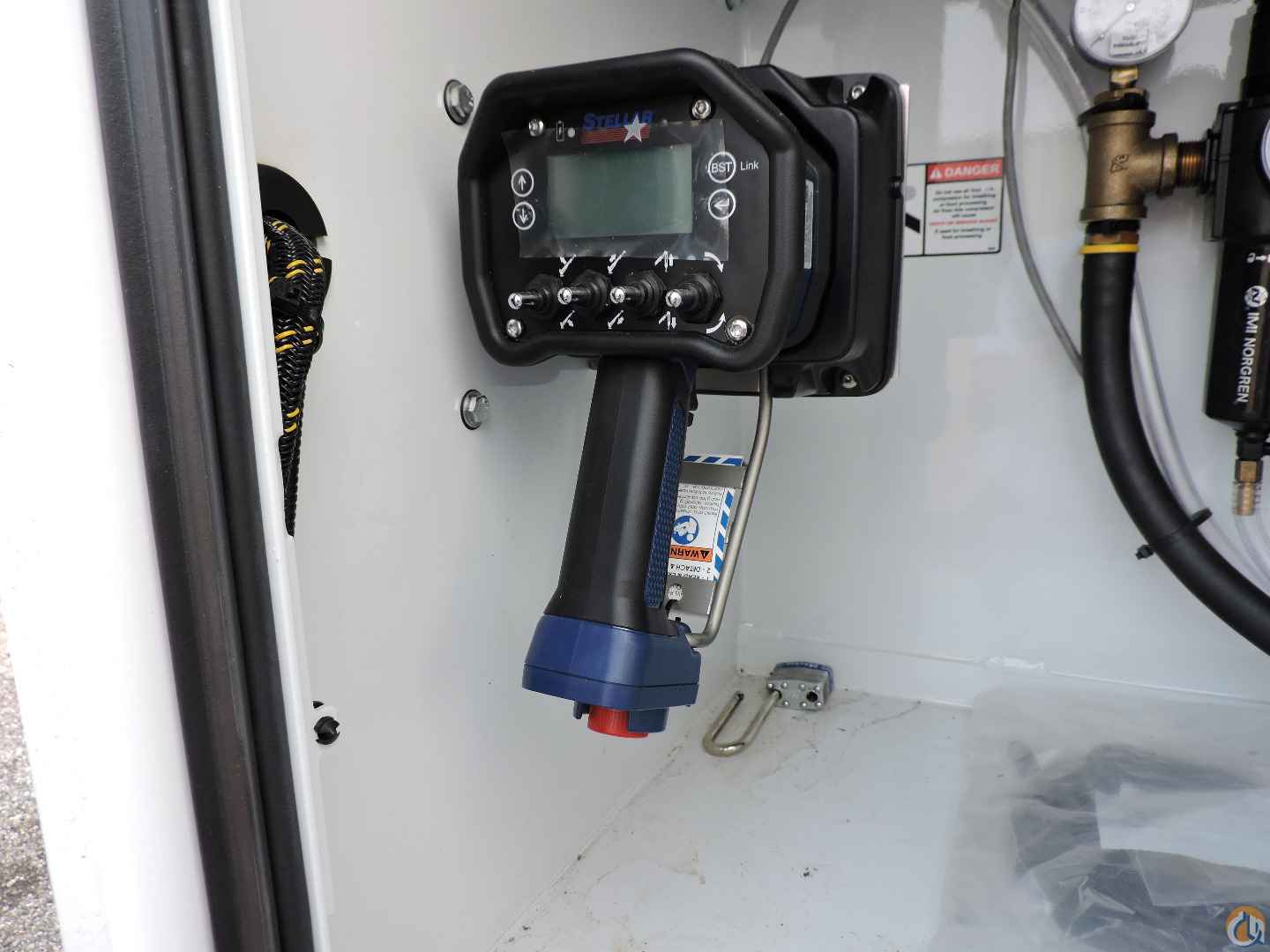

- Proportional radio remote control – LCD features real time load
capacity, maximum distance with the current load, boom angle, and
percentage of load

- CDTpro Control System. The most advanced crane remote ever. Save time by knowing your crane can lift the load before you set up. The innovative, industry-only Range Finder technology provides real-time max lifting capacity from any point around the crane

- On-Demand speed control ramps engine RPM up only when the crane
is being used. When crane is not used for 5 seconds engine RPM
returns to idle. This lowers fuel consumption and reduces noise
pollution in the work area

- Greasable pivot bushings, each pivot pin location includes bushings
and grease zerks to provide for years of use

- Hydraulic stabilizers

MOUNTED ON:

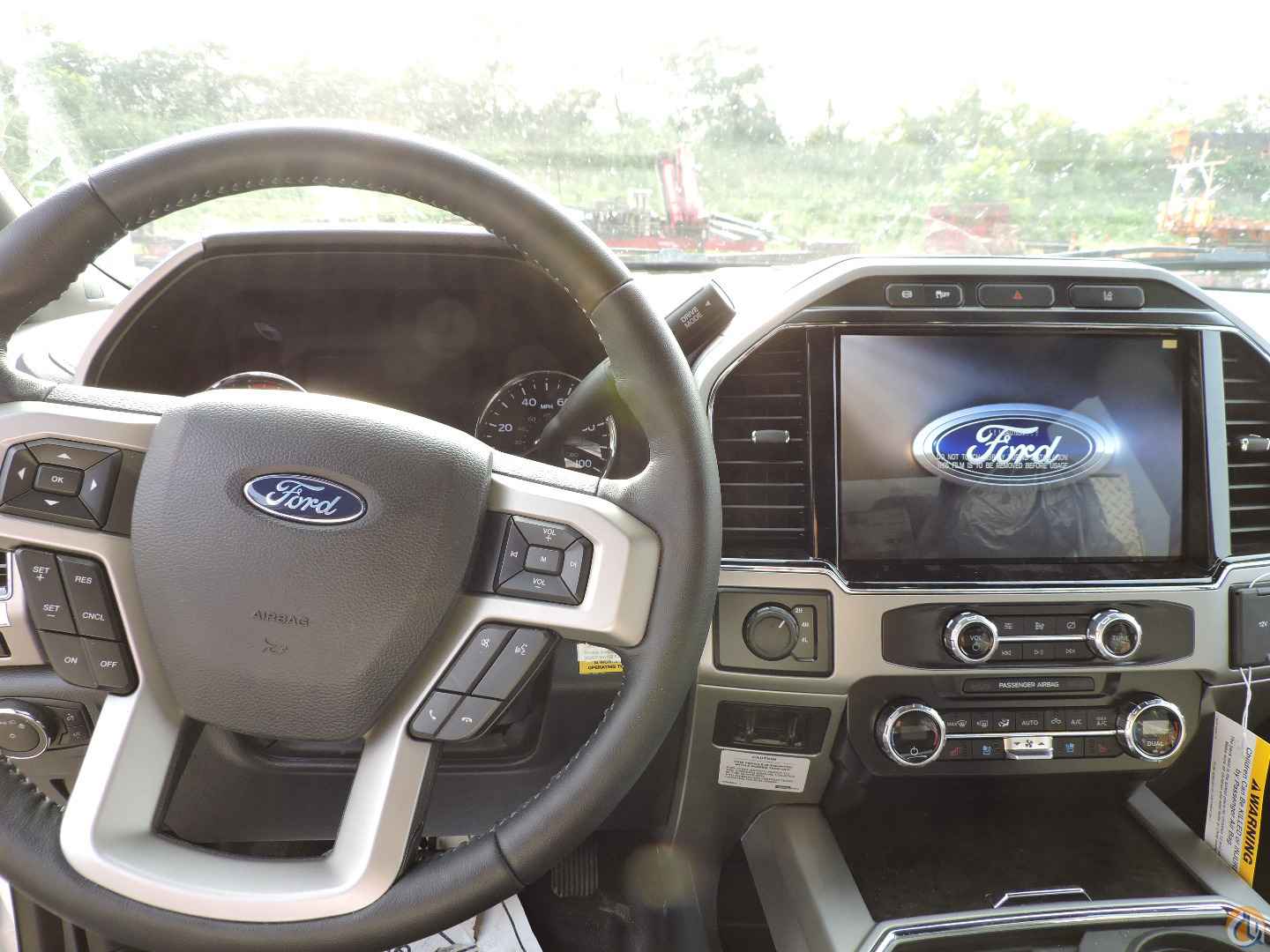

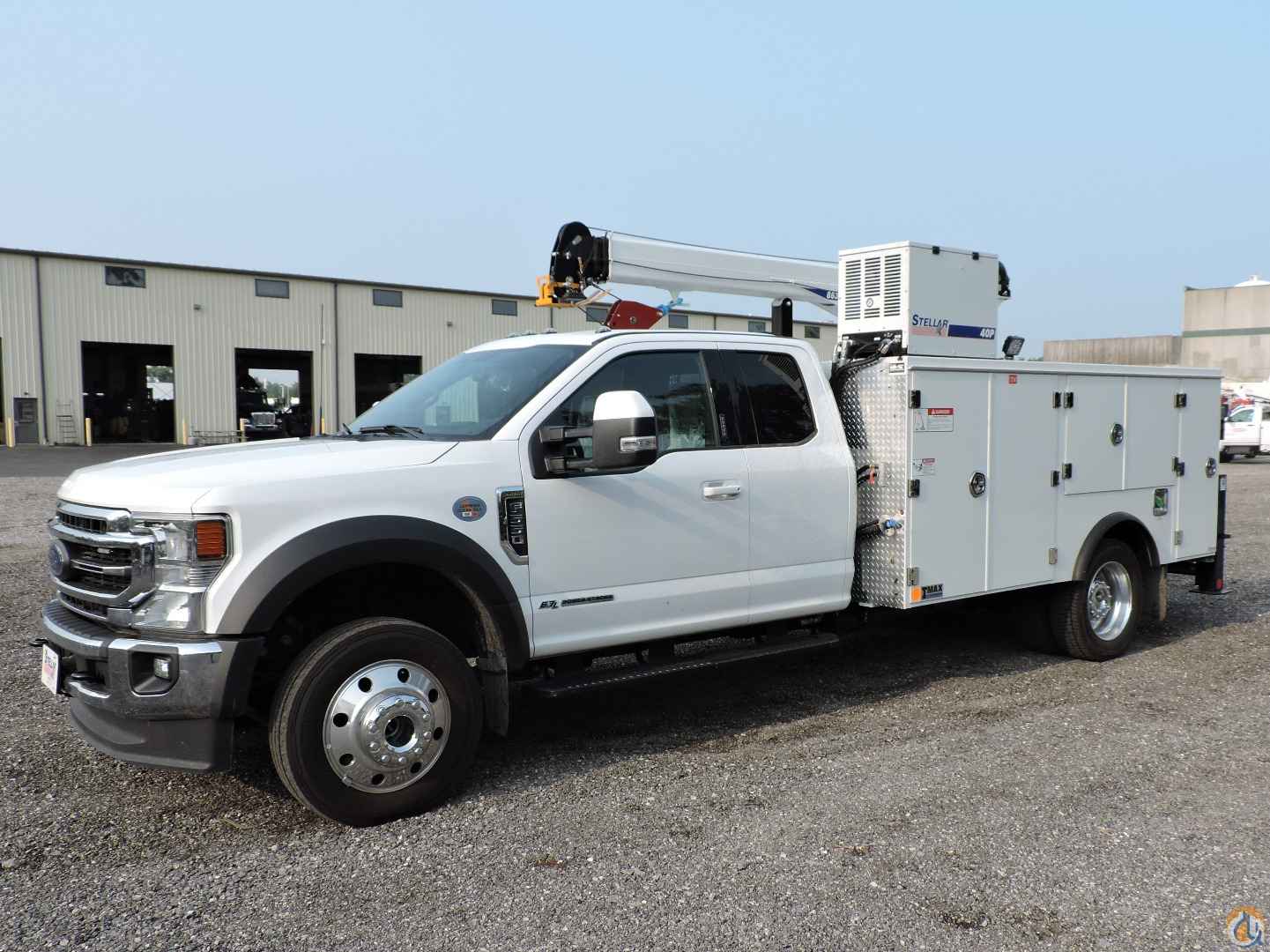

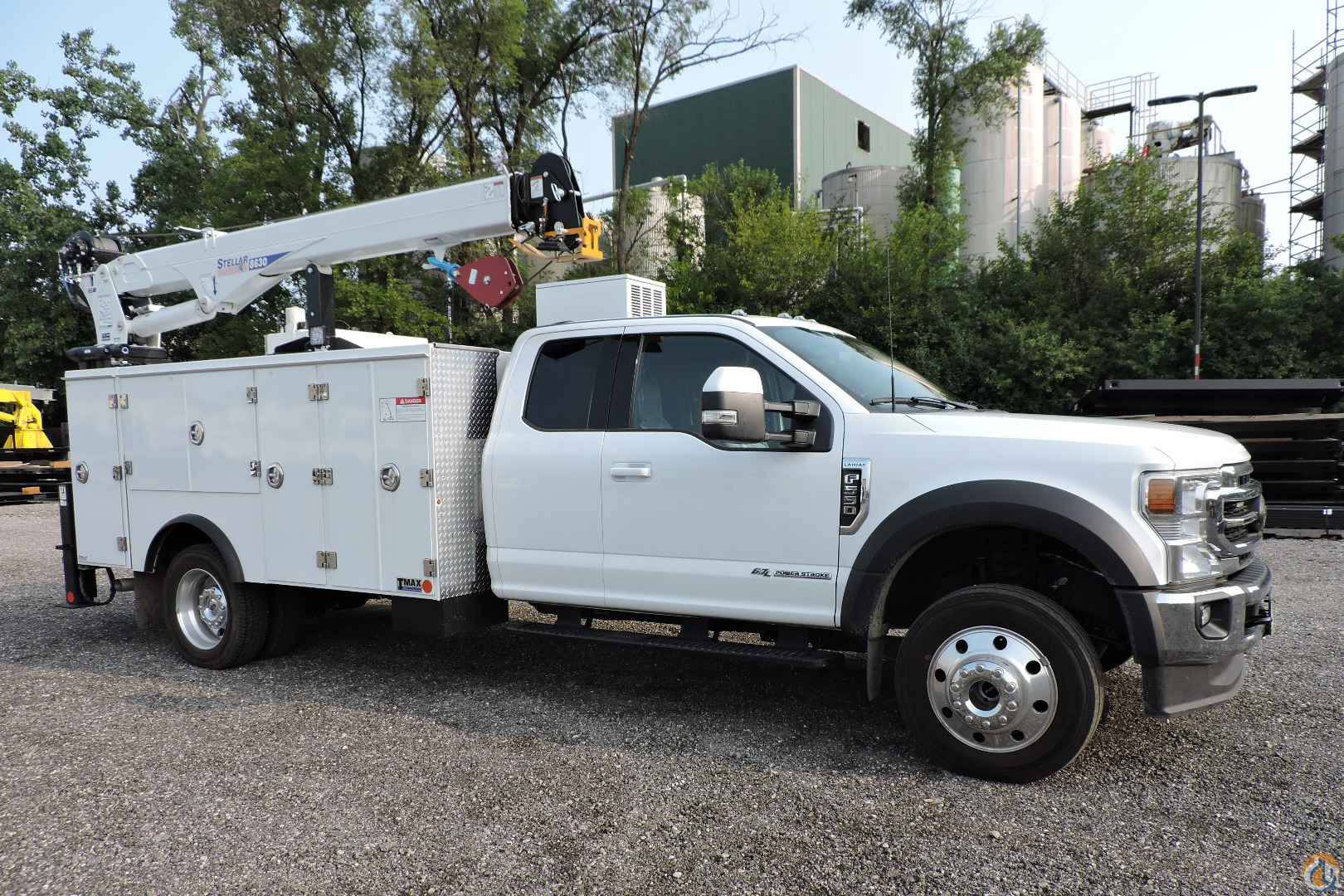

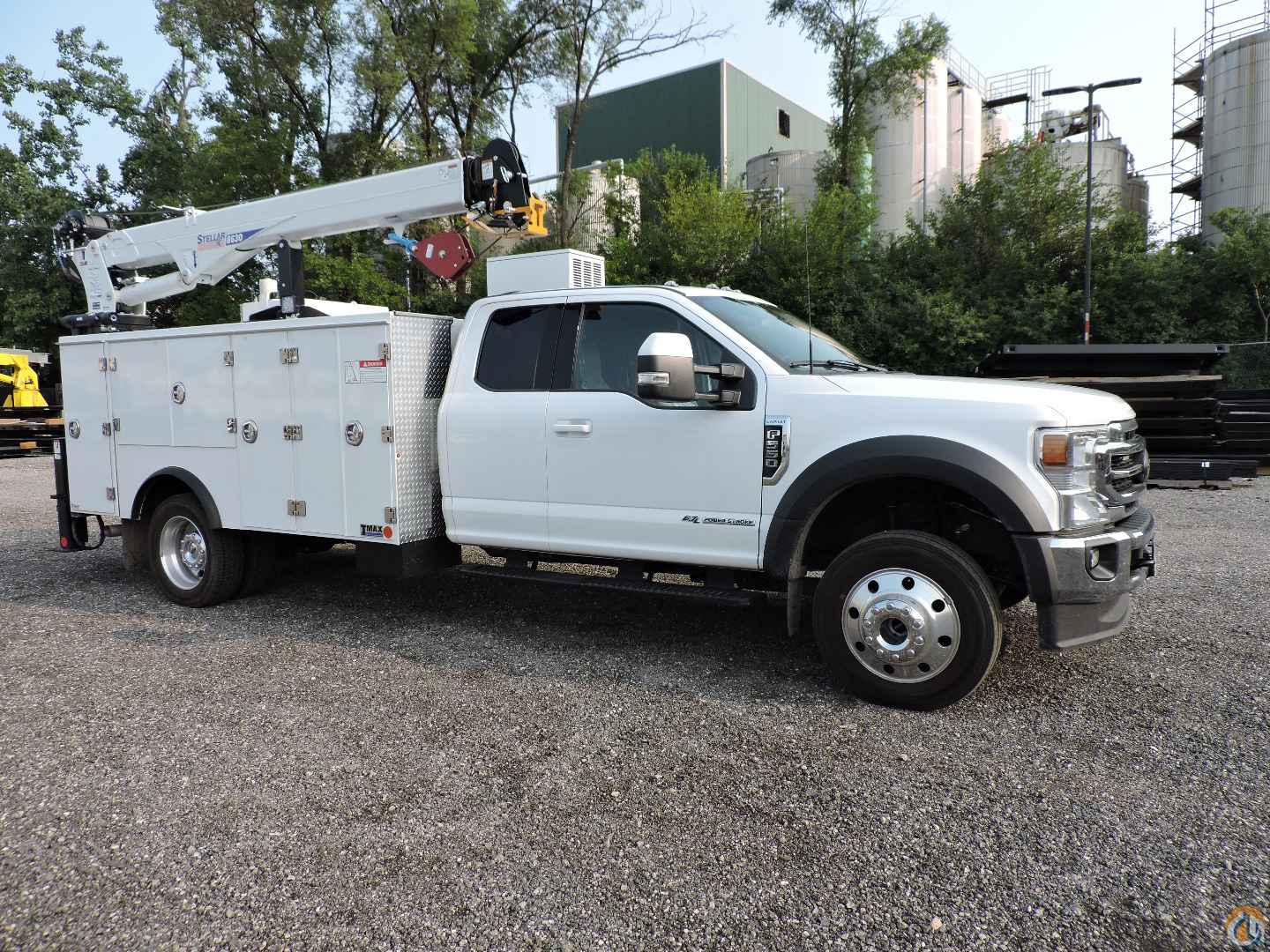

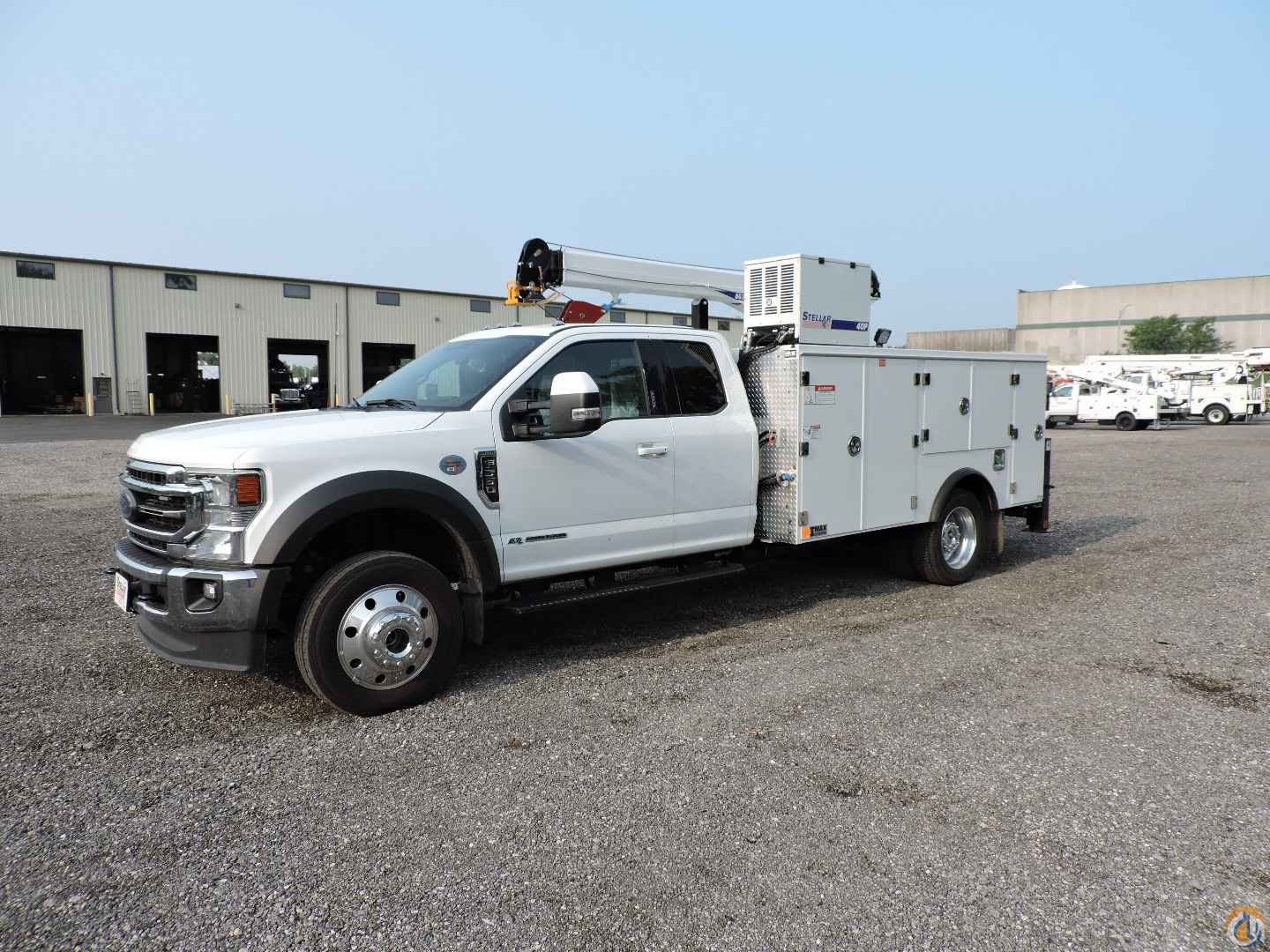

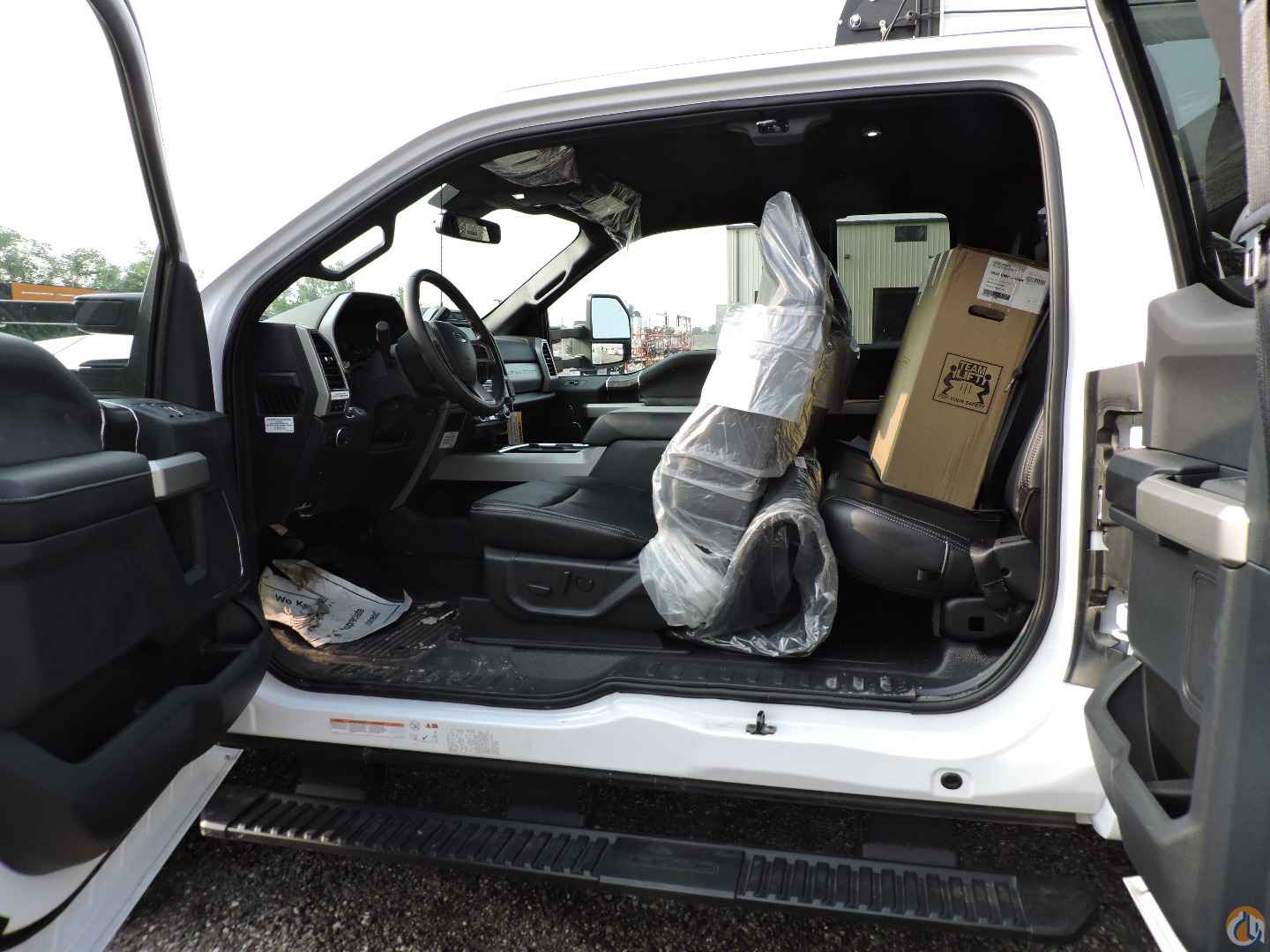

2023 Ford F550 Super Cab Lariat 4x4 equipped as follows:

- 19,500# GVWR

- 6.7L Power Stroke V8 diesel engine

- Automatic transmission

- Cruise control

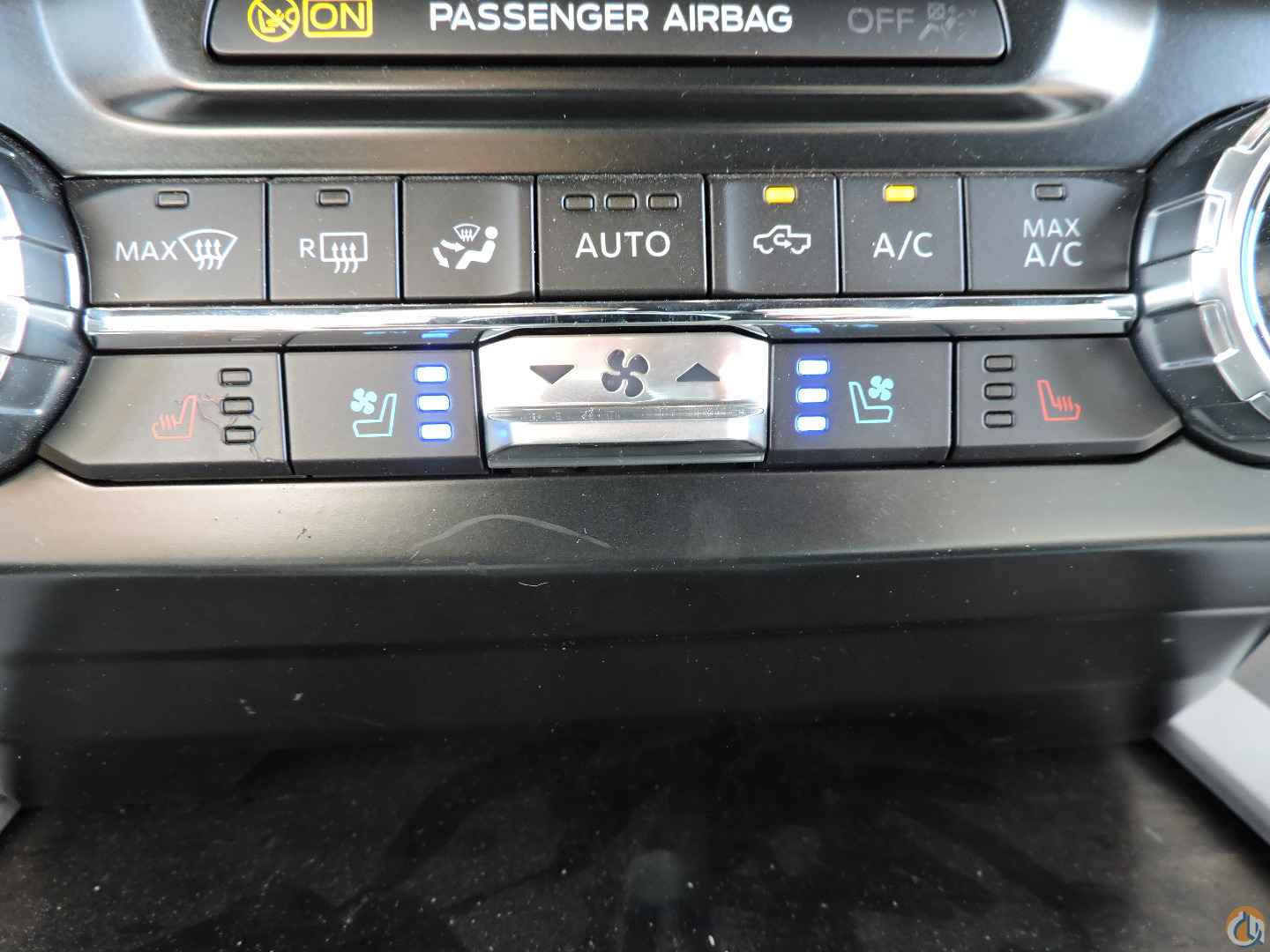

- Air conditioning

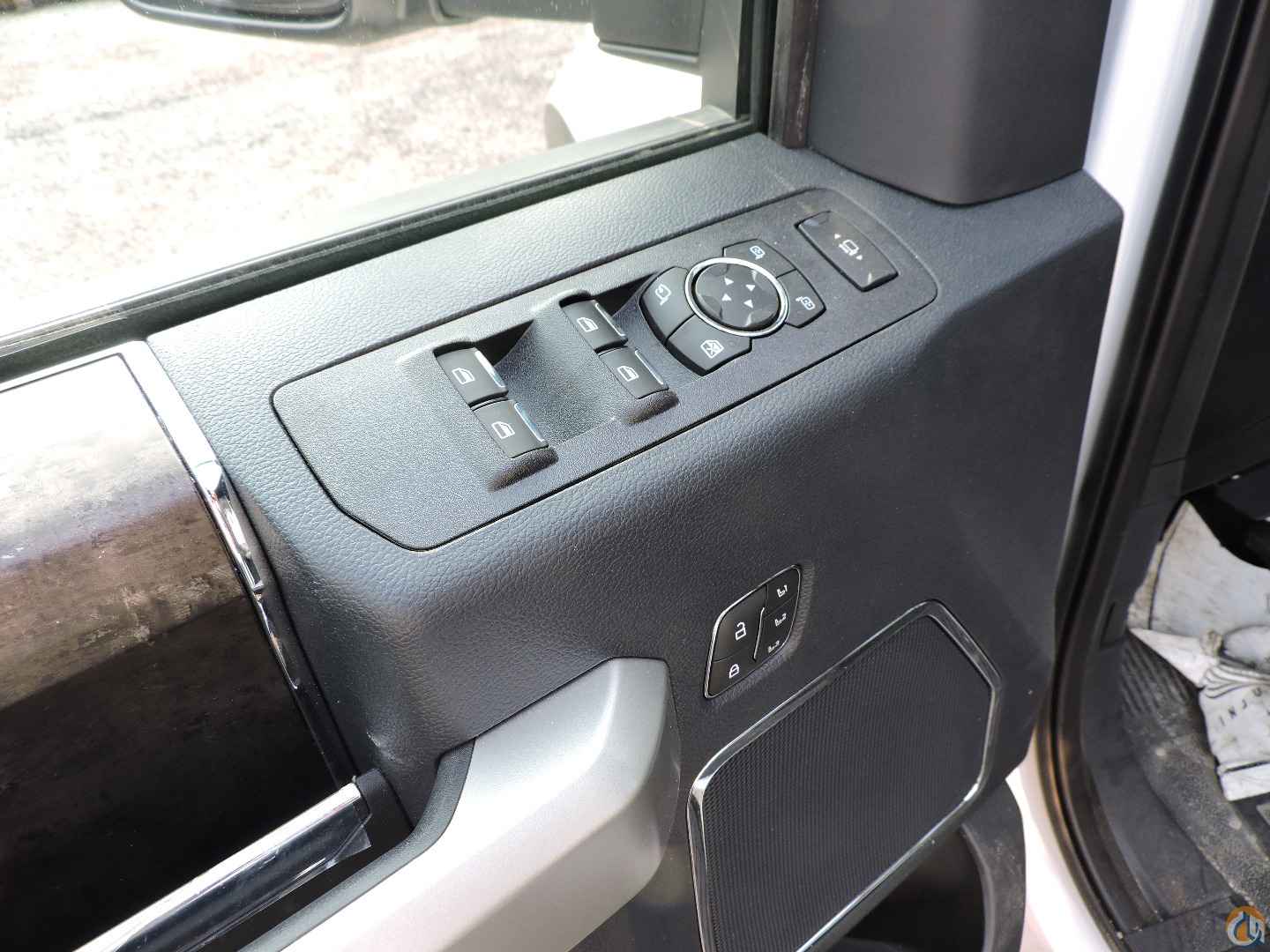

- Power group

- Upgraded radio with Bluetooth

- Backup camera
