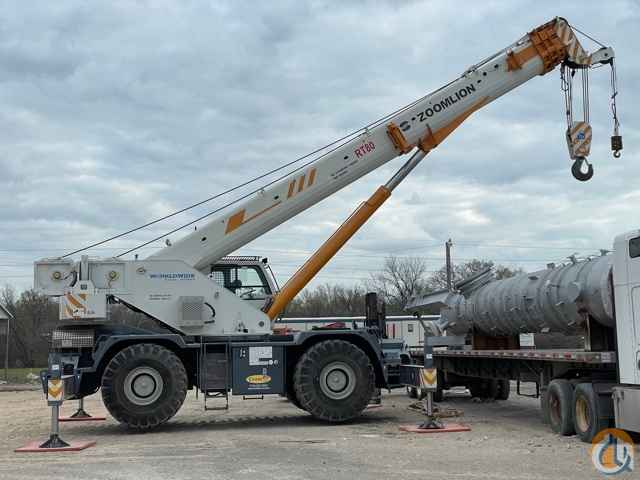

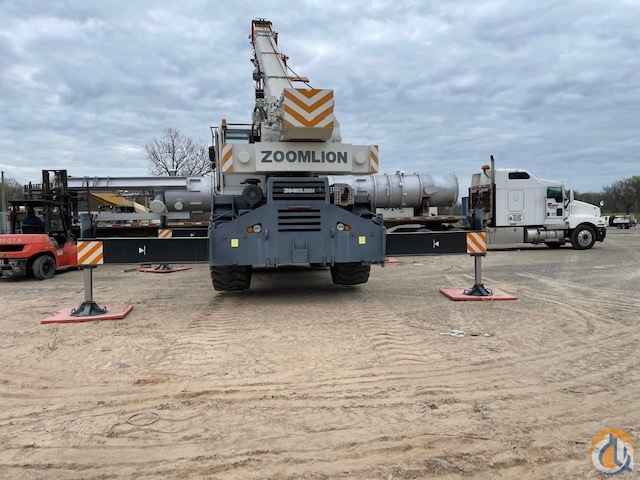

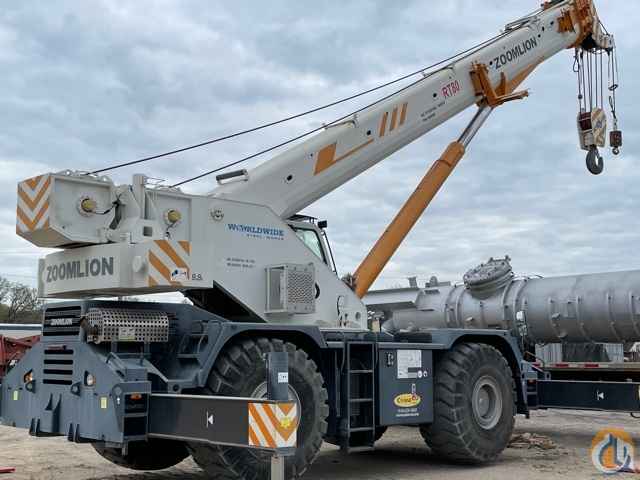

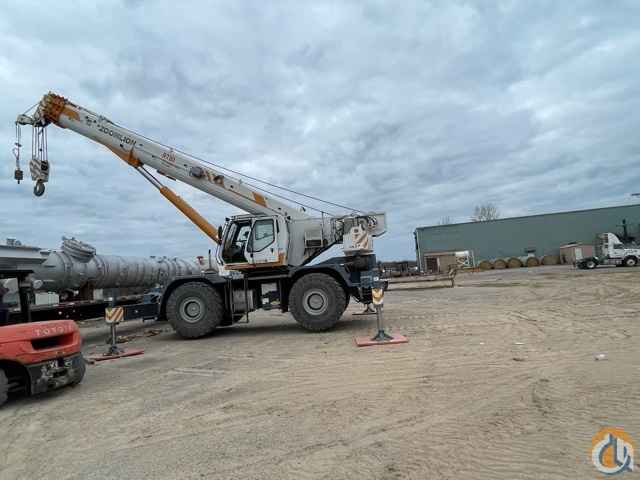

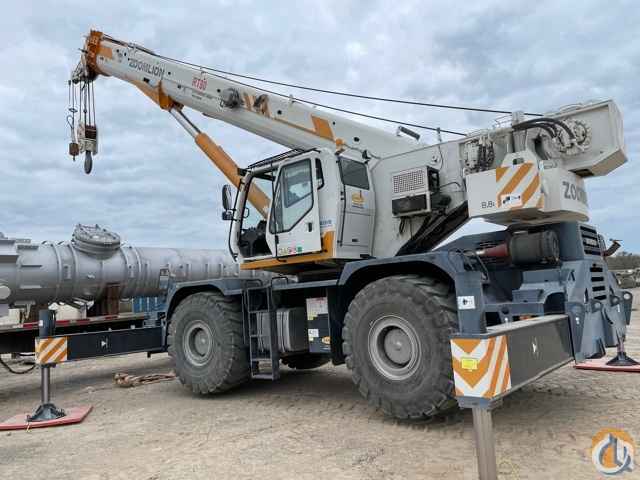

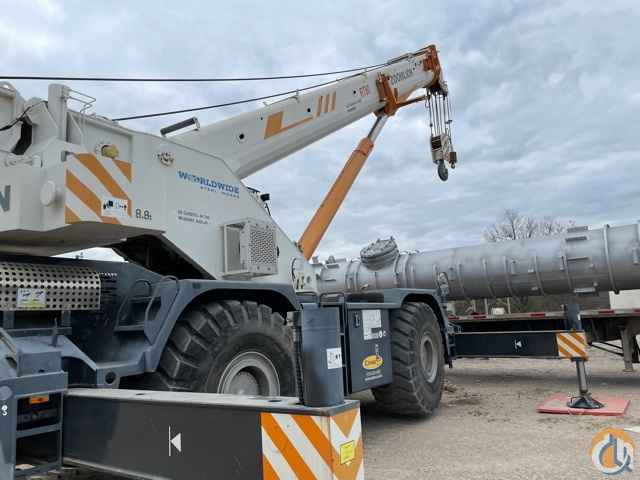

Zoomlion Hydraulic  Rough Terrain Crane model RT80 (80 ton US) with all Standard equipment S/N RTT75-0040

Specs:

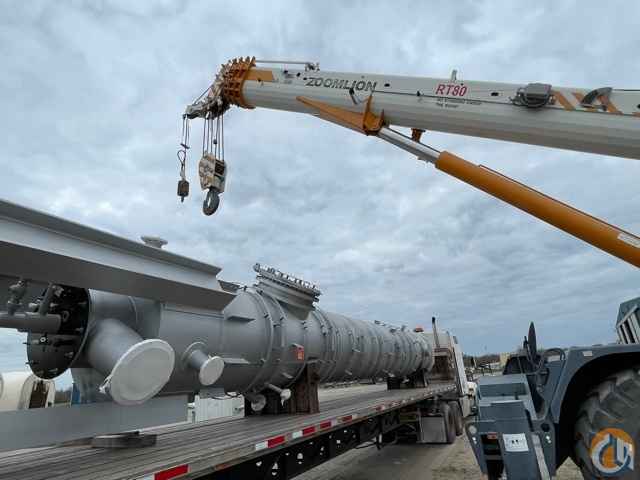

Boom: 41'-126.3 ft. Four-section, full-power synchronized boom. Boom is constructed of High-yield steel. 5 sheave quick reeve boom tip with removable rope guards. Rope Termination lugs on both Sides of boom head.  Auxiliary lifting shea\Ye and manual angle Indicator is included. Fully extended boom length: 38.5 m (126.3 ft.)

Jib: 10-17 m (33-56 ft.) jib consisting of 10m (33ft.) lattice side stow jib and 7 m (23ft.) Manual pull out section. Main jib is offsettable at 0°, 20° and 40°. Max. Tip height with 10m (33ft.) jib erected is 48.5 m (159.1 ft.). Max. Tip height with 10 m (33ft.) jib + 7 m (23ft.) fixed Pullout extension is 55.5 m (182.1 ft.)

LMI: PAT Hirschmann LMI control system. Microguard graphic display load moment and Anti-two block system with audio- visual warning and function limiter.

Hoist: Standard two speed main and auxiliary hoists, each with planetary reduction and Spring applied multi-disc wet brake.  Each hoist features: Grooved drum lagging. Hoist drum Cable followers. Max. Permissible line pull: 9,000 kg (19,842 lbs.). Winch speed: 0- 125m/min (0- 410.1 ft. /min). Power up I power down. Electronidrum rotation indicators

Counterweight: Single 16,535 lb. (7500 kg) hydraulic removable  Counterweight. Length 10.2 ft. (3.1 m). Width 3.4 ft. (1 m). Height 2.8 ft. (0.8 m).

Swing: Bi-directional hydraulic swing drive with multi-disc wet brake and planetary reduction Gearbox. Spring applied hydraulically released swing brake and 360° pneumatic positive swing

Lock. Max. Swing speed: 2 rpm.

Engine: Cummins QSB 6.7. lnline 6 cylinder intercooled turbo diesel, 265Hp (194kW)@ 2200 Rpm. 80 gallon fuel tank capacity. USA Federal EPA I California ARB I European EU I Tier 3 Emission rating.

TRANSMISSION: Dana powershift 6 speeds forward and 3 speeds reverse. Front axle Disconnect offering both 4x4 and 4x2 operation. Max. Speed of 25 mph (41Km).

AXLES: Kessles (Germany) front and rear steering axles with planetary reduction. Rigid mount Front axle and full floating rear axle. Automatic rear axle oscillating lock.

STEERING: Three independent power steering modes: front-wheel, all-wheel and crab mode.

BRAKES: Front and rear split system with air over hydraulic operation. Disc brakes on all wheels.

TIRES AND WHEELS: 29.5 x 25- 34 ply rating, earthmoving style tires. Steel disc wheels.

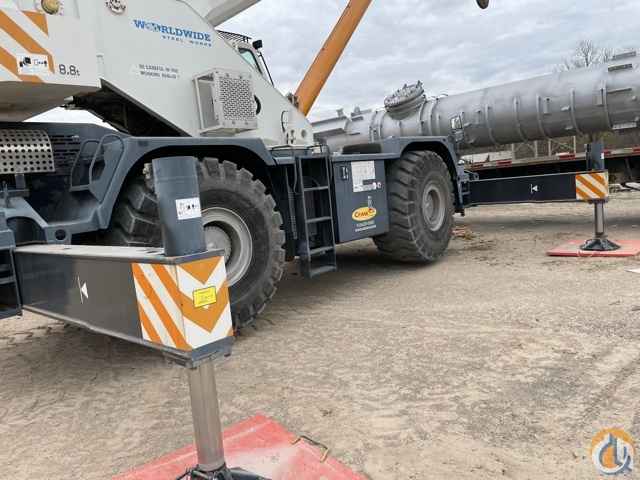

OUTRIGGER SYSTEM: Four independent horizontal beams and vertical jacks with integral Holding valves. 100%- Full outrigger extension, 50%-  Mid outrigger extension, 0%- Full Outrigger retraction. Lightweight aluminum, quick release outrigger pontoons.

Hydraulic System: Parker and PERMCO hydraulic pumps. Gear pump for main and auxiliary Winches, boom hoist and telescope cylinders. 17.7 gal/min (67 Llmin) gear pump for steering. Gear pump for outriggers and slewing. 264 gallon (1000 L) hydraulic reservoir with external Sight and temperature gauge. Easily accessible (10 micron) cartridge style full flow filters with Bypass protection.

Operator Cab: Full vision operator cab designed for max. Comfort. All steel fabrication with Acoustical lining and tinted safety glass throughout. The cab has a sliding door on the left and A sliding window on the right with a swing-up skylight with retractable shade and wiper motor. Fully adjustable deluxe seat with tilt. Foot controls for boom telescope, service brake and engine throttle.

Tilt steering. Temperature control is provided by a hydraulically driven air conditioning Unit. Easy view dashboard with gauges for all engine sensors and rocker switch outrigger controls. Standard amenities also include bubble level, dome light, left side rearview mirror, seat belt, travel swing lock and signal horn.

 Two Speed Auxiliary Winches with Drum Rotation Indicator and Cable Roller  Work Lights (3) Pintle Hook
