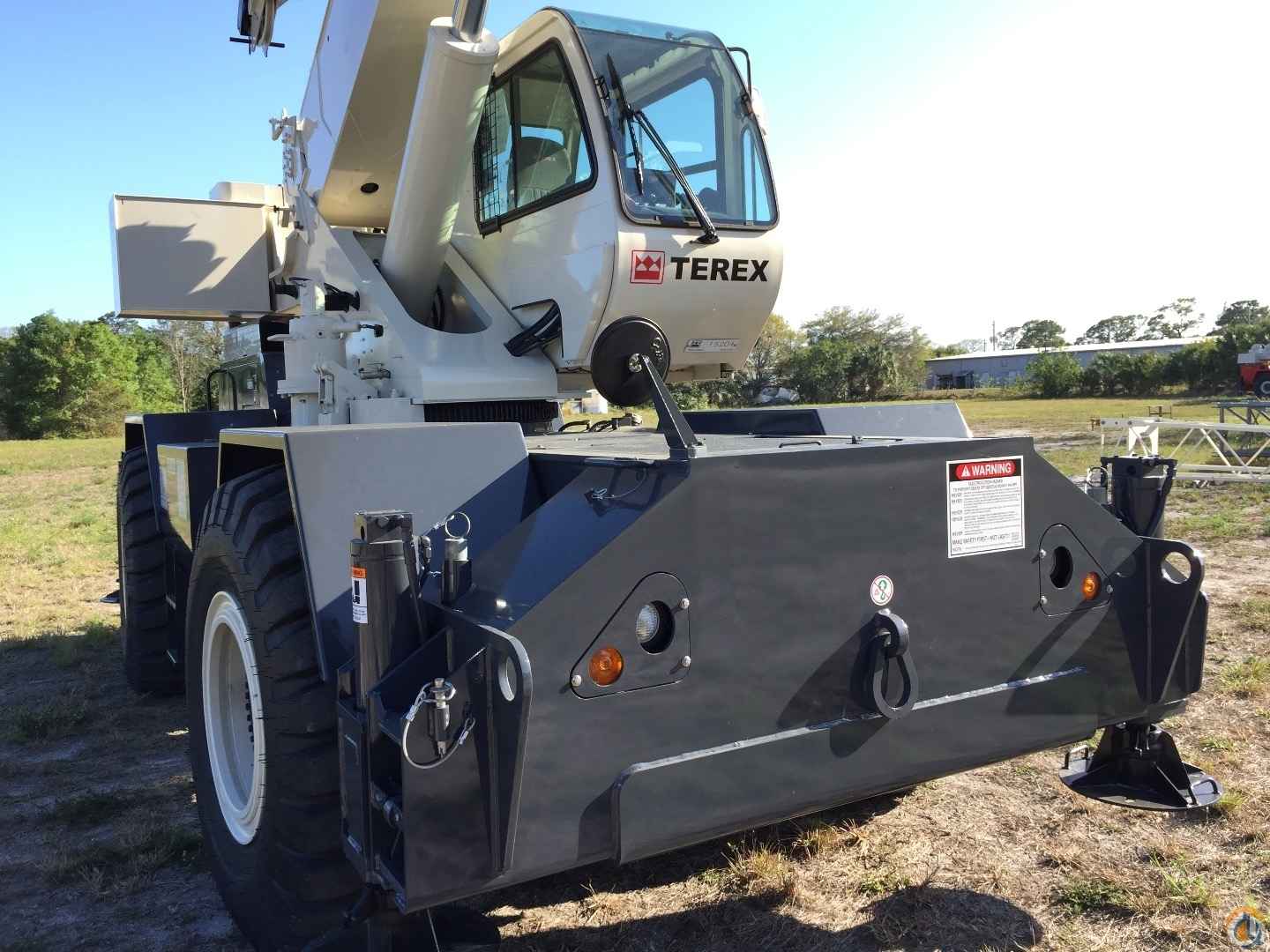

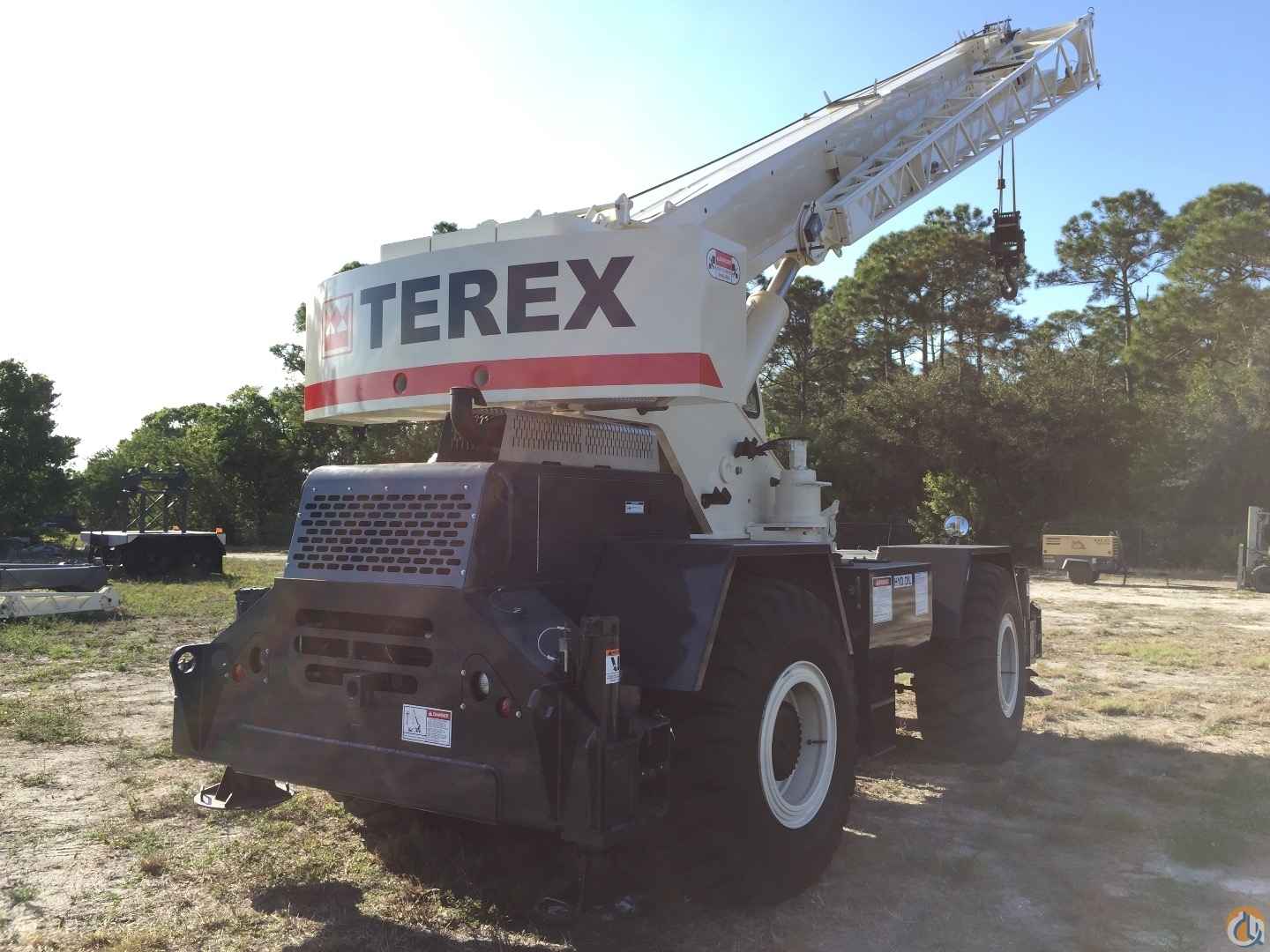

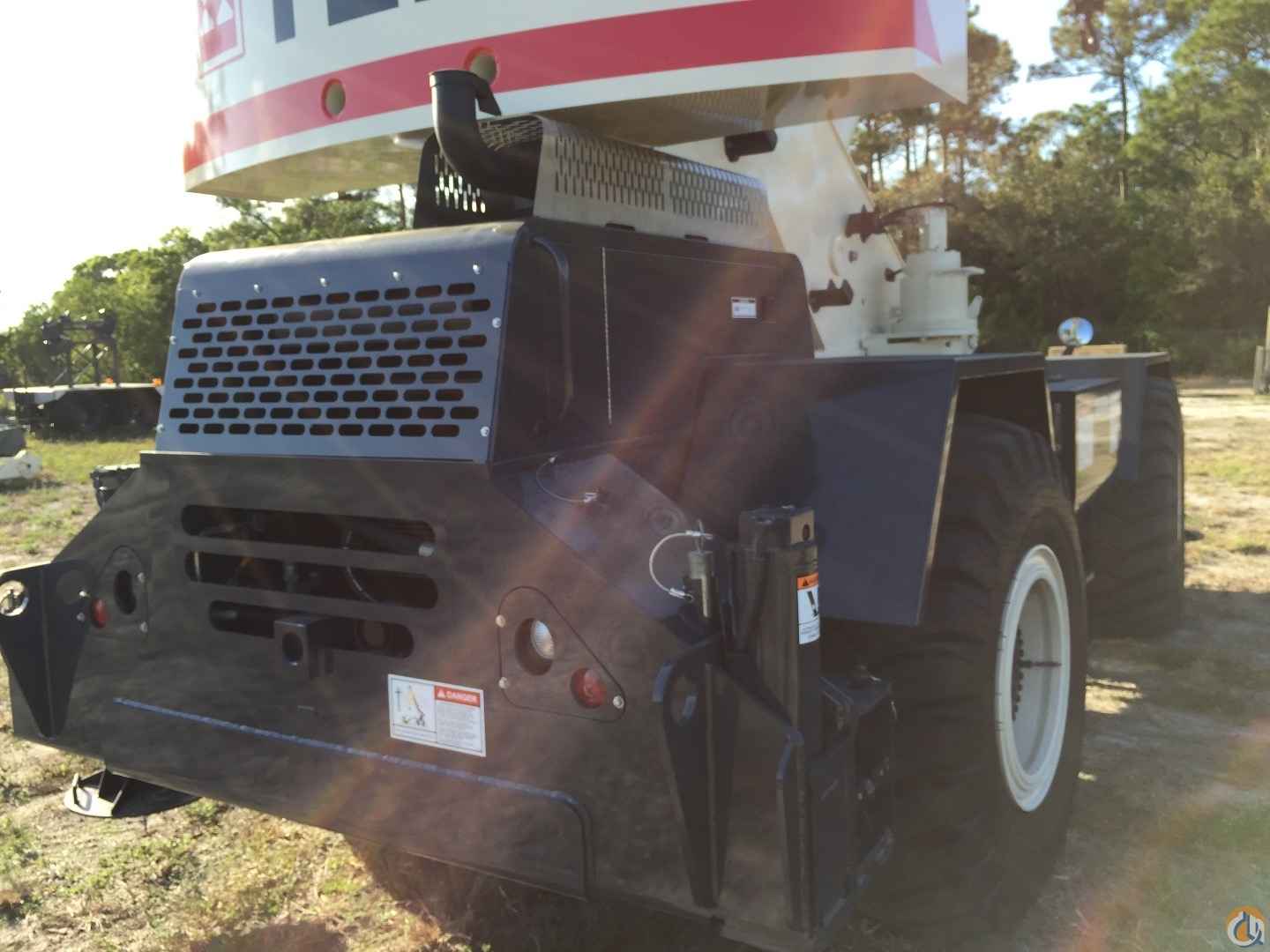

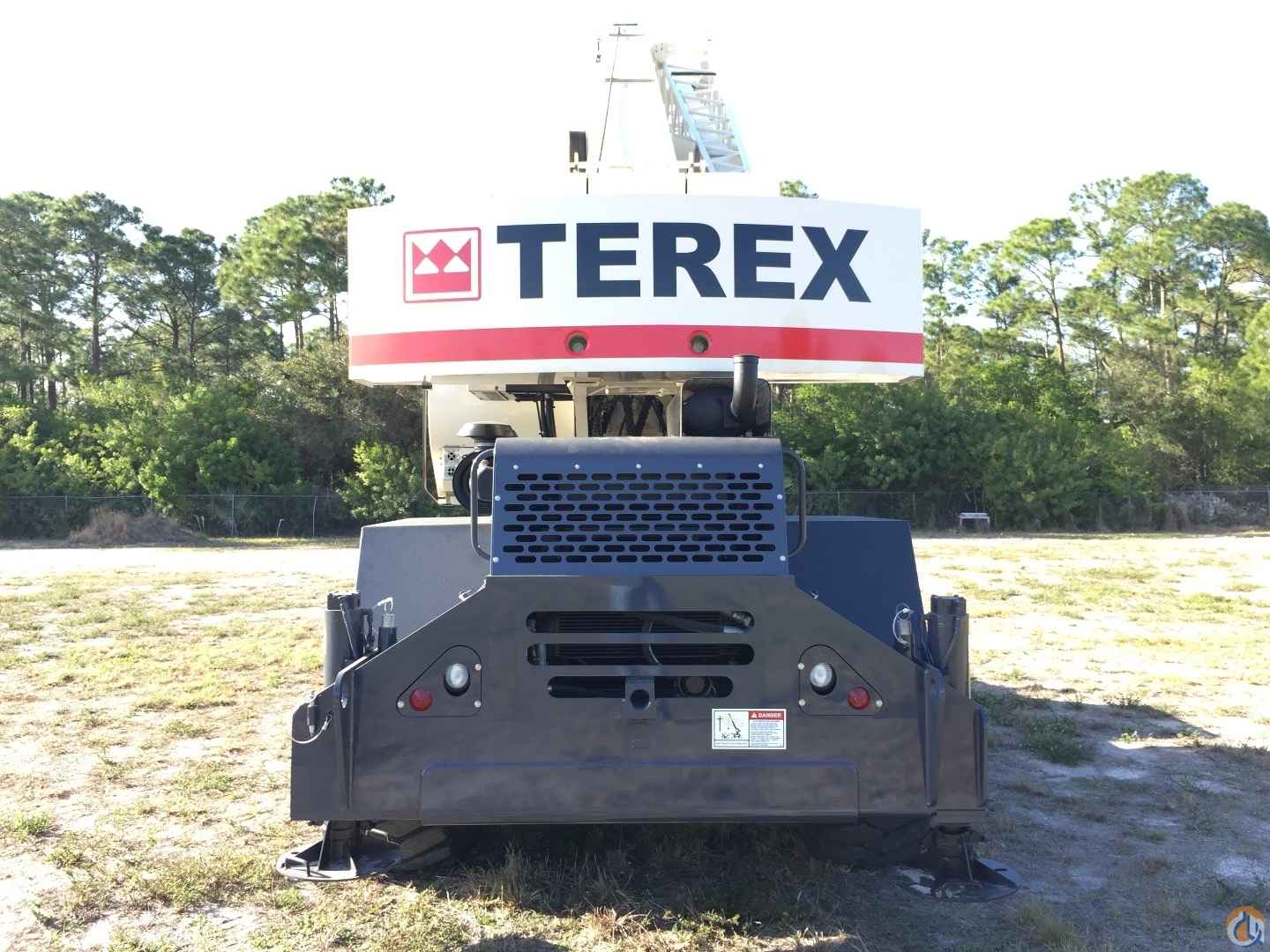

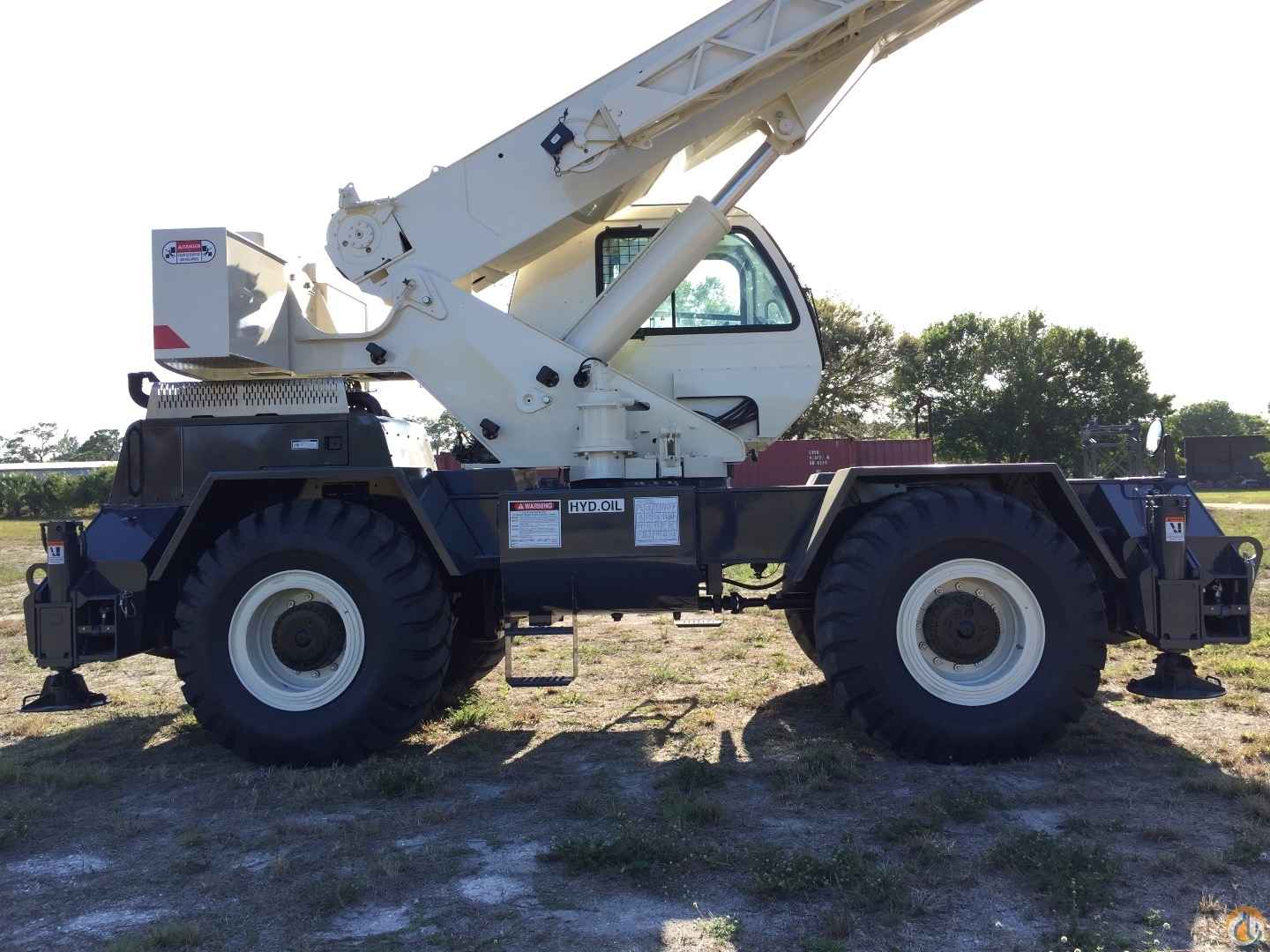

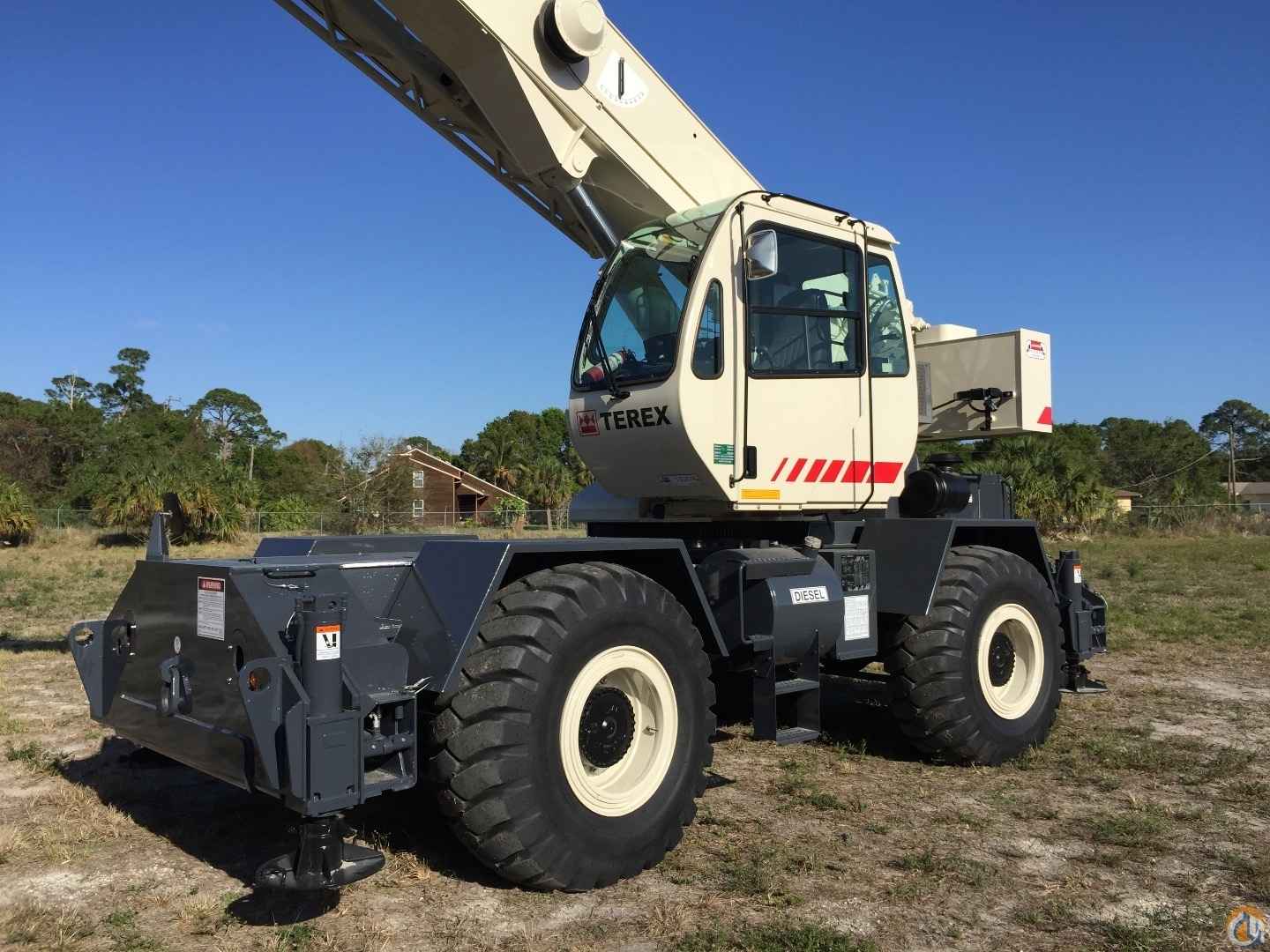

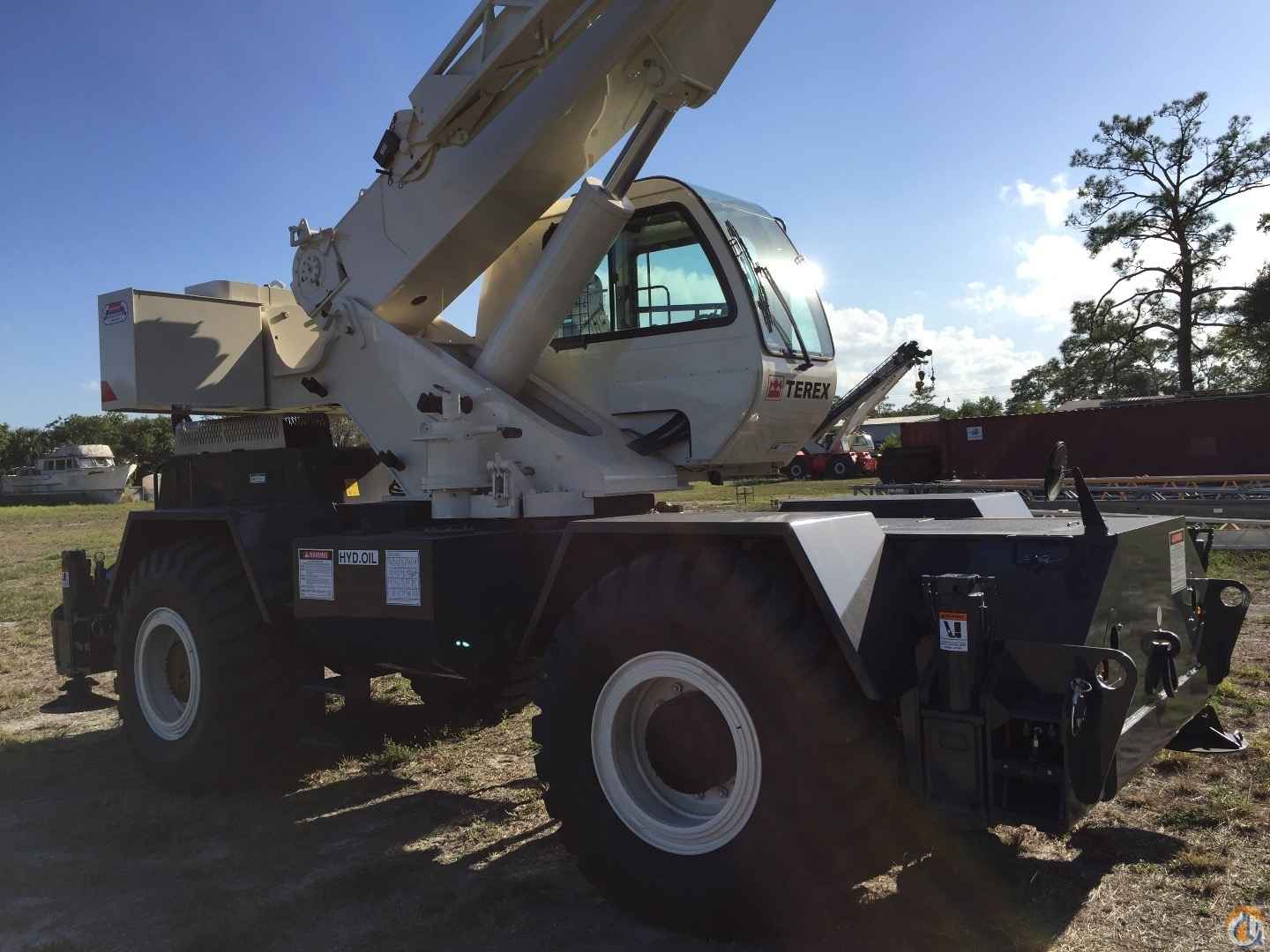

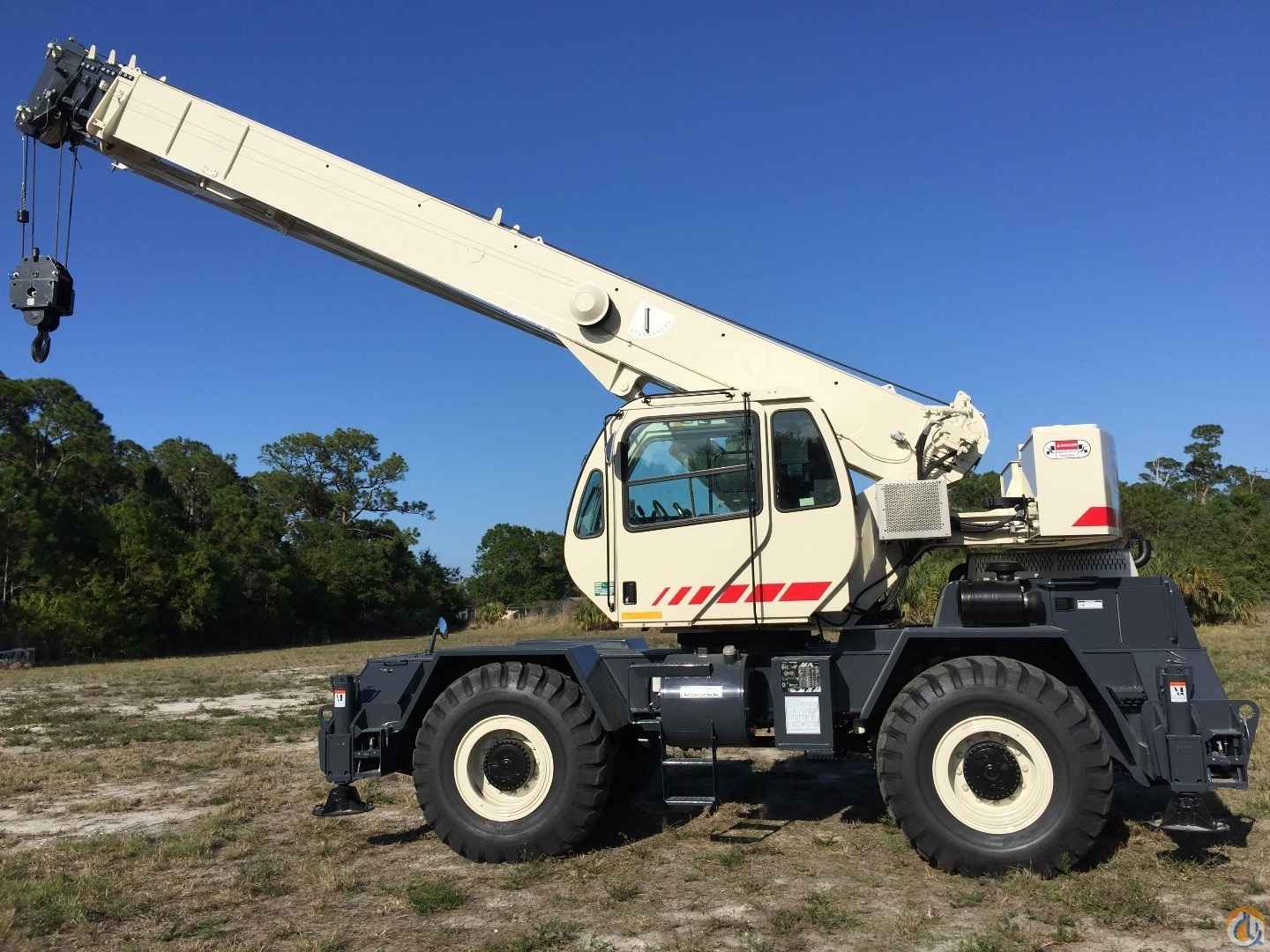

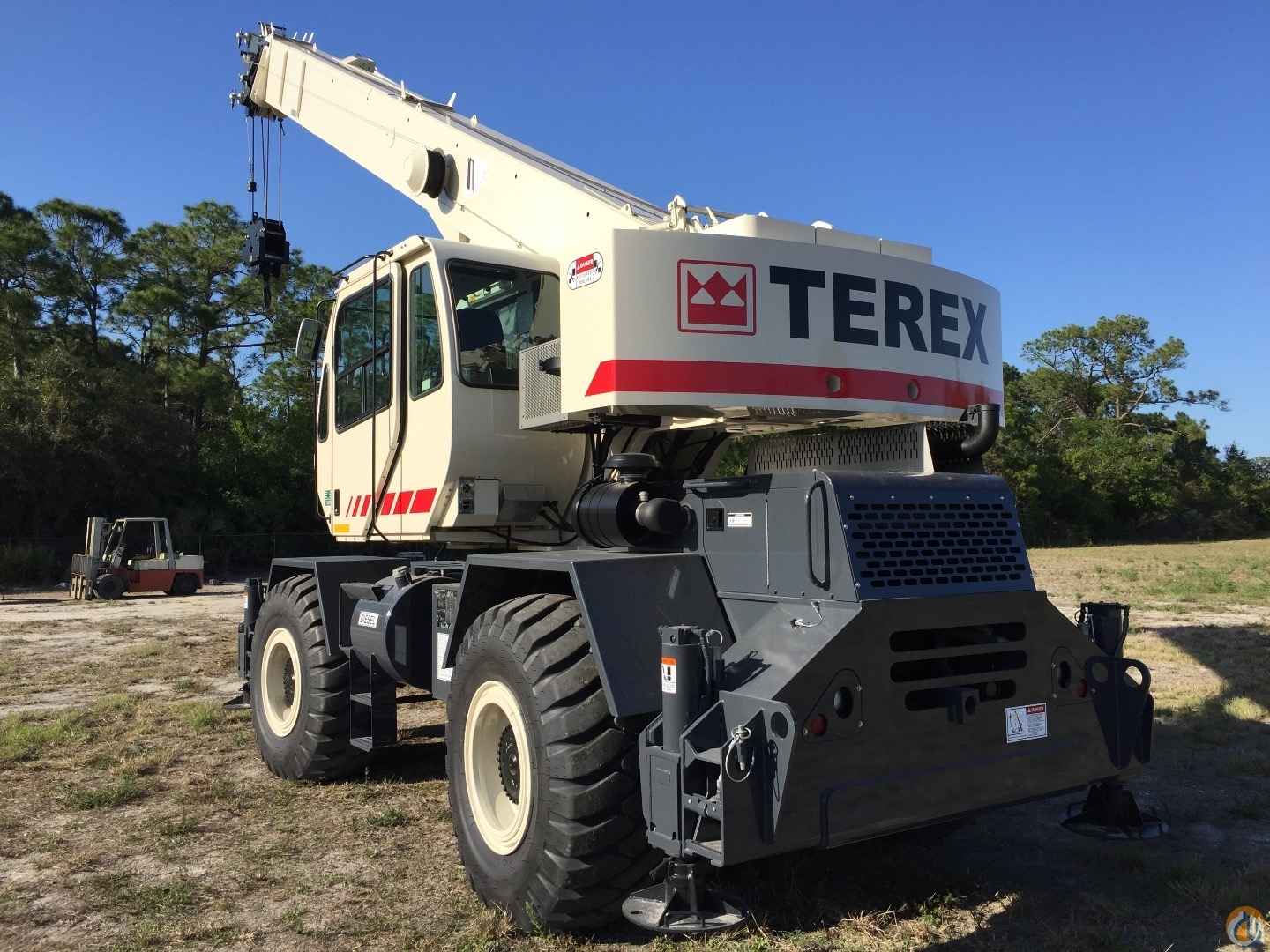

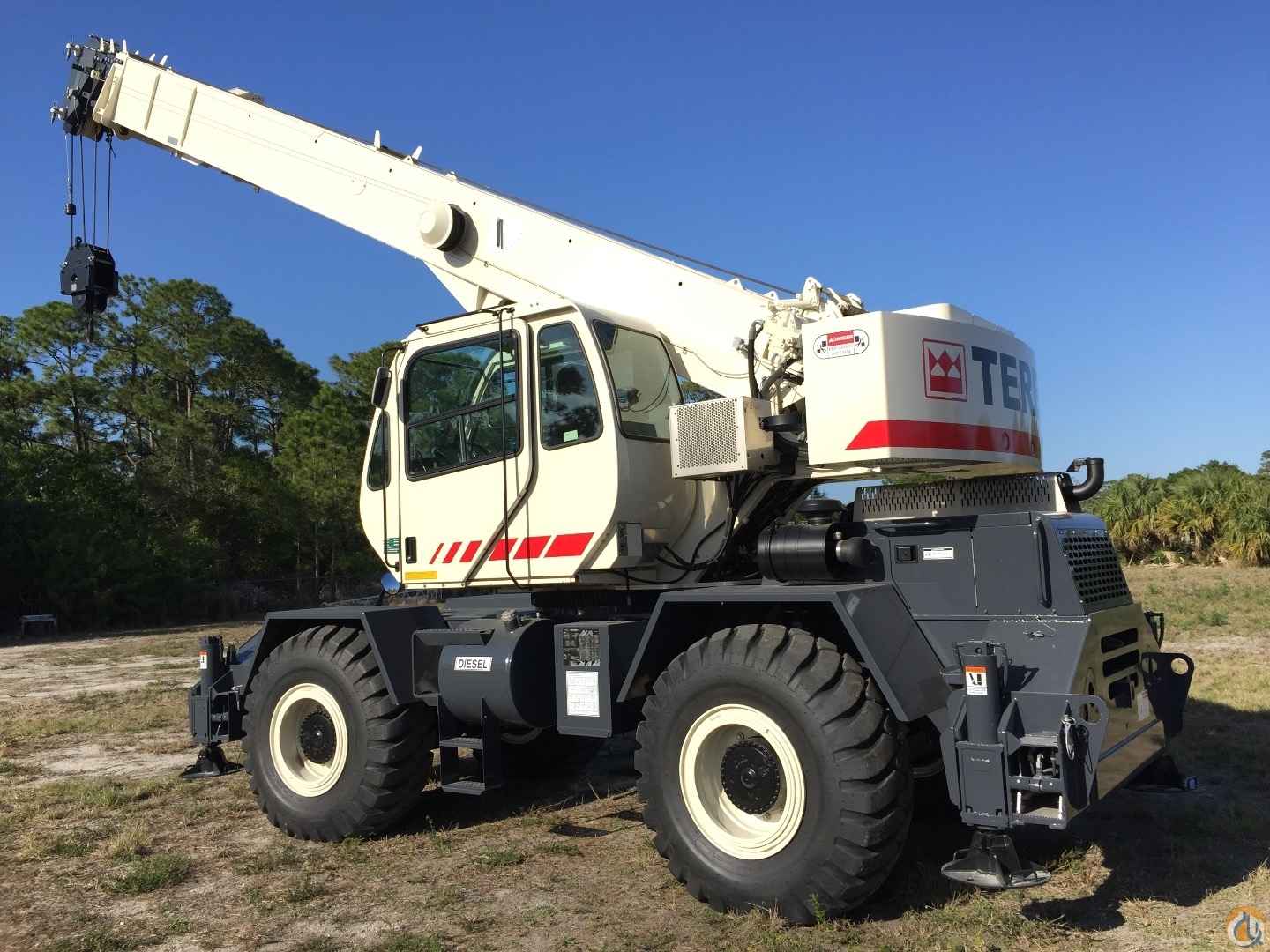

2008 Terex RT 230-1 Rough Terrain Crane
SOLD
Russell Veith: 772-519-3928
Last Updated: 20 Aug 2023
Capacity: 30.00
Boom/Jib: 94
Hours: 4500
Condition: Excellent
2008 TEREX RT230-1 30-TON
LIKE NEW IN & OUT !
POWERFUL AND COMPACT
8’-6"EASY TO TRANSPORT
CUMMINS POWER
CLEANEST RT230-1 IN THE COUNTRY
$129,500
30 TON, 94' FULL POWER BOOM, 43' TELESCOPIC JIB
JOYSTICK CONTROLS
HYDRAULIC A/C, PROPANE HEAT,
4X4X4 DRIVE, POWERSHIFT TRANSMISSION

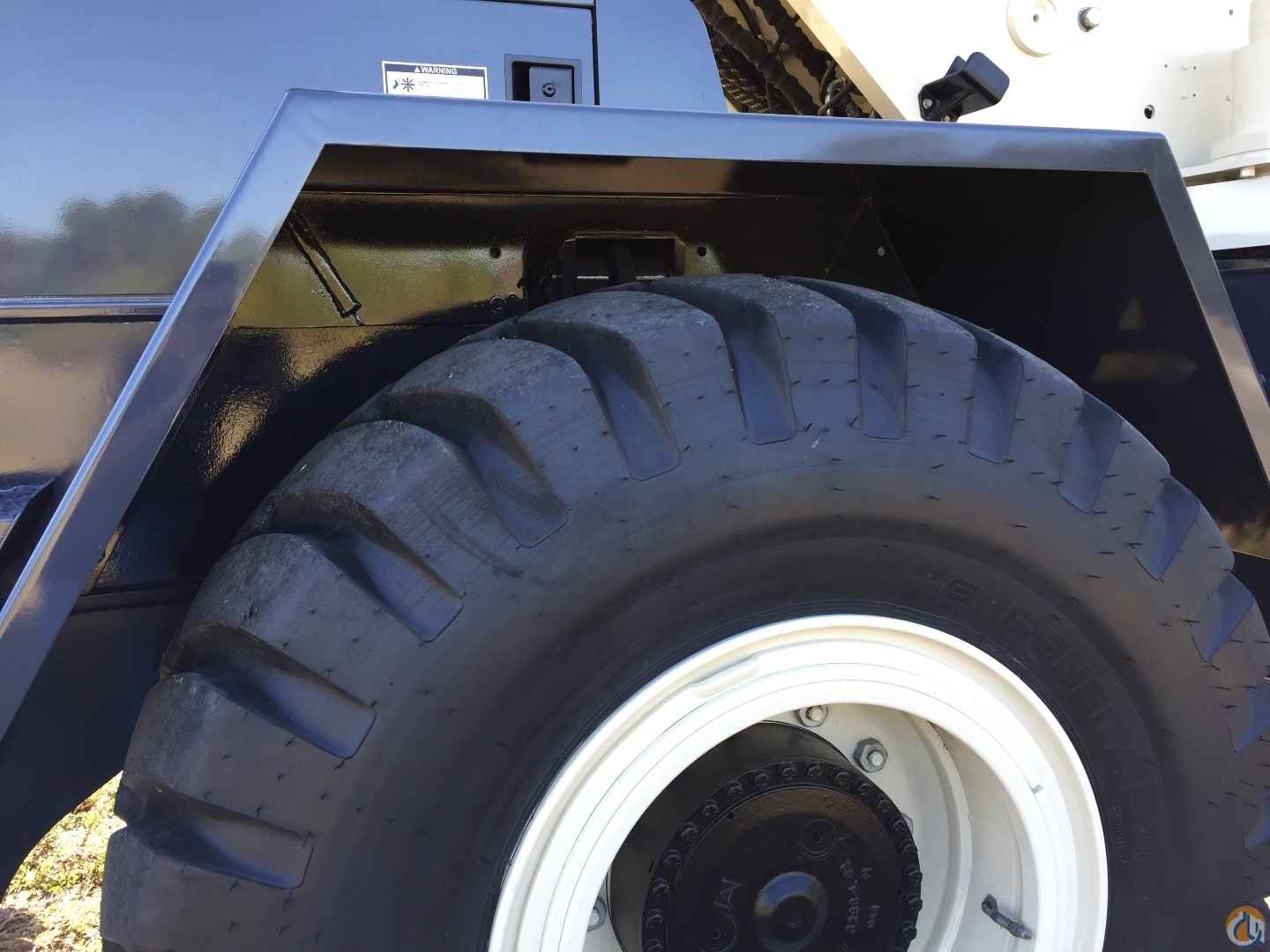

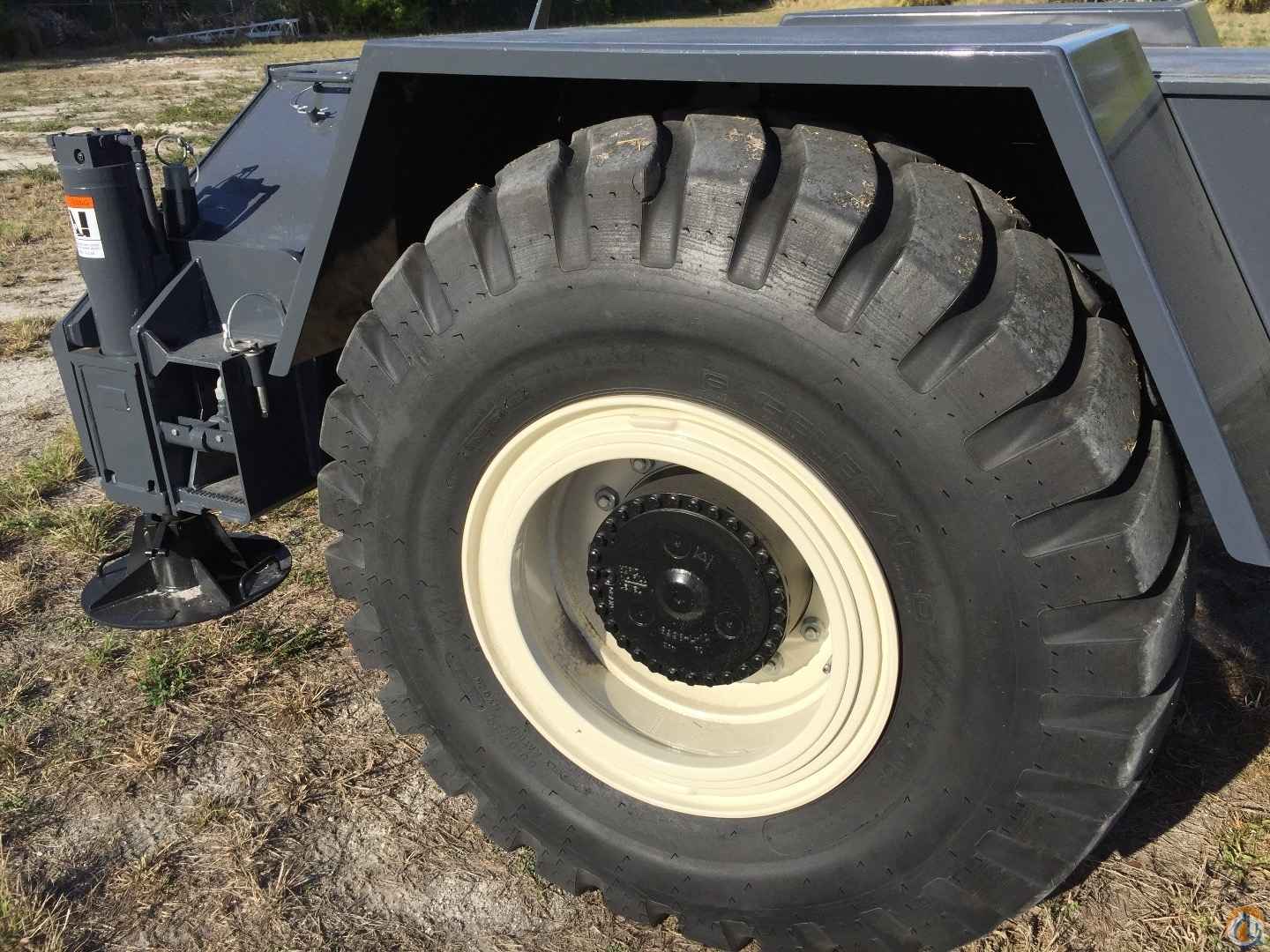

LIKE NEW EXCELLENT 20.5-25 TIRES
GREER LMI SYSTEM WITH A2B
30 TON QUICK REEVE BLOCK AND BALL
EXCEPTIONAL CONDITION LOW HOUR CRANE
WATCH HD VIDEO BELOW
CALL RUSS 7 DAY A WEEK
CELL 772-519-3928
Can deliver to Florida Port !
Boom
30 - 94 ft. (9.1 -28.7 m) Four section, full power, mechanically synchronized boom
26'-43' telescopic swing away lattice jib
Quick-reeving boom head; no need to remove wedge from socket.
Single boom hoist cylinder provides boom elevation of -4 degrees to 76 degrees.
Hoist cylinder is equipped with integral hold valves.
Hoist System
474 fpm (144 m/min) maximum line speed, 12,510 lb (5,673 kg) maximum line pull.
Electronic drum indicators
Integral automatic brakes
Two speed main hoist.
Grooved drum, tapered flanges, and spring loaded cable roller for improved spooling.

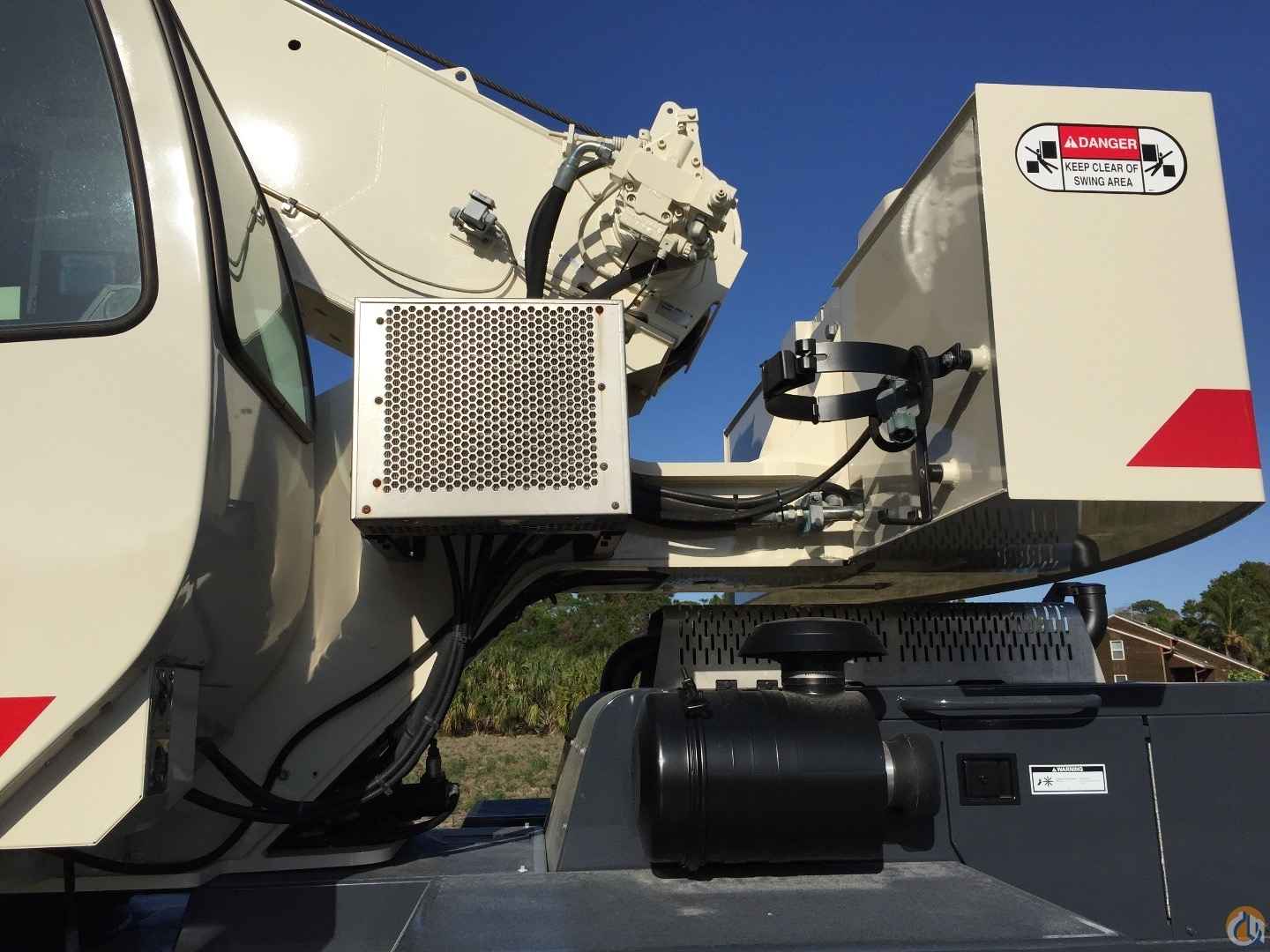

Counterweight
Standard upper counterweight 10,000 lb (4,536 kg).
CARRIER:
Engine
Cummins QSB4.5, Tier-III, 130-HP (97 kW) @ 2,500 RPM, 4-cylinder, water-cooled, fuel injected diesel with an intercooled, turbo-charger.
Fuel tank capacity - 50 gallons (189 liters).
Heavy duty batteries [(2) 12 volt, 1600 cca].
Transmission & Axles
Range-shift type power-shift transmission with integral torque converter; neutral start; six speeds forward, six reverse.
Four wheel drive and four wheel steer (4x4x4)
Planetary drive rigid front mounted axle and planetary drive oscillating rear axle with rear axle oscillation lock when superstructure is swung 10 degrees .

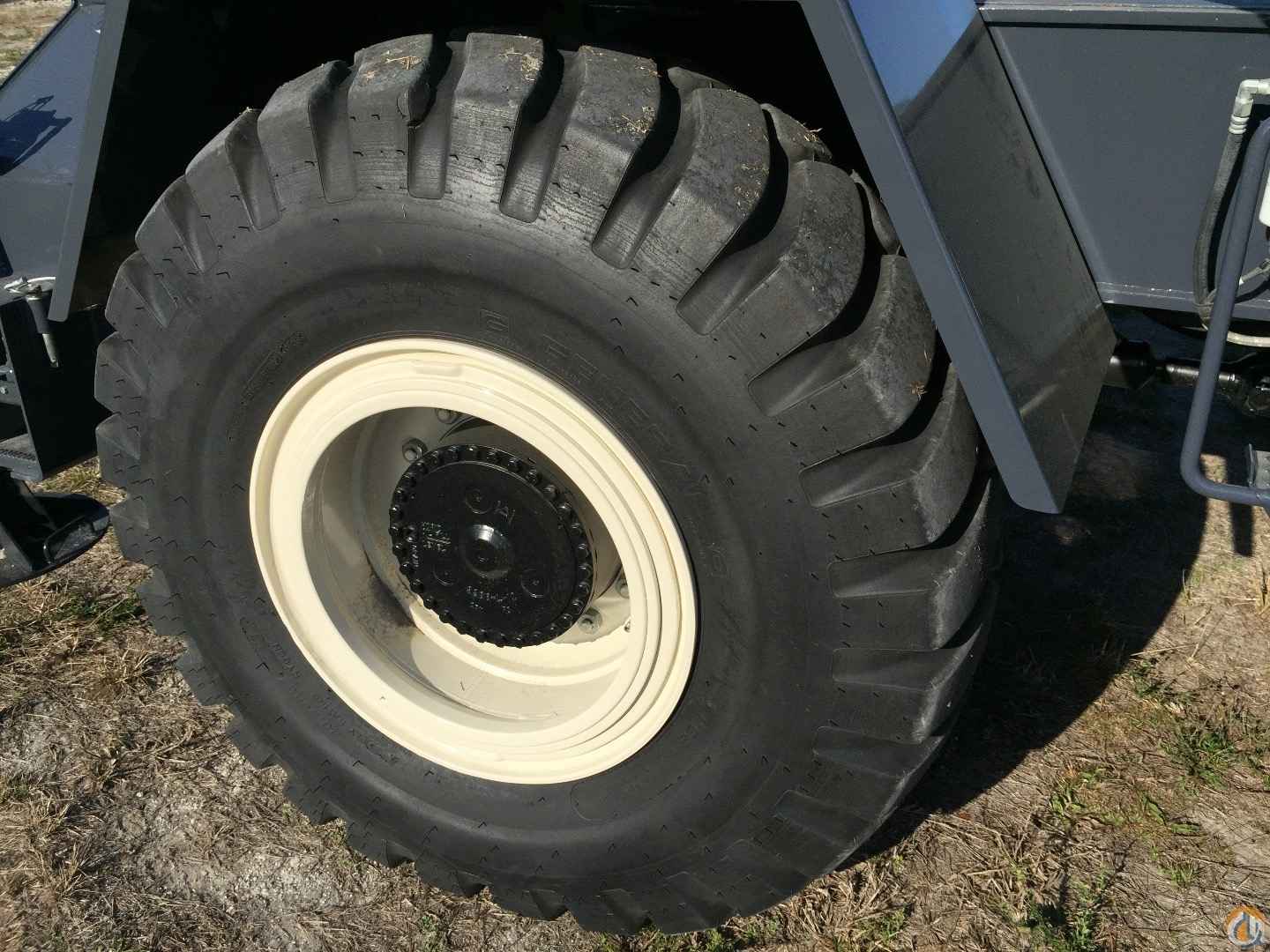

Standard 20.5 x 25 24 PR Tires
Steering
Hydraulic four wheel power steering for two-wheel, four-wheel or crab steer. Standard rear axle centering light.
Hydraulics

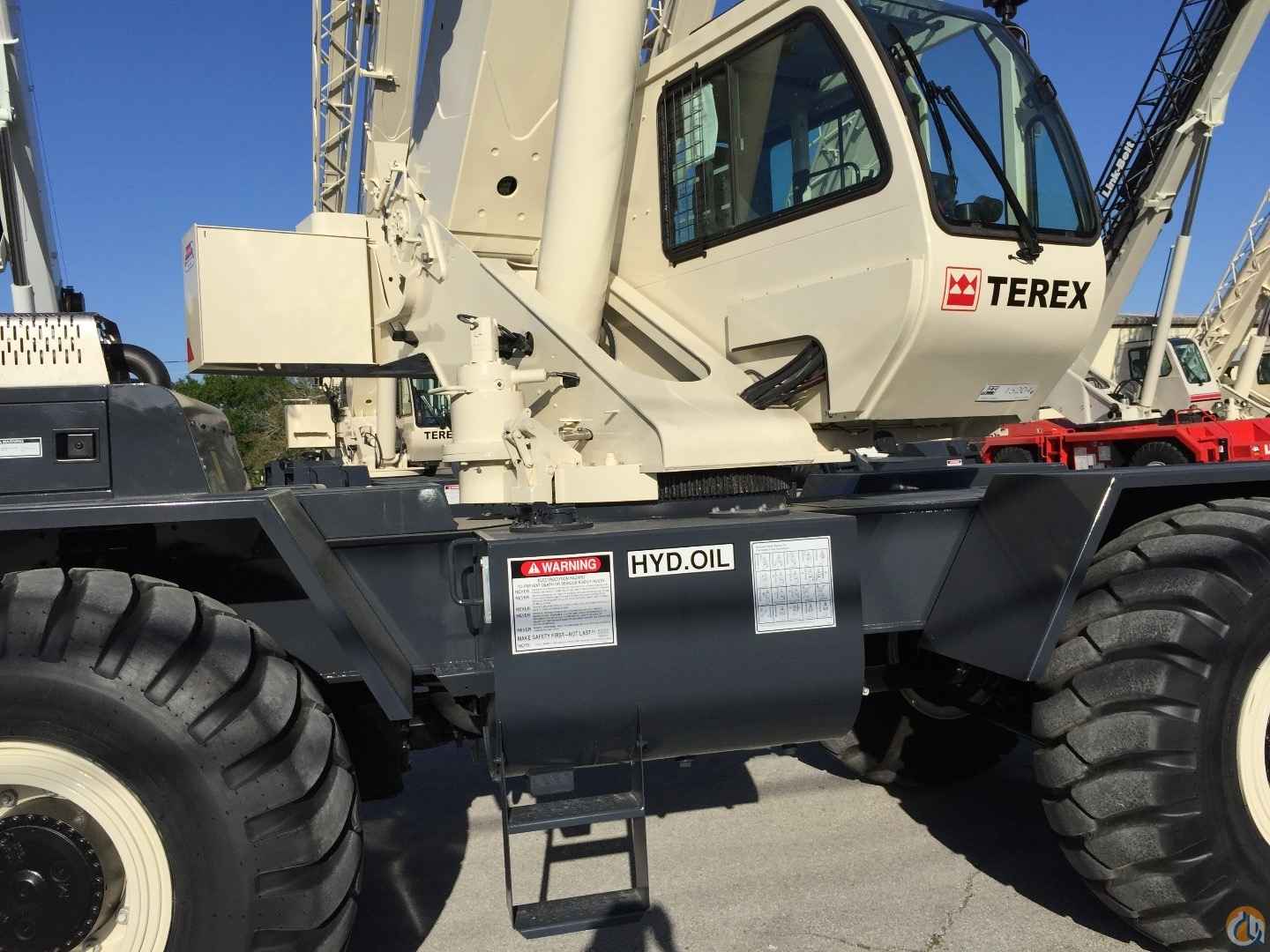

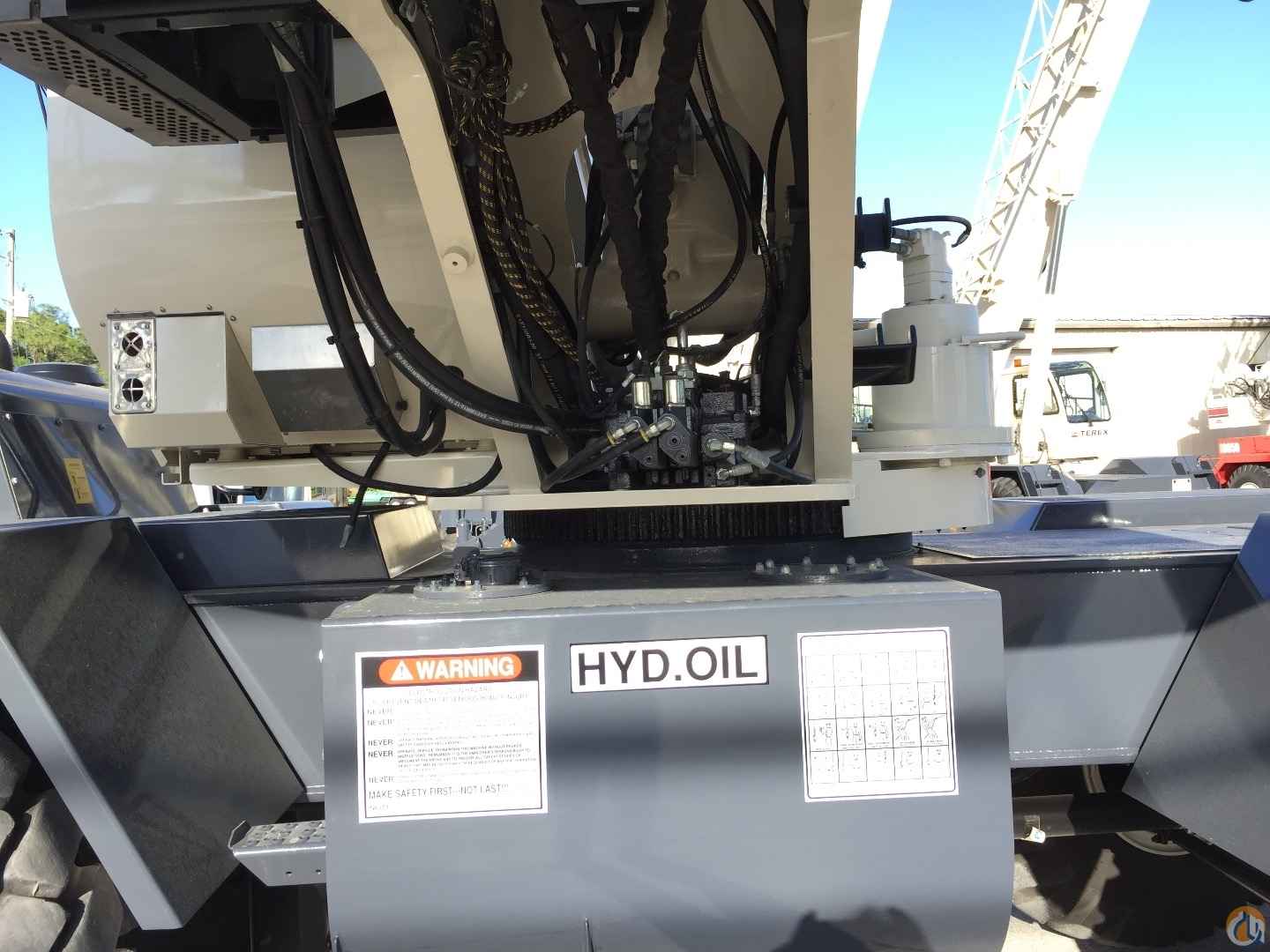

Hydraulilc oil tank capacity - 94 gallons (356 litres).
Standard Hydraulic oil cooler
Three gear pumps driven off the transmission. Main hoist pump, boom hoist & telescope pump, power steering, outrigger & hoist boost pump.
Standard manual pump disconnect.
Brakes
Split system air over hydraulic disc brakes on all four wheels.
Outriggers
Three position fully independent hydraulic outriggers - full extension , 1/2 extended position and fully retracted.

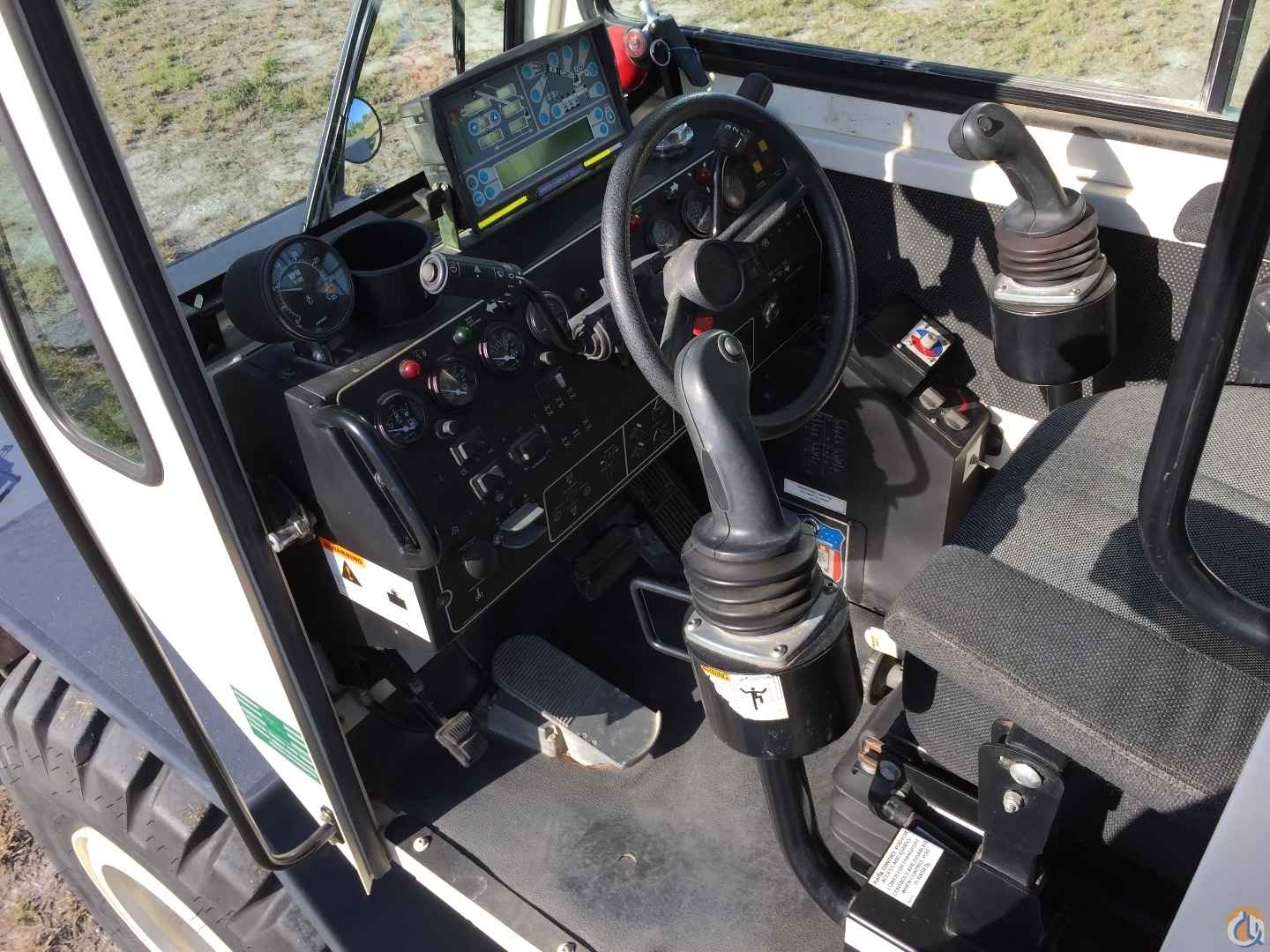

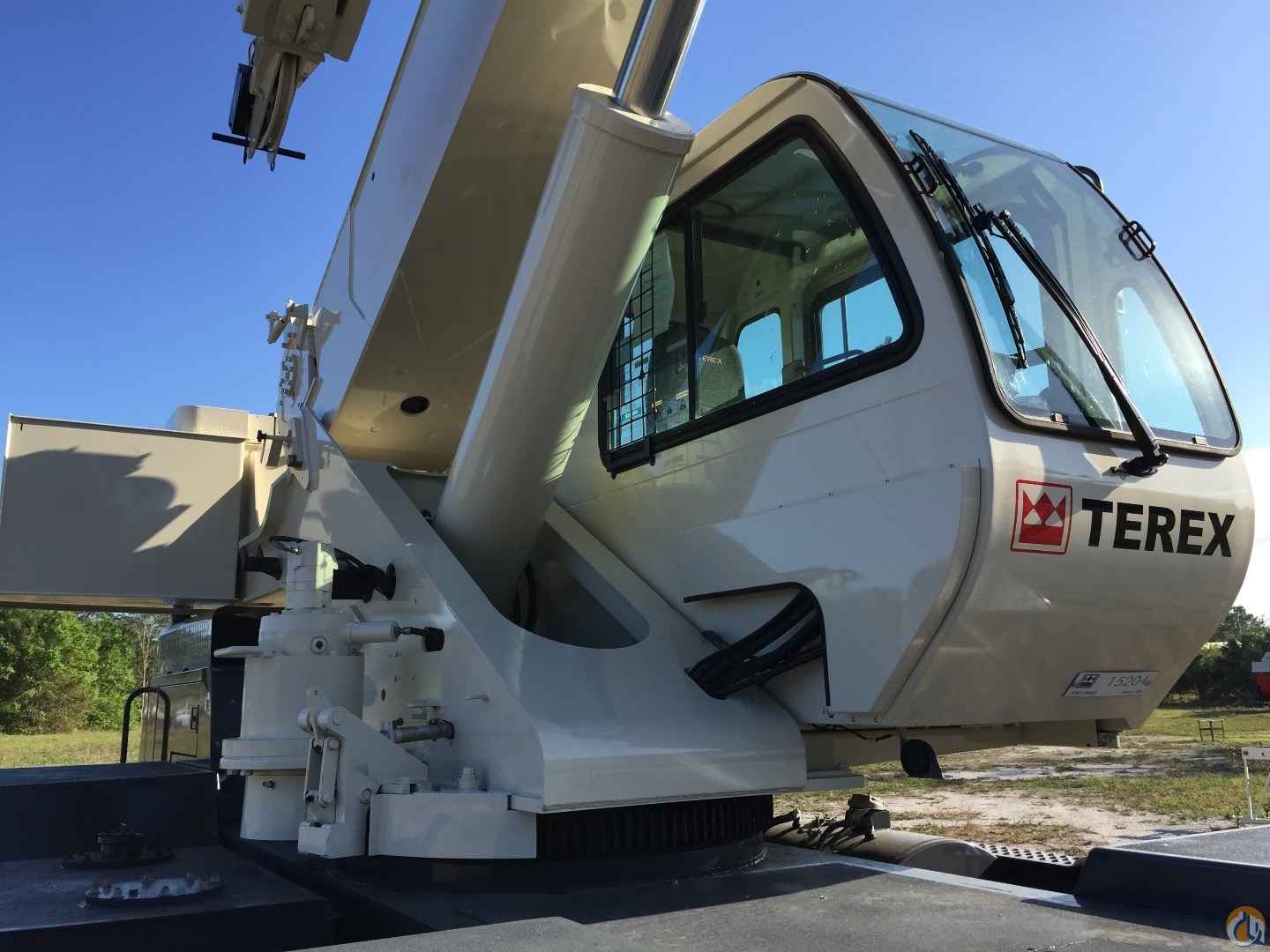

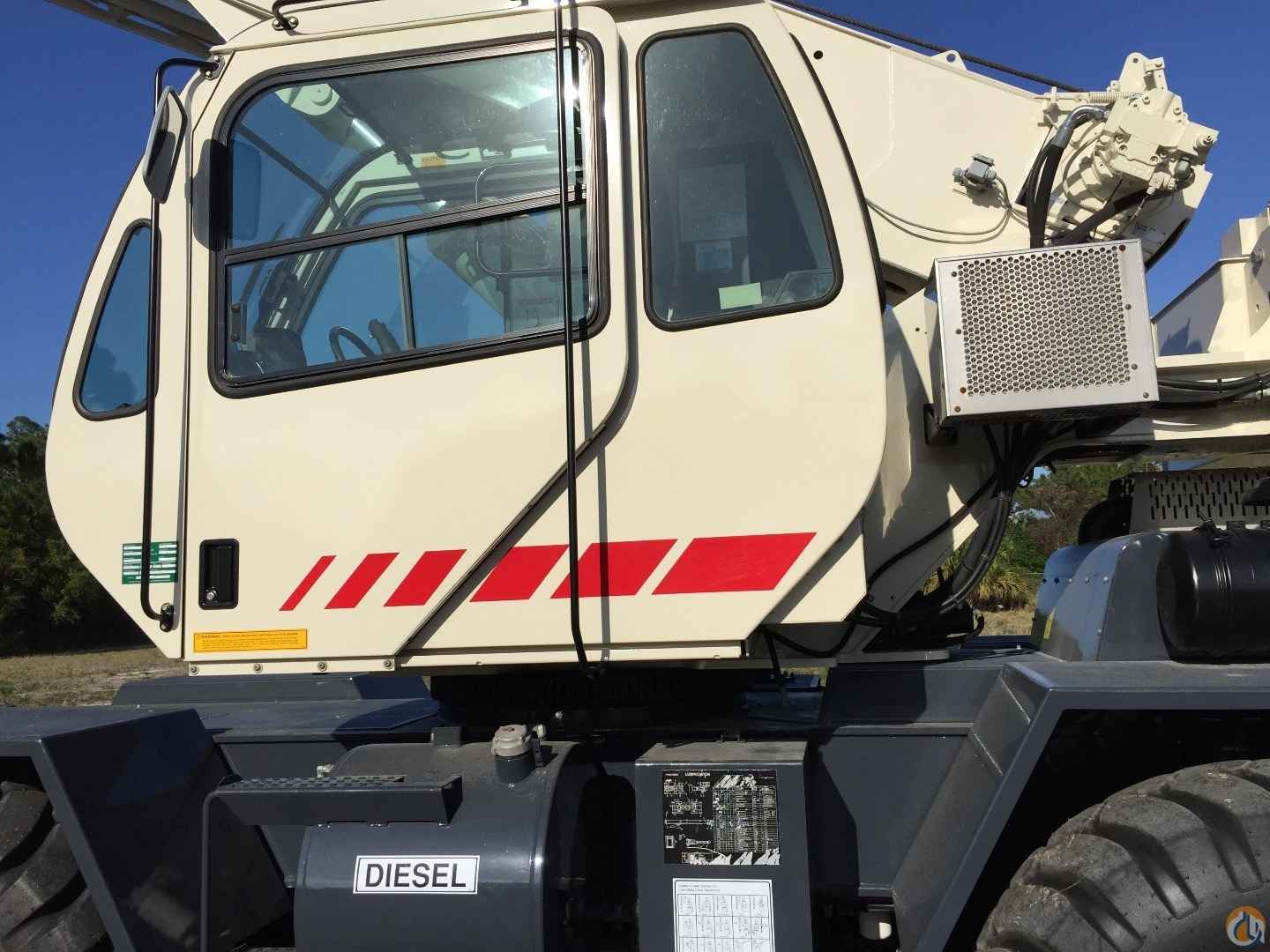

Cab
Rated Capacity Indicator (RCI) system including anti-two block system with automatic function disconnects.
Deluxe six-way adjustable operator's seat with torsion bar suspension, and adjustable head and arm rests.
Armrest mounted controls for hoists, swing and boom elevation; foot control pedals for swing brake, boom telescope and throttle.
Sound and weather insulated for comfort.
Removable front window, hinged tinted glass skylight, and sliding right-hand window. Tinted safety glass throughout.
Environmentally sealed rocker switches.
Circuit breakers located in cab.
Complete instrumentation
ALSO IN STOCK AT OUR FLORIDA LOCATION,
NEW ANNUAL OSHA INSPECTIONS
RT’s FLORIDA LOCATION
2011 GROVE RT530E-2 30 TON like new! Call for pricing 2 instock
2011 GROVE RT880E 80 TON $CALL FOR QUICK SALE PRICING
2006 GROVE RT880E 80T $CALL FOR QUICK SALE PRICING
2009 GROVE RT760E 60T $CALL FOR QUICK SALE PRICING
2007 GROVE RT760E 60T $CALL FOR QUICK SALE PRICING
2008 TEREX RT780 80 TON $229,500 GOING IN SHOP FOR FULL REFURBISHMENT
2012 LINKBELT RTC-8065 $CALL FOR QUICK SALE PRICING
2012 LINKBELT RTC-8070 $CALL FOR QUICK SALE PRICING
2008 TEREX RT230-1 30 TON $CALL FOR QUICK SALE PRICING
2003 TEREX RT230 30 TON $99,500 FULLY REFURBISHED INCREDIBLY NICE!
2000 TEREX RT230 30 TON $49,500 VERY GOOD CONDITION
2010 GROVE RT540E 40 TON $CALL FOR QUICK SALE PRICING
2008 TEREX RT665 65 TON $179,500 $139,500 NOW QUICK SALE PRICE
2008 GROVE RT530E-2 30 TON REFURBISHED $139,500
TRUCK CRANES FLORIDA LOCATION
2012 LINKBELT HTC-86100 100 TON $CALL FOR QUICK SALE PRICING, READY FOR DELIVERY TWO WEEKS
2013 LINKBELT HTC-8675 SII 75 TON $CALL FOR QUICK SALE PRICING
2011 GROVE GMK-3055 60 TON $CALL FOR QUICK SALE PRICING
2013 TEREX T780 80 TON TRUCK CRANE $389,500 PENDING SALE
2013 MANITEX 5096 50 TON $239,500 $249,500 $CALL FOR QUICK SALE PRICING
2013 MANITEX 50110 50 TON $CALL FOR QUICK SALE PRICING
2011 NATIONAL NBT45’S 45 TONS....ONLY ONE LEFT QUICK SALE PRICED $239,500
2013 MANITEX 30124 30 TONS $139,500 $CALL FOR QUICK SALE PRICING
2006 TEREX BT3063 15 TONS $44,500
PLUS MANY OTHER SUPER CLEAN CRANES AND 15 to 50 TON BOOM TRUCKS
MORE PICS AND VIDEO OF THIS CRANE AND OTHERS AVAILABLE ON OUR WEBSITE
CLICK LINK BELOW
Royal Crane, Inc.
WWW.ROYALCRANES.COMContact: Russell Veith
Phone: 772-519-3928
THIS LISTING SOLD FOR $129,500
