Type: Rough Terrain Cranes
Make: Terex
Model: RT 230-1
Year: 2008
Capacity: 30.00 Tons
Condition: Excellent
Hours: 4600
Location: Fort Pierce, Florida
Boom: 94
LOCATION FLORIDA

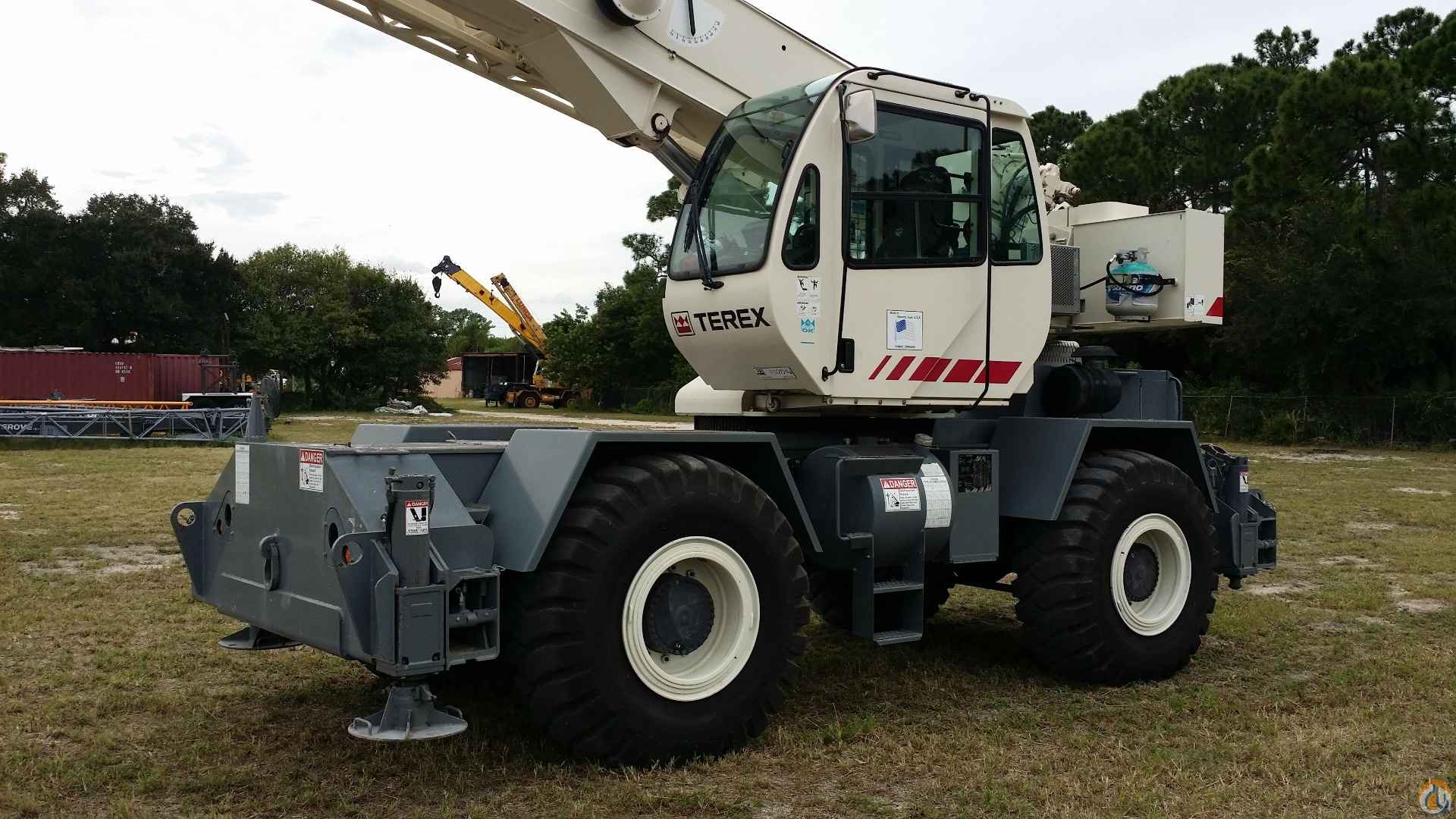

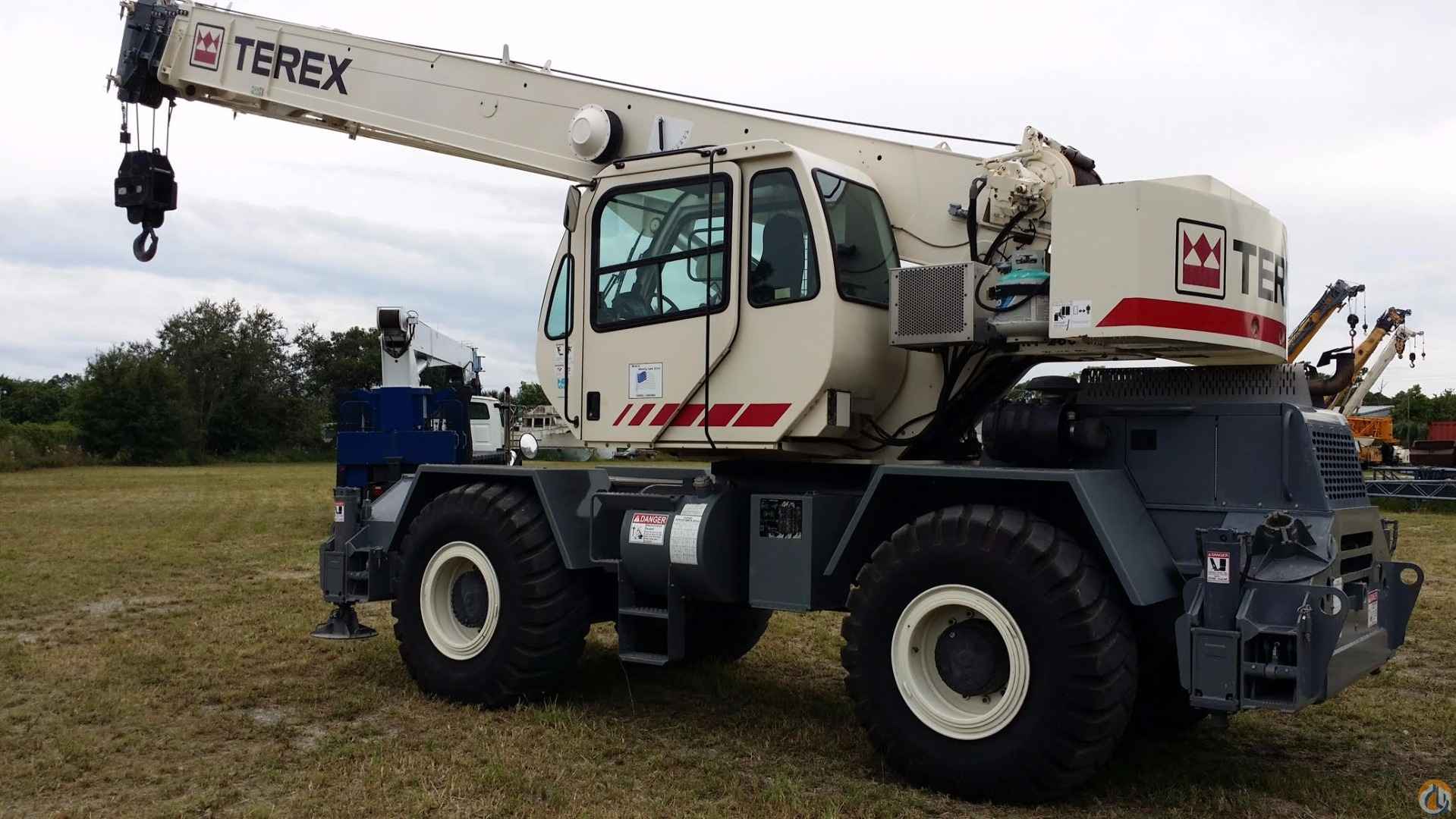

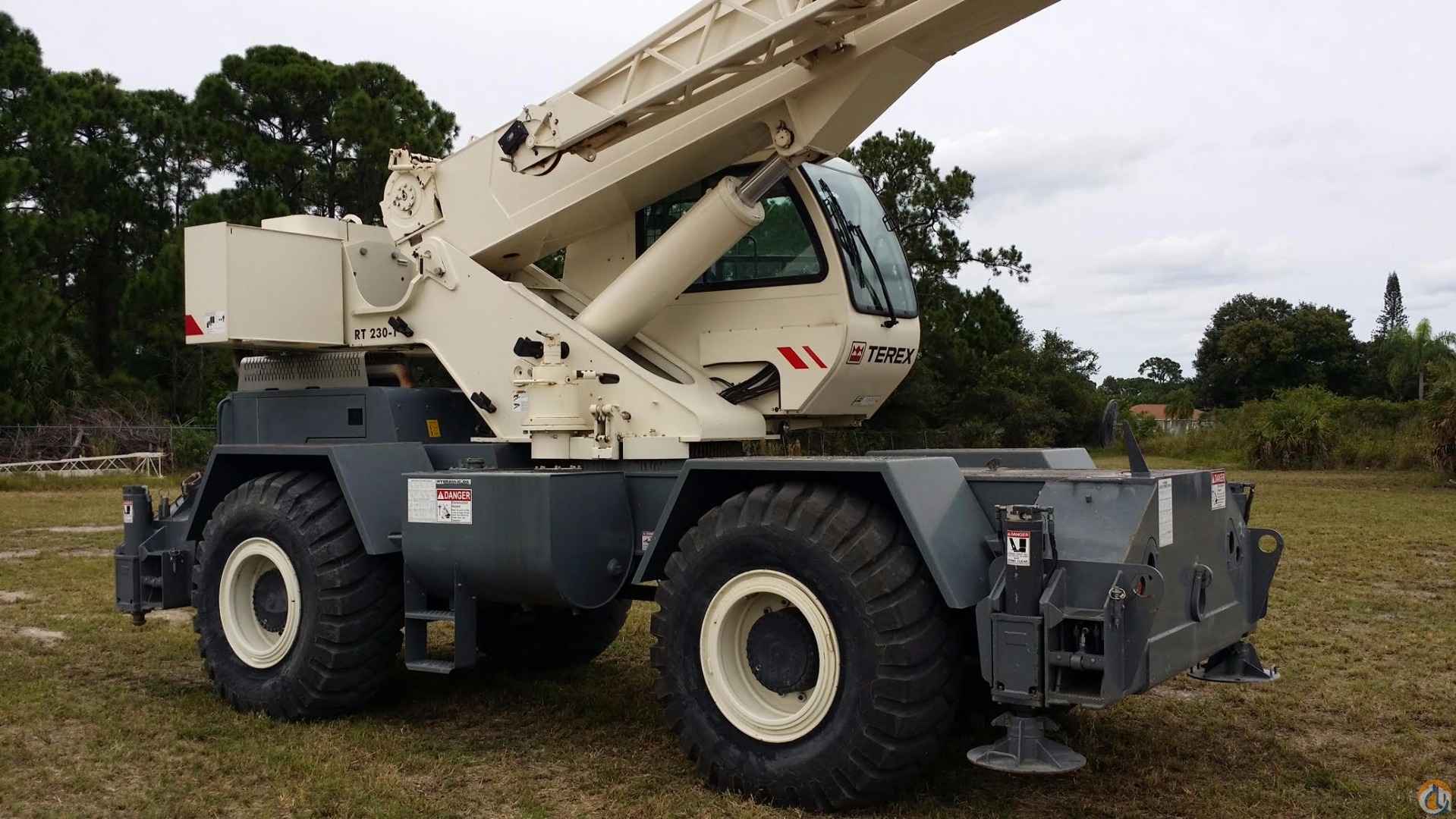

2008 TEREX RT230-1
$149,500
30 TON ROUGH TERRAIN
CUMMINS TIER III
30 TON, 94' FULL POWER BOOM, 43' TELESCOPIC JIB, JOYSTICK CONTROLS, HYDRAULIC A/C, PROPANE HEAT,
4X4X4 DRIVE, POWERSHIFT TRANSMISSION, EXCELLENT 20.5-25 TIRES,
GREER LMI SYSTEM WITH A2B, 30 TON QUICK REEVE BLOCK AND BALL, EXCEPTIONAL CONDITION LOW HR. CRANE !
CALL RUSS 7 DAY A WEEK
CELL 772-519-3928
Can deliver to Florida Port !
ALSO IN STOCK
2011 SANY SRC-840 40 TON $129,500 only 290 hours
2009 RT555-1 55 TON $209,500 EXCEPTIONAL LOW ONLY 2400 HRS
2006 RT665 65 TON $199,500 EXCEPTIONAL LOW HRS
2008 RT555-1 55 TON ALSO IN STOCK $199,500
2005 TEREX RT335-1 $119,500
2006 RT760E 60 TONS ALSO IN STOCK FROM $179,500
2008 RT760E 60 TONS ALSO IN STOCK FROM $219,500
1998 LINKBELT RTC-8060 ONLY $139,500
1998 LINKBELT RTC-8035 ONLY $94,500
OVER 35 OTHER 20 TO 150 TON CRANES ARE IN OUR YARD NOW READY TO GO NOW !
MORE PICS AND VIDEO OF THIS CRANE AND OTHERS AVAILABLE ON OUR WEBSITE
FOR MORE CRANES CLICK LINK BELOW
Boom
30 - 94 ft. (9.1 -28.7 m) Four section, full power, mechanically synchronized boom
Quick-reeving boom head; no need to remove wedge from socket.
Single boom hoist cylinder provides boom elevation of -4 degrees to 76 degrees.
Hoist cylinder is equipped with integral hold valves.
Hoist System
474 fpm (144 m/min) maximum line speed, 12,510 lb (5,673 kg) maximum line pull.
Electronic drum indicators
Integral automatic brakes
Two speed main hoist.
Grooved drum, tapered flanges, and spring loaded cable roller for improved spooling.
Counterweight
Standard upper counterweight 10,000 lb (4,536 kg).
CARRIER:
Engine
Cummins QSB4.5, Tier-III, 130-HP (97 kW) @ 2,500 RPM, 4-cylinder, water-cooled, fuel injected diesel with an intercooled, turbo-charger.
Fuel tank capacity - 50 gallons (189 liters).
Heavy duty batteries [(2) 12 volt, 1600 cca].
Transmission & Axles
Range-shift type power-shift transmission with integral torque converter; neutral start; six speeds forward, six reverse.
Four wheel drive and four wheel steer (4x4x4)
Planetary drive rigid front mounted axle and planetary drive oscillating rear axle with rear axle oscillation lock when superstructure is swung 10 degrees .
Standard 20.5 x 25 24 PR Tires
Steering
Hydraulic four wheel power steering for two-wheel, four-wheel or crab steer. Standard rear axle centering light.
Hydraulics
Hydraulilc oil tank capacity - 94 gallons (356 litres).
Standard Hydraulic oil cooler
Three gear pumps driven off the transmission. Main hoist pump, boom hoist & telescope pump, power steering, outrigger & hoist boost pump.
Standard manual pump disconnect.
Brakes
Split system air over hydraulic disc brakes on all four wheels.
Outriggers
Three position fully independent hydraulic outriggers - full extension , 1/2 extended position and fully retracted.

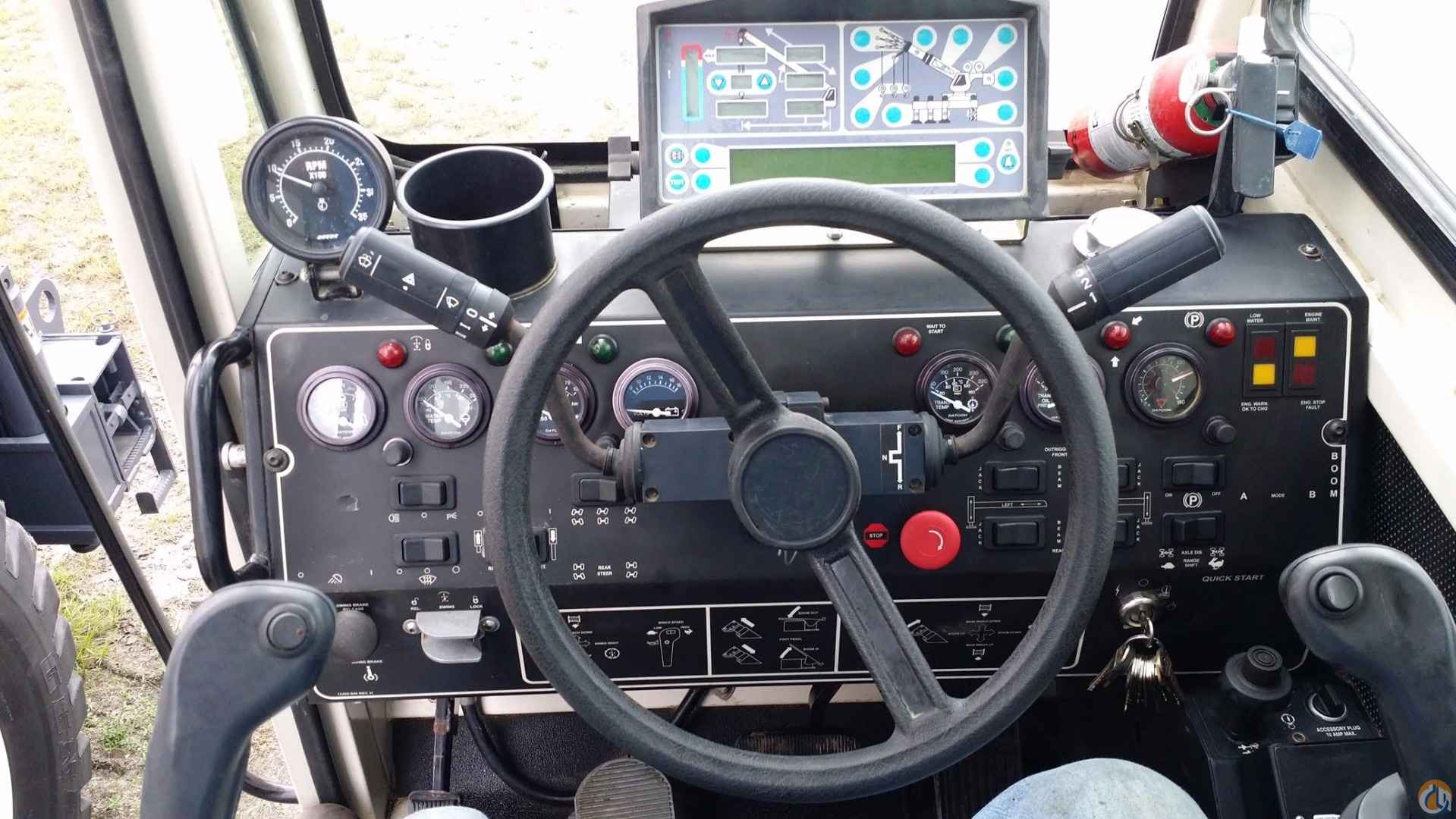

Cab
Rated Capacity Indicator (RCI) system including anti-two block system with automatic function disconnects.
Deluxe six-way adjustable operator's seat with torsion bar suspension, and adjustable head and arm rests.
Armrest mounted controls for hoists, swing and boom elevation; foot control pedals for swing brake, boom telescope and throttle.
Sound and weather insulated for comfort.
Removable front window, hinged tinted glass skylight, and sliding right-hand window. Tinted safety glass throughout.
Environmentally sealed rocker switches.
Circuit breakers located in cab.
Complete instrumentation
