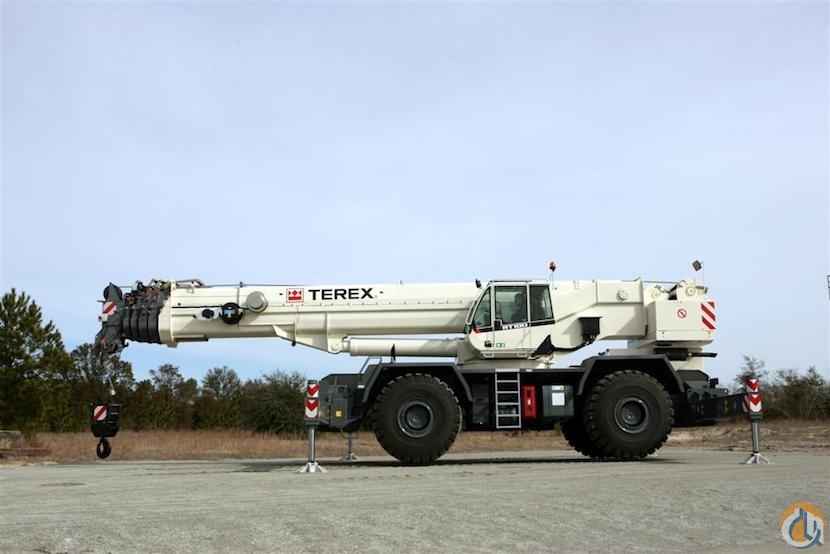

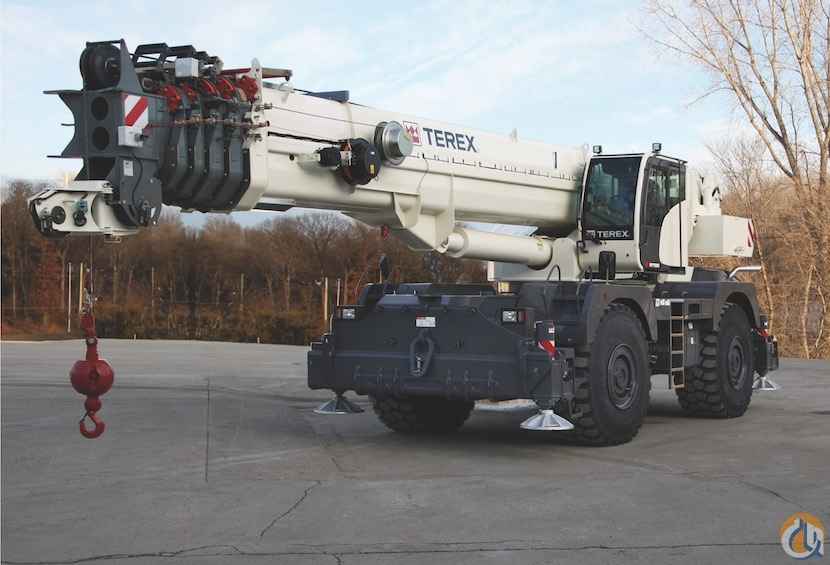

Type: Rough Terrain Cranes
Make: Terex
Model: RT 100
Year: 2018
Capacity: 100.00 Tons
Condition: New
Serial #: N/A
Unit #: PO39344
Location: Houston, Texas
Boom: 174
Lifting capacity: 100 Tons

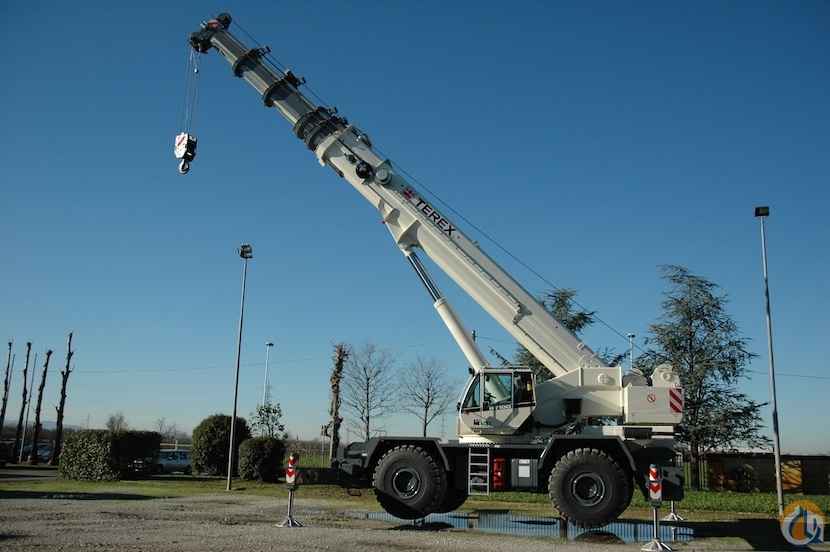

Main Boom Length: 174’
Telescoping Mode: Elements 2 and 3 – synchronized extension, elements 4, 5 and 6 – synchronized extension, elements 4 and 5 – synchronized extension, element 6 retracted
Tip Height – main boom (min/max): 13.1’ / 183’
Boom Elevation Angle Range (min/max): -1˚ / 78˚
Boom Raising / Lowering Time: 80 s / 120 s
Boom Extension / Retraction Time: 180 s / 120 s
Main Hoist – grooved drum, storage capacity 1293’
Hoist Speed: w/out load in 5th layer (low / hi range) 200’ min / 399’ min
Standard XIPS, IWRC, right regular lay rope, .75” diameter, 850’ length, minimum breaking strength – 58,800 lbs, maximum line pull permissible 16,800 lbs
22,000 lb counterweight
360˚ non-stop slewing, maximum speed w/out load is 1.2 rpm
Hydraulic motor, planetary reducer slewing gears
Automatically actuated, possible manual release slewing brake

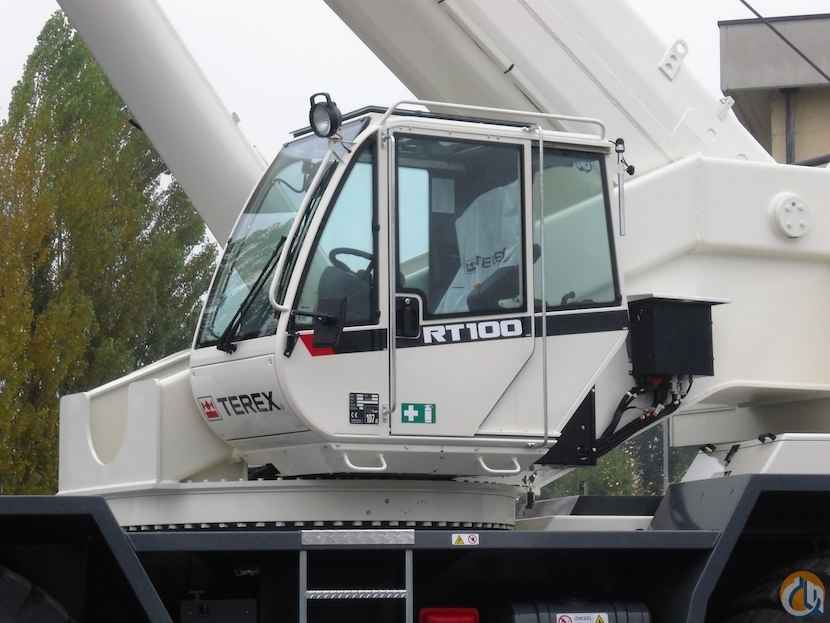

Cab: sliding door, hinged tinted all glass skylight, six way adjustable seat
Armrest mounted dual axis electro-proportional joysticks
Left hand joystick for slewing, boom telescoping, auxiliary hoist, swing brake release
Right hand joystick for main hoist, boom elevation, horn
Foot pedals controls for engine throttle and service brake
Steering wheel column with gear selector on the left and directional light selector on the right
Dashboard mounted switches for outrigger operation
Electronic load indicator
Setup of working space limits
Electric heater and defroster
Air Conditioning

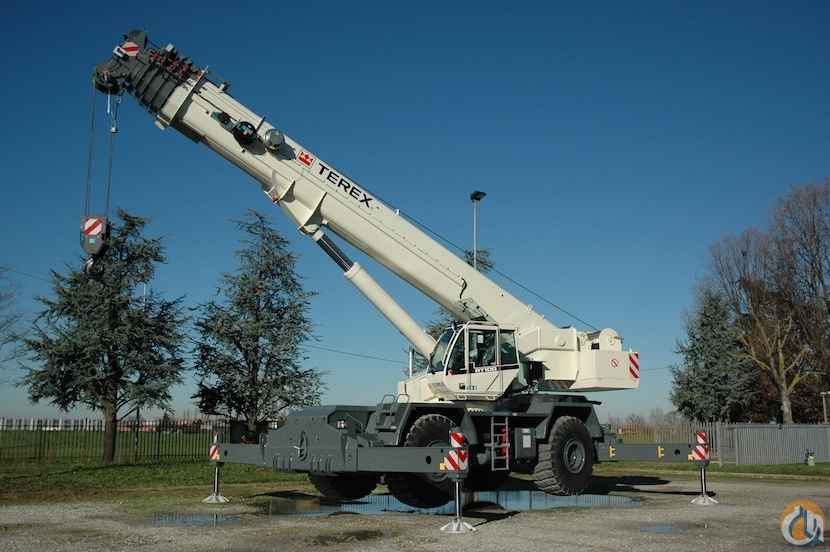

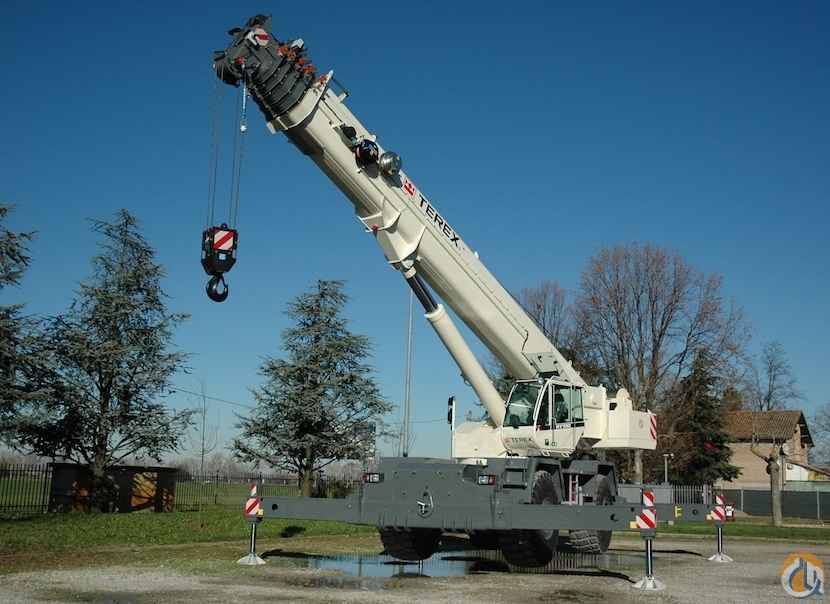

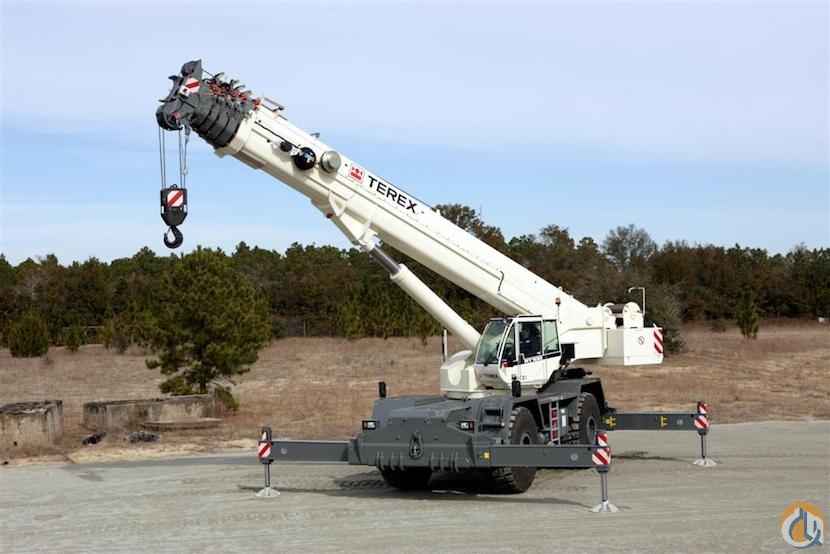

Outriggers: hydraulic, independent extension
Outrigger footprint area 100% extended 688 ft²
Outrigger footprint area 50% extended 443 ft²
Outrigger footprint area 0% extended 260 ft²
Diameter of Outrigger Pads: 24”
Area of Outrigger Pads: 45.3 in²
Single outrigger jack extending and retracting time is 11 s
Single outrigger beam extending and retracting time is 8 s
Cummins QSB6.7 6 cylinder engine
Engine Rated Power: 262 HP @ 2200 rpm
Maximum Gross Torque: 726 ft-lb @ 1500 rpm
Intake: turbocharger with intercooler
Fuel Type: diesel
Fuel Tank Capacity: 79 gallons
4 x 4 powershift with torque converter
Permanent 4WD
Rigid mounted front axle
Oscillating mounted rear axle
Differential lock on front axle and rear axle
Rear axles oscillation lock manual or automatic when superstructure is slewed 3˚ from centerline in either directions
Air over hydraulic service disc brake system
Parking brake on front axle
Hydraulic oil cooler on carrier
Hydraulic power steering
Front wheel steering
Four wheel steering concentric
Four wheel steering crab
Double variable displacement piston pump for boom luffing and telescoping, slewing, main and auxiliary hoist
Double gear pump for steering, outriggers and AC unit motor
Hydraulic Oil Tank Capacity: 264 gallons
Gradeability: max in 1st gear 98.5%
Gradeability: max in 4th gear 3.53%
Temperature: min. -4˚F, max +113˚F
Tires: wide earth moving style tread (E3) 29.5R25
