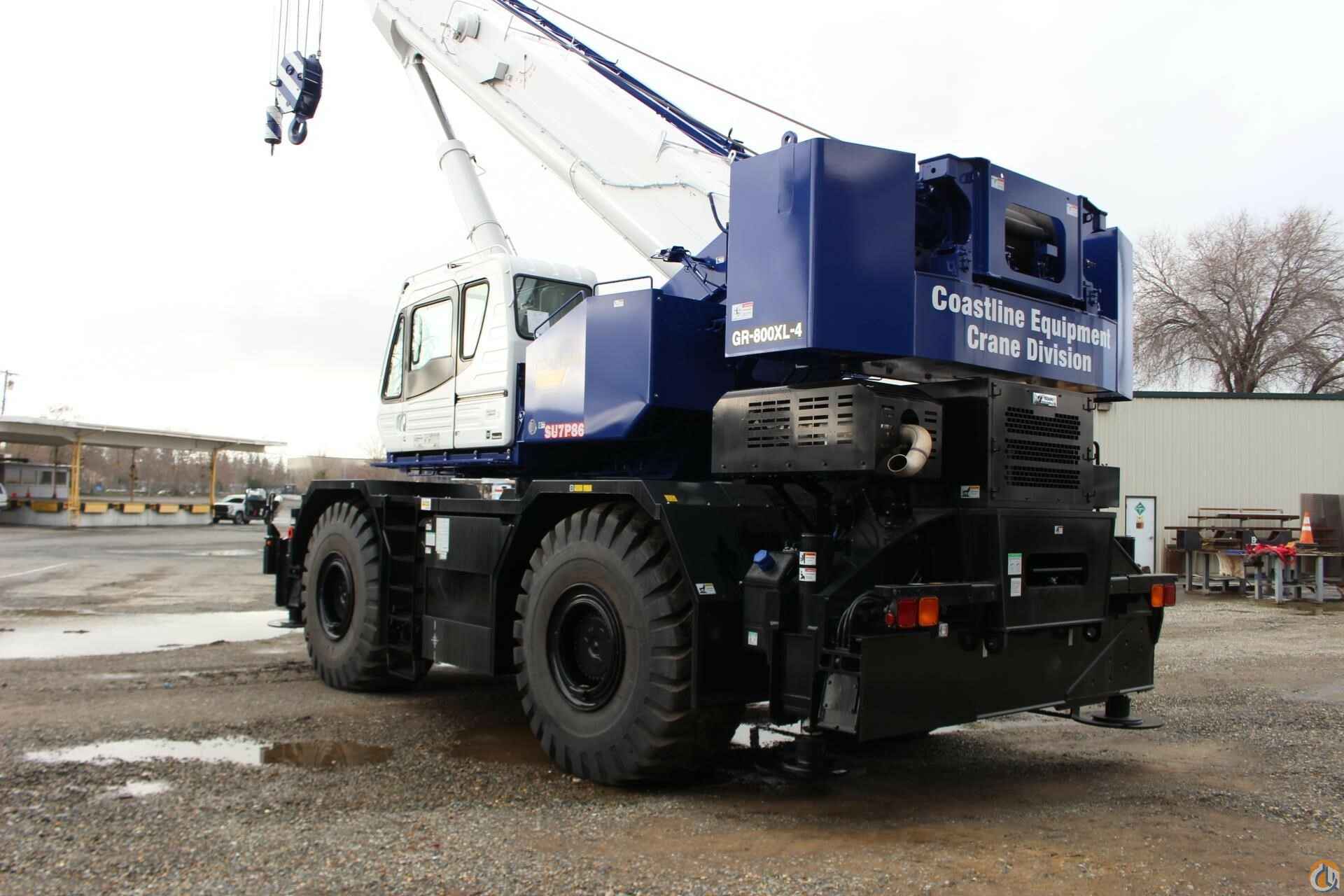

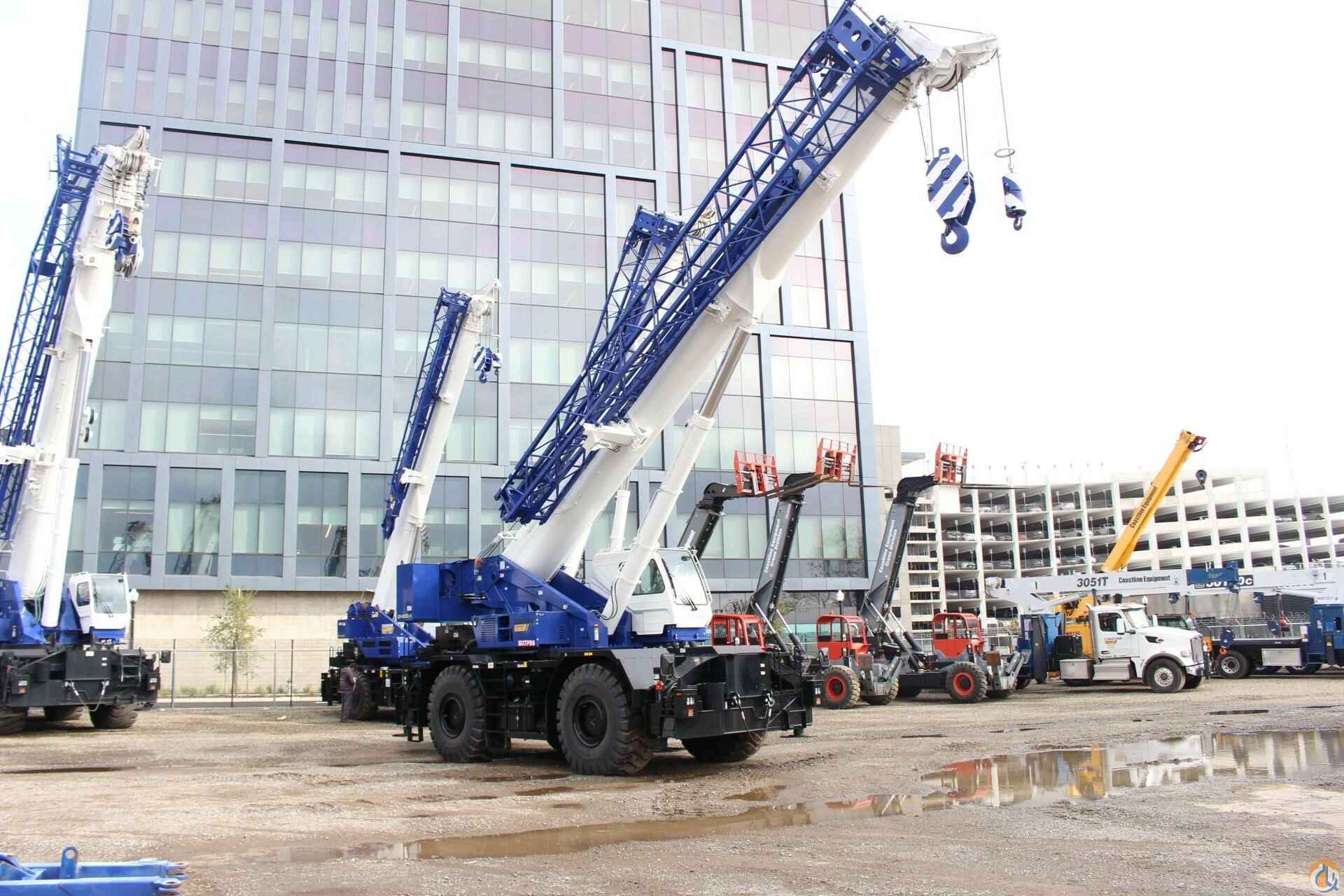

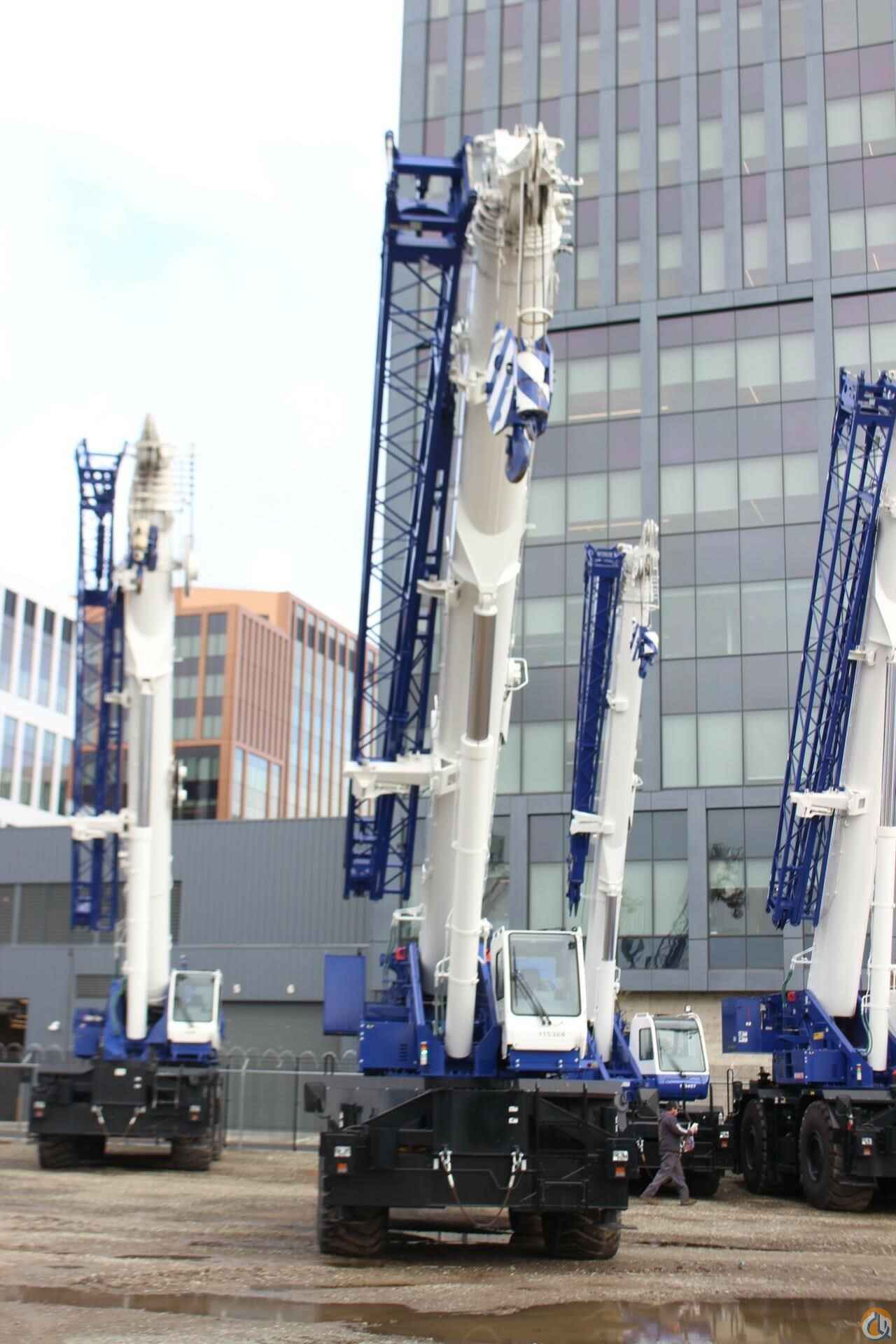

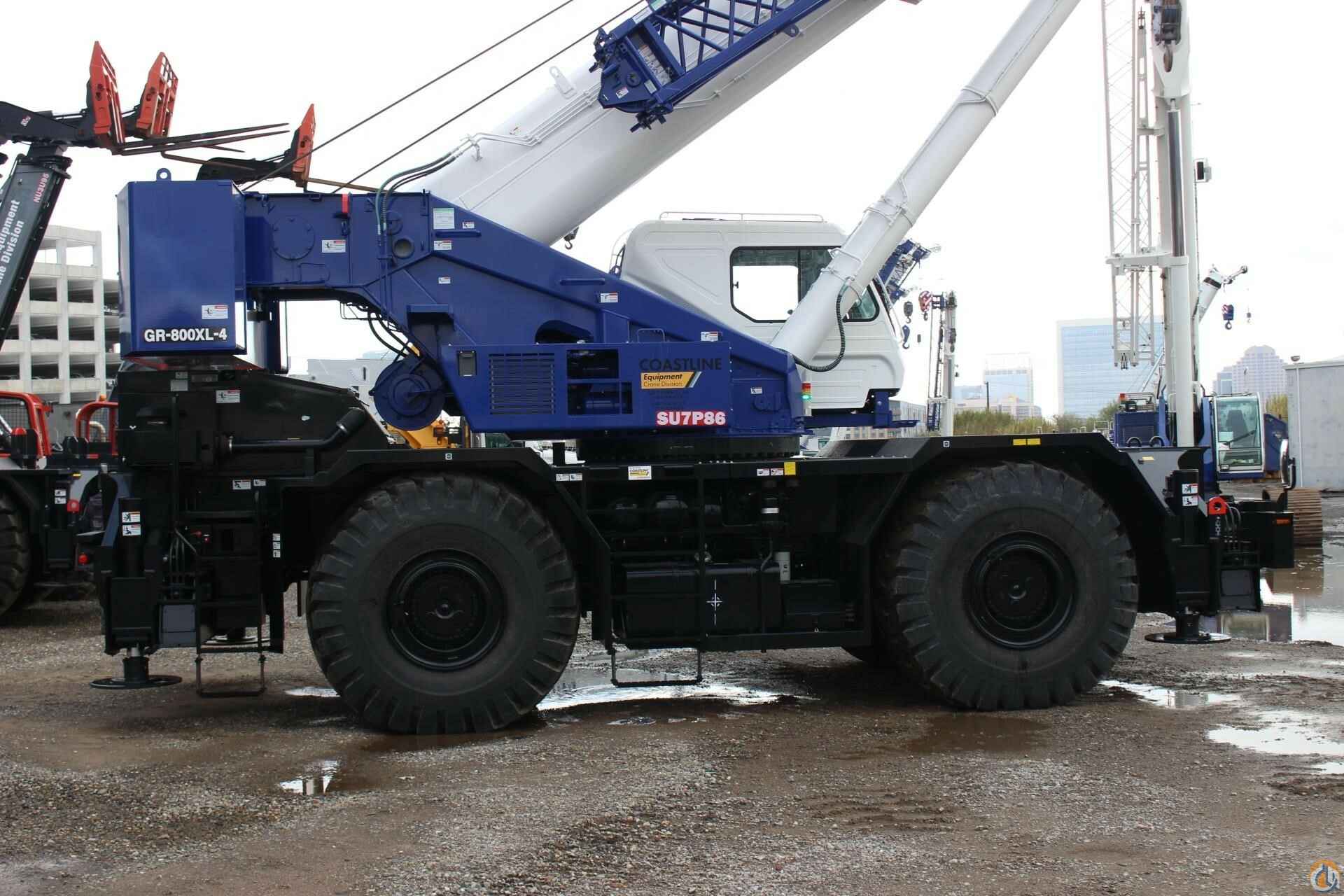

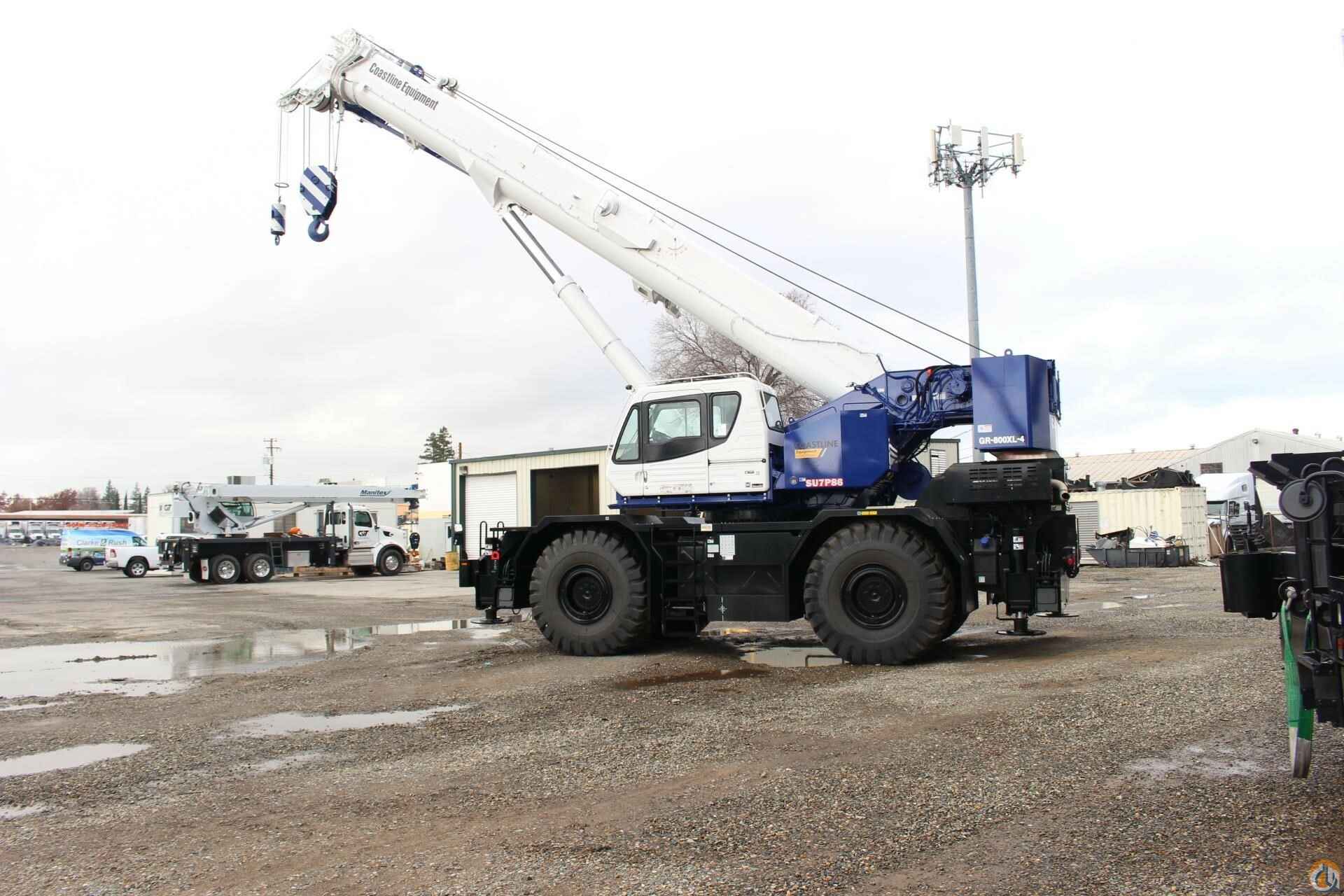

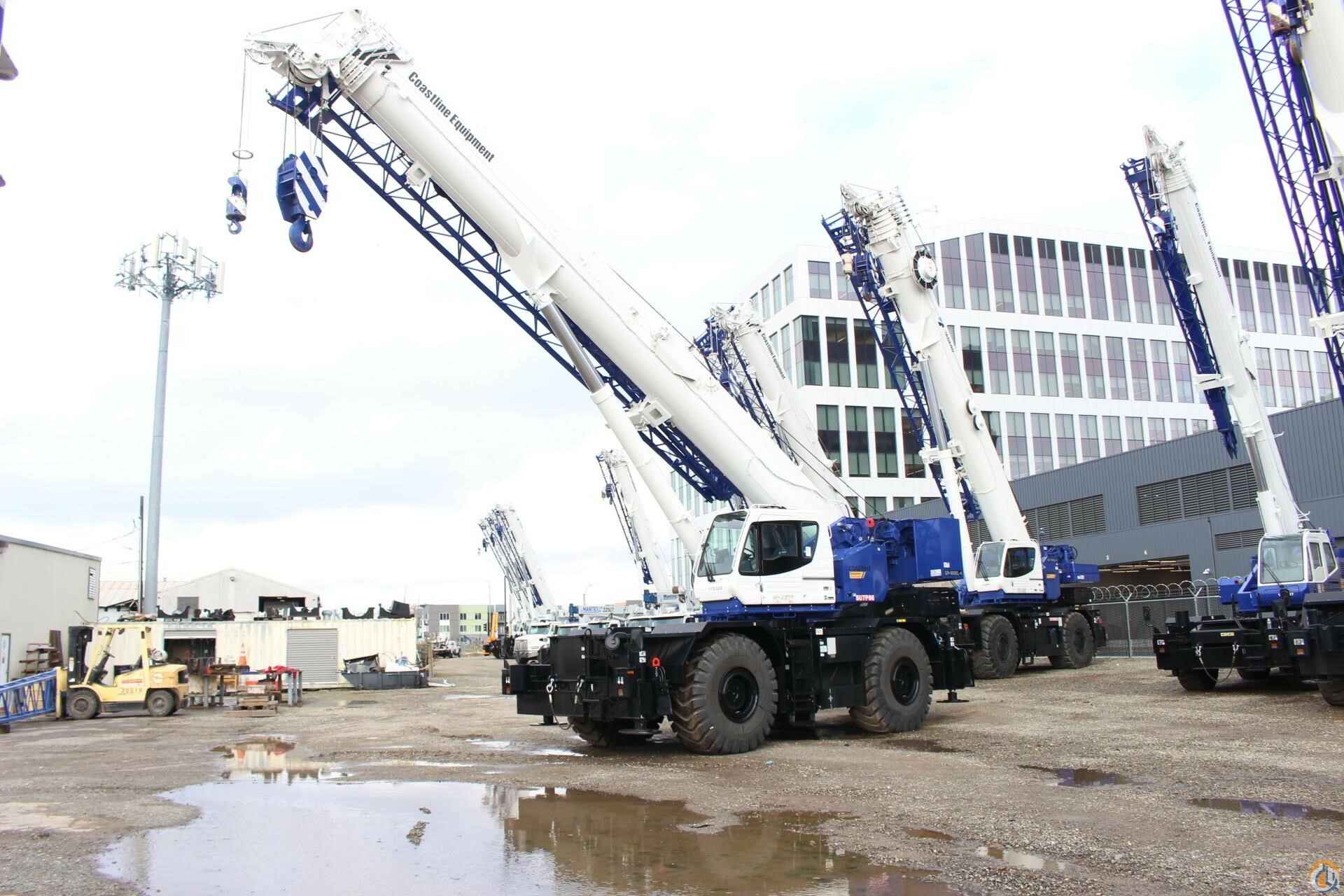

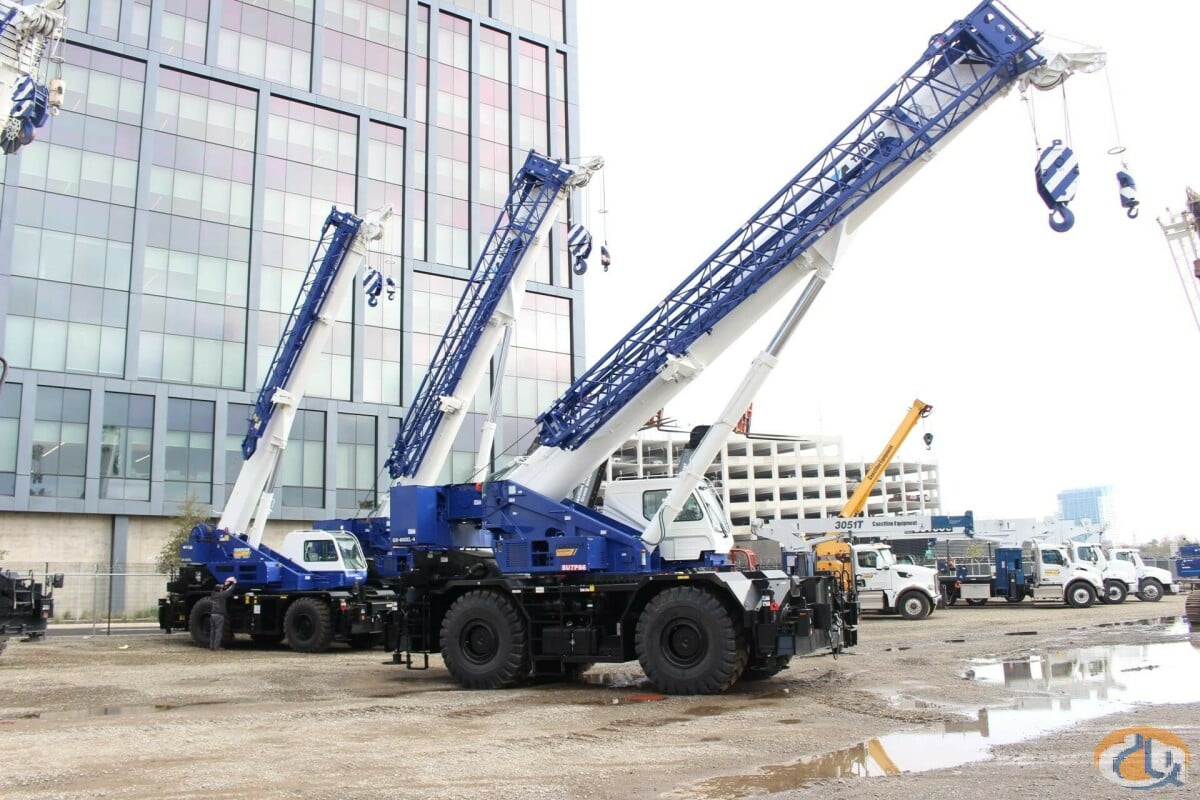

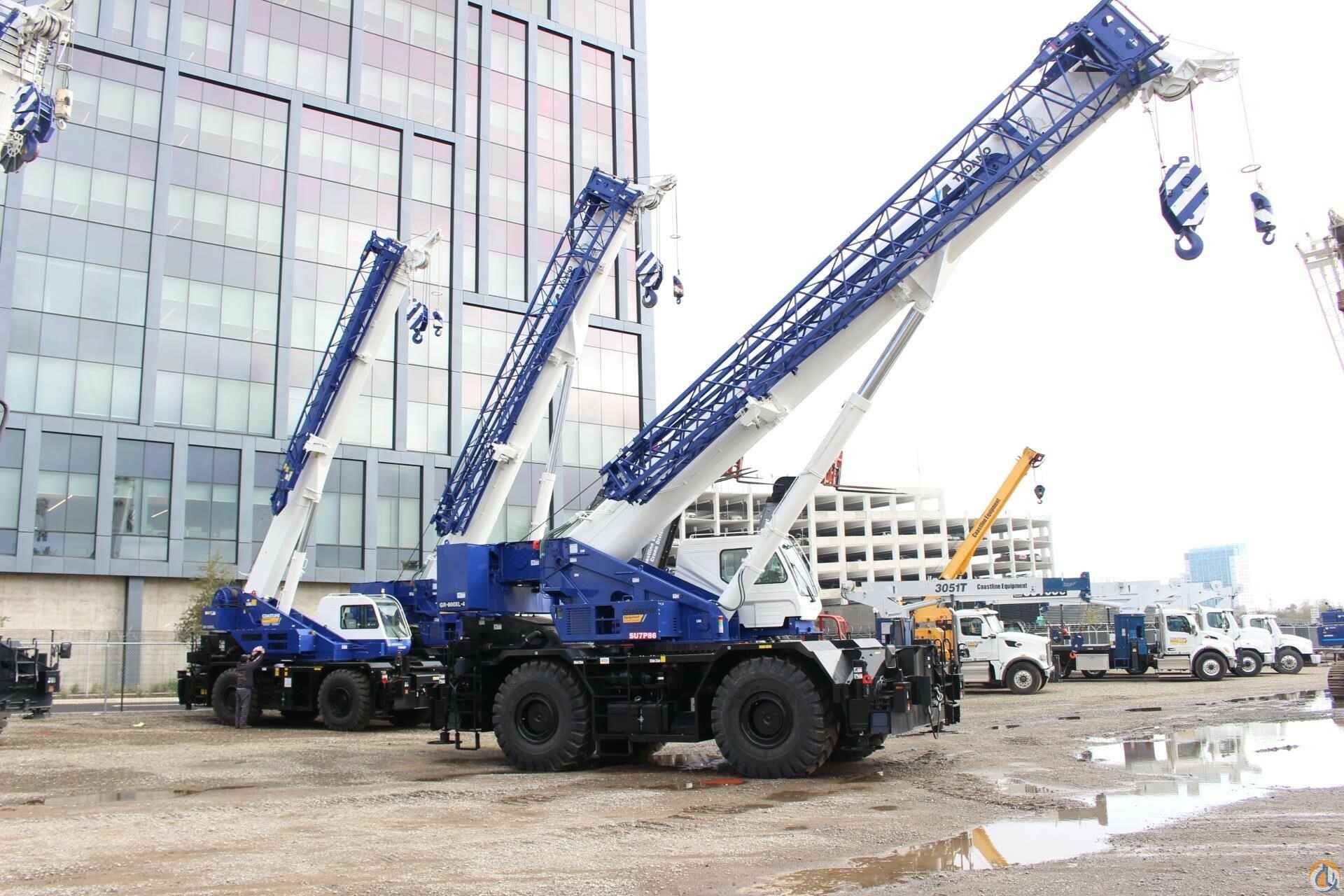

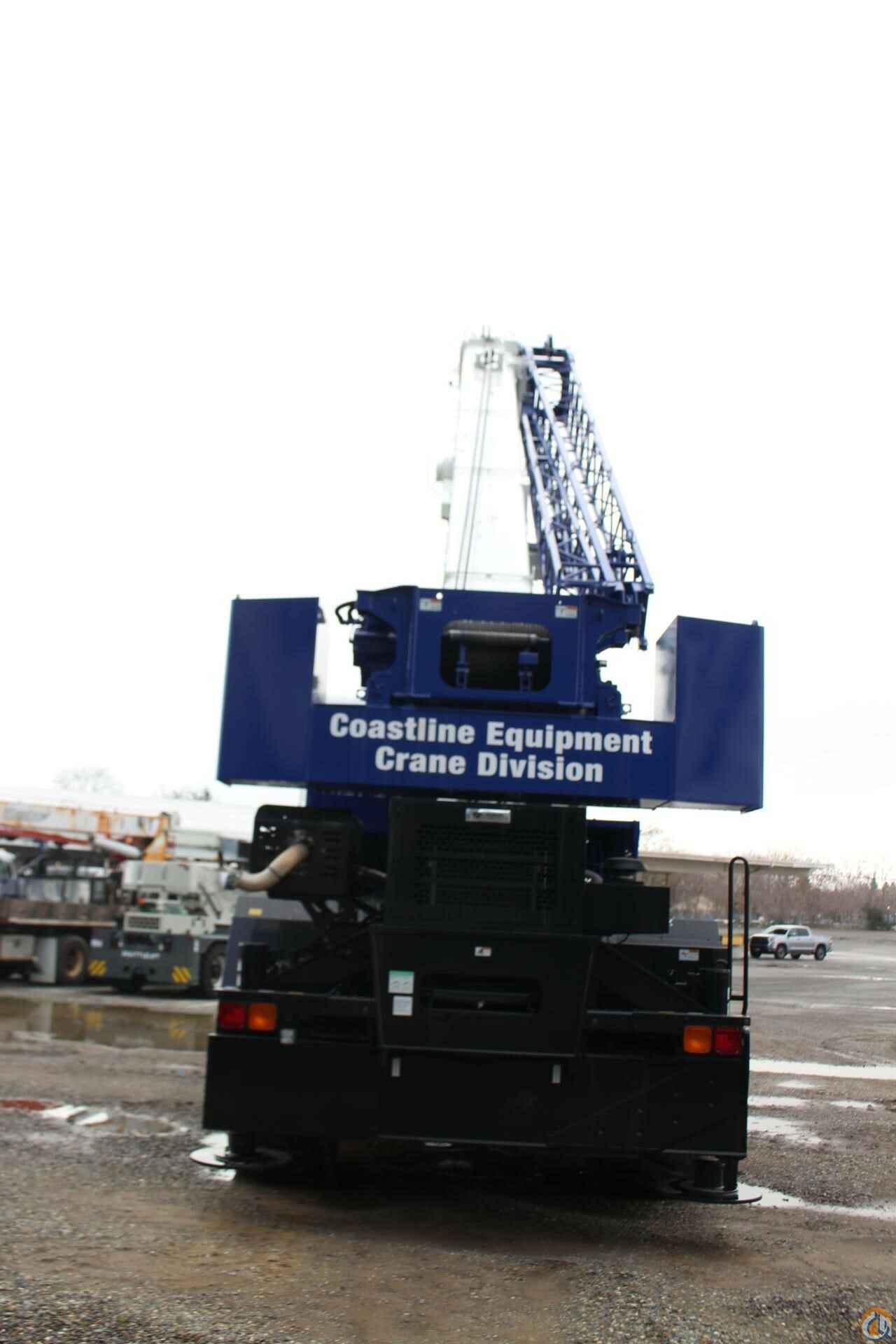

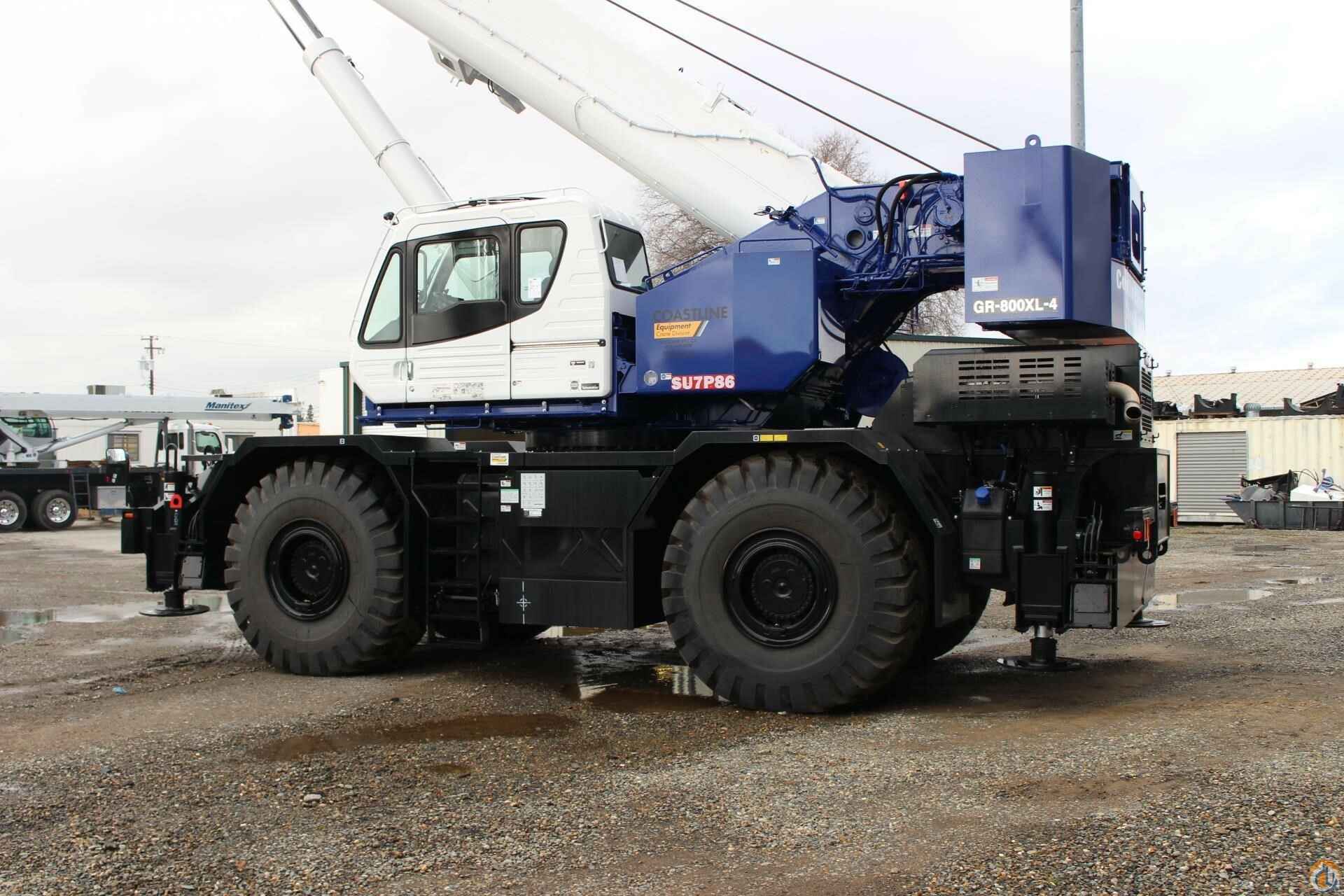

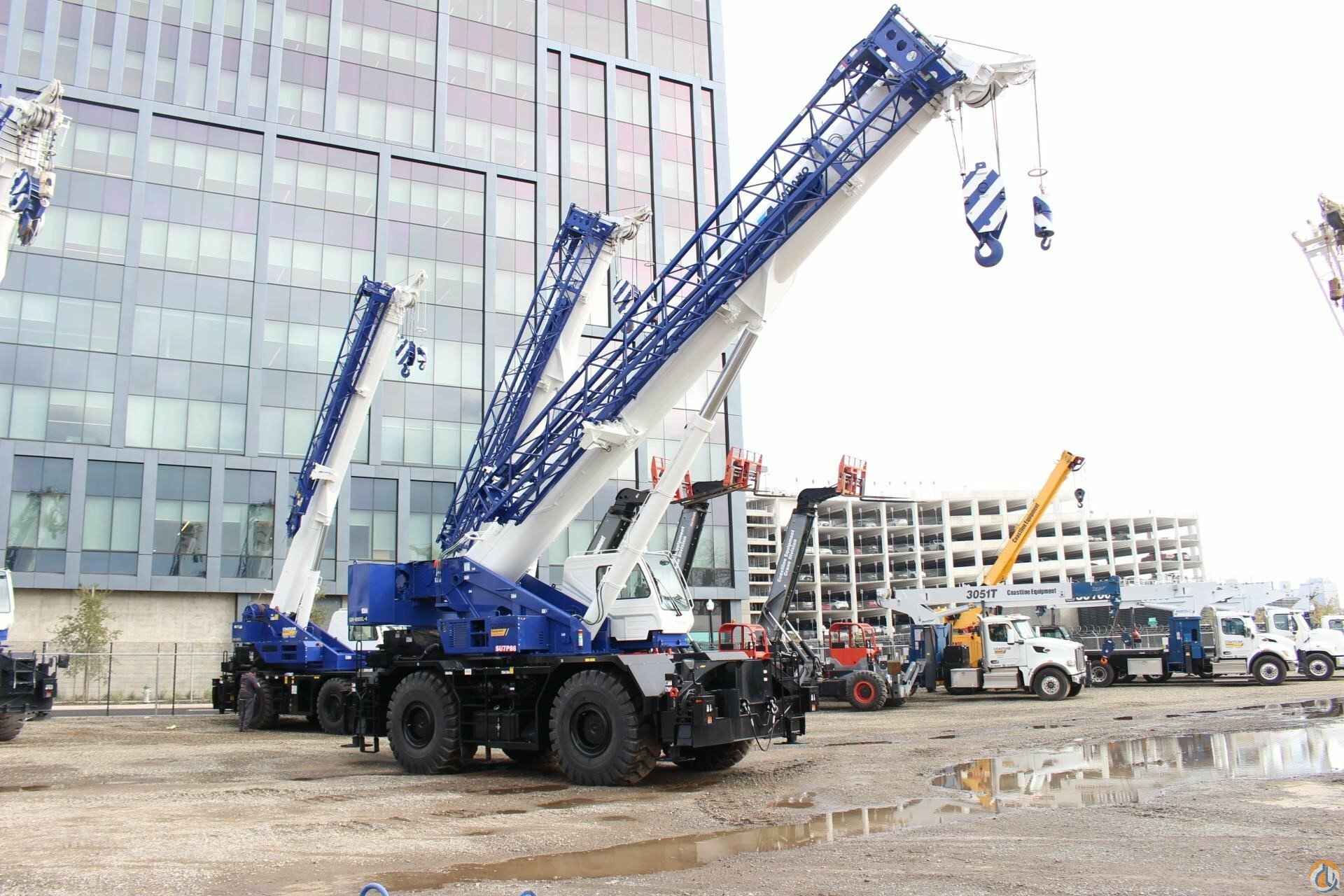

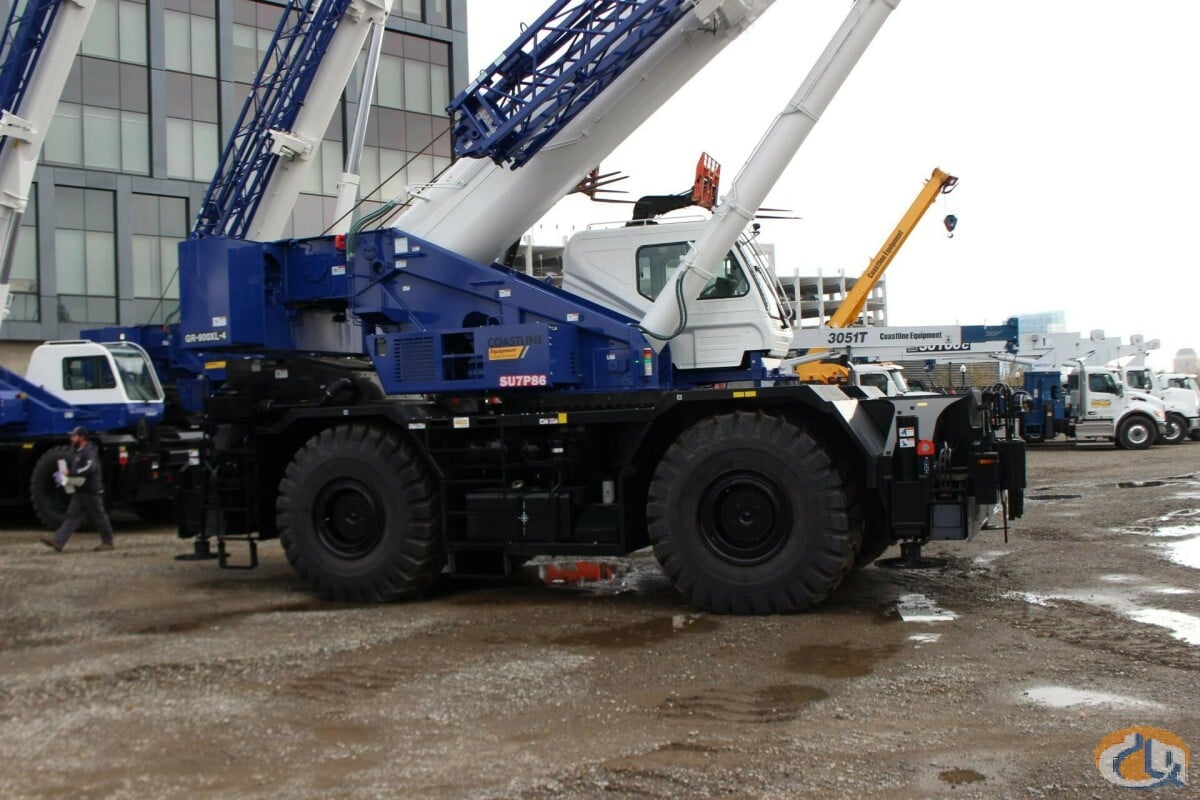

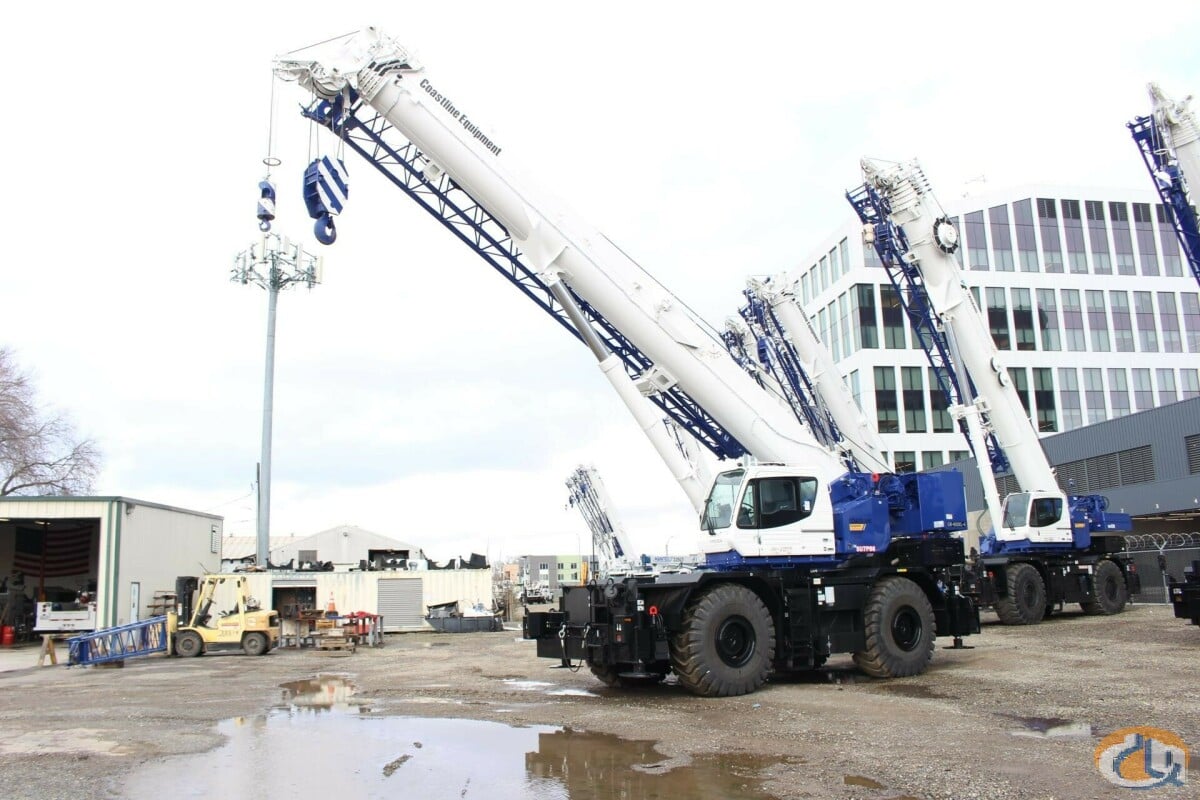

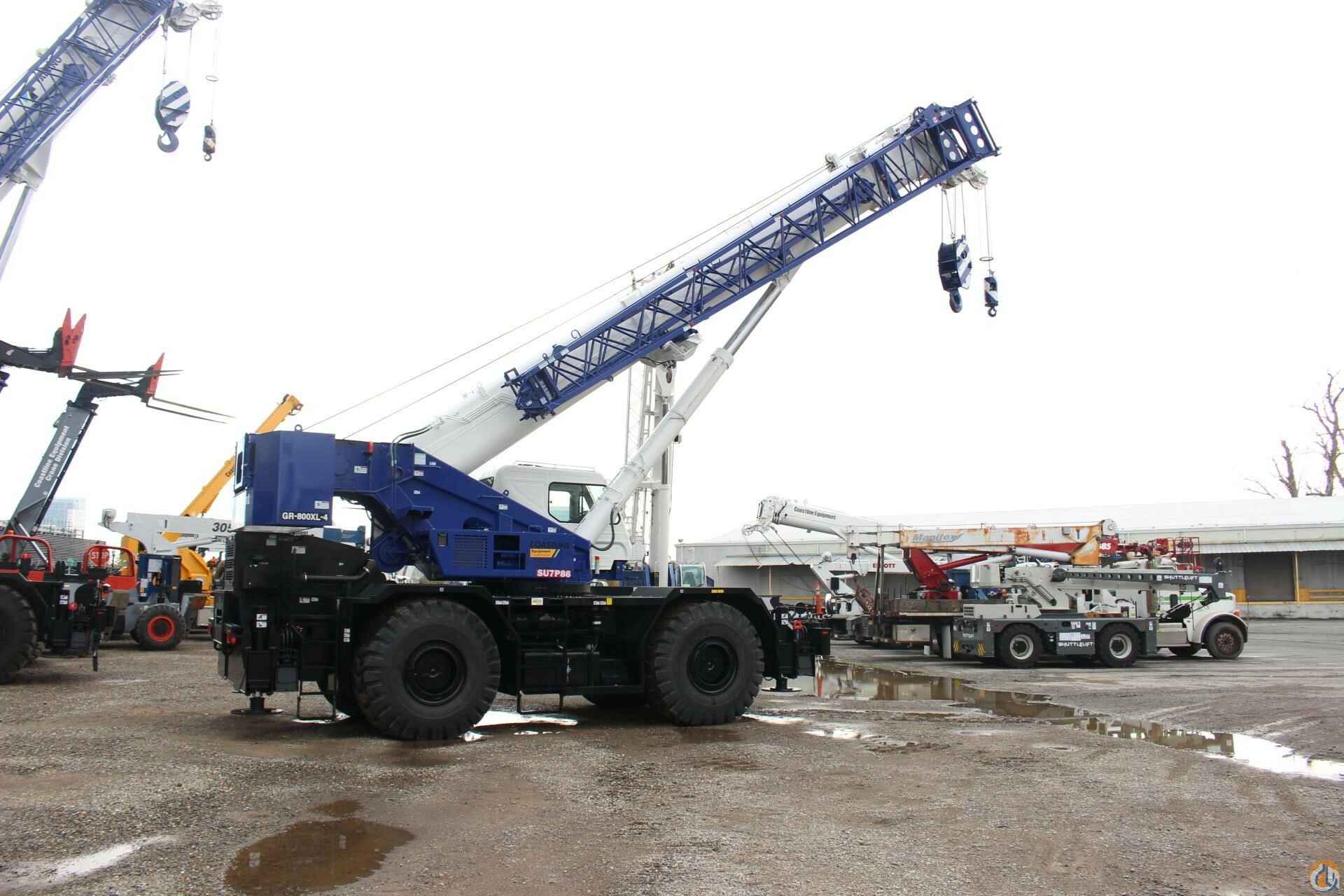

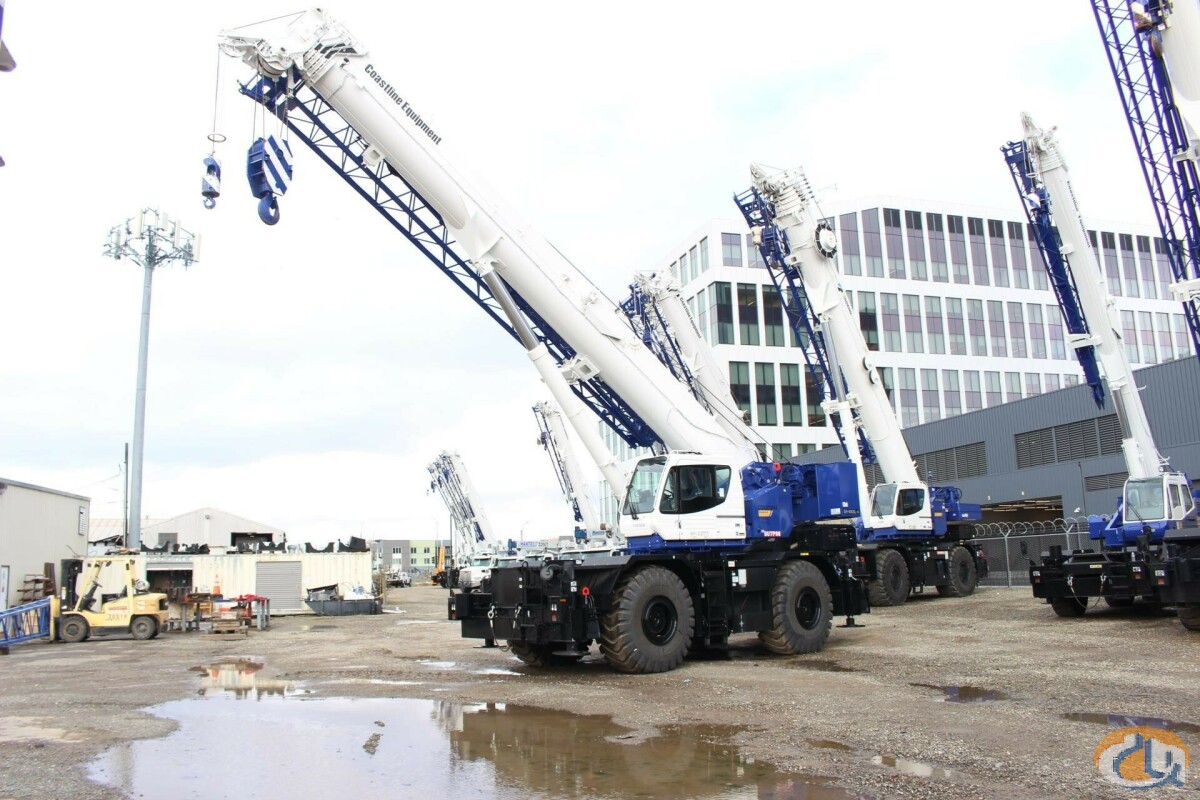

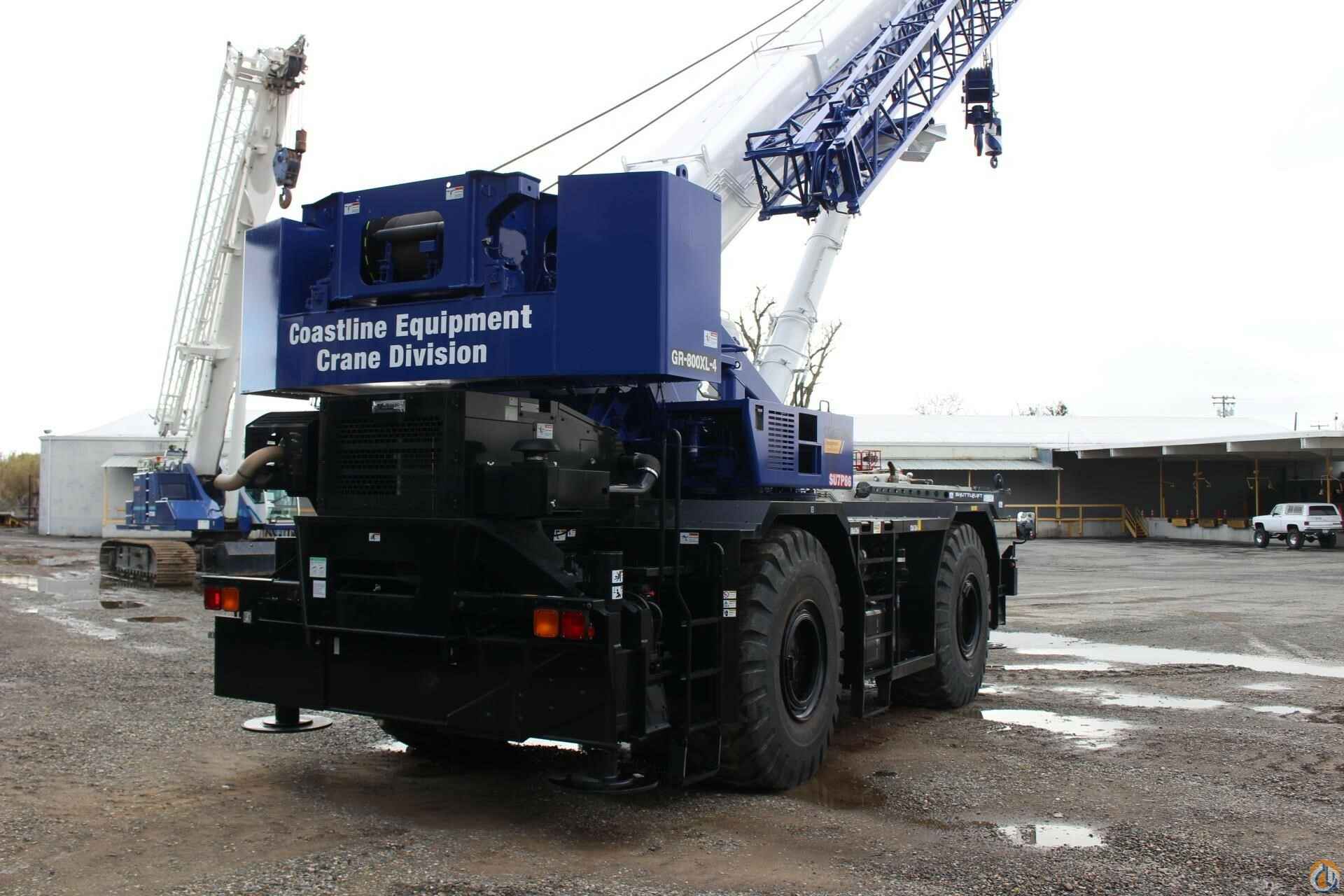

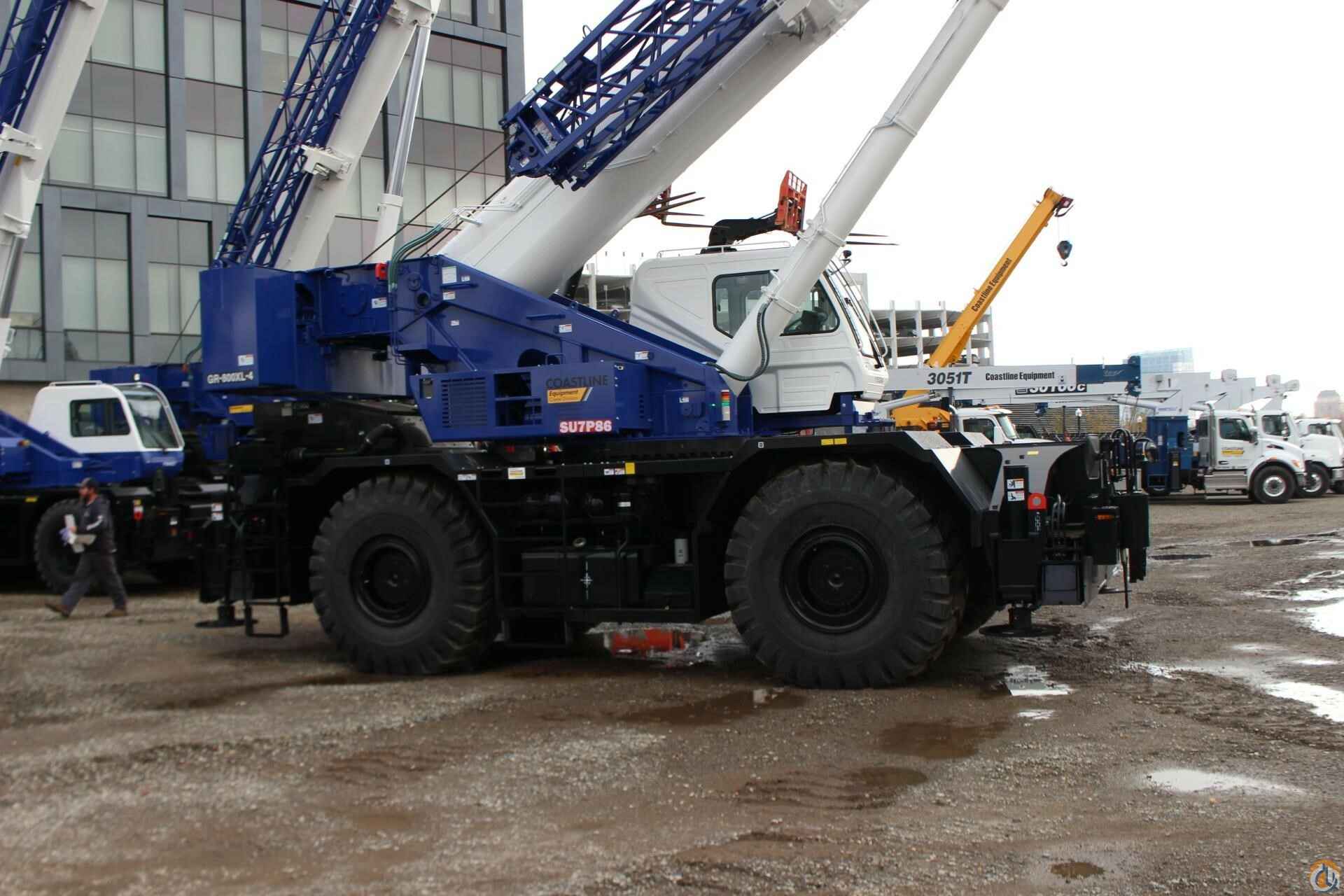

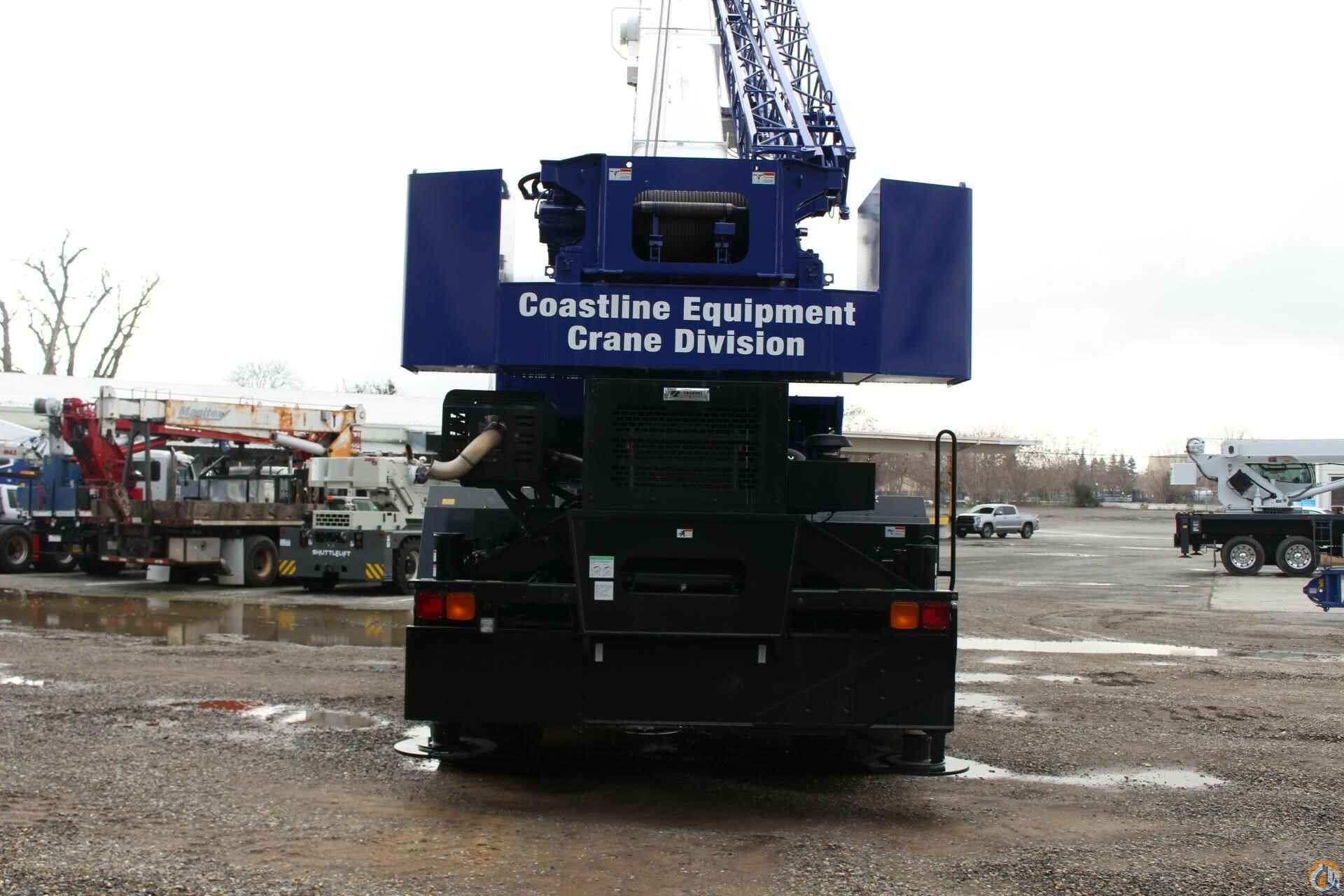

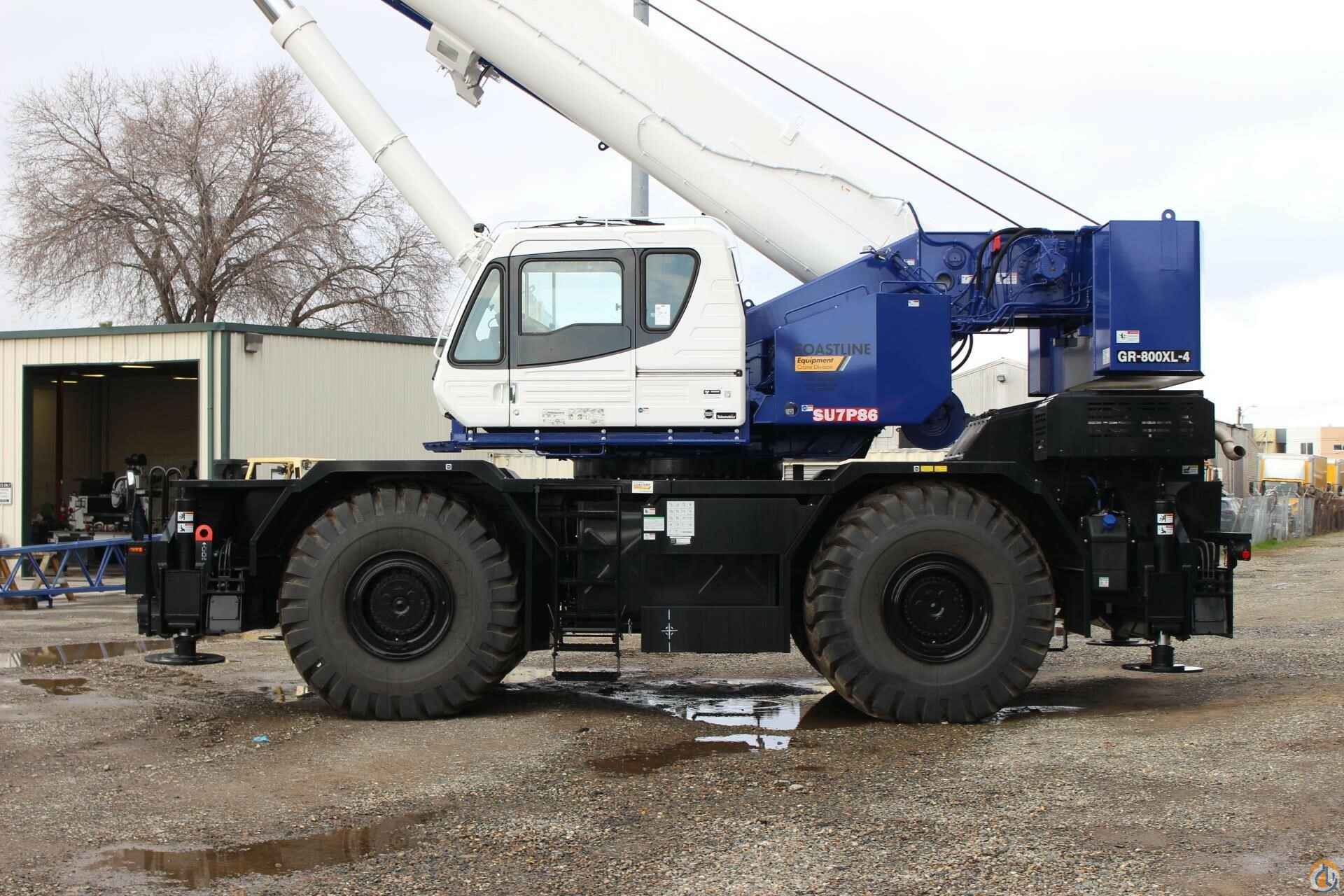

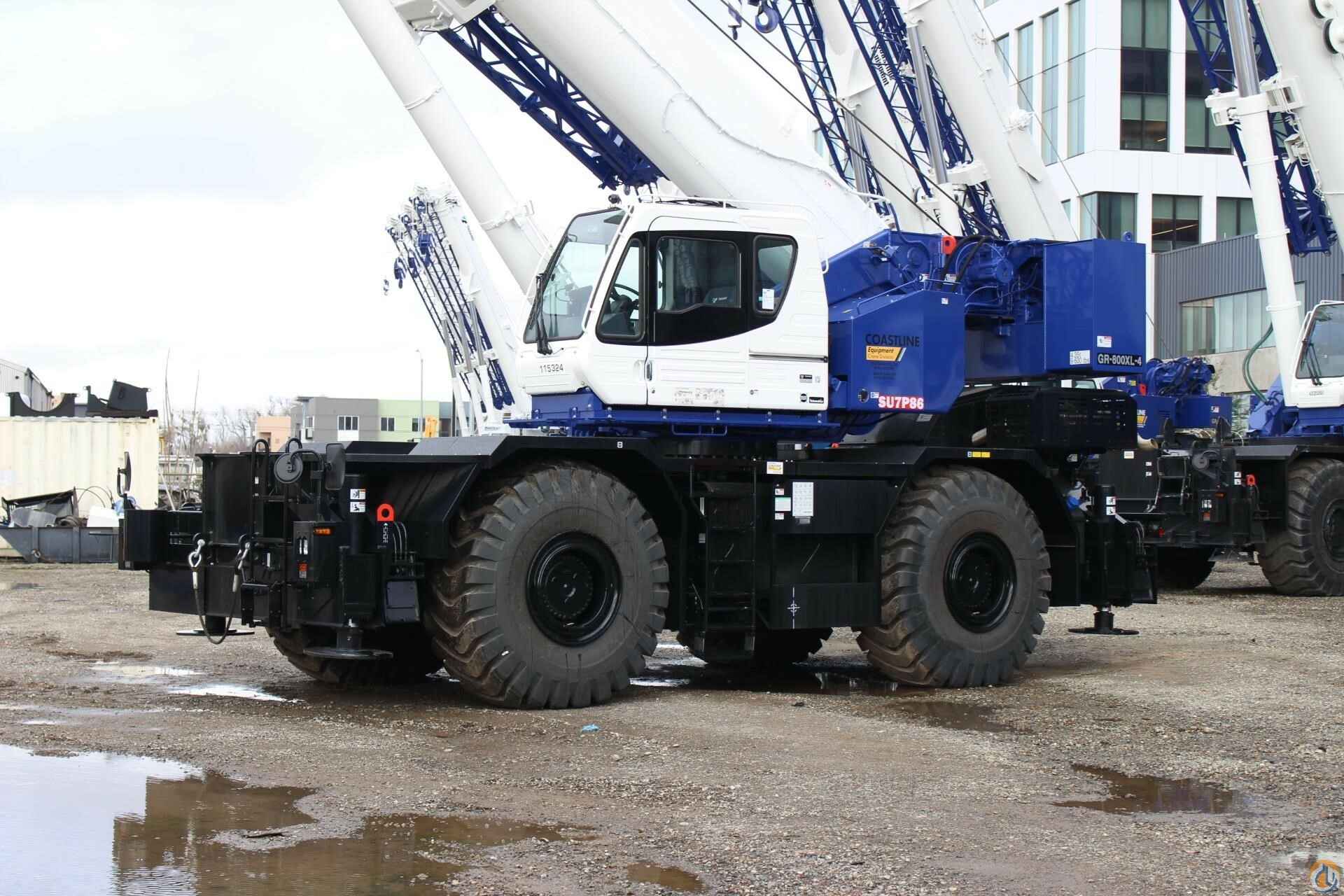

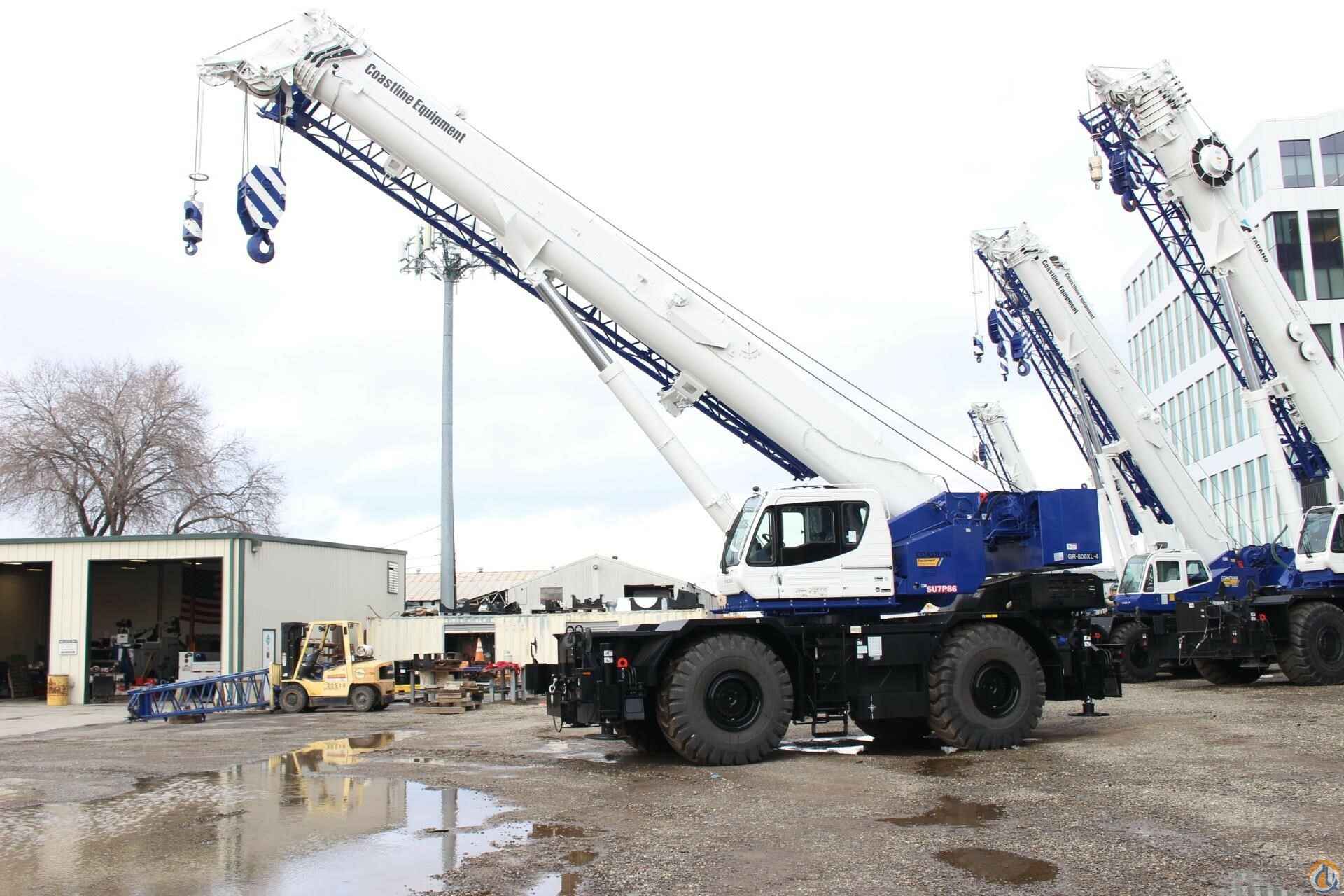

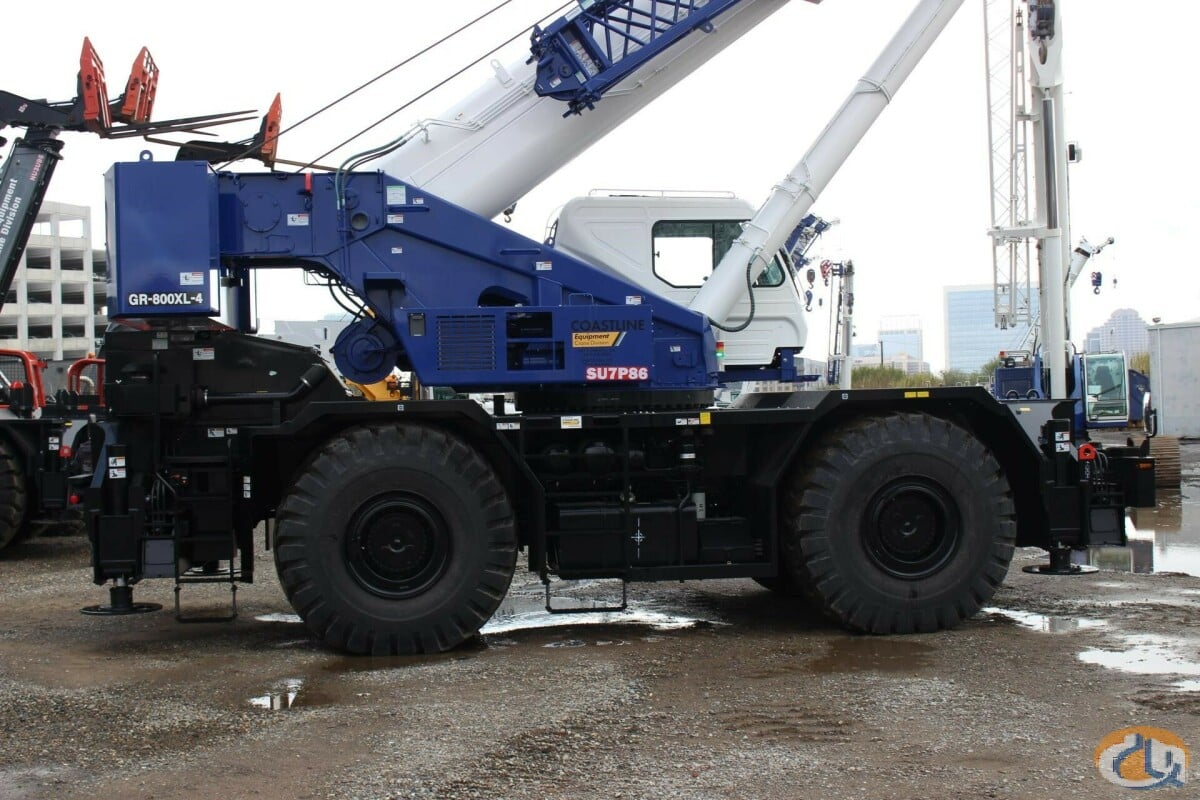

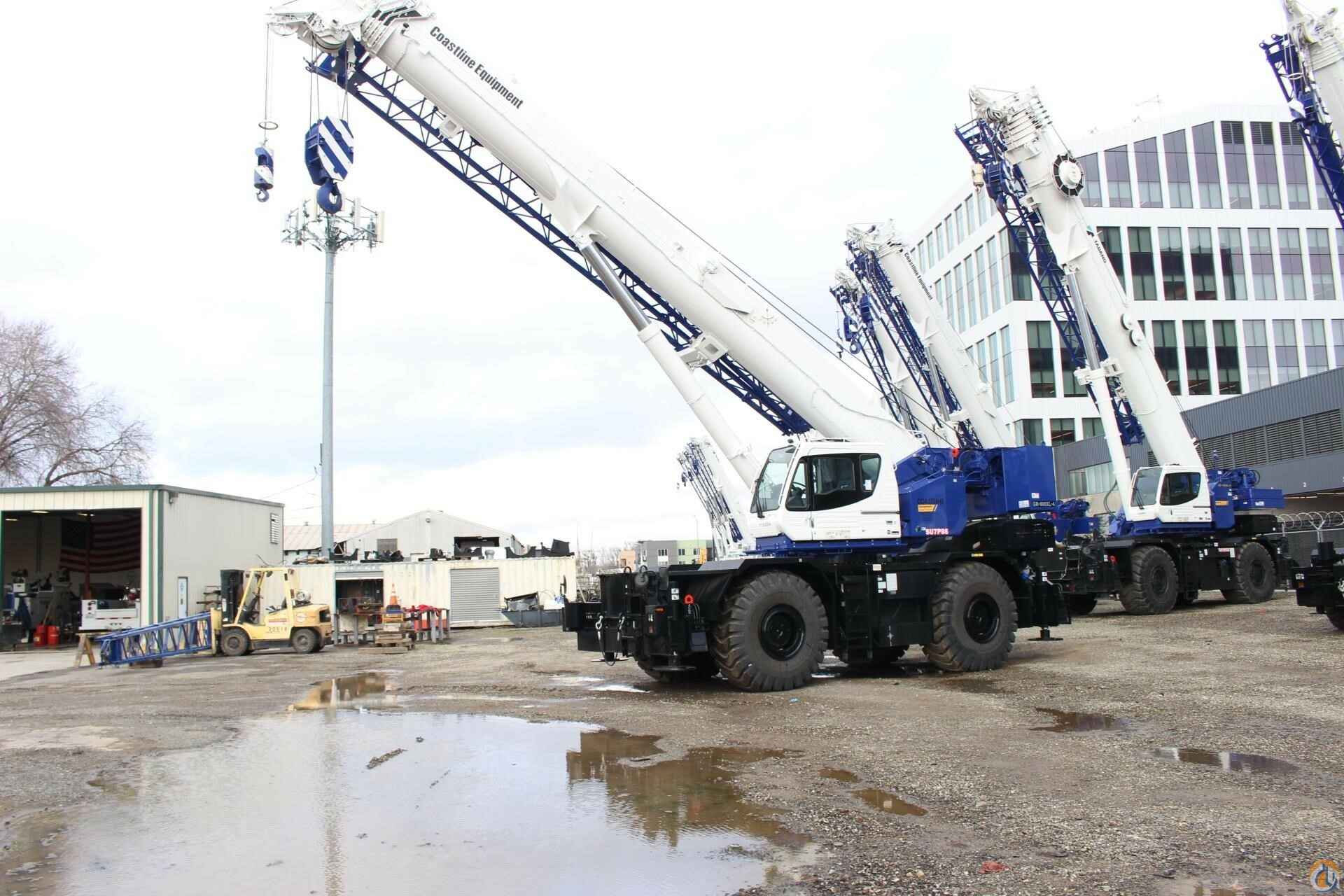

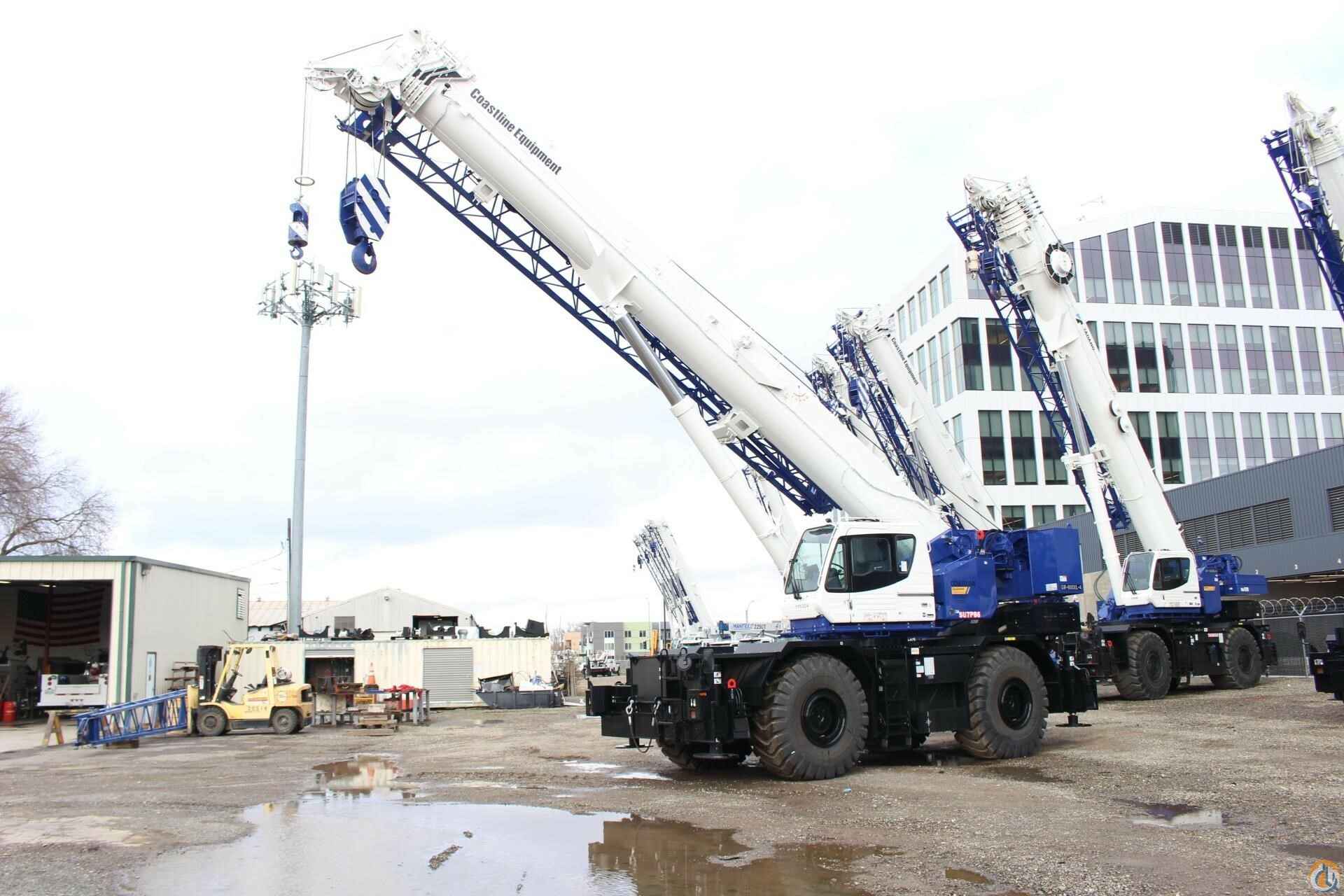

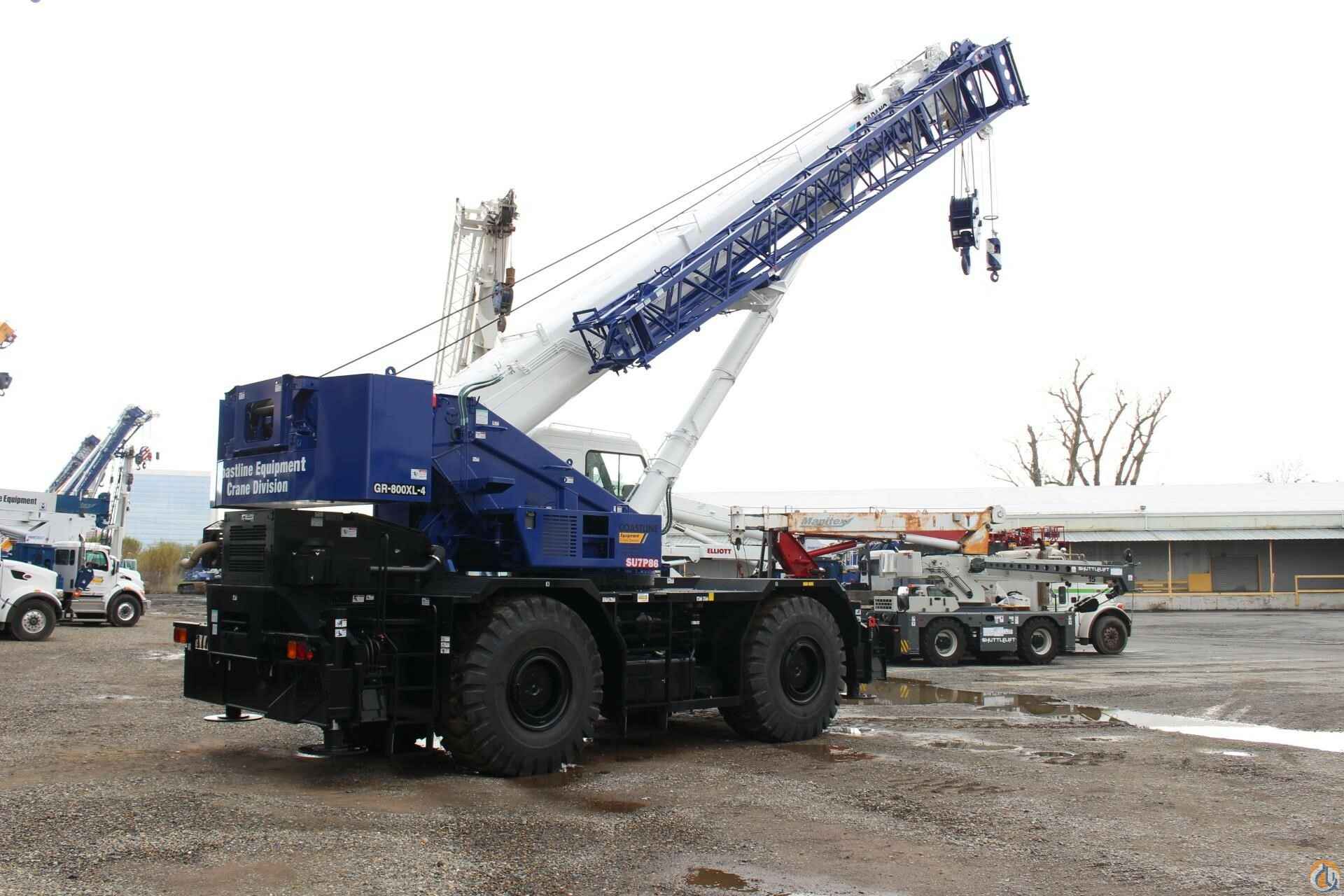

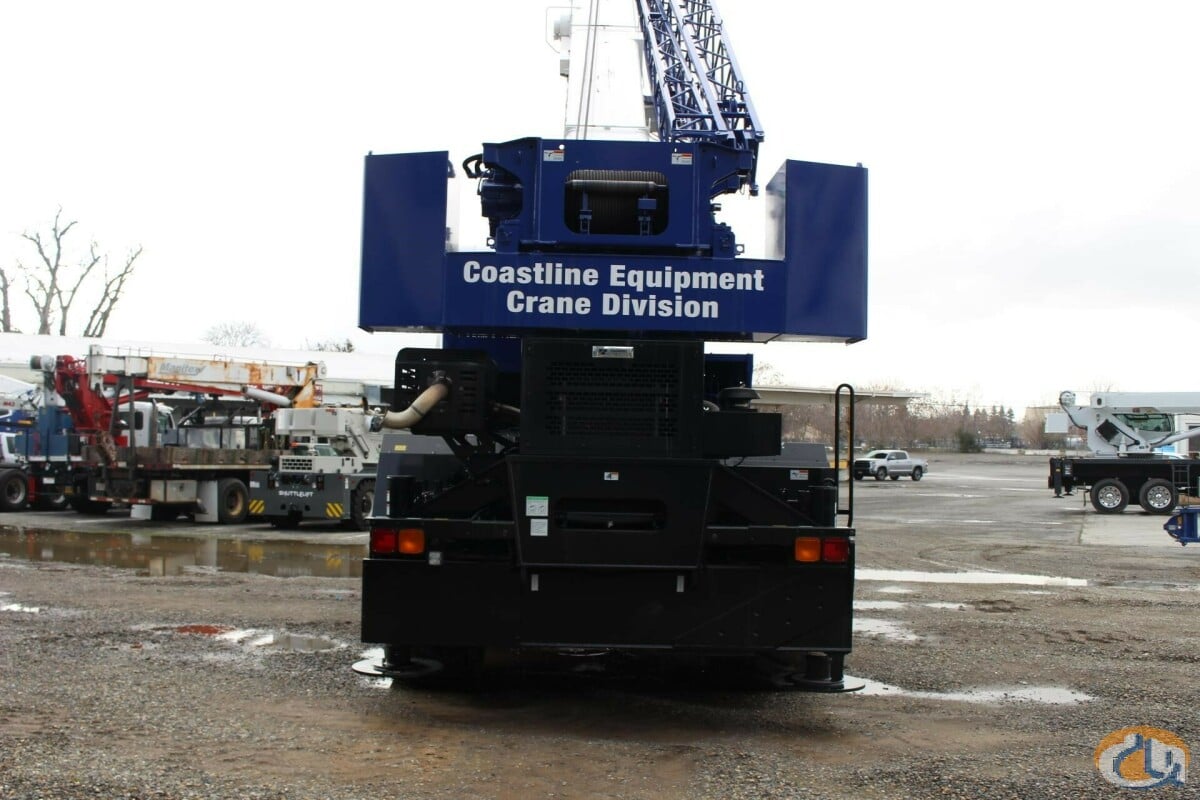

TADANO GR800XL-4
80 TON CRANE
Standard features:
• Five Section full power partially synchronized boom 39.4’-154.2’
• 33.2’ or 58.1’ bi-fold lattice jib (tilt type) with 3.5°, 25° or 45° pinned offsets and self-storing pins
• Quick reeving type bi-fold jib
• Anti-Two block device (overwind cutout)
• Winch drum camera with light
• LED work lights
• Variable speed main winch with grooved drum, cable follower, drum rotation indicator (audible, visible and thumper type) and 830’ of 3/4” cable
• Variable speed auxiliary winch with grooved drum, cable follower, drum rotation indicator (audible, visible and thumper type) and 456’ of 3/4” cable
• Auxiliary lifting sheave (single top) stowable
• 2-speed Winch
• 80 Ton hook block – 6 sheaves with swivel hook and safety latch for ¾” wire rope
• 7.3 ton hook with swivel
• Tadano twin slewing system and 360° positive slewing lock
• Positive control
• Hydraulic oil cooler
• 3-way adjustable cloth seat with armrests, high back and seat belt
• Tilt-telescoping steering wheel
• Tinted safety glass and sun visor
• Front windshield wiper and washer
• Roof window wiper and washer
• Power window (cab door)
• 12V power outlet
• Ashtray
• Cab floor mat
• Pump disconnect in operator’s cab
• Air conditioner (hot water and cooler)
• Full Instrumentation package
• Self Centering finger control levers with pilot control
• Control pedals for boom elevating and boom telescoping
• Low oil pressure/ high water temp warning device (visual)
• Air Cleaner dust indicator
• Cup holder
• Battery disconnect
• USB port
• 20° tilt cab
• Emergency steering system
• Tadano electronic load moment indicator system (AML-E2)
• Boom angle indicator
• Outrigger extension length detector
• Electronic crane monitoring system
• Rear view camera
• Right front view camera
• Fenders
• Air dryer
• Complete highway light package
• Towing hooks – Front and rear
• Hook Block tie down (front bumper)
• Weighted hook storage compartment
• Halogen head lamp
• Independently controlled outriggers
• Four outrigger extension positions
• Self -storing outrigger pads
• Electronic controlled automatic transmission driven by torque converter
• 4 x 4 x 4 drive/steer
• Non-spin rear differential
• Automatic rear axle oscillation lockout system
• 29.5 -25 34 PR tires
• Disc brakes
• Water separator with filter (high filtration)
• Back-up alarm
• 24 volt electric system
• Tool storage compartment
• Tire inflation kit
• Cummins B6.7 turbo charged after cooled engine (280HP) with exhaust brake
• Engine over-run alarm
• Lifting eyes
• Telematic (machine data logging and monitoring system) with HELLO-NET via internet
• Fuel consumption monitor
• Eco Mode system
• Radiator cover
• Clearance sonar (rear side)
• Automatic pump disconnect
• Over unwinding prevention
