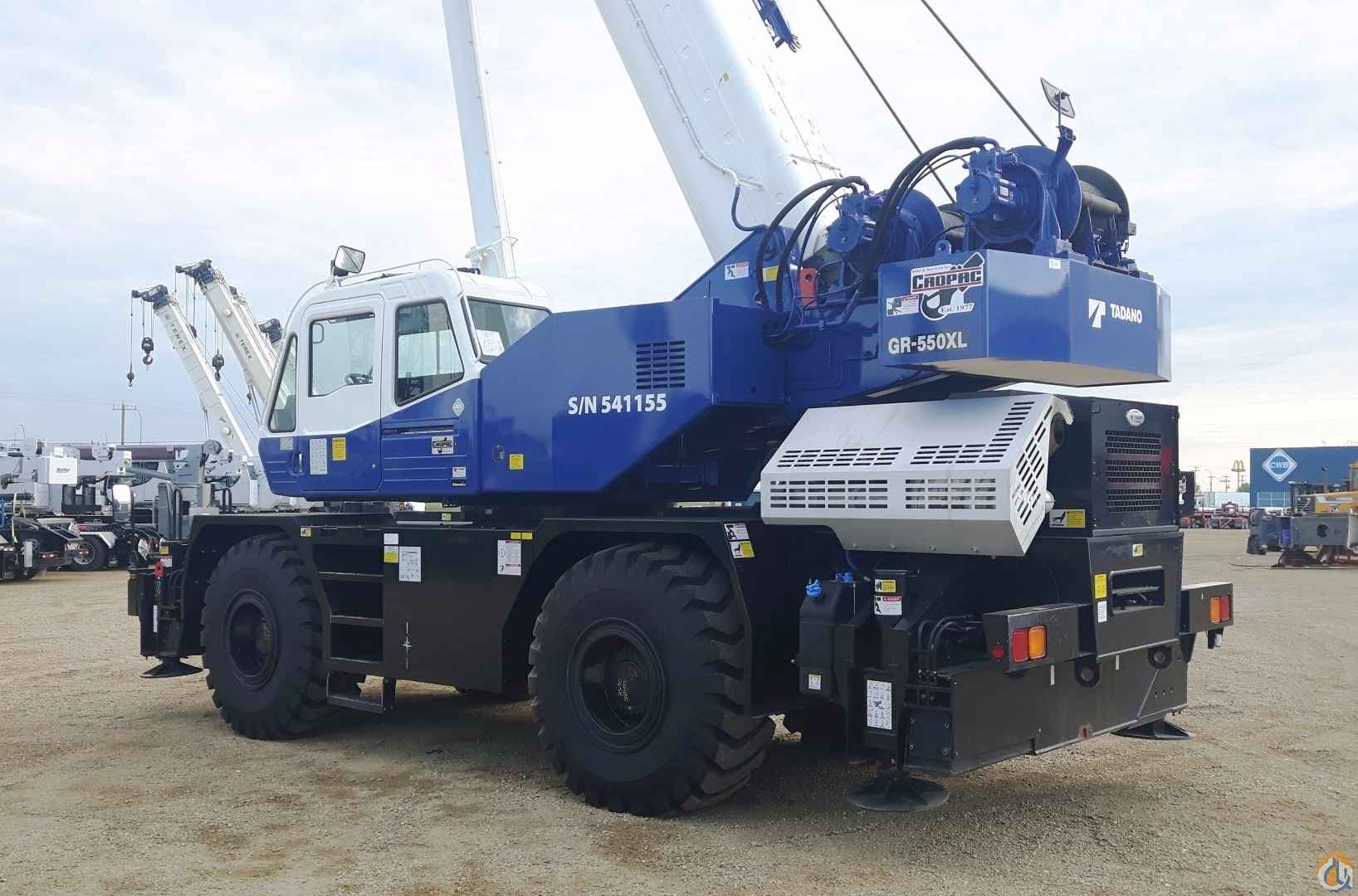

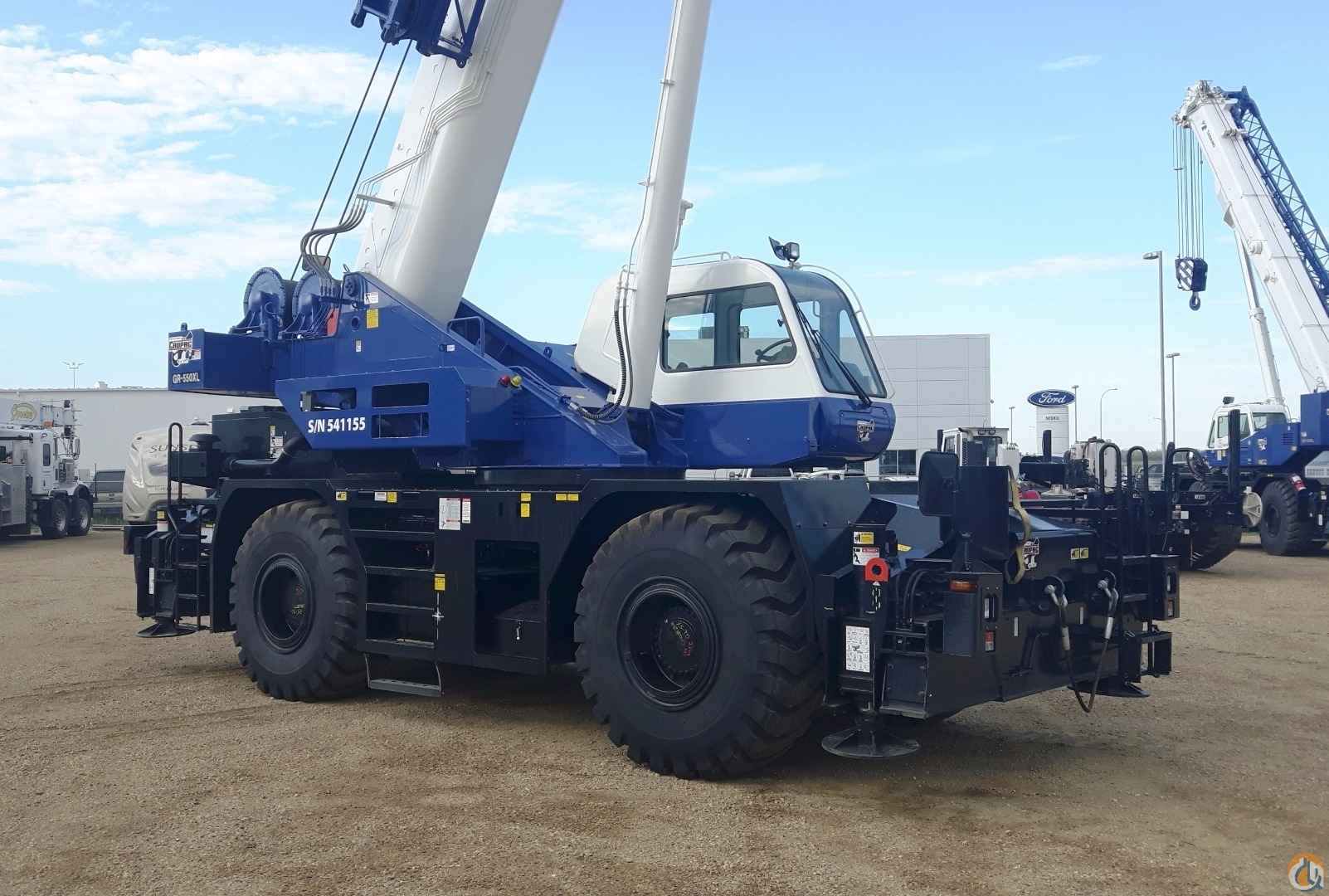

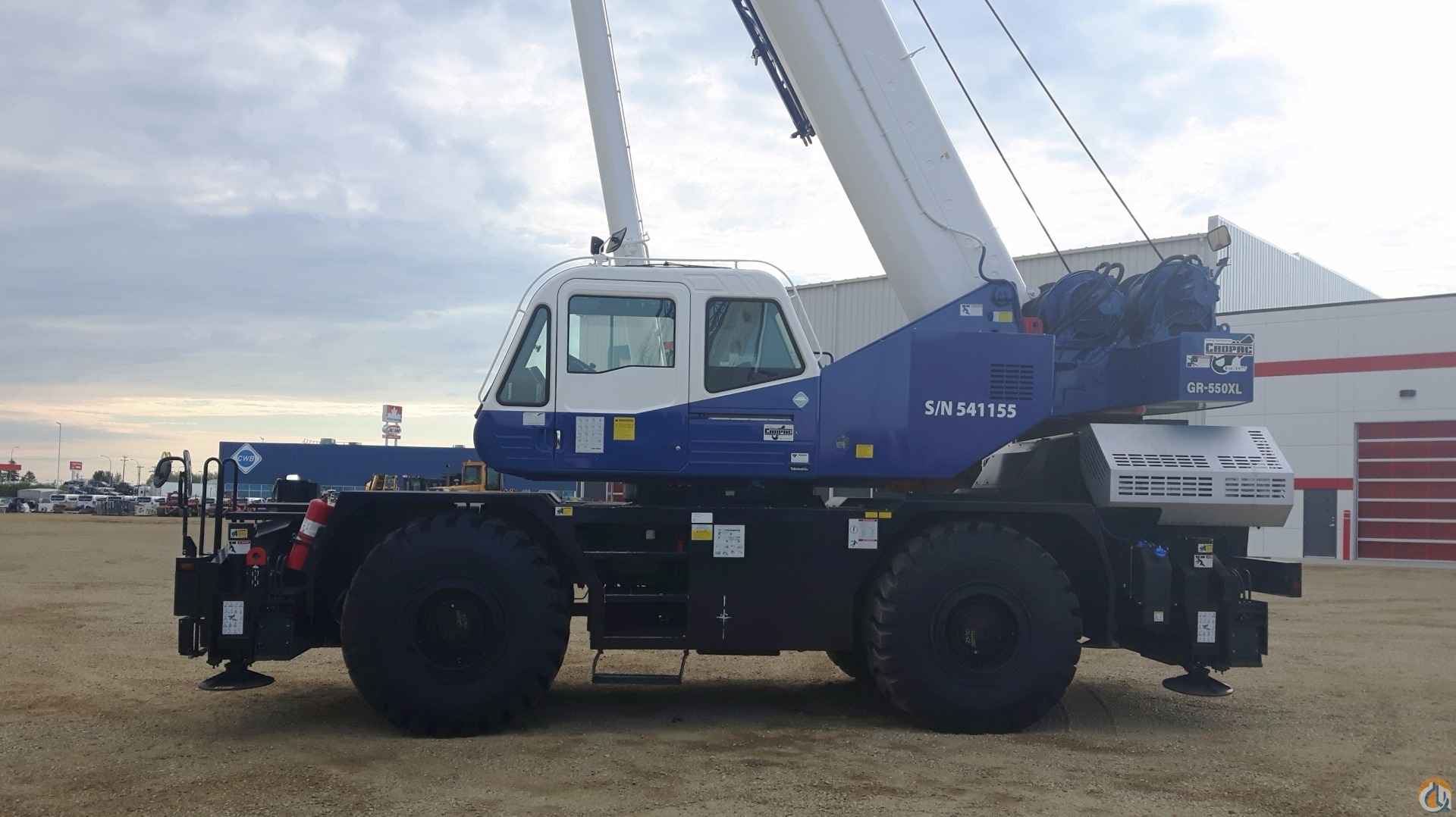

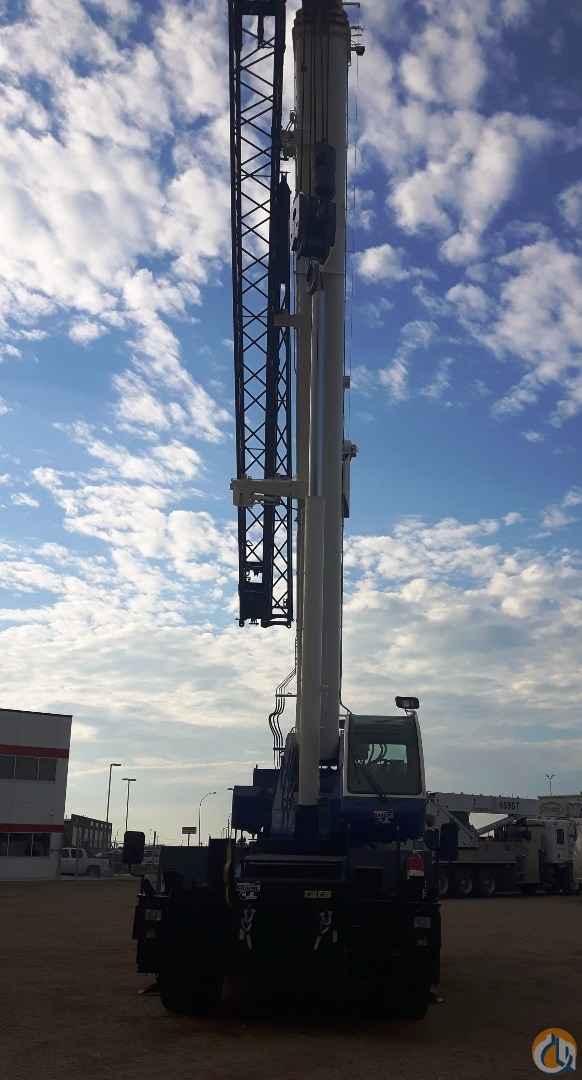

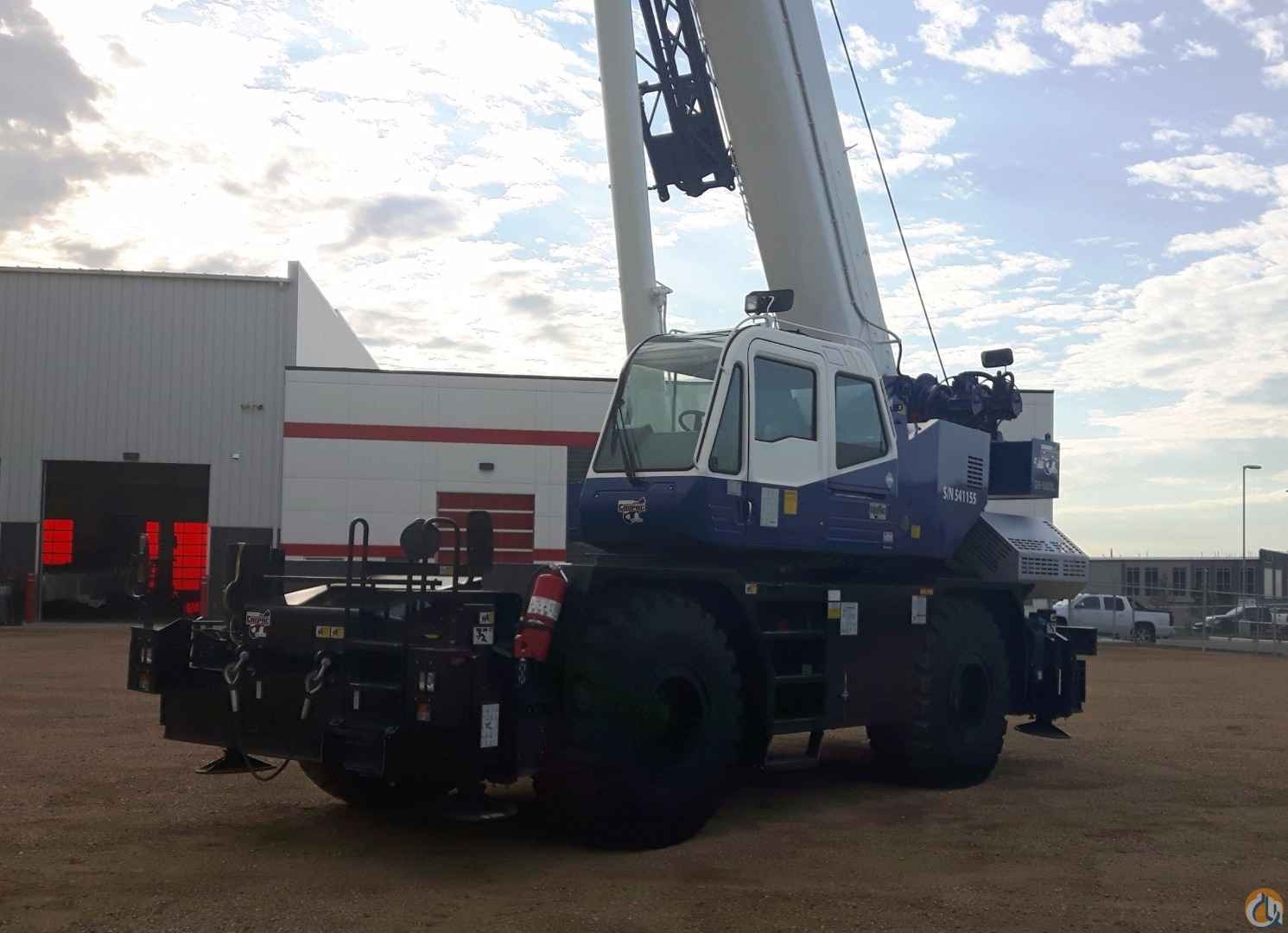

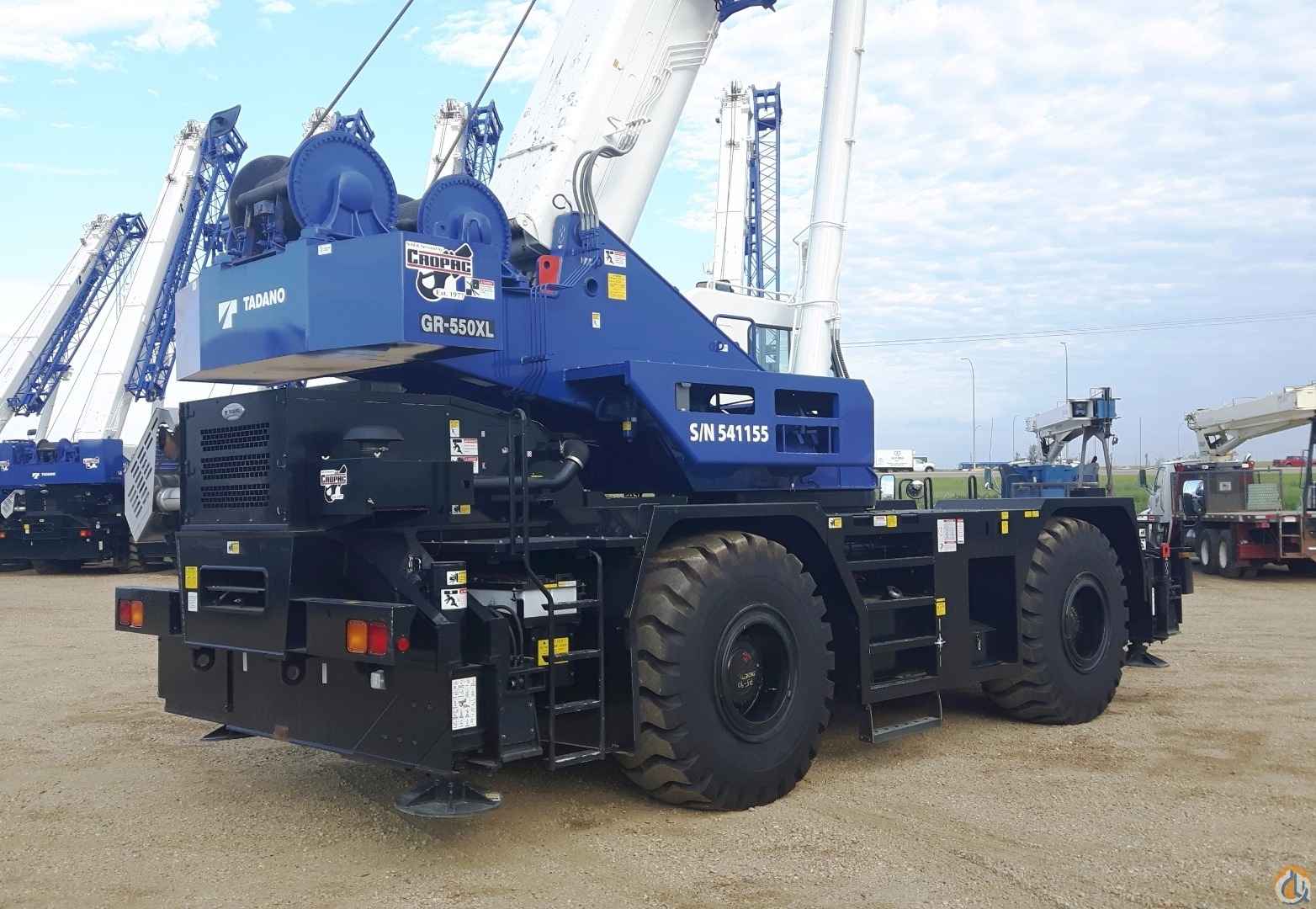

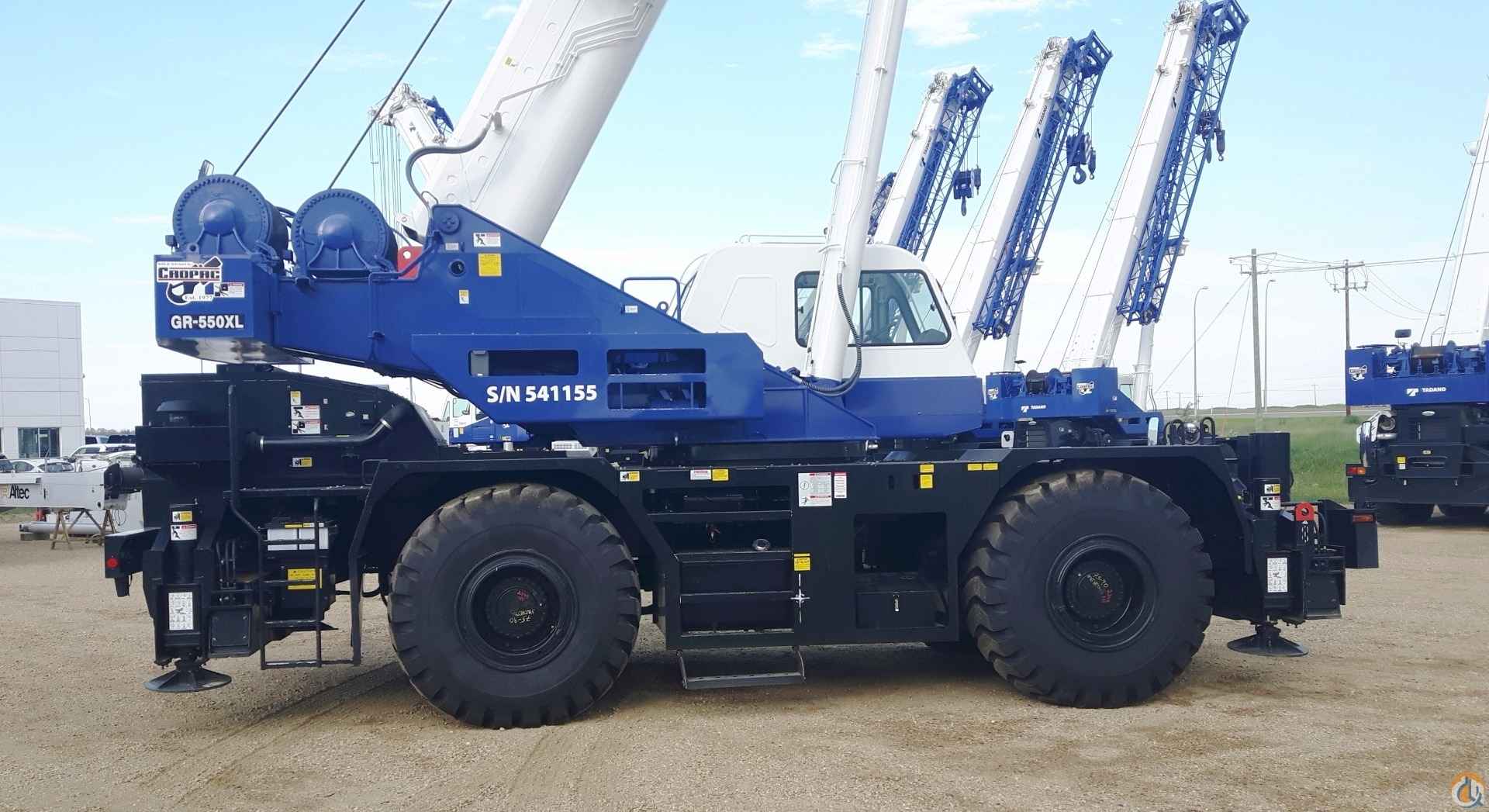

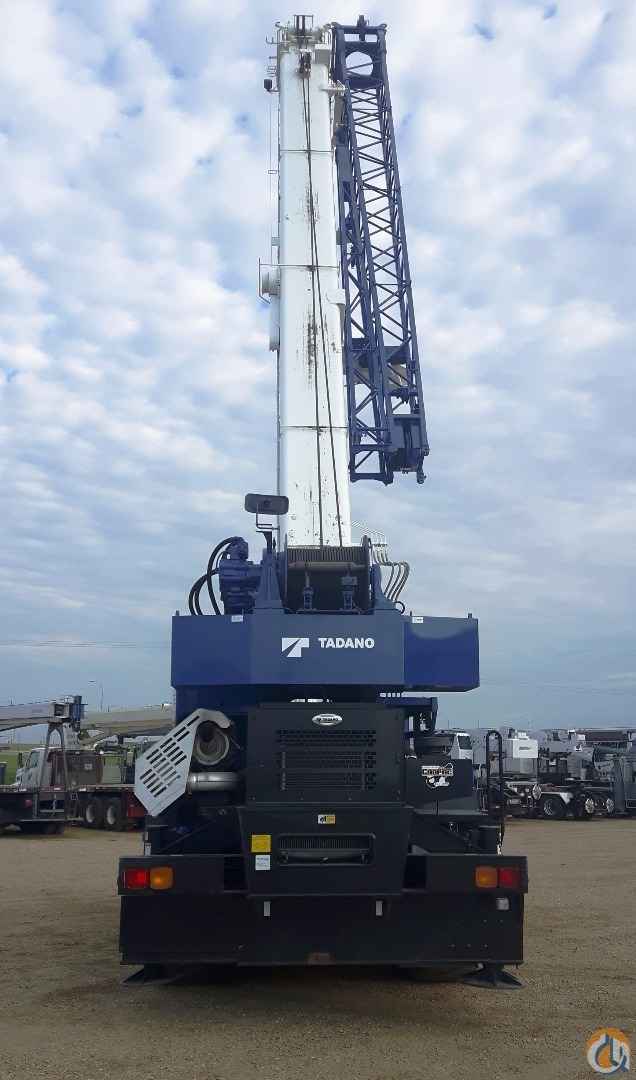

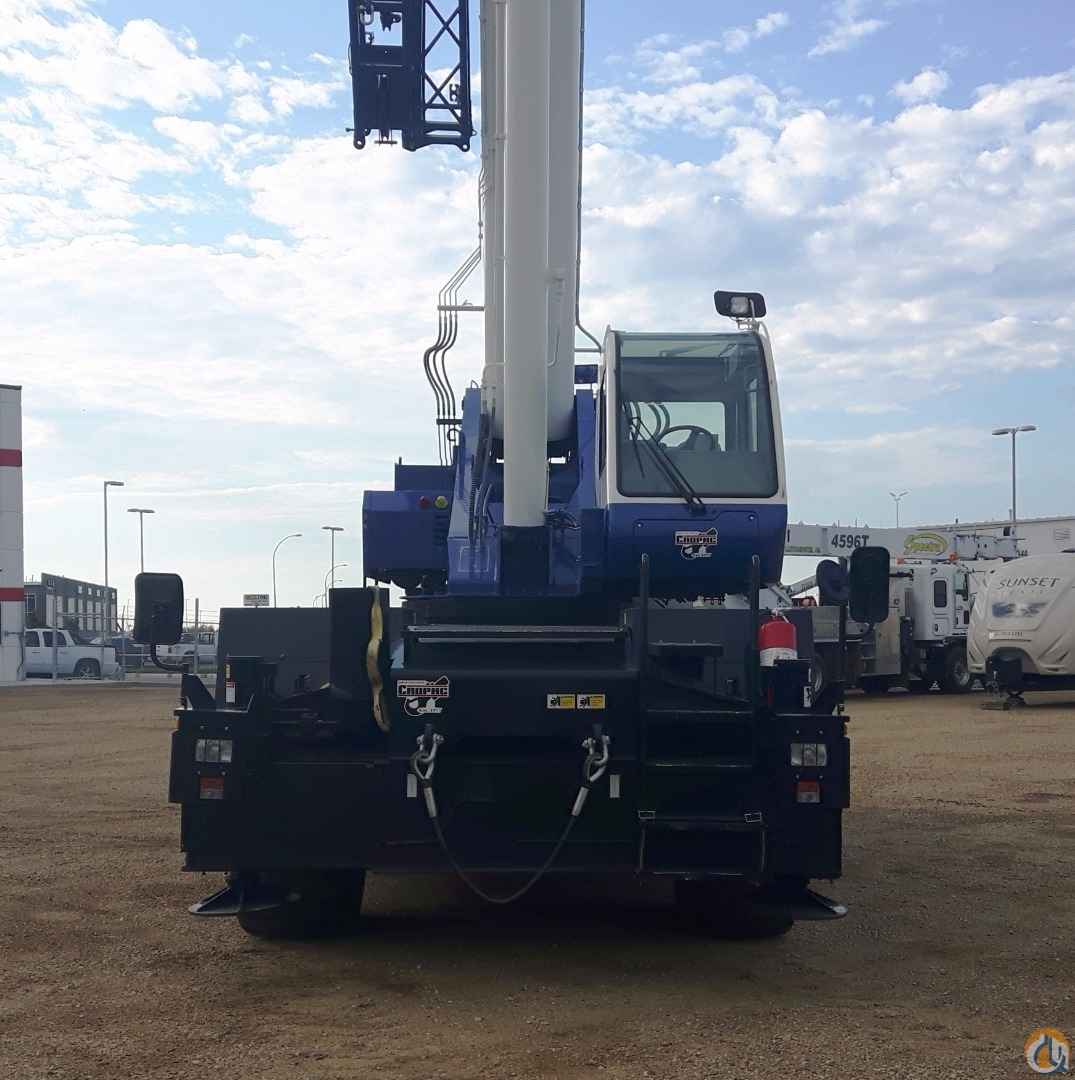

2015 TADANO GR550XL-2 Rough Terrain Crane (Sold)

Four section full power synchronized boom 35.1’~113.9’ (10.7 m~34.7 m)

28.9’ or 50’ (8.8 m or 15.2 m) bi-fold lattice jib (tilt type) with 5°, 25° or 45° pinned offsets and self storing pins

Auxiliary lifting sheave (single top) stowable

Variable speed main hoist with grooved drum, cable follower and 633’ of 3/4” cable

Variable speed auxiliary hoist with grooved drum, cable follower and 361’ of 3/4” cable

Drum rotation indicator (audible, visible and thumper type) main and auxiliary hoist

Anti-two block device (overwind cutout)

Boom angle indicator

Tadano electronic load moment indicator system (AML-C)

Outrigger extension length detector

Electronic crane monitoring system

Tadano twin swing system and 360° positive swing lock

Self-centering finger control levers with pilot control

Control pedals for boom hoist and boom telescoping

3-way adjustable cloth seat with armrests, high back and seat belt

Tilt-telescoping steering wheel

Tinted safety glass and sun visor

Front windshield wiper and washer

Roof window wiper and washer

Power window (cab door)

Rear-view mirrors (right and left side)

Mirror for main and auxiliary hoists

Cigarette lighter and ashtray

Cab floor mat

Pump disconnect in operator’s cab

Hydraulic oil cooler

Hot water cab heater and air conditioner

Telecommunications terminal (HELLO-NET Owner’s Site)

Positive control

Quick reeving type bi-fold jib

Work lights

Independently controlled outriggers

Four outrigger extension positions

Self-storing outrigger pads

Cummins QSB6.7 turbo charged after cooled engine (260HP) with exhaust brake

Electronic controlled automatic transmission driven by torque converter

4 x 4 x 4 drive/steer

Non-spin rear differential

Semi-eliptic leaf springs suspension with hydraulic lockout device (front and rear)

23.5-25 (OR) tires

Disc brakes

Fenders

Air dryer

Water separator with filter (high filtration)

Engine over-run alarm

Back-up alarm

Low oil pressure / high water temp. warning device (visual)

Rear steer centering light

Air cleaner dust indicator

Full instrumentation package

Complete highway light package

Tool storage compartment

Tire inflation kit

24 volt electric system

6.2 ton (5.6 metric ton) hook ball with swivel

55 ton (50 metric ton) – 5 sheave with swivel hook block and safety latch for ¾” (19 mm) wire rope

Towing hooks – front and rear

Lifting eyes

Hook block tie-down (front bumper)

Weighted hook storage compartment

Fuel consumption monitor

Halogen head lamp

35 ton (31.8 metric ton) 4 sheave with swivel hook and safety latch for 5/8” (16mm) wire rope
