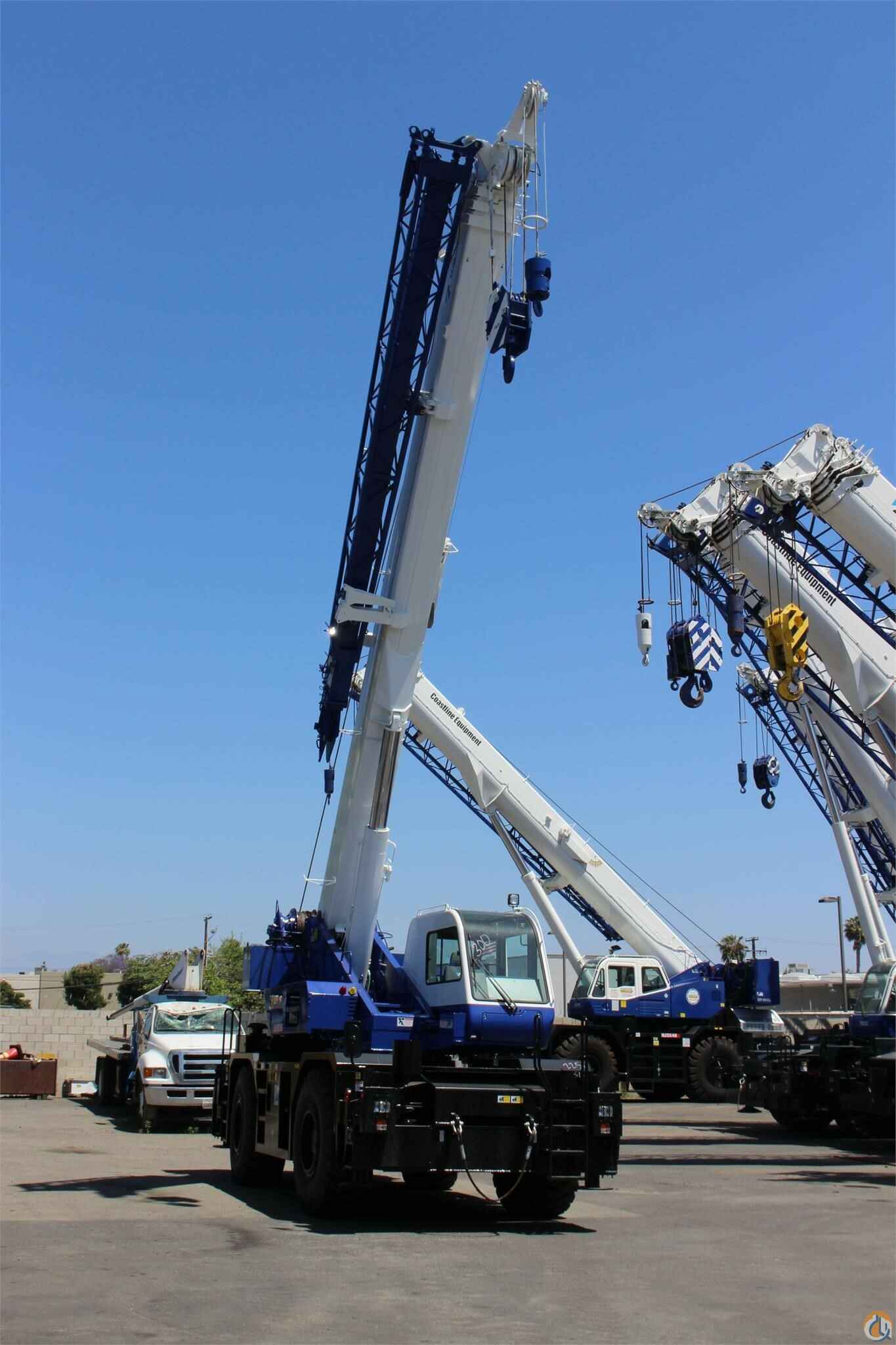

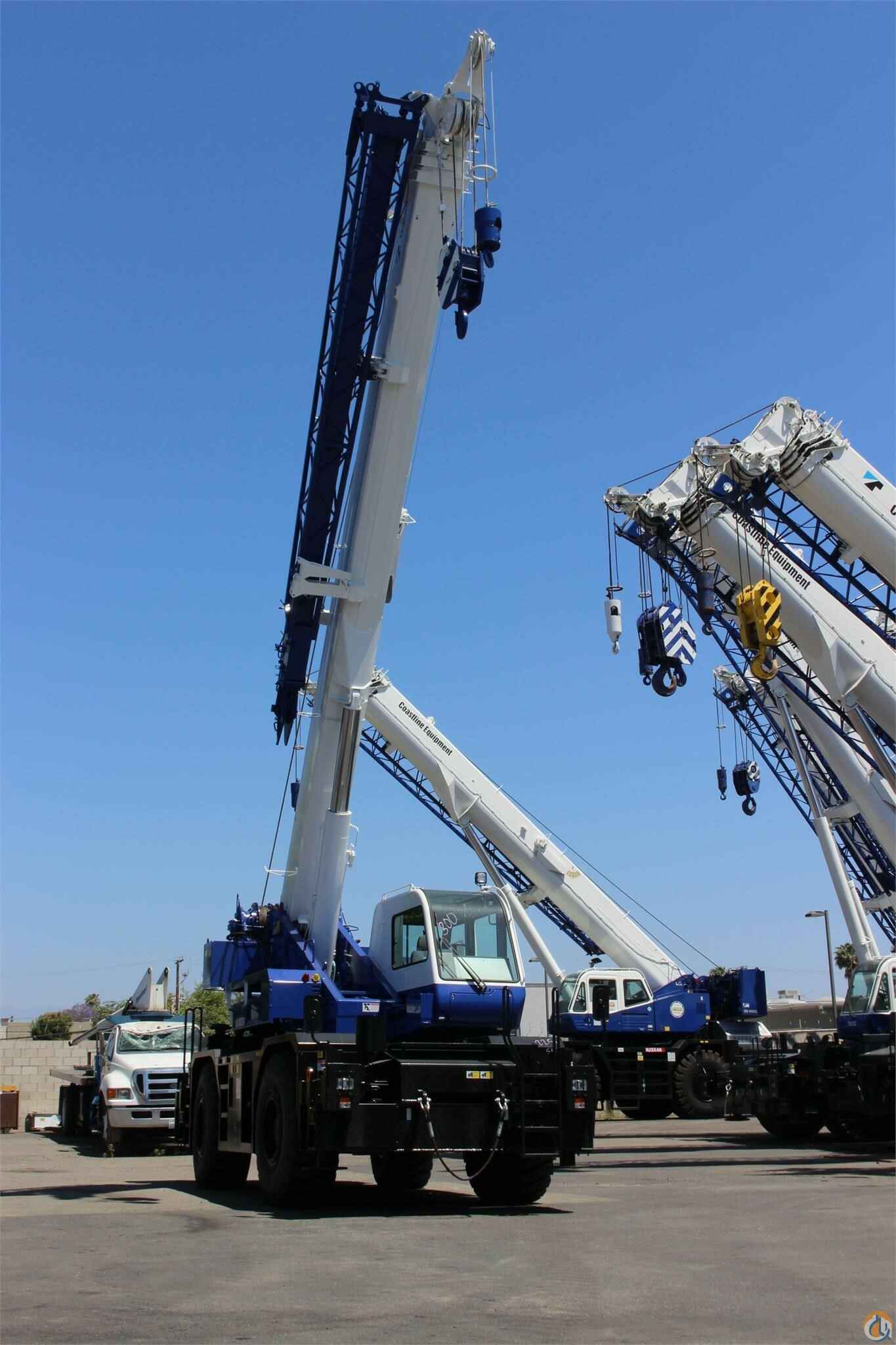

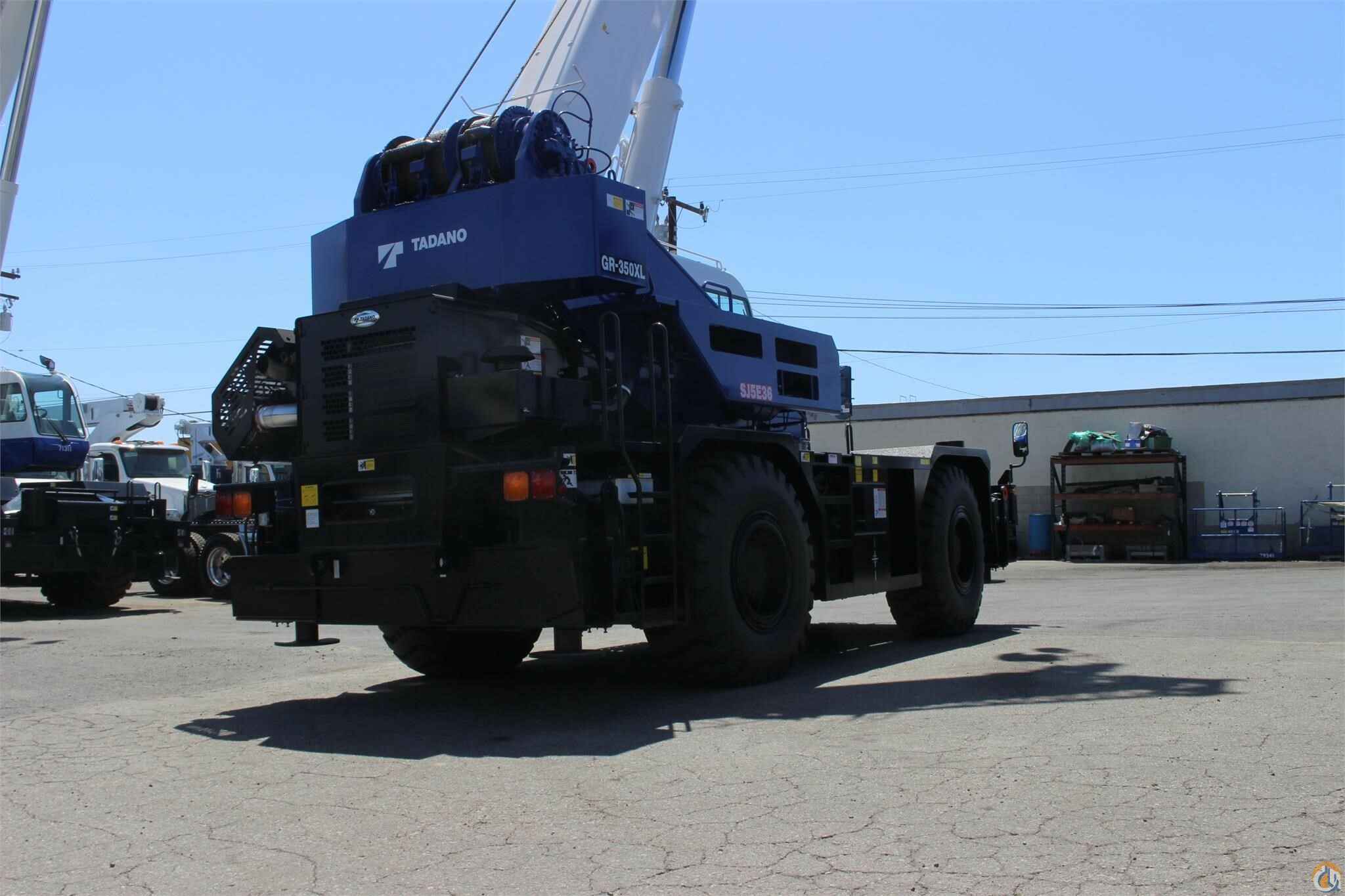

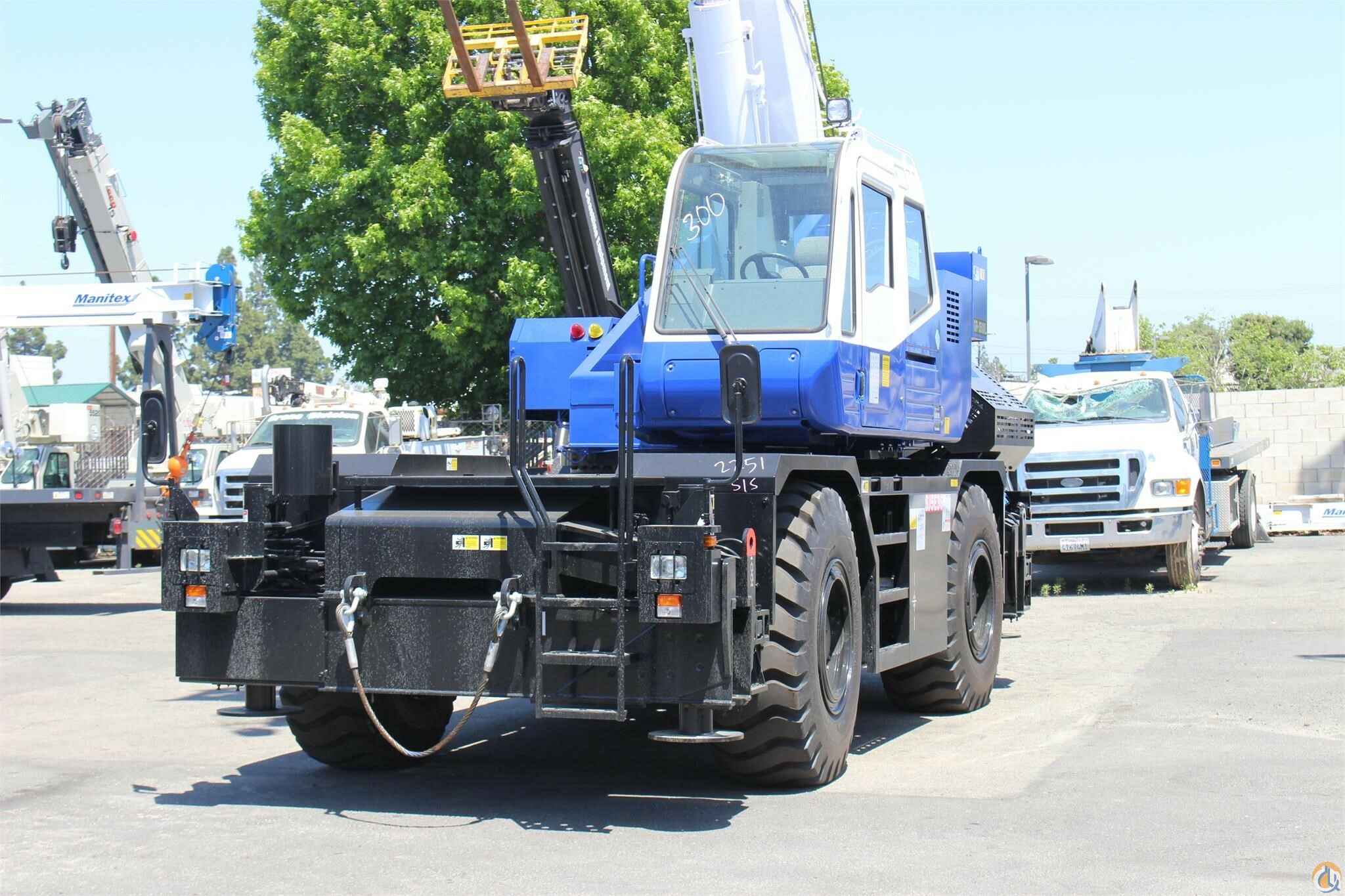

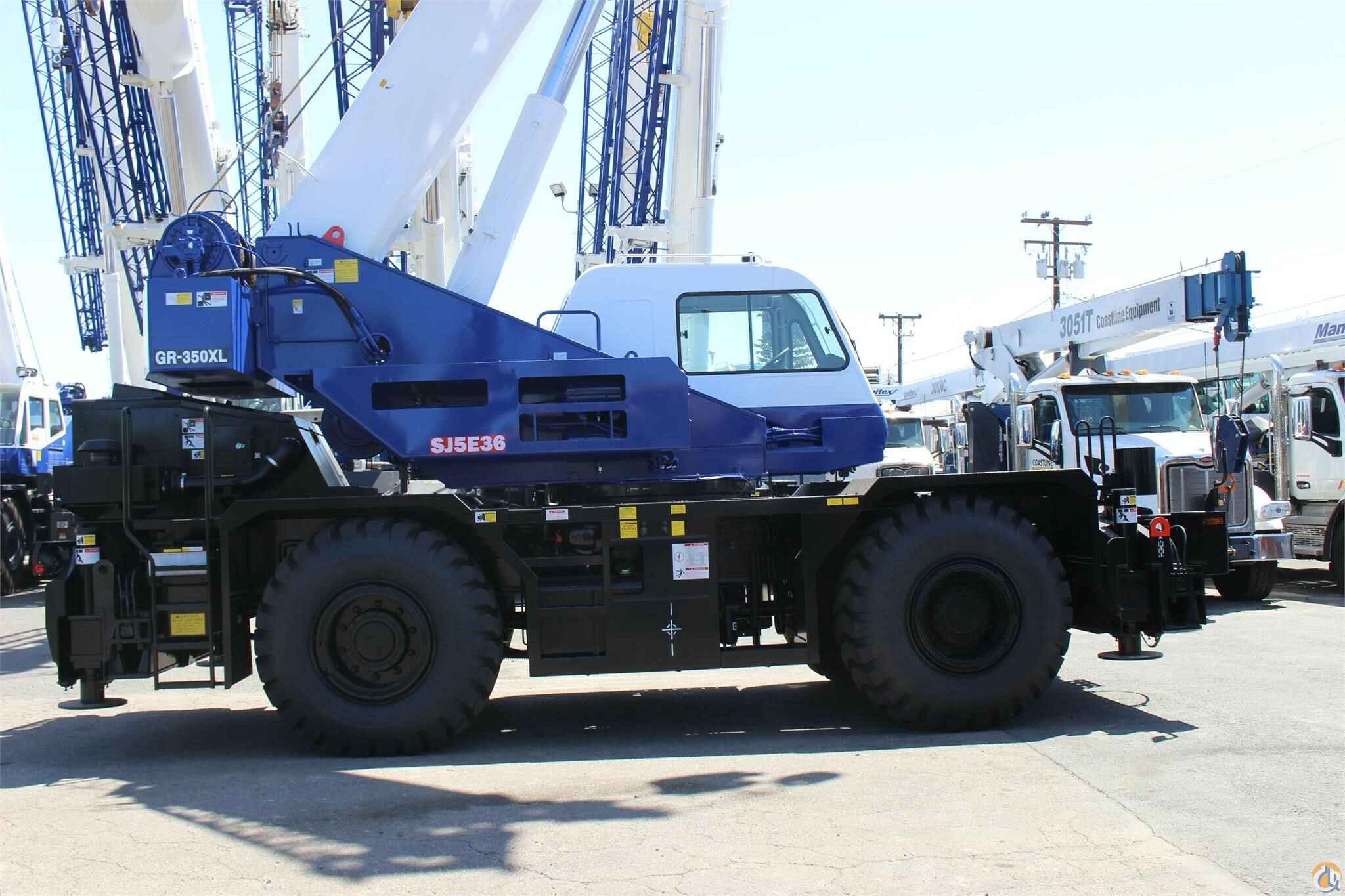

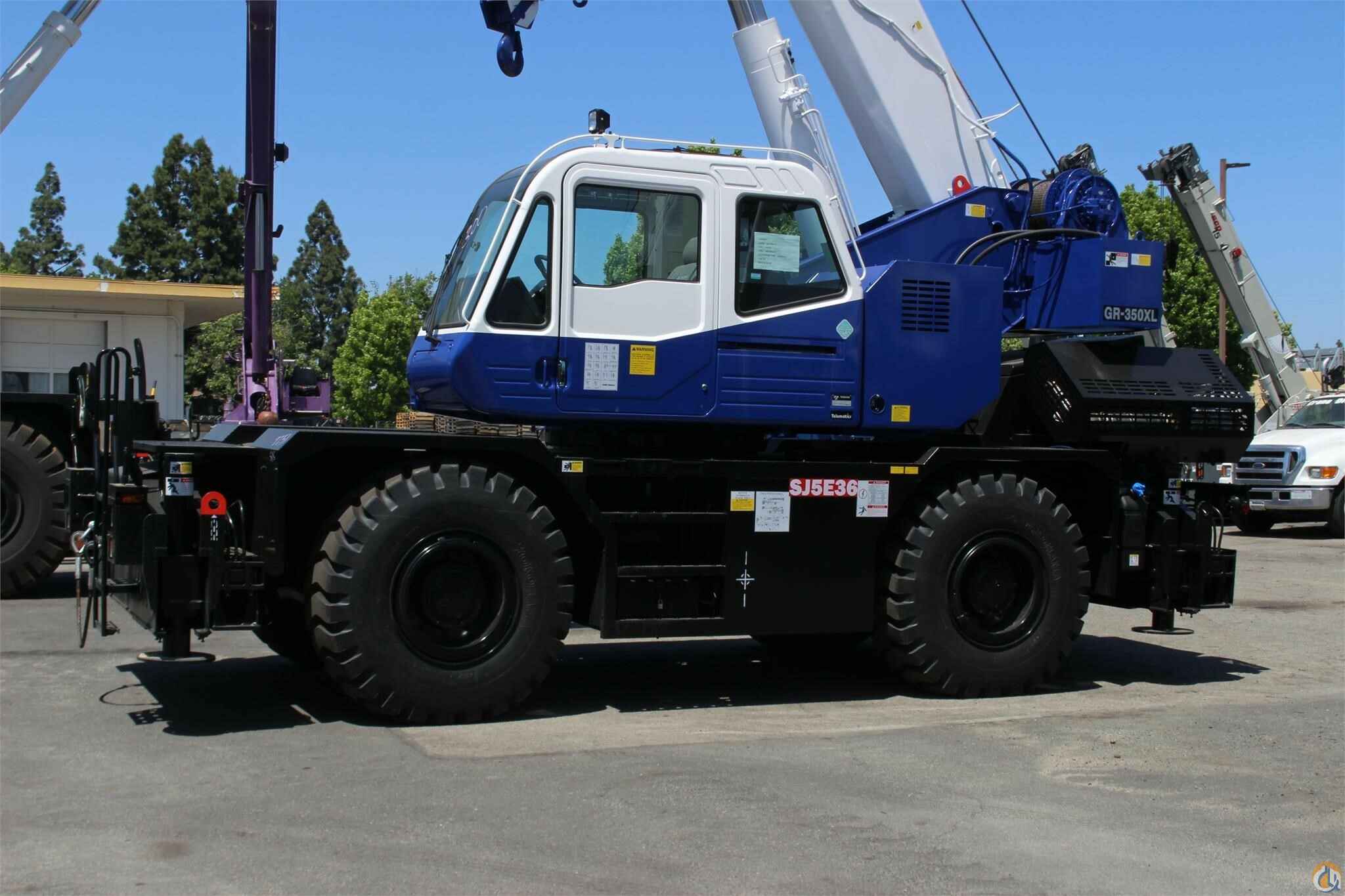

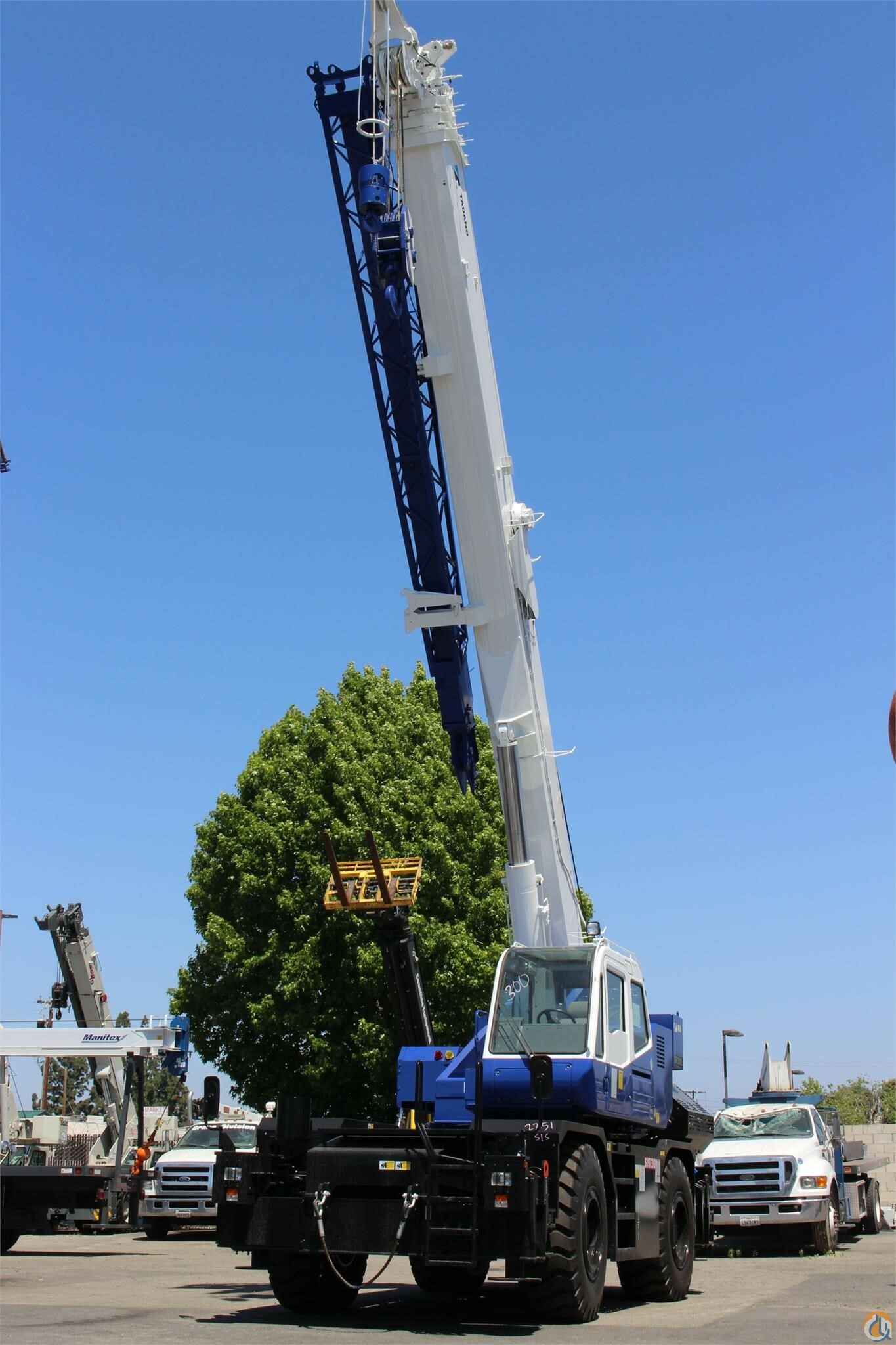

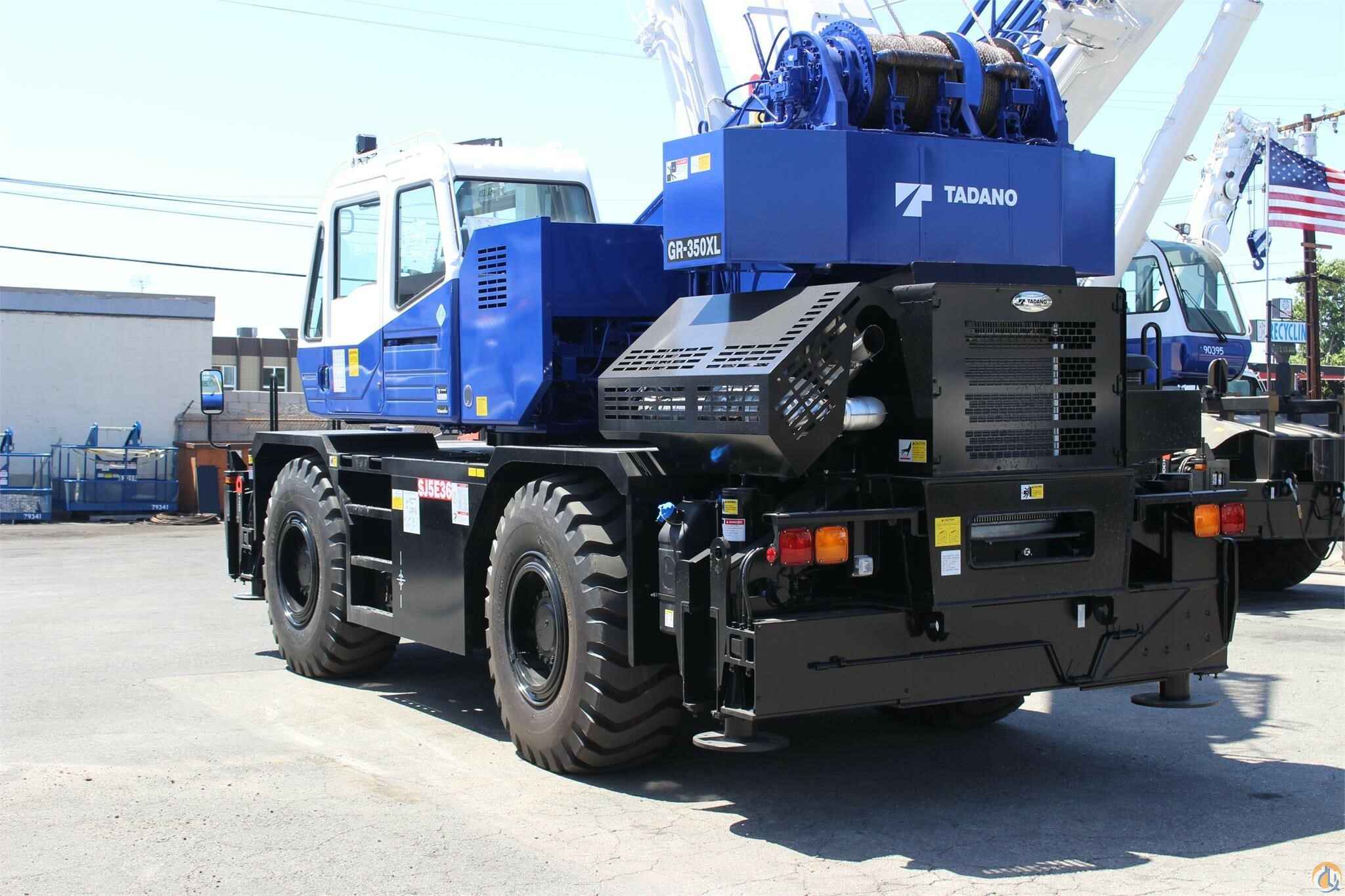

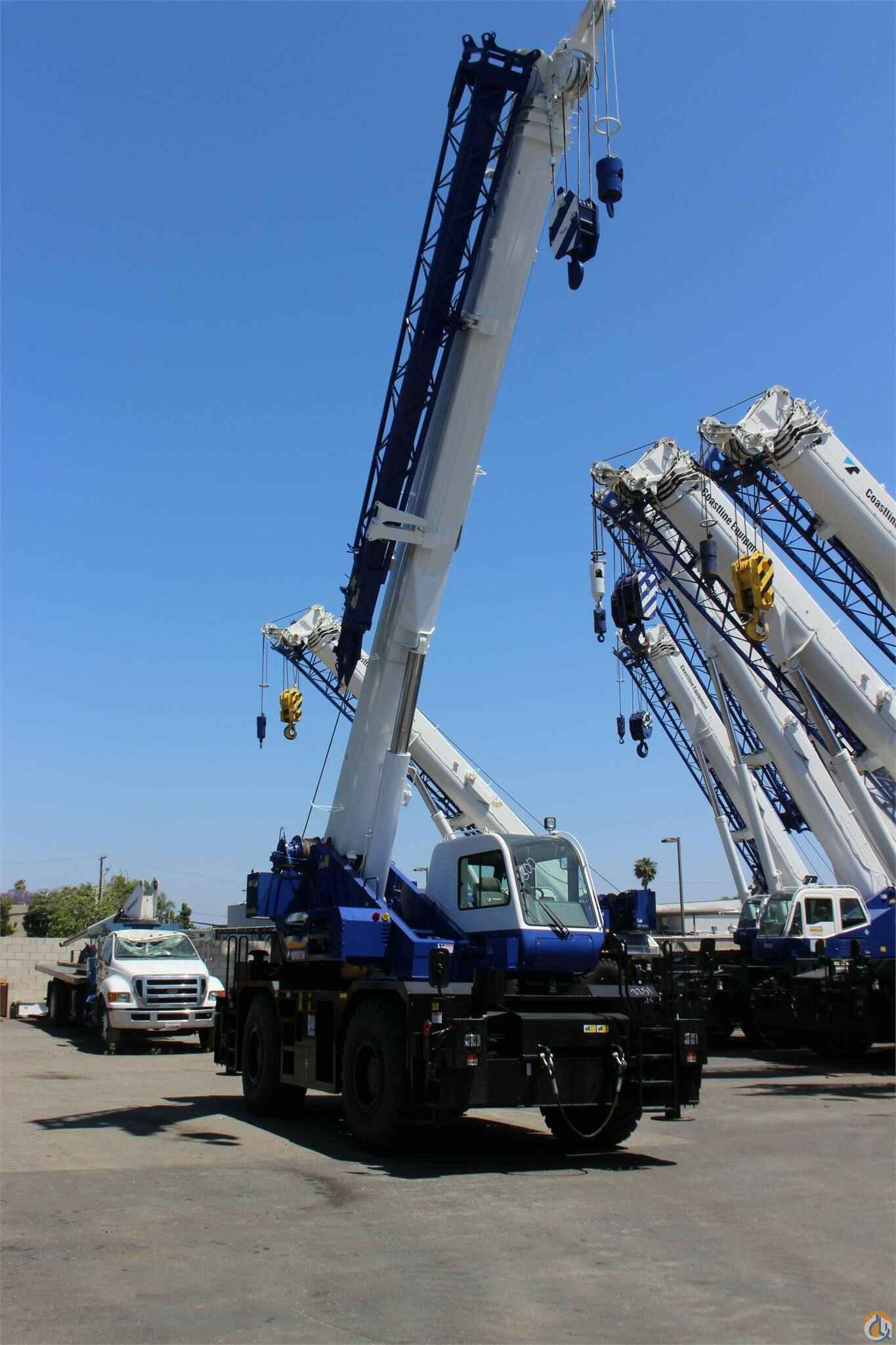

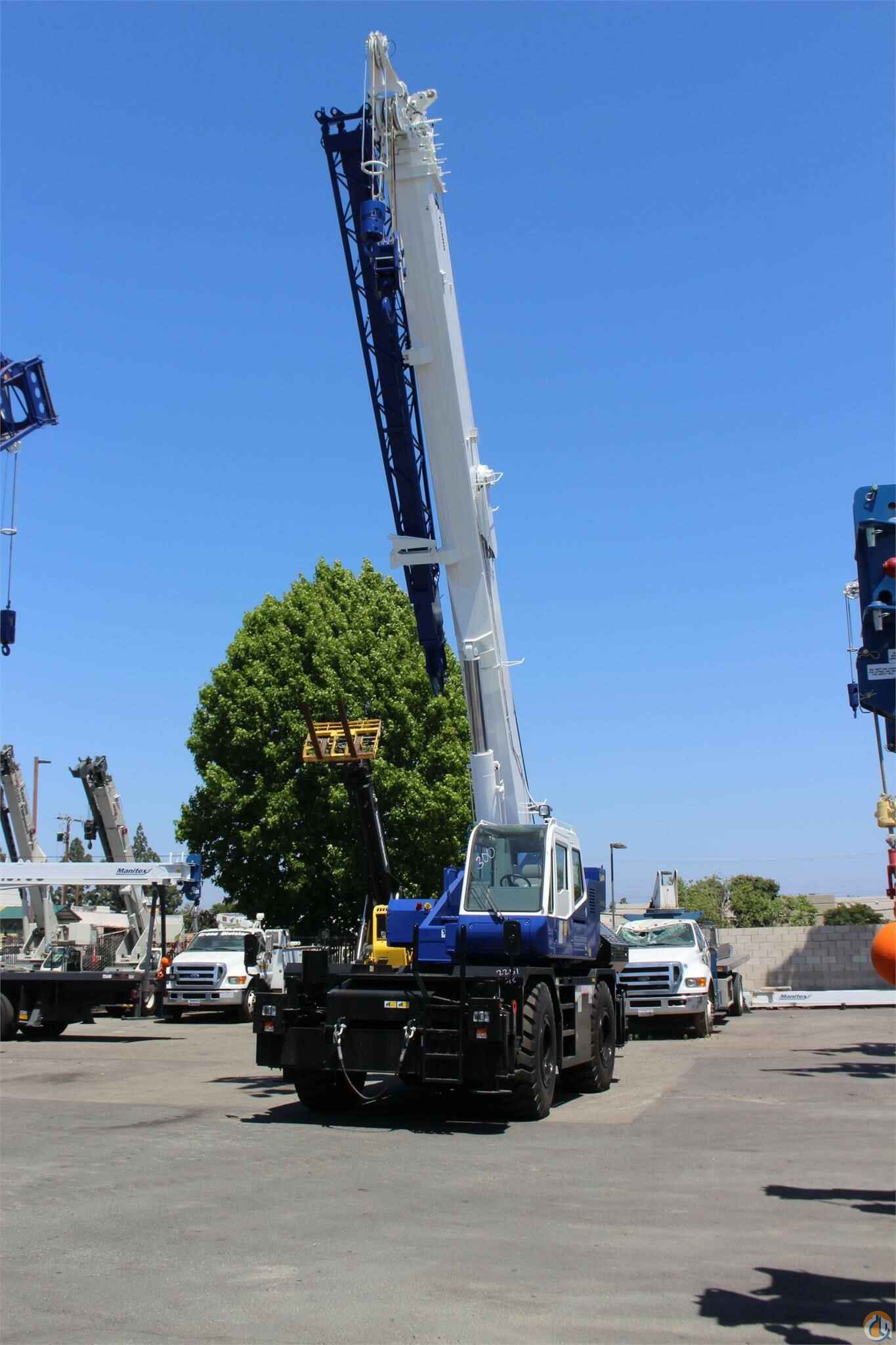

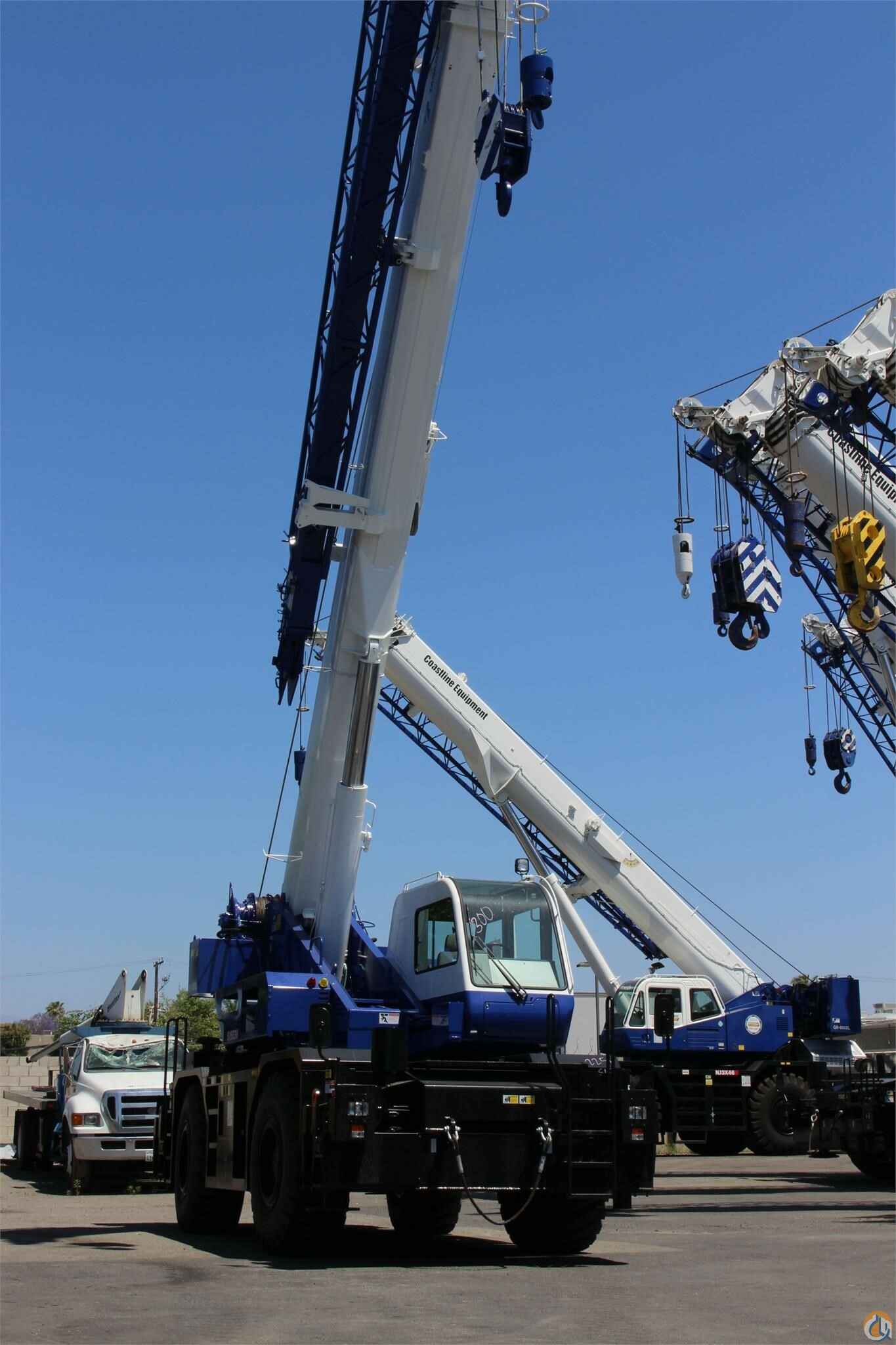

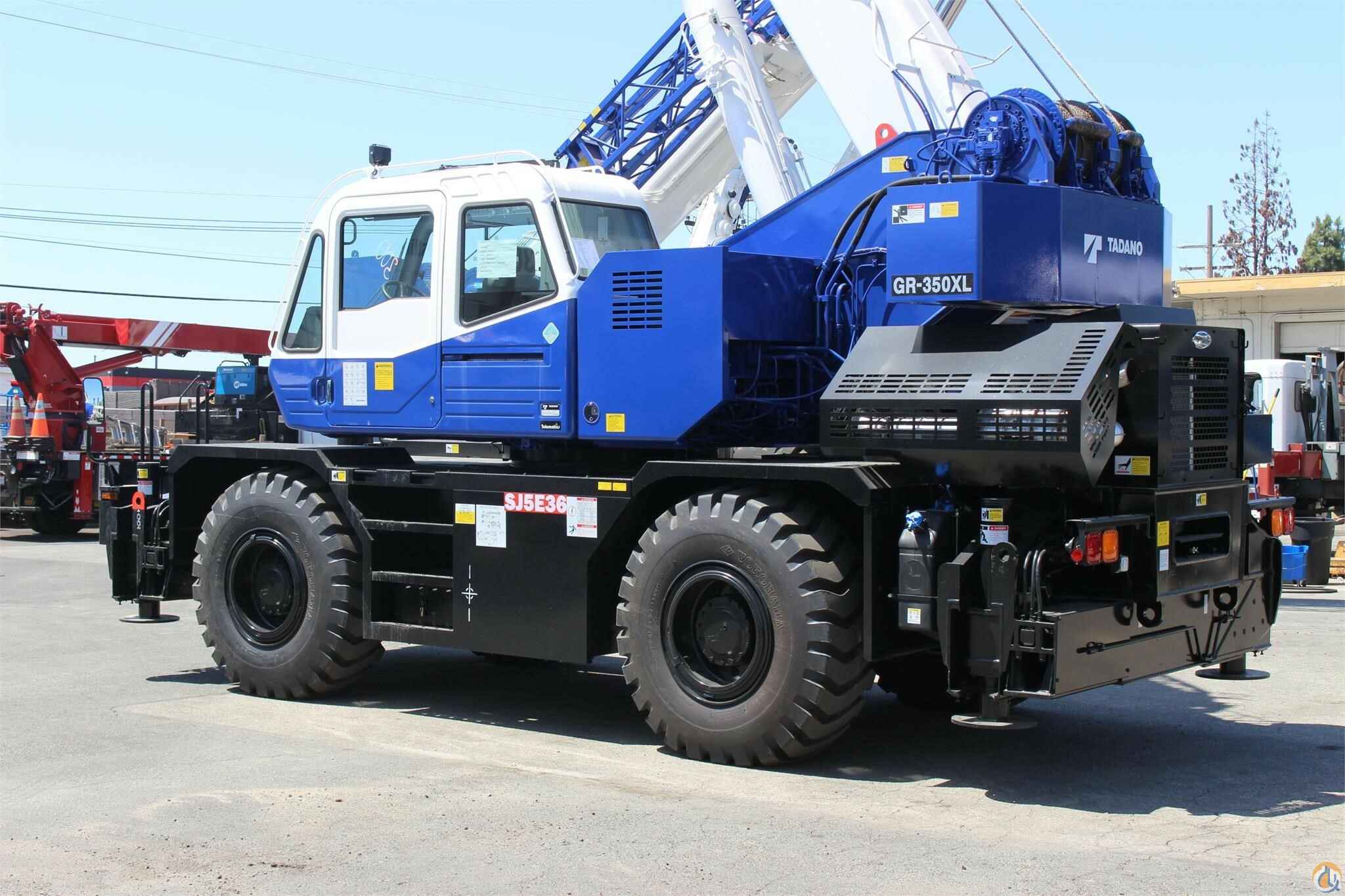

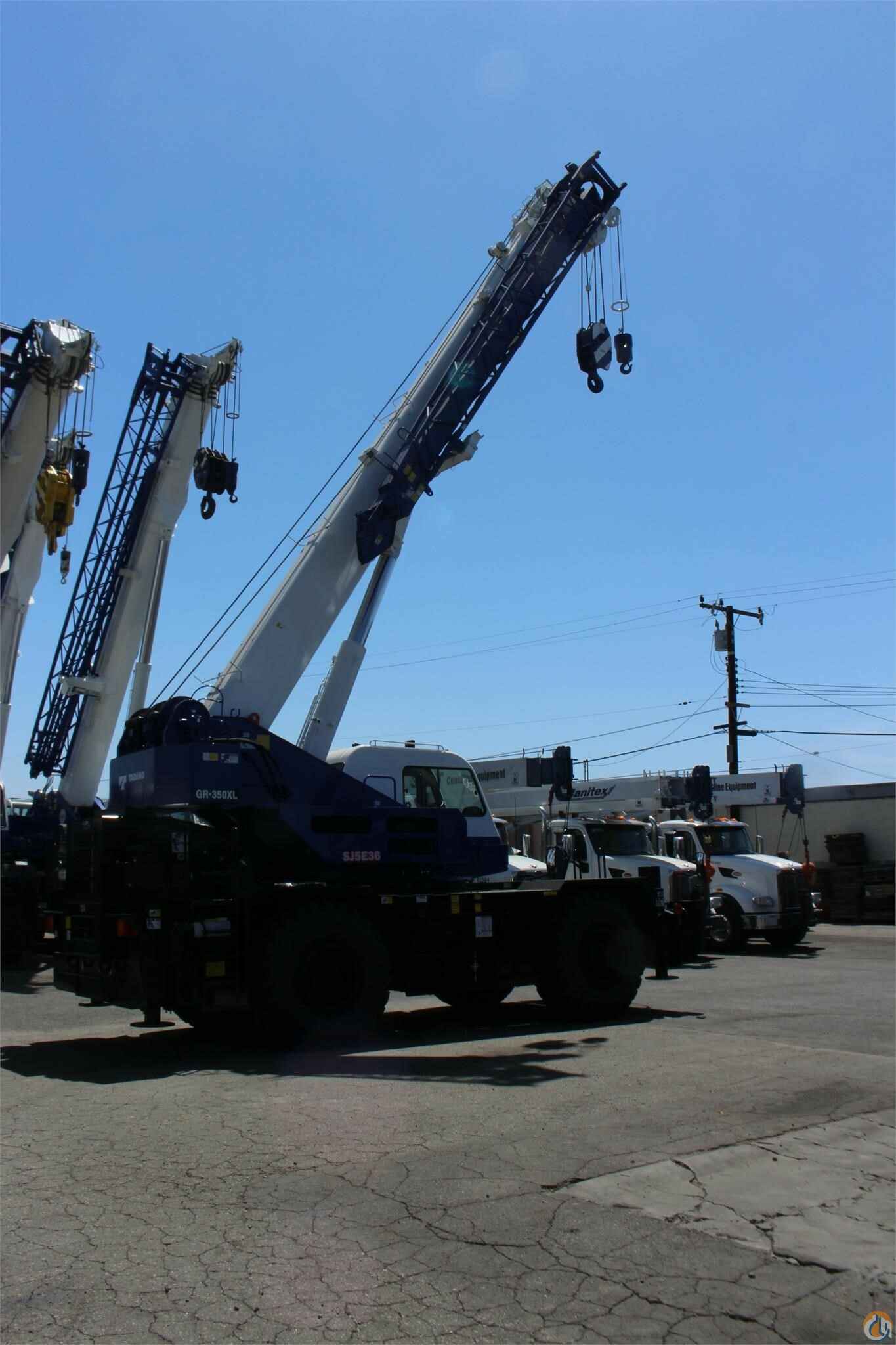

2023 TADANO GR350XL-3
35 TON CRANE
Standard features:
• Four Section full power partially synchronized boom 31.8’-101.7’
• 23.6’ or 42’ lattice jib (tilt type) with 5°, 25° or 45° pinned offsets and self-storing pins
• Auxiliary lifting sheave (single top) stowable
• Variable speed main hoist with grooved drum, cable follower and 558’ of 5/8” cable
• Variable speed auxiliary hoist with grooved drum, cable follower and 322’ of 5/8” cable
• Drum rotation indicator (audible, visible and thumper type) main and auxiliary hoist
• Anti-Two block device (overwind cutout)
• Boom angle indicator
• Tadano electronic load moment indicator system (AML-C)
• Outrigger extension length detector
• Electronic crane monitoring system
• Tadano twin slewing system and 360° positive slewing lock
• Self-centering finger control levers with pilot control
• Control pedals for boom elevating and boom telescoping
• 3-way adjustable cloth seat with armrests, high back and seat belt
• Tilt-telescoping steering wheel
• Tinted safety glass and sun visor
• Front windshield wiper and washer
• Roof window wiper and washer
• Power window (cab door)
• Rear view mirrors (right and left side)
• Cigarette lighter and ashtray
• Cab floor mat
• Pump disconnect in operator’s cab
• Hydraulic oil cooler
• Hot water cab heater and air conditioner
• Positive control
• Work lights
• Independently controlled outriggers
• Four outrigger extension positions
• Self-storing outrigger pads
• Cummins QSB6.7 TIER IV final turbo charged after cooled engine 235 HP with exhaust brake
• Electronic controlled automatic transmission driven by torque converter
• 4 X 4 X 4 drive/steer
• Non-spin rear differential
• Semi-elliptic leaf springs suspension with hydraulic lockout device (front and rear)
• 20.5-25(OR) tires
• Disc brakes
• Fenders
• Air dryer
• Water separator with filter (high filtration)
• Engine over-run alarm
• Back-up alarm
• Low oil pressure/high water temp. warning device (visual)
• Rear steer centering light
• Air cleaner dust indicator
• Full instrumentation package
• Complete highway light package
• Tool storage compartment
• Tire inflation kit
• 24 volt electric system
• 4.4 ton hook ball with swivel
• 35 ton – 4 sheaves with swivel hook block and safety latch for 5/8” wire rope
• Towing hooks - Front and rear
• Lifting eyes
• Hook block tie down (front bumper)
• Weighted hook storage compartment
• Halogen head lamp
• Telematics (machine data logging and monitoring system) with HELLO-NET via internet
• Fuel consumption monitor
• Eco mode System
