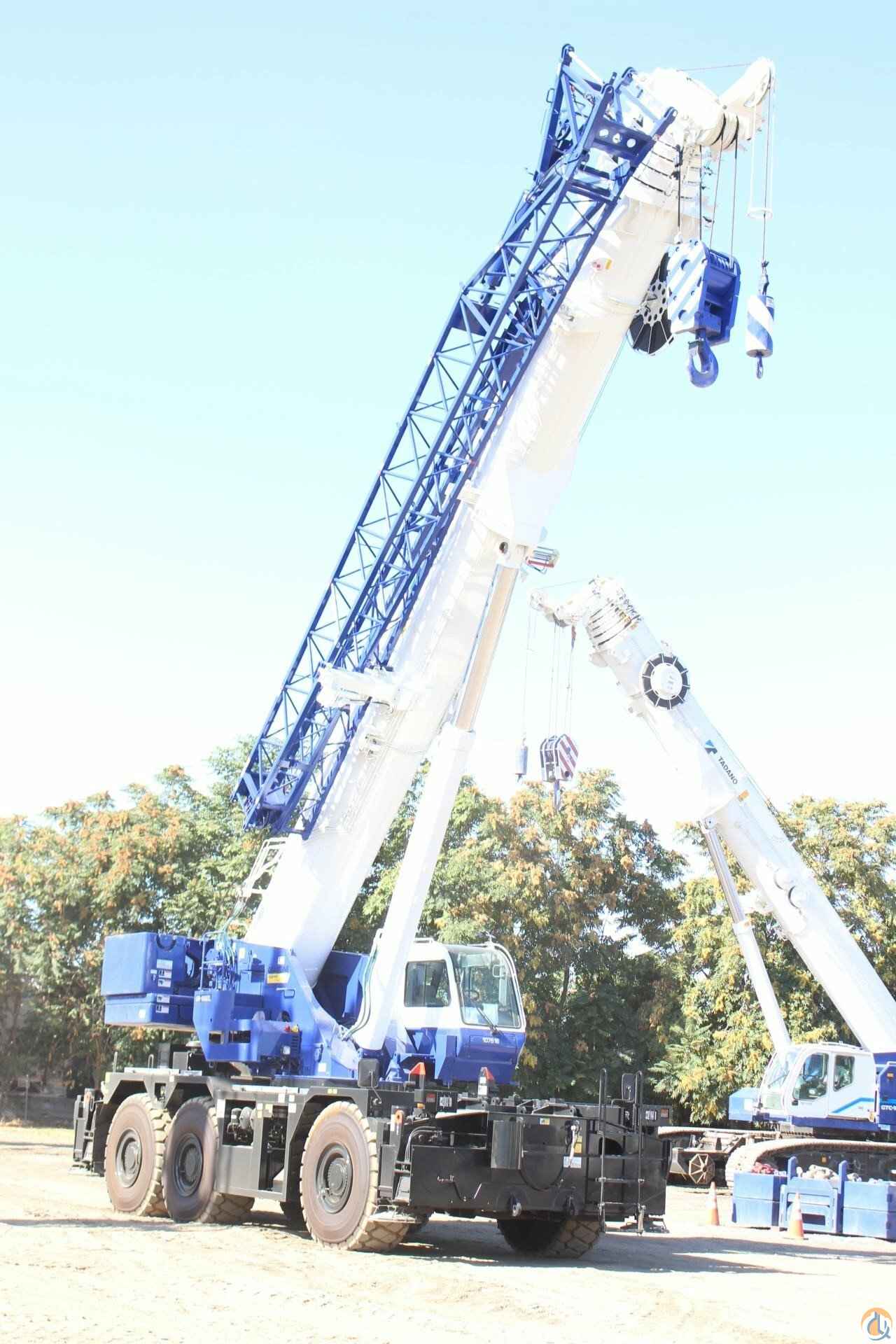

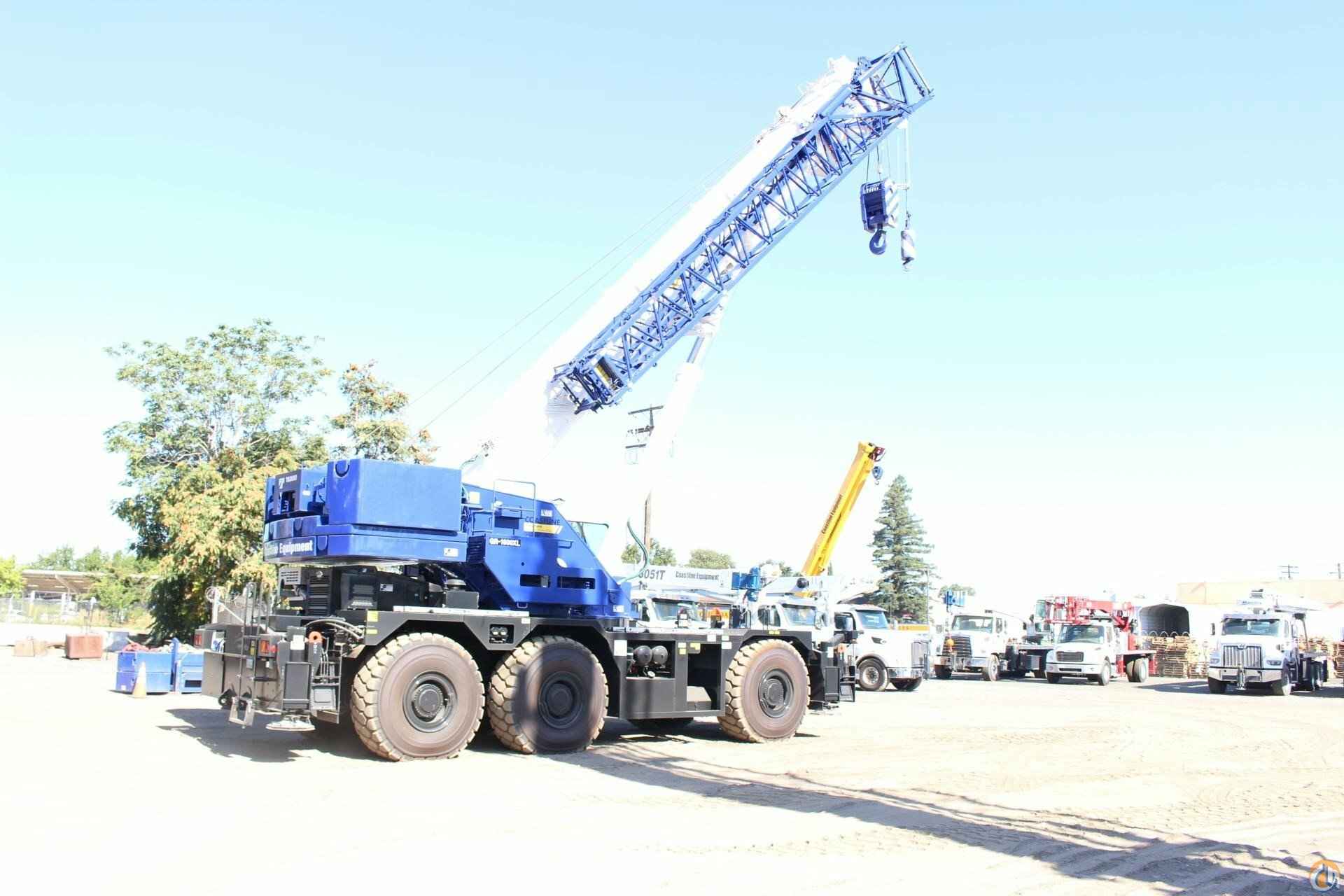

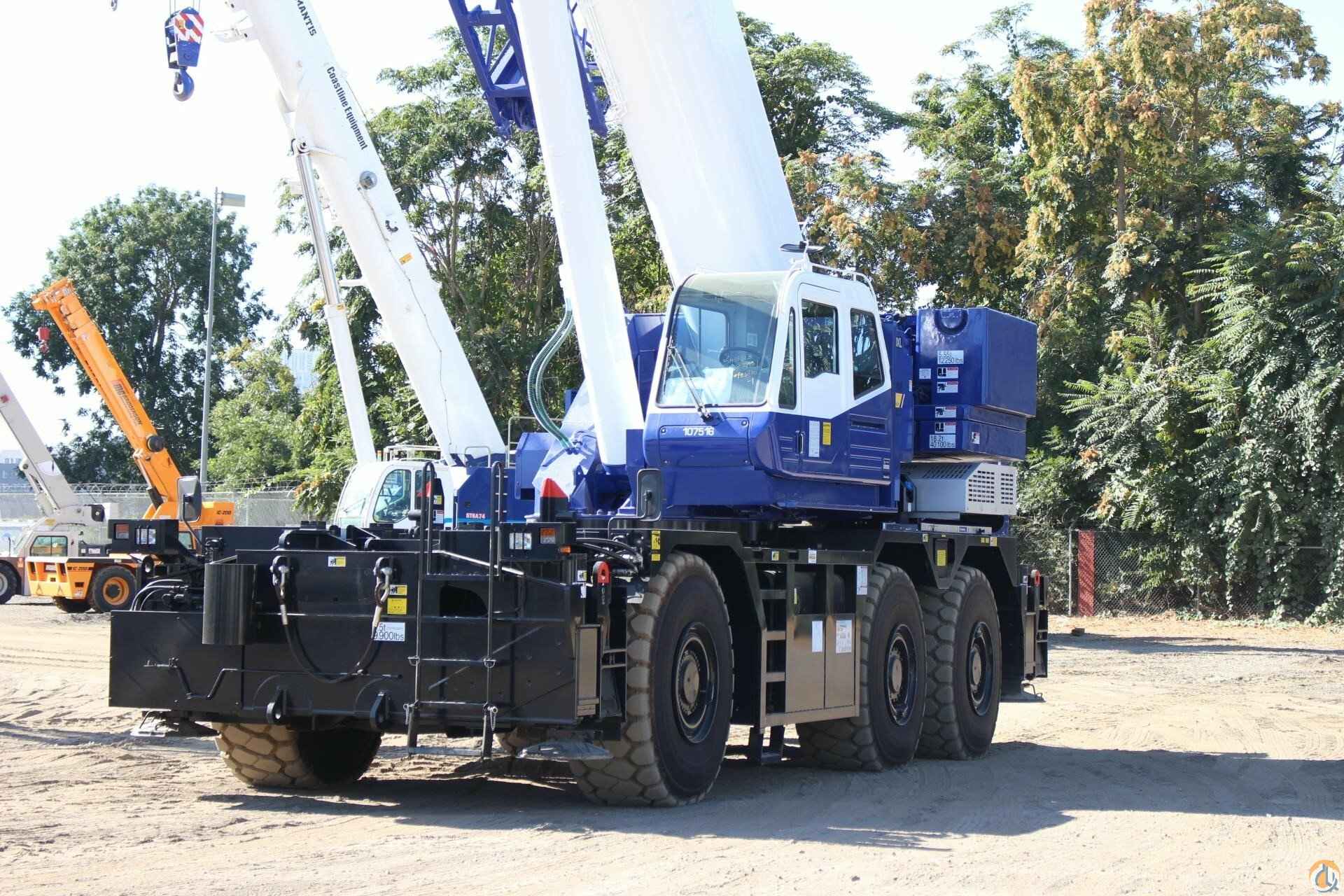

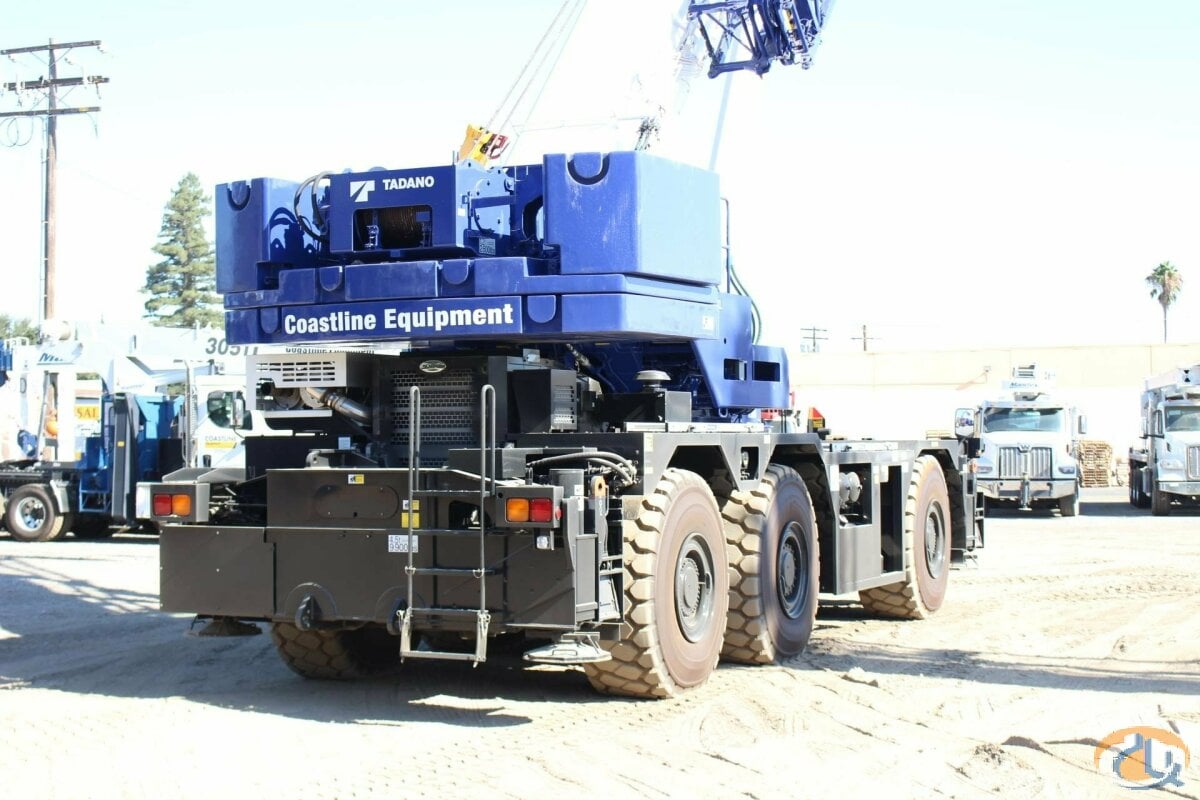

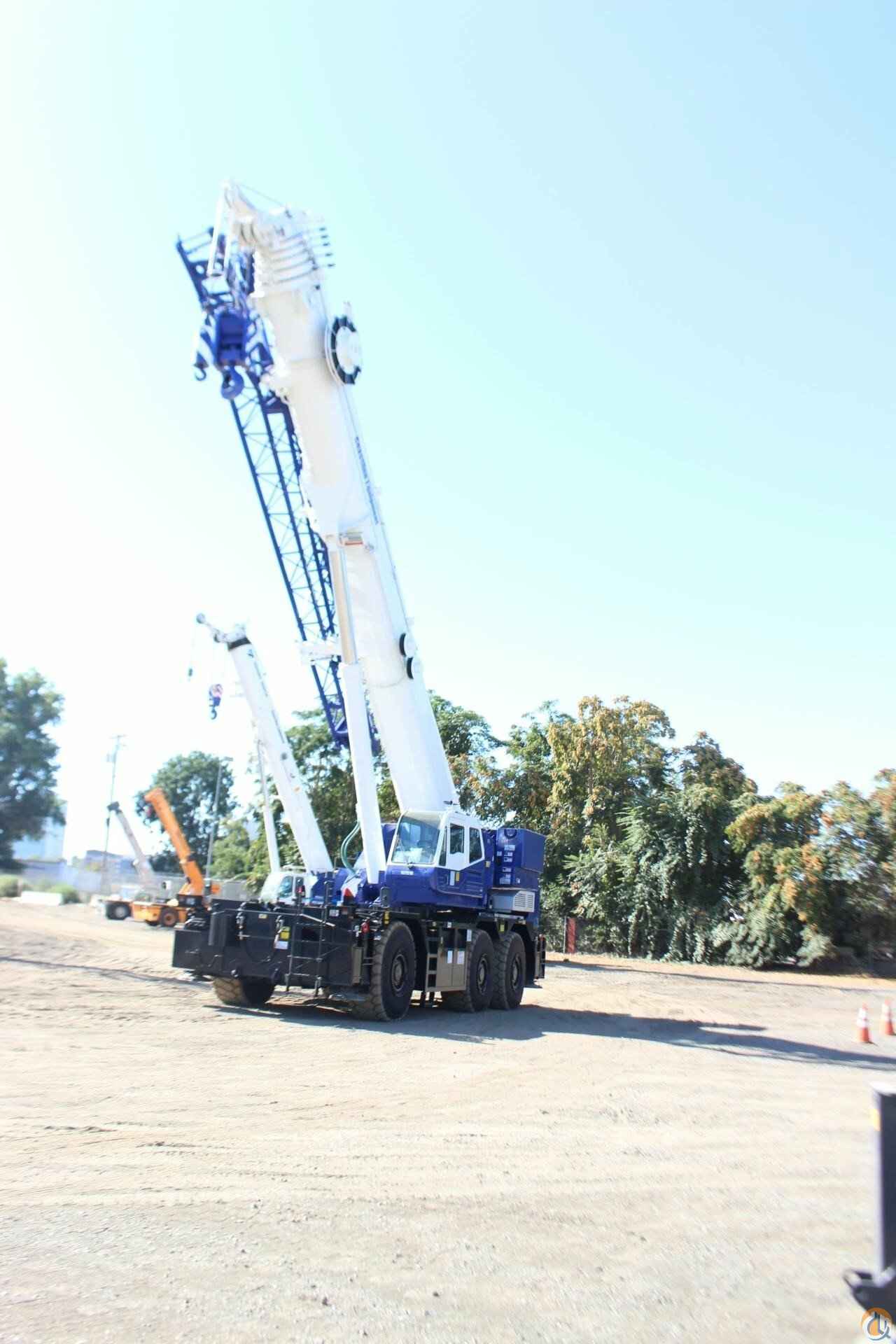

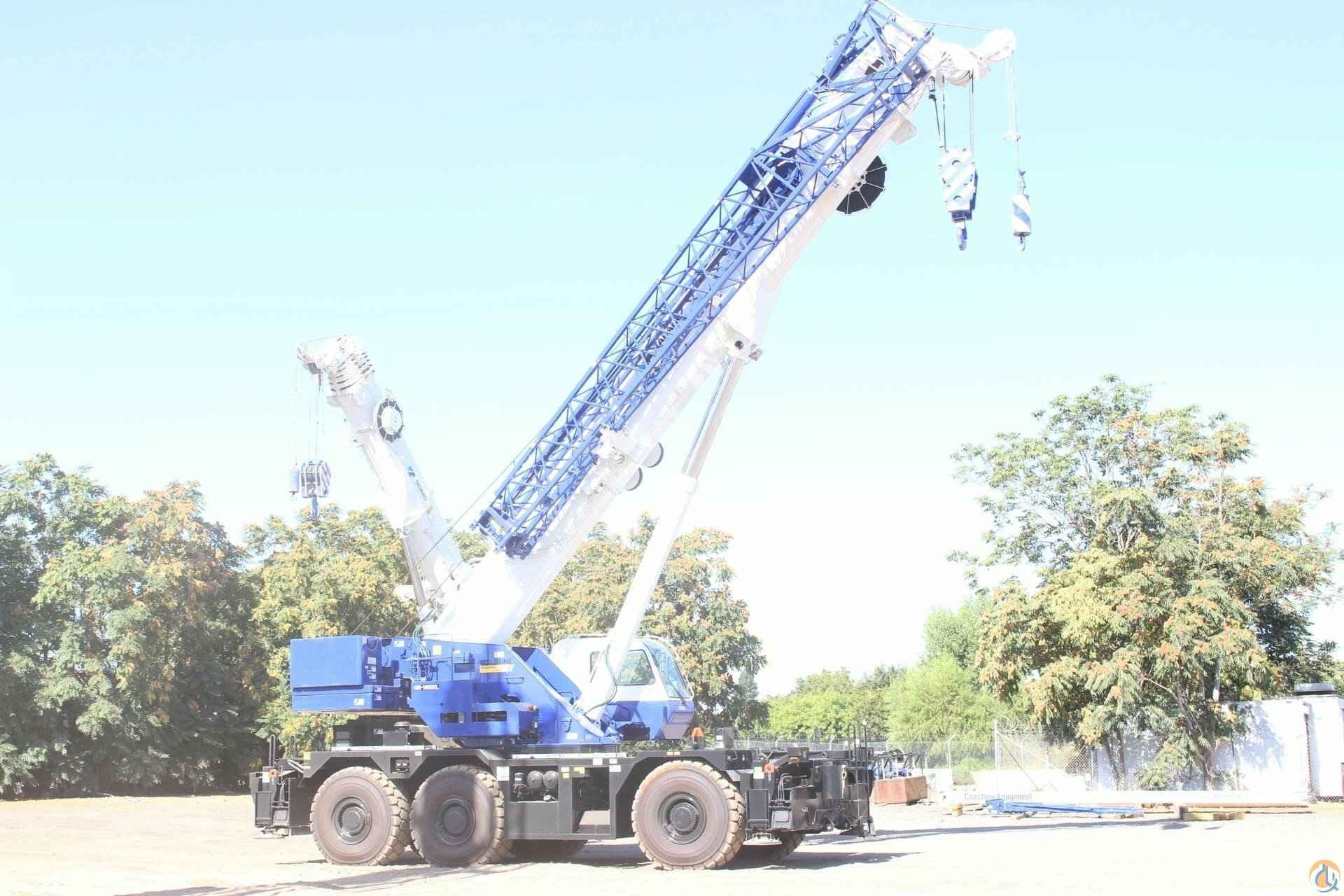

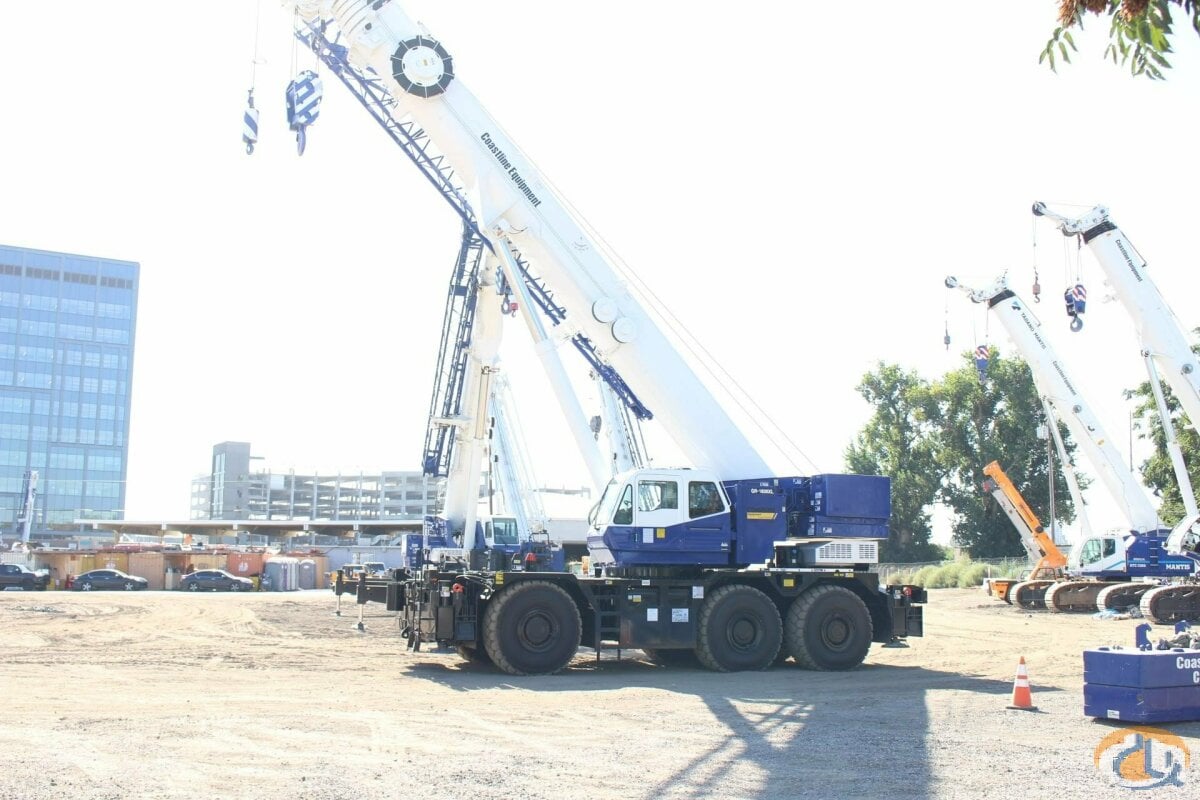

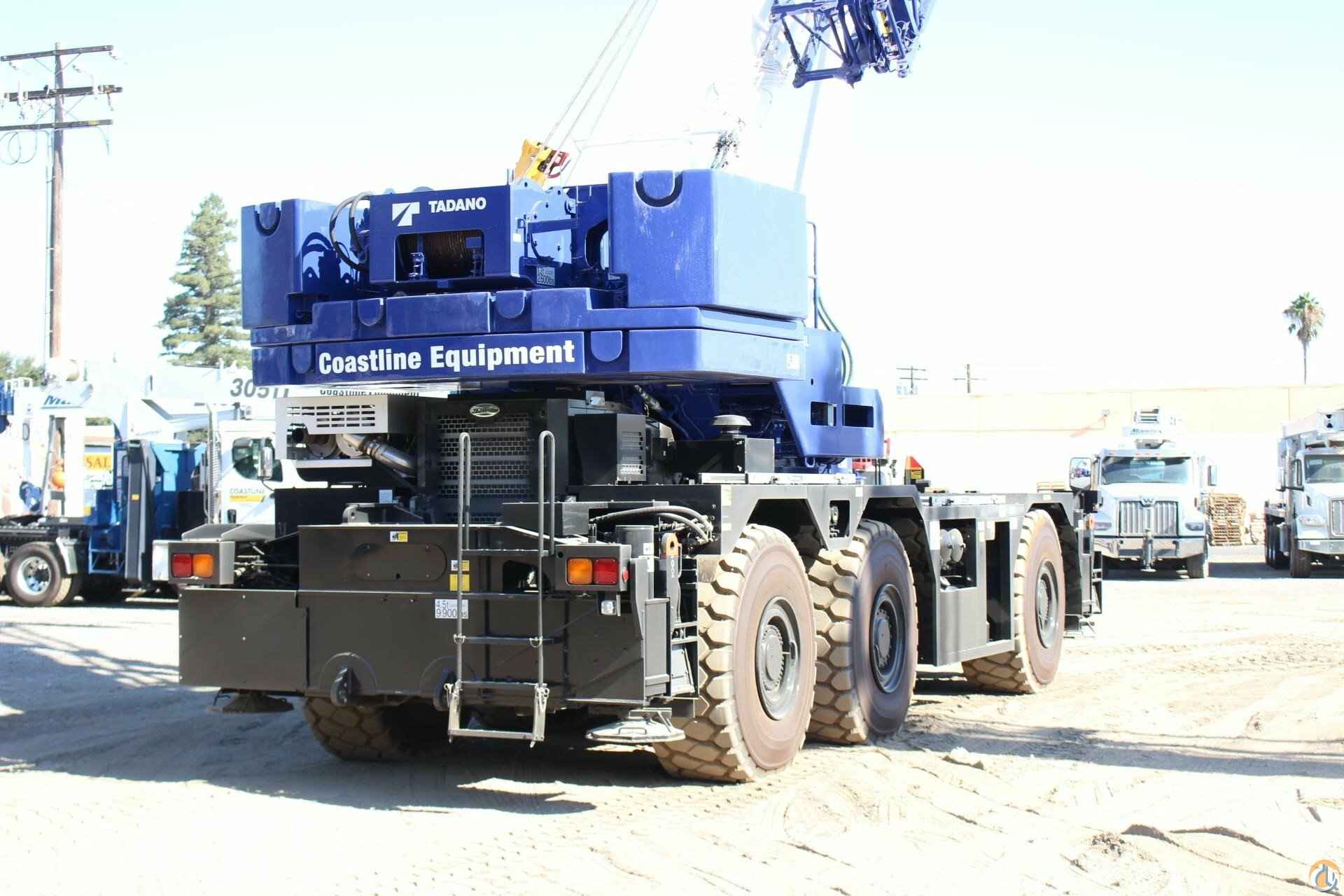

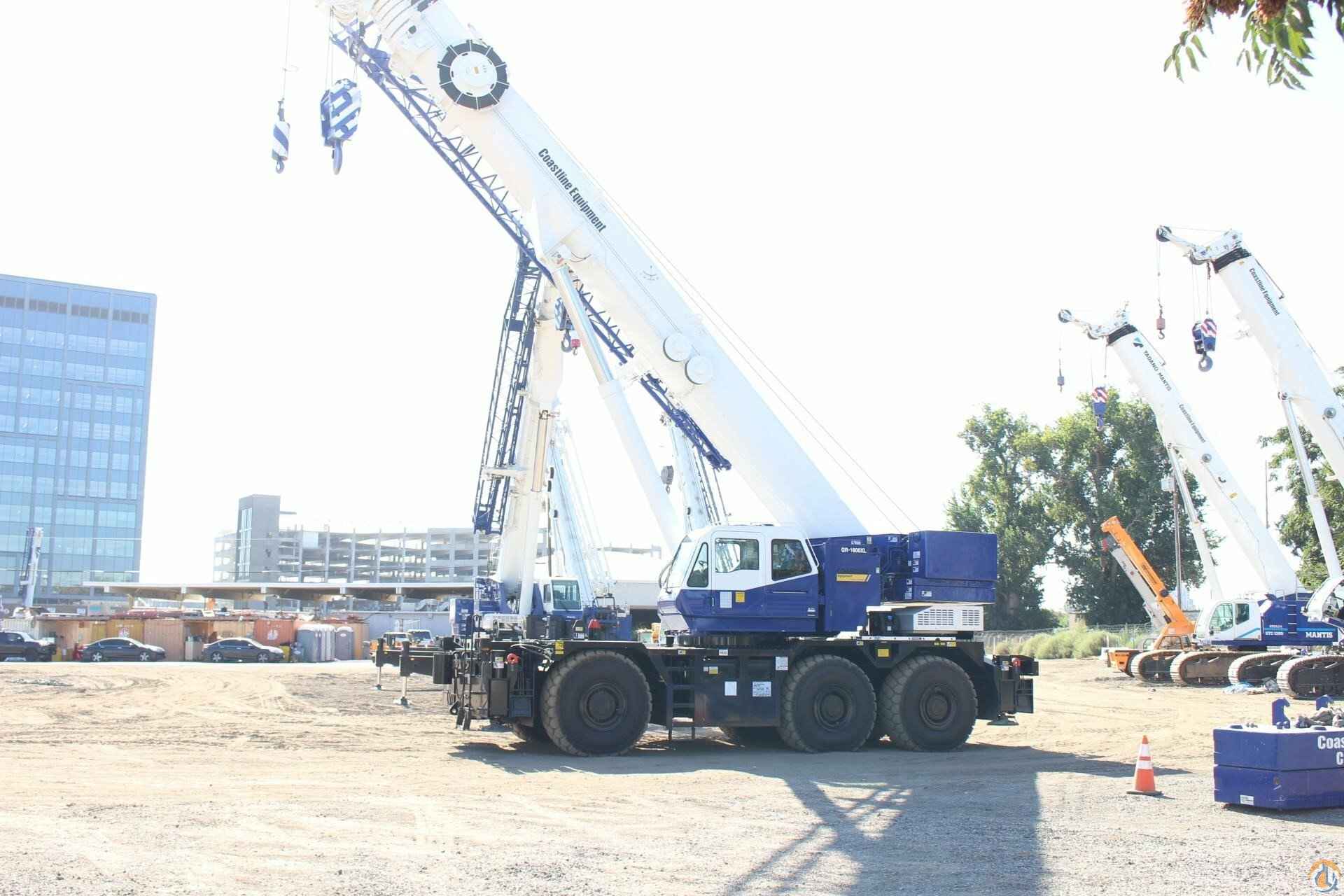

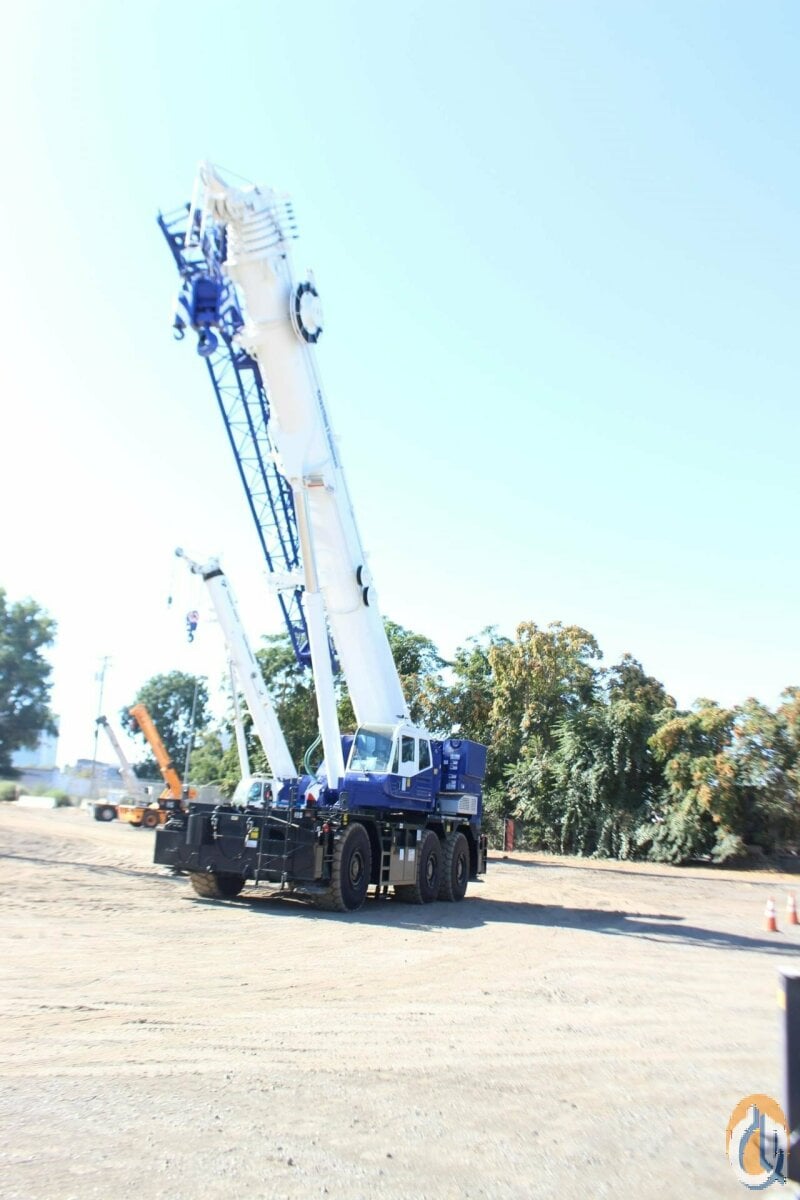

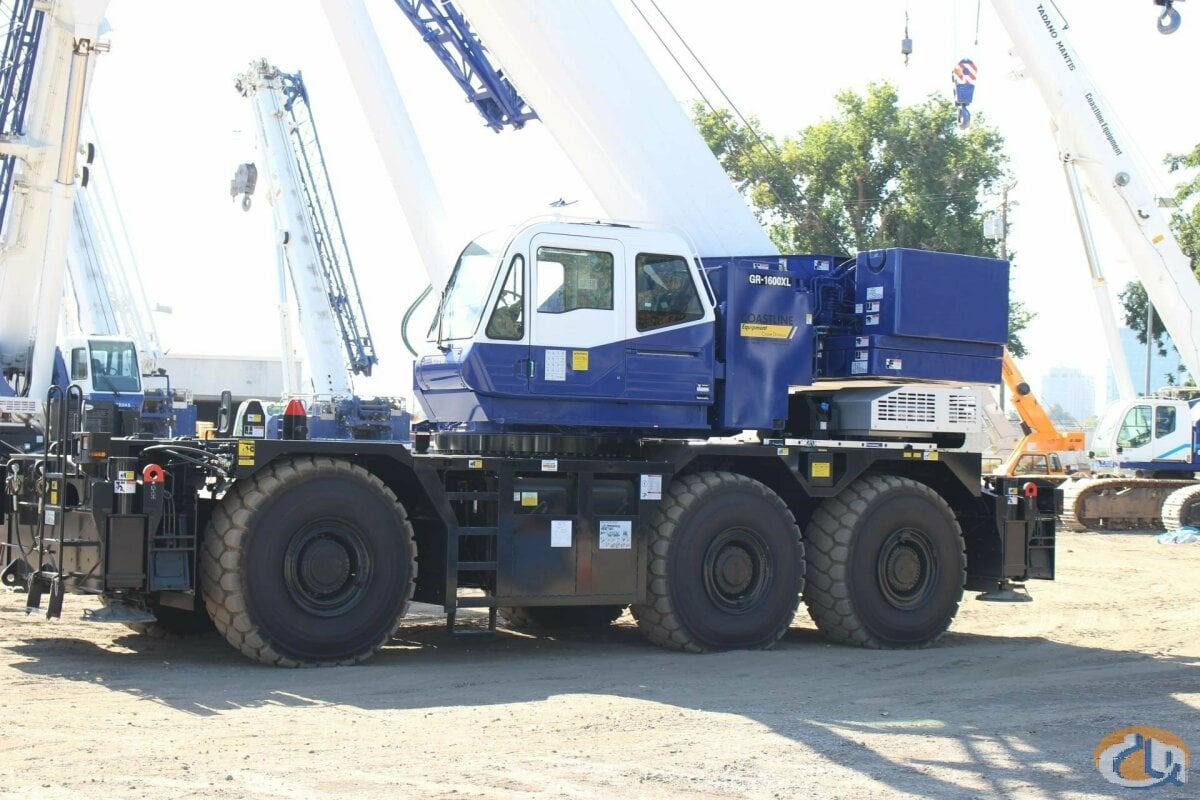

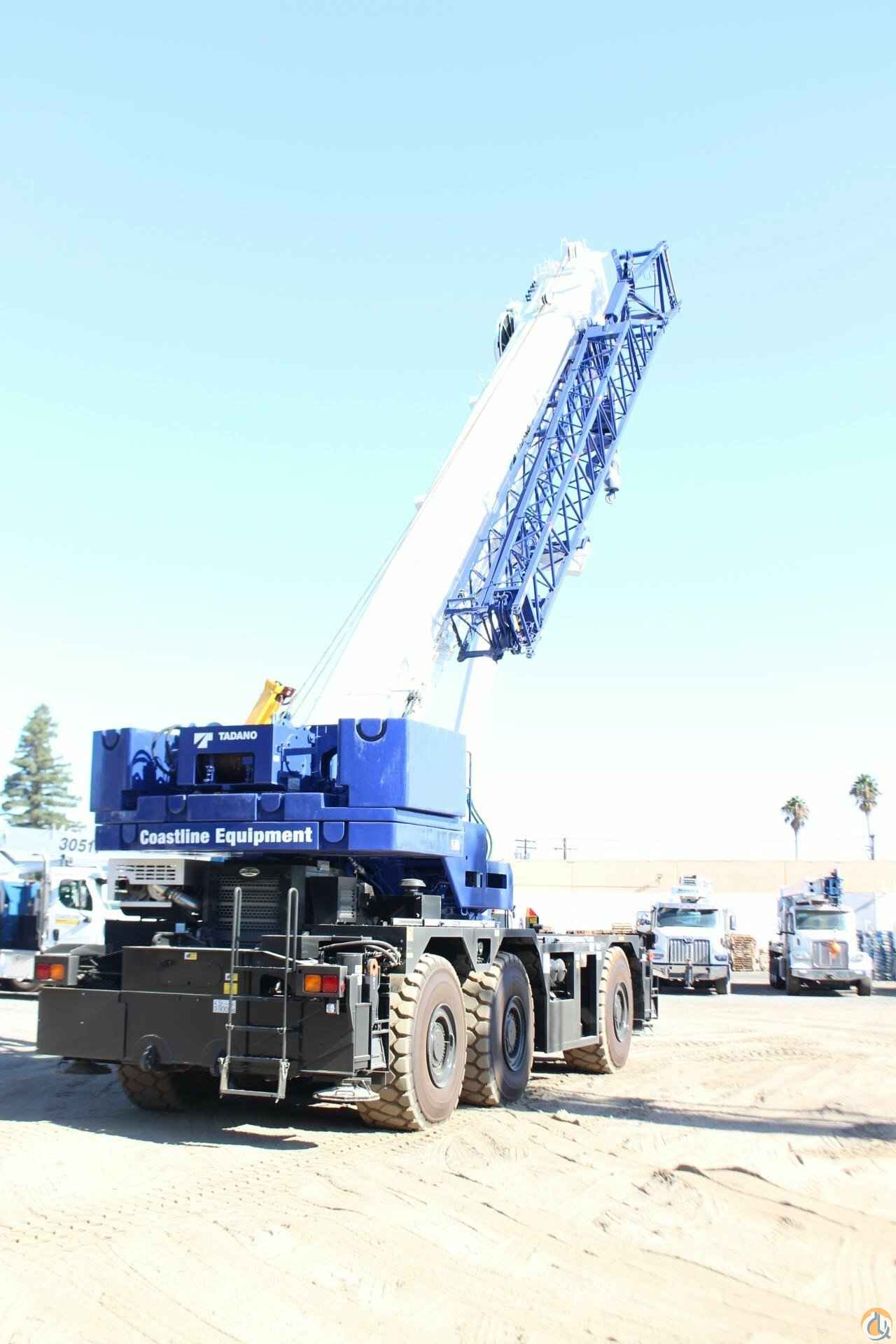

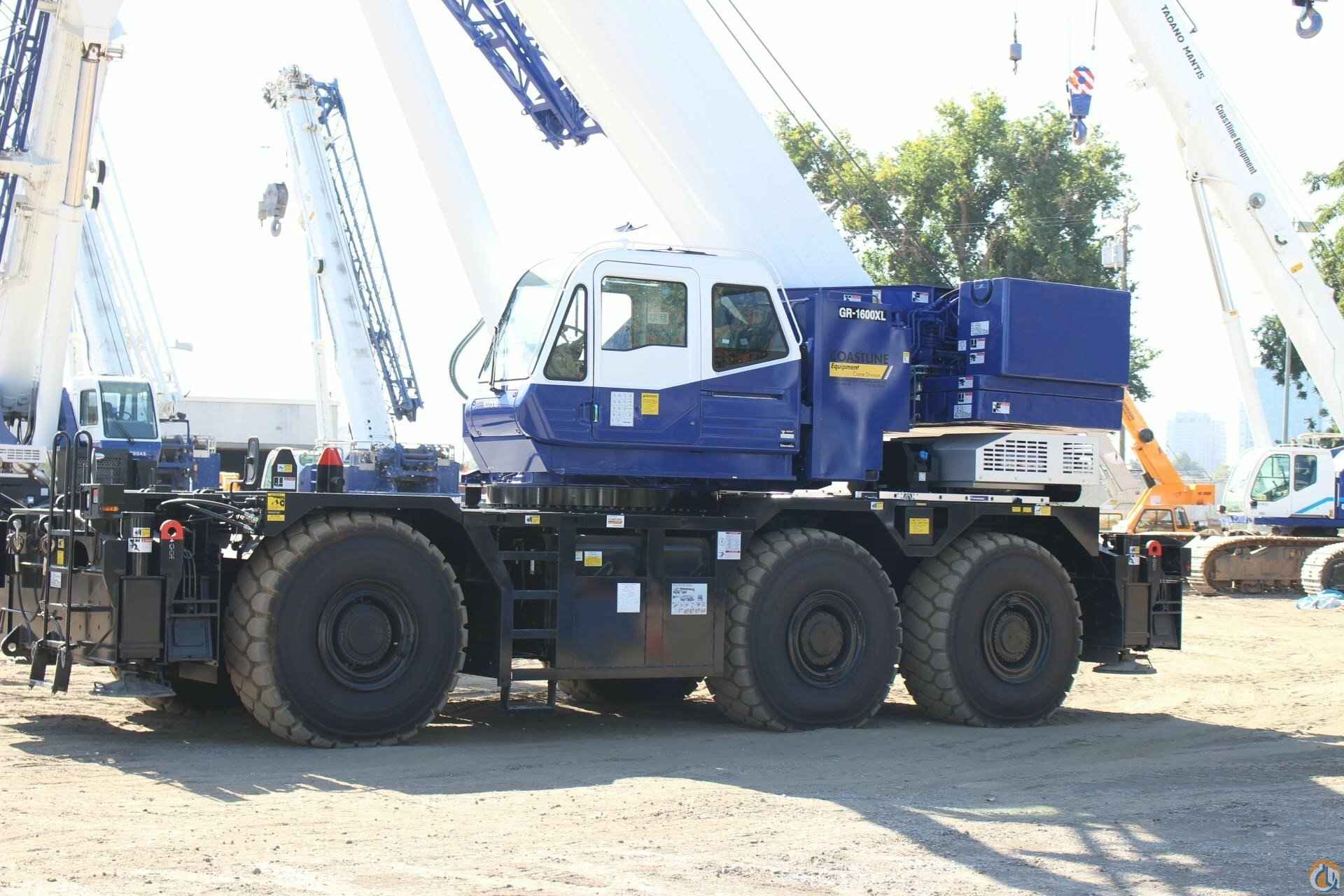

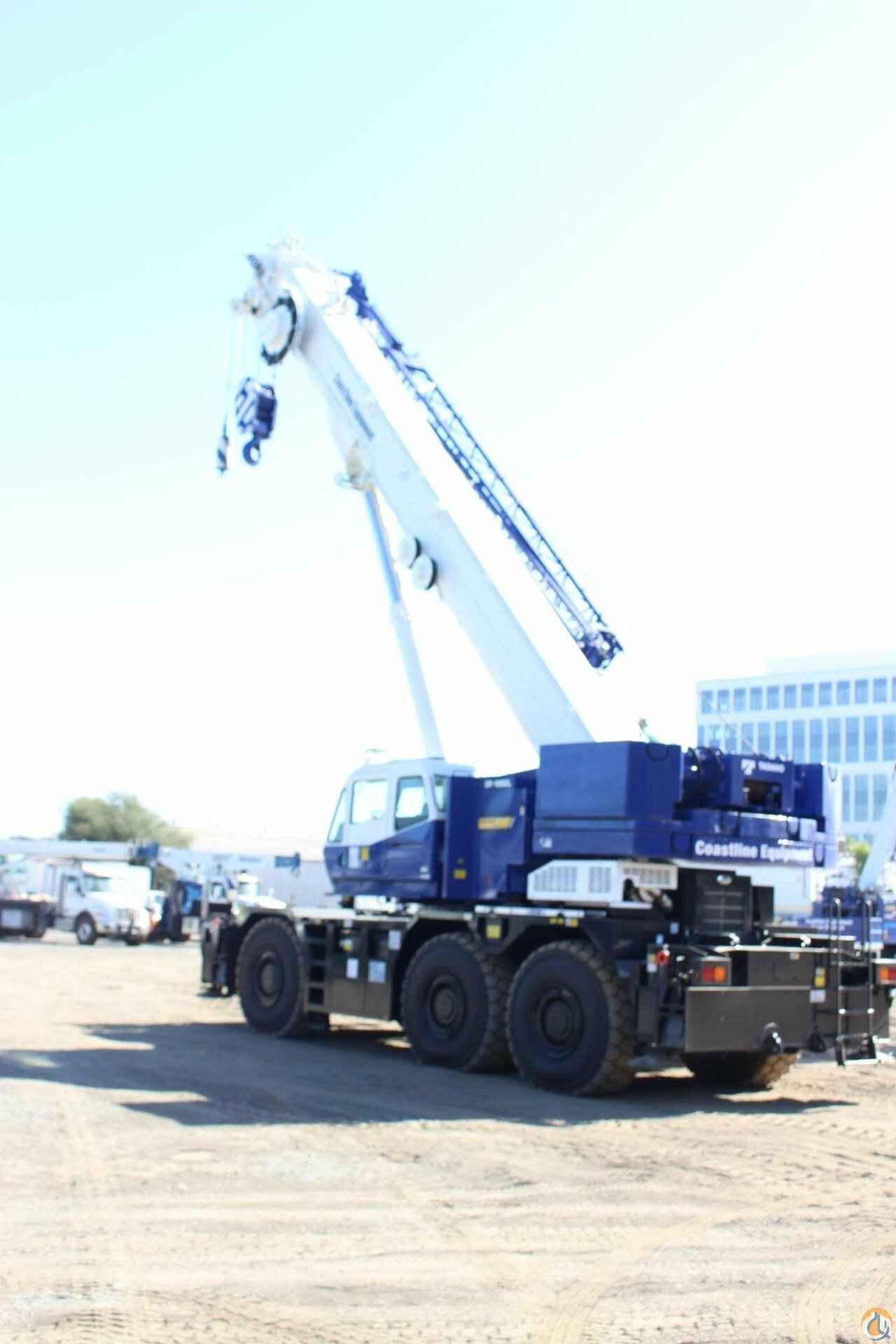

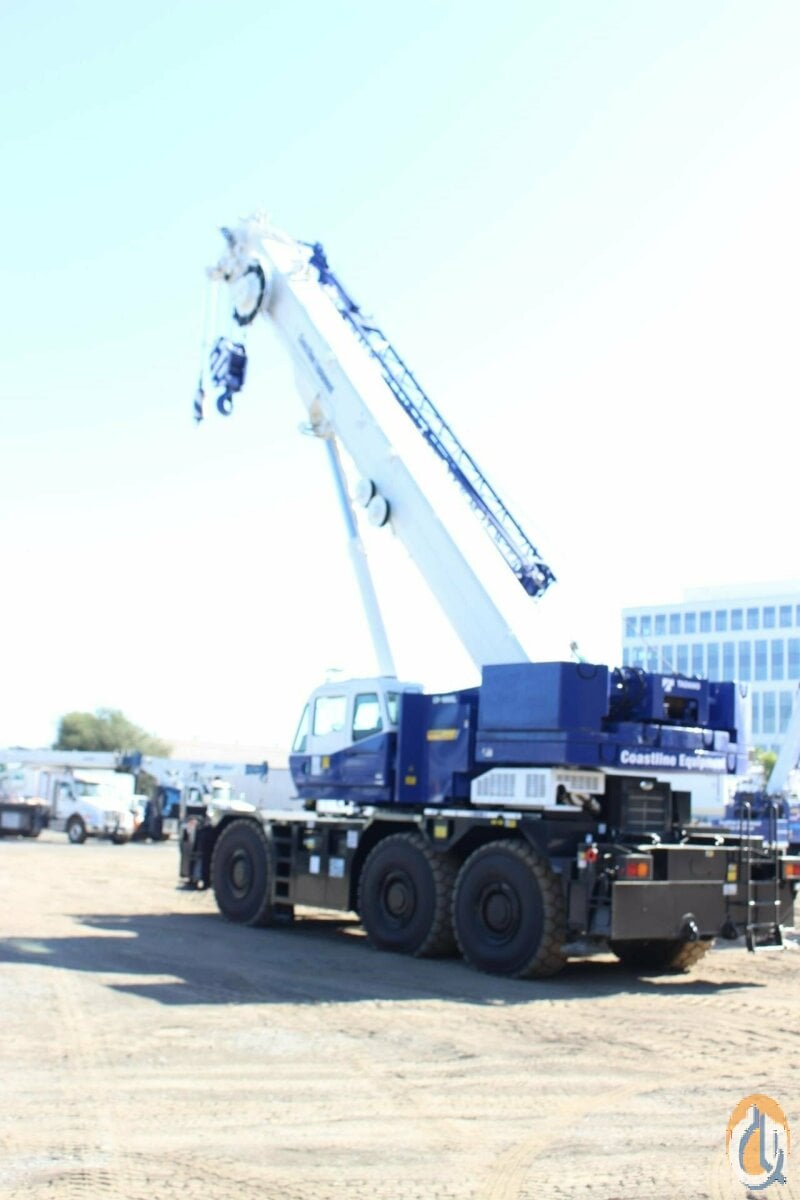

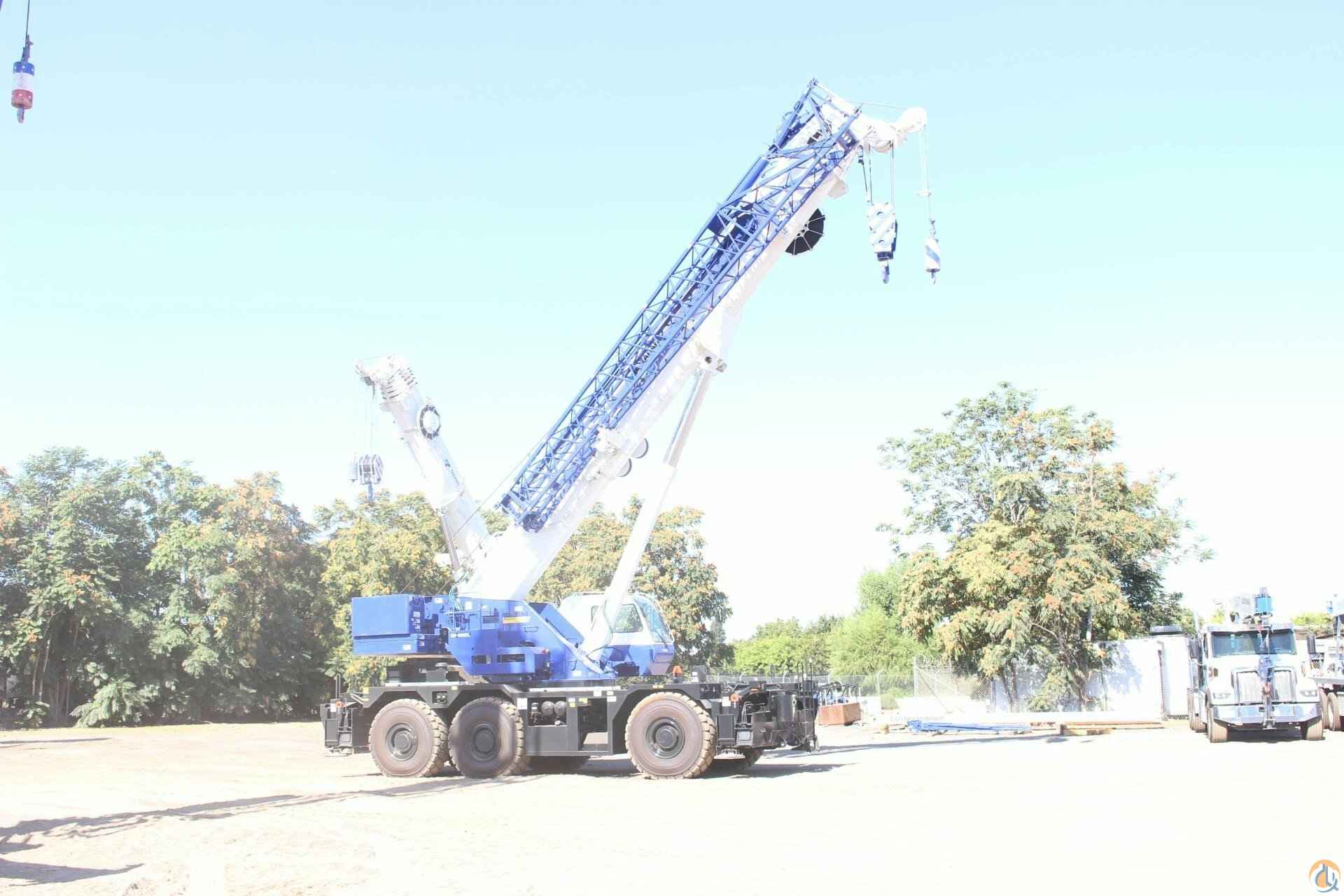

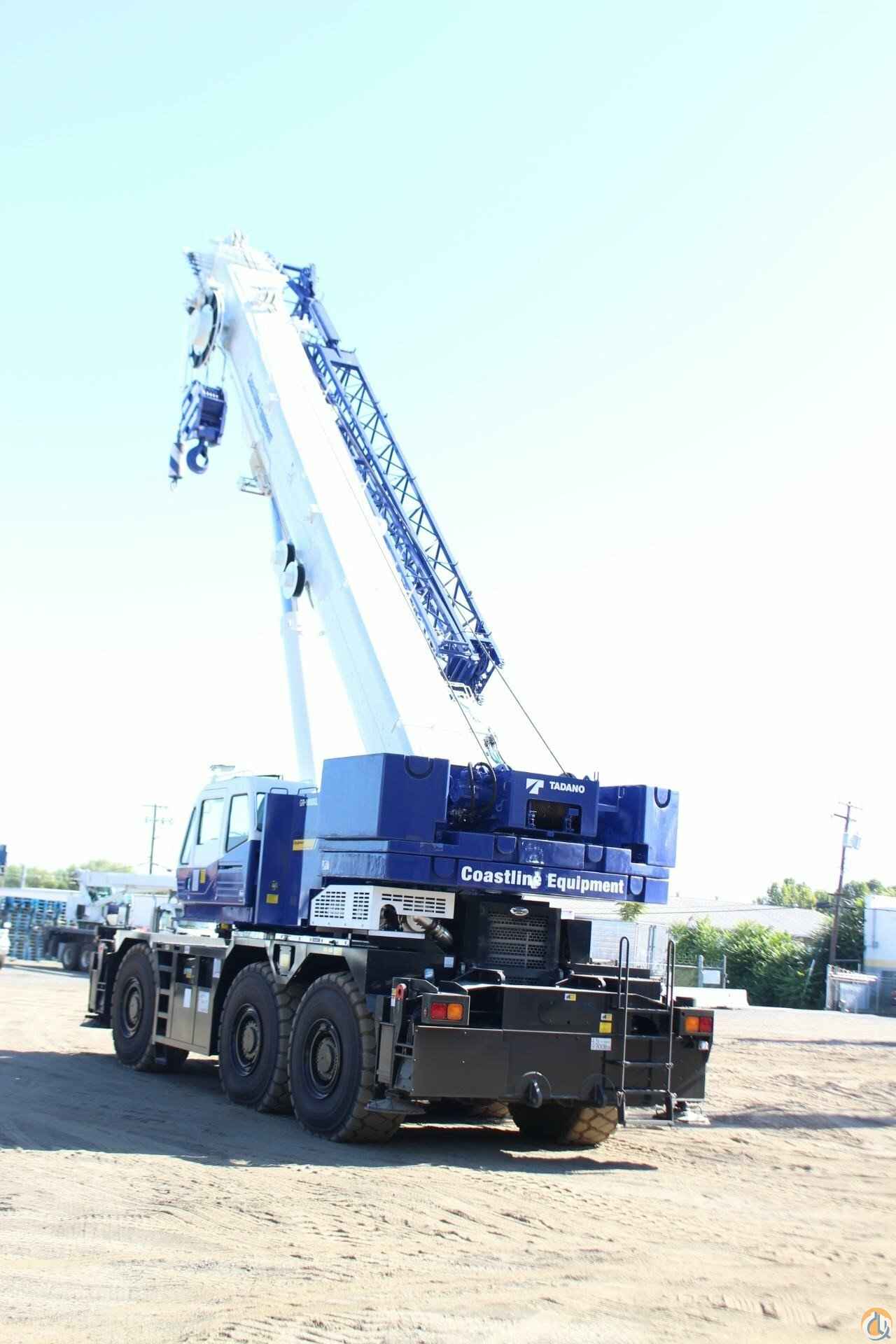

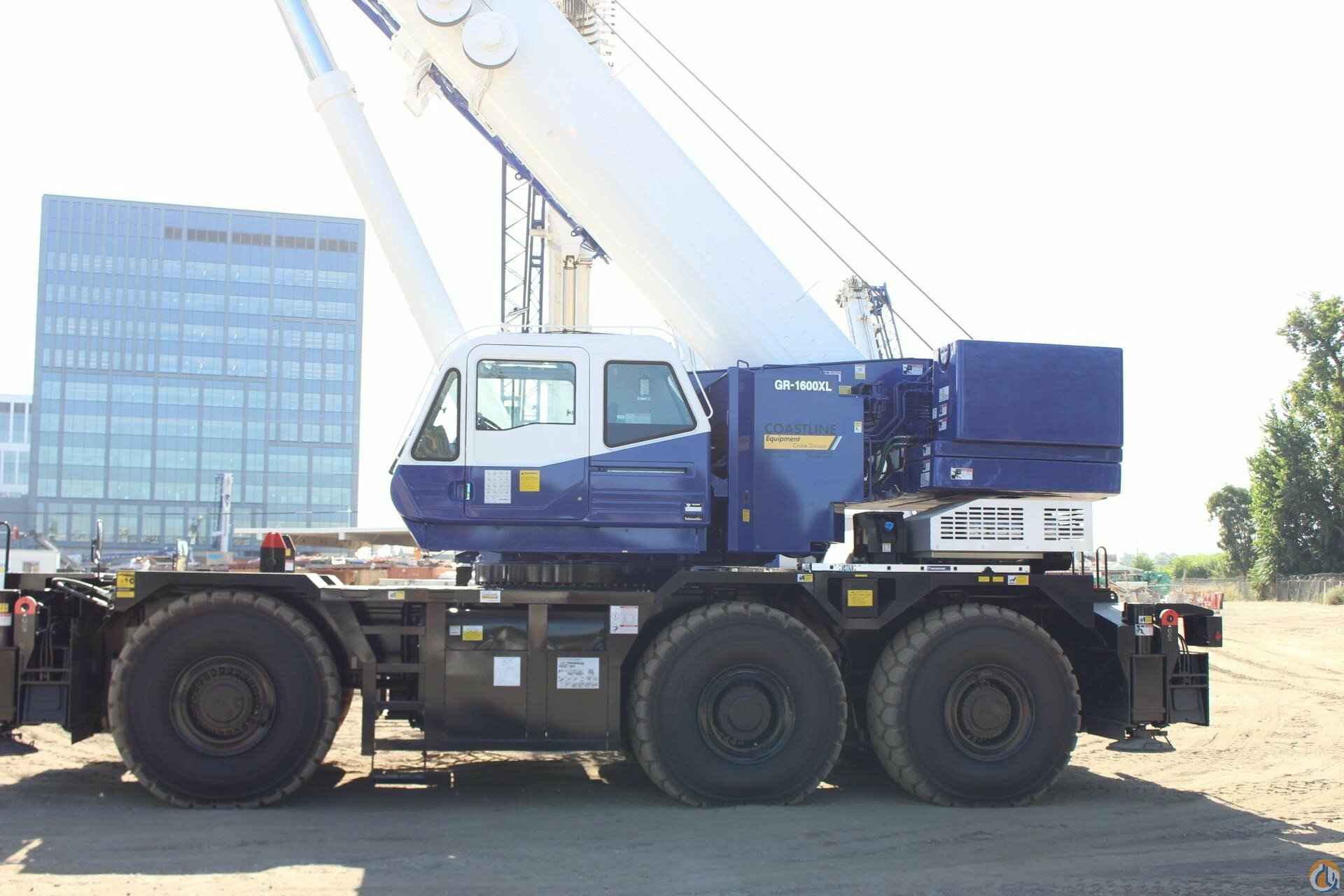

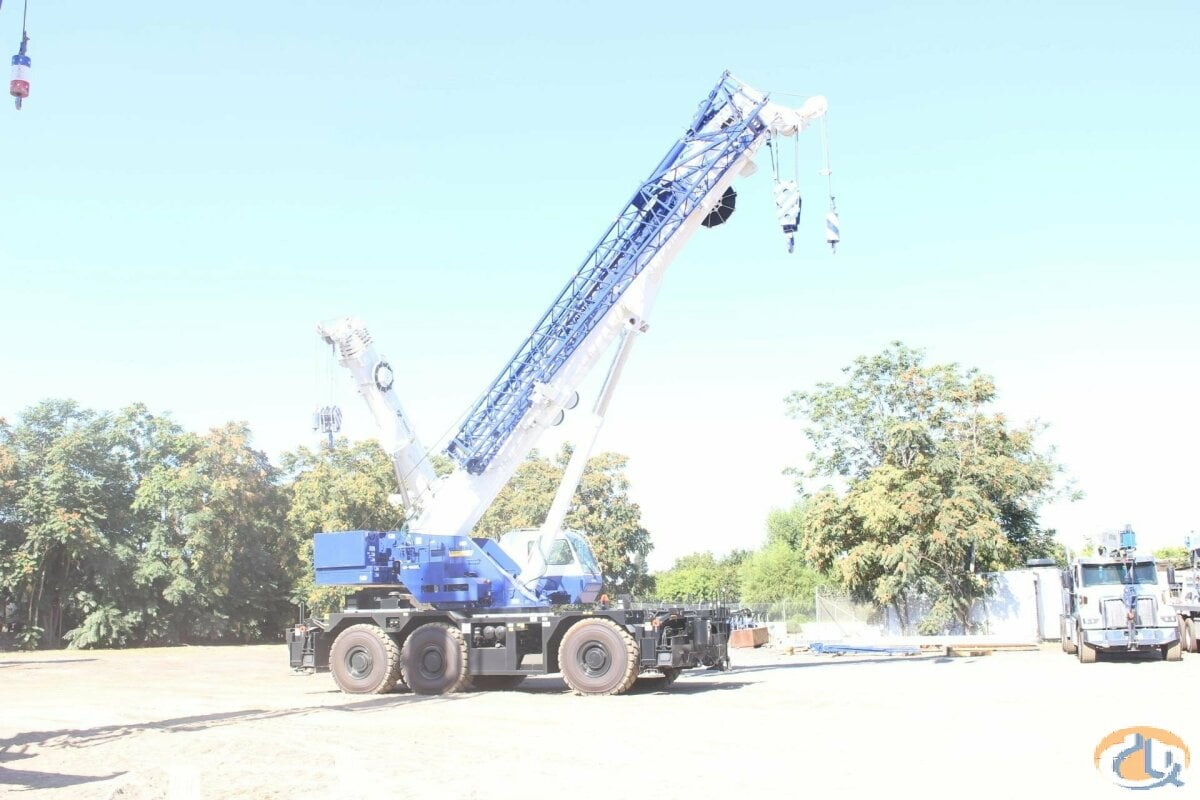

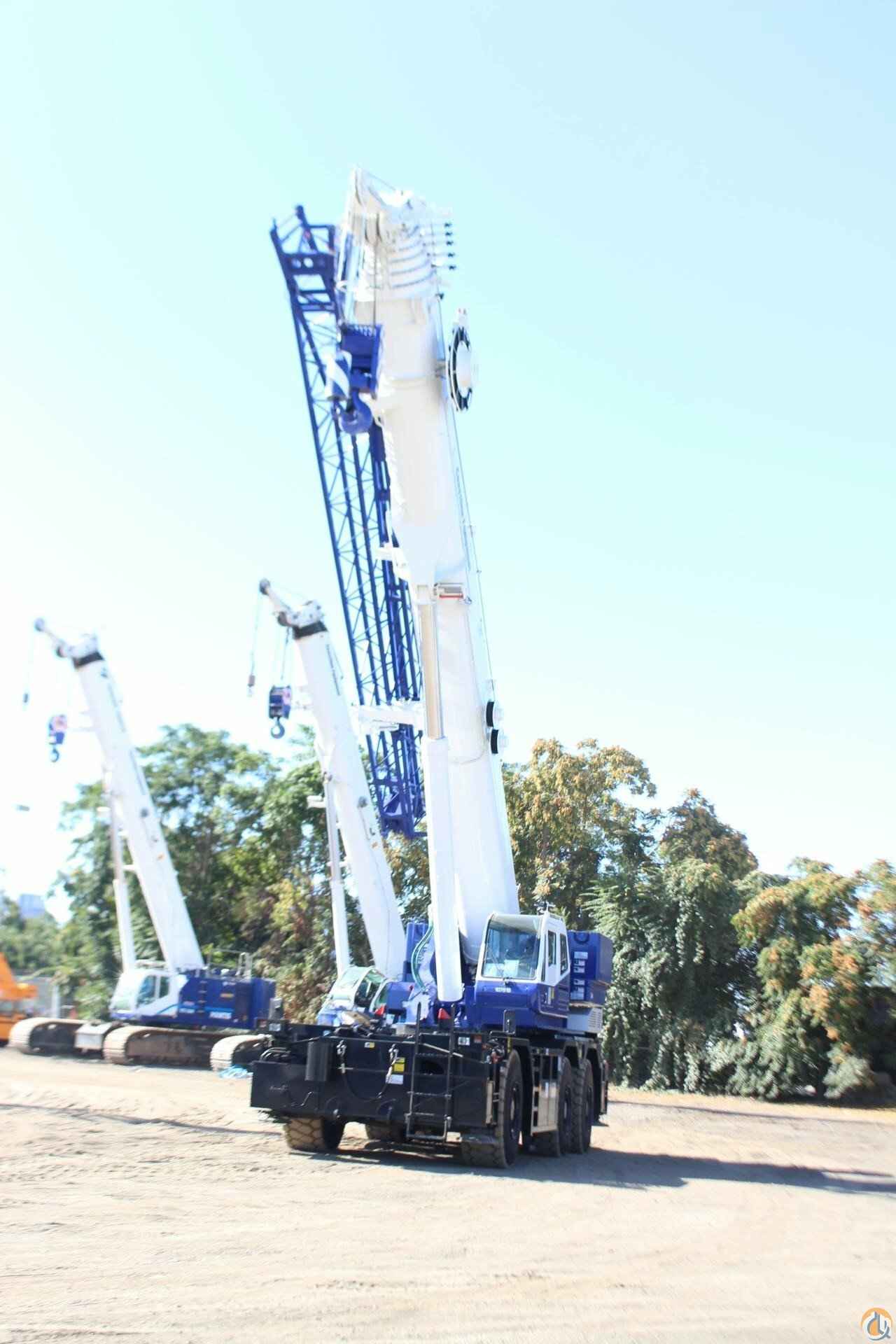

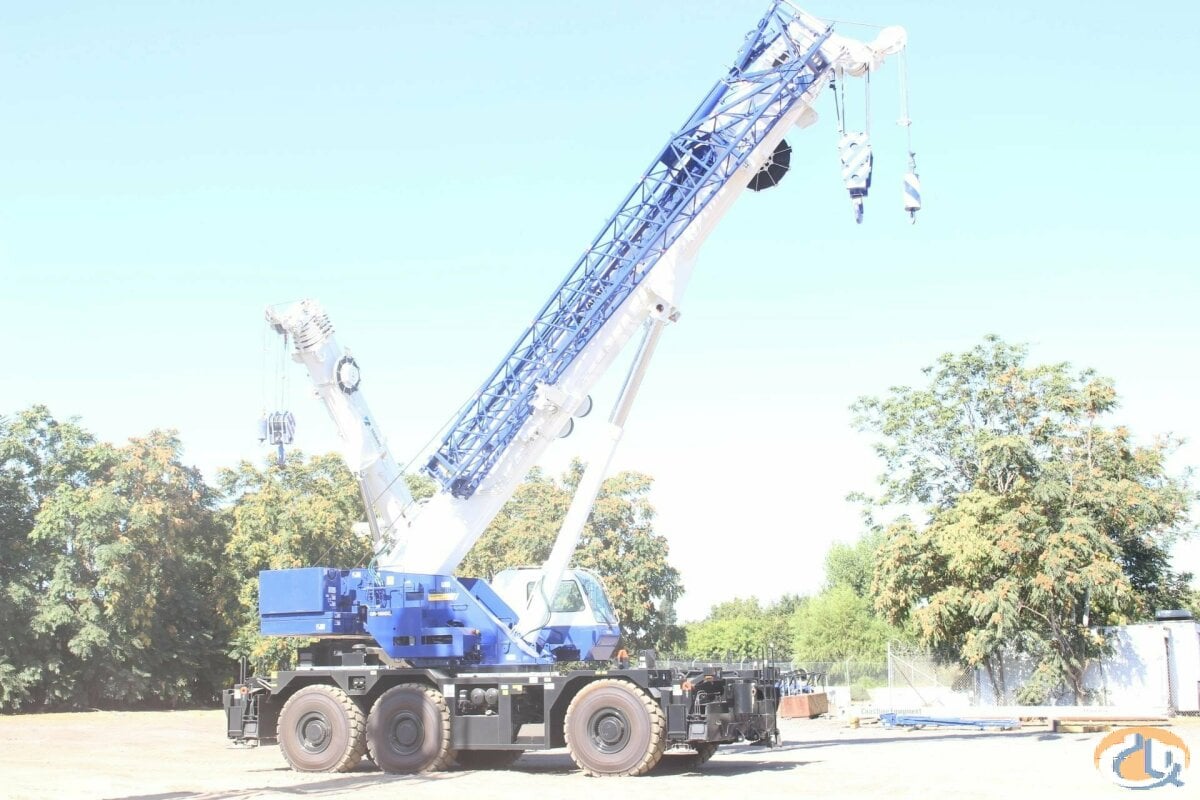

2026 TADANO GR1600XL
160 TON CRANE
Standard Features:
• Six-section boom, single cylinder telescoping with pinning system 42.8’-200.1’
• 33.8’ or 59.1’ bi-fold lattice jib with 0 °, 20 ° or 40 ° hydraulic offsets and self-stowing pins.
• Quick reeving type bi-fold jib
• Auxiliary lifting sheave (single top) storable
• Variable speed main hoist with grooved drum, cable follower and 1050’ of 3/4” cable.
• Variable speed auxiliary hoist with grooved drum, cable follower and 738’ of 3/4” cable
• Drum rotation indicator (audible, visible and thumper type) main and auxiliary hoist
• Anti-two block device (overwind cutout) and lower limit (3rd wrap)
• Boom angle indicator
• Tadano electronic load moment indicator system (AML-C)
• Outrigger extension length detector
• Tadano twin slewing system and 360 ° positive slewing lock
• Tilting cab
• Self-centering finger control levers with pilot control
• Control pedals for boom elevation and boom telescoping
• 3-way adjustable cloth seat with armrests, high back and seat belt
• Tilt telescoping steering wheel
• Tinted safety glass and sun visor
• Front windshield wiper and washer
• Roof window wiper and washer
• Power window (cab door)
• Rear view mirrors (right and left side)
• Mirror for main and auxiliary hoists
• Cigarette lighter and ashtray
• Cab floor mat
• Pump disconnect in operator’s cab
• Hydraulic oil cooler
• Air conditioner (hot water heater and cooler)
• Positive control
• Work lights
• Independently controlled outriggers
• Four outrigger extension positions
• Cummins QSB6.7 turbo charged after cooled engine 270 HP with exhaust brake (TIER 4 FINAL)
• Electronic controlled automatic transmission driven by torque converter
• 6 X 4 X 6 drive/steer
• Automatic 2nd and 3rd axle oscillation lock out system
• 26.5 R25 tires
• Disc brakes
• Fenders
• Air dryer
• Water separator with filter (high filtration)
• Engine over-run alarm
• Back up alarm
• Low oil pressure high water temp. warning device (visual)
• 2nd and 3rd steer centering light
• Air cleaner dust indicator
• Tool storage compartment
• Tire inflation kit
• 24 volt electric system
• 7.9 ton hook ball with swivel
• 110 ton – 7 sheaves with swivel hook block and safety latch for 3/4” wire rope
• Weighted hook storage compartment
• Hook block tie down (front bumper)
• Towing hooks - Front and rear
• Lifting eyes
• Halogen head lamp
• Telematics (machine Data logging and monitoring system) with HELLO-NET via internet
• Fuel consumption monitor
• Eco mode system
• Self-removable counterweight (40,100 + 24,500 = 64,600lbs)
• Self-removable outrigger boxes
• Emergency steering assist
• Anemometer
• Aircraft warning light
• Boom removal assist system
